基于Vue+Three.js实现三维油藏模型解析与可视化交互切割操作

最近为了实现油藏模型的解析与三维可视化操作，对three.js和eclipse绘制的三维油藏模型格式解析进行了研究，实现了三维油藏模型可视化及简单交互操作。主要实现了三维油藏模型构建、解析加载和三维可视化交互，并根据油藏属性（如孔隙度PORO）等进行层位显示，同时支持按照X/Y/Z轴切割显示，以及任意多边形、任意点的切割显示，具体如下，供大家参考。

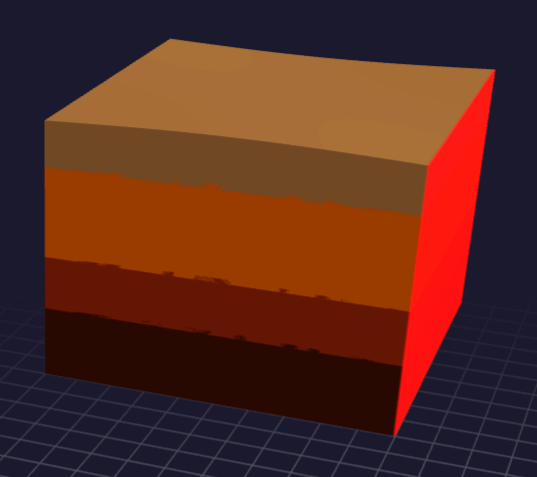

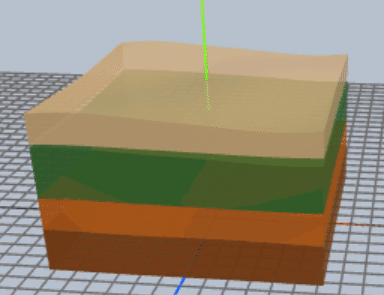

一、基于Theejs实现油藏模型的三维可视化效果图

二、主要核心代码

主要基于Vue或HTML+Three.js，实现了三维油藏模型解析加载、三维显示、油藏属性填充显示、可视化交互操作，以及三维空间的多种切割交互及显示等。以下主要是第一幅效果图的三维可视化交互代码，代码如下。

<script>
    // 模拟的油藏模型（来自grid-4layer.grdecl）
    const reservoirData = {
        nx: 50,
        ny: 50,
        nz: 4,
        layers: [
            {
                name: '底层油藏',
                depth: [0, 8],
                porosity: 0.15,
                color: '#8B4513'
            },
            {
                name: '主力油层',
                depth: [8, 14],
                porosity: 0.22,
                color: '#D2691E'
            },
            {
                name: '顶层油藏',
                depth: [14, 23],
                porosity: 0.40,
                color: '#397235'
            },
            {
                name: '盖层',
                depth: [24, 29],
                porosity: 0.12,
                color: '#DEB887'
            }
        ],
        porosityData: {
            // 简化的油藏孔隙度数据，实际来自文件
            layer0: Array(2500).fill(0).map(() => 0.15 + Math.random() * 0.03),
            layer1: Array(2500).fill(0).map(() => 0.19 + Math.random() * 0.06),
            layer2: Array(2500).fill(0).map(() => 0.30 + Math.random() * 0.06),
            layer3: Array(2500).fill(0).map(() => 0.10 + Math.random() * 0.05)
        }
    };

    // 场景设置
    let scene, camera, renderer, controls;
    let reservoirLayers = [];
    let porosityMode = false;

    function init() {
        // 创建场景
        scene = new THREE.Scene();
        scene.background = new THREE.Color('#b7c0ce');

        // 创建相机
        camera = new THREE.PerspectiveCamera(75, window.innerWidth / window.innerHeight, 0.1, 1000);
        camera.position.set(50, 30, 50);
        camera.lookAt(0, 0, 0);

        // 创建渲染器
        renderer = new THREE.WebGLRenderer({ antialias: true });
        renderer.setSize(window.innerWidth, window.innerHeight);
        document.getElementById('container').appendChild(renderer.domElement);

        // 添加轨道控制器
        controls = new THREE.OrbitControls(camera, renderer.domElement);
        controls.enableDamping = true;

        // 添加环境光源
        const ambientLight = new THREE.AmbientLight(0xffffff, 0.6);
        scene.add(ambientLight);
        // 添加平行光源
        const directionalLight = new THREE.DirectionalLight(0xffffff, 0.4);
        directionalLight.position.set(50, 100, 50);
        scene.add(directionalLight);

        // 添加参考网格
        const gridHelper = new THREE.GridHelper(200, 50, '#444444', '#6e6c6c');
        scene.add(gridHelper);

        // 添加坐标轴
        const axesHelper = new THREE.AxesHelper(50);
        scene.add(axesHelper);

        // 创建油藏模型
        createReservoirModel();

        // 处理窗口大小变化
        window.addEventListener('resize', onWindowResize, false);

        // 开始渲染循环
        animate();
    }

    // 创建油藏模型
    function createReservoirModel() {
        reservoirData.layers.forEach((layer, index) => {
            const height = layer.depth[1] - layer.depth[0];
            const geometry = createLayerGeometry(height, index);
            // 创建材质
            let material;
            if (porosityMode) {
                // 利用孔隙度值创建纹理
                material = createPorosityMaterial(layer, index);
            } else {
                // 利用默认颜色创建纹理
                material = new THREE.MeshPhongMaterial({
                    color: layer.color,
                    side: THREE.DoubleSide,
                    transparent: true,
                    opacity: 0.7
                });
            }

            const mesh = new THREE.Mesh(geometry, material);
            mesh.position.y = layer.depth[0] + height / 2;
            mesh.userData = { layerName: layer.name, layerIndex: index };
            scene.add(mesh);
            reservoirLayers.push(mesh);
        });
    }

    // 创建层几何体
    function createLayerGeometry(height, seed) {
        const geometry = new THREE.BoxGeometry(reservoirData.nx, height, reservoirData.ny, reservoirData.nx, 4, reservoirData.ny);
        const positions = geometry.attributes.position;
        const vector = new THREE.Vector3();

        for (let i = 0; i < positions.count; i++) {
            vector.fromBufferAttribute(positions, i);
            const freq = 0.08 + seed * 0.01;
            const amp = 0.5 + seed * 0.2;
            const noise = Math.sin(vector.x * freq) * Math.cos(vector.z * freq) * amp +
                Math.sin(vector.x * freq * 2) * 0.2;

            if (vector.y > 0) {
                vector.y += noise;
            } else {
                vector.y += noise * 0.3;
            }
            positions.setXYZ(i, vector.x, vector.y, vector.z);
        }

        geometry.computeVertexNormals();
        return geometry;
    }
    // 处理窗口大小变化
    function onWindowResize() {
        camera.aspect = window.innerWidth / window.innerHeight;
        camera.updateProjectionMatrix();
        renderer.setSize(window.innerWidth, window.innerHeight);
    }

    // 渲染循环
    function animate() {
        requestAnimationFrame(animate);
        controls.update();
        renderer.render(scene, camera);
    }

    // 初始化
    init();
</script>
