基于 RO1 noetic 配置 robosense Helios 32（速腾） & xsense mti 300

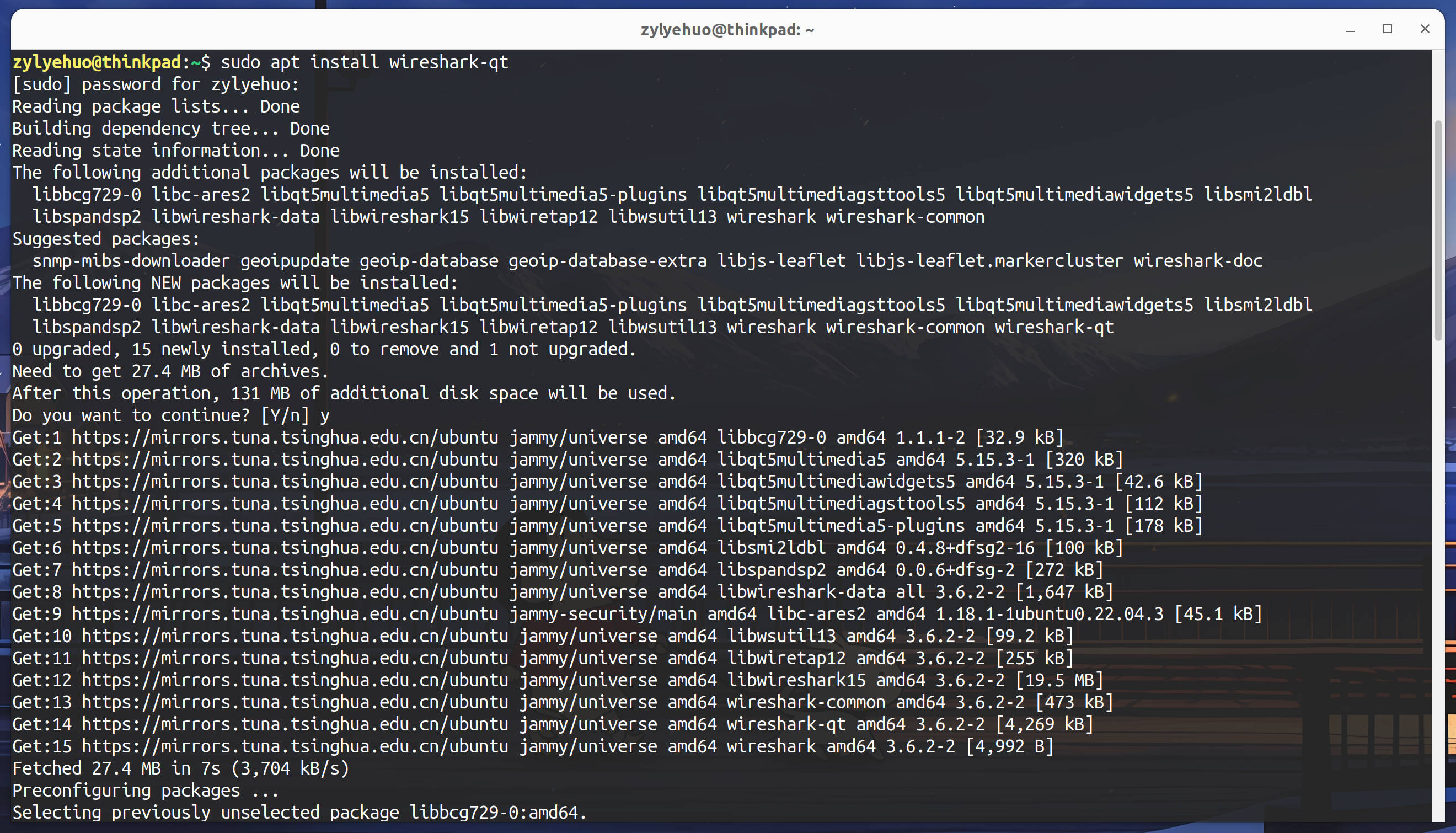

安装辅助工具

复制代码

sudo apt install wireshark-qt

启动辅助工具

复制代码

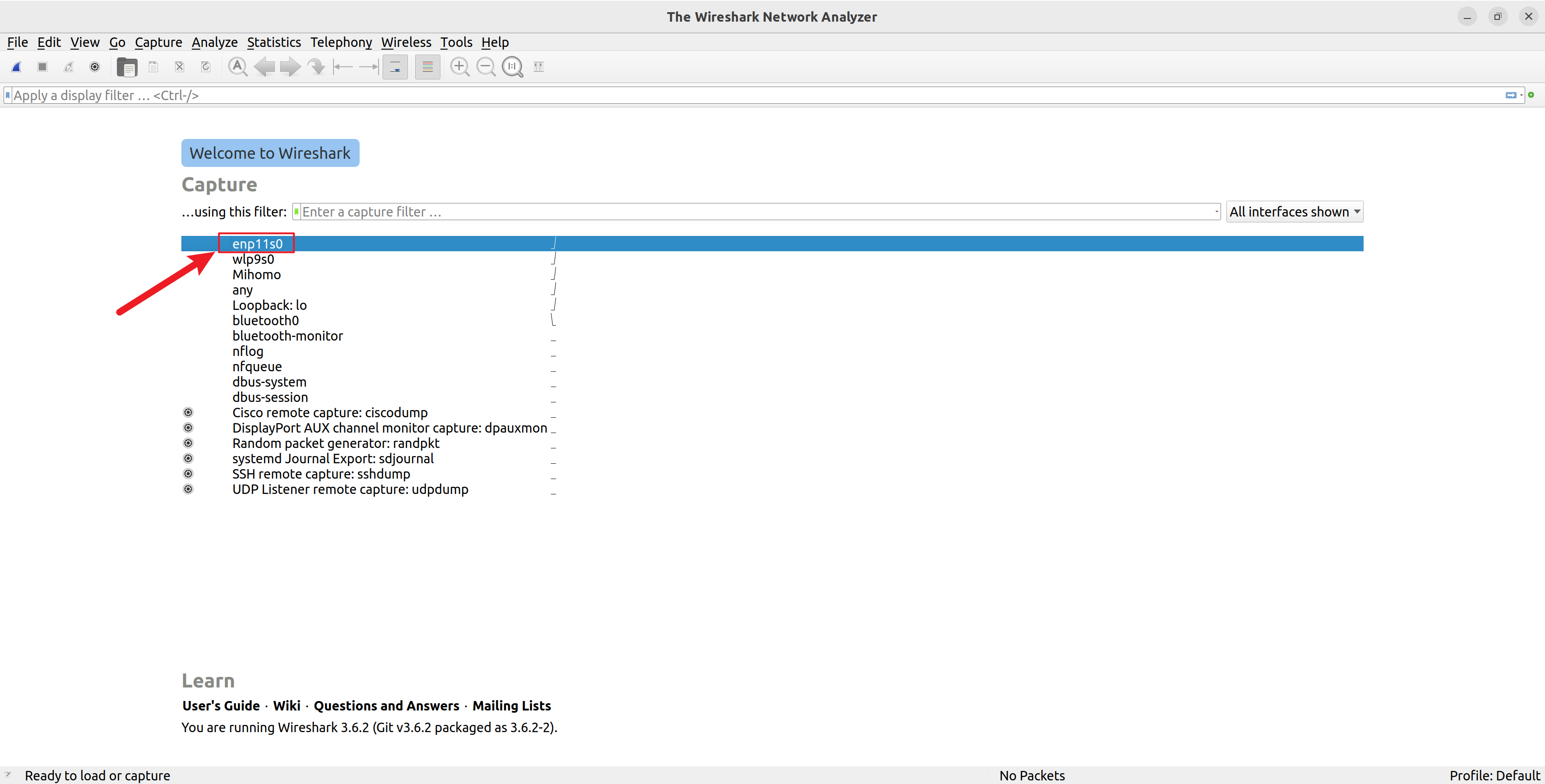

sudo wireshark

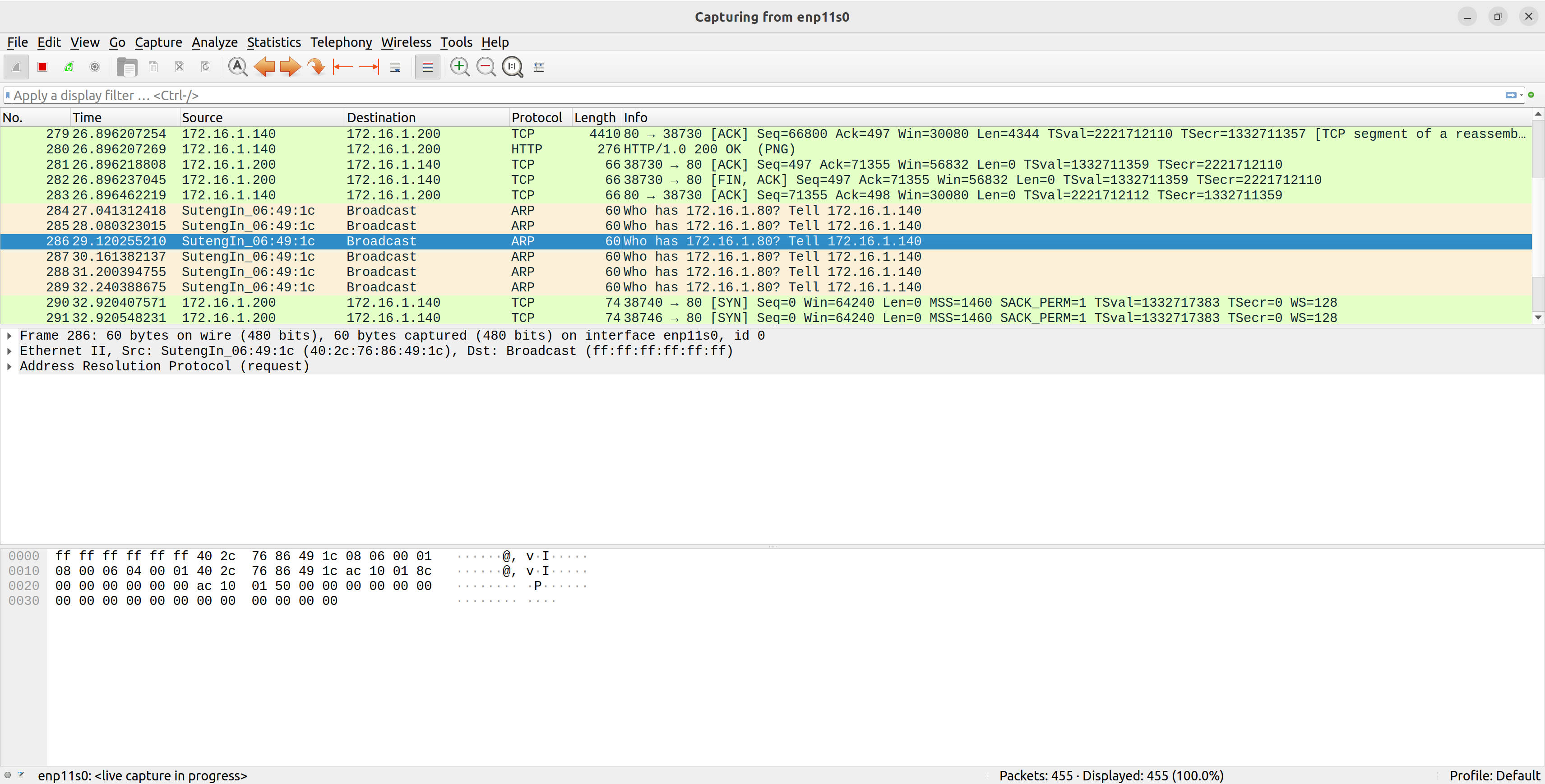

记录下 Who 和 Tell 后面的 IP 地址
Who 是要给电脑设置的 IP 地址
Tell 是雷达自身的 IP 地址

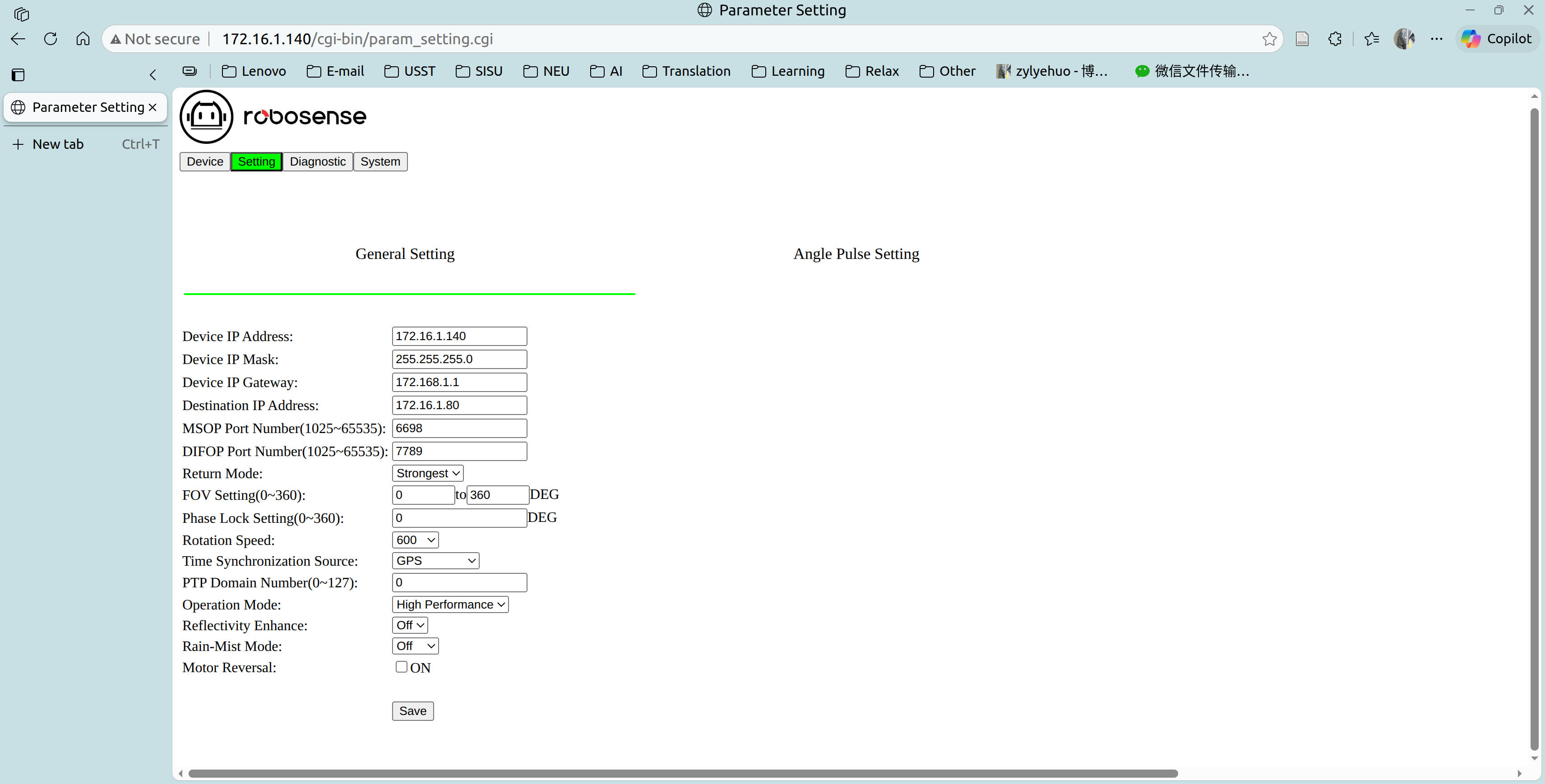

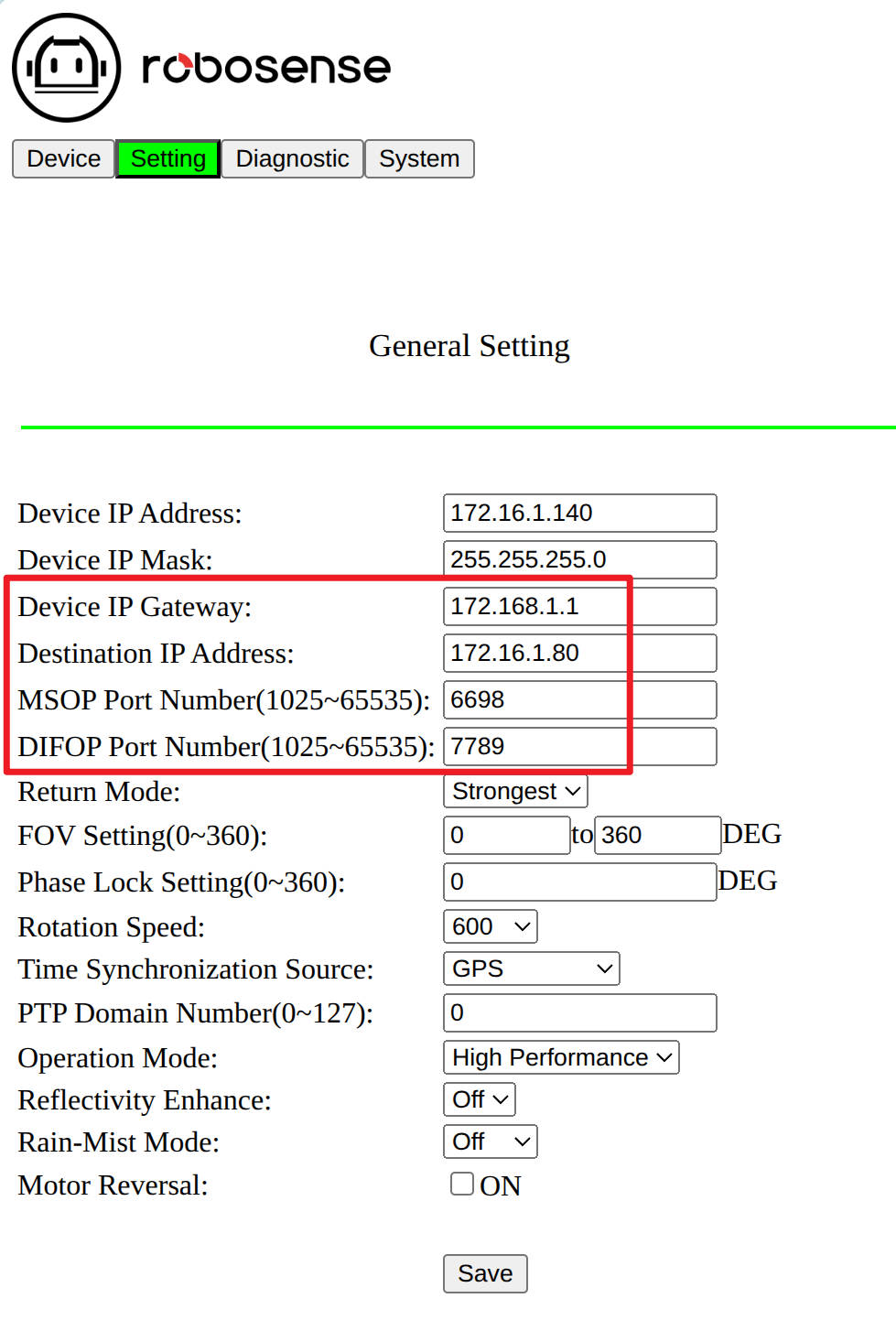

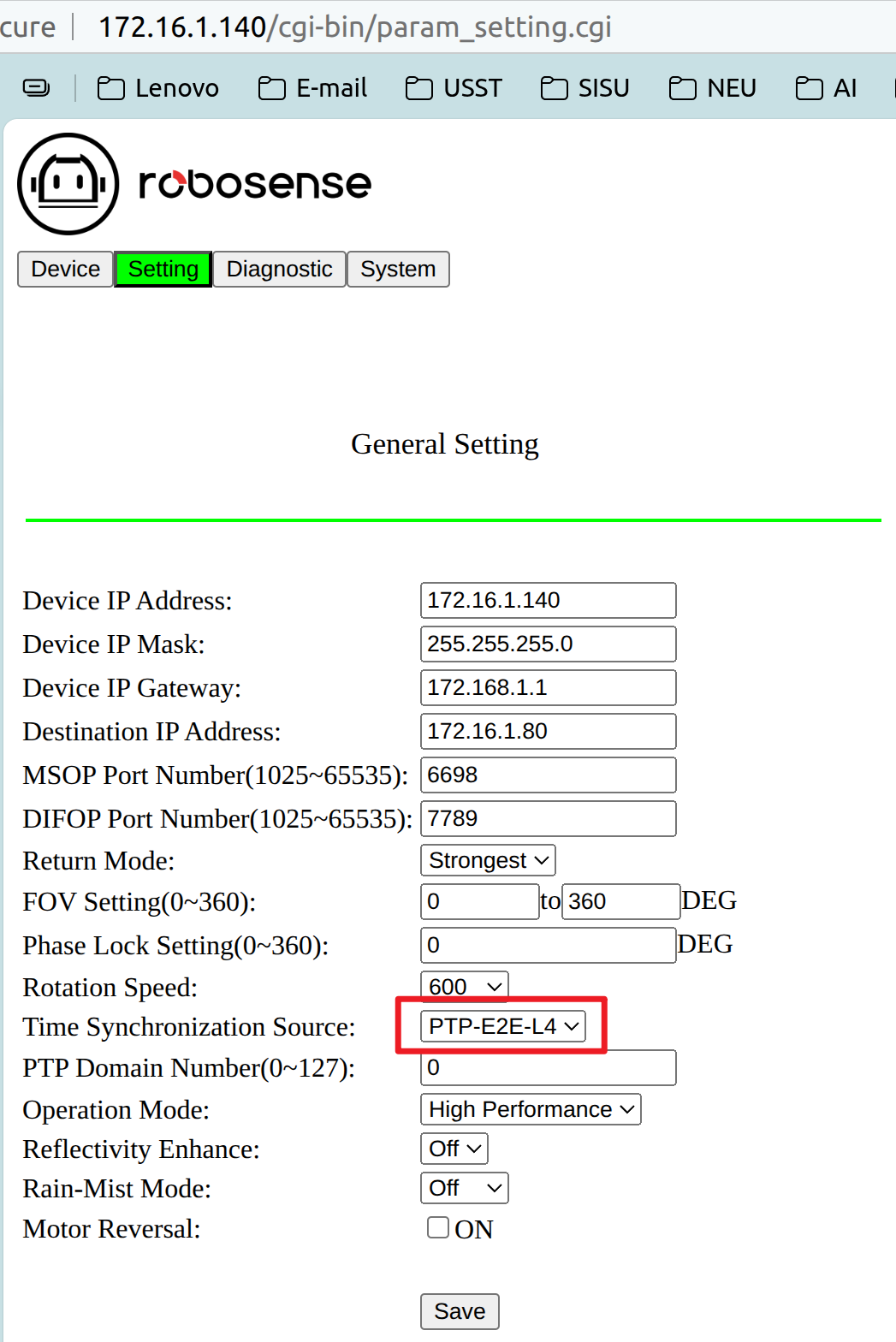

在网页中访问雷达 IP 地址

记录下这些配置

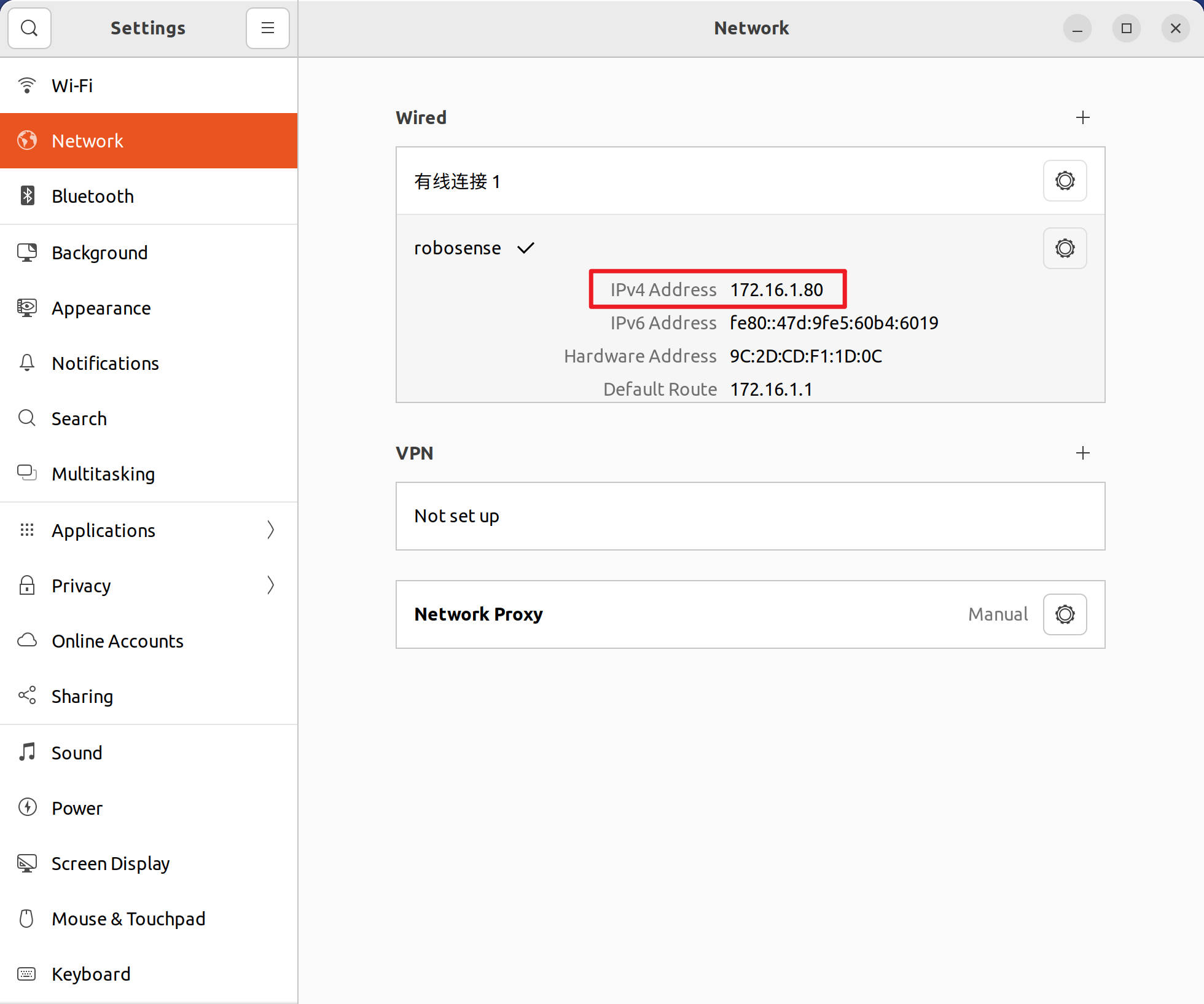

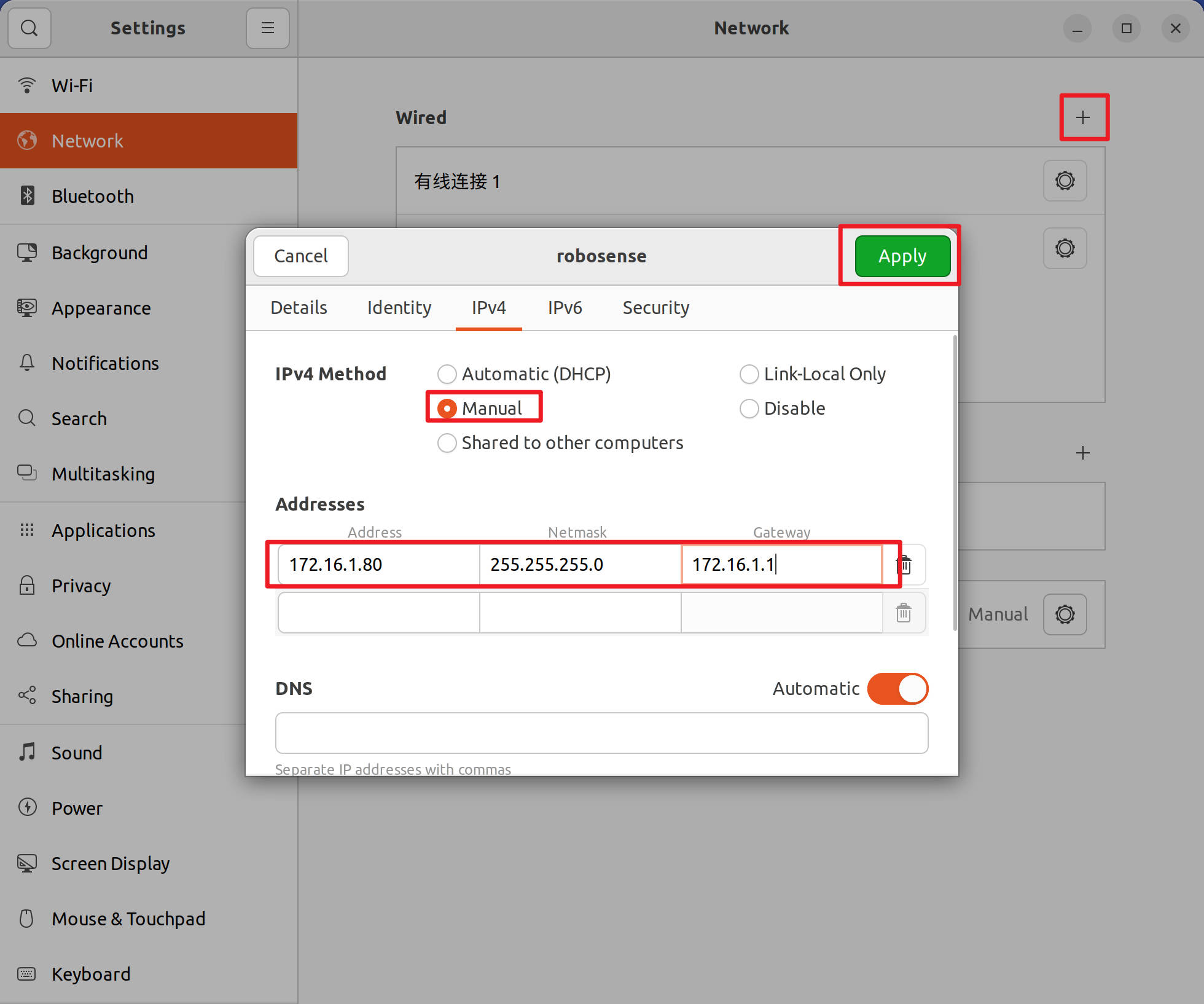

为电脑配置 IP 地址

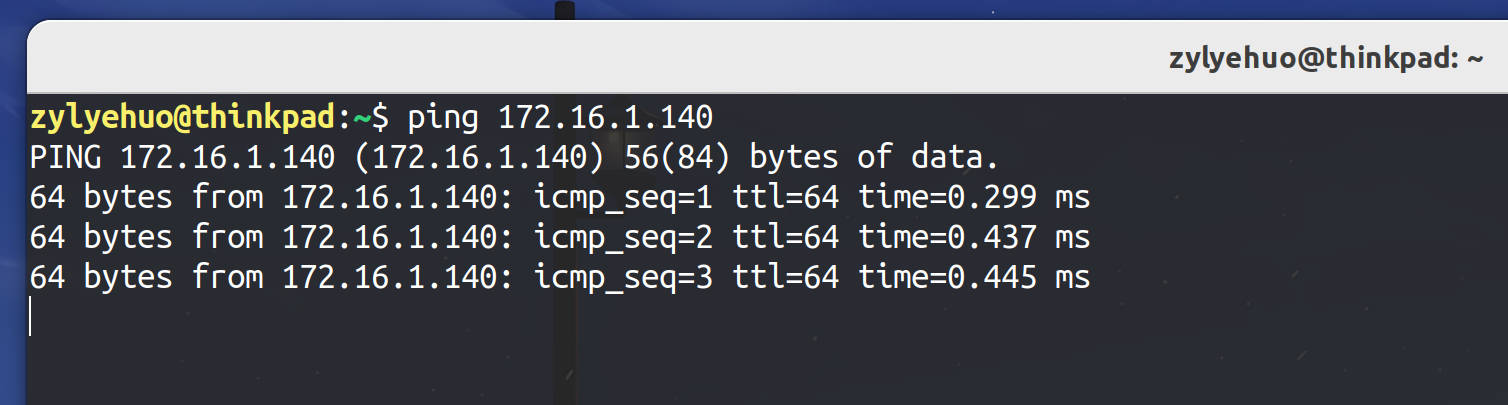

测试电脑能否 ping 通雷达

配置 xsense mti 300

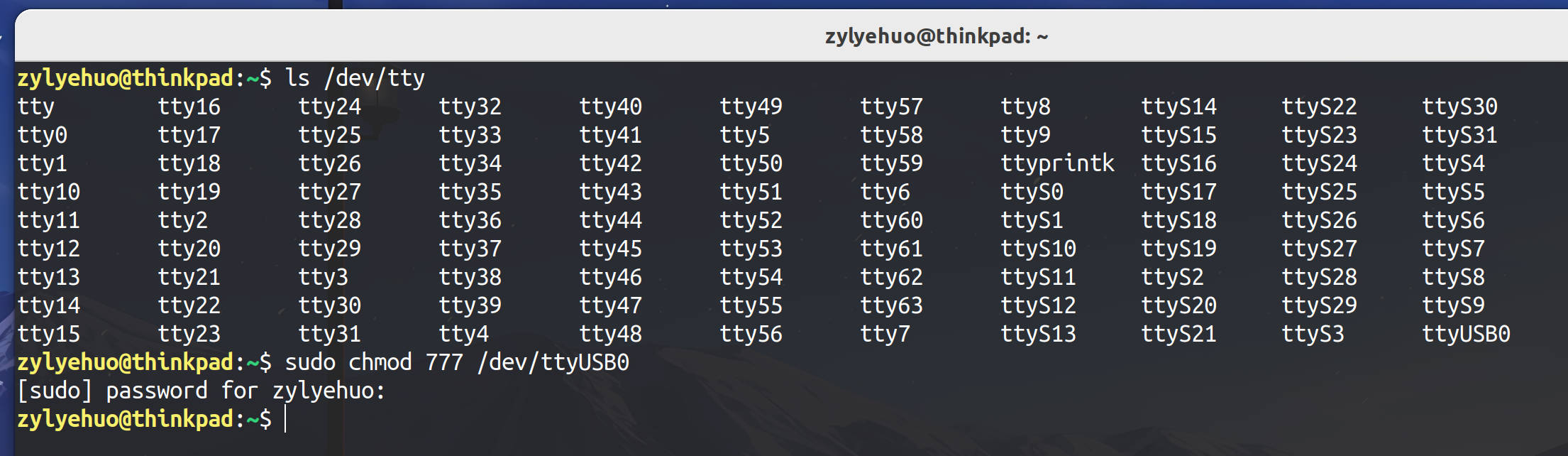

为 IMU 的 USB 接口赋予权限

复制代码

ls /dev/tty  # 双击 Tab 键

sudo chmod 777 /dev/ttyUSB0

下载并编译驱动功能包

下载并编译雷达驱动功能包

复制代码

mkdir -p driver_ws/src

cd driver_ws/src

git clone https://github.com/RoboSense-LiDAR/rslidar_sdk.git

cd rslidar_sdk

git submodule init

git submodule update

sudo apt-get update

sudo apt-get install -y libyaml-cpp-dev

sudo apt-get install -y  libpcap-dev

cd driver_ws

catkin_make

下载并编译 IMU 驱动功能包

参考文档

复制代码

cd /home/yehuo/Downloads

git clone https://github.com/xsenssupport/Xsens_MTi_ROS_Driver_and_Ntrip_Client.git

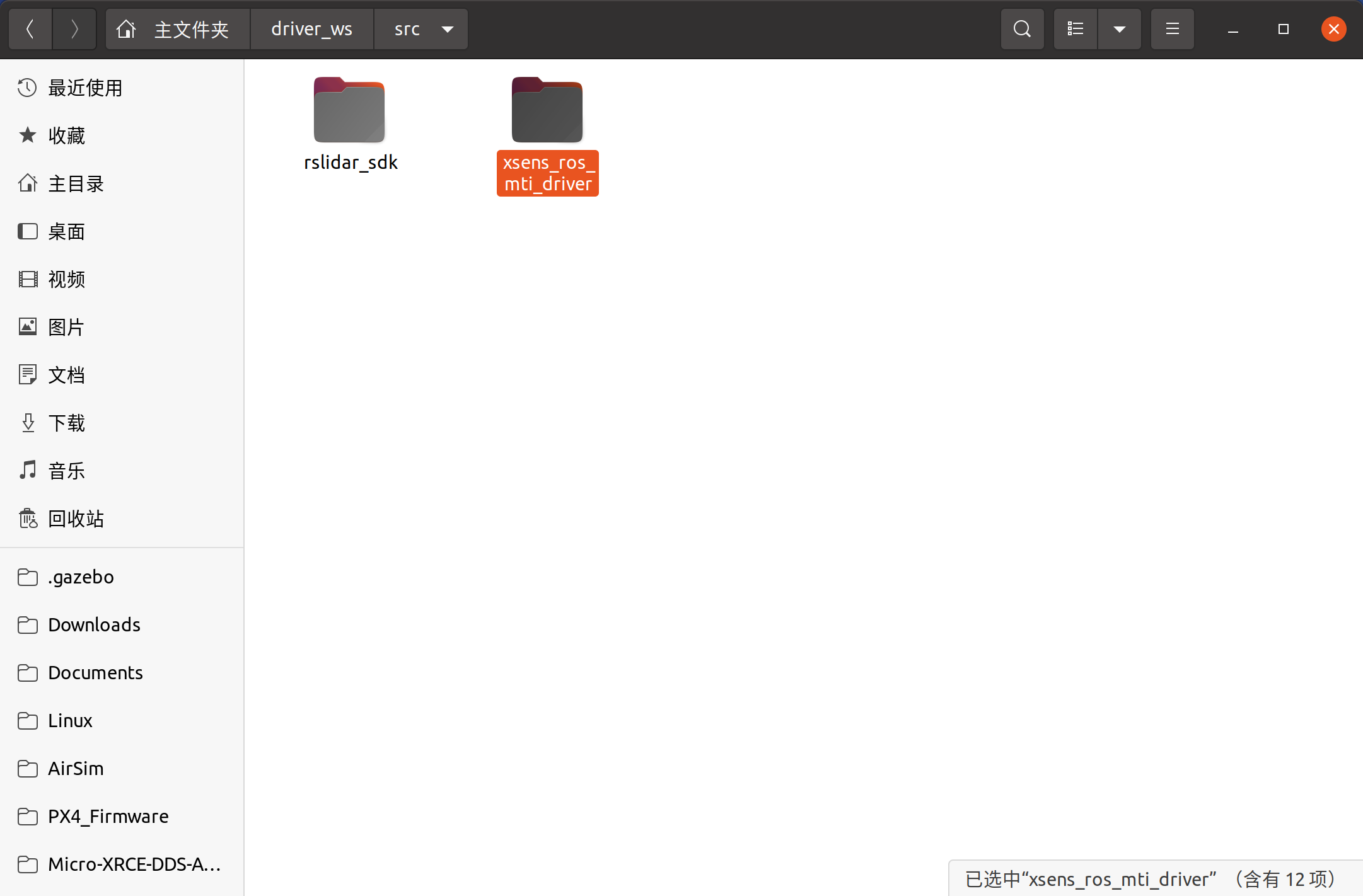

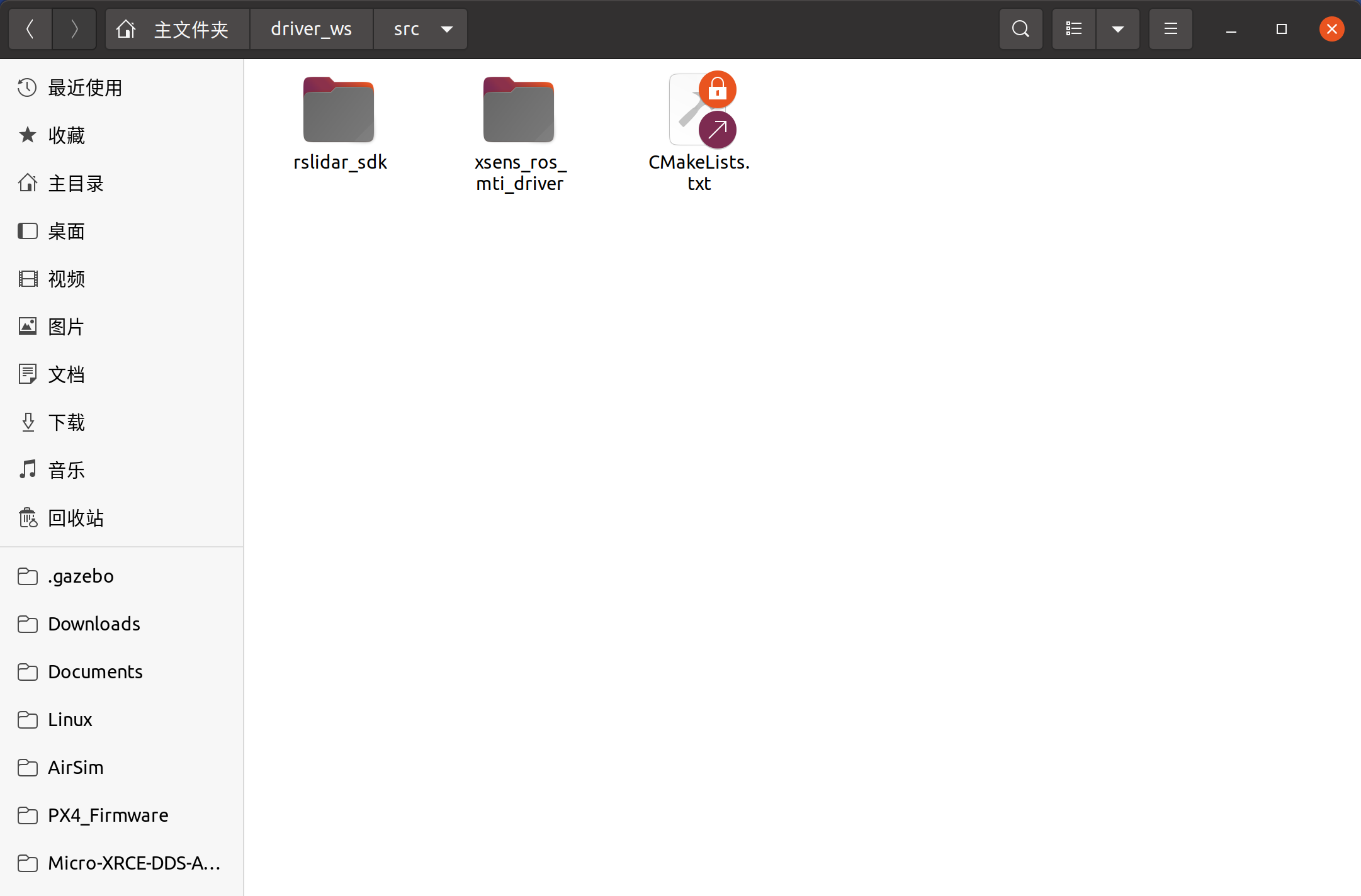

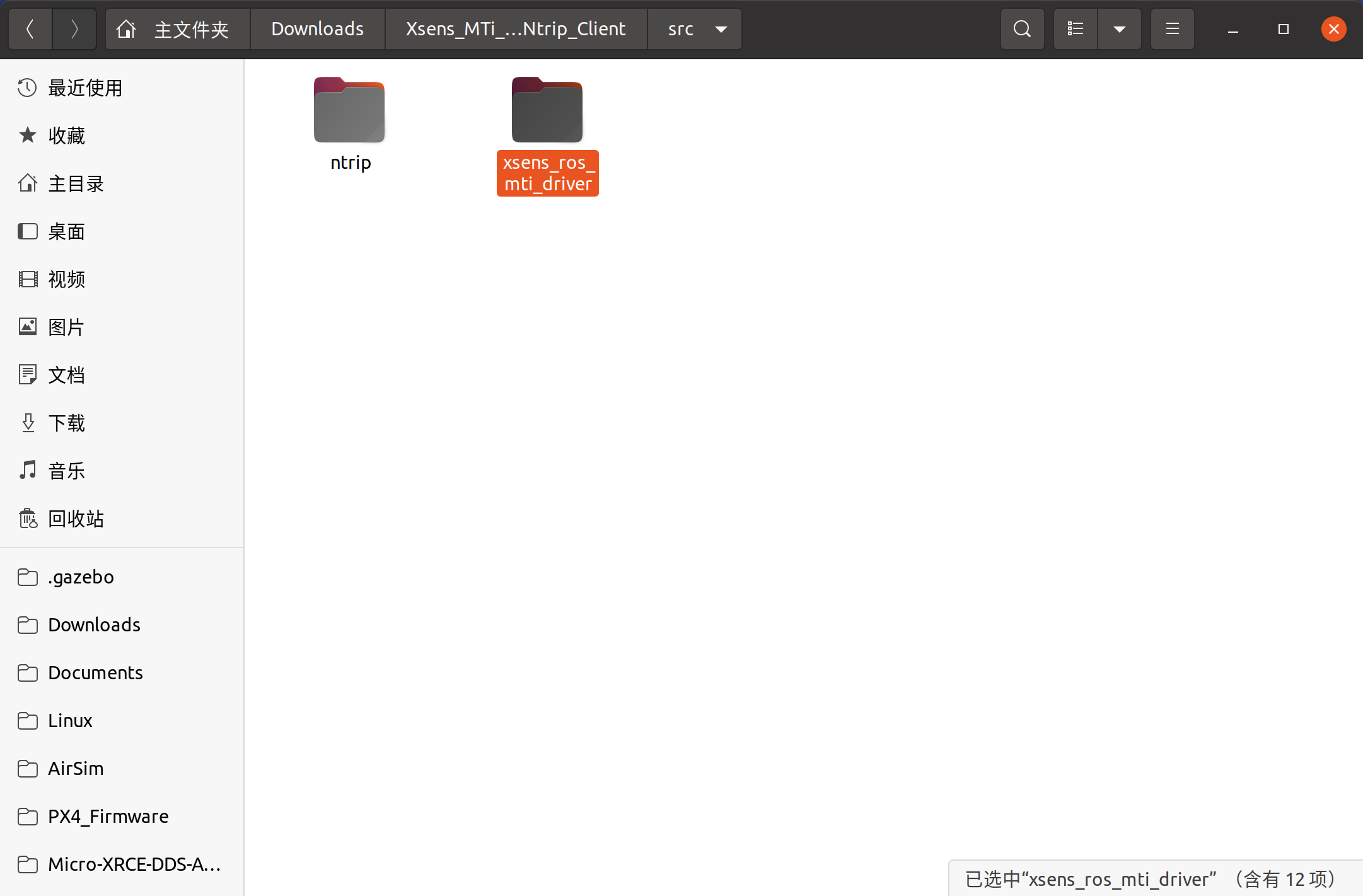

将下载下来的项目中的 ros 驱动复制到工作空间的 src 路径下

复制代码

sudo apt install ros-$ROS_DISTRO-nmea-msgs

sudo apt install ros-$ROS_DISTRO-mavros-msgs

复制代码

sudo chmod -R o+rw xsens_ros_mti_driver/

cd ..

pushd src/xsens_ros_mti_driver/lib/xspublic && make && popd

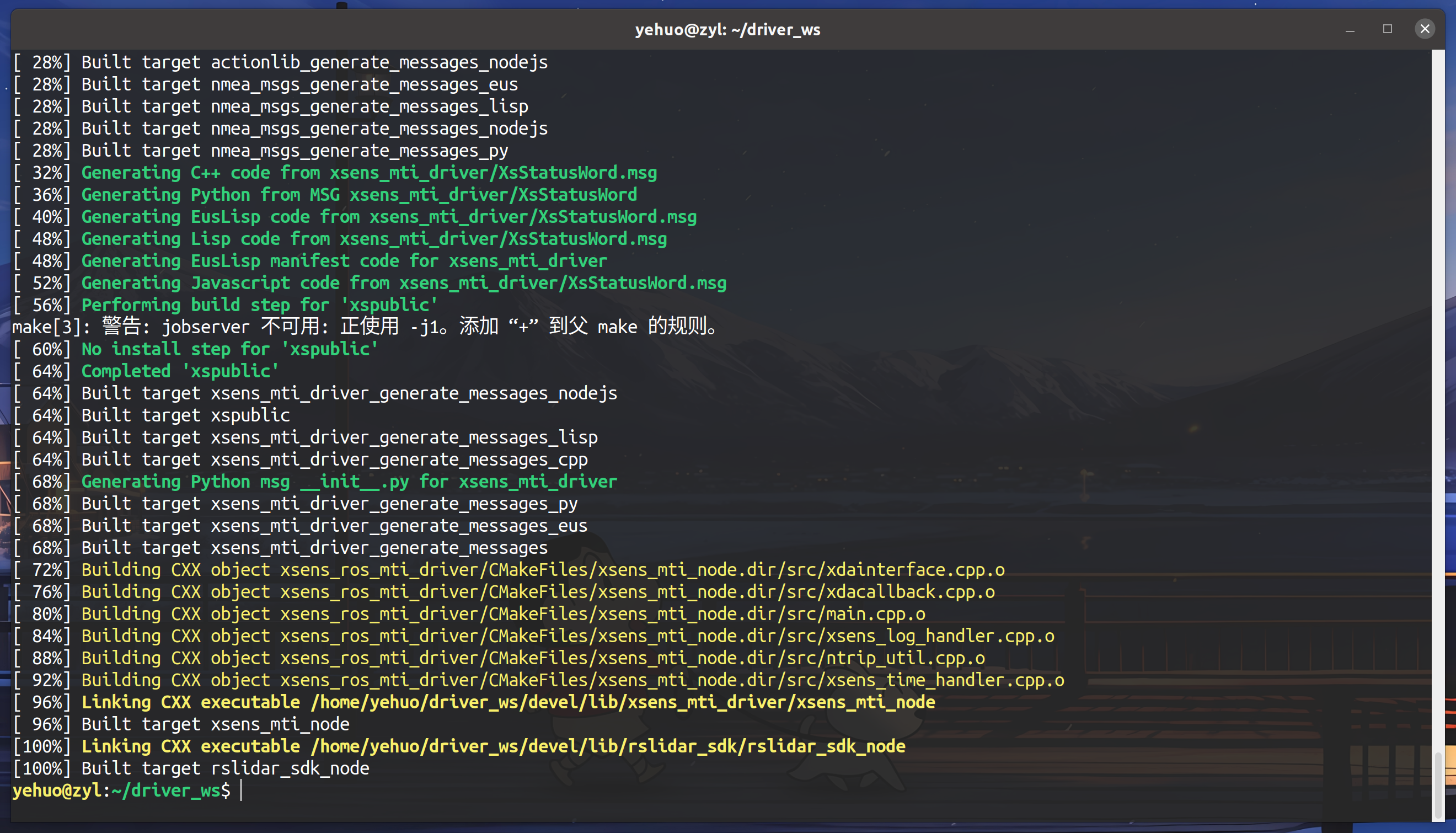

catkin_make

测试

雷达与 IMU 时间同步

复制代码

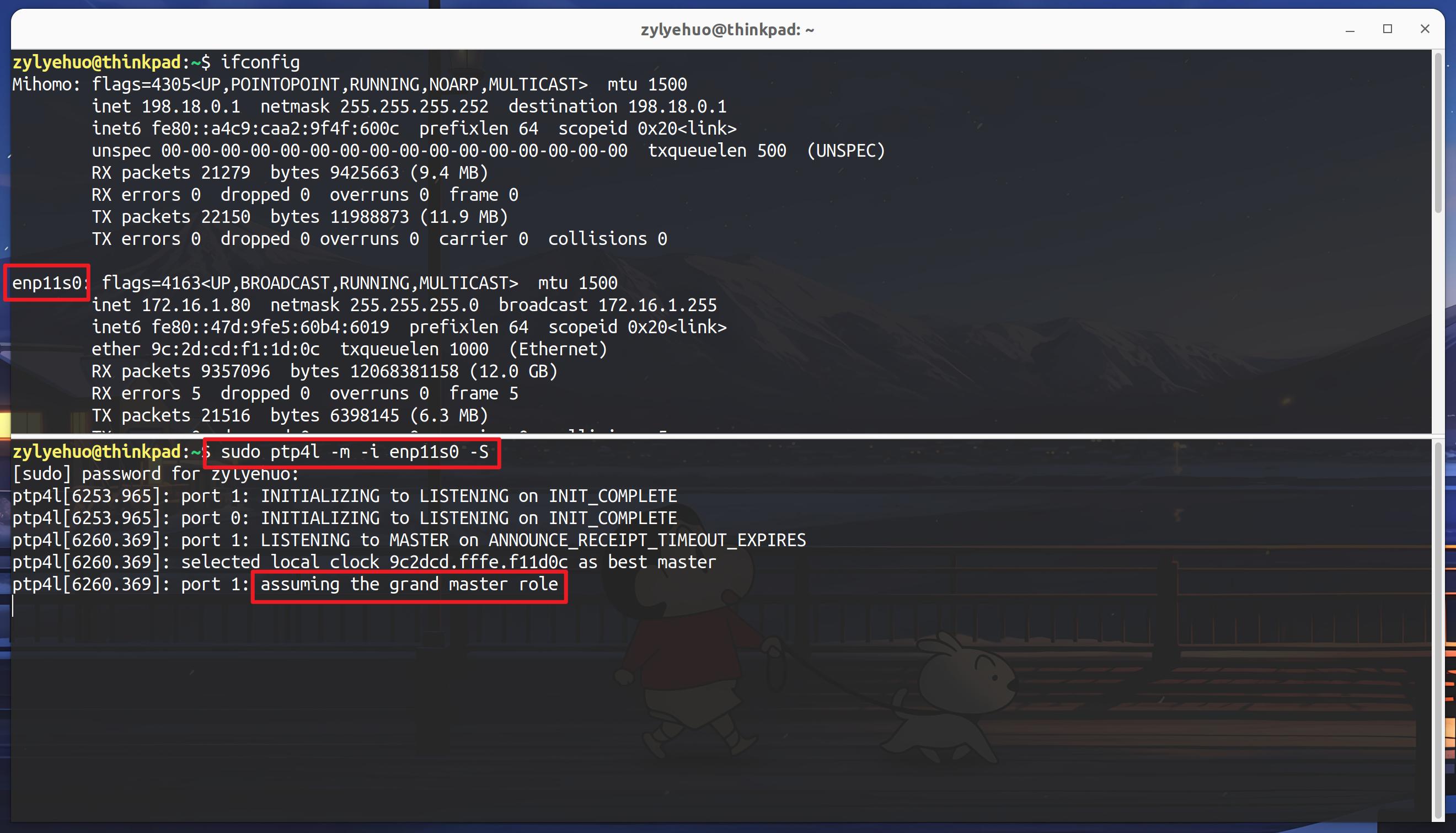

sudo ptp4l -m -i enp11s0 -S

测试 robosense Helios 32（速腾）

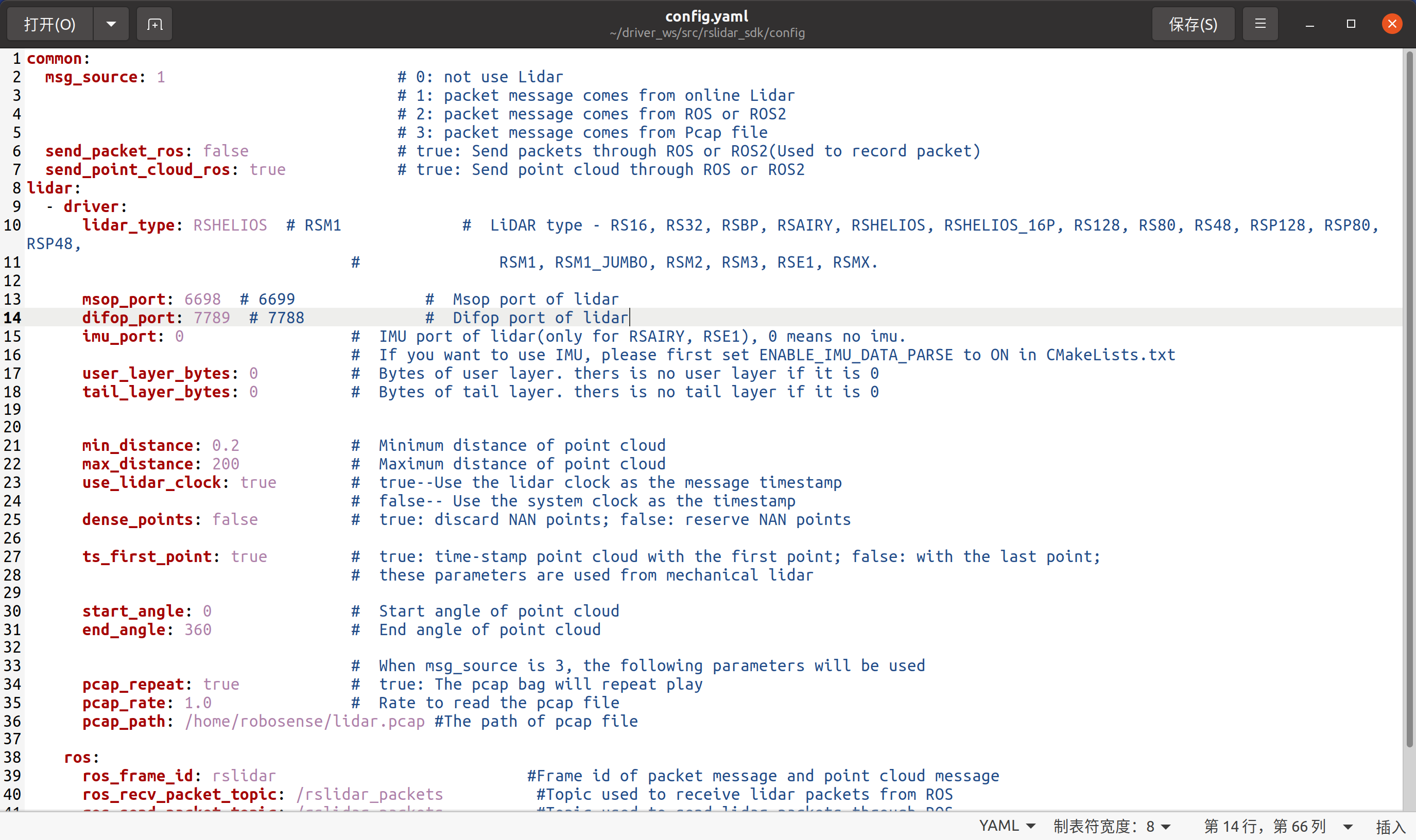

修改 config.yaml 配置文件

与雷达网页上记录的配置参数相对应

复制代码

common:
  msg_source: 1                         # 0: not use Lidar
                                        # 1: packet message comes from online Lidar
                                        # 2: packet message comes from ROS or ROS2
                                        # 3: packet message comes from Pcap file
  send_packet_ros: false                # true: Send packets through ROS or ROS2(Used to record packet)
  send_point_cloud_ros: true            # true: Send point cloud through ROS or ROS2
lidar:
  - driver:
      lidar_type: RSHELIOS  # RSM1             #  LiDAR type - RS16, RS32, RSBP, RSAIRY, RSHELIOS, RSHELIOS_16P, RS128, RS80, RS48, RSP128, RSP80, RSP48,
                                   #               RSM1, RSM1_JUMBO, RSM2, RSM3, RSE1, RSMX.

      msop_port: 6698  # 6699              #  Msop port of lidar
      difop_port: 7789  # 7788             #  Difop port of lidar
      imu_port: 0                  #  IMU port of lidar(only for RSAIRY, RSE1), 0 means no imu.
                                   #  If you want to use IMU, please first set ENABLE_IMU_DATA_PARSE to ON in CMakeLists.txt
      user_layer_bytes: 0          #  Bytes of user layer. thers is no user layer if it is 0
      tail_layer_bytes: 0          #  Bytes of tail layer. thers is no tail layer if it is 0


      min_distance: 0.2            #  Minimum distance of point cloud
      max_distance: 200            #  Maximum distance of point cloud
      use_lidar_clock: true        #  true--Use the lidar clock as the message timestamp
                                   #  false-- Use the system clock as the timestamp
      dense_points: false          #  true: discard NAN points; false: reserve NAN points

      ts_first_point: true         #  true: time-stamp point cloud with the first point; false: with the last point;
                                   #  these parameters are used from mechanical lidar

      start_angle: 0               #  Start angle of point cloud
      end_angle: 360               #  End angle of point cloud

                                   #  When msg_source is 3, the following parameters will be used
      pcap_repeat: true            #  true: The pcap bag will repeat play
      pcap_rate: 1.0               #  Rate to read the pcap file
      pcap_path: /home/robosense/lidar.pcap #The path of pcap file

    ros:
      ros_frame_id: rslidar                           #Frame id of packet message and point cloud message
      ros_recv_packet_topic: /rslidar_packets          #Topic used to receive lidar packets from ROS
      ros_send_packet_topic: /rslidar_packets          #Topic used to send lidar packets through ROS
      ros_send_imu_data_topic: /rslidar_imu_data         #Topic used to send imu data through ROS
      ros_send_point_cloud_topic: /rslidar_points      #Topic used to send point cloud through ROS
      ros_queue_length: 100                            #Topic QoS history depth

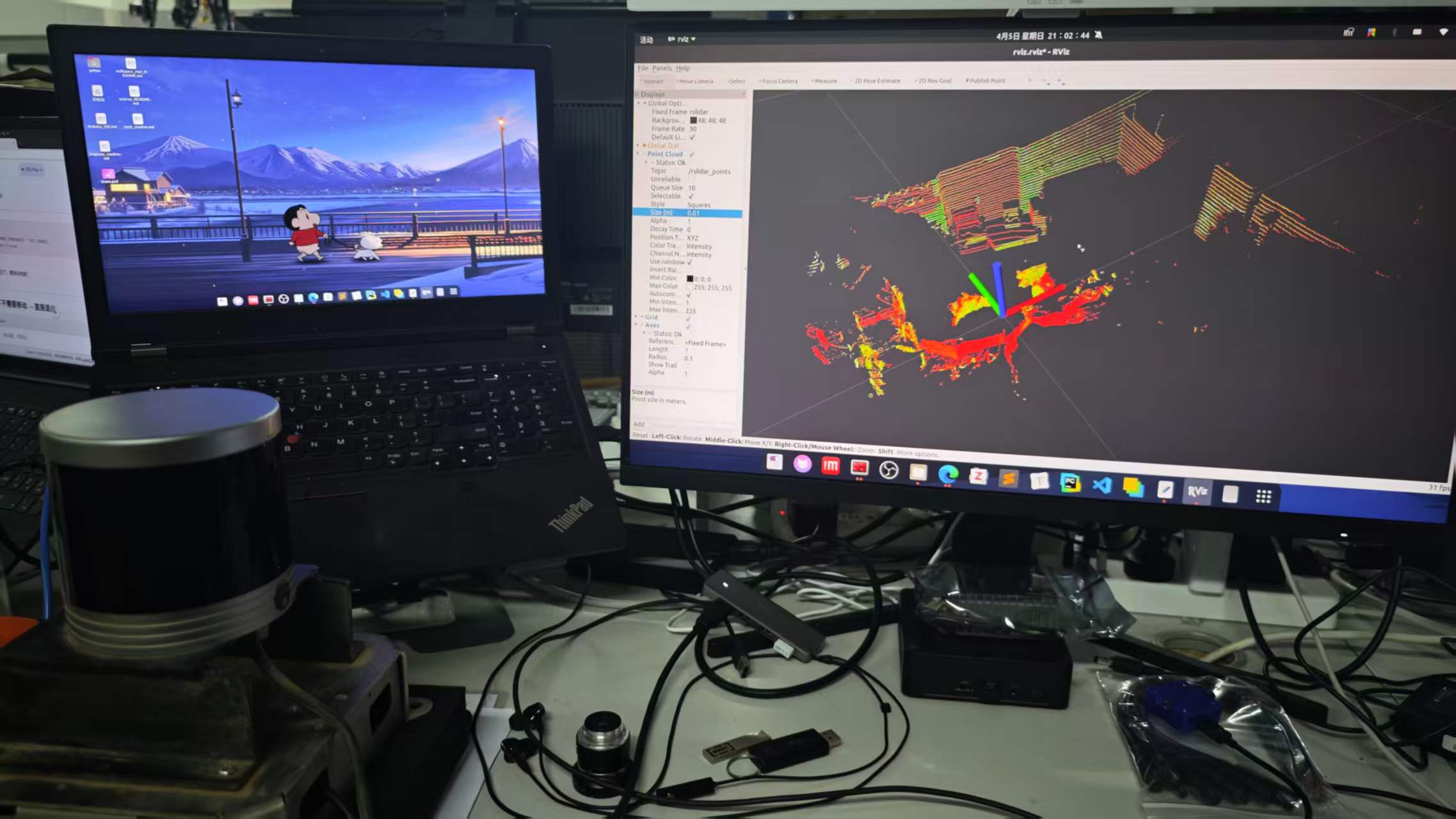

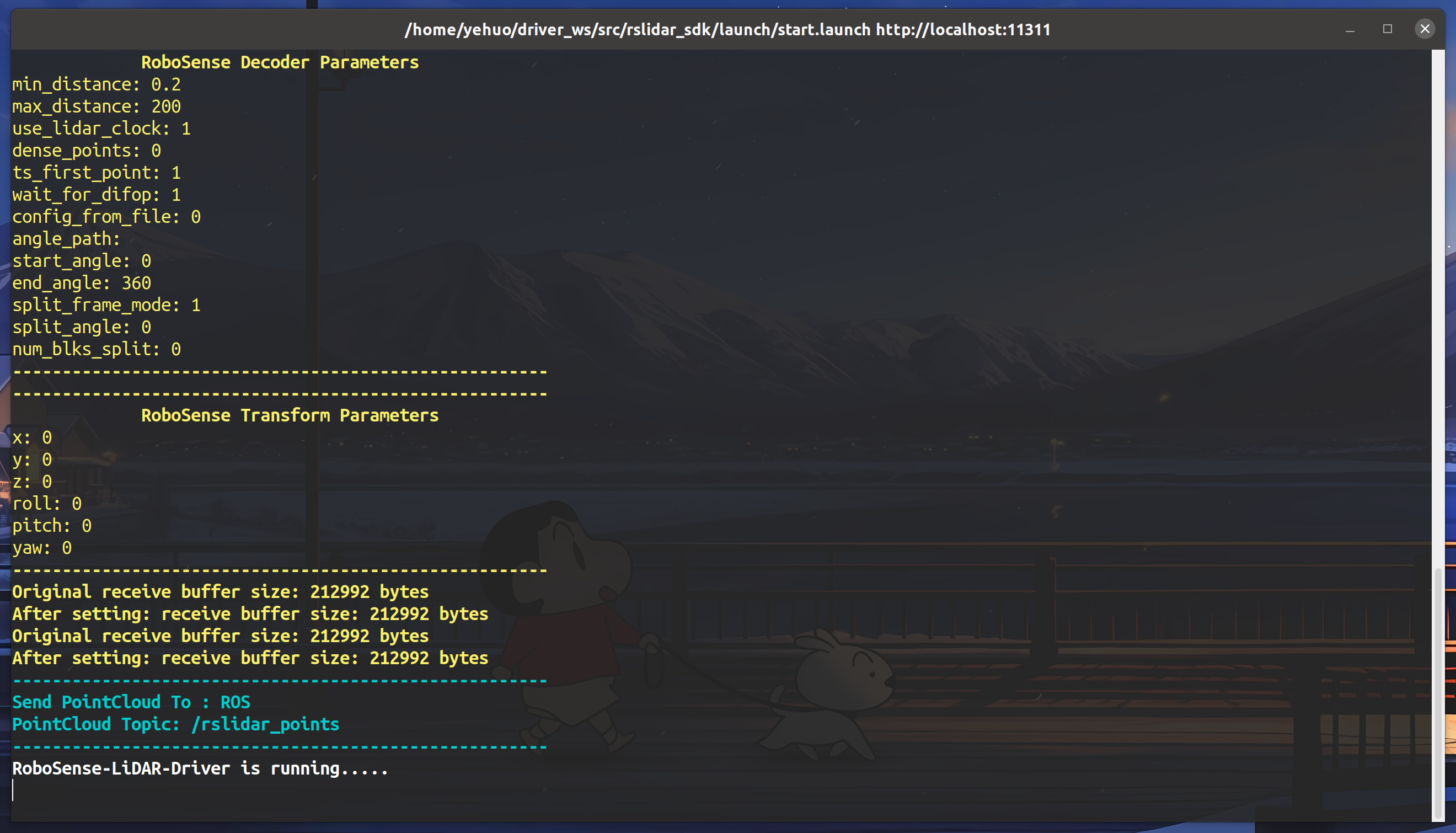

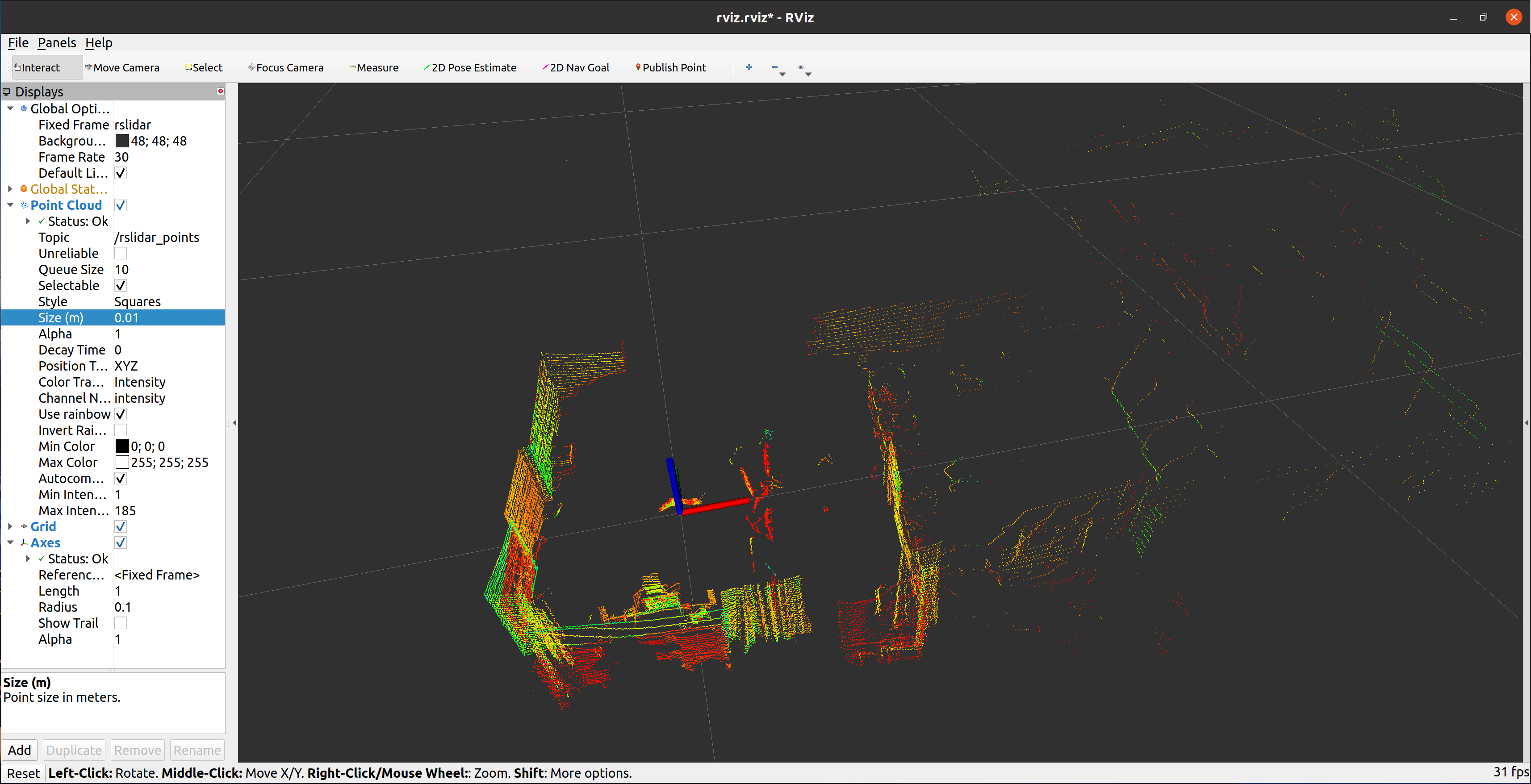

启动 launch 文件进行测试

复制代码

cd driver_ws

source devel/setup.bash

roslaunch rslidar_sdk start.launch

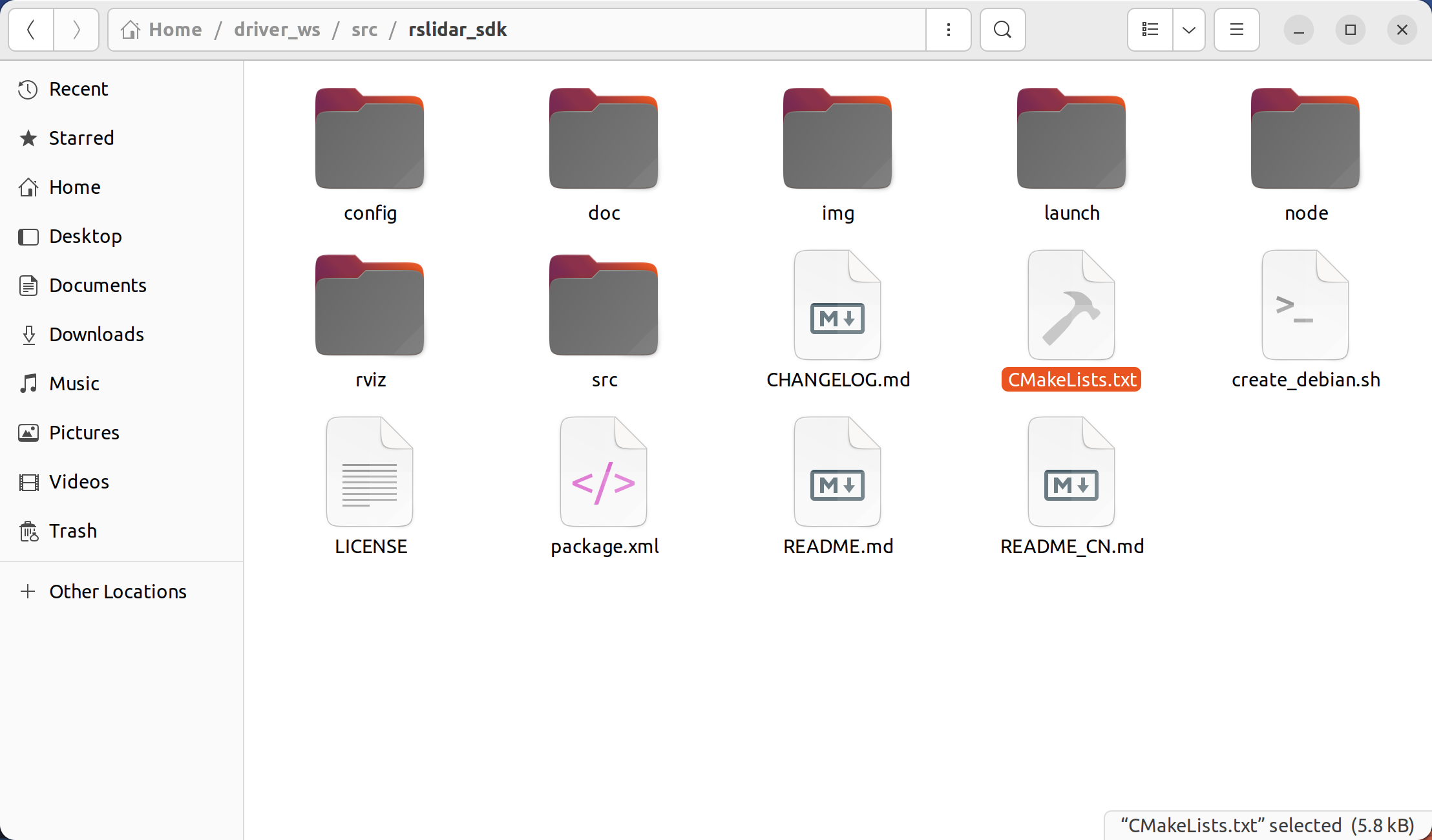

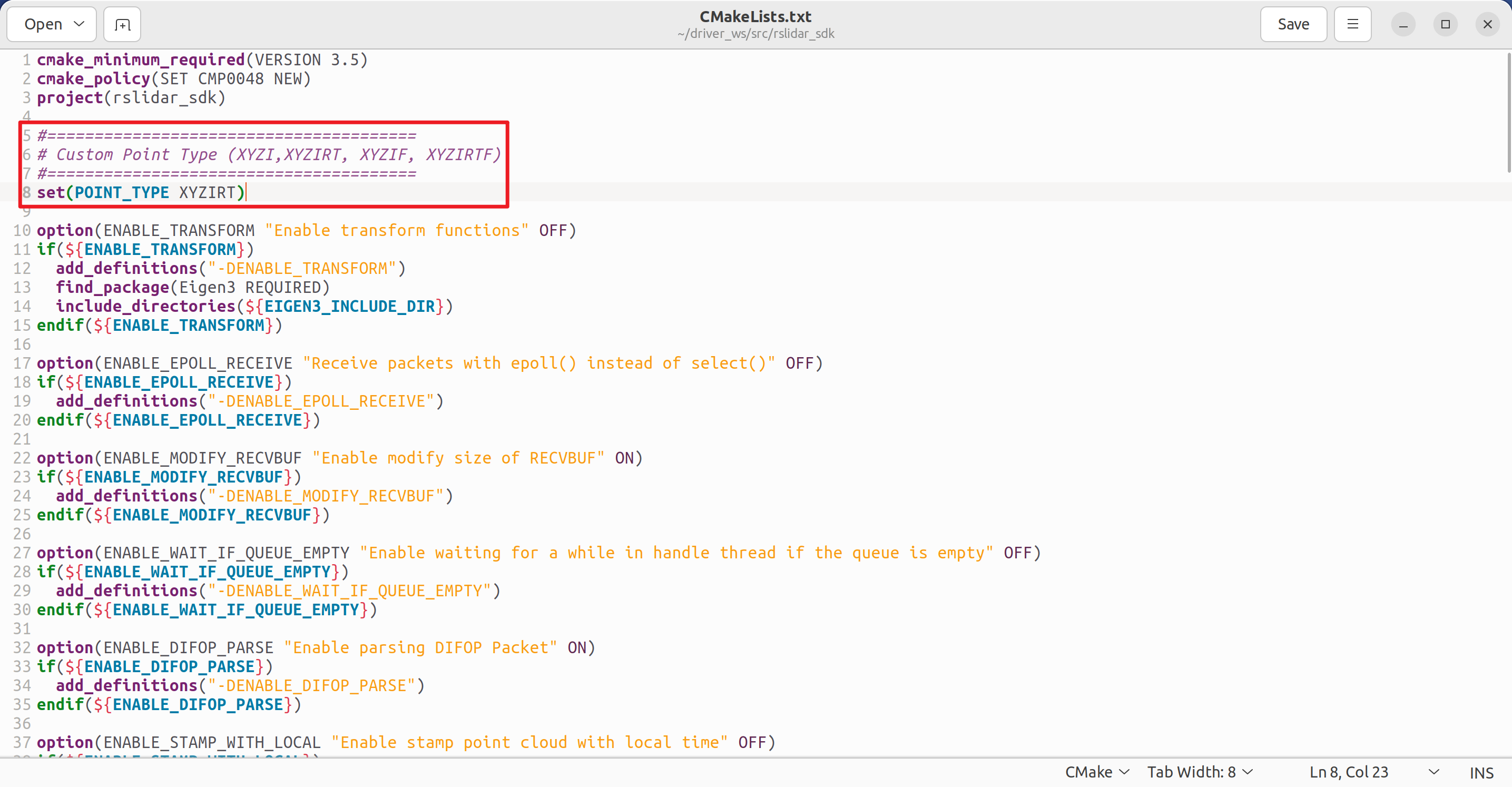

Tips：速腾雷达可以选择点的类型

参考链接：速腾聚创雷达最新驱动安装（包含ring和timestamp）运行lio-sam

保存好之后，重新编译即可

测试 xsense mti 300

基于 MT软件套测试

1.安装依赖

安装 libdouble-conversion1

复制代码

wget http://archive.debian.org/debian/pool/main/d/double-conversion/libdouble-conversion1_3.1.0-3_amd64.deb

sudo dpkg -i libdouble-conversion1_3.1.0-3_amd64.deb

安装 libicu60

复制代码

wget http://mirrors.kernel.org/ubuntu/pool/main/i/icu/libicu60_60.2-3ubuntu3.2_amd64.deb

sudo dpkg -i libicu60_60.2-3ubuntu3.2_amd64.deb

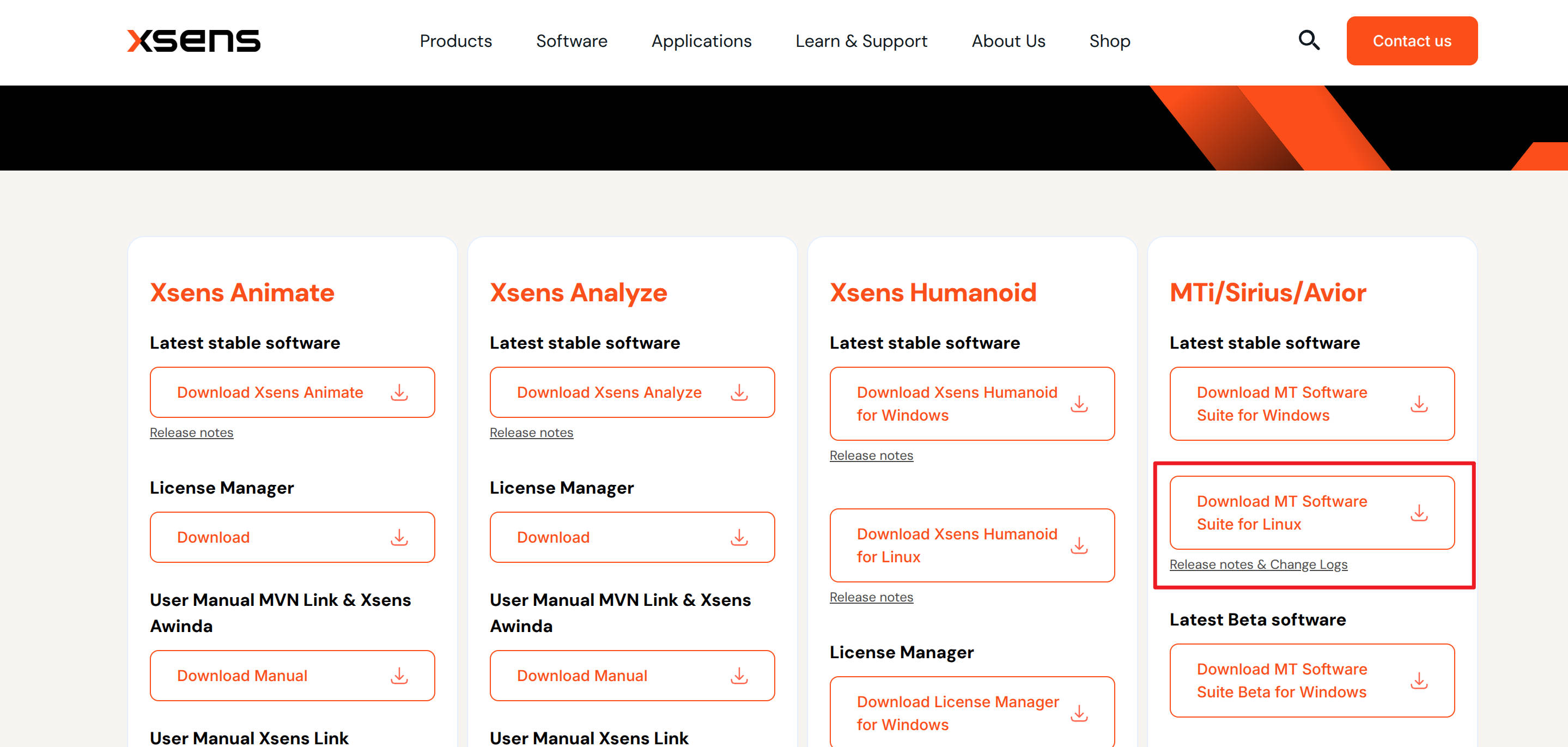

2.MT软件套下载

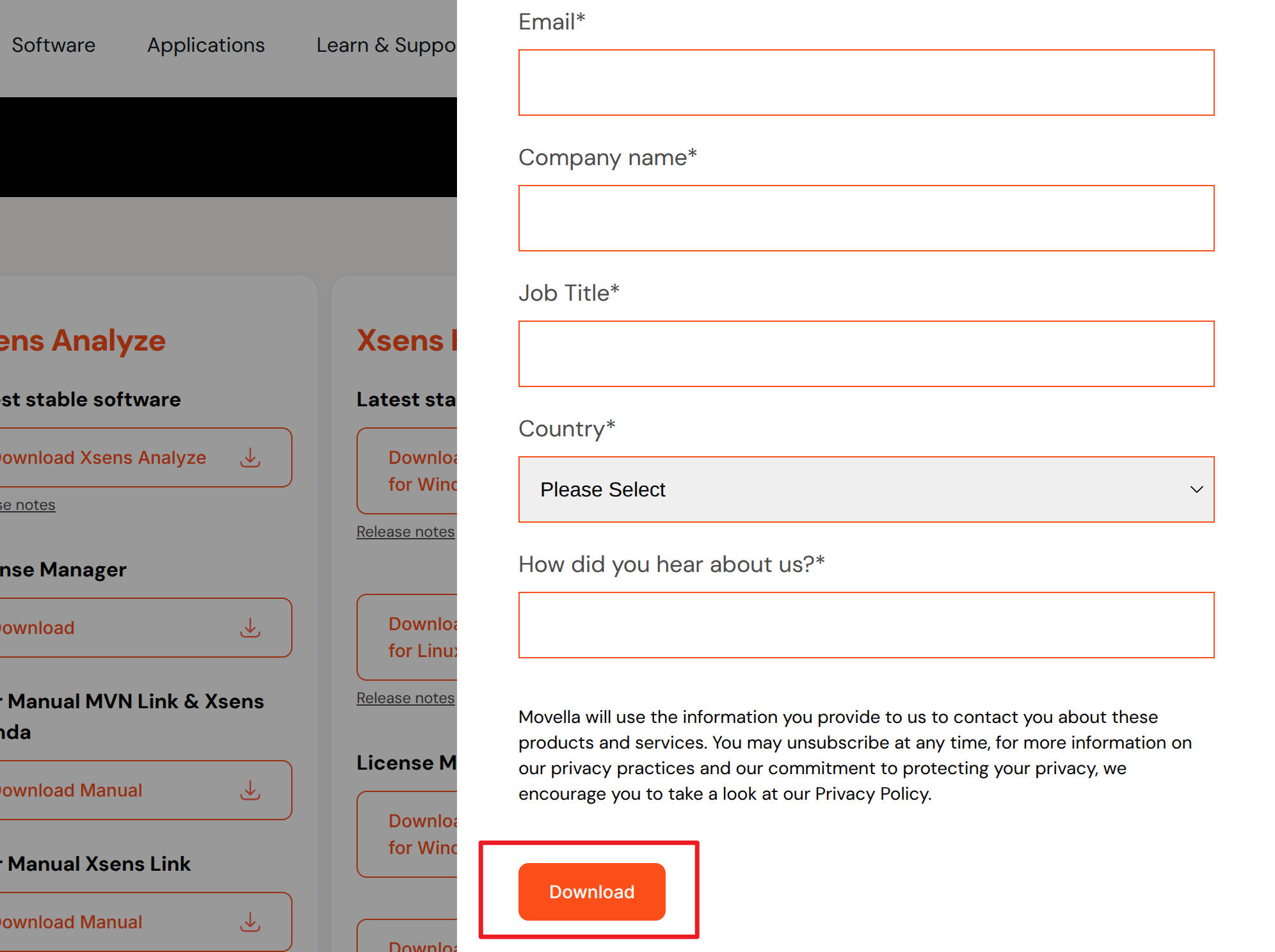

下载链接

3.执行.sh文件

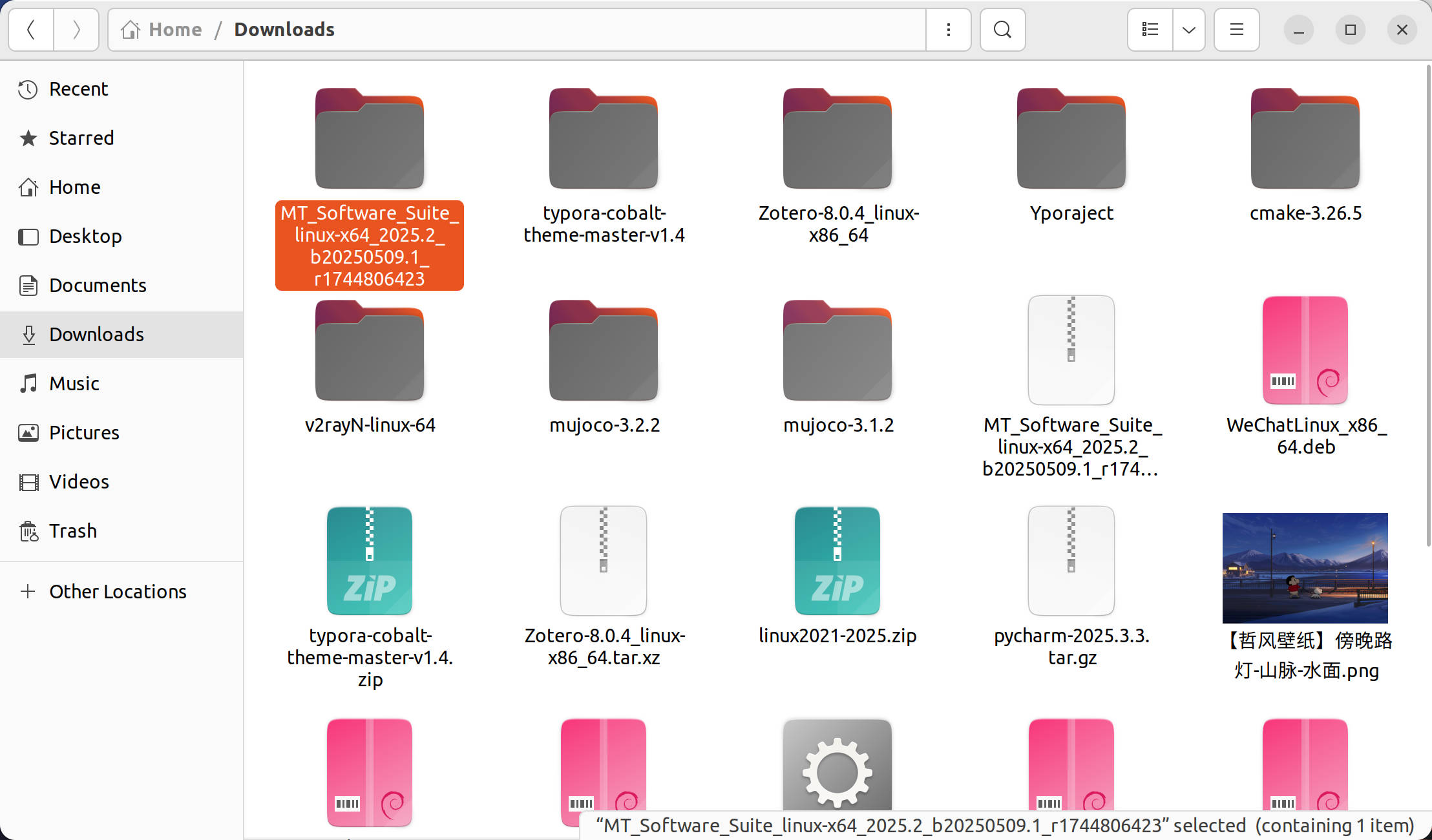

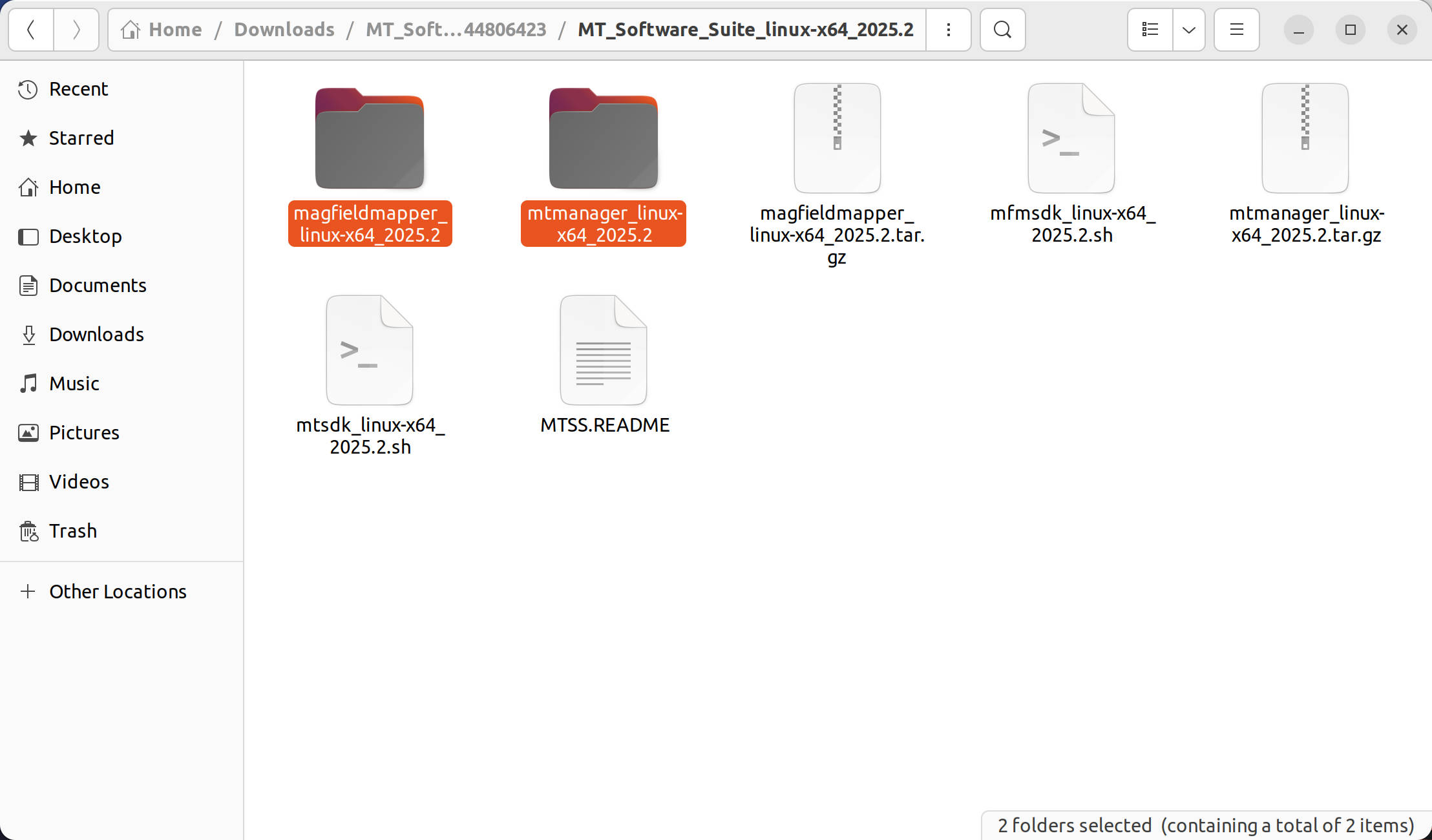

将刚才下载的压缩文件手动解压，并将一共有三个文件需要解压，大文件解压后，点进去还有两个文件需要解压，解压完后将压缩包删了节省内存。

复制代码

sudo ./mtsdk_linux-x64_2025.2.sh

若报错"uudecond"，执行以下安装命令

复制代码

sudo apt-get update -y

sudo apt-get install -y sharutils

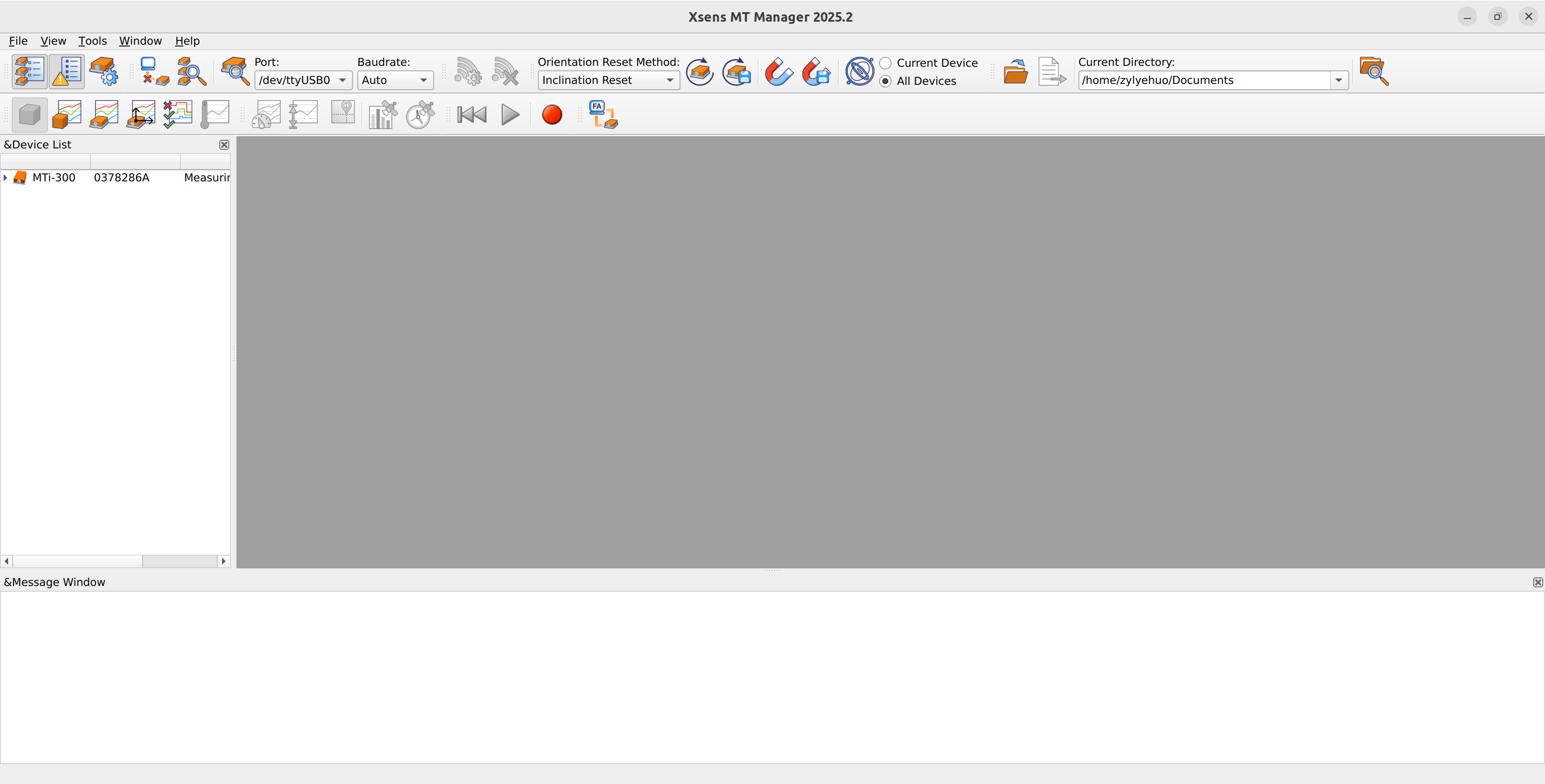

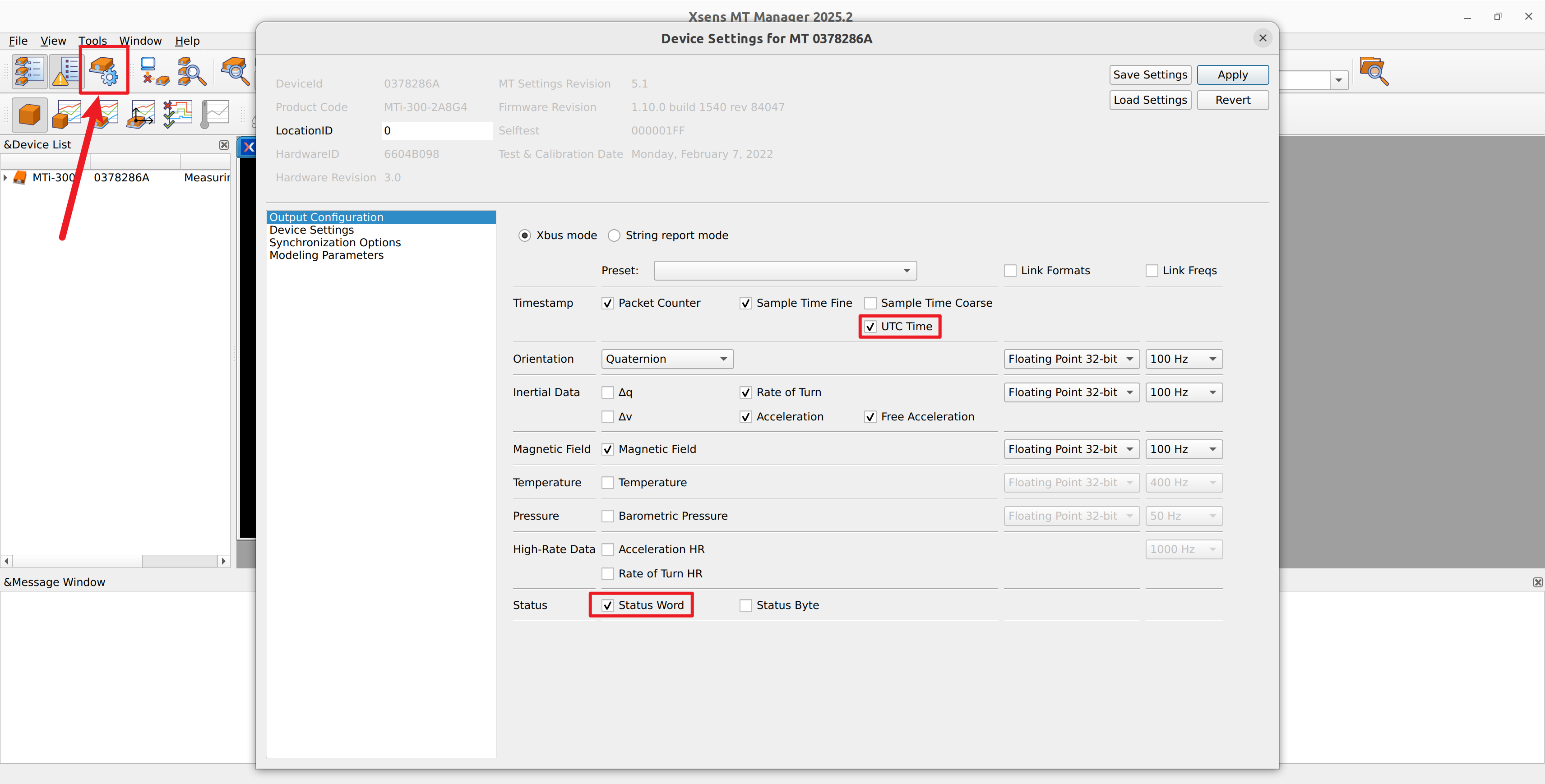

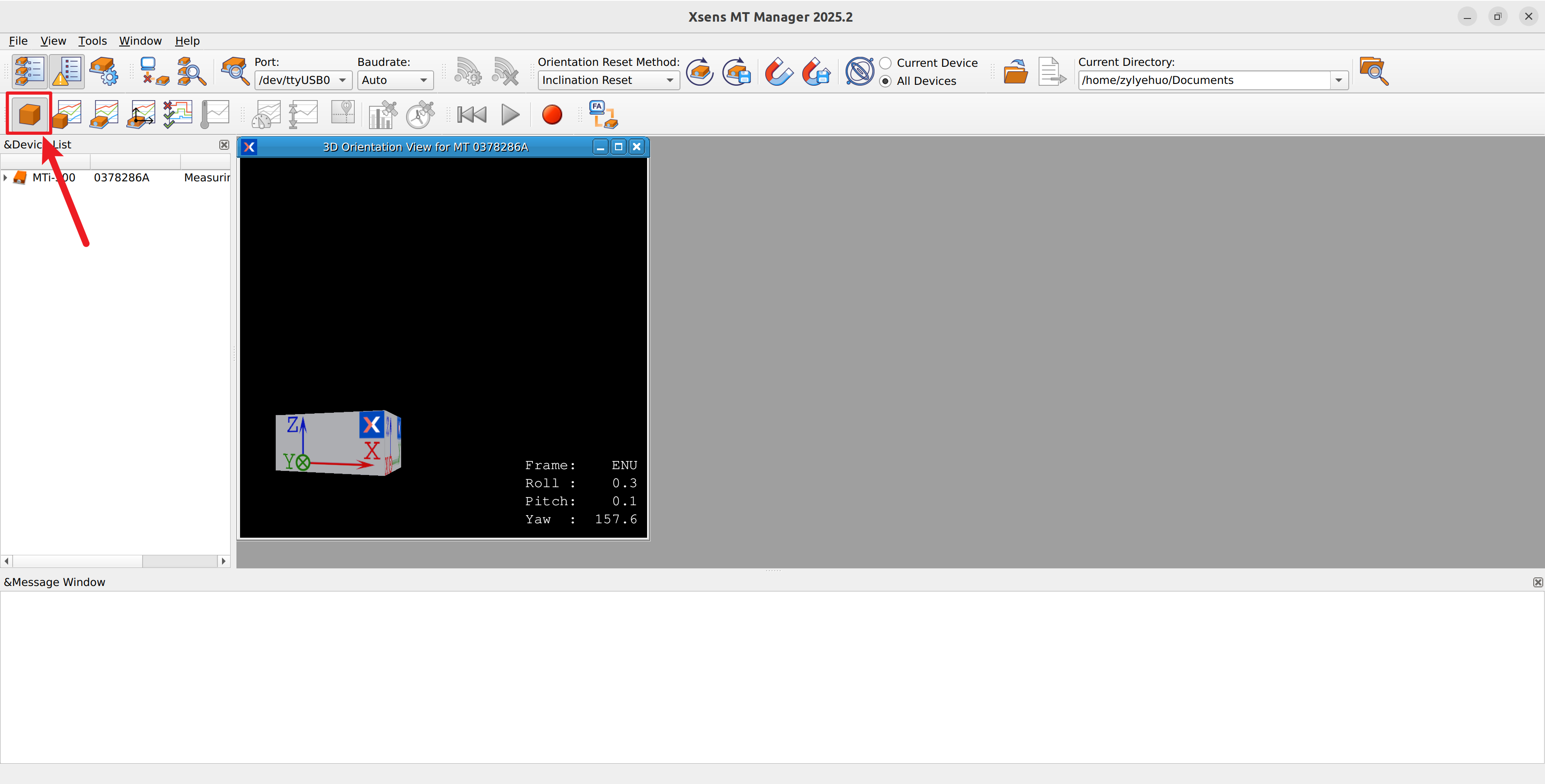

4.打开MT Manager界面

打开到以下路径的文件：
/home/yehuo/Downloads/MT_Software_Suite_linux-x64_2025.2_b20250509.1_r1744806423/MT_Software_Suite_linux-x64_2025.2/mtmanager_linux-x64_2025.2/mtmanager/linux-x64/bin
然后右键打开终端，执行如下命令

复制代码

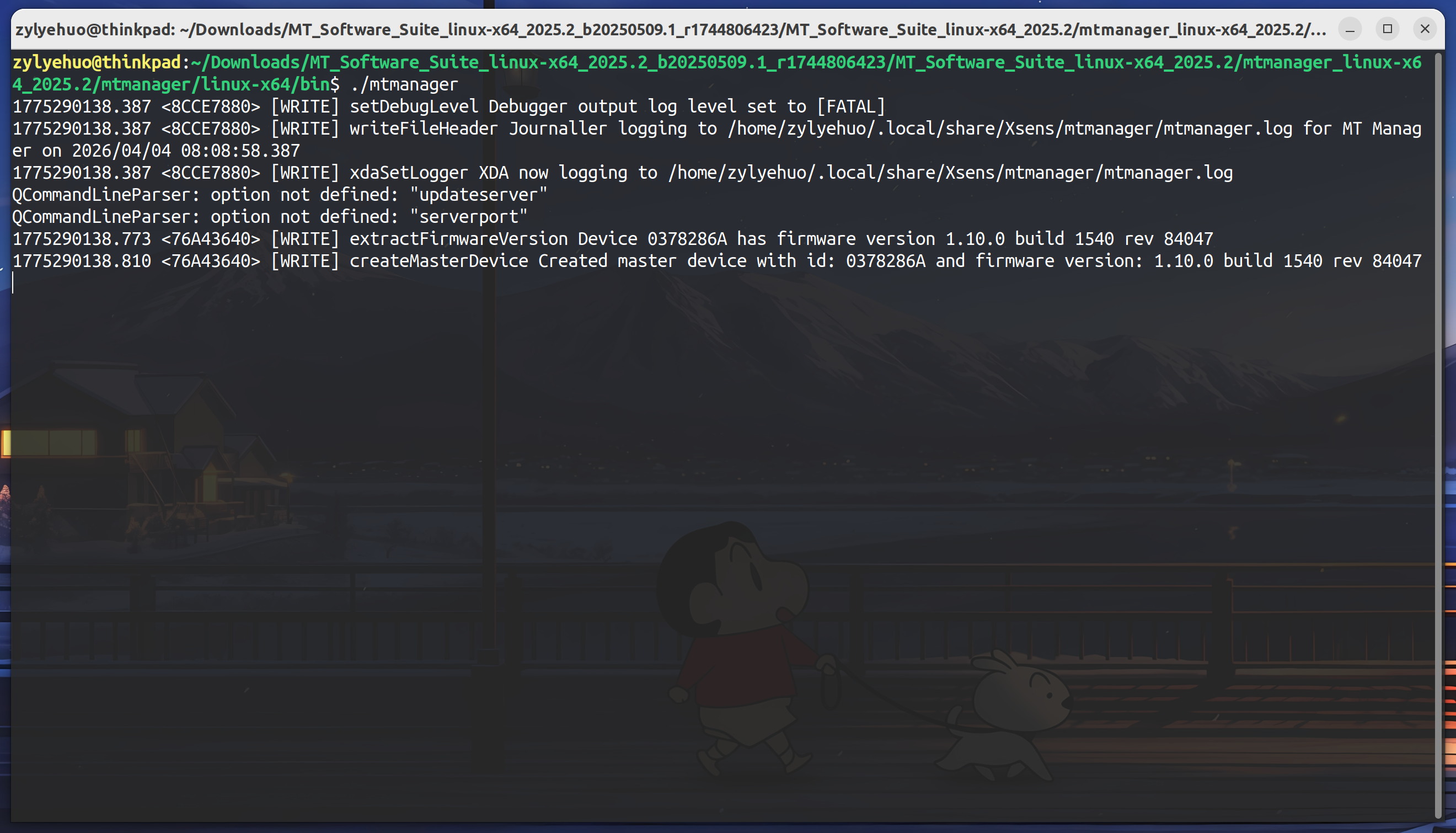

./mtmanager

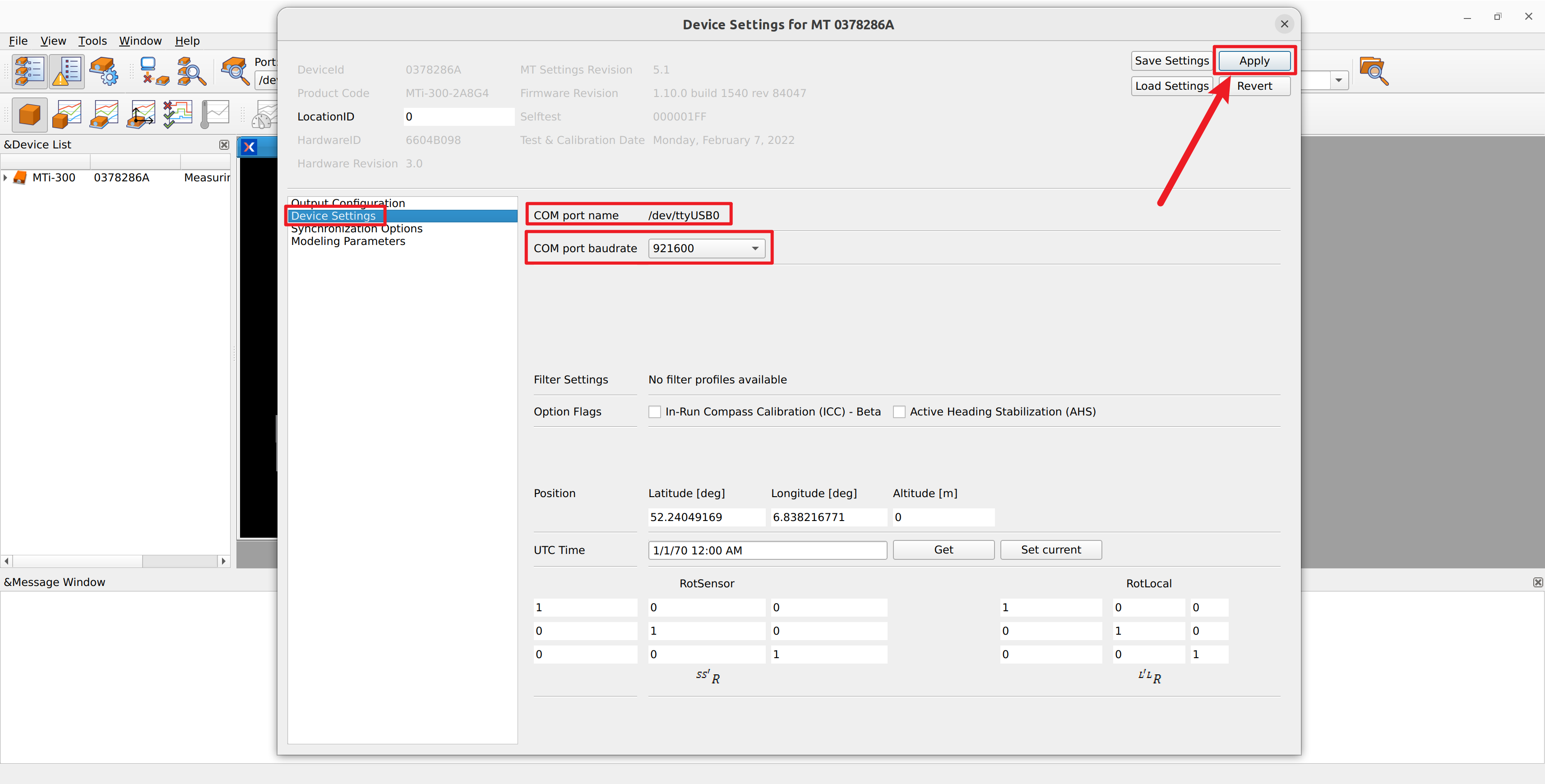

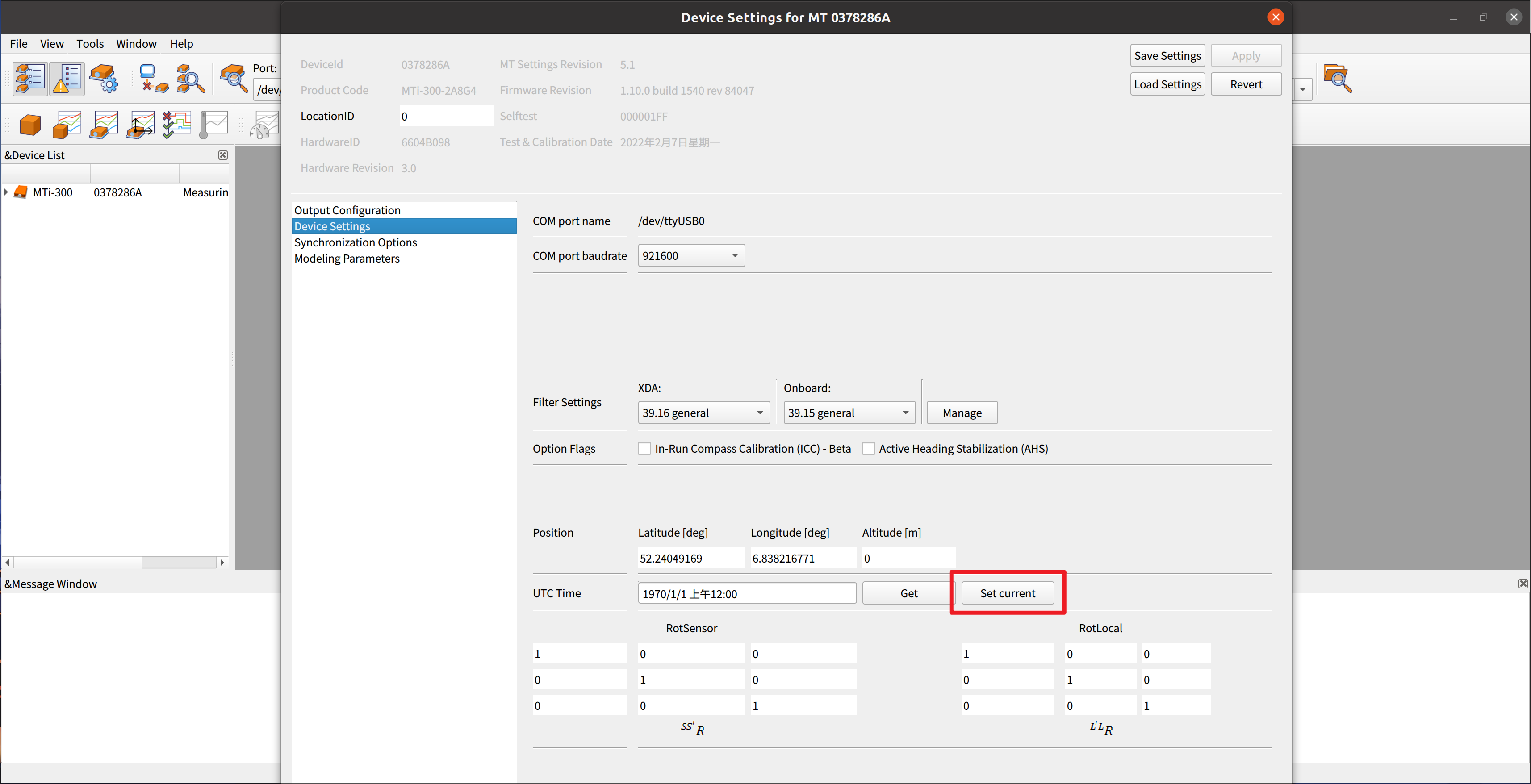

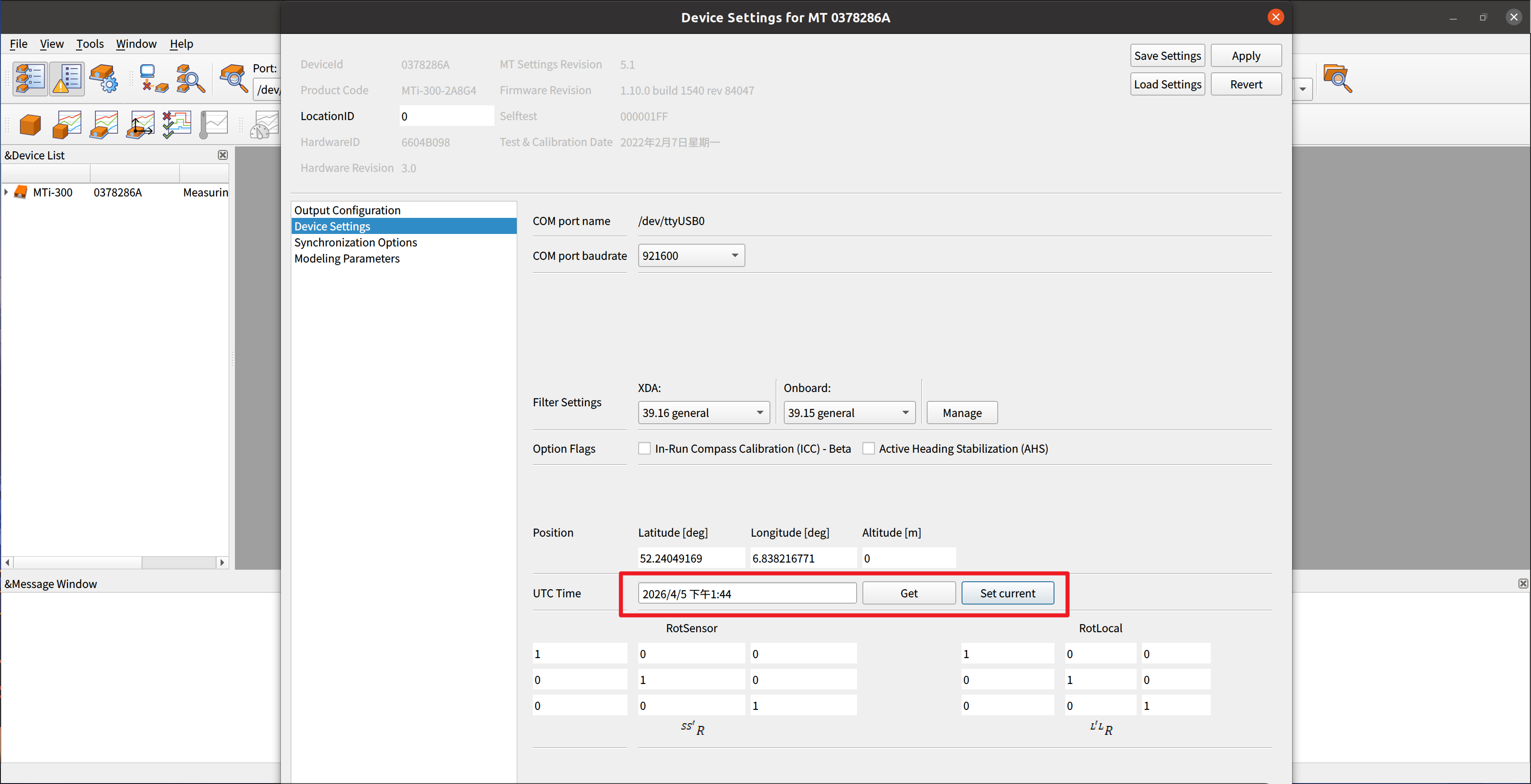

记住这步设置的波特率

运行 launch 文件测试 IMU 节点数据

复制代码

lsusb

看到Xscens ******
