clip-path绘制倾斜角裁剪的矩形占比条；基于svg实现仪表盘弧线占比图。

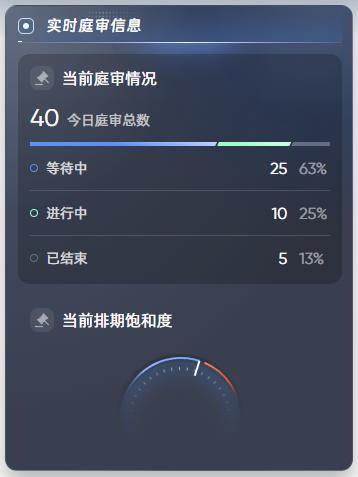

页面效果

切图

代码实现：

<!--  庭审分布：右侧实时庭审信息 -->
<template>
  <div class="trial-info">
    <div class="first-title">实时庭审信息</div>
    <div class="title-decoration"></div>
    <div class="trial-info-content">
      <!-- 当前庭审情况 -->
      <div class="card">
        <div class="second-title">
          <span class="second-title__icon"></span>
          <span class="second-title__text">当前庭审情况</span>
        </div>
        <div class="total-wrap">
          <span class="total-value">{{ dataInfo.total }}</span>
          <span class="total-text">今日庭审总数</span>
        </div>
        <div class="bar-wrap">
          <span class="bar-item waiting" :style="{ width: getWidth('waiting') }"></span>
          <span class="bar-item inProgress" :style="{ width: getWidth('inProgress') }"></span>
          <span class="bar-item endEd" :style="{ width: getWidth('endEd') }"></span>
        </div>

        <div class="trial-status">
          <div class="trial-status-left">
            <span class="icon-ring"></span>
            <span class="status-text">等待中</span>
          </div>
          <div class="trial-status-right">
            <span class="status-value">{{ dataInfo.waiting }}</span>
            <span class="status-percent">{{ getWidth('waiting') }}</span>
          </div>
        </div>
        <div class="split-line"></div>
        <div class="trial-status">
          <div class="trial-status-left">
            <span class="icon-ring green"></span>
            <span class="status-text">进行中</span>
          </div>
          <div class="trial-status-right">
            <span class="status-value">{{ dataInfo.inProgress }}</span>
            <span class="status-percent">{{ getWidth('inProgress') }}</span>
          </div>
        </div>
        <div class="split-line"></div>
        <div class="trial-status">
          <div class="trial-status-left">
            <span class="icon-ring gray"></span>
            <span class="status-text">已结束</span>
          </div>
          <div class="trial-status-right">
            <span class="status-value">{{ dataInfo.endEd }}</span>
            <span class="status-percent">{{ getWidth('endEd') }}</span>
          </div>
        </div>
      </div>

      <div class="scheduling-saturation">
        <div class="second-title">
          <span class="second-title__icon"></span>
          <span class="second-title__text">当前排期饱和度</span>
        </div>
        <div class="scheduling-saturation-content">
          <div class="left-part">
            <div class="left-part__icon"></div>
            <div class="left-part__text">已排期</div>
            <div class="left-part__value">{{ schedulingData.scheduled.num }}</div>
            <div class="left-part__percent">{{ schedulingData.scheduled.percent }}%</div>
          </div>
          <div class="middle-part">
            <div class="middle-part-top">
              <svg width="124" height="62" viewBox="-2 -2 126 64" style="width: 100%;height: 100%;">
                <defs>
                  <linearGradient id="arcGradient1" x1="0%" y1="0%" x2="100%" y2="0%">
                    <stop offset="0%" stop-color="rgba(52, 68, 98, 0)" />
                    <stop offset="30%" stop-color="rgba(144, 182, 253, 1)" />
                    <stop offset="100%" stop-color="rgba(108, 163, 255, 1)" />
                  </linearGradient>
                  <linearGradient id="arcGradient2" x1="100%" y1="0%" x2="0%" y2="0%">
                    <stop offset="0%" stop-color="rgba(52, 68, 98, 0)" />
                    <stop offset="30%" stop-color="rgba(211, 84, 57, 1)" />
                    <stop offset="100%" stop-color="rgba(255, 124, 96, 1)" />
                  </linearGradient>
                </defs>
                <!-- 圆弧路径 -->
                <path id="arcPath1" :d="path1" fill="none" stroke="url(#arcGradient1)" stroke-width="2" />
                <path id="arcPath2" :d="path2" fill="none" stroke="url(#arcGradient2)" stroke-width="2" />
                <!-- 添加分割线 -->
                <path id="linePath" :d="splitLine" fill="none" stroke="white" stroke-width="2" />
              </svg>
            </div>
          </div>
          <div class="right-part">
            <div class="right-part__icon"></div>
            <div class="right-part__text">已排期</div>
            <div class="right-part__value">{{ schedulingData.notScheduled.num }}</div>
            <div class="right-part__percent">{{ schedulingData.notScheduled.percent }}%</div>
          </div>
        </div>
      </div>
    </div>
  </div>
</template>

<script setup>
import { ref } from 'vue'
const dataInfo = ref({
  total: 0,
  waiting: 0,
  inProgress: 0,
  endEd: 0
})

setTimeout(() => {
  dataInfo.value = {
    total: 40,
    waiting: 25,
    inProgress: 10,
    endEd: 5
  }
}, 1000);

// 计算宽度
function getWidth(type) {
  if (dataInfo.value.total) {
    return ((dataInfo.value[type] / dataInfo.value.total) * 100).toFixed(0) + '%'
  } else {
    return '0%'
  }
}

const schedulingData = ref({
  total: 100,
  scheduled: {
    num: 60,
    percent: 60
  },
  notScheduled: {
    num: 40,
    percent: 40
  }
})

const path1 = ref('')
const path2 = ref('')
const splitLine = ref('')

function getData() {
  // 计算已排期部分对应的角度：已排期60%，对应半圆中的108度角
  const angle1 = schedulingData.value.scheduled.percent / 100 * 180
  /**
   * 实际效果：从左侧中点开始，顺时针向上绘制108度的圆弧
   * M 0,62：移动到起点(0,62) - 半圆最左侧中点
   * A 62,62 0 0,1：绘制圆弧
      62,62：x半径和y半径都是62
      0：旋转角度为0
      0：大弧标志为0（选择小弧）：当给定起点、终点和半径后，理论上可以绘制出两个可能的圆弧（一个大弧和一个小弧）。大弧标志用于选择绘制哪一个。值为 0：表示选择小弧（较小的那个圆弧）。圆弧的角度小于或等于 180 度。值为 1：表示选择大弧（较大的那个圆弧）。圆弧的角度大于 180 度。
      1：顺时针方向绘制
   * ${62 - 62 * Math.cos(angle1 * Math.PI / 180)}：计算终点x坐标
      Math.cos(angle1 * Math.PI / 180)：将角度转为弧度并计算余弦
      从圆心(62,62)向左偏移62*cos(角度)
   * ${62 - 62 * Math.sin(angle1 * Math.PI / 180)}：计算终点y坐标
      从圆心(62,62)向上偏移62*sin(角度)
   */
  path1.value = `M 0,62 A 62,62 0 0,1 ${62 - 62 * Math.cos(angle1 * Math.PI / 180)},${62 - 62 * Math.sin(angle1 * Math.PI / 180)}`

  // 计算未排期部分对应的角度：未排期40%，对应半圆中的72度角
  const angle2 = schedulingData.value.notScheduled.percent / 100 * 180 - 5
  /**
   * 实际效果：从右侧中点开始，逆时针向上绘制72度的圆弧
   * M 124,62：移动到起点(124,62) - 半圆最右侧中点
   * A 62,62 0 0,0：绘制圆弧
      0：大弧标志为0（选择小弧）
      0：逆时针方向绘制
   * ${62 + 62 * Math.cos(angle2 * Math.PI / 180)}：计算终点x坐标
      从圆心(62,62)向右偏移62*cos(角度)
   * ${62 - 62 * Math.sin(angle2 * Math.PI / 180)}：计算终点y坐标
      从圆心(62,62)向上偏移62*sin(角度)
   */
  path2.value = `M 124,62 A 62,62 0 0,0 ${62 + 62 * Math.cos(angle2 * Math.PI / 180)},${62 - 62 * Math.sin(angle2 * Math.PI / 180)}`

  // 计算分割线
  const updateSplitLine = () => {
    // 计算交汇点坐标（path1的终点，也是path2的起点）
    const intersectionX = 62 - 62 * Math.cos(angle1 * Math.PI / 180)
    const intersectionY = 62 - 62 * Math.sin(angle1 * Math.PI / 180)

    // 计算指向圆心的角度（法线方向）
    const centerX = 62
    const centerY = 62
    const angleToCenter = Math.atan2(centerY - intersectionY, centerX - intersectionX)

    // 计算分割线的两个端点（长度16px，垂直于圆弧）
    const lineLength = 16
    const halfLength = lineLength / 2

    // 计算分割线的起点和终点（沿着法线方向）
    const startX = intersectionX
    const startY = intersectionY
    const endX = intersectionX + lineLength * Math.cos(angleToCenter)
    const endY = intersectionY + lineLength * Math.sin(angleToCenter)

    // const startX = intersectionX - halfLength * Math.cos(angleToCenter)
    // const startY = intersectionY - halfLength * Math.sin(angleToCenter)
    // const endX = intersectionX + halfLength * Math.cos(angleToCenter)
    // const endY = intersectionY + halfLength * Math.sin(angleToCenter)

    splitLine.value = `M ${startX},${startY} L ${endX},${endY}`
  }

  // 更新分割线
  updateSplitLine()
}

getData()

setTimeout(() => {
  schedulingData.value = {
    total: 100,
    scheduled: {
      num: 30,
      percent: 30
    },
    notScheduled: {
      num: 70,
      percent: 70
    }
  }
  getData()
}, 2000);


</script>
