前言
-
环境版本
python 3.9.23
pytorch 2.5.1
pytorch-cuda 11.8
pytorch-mutex 1.0
torchaudio 2.5.1
torchinfo 1.8.0
torchvision 0.20.1
Visual Studio Code 1.104.2 (user setup) -
什么是 ResNet‑50 V2？
-
-
先简单回顾一下 ResNet‑50（V1）：它通过"跳连接"让深层网络不再难训练。打个比方，本来你要爬 50 层楼梯（很多卷积层），ResNet 给你在每个楼梯间加了一部"电梯"（跳连接），你可以从第 1 层直接"跳"到第 3 层，信息不会在中间丢失，训练起来又快又稳。
-
ResNet‑50 V2 是 V1 的改进版，核心思路是：把电梯（跳连接）维护得更干净，让它能直接无障碍通行。
在 V1 中，电梯虽然存在，但它的旁边总是堆着一些"障碍"（比如批归一化 BN 和激活函数 ReLU）。虽然路障主要放在主路上，但有时候还是会碍事，导致电梯不能完全畅通。
V2 的做法很简单：把所有 BN 和 ReLU 全部移到主路上，让跳连接变成一条纯粹的"高速公路"。这样信息从深层传回浅层时，可以全程不踩刹车。
-
我的简单理解：
V1 的楼梯（主路）上每走几步就有"障碍"（BN→ReLU），而电梯（跳连接）虽然也能用，但出电梯口也会有"障碍"（残差相加后的 ReLU）。
V2 则把所有"障碍"都搬到楼梯上，电梯本身什么障碍都没有。想快速上下楼，直接坐电梯；想慢慢走楼梯，也可以。
-
ResNet‑50 V2 的结构与 V1 基本一致：
- 初始卷积 + 最大池化
- 四个阶段的瓶颈块（每个块仍是 1×1 降维 → 3×3 提取特征 → 1×1 升维）
- 全局平均池化 + 全连接分类层

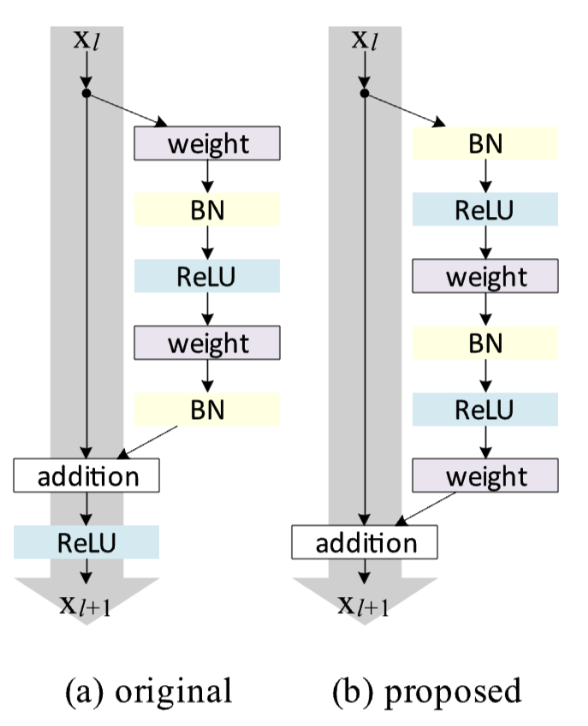

唯一的不同在于每个残差块内部的顺序：
V1 顺序：Conv → BN → ReLU → Conv → BN → ReLU → Conv → BN → Add → ReLU
V2 顺序：BN → ReLU → Conv → BN → ReLU → Conv → BN → ReLU → Conv → Add （Add 后不再加 ReLU）
-
python
----------------------------------------------------------------
Layer (type) Output Shape Param #
================================================================
Conv2d-1 [-1, 64, 112, 112] 9,408
BatchNorm2d-2 [-1, 64, 112, 112] 128
ReLU-3 [-1, 64, 112, 112] 0
MaxPool2d-4 [-1, 64, 56, 56] 0
Conv2d-5 [-1, 256, 56, 56] 16,384
BatchNorm2d-6 [-1, 256, 56, 56] 512
BatchNorm2d-7 [-1, 64, 56, 56] 128
ReLU-8 [-1, 64, 56, 56] 0
Conv2d-9 [-1, 64, 56, 56] 4,096
BatchNorm2d-10 [-1, 64, 56, 56] 128
ReLU-11 [-1, 64, 56, 56] 0
Conv2d-12 [-1, 64, 56, 56] 36,864
BatchNorm2d-13 [-1, 64, 56, 56] 128
ReLU-14 [-1, 64, 56, 56] 0
Conv2d-15 [-1, 256, 56, 56] 16,384
PreActBottleneck-16 [-1, 256, 56, 56] 0
BatchNorm2d-17 [-1, 256, 56, 56] 512
ReLU-18 [-1, 256, 56, 56] 0
Conv2d-19 [-1, 64, 56, 56] 16,384
BatchNorm2d-20 [-1, 64, 56, 56] 128
ReLU-21 [-1, 64, 56, 56] 0
Conv2d-22 [-1, 64, 56, 56] 36,864
BatchNorm2d-23 [-1, 64, 56, 56] 128
ReLU-24 [-1, 64, 56, 56] 0
Conv2d-25 [-1, 256, 56, 56] 16,384
PreActBottleneck-26 [-1, 256, 56, 56] 0
BatchNorm2d-27 [-1, 256, 56, 56] 512
ReLU-28 [-1, 256, 56, 56] 0
Conv2d-29 [-1, 64, 56, 56] 16,384
BatchNorm2d-30 [-1, 64, 56, 56] 128
ReLU-31 [-1, 64, 56, 56] 0
Conv2d-32 [-1, 64, 56, 56] 36,864
BatchNorm2d-33 [-1, 64, 56, 56] 128
ReLU-34 [-1, 64, 56, 56] 0
Conv2d-35 [-1, 256, 56, 56] 16,384
PreActBottleneck-36 [-1, 256, 56, 56] 0
Conv2d-37 [-1, 512, 28, 28] 131,072
BatchNorm2d-38 [-1, 512, 28, 28] 1,024
BatchNorm2d-39 [-1, 256, 56, 56] 512
ReLU-40 [-1, 256, 56, 56] 0
Conv2d-41 [-1, 128, 56, 56] 32,768
BatchNorm2d-42 [-1, 128, 56, 56] 256
ReLU-43 [-1, 128, 56, 56] 0
Conv2d-44 [-1, 128, 28, 28] 147,456
BatchNorm2d-45 [-1, 128, 28, 28] 256
ReLU-46 [-1, 128, 28, 28] 0
Conv2d-47 [-1, 512, 28, 28] 65,536
PreActBottleneck-48 [-1, 512, 28, 28] 0
BatchNorm2d-49 [-1, 512, 28, 28] 1,024
ReLU-50 [-1, 512, 28, 28] 0
Conv2d-51 [-1, 128, 28, 28] 65,536
BatchNorm2d-52 [-1, 128, 28, 28] 256
ReLU-53 [-1, 128, 28, 28] 0
Conv2d-54 [-1, 128, 28, 28] 147,456
BatchNorm2d-55 [-1, 128, 28, 28] 256
ReLU-56 [-1, 128, 28, 28] 0
Conv2d-57 [-1, 512, 28, 28] 65,536
PreActBottleneck-58 [-1, 512, 28, 28] 0
BatchNorm2d-59 [-1, 512, 28, 28] 1,024
ReLU-60 [-1, 512, 28, 28] 0
Conv2d-61 [-1, 128, 28, 28] 65,536
BatchNorm2d-62 [-1, 128, 28, 28] 256
ReLU-63 [-1, 128, 28, 28] 0
Conv2d-64 [-1, 128, 28, 28] 147,456
BatchNorm2d-65 [-1, 128, 28, 28] 256
ReLU-66 [-1, 128, 28, 28] 0
Conv2d-67 [-1, 512, 28, 28] 65,536
PreActBottleneck-68 [-1, 512, 28, 28] 0
BatchNorm2d-69 [-1, 512, 28, 28] 1,024
ReLU-70 [-1, 512, 28, 28] 0
Conv2d-71 [-1, 128, 28, 28] 65,536
BatchNorm2d-72 [-1, 128, 28, 28] 256
ReLU-73 [-1, 128, 28, 28] 0
Conv2d-74 [-1, 128, 28, 28] 147,456
BatchNorm2d-75 [-1, 128, 28, 28] 256
ReLU-76 [-1, 128, 28, 28] 0
Conv2d-77 [-1, 512, 28, 28] 65,536
PreActBottleneck-78 [-1, 512, 28, 28] 0
Conv2d-79 [-1, 1024, 14, 14] 524,288
BatchNorm2d-80 [-1, 1024, 14, 14] 2,048
BatchNorm2d-81 [-1, 512, 28, 28] 1,024
ReLU-82 [-1, 512, 28, 28] 0
Conv2d-83 [-1, 256, 28, 28] 131,072
BatchNorm2d-84 [-1, 256, 28, 28] 512
ReLU-85 [-1, 256, 28, 28] 0
Conv2d-86 [-1, 256, 14, 14] 589,824
BatchNorm2d-87 [-1, 256, 14, 14] 512
ReLU-88 [-1, 256, 14, 14] 0
Conv2d-89 [-1, 1024, 14, 14] 262,144
PreActBottleneck-90 [-1, 1024, 14, 14] 0
BatchNorm2d-91 [-1, 1024, 14, 14] 2,048
ReLU-92 [-1, 1024, 14, 14] 0
Conv2d-93 [-1, 256, 14, 14] 262,144
BatchNorm2d-94 [-1, 256, 14, 14] 512
ReLU-95 [-1, 256, 14, 14] 0
Conv2d-96 [-1, 256, 14, 14] 589,824
BatchNorm2d-97 [-1, 256, 14, 14] 512
ReLU-98 [-1, 256, 14, 14] 0
Conv2d-99 [-1, 1024, 14, 14] 262,144
PreActBottleneck-100 [-1, 1024, 14, 14] 0
BatchNorm2d-101 [-1, 1024, 14, 14] 2,048
ReLU-102 [-1, 1024, 14, 14] 0
Conv2d-103 [-1, 256, 14, 14] 262,144
BatchNorm2d-104 [-1, 256, 14, 14] 512
ReLU-105 [-1, 256, 14, 14] 0
Conv2d-106 [-1, 256, 14, 14] 589,824
BatchNorm2d-107 [-1, 256, 14, 14] 512
ReLU-108 [-1, 256, 14, 14] 0
Conv2d-109 [-1, 1024, 14, 14] 262,144
PreActBottleneck-110 [-1, 1024, 14, 14] 0
BatchNorm2d-111 [-1, 1024, 14, 14] 2,048
ReLU-112 [-1, 1024, 14, 14] 0
Conv2d-113 [-1, 256, 14, 14] 262,144
BatchNorm2d-114 [-1, 256, 14, 14] 512
ReLU-115 [-1, 256, 14, 14] 0
Conv2d-116 [-1, 256, 14, 14] 589,824
BatchNorm2d-117 [-1, 256, 14, 14] 512
ReLU-118 [-1, 256, 14, 14] 0
Conv2d-119 [-1, 1024, 14, 14] 262,144
PreActBottleneck-120 [-1, 1024, 14, 14] 0
BatchNorm2d-121 [-1, 1024, 14, 14] 2,048
ReLU-122 [-1, 1024, 14, 14] 0
Conv2d-123 [-1, 256, 14, 14] 262,144
BatchNorm2d-124 [-1, 256, 14, 14] 512
ReLU-125 [-1, 256, 14, 14] 0
Conv2d-126 [-1, 256, 14, 14] 589,824
BatchNorm2d-127 [-1, 256, 14, 14] 512
ReLU-128 [-1, 256, 14, 14] 0
Conv2d-129 [-1, 1024, 14, 14] 262,144
PreActBottleneck-130 [-1, 1024, 14, 14] 0
BatchNorm2d-131 [-1, 1024, 14, 14] 2,048
ReLU-132 [-1, 1024, 14, 14] 0
Conv2d-133 [-1, 256, 14, 14] 262,144
BatchNorm2d-134 [-1, 256, 14, 14] 512
ReLU-135 [-1, 256, 14, 14] 0
Conv2d-136 [-1, 256, 14, 14] 589,824
BatchNorm2d-137 [-1, 256, 14, 14] 512
ReLU-138 [-1, 256, 14, 14] 0
Conv2d-139 [-1, 1024, 14, 14] 262,144
PreActBottleneck-140 [-1, 1024, 14, 14] 0
Conv2d-141 [-1, 2048, 7, 7] 2,097,152
BatchNorm2d-142 [-1, 2048, 7, 7] 4,096
BatchNorm2d-143 [-1, 1024, 14, 14] 2,048
ReLU-144 [-1, 1024, 14, 14] 0
Conv2d-145 [-1, 512, 14, 14] 524,288
BatchNorm2d-146 [-1, 512, 14, 14] 1,024
ReLU-147 [-1, 512, 14, 14] 0
Conv2d-148 [-1, 512, 7, 7] 2,359,296
BatchNorm2d-149 [-1, 512, 7, 7] 1,024
ReLU-150 [-1, 512, 7, 7] 0
Conv2d-151 [-1, 2048, 7, 7] 1,048,576
PreActBottleneck-152 [-1, 2048, 7, 7] 0
BatchNorm2d-153 [-1, 2048, 7, 7] 4,096
ReLU-154 [-1, 2048, 7, 7] 0
Conv2d-155 [-1, 512, 7, 7] 1,048,576
BatchNorm2d-156 [-1, 512, 7, 7] 1,024
ReLU-157 [-1, 512, 7, 7] 0
Conv2d-158 [-1, 512, 7, 7] 2,359,296
BatchNorm2d-159 [-1, 512, 7, 7] 1,024
ReLU-160 [-1, 512, 7, 7] 0
Conv2d-161 [-1, 2048, 7, 7] 1,048,576
PreActBottleneck-162 [-1, 2048, 7, 7] 0
BatchNorm2d-163 [-1, 2048, 7, 7] 4,096
ReLU-164 [-1, 2048, 7, 7] 0
Conv2d-165 [-1, 512, 7, 7] 1,048,576
BatchNorm2d-166 [-1, 512, 7, 7] 1,024
ReLU-167 [-1, 512, 7, 7] 0
Conv2d-168 [-1, 512, 7, 7] 2,359,296
BatchNorm2d-169 [-1, 512, 7, 7] 1,024
ReLU-170 [-1, 512, 7, 7] 0
Conv2d-171 [-1, 2048, 7, 7] 1,048,576
PreActBottleneck-172 [-1, 2048, 7, 7] 0
BatchNorm2d-173 [-1, 2048, 7, 7] 4,096
ReLU-174 [-1, 2048, 7, 7] 0
AdaptiveAvgPool2d-175 [-1, 2048, 1, 1] 0
Linear-176 [-1, 3] 6,147
================================================================
Total params: 23,514,307
Trainable params: 23,514,307
Non-trainable params: 0
----------------------------------------------------------------
Input size (MB): 0.57
Forward/backward pass size (MB): 289.61
Params size (MB): 89.70
Estimated Total Size (MB): 379.89
----------------------------------------------------------------代码实现
设置gpu
python
import torch
import torch.nn as nn
from torchvision import transforms, datasets
from PIL import Image
import matplotlib.pyplot as plt
import os,PIL,pathlib,warnings
warnings.filterwarnings("ignore") #忽略警告信息
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
device
数据导入
python
# 数据导入
data_dir = "../../datasets/bones/"
train_transforms = transforms.Compose([
transforms.Resize([224, 224]), # 将输入图片resize成统一尺寸
transforms.ToTensor(), # 将图像转换为tensor，并归一化到[0,1]之间
transforms.Normalize( # 转换为标准正太分布（高斯分布）
mean=[0.485, 0.456, 0.406],
std =[0.229, 0.224, 0.225])
])

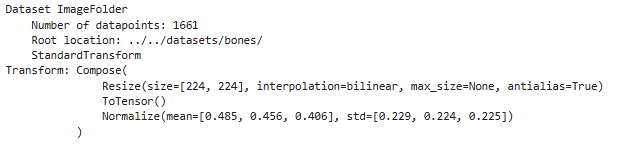

total_data = datasets.ImageFolder(data_dir, transform = train_transforms)
total_data
标签打印
python
# 数据集中每个类别名称对应的数字标签（class_to_idx），用于模型训练时的标签编码
total_data.class_to_idx
数据集划分和
python
# 划分训练集和测试集（8:2）
total_size = len(total_data)
train_size = int(0.8 * total_size)
test_size = total_size - train_size
train_dataset, test_dataset = torch.utils.data.random_split(total_data, [train_size, test_size])
train_dataset, test_dataset
python
# 创建训练数据加载器：每次从训练集中加载 batch_size=4 个样本，并打乱顺序（shuffle=True）
train_loader = torch.utils.data.DataLoader(train_dataset,
batch_size=4,
shuffle=True)
# 创建测试数据加载器：每次从测试集中加载 batch_size=4 个样本，不打乱顺序（默认 shuffle=False）
test_loader = torch.utils.data.DataLoader(test_dataset,
batch_size=4)验证数据形状
python
# 打印一个 batch 的数据形状以验证
for X, y in test_loader:
print(f"输入张量形状 [Batch, Channel, Height, Width]: {X.shape}")
print(f"标签形状: {y.shape}, 数据类型: {y.dtype}")
break
构建ResNet-50
python
import torch
import torch.nn as nn
def autopad(k, p=None):
"""自动计算 same padding"""
if p is None:
if isinstance(k, int):
p = k // 2
else:
p = [x // 2 for x in k]
return p
class PreActBottleneck(nn.Module):
"""
ResNet50V2 预激活瓶颈块
- 顺序：BN → ReLU → 1x1 Conv → BN → ReLU → 3x3 Conv → BN → ReLU → 1x1 Conv
- shortcut 分支：若需下采样或改变通道数，则使用 1x1 Conv (stride) 或 MaxPooling (但标准为 1x1 Conv)
"""
def __init__(self, in_channels, out_channels, stride=1, downsample=None):
super().__init__()
mid_channels = out_channels // 4
# 预激活部分（放在卷积之前）
self.bn1 = nn.BatchNorm2d(in_channels)
self.relu1 = nn.ReLU(inplace=True)
self.conv1 = nn.Conv2d(in_channels, mid_channels, kernel_size=1, stride=1, bias=False)
self.bn2 = nn.BatchNorm2d(mid_channels)
self.relu2 = nn.ReLU(inplace=True)
self.conv2 = nn.Conv2d(mid_channels, mid_channels, kernel_size=3, stride=stride,
padding=autopad(3), bias=False)
self.bn3 = nn.BatchNorm2d(mid_channels)
self.relu3 = nn.ReLU(inplace=True)
self.conv3 = nn.Conv2d(mid_channels, out_channels, kernel_size=1, stride=1, bias=False)
self.downsample = downsample
def forward(self, x):
residual = x if self.downsample is None else self.downsample(x)
out = self.bn1(x)
out = self.relu1(out)
out = self.conv1(out)
out = self.bn2(out)
out = self.relu2(out)
out = self.conv2(out)
out = self.bn3(out)
out = self.relu3(out)
out = self.conv3(out)
out += residual
return out
class ResNet50V2(nn.Module):
def __init__(self, num_classes=1000):
super().__init__()
# 初始部分
self.conv1 = nn.Conv2d(3, 64, kernel_size=7, stride=2, padding=3, bias=False)
self.bn1 = nn.BatchNorm2d(64)
self.relu1 = nn.ReLU(inplace=True)
self.maxpool = nn.MaxPool2d(kernel_size=3, stride=2, padding=1)
# Stage 2 (3 blocks, out_channels=256)
self.layer1 = self._make_layer(64, 256, blocks=3, stride=1)
# Stage 3 (4 blocks, out_channels=512)
self.layer2 = self._make_layer(256, 512, blocks=4, stride=2)
# Stage 4 (6 blocks, out_channels=1024)
self.layer3 = self._make_layer(512, 1024, blocks=6, stride=2)
# Stage 5 (3 blocks, out_channels=2048)
self.layer4 = self._make_layer(1024, 2048, blocks=3, stride=2)
# 最终部分
self.bn_final = nn.BatchNorm2d(2048)
self.relu_final = nn.ReLU(inplace=True)
self.avgpool = nn.AdaptiveAvgPool2d((1, 1))
self.fc = nn.Linear(2048, num_classes)
def _make_layer(self, in_channels, out_channels, blocks, stride):
"""构建一个 stage，包含多个 PreActBottleneck"""
downsample = None
# 第一个块可能需要下采样
if stride != 1 or in_channels != out_channels:
downsample = nn.Sequential(
nn.Conv2d(in_channels, out_channels, kernel_size=1, stride=stride, bias=False),
nn.BatchNorm2d(out_channels)
)
layers = []
layers.append(PreActBottleneck(in_channels, out_channels, stride, downsample))
# 后续块均为恒等映射
for _ in range(1, blocks):
layers.append(PreActBottleneck(out_channels, out_channels, stride=1))
return nn.Sequential(*layers)
def forward(self, x):
x = self.conv1(x)
x = self.bn1(x)
x = self.relu1(x)
x = self.maxpool(x)
x = self.layer1(x)
x = self.layer2(x)
x = self.layer3(x)
x = self.layer4(x)
x = self.bn_final(x)
x = self.relu_final(x)
x = self.avgpool(x)
x = torch.flatten(x, 1)
x = self.fc(x)
return x
# 实例化模型并移动到设备（GPU）
# 自动选择设备：如果有 GPU 就用 CUDA，否则用 CPU
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
# 创建 ResNet-50 模型，设置为 3 分类任务
model = ResNet50V2(num_classes=3).to(device) # .to(device) 将模型参数加载到指定设备查看模型
python
# 统计模型参数数量以及其他指标
import torchsummary as summary
summary.summary(model, (3, 224, 224))训练和测试函数
python
# 训练循环
def train(dataloader, model, loss_fn, optimizer):
size = len(dataloader.dataset) # 训练集的大小
num_batches = len(dataloader) # 批次数目（size/batch_size，向上取整）
train_loss, train_acc = 0, 0 # 初始化训练损失和正确率
for X, y in dataloader: # 获取图片及其标签
X, y = X.to(device), y.to(device)
# 计算预测误差
pred = model(X) # 网络输出
loss = loss_fn(pred, y) # 计算网络输出和真实值之间的差距
# 反向传播
optimizer.zero_grad() # grad属性归零
loss.backward() # 反向传播
optimizer.step() # 每一步自动更新
# 记录acc和loss
train_acc += (pred.argmax(1) == y).type(torch.float).sum().item()
train_loss += loss.item()
train_acc /= size # 计算训练集整体正确率
train_loss /= num_batches # 计算训练集平均损失
return train_acc, train_loss
python
# 测试函数
def test(dataloader, model, loss_fn):
size = len(dataloader.dataset) # 测试集的大小
num_batches = len(dataloader) # 批次数目（size/batch_size，向上取整）
test_loss, test_acc = 0, 0
# 当不进行训练时，停止梯度更新，节省计算内存消耗
with torch.no_grad():
for imgs, target in dataloader:
imgs, target = imgs.to(device), target.to(device)
# 计算loss
target_pred = model(imgs)
loss = loss_fn(target_pred, target)
test_loss += loss.item()
test_acc += (target_pred.argmax(1) == target).type(torch.float).sum().item()
test_acc /= size
test_loss /= num_batches
return test_acc, test_loss正式训练
python
# 训练
import copy
import torch
import torch.nn as nn
import torch.optim as optim
# 初始化优化器与损失函数
optimizer = optim.AdamW(model.parameters(), lr=1e-4)
loss_fn = nn.CrossEntropyLoss() # 创建损失函数
epochs = 10 # 训练轮数
# 初始化指标记录列表
train_loss = []
train_acc = []
test_loss = []
test_acc = []
best_acc = 0 # 设置最佳准确率，作为保存最佳模型的指标
for epoch in range(epochs):
# 训练阶段
model.train() # 开启训练模式（启用 Dropout、BatchNorm 等层的训练行为）
epoch_train_acc, epoch_train_loss = train(train_loader, model, loss_fn, optimizer)
# 测试阶段
model.eval() # 开启评估模式（禁用 Dropout、固定 BatchNorm 等层的参数）
epoch_test_acc, epoch_test_loss = test(test_loader, model, loss_fn)
# 保存最佳模型
if epoch_test_acc > best_acc:
best_acc = epoch_test_acc
best_model = copy.deepcopy(model) # 深拷贝当前最佳模型
# 记录训练/测试指标
train_acc.append(epoch_train_acc)
train_loss.append(epoch_train_loss)
test_acc.append(epoch_test_acc)
test_loss.append(epoch_test_loss)
# 获取当前学习率
lr = optimizer.state_dict()['param_groups'][0]['lr']
# 打印当前轮次的指标

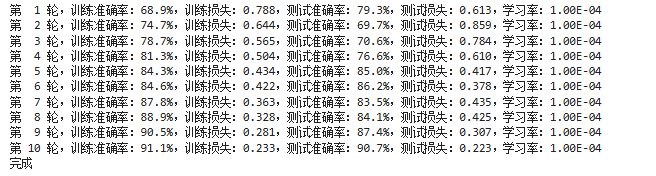

template = ('第 {:2d} 轮，训练准确率：{:.1f}%，训练损失：{:.3f}，测试准确率：{:.1f}%，测试损失：{:.3f}，学习率：{:.2E}')
print(template.format(epoch + 1,
epoch_train_acc * 100,
epoch_train_loss,
epoch_test_acc * 100,
epoch_test_loss,
lr))
# 保存最佳模型到文件
PATH = './best_model.pth' # 保存的参数文件名
torch.save(best_model.state_dict(), PATH) # 保存模型的参数状态字典
print('完成')

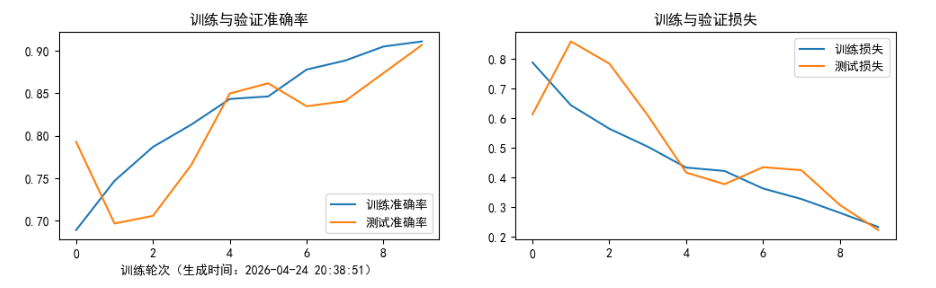

可视化训练结果
python
# 结果可视化
import matplotlib.pyplot as plt
# 隐藏警告
import warnings
warnings.filterwarnings("ignore") # 忽略警告信息
# 配置 Matplotlib 显示（解决中文/负号显示问题）
plt.rcParams['font.sans-serif'] = ['SimHei'] # 正常显示中文标签
plt.rcParams['axes.unicode_minus'] = False # 正常显示负号
plt.rcParams['figure.dpi'] = 100 # 设置图像分辨率为 100
from datetime import datetime
current_time = datetime.now() # 获取当前时间
epochs_range = range(epochs)
# 创建画布并绘制子图
plt.figure(figsize=(12, 3))
# 子图 1：准确率曲线
plt.subplot(1, 2, 1)
plt.plot(epochs_range, train_acc, label='训练准确率')
plt.plot(epochs_range, test_acc, label='测试准确率')
plt.legend(loc='lower right')
plt.title('训练与验证准确率')
plt.xlabel(f'训练轮次（生成时间：{current_time.strftime("%Y-%m-%d %H:%M:%S")}）') # 横轴标注当前时间
# 子图 2：损失曲线
plt.subplot(1, 2, 2)
plt.plot(epochs_range, train_loss, label='训练损失')
plt.plot(epochs_range, test_loss, label='测试损失')
plt.legend(loc='upper right')
plt.title('训练与验证损失')
plt.show()
模型评估
python
# 将参数加载到model当中
best_model.load_state_dict(torch.load(PATH, map_location=device))
# 用最佳模型评估测试集
epoch_test_acc, epoch_test_loss = test(test_loader, best_model, loss_fn)
# 输出最佳模型的测试指标
epoch_test_acc, epoch_test_loss
学习总结
-
对比了 ResNet V1 和 V2 的实现，意识到：调整 BN 和 ReLU 的位置，就能带来显著的性能差异。
-
ResNet V1（后激活）：先做 1×1 卷积，接 BN 和 ReLU；再做 3×3 卷积，同样接 BN 和 ReLU；最后是 1×1 卷积 + BN；将结果与 shortcut 相加后，再通过一个 ReLU。
-
ResNet V2（预激活）：在每个卷积前先进行 BN 和 ReLU（即"预激活"），三个卷积都如此处理；最后一个卷积输出后直接与 shortcut 相加，不再额外加激活函数。
-
可以简单理解：V1 就像沿着有一条笔直的捷径（shortcut）去目的地，但路上每隔一段就有一个"障碍"（BN/ReLU）。虽然能到，但不够顺畅。而 V2 把所有"障碍"都移到了主干道（残差分支）上，让捷径变得顺畅。反向传播时，梯度能毫无阻碍地沿 shortcut 直达浅层，极大缓解了梯度消失问题。
-
-
而"预激活"可以用在神经网络里有"把输入直接加到输出上"的网络结构（比如 ResNet 里的 shortcut）。什么叫"预激活"？就是先把数据做归一化（比如 BN）和激活（比如 ReLU），再送进卷积或全连接层，而不是像以前那样先卷积再激活。
举个例子：原本你写的是
卷积 → BN → ReLU，现在改成BN → ReLU → 卷积。别看只是调了个顺序，但它能让"直通路径"（就是那个直接加回来的 x）保持干净，没有非线性干扰。这样在反向传播时，梯度就能顺着这条直路一路畅通地传回前面的层，不会在中途"消失"或者"爆炸"。
