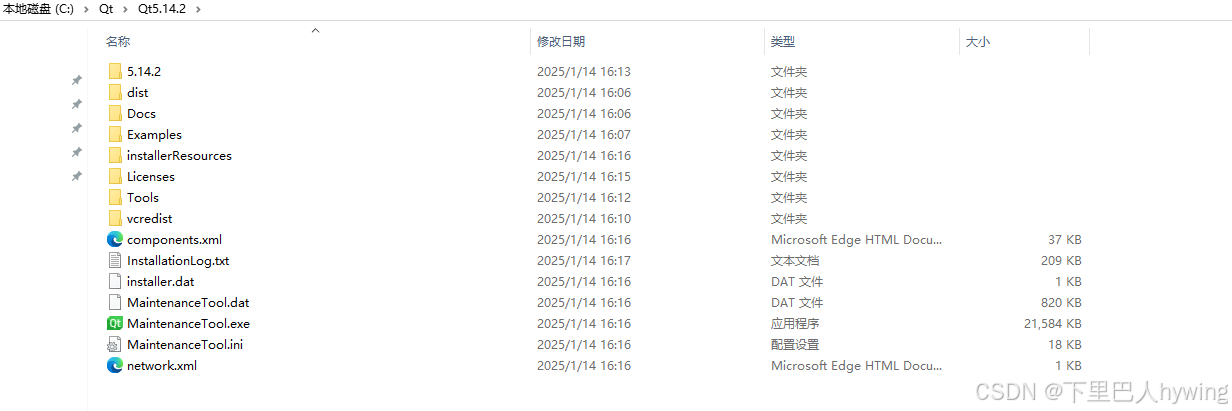

① 事先安装好完整的Qt工具链，我这里是：Qt5.14.2

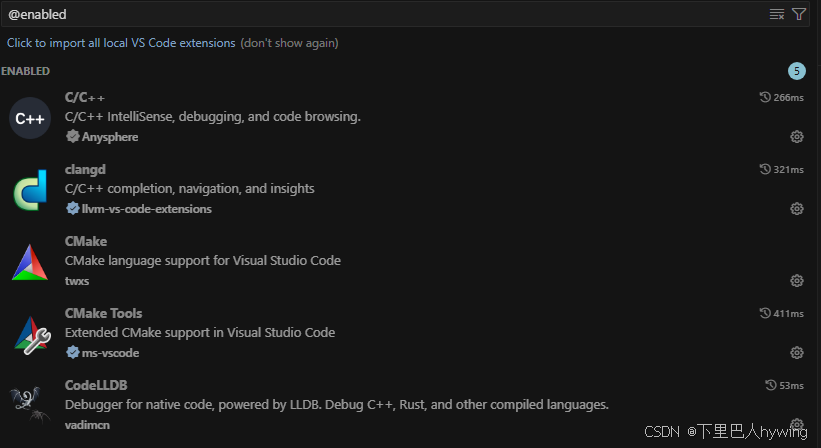

② 安装几个开发调试插件：C/C++、clangd、CMake、CMake Tools、CodeLLDB

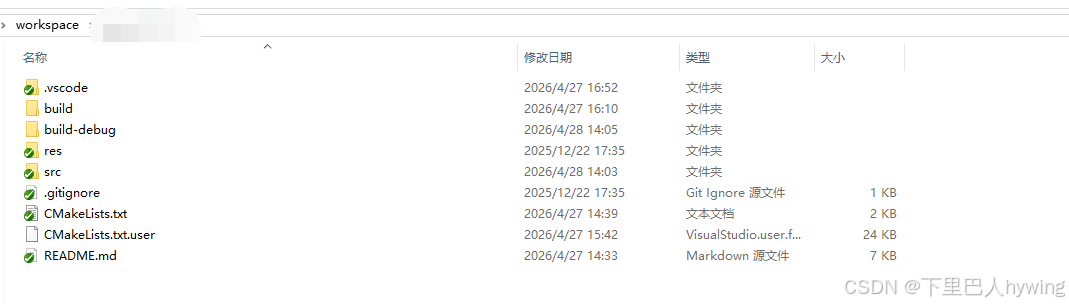

③ 新建配置.vscode配置文件目录，主要用于存放task和launch文件

④ 工程目录、可执行文件、环境变量、调试器参数配置，见文件.vscode\launch.json

Bash 复制代码

{
    "version": "0.2.0",
    "configurations": [
        {
            "name": "Debug pump-link (gdb)",
            "type": "cppdbg",
            "request": "launch",
            "program": "${workspaceFolder}/build-debug/pump-link.exe",
            "args": [],
            "stopAtEntry": false,
            "cwd": "${workspaceFolder}",
            "environment": [
                {
                    "name": "QTDIR",
                    "value": "C:/Qt/Qt5.14.2/5.14.2/mingw73_64"
                },
                {
                    "name": "PATH",
                    "value": "C:/Qt/Qt5.14.2/5.14.2/mingw73_64/bin;C:/Qt/Qt5.14.2/Tools/mingw730_64/bin;${env:PATH}"
                },
                {
                    "name": "QT_PLUGIN_PATH",
                    "value": "C:/Qt/Qt5.14.2/5.14.2/mingw73_64/plugins"
                },
                {
                    "name": "QML2_IMPORT_PATH",
                    "value": "C:/Qt/Qt5.14.2/5.14.2/mingw73_64/qml"
                }
            ],
            "externalConsole": true,
            "showDisplayString": true,
            "MIMode": "gdb",
            "miDebuggerPath": "C:/Qt/Qt5.14.2/Tools/mingw730_64/bin/gdb.exe",
            "setupCommands": [
                {
                    "description": "Enable gdb pretty printing",
                    "text": "-enable-pretty-printing",
                    "ignoreFailures": false
                },
                {
                    "description": "Import Python sys module",
                    "text": "python import sys",
                    "ignoreFailures": false
                },
                {
                    "description": "Add Qt Creator debugger path",
                    "text": "python sys.path.insert(0, 'C:/Qt/Qt5.14.2/Tools/QtCreator/share/qtcreator/debugger')",
                    "ignoreFailures": false
                },
                {
                    "description": "Load Qt pretty printers",
                    "text": "python from gdbbridge import *",
                    "ignoreFailures": false
                }
            ],
            "logging": {
                "engineLogging": true,
                "trace": true,
                "traceResponse": true
            },
            "preLaunchTask": "Build Debug (MinGW)"
        }
    ]
}

⑤ 编译工具配置，如CMake，编译参数（Debug版本）、MinGW工具链等，见文件.vscode\tasks.json

Bash 复制代码

{
    "version": "2.0.0",
    "tasks": [
        {
            "label": "Configure Debug (MinGW)",
            "type": "shell",
            "command": "cmake",
            "args": [
                "-S",
                "${workspaceFolder}",
                "-B",
                "${workspaceFolder}/build-debug",
                "-G",
                "MinGW Makefiles",
                "-DCMAKE_BUILD_TYPE=Debug",
                "-DCMAKE_PREFIX_PATH=C:/Qt/Qt5.14.2/5.14.2/mingw73_64"
            ],
            "options": {
                "env": {
                    "PATH": "C:/Qt/Qt5.14.2/Tools/mingw730_64/bin;C:/Qt/Qt5.14.2/5.14.2/mingw73_64/bin;${env:PATH}"
                }
            },
            "problemMatcher": [
                "$gcc"
            ]
        },
        {
            "label": "Build Debug (MinGW)",
            "type": "shell",
            "command": "cmake",
            "args": [
                "--build",
                "${workspaceFolder}/build-debug",
                "--target",
                "all"
            ],
            "options": {
                "env": {
                    "PATH": "C:/Qt/Qt5.14.2/Tools/mingw730_64/bin;C:/Qt/Qt5.14.2/5.14.2/mingw73_64/bin;${env:PATH}"
                }
            },
            "dependsOn": "Configure Debug (MinGW)",
            "dependsOrder": "sequence",
            "group": {
                "kind": "build",
                "isDefault": true
            },
            "problemMatcher": [
                "$gcc"
            ]
        }
    ]
}

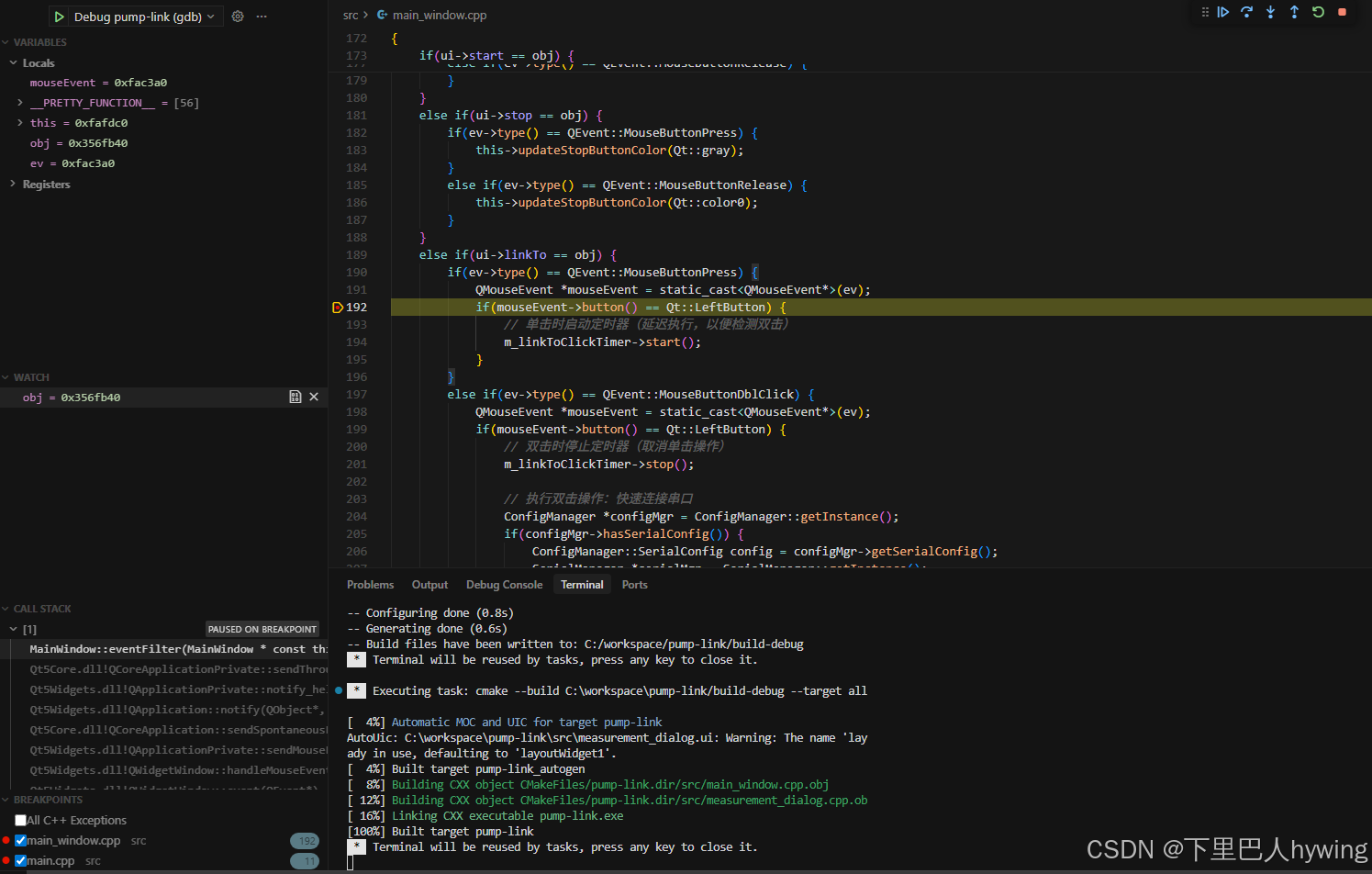

⑥ 实时调试打断点效果，按F5启动launch，启动前会执行tasks编译，注意VSCode是识别不了Qt自带对象类型的，这是个小缺陷

⑦ 调试工具栏快捷键

快捷键	功能
F5	启动调试、继续执行、暂停
F10	单步执行
F11	单步进入
Shift + F11	单步跳出
Ctrl + Shift + F5	重新启动应用
Shift + F5	关闭应用
F9	新增/移除断点
