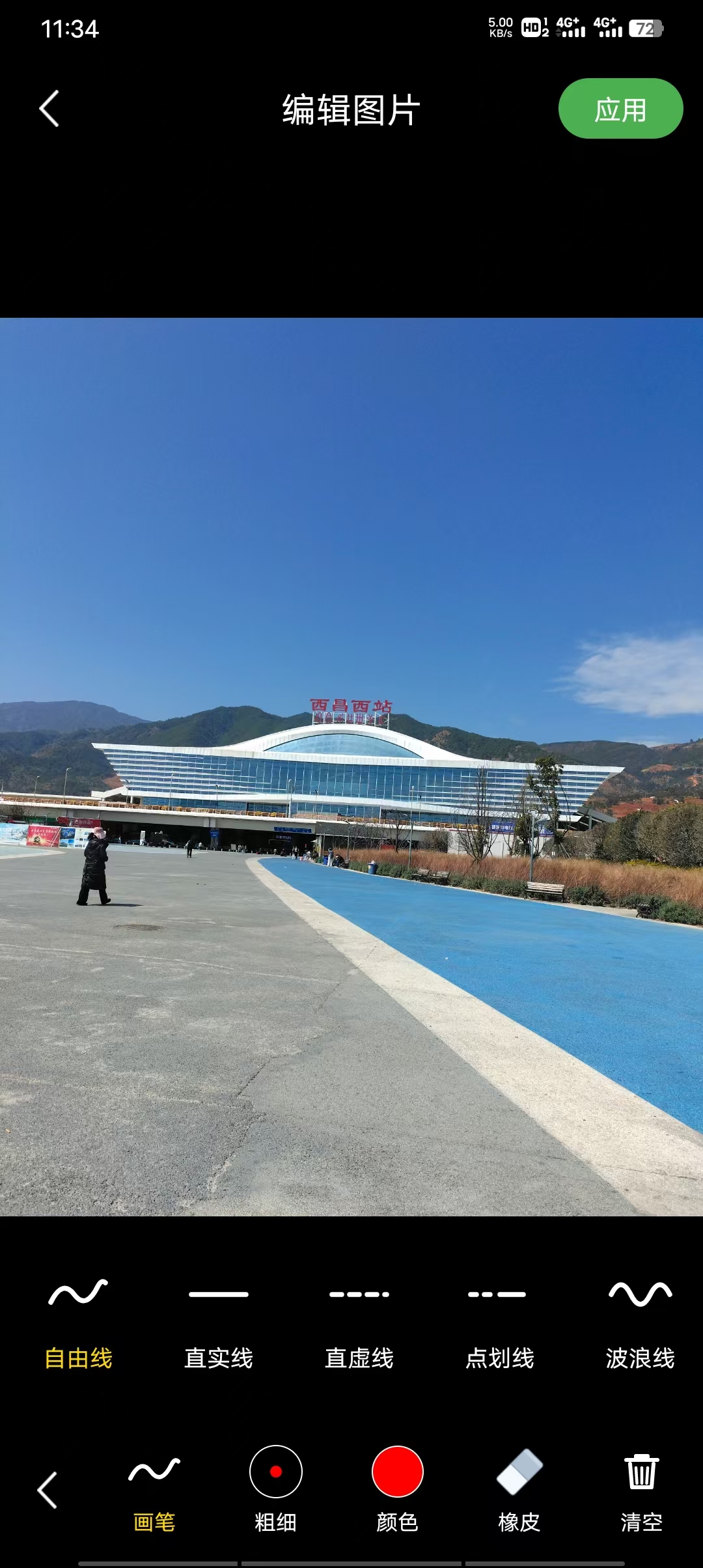

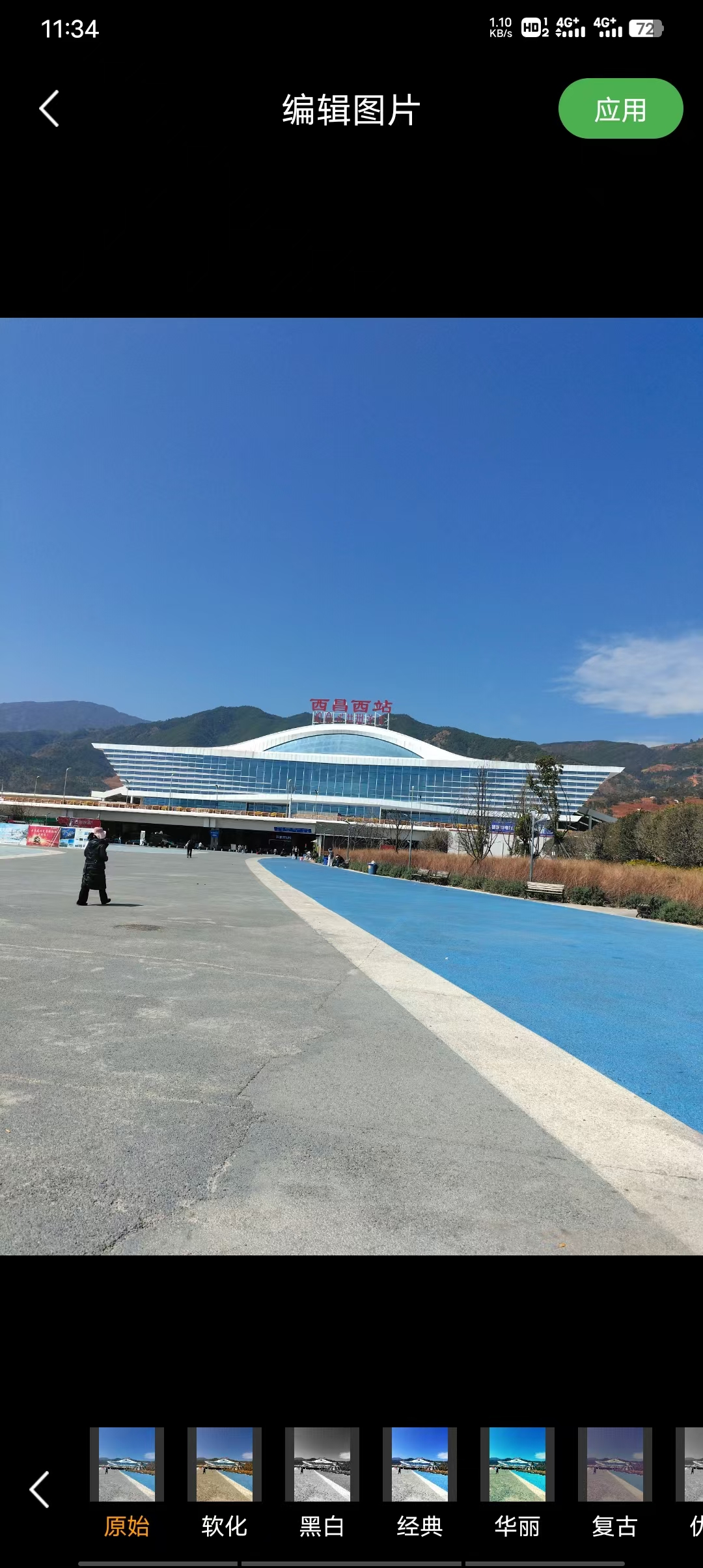

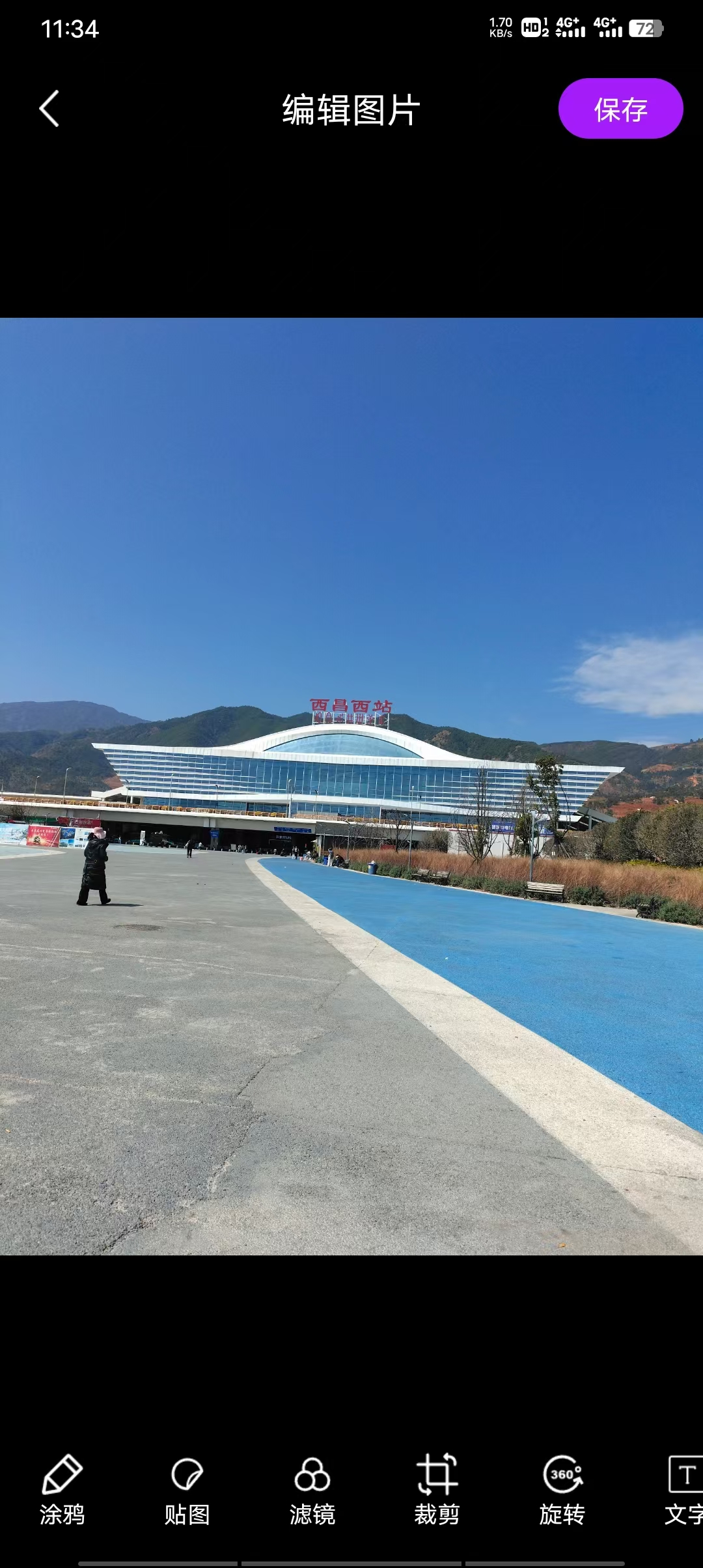

UNIAPP/uniappx图片编辑器插件（fz-image-editor）是基于 UTS 原生插件开发的图片编辑器支持uniapp和uniappx安卓端，其功能支持裁剪、旋转、滤镜、文字、贴纸、涂鸦等丰富功能，提供完整原生编辑 UI 界面。效果如下：
功能特性如下：
-
图片裁剪（自由/比例裁剪）
-
图片旋转与翻转
-
滤镜效果（多种风格）
-
文字添加
-
贴纸添加（内置多套贴纸素材）
-
手绘涂鸦
-
马赛克/模糊处理
-
亮度/对比度调节
-
一键撤销/重做
-
编辑完成后回调返回新图片路径
将 `fz-image-editor` 目录复制到项目的 `uni_modules` 目录下，目录结构如下：
Android 权限说明
插件已在 `AndroidManifest.xml` 中自动声明以下权限，无需手动配置：
| `WRITE_EXTERNAL_STORAGE` | 保存编辑后的图片
| `READ_MEDIA_IMAGES` | 读取图库图片（Android 11+）
| `READ_MEDIA_VIDEO` | 读取媒体文件（Android 11+）
使用方法示例：
首先UNIAPP插件下载图片编辑器：uniapp图片编辑器插件安装到UNIAPP或你UNIAPPX项目里：
html
import { ImageEditorUI, EditImageOptions, EditResult } from '@/uni_modules/fz-image-editor'
// 自定义输出路径（需确保目录存在）
const outputDir = uni.env.USER_DATA_PATH + '/my_edits/'
const outputPath = outputDir + 'result_' + Date.now() + '.jpg'
ImageEditorUI.openEditor(
{
imagePath: '/sdcard/DCIM/test.jpg',
outputPath: outputPath
},
(result : EditResult) => {
if (result.isEdited) {
console.log('保存到自定义路径：', result.path)
}
}
)uvue 示例代码如下：
html
<template>
<!-- #ifdef APP -->
<scroll-view style="flex: 1;">
<!-- #endif -->
<view class="container">
<!-- 选择图片区域 -->
<view v-if="imagePath == ''" class="upload-area" @click="chooseImage">
<text class="upload-icon">+</text>
<text class="upload-text">点击选择图片</text>
</view>
<!-- 图片预览区域 -->
<view v-if="imagePath != ''" class="preview-area">
<image class="preview-image" :src="imagePath" mode="aspectFit"></image>
</view>
<!-- 操作按钮 -->
<view class="btn-group">
<button v-if="imagePath != ''" class="btn-primary" @click="openEditor">
开始编辑
</button>
<button v-if="resultPath != ''" class="btn-success" @click="saveToAlbum">
保存到相册
</button>
</view>
<!-- 编辑结果展示 -->
<view v-if="resultPath != ''" class="result-area">
<text class="result-label">编辑完成</text>
<image class="result-image" :src="resultPath" mode="aspectFit"></image>
<text class="result-path">保存路径：{{ resultPath }}</text>
</view>
</view>
<!-- #ifdef APP -->
</scroll-view>
<!-- #endif -->
</template>
<script lang="uts">
import { ImageEditorUI, EditImageOptions, EditResult } from '@/uni_modules/fz-image-editor'
export default {
data() {
return {
imagePath: '' as string,
resultPath: '' as string
}
},
methods: {
// 选择本地图片
chooseImage() {
uni.chooseImage({
count: 1,
sourceType: ['album', 'camera'],
success: (res) => {
// tempFilePaths 返回的是 file:// 开头的路径
// 需要去除 file:// 前缀，使用绝对路径
let tempPath = res.tempFilePaths[0]
if (tempPath.startsWith('file://')) {
tempPath = tempPath.replace('file://', '')
}
this.imagePath = tempPath
this.resultPath = ''
},
fail: (err) => {
console.log('选择图片失败：', err)
}
})
},
// 打开图片编辑器
openEditor() {
if (this.imagePath == '') {
uni.showToast({ title: '请先选择图片', icon: 'none' })
return
}
const options : EditImageOptions = {
imagePath: this.imagePath,
// outputPath 可选，不传时自动生成到缓存目录
// outputPath: uni.env.USER_DATA_PATH + '/edited_' + Date.now() + '.jpg'
}
ImageEditorUI.openEditor(options, (result : EditResult) => {
if (result.isEdited) {
console.log('编辑成功，路径：', result.path)
this.resultPath = result.path
this.imagePath = result.path
uni.showToast({ title: '编辑成功', icon: 'success' })
} else {
console.log('用户取消编辑')
uni.showToast({ title: '已取消编辑', icon: 'none' })
}
})
},
// 保存到相册
saveToAlbum() {
if (this.resultPath == '') return
uni.saveImageToPhotosAlbum({
filePath: this.resultPath,
success: () => {
uni.showToast({ title: '已保存到相册', icon: 'success' })
},
fail: (err) => {
uni.showToast({ title: '保存失败：' + err.errMsg, icon: 'none' })
}
})
}
}
}
</script>
<style>
.container {
display: flex;
flex-direction: column;
align-items: center;
padding: 20px;
}
.upload-area {
width: 200px;
height: 200px;
border: 2px dashed #cccccc;
border-radius: 12px;
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
margin-top: 40px;
}
.upload-icon {
font-size: 48px;
color: #999999;
line-height: 1;
}
.upload-text {
font-size: 14px;
color: #999999;
margin-top: 8px;
}
.preview-area {
width: 100%;
margin-top: 16px;
}
.preview-image {
width: 100%;
height: 300px;
border-radius: 8px;
}
.btn-group {
display: flex;
flex-direction: row;
margin-top: 20px;
gap: 12px;
}
.btn-primary {
background-color: #7B2FBE;
color: #ffffff;
border-radius: 24px;
font-size: 16px;
padding: 12px 32px;
border: none;
}
.btn-success {
background-color: #0e932e;
color: #ffffff;
border-radius: 24px;
font-size: 16px;
padding: 12px 32px;
border: none;
}
.result-area {
display: flex;
flex-direction: column;
align-items: center;
margin-top: 24px;
width: 100%;
}
.result-label {
font-size: 16px;
font-weight: bold;
color: #0e932e;
}
.result-image {
width: 100%;
height: 300px;
border-radius: 8px;
margin-top: 8px;
}
.result-path {
font-size: 12px;
color: #666666;
margin-top: 8px;
word-break: break-all;
}
</style>vue示例代码如下：
html
<template>
<!-- #ifdef APP -->
<scroll-view style="flex: 1;">
<!-- #endif -->
<view class="page-wrap">
<view v-if="imagePath == ''" class="picker-box" @click="pickImage">
<text class="picker-plus">+</text>
<text class="picker-hint">点击选择或拍摄图片</text>
</view>
<view v-if="imagePath != ''" class="img-box">
<image class="img-preview" :src="imagePath" mode="aspectFit" />
<text class="img-tip">点击下方按钮开始编辑</text>
</view>
<view class="action-row">
<view class="btn btn-purple" @click="pickImage">
<text class="btn-text">选择图片</text>
</view>
<view v-if="imagePath != ''" class="btn btn-blue" @click="startEdit">
<text class="btn-text">编辑图片</text>
</view>
</view>
<view v-if="resultPath != ''" class="result-card">
<text class="result-title">编辑结果</text>
<image class="result-img" :src="resultPath" mode="aspectFit" />
<view class="result-actions">
<view class="btn btn-green" @click="doSave">
<text class="btn-text">保存相册</text>
</view>
<view class="btn btn-orange" @click="doShare">
<text class="btn-text">分享图片</text>
</view>
</view>
</view>
</view>
<!-- #ifdef APP -->
</scroll-view>
<!-- #endif -->
</template>
<script>
import { ImageEditorUI } from '@/uni_modules/fz-image-editor'
export default {
data() {
return {
imagePath: '',
resultPath: ''
}
},
methods: {
pickImage() {
uni.chooseImage({
count: 1,
sourceType: ['album', 'camera'],
success: (res) => {
let p = res.tempFilePaths[0]
// 去除 file:// 协议前缀，保留绝对路径
if (p.startsWith('file://')) {
p = p.replace('file://', '')
}
this.imagePath = p
this.resultPath = ''
}
})
},
startEdit() {
if (this.imagePath == '') {
uni.showToast({ title: '请先选择图片', icon: 'none' })
return
}
ImageEditorUI.openEditor(
{ imagePath: this.imagePath },
(result) => {
if (result.isEdited) {
this.resultPath = result.path
this.imagePath = result.path
uni.showToast({ title: '编辑完成', icon: 'success' })
} else {
uni.showToast({ title: '已取消', icon: 'none' })
}
}
)
},
doSave() {
uni.saveImageToPhotosAlbum({
filePath: this.resultPath,
success: () => uni.showToast({ title: '保存成功', icon: 'success' }),
fail: () => uni.showToast({ title: '保存失败', icon: 'error' })
})
},
doShare() {
uni.shareWithSystem({
imageUrl: this.resultPath,
type: 'image',
success(res) { console.log('分享成功', res) },
fail(err) { console.log('分享失败', err) }
})
}
}
}
</script>
<style>
.page-wrap {
display: flex;
flex-direction: column;
align-items: center;
padding: 24px 16px;
}
.picker-box {
width: 180px;
height: 180px;
border: 2px dashed #bbbbbb;
border-radius: 16px;
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
margin-top: 30px;
}
.picker-plus {
font-size: 52px;
color: #aaaaaa;
line-height: 1;
}
.picker-hint {
font-size: 13px;
color: #aaaaaa;
margin-top: 6px;
}
.img-box {
width: 100%;
display: flex;
flex-direction: column;
align-items: center;
margin-top: 16px;
}
.img-preview {
width: 100%;
height: 260px;
border-radius: 10px;
}
.img-tip {
font-size: 13px;
color: #888888;
margin-top: 8px;
}
.action-row {
display: flex;
flex-direction: row;
justify-content: center;
margin-top: 20px;
gap: 16px;
}
.btn {
padding: 12px 28px;
border-radius: 28px;
display: flex;
flex-direction: row;
align-items: center;
justify-content: center;
}
.btn-text {
color: #ffffff;
font-size: 15px;
}
.btn-purple {
background-color: #7B2FBE;
}
.btn-blue {
background-color: #1677ff;
}
.btn-green {
background-color: #0e932e;
}
.btn-orange {
background-color: #fa8c16;
}
.result-card {
display: flex;
flex-direction: column;
align-items: center;
margin-top: 28px;
width: 100%;
background-color: #f6fff8;
border-radius: 12px;
padding: 16px;
border: 1px solid #d9f7be;
}
.result-title {
font-size: 16px;
font-weight: bold;
color: #0e932e;
}
.result-img {
width: 100%;
height: 260px;
border-radius: 8px;
margin-top: 12px;
}
.result-actions {
display: flex;
flex-direction: row;
justify-content: center;
margin-top: 14px;
gap: 16px;
}
</style>
