解决绘制的雷达图在页面有滚动时，雷达图出现`轻微上下偏移`的问题

Greg_Zhong2026-05-12 15:50
一、问题根源：

是微信小程序中原生 Canvas 组件与普通 DOM 元素混合使用时的经典渲染不同步问题，在长页面滚动时尤为明显。下面我将详细分析原因并提供完整的解决方案。

二、问题细分排查
  1. 渲染层差异（最主要原因）
    微信小程序的渲染架构分为逻辑层和视图层，而视图层又分为：
    WebView 渲染层：所有普通的 view、text、image 等组件都在这里渲染
    原生组件层：Canvas、map、video、camera 等组件是系统原生渲染
    这两个层是独立渲染的，当页面滚动时：
    WebView 层的标签会立即跟随滚动
    原生 Canvas 层的重绘会有几毫秒的延迟
    这种微小的时间差在人眼看来就是 "轻微上下偏移" 的抖动效果
  2. 单位混用问题
    你的代码中同时使用了px和rpx两种单位：
    Canvas 尺寸硬编码为260px（固定像素）
    卡片、边距等使用rpx（自适应像素）
    在不同分辨率的设备上，rpx会自动缩放，但px不会，导致 Canvas 和标签的相对位置在不同设备上不一致，滚动时偏移更明显。
  3. 计算时机问题
    你在onLoad生命周期中计算标签位置，但此时：
    页面 DOM 还未完全渲染完成
    Canvas 的实际尺寸可能还不是最终值
    计算出的标签位置本身就存在微小误差
三、解决方案：使用 Canvas 2D 新接口（彻底解决）

微信小程序从基础库 2.9.0 开始支持Canvas 2D 接口，它不再是原生组件，而是和普通元素一样在 WebView 层渲染，从根本上解决了不同步问题。

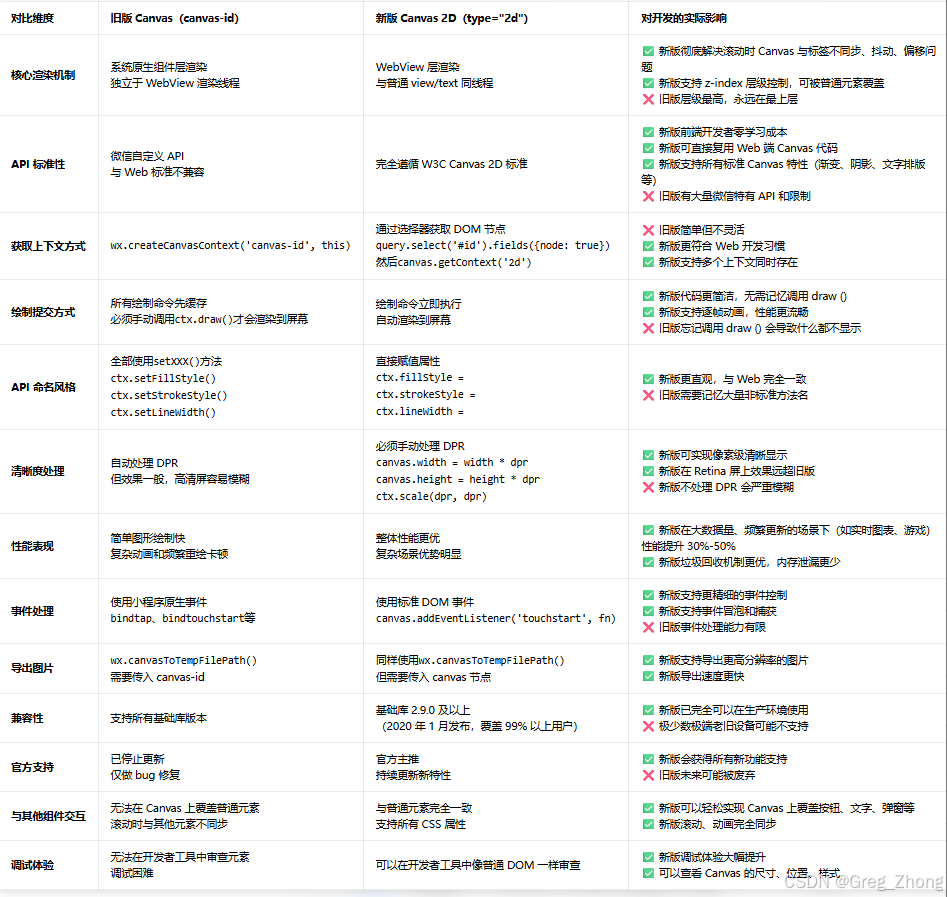

canvas和canvas 2d的区别

完整代码

html 复制代码
	<!-- 场景能力雷达图 -->
			<view class="card radar-card">
				<text class="card-title">场景能力雷达图</text>
				<view class="radar-wrapper">
					<view class="radar-container">
						<!-- 使用type="2d"的新Canvas -->
						<canvas type="2d" id="sceneRadarCanvas" class="radar-canvas" style="width: 260px; height: 260px;"></canvas>

						<!-- 动态渲染标签 -->
						<view class="radar-labels">
							<text class="radar-label" wx:for="{{radarLabels}}" wx:key="index"
								style="left: {{item.left}}px; top: {{item.top}}px; text-align: {{item.align}}; transform: {{item.transform}};">
								{{item.name}}
							</text>
						</view>
					</view>

					<view class="radar-legend">
						<view class="legend-item">
							<view class="legend-line gray"></view>
							<text class="legend-text">Day 1 前测</text>
						</view>
						<view class="legend-item">
							<view class="legend-line blue"></view>
							<text class="legend-text">Day 30 后测</text>
						</view>
					</view>
				</view>
			</view>
javascript 复制代码
/**
 * @page report_result
 * @description 测评结果主页面 - 高精度还原蓝狐原型设计
 * @module 康复报告模块
 * @usage 展示SADL满意度、场景适应、CHHIE-S三个维度的测评结果
 */

Page({
  data: {
    currentTab: 0,
    tabs: ['SADL满意度', '场景适应', 'CHHIE-S'],

    // 12角雷达图（顺时针标签）
    sceneList: [
      { name: '家庭聚餐', category: '社交与餐饮', before: 4, after: 2, change: -2 },
      { name: '嘈杂餐厅', category: '社交与餐饮', before: 5, after: 3, change: -2 },
      { name: '广场舞', category: '社交与餐饮', before: 4, after: 2, change: -2 },
      { name: '地铁公交', category: '公共交通与出行', before: 4, after: 3, change: -1 },
      { name: '高铁机场', category: '公共交通与出行', before: 5, after: 4, change: -1 },
      { name: '过马路', category: '公共交通与出行', before: 4, after: 2, change: -2 },
      { name: '办公会议', category: '职场与教育', before: 3, after: 2, change: -1 },
      { name: '讲座培训', category: '职场与教育', before: 4, after: 2, change: -2 },
      { name: '视频通话', category: '数字化与服务', before: 4, after: 2, change: -2 },
      { name: '政务柜台', category: '数字化与服务', before: 5, after: 1, change: -4 },
      { name: '家庭电视', category: '家庭与个人', before: 4, after: 2, change: -2 },
      { name: '菜市场', category: '家庭与个人', before: 4, after: 2, change: -2 }
    ],

		// 雷达图数据
		sceneRadarData: {
			before: [4, 5, 4, 4, 5, 4, 3, 4, 4, 5, 4, 4],  // 对应上面的before
			after: [2, 3, 2, 3, 4, 2, 2, 2, 2, 1, 2, 2]     // 对应上面的after
		},

		// 雷达图标签位置
		radarLabels: []
},

  onLoad() {

  },

  onReady() {
    if (this.data.currentTab === 1) {
      setTimeout(() => {
        this.initRadar();
      }, 100);
    }
  },

  onTabChange(e) {
    const index = parseInt(e.currentTarget.dataset.index);
    this.setData({ currentTab: index });

    if (index === 1) {
      setTimeout(() => {
        this.initRadar();
      }, 100);
    }
  },

	//每一个标签，支持标签上下左右微调、角度的微调
	initRadar() {
		const canvasSize = 260; // px
		const centerX = canvasSize / 2;
		const centerY = canvasSize / 2;

		// 与Canvas绘制逻辑完全一致的雷达半径
		const radarRadius = canvasSize * 0.75 / 2; // = 97.5px
		const sides = 12;
		const angleStep = (2 * Math.PI) / sides; // 30度 = π/6弧度

		const labels = [];

		//  格式：{ r:径向距离, x:水平偏移(+右-左), y:垂直偏移(+下-上), t:变换, a:对齐 } // 索引: 标签名(角度)
		const labelConfigs = [
			{ r: 6, x: 0, y: 0, t: 'translate(-50%, -100%)', a: 'center' },  // 0: 家庭聚餐(顶部)
			{ r: 6, x: 0, y: 0, t: 'translate(0%, -100%)', a: 'left' },     // 1: 嘈杂餐厅(右上30°)
			{ r: 6, x: 0, y: -5, t: 'translate(0%, -50%)', a: 'left' },      // 2: 广场舞(右60°)
			{ r: 6, x: -3, y: -20, t: 'translate(0%, 0%)', a: 'left' },        // 3: 地铁公交(右下90°)
			{ r: 6, x: 0, y: -22, t: 'translate(0%, 0%)', a: 'left' },        // 4: 高铁机场(最右下120°)
			{ r: 8, x: -5, y: -20, t: 'translate(0%, 0%)', a: 'right' },       // 5: 过马路(底部右150°)
			{ r: -12, x: 0, y: 0, t: 'translate(-50%, 0%)', a: 'center' },    // 6: 办公会议(底部)
			{ r: 8, x: 0, y: -20, t: 'translate(-100%, 0%)', a: 'right' },    // 7: 讲座培训(底部左210°)
			{ r: 8, x: 6, y: -2, t: 'translate(-100%, -50%)', a: 'right' },  // 8: 视频通话(左下240°)
			{ r: 6, x: 0, y: -6, t: 'translate(-100%, -50%)', a: 'right' },  // 9: 政务柜台(左270°)
			{ r: 8, x: 0, y: 6, t: 'translate(-100%, -100%)', a: 'right' }, // 10: 家庭电视(左上300°)
			{ r: 8, x: -15, y: 0, t: 'translate(0%, -100%)', a: 'center' }    // 11: 菜市场(顶部左330°)
		];

		for (let i = 0; i < sides; i++) {
			const angle = i * angleStep - Math.PI / 2;
			const c = labelConfigs[i];

			// 基础位置计算 + 独立微调
			let x = centerX + (radarRadius + c.r) * Math.cos(angle) + c.x;
			let y = centerY + (radarRadius + c.r) * Math.sin(angle) + c.y;

			labels.push({
				name: this.data.sceneList[i].name,
				left: x,
				top: y,
				align: c.a,
				transform: c.t
			});
		}

		this.setData({ radarLabels: labels }, () => {
			this.drawSceneRadar(canvasSize, canvasSize);
		});
	},

  // 绘制雷达图
  async drawSceneRadar(canvasWidth, canvasHeight) {
    // 获取Canvas实例
    const query = wx.createSelectorQuery().in(this);
    const res = await new Promise(resolve => {
      query.select('#sceneRadarCanvas')
        .fields({ node: true, size: true })
        .exec(resolve);
    });

    const canvas = res[0].node;
    const ctx = canvas.getContext('2d');

    // 设置Canvas实际尺寸（解决模糊问题）
    const dpr = wx.getSystemInfoSync().pixelRatio;
    canvas.width = canvasWidth * dpr;
    canvas.height = canvasHeight * dpr;
    ctx.scale(dpr, dpr);

    const centerX = canvasWidth / 2;
    const centerY = canvasHeight / 2;
    const radius = Math.min(centerX, centerY) * 0.75; // 雷达图占Canvas的75%
    const sides = 12;
    const angleStep = (2 * Math.PI) / sides;

    // 清空画布
    ctx.clearRect(0, 0, canvasWidth, canvasHeight);

    // 绘制背景网格（6层）
    ctx.strokeStyle = 'rgba(148, 163, 184, 0.25)';
    ctx.lineWidth = 1;

    for (let i = 1; i <= 6; i++) {
      ctx.beginPath();
      const r = (radius / 6) * i;
      for (let j = 0; j < sides; j++) {
        const angle = j * angleStep - Math.PI / 2;
        const x = centerX + r * Math.cos(angle);
        const y = centerY + r * Math.sin(angle);
        j === 0 ? ctx.moveTo(x, y) : ctx.lineTo(x, y);
      }
      ctx.closePath();
      ctx.stroke();
    }

    // 绘制轴线
    ctx.beginPath();
    for (let i = 0; i < sides; i++) {
      const angle = i * angleStep - Math.PI / 2;
      const x = centerX + radius * Math.cos(angle);
      const y = centerY + radius * Math.sin(angle);
      ctx.moveTo(centerX, centerY);
      ctx.lineTo(x, y);
    }
    ctx.stroke();

    // 绘制前测数据
    this.drawRadarData(ctx, centerX, centerY, radius, sides, this.data.sceneRadarData.before, '#94a3b8', 'rgba(148, 163, 184, 0.15)');

    // 绘制后测数据
    this.drawRadarData(ctx, centerX, centerY, radius, sides, this.data.sceneRadarData.after, '#0ea5e9', 'rgba(14, 165, 233, 0.2)');
  },

  // 绘制雷达图数据
  drawRadarData(ctx, centerX, centerY, radius, sides, data, strokeColor, fillColor) {
    const angleStep = (2 * Math.PI) / sides;
    const maxValue = 5;  // 最大值为5

    // 绘制填充区域
    ctx.beginPath();
    ctx.fillStyle = fillColor;
    for (let i = 0; i < sides; i++) {
      const value = data[i] || 0;
      const r = (radius * value) / maxValue;
      const angle = i * angleStep - Math.PI / 2;
      const x = centerX + r * Math.cos(angle);
      const y = centerY + r * Math.sin(angle);
      if (i === 0) {
        ctx.moveTo(x, y);
      } else {
        ctx.lineTo(x, y);
      }
    }
    ctx.closePath();
    ctx.fill();

    // 绘制边框线
    ctx.beginPath();
    ctx.strokeStyle = strokeColor;
    ctx.lineWidth = 2;
    for (let i = 0; i < sides; i++) {
      const value = data[i] || 0;
      const r = (radius * value) / maxValue;
      const angle = i * angleStep - Math.PI / 2;
      const x = centerX + r * Math.cos(angle);
      const y = centerY + r * Math.sin(angle);
      if (i === 0) {
        ctx.moveTo(x, y);
      } else {
        ctx.lineTo(x, y);
      }
    }
    ctx.closePath();
    ctx.stroke();

    // 绘制数据点
    for (let i = 0; i < sides; i++) {
      const value = data[i] || 0;
      const r = (radius * value) / maxValue;
      const angle = i * angleStep - Math.PI / 2;
      const x = centerX + r * Math.cos(angle);
      const y = centerY + r * Math.sin(angle);
      ctx.beginPath();
      ctx.arc(x, y, 3, 0, 2 * Math.PI);
      ctx.fillStyle = strokeColor;
      ctx.fill();
    }
  },
css 复制代码
/* 基础样式 */
.report-container {
  min-height: 100vh;
  background-color: #f6f8fa;
  display: flex;
  flex-direction: column;
	/* letter-spacing: 1rpx;不能全局设置，单个容器设置，影响小容器字体换行 */
}

/* 标签栏 */
.tabs-container {
  display: flex;
  background-color: #ffffff;
  padding: 0 20rpx;
  position: relative;
  border-bottom: 1rpx solid #f0f0f0;
}

.tab-item {
  flex: 1;
  display: flex;
  justify-content: center;
  align-items: center;
  padding: 28rpx 0;
  position: relative;
}

.tab-text {
  font-size: 28rpx;
  color: #64748b;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

.tab-item.active .tab-text {
  color: #1f2937;
  font-weight: 600;
}

.tab-indicator {
  position: absolute;
  bottom: 0;
  left: 0;
  width: 33.33%;
  height: 4rpx;
  background-color: #0ea5e9;
  transition: transform 0.3s ease;
}

/* 内容区域 */
.content-scroll {
  flex: 1;
  height: calc(100vh - 320rpx);
  padding: 20rpx 0; /* 修改：左右padding改为0，通过card的margin来控制 */
  overflow-x: hidden;
}

/* 卡片基础样式 - 精确还原原型阴影 */
.card {
  background-color: #ffffff;
  border-radius: 30rpx;
  padding: 30rpx; /* 保持内部padding为30rpx */
  margin: 0 40rpx 25rpx 40rpx; /* 修改：添加左右margin 40rpx，保持底部margin 25rpx */
  box-shadow: 0 2rpx 26rpx 0 rgba(140, 163, 197, 0.15);
}

/* 卡片基础样式 - 精确还原原型阴影 */
.card {
  background-color: #ffffff;
  border-radius: 30rpx;
  padding: 30rpx;
  margin-bottom: 50rpx;
  box-shadow: 0 2rpx 26rpx 0 rgba(140, 163, 197, 0.15);
}

.card-title {
  font-size: 32rpx;
  font-weight: 700;
  color: #1f2937;
  margin-bottom: 20rpx;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

/* 主评分卡片 */
.main-card {
  position: relative;
}

.card-header {
  display: flex;
  align-items: flex-start;
  margin-bottom: 30rpx;
}

.header-icon-box {
  width: 72rpx;
  height: 72rpx;
  background-color: #f0f9ff;
  border-radius: 10rpx;
  display: flex;
  align-items: center;
  justify-content: center;
  margin-right: 20rpx;
  flex-shrink: 0;
}

.icon-square {
  width: 30rpx;
  height: 30rpx;
  border: 4rpx solid #0ea5e9;
}

.header-info {
  display: flex;
  flex-direction: column;
}

.header-title {
  font-size: 32rpx;
  font-weight: 700;
  color: #1f2937;
  margin-bottom: 8rpx;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

.header-subtitle {
  font-size: 24rpx;
  color: #64748b;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

/* 分数对比区域 */
.score-compare {
  display: flex;
  align-items: center;
  justify-content: space-between;
  margin-bottom: 30rpx;
}

.score-box {
  flex: 1;
  border-radius: 30rpx;
  /* padding: 20rpx; */
  display: flex;
  flex-direction: column;
  align-items: center;
	height: 152rpx;
	justify-content: center;
}

.score-box.gray {
  background-color: #f9fafc;
}

.score-box.blue {
  background-color: #f0f9ff;
  border: 2rpx solid rgba(14, 165, 233, 0.1);
}

.score-label {
  font-size: 24rpx;
  color: #64748b;
  margin-bottom: 10rpx;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

.score-box.blue .score-label {
  color: #0ea5e9;
}

.score-wrap {
  display: flex;
  align-items: baseline;
}

.score-num {
  font-size: 50rpx;
  font-weight: 700;
  color: #475569;
  line-height: 1;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

.score-box.blue .score-num {
  color: #0ea5e9;
}

.score-unit {
  font-size: 24rpx;
  color: #475569;
  margin-left: 4rpx;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

.score-box.blue .score-unit {
  color: #0ea5e9;
}

.score-arrow {
  font-size: 28rpx;
  color: #94a3b8;
  margin: 0 15rpx;
}

.score-arrow-text {
  font-size: 28rpx;
  color: #94a3b8;
  margin: 0 15rpx;
}

/* 改善状态条 */
.improvement-bar {
  display: flex;
  align-items: center;
  justify-content: space-between;
  background-color: #dcfce7;
  border-radius: 20rpx;
	padding: 0rpx 30rpx;
  margin-bottom: 30rpx;
	height: 80rpx;
}

.improvement-text {
  font-size: 28rpx;
  font-weight: 700;
  color: #15803d;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

.improvement-tag {
	width: 90rpx;
height: 32rpx;
  font-size: 22rpx;
  font-weight: 700;
  color: #ffffff;
  background-color: #15803d;
  padding: 6rpx 16rpx;
  border-radius: 22rpx;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

/* 总结文本 */
.summary-box {
  /* 移除 flex 布局，让文本自然换行 */
}

.summary-label {
  font-size: 26rpx;
  font-weight: 700;
  color: #475569;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
  display: inline;  /* 确保和内容在同一行 */
}

.summary-content {
  font-size: 26rpx;
  color: #475569;
  line-height: 1.6;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
  display: inline;  /* 确保和标签在同一行 */
}

/* 三维度分析 */
.dimension-row {
  display: flex;
  justify-content: space-between;
	margin: 20rpx 0;
}

.dimension-item {
  flex: 1;
  border-radius: 20rpx;
  padding: 30rpx 0 0 20rpx;
  margin-right: 20rpx;
	height: 228rpx;
}

.dimension-item:last-child {
  margin-right: 0;
}

.dimension-item.full {
  flex: none;
  margin-right: 0;
  margin-top: 20rpx;
}

.dimension-item.green {
  background-color: #dcfce7;
}

.dimension-item.orange {
  background-color: #fef3e2;
}

.dimension-item.blue {
  background-color: #f0f9ff;
}

.dim-label {
  font-size: 22rpx;
  font-weight: 700;
  margin-bottom: 16rpx;
  display: block;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

.dimension-item.green .dim-label {
  color: #15803d;
}

.dimension-item.orange .dim-label {
  color: #ea590a;
}

.dimension-item.blue .dim-label {
  color: #0ea5e9;
}

.dim-score-row {
  display: flex;
  align-items: center;
  margin-bottom: 10rpx;
}

.dim-score-old {
  font-size: 36rpx;
  font-weight: 600;
  color: #475569;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

.dim-arrow {
  font-size: 28rpx;
  color: #94a3b8;
  margin: 0 16rpx;
}

.dim-arrow-text {
  font-size: 28rpx;
  color: #94a3b8;
  margin: 0 16rpx;
}

.dim-change-arrow-text {
  font-size: 24rpx;
  color: #15803d;
  margin-right: 6rpx;
  font-weight: 700;
}

.dim-change-arrow-text.orange {
  color: #ea590a;
}

.dim-change-arrow-text.blue {
  color: #0ea5e9;
}

.dim-change-arrow-text.green {
  color: #15803d;
}

.dim-score-new {
  font-size: 50rpx;
  font-weight: 700;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

.dimension-item.green .dim-score-new {
  color: #15803d;
}

.dimension-item.orange .dim-score-new {
  color: #ea590a;
}

.dimension-item.blue .dim-score-new {
  color: #0ea5e9;
}

.dim-score-new.orange {
  color: #ea590a !important;
}

.dim-score-new.blue {
  color: #0ea5e9 !important;
}

.dim-change-row {
  display: flex;
  align-items: center;
  margin-bottom: 8rpx;
}

.dim-change-arrow {
  width: 0;
  height: 0;
  border-left: 6rpx solid transparent;
  border-right: 6rpx solid transparent;
  border-top: 8rpx solid #15803d;
  margin-right: 10rpx;
  transform: rotate(180deg);
}

.dim-change-arrow.orange {
  border-top-color: #ea590a;
}

.dim-change-arrow.blue {
  border-top-color: #0ea5e9;
}

.dim-change-arrow.green {
  border-top-color: #15803d;
}

.dim-change-text {
  font-size: 22rpx;
  font-weight: 700;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

.dimension-item.green .dim-change-text {
  color: #15803d;
}

.dimension-item.orange .dim-change-text {
  color: #ea590a;
}

.dimension-item.blue .dim-change-text {
  color: #0ea5e9;
}

.dim-change-text.orange {
  color: #ea590a !important;
}

.dim-change-text.blue {
  color: #0ea5e9 !important;
}

.dim-change-text.green {
  color: #15803d !important;
}

.dim-fullscore {
  font-size: 22rpx;
  color: #94a3b8;
  font-weight: 700;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

/* 进度条 */
.progress-list {
  display: flex;
  flex-direction: column;
	padding-bottom: 33rpx;
}

.progress-item {
  margin-bottom: 30rpx;
}

.progress-item:last-child {
  margin-bottom: 0;
}

.progress-label-row {
  display: flex;
  justify-content: space-between;
  margin-bottom: 10rpx;
}

.progress-name {
  font-size: 26rpx;
  color: #475569;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

.progress-value {
  font-size: 26rpx;
  color: #0ea5e9;
  font-weight: 500;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

.progress-track {
  height: 16rpx;
  background-color: #f1f5f9;
  border-radius: 8rpx;
  overflow: hidden;
}

.progress-fill {
  height: 100%;
  background-color: #0ea5e9;
  border-radius: 8rpx;
}

/* 时间线 */
.timeline {
  padding-left: 20rpx;
}

.timeline-item {
  display: flex;
  align-items: flex-start;
  margin-bottom: 10rpx;
  position: relative;
}

.timeline-dot {
  width: 24rpx;
  height: 24rpx;
  border-radius: 50%;
  background-color: rgba(14, 165, 233, 0.3);
  margin-right: 20rpx;
  margin-top: 6rpx;
  flex-shrink: 0;
}

.timeline-dot.active {
  background-color: rgba(14, 165, 233, 0.3);
}

.timeline-dot.current {
  background-color: #0ea5e9;
}

.timeline-line {
  position: absolute;
  left: 10rpx;
  top: 24rpx;
  width: 4rpx;
  height: calc(100% - 24rpx);
  background-color: rgba(14, 165, 233, 0.3);
}

.timeline-date {
  font-size: 24rpx;
  color: #64748b;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

.timeline-content {
  padding-left: 44rpx;
  margin-bottom: 30rpx;
}

.timeline-content.first {
  margin-top: -10rpx;
}

.timeline-text-group {
  display: flex;
  flex-direction: column;
	margin-bottom: 20rpx;
}

.timeline-title {
  font-size: 28rpx;
  font-weight: 700;
  color: #1f2937;
  margin: 20rpx 0;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

.timeline-title.current {
  color: #0ea5e9;
}

.timeline-detail {
  font-size: 26rpx;
  color: #475569;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

/* 雷达图 - 最终硬编码版本 */

.radar-container {/* 新增：雷达图容器 - 关键！使用相对定位作为基准 */
  position: relative;
  width: 260px;
  height: 260px;
  margin: 0 auto;
}

.radar-canvas {
  display: block;
}

.radar-labels {/* 标签容器 - 绝对定位覆盖在Canvas上 */
  position: absolute;
  top: 0;
  left: 0;
  width: 100%;
  height: 100%;
  pointer-events: none; /* 让标签不阻挡Canvas事件 */
}

.radar-label {/* 标签样式 - 使用绝对定位 */
  position: absolute;
  font-size: 24rpx;
  color: #64748b;
  white-space: nowrap;
	/* 关键：让标签中心对准计算点 */
  /* transform: translate(-50%, -50%);  */
}

.radar-legend {
  display: flex;
  justify-content: center;
  gap: 40rpx;
  margin-top: 30rpx;
}

.legend-item {
  display: flex;
  align-items: center;
  gap: 12rpx;
}

.legend-line {
  width: 40rpx;
  height: 4rpx;
  border-radius: 2rpx;
}

.legend-line.gray {
  background-color: #94a3b8;
}

.legend-line.blue {
  background-color: #0ea5e9;
}

.legend-text {
  font-size: 24rpx;
  color: #64748b;
}


/* 场景明细 */
.scene-card {
  padding-bottom: 10rpx;
}

.scene-list {
  display: flex;
  flex-direction: column;
}

.scene-item {
  display: flex;
  align-items: center;
  padding: 24rpx 0;
  border-bottom: 1rpx solid #f1f5f9;
}

.scene-item:last-child {
  border-bottom: none;
}

.scene-icon-box {
  width: 60rpx;
  height: 60rpx;
  margin-right: 20rpx;
  flex-shrink: 0;
}

.scene-icon {
  width: 100%;
  height: 100%;
  background-color: #f1f5f9;
  border-radius: 10rpx;
}

.scene-info {
  flex: 1;
  display: flex;
  flex-direction: column;
}

.scene-name {
  font-size: 28rpx;
  color: #1f2937;
  margin-bottom: 6rpx;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

.scene-category {
  font-size: 22rpx;
  color: #94a3b8;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

.scene-scores {
  display: flex;
  align-items: center;
  padding-left: 20rpx;
}

.score-col {
  display: flex;
  flex-direction: column;
  align-items: center;
  padding: 0 10rpx;
}

.score-dot {
  width: 16rpx;
  height: 16rpx;
  border-radius: 50%;
  margin-bottom: 6rpx;
}

.score-dot.gray {
  background-color: #94a3b8;
}

.score-dot.blue {
  background-color: #0ea5e9;
}

.score-arrow-h {
  width: 30rpx;
  height: 4rpx;
  background-color: #e2e8f0;
  margin-top: 6rpx;
}

.score-change {
  font-size: 24rpx;
  color: #0ea5e9;
  font-weight: 500;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

/* 分级解读 */
.level-list {
  display: flex;
  flex-direction: column;
}

.level-item {
  display: flex;
  align-items: stretch;
  background-color: #ffffff;
  border-radius: 20rpx;
  border: 2rpx solid rgba(0, 0, 0, 0.06);
  margin-bottom: 20rpx;
  overflow: hidden;
  height: 122rpx;
}

.level-item.current {
  border-color: rgba(245, 158, 12, 0.15);
}

.level-badge {
  display: flex;
  align-items: center;
  justify-content: center;
  width: 140rpx;
  height: 122rpx;
  font-size: 26rpx;
  font-weight: 700;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
  flex-shrink: 0;
}

.level-badge.green {
  background-color: #dcfce7;
  color: #15803d;
  border-right: 2rpx solid #bef1d1;
}

.level-badge.yellow {
  background-color: #fffbeb;
  color: #924210;
  border-right: 2rpx solid rgba(245, 158, 12, 0.15);
}

.level-badge.red {
  background-color: #fee2e2;
  color: #d94040;
  border-right: 2rpx solid #ffd4d4;
}

.level-info {
  flex: 1;
  /* padding: 20rpx 24rpx; */
  display: flex;
  flex-direction: column;
  justify-content: center;
  min-height: 122rpx;
	margin-left: 24rpx;
	padding-right: 30rpx;
}

.level-name {
  font-size: 28rpx;
  font-weight: 700;
  color: #15803D;
  margin-bottom: 8rpx;
  line-height: 1.2;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

.level-item.current .level-name {
  color: #924210;
}

.level-desc {
  font-size: 24rpx;
  color: #475569;
  line-height: 1.4;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

.level-summary {
  margin-top: 30rpx;
  display: flex;
  flex-wrap: wrap;
	padding-bottom: 50rpx;
}

.summary-normal {
  font-size: 26rpx;
  color: #475569;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

.summary-highlight {
  font-size: 26rpx;
  font-weight: 700;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

.summary-highlight.red {
  color: #d94040;
}

.summary-highlight.yellow {
  color: #924210;
}

/* 底部间距 */
.bottom-spacer {
  height: 300rpx;
}

/* 底部操作栏 */
.bottom-bar {
  position: fixed;
  bottom: 0;
  left: 0;
  right: 0;
  background-color: #ffffff;
  padding: 20rpx 40rpx;
  padding-bottom: calc(20rpx + env(safe-area-inset-bottom));
  box-shadow: 0 -4rpx 20rpx rgba(0, 0, 0, 0.08);
}

.tips-box {
  display: flex;
  align-items: flex-start;
  background-color: #f0f9ff;
  border-radius: 16rpx;
  padding: 24rpx;
  margin-bottom: 20rpx;
}

.tips-icon {
  width: 40rpx;
  height: 40rpx;
  background-color: #0ea5e9;
  border-radius: 50%;
  margin-right: 16rpx;
  flex-shrink: 0;
}

.tips-text {
  flex: 1;
  font-size: 24rpx;
  color: #475569;
  line-height: 1.5;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

.btn-row {
  display: flex;
  gap: 20rpx;
}

.btn-share {
  flex: 1;
  height: 84rpx;
  display: flex;
  align-items: center;
  justify-content: center;
  background-color: #f1f5f9;
  border-radius: 42rpx;
  font-size: 28rpx;
  color: #475569;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}

.btn-primary {
  flex: 1;
  height: 84rpx;
  display: flex;
  align-items: center;
  justify-content: center;
  background-color: #0ea5e9;
  border-radius: 42rpx;
  font-size: 28rpx;
  color: #ffffff;
  font-weight: 500;
  font-family: -apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, sans-serif;
}
相关推荐
空中海1 小时前
微信小程序 - 02 基础概念层与核心能力层
微信小程序·小程序
無名路人3 小时前
小程序点餐页吸顶滚动
前端·微信小程序·ai编程
Greg_Zhong5 小时前
微信小程序中使用canvas实现雷达图及标签对角显示（实现雷达图标签的标准做法）
微信小程序·小程序canvas实现雷达图·标签不通过canvas绘制
棋宣7 小时前
uni-app编译到微信小程序中，父传子props首次传递数据不接收的bug
微信小程序·uni-app·bug
kyh10033811209 小时前
微信小程序摇骰子功能实现|含源码
微信小程序·小程序·摇骰子小游戏·摇色子源码
Lsx_1 天前
H5 嵌入微信 / 支付宝 / 抖音小程序 WebView：调用原生能力完整方案
前端·微信小程序·webview
计算机学姐2 天前
基于微信小程序的图书馆座位预约系统【uniapp+springboot+vue】
vue.js·spring boot·微信小程序·小程序·java-ee·uni-app·intellij-idea
WKK_2 天前
uniapp 微信小程序使用TextEncoder，arrayBufferToBase64
微信小程序·小程序·uni-app
舟遥遥娓飘飘2 天前
面向零基础初学者，从环境搭建到发布上线，手把手教你开发第一个微信小程序（第3章-认识项目结构）
微信小程序·小程序·notepad++
热门推荐
01GitHub 镜像站点02Codex 接入 DeepSeek API 完整配置文档03CC-Switch & Claude 基于 Linux 服务器安装使用指南04零基础教你claude code 接入 deepseek V405【AI】2026 年具身智能模型和世界模型总结06Windows端Codex接入第三方模型（DeekSeek，BaiLian)07Cursor 接入 DeepSeek‑V4‑Pro 完整指南（2026 实测）08要裂开了！ChatGPT要手机号验证了？注册Codex要求验证电话号码怎么办？2026年登陆Codex要手机号验证的解决办法09裂开！ChatGPT 居然开始要手机号验证，附详细解决方法10codex app每次打开重连5次Reconnecting问题解决
