前置确认 ：所有 9 个节点的 SSH 免密登录已全部配置完成，后续所有操作均在ControlNodeA（[192.168.0.151](192.168.0.151)） 上远程批量执行，无需手动登录任何其他节点。
本文将基于已完成的 SSH 免密环境，一次性完成8 个未配置节点的系统基础初始化 + containerd v2.2.1 统一安装，再进行 kubeconfig 权限分级配置与批量分发，确保所有节点满足 Kubernetes 集群加入的强制前置条件。
一、实验环境与节点配置分工
本实验基于 Proxmox VE 虚拟化平台搭建，所有节点均为 Ubuntu 22.04 LTS 操作系统，节点规划与配置要求如下：
|-------------------|----------------------------------|--------------|-------------------------------------|
| 主机名 | IP 地址 | 角色 | 需完成配置项 |
| ControlNodeA | [192.168.0.151](192.168.0.151) | 控制平面主节点（已完成） | 仅需执行批量配置脚本 |
| ControlNodeB | [192.168.0.152](192.168.0.152) | 控制平面副本节点 | 系统初始化 + containerd+admin kubeconfig |
| ControlNodeC | [192.168.0.153](192.168.0.153) | 控制平面副本节点 | 系统初始化 + containerd+admin kubeconfig |
| WorkNodeA | [192.168.0.154](192.168.0.154) | 业务工作节点 | 系统初始化 + containerd |
| WorkNodeB | [192.168.0.155](192.168.0.155) | 业务工作节点 | 系统初始化 + containerd |
| DataMidNode | [192.168.0.156](192.168.0.156) | 中间件 / 数据存储节点 | 系统初始化 + containerd |
| DevOpsToolNode | [192.168.0.157](192.168.0.157) | 统一运维跳板机 | 系统初始化 + kubectl+ops kubeconfig |
| ObservabilityNode | [192.168.0.158](192.168.0.158) | 可观测性节点 | 系统初始化 + containerd |
| DSDRNode | [192.168.0.159](192.168.0.159) | 灾备 / 数据持久化节点 | 系统初始化 + containerd |
|-------------------------------------------------------------------------------------|
| 核心原则 ：所有节点的系统参数、内核模块、containerd 版本与配置必须 100% 一致 ，这是 Kubernetes 集群稳定运行的根本保障。 |
二、全节点统一系统基础配置
所有节点必须完成以下 5 项系统配置，缺一不可：
- 更新软件源并安装基础依赖
- 永久关闭 Swap 分区（K8s 强制要求）
- 加载 overlay 和 br_netfilter 内核模块
- 开启桥接网络 iptables 转发
- 设置正确的主机名并绑定 hosts
2.1 创建全节点清单文件
首先在 ControlNodeA 上创建包含所有节点信息的清单文件，用于后续批量操作：
|--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| bash sudo tee /opt/cluster/all_nodes.txt <<EOF 192.168.0.151 ControlNodeA control 192.168.0.152 ControlNodeB control 192.168.0.153 ControlNodeC control 192.168.0.154 WorkNodeA worker 192.168.0.155 WorkNodeB worker 192.168.0.156 DataMidNode worker 192.168.0.157 DevOpsToolNode ops 192.168.0.158 ObservabilityNode worker 192.168.0.159 DSDRNode worker EOF |
2.2 编写系统初始化自动化脚本
创建init_node_system.sh脚本，包含所有系统配置步骤，采用幂等设计，重复执行不会出错：
|----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| bash #!/bin/bash set -euo pipefail # 接收主机名参数 NODE_HOSTNAME=1 echo "=====================================" echo "开始初始化节点: {NODE_HOSTNAME}" echo "=====================================" # 1. 更新软件源并安装基础工具 echo "1. 更新软件源并安装依赖..." apt update -y apt install -y ca-certificates curl gnupg lsb-release bash-completion # 2. 永久关闭Swap分区 echo "2. 永久关闭Swap..." swapoff -a sed -i '/ swap / s/^\(.*\)/#\\1/g' /etc/fstab # 3. 加载K8s必需的内核模块 echo "3. 加载内核模块..." cat \<\
2.3 批量执行系统初始化
给脚本添加执行权限后，批量在所有未配置节点上执行：
|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| bash # 给脚本添加执行权限 sudo chmod +x init_node_system.sh # 批量执行系统初始化（跳过已完成的ControlNodeA） while read ip hostname role; do if [ "{hostname}" != "ControlNodeA" \]; then echo "=====================================" echo "正在远程初始化: {hostname} ({ip})" echo "=====================================" # 复制脚本到目标节点 scp init_node_system.sh jack@{ip}:/home/jack/ # 远程执行脚本并传入主机名参数 # 关键：加 -n 防止 ssh 吃掉 while read 的输入 ssh -n jack@{ip} "sudo bash /home/jack/init_node_system.sh {hostname}" echo "节点 ${hostname} 初始化完成！" echo "" fi done < all_nodes.txt |

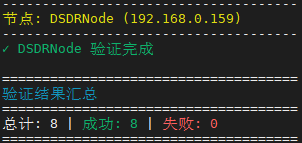

2.4 批量验证系统配置
创建verify_cluster.sh脚本，执行以下命令一次性验证所有 8 个节点的系统配置是否正确：
|----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| bash #!/bin/bash # 颜色定义 RED='\033[0;31m' GREEN='\033[0;32m' YELLOW='\033[1;33m' NC='\033[0m' echo "=====================================" echo "全节点系统配置批量验证" echo "=====================================" if [ ! -f all_nodes.txt ]; then echo -e "{RED}错误: all_nodes.txt 文件不存在{NC}" exit 1 fi total=0 success=0 failed=0 while read -r ip hostname role; do # 跳过空行和注释行 [[ -z "ip" \|\| "ip" =~ ^# ]] && continue if [ "{hostname}" != "ControlNodeA" \]; then total=((total + 1)) echo "-------------------------------------" echo -e "{YELLOW}节点: {hostname} ({ip}){NC}" echo "-------------------------------------" # 先测试连通性 if ping -c 1 -W 2 {ip} \> /dev/null 2\>\&1; then # 使用 jack 账号连接，关键命令通过 sudo 执行 if ssh -n -o ConnectTimeout=5 -o StrictHostKeyChecking=no jack@{ip} bash << 'EOF' 2>/dev/null; then echo "主机名: (hostname)" echo "Swap状态: " free -h \| grep Swap echo "内核模块: " sudo lsmod \| grep -E 'overlay\|br_netfilter' 2\>/dev/null \|\| echo " 需要sudo权限查看内核模块" echo "网络参数: " sudo sysctl net.bridge.bridge-nf-call-iptables net.ipv4.ip_forward 2\>/dev/null \|\| echo " 需要sudo权限查看网络参数" EOF success=((success + 1)) echo -e "{GREEN}✓ {hostname} 验证完成{NC}" else failed=((failed + 1)) echo -e "{RED}✗ {hostname} SSH连接失败{NC}" fi else failed=((failed + 1)) echo -e "{RED}✗ {hostname} 无法ping通{NC}" fi echo "" fi done \< all_nodes.txt echo "=====================================" echo -e "验证结果: 总计 {total} | {GREEN}成功 {success}{NC} \| {RED}失败 {failed}{NC}" echo "=====================================" # 给脚本添加执行权限 sudo chmod +x verify_cluster.sh # 执行脚本 ./verify_cluster.sh |
三、全节点统一安装配置 containerd v2.2.1
所有节点必须安装相同版本的 containerd，并完成以下关键配置：
- 启用 SystemdCgroup 驱动（与 K8s cgroup 管理器一致）
- 替换 pause 镜像为阿里云镜像（解决国内下载超时）
- 配置开机自启并验证服务状态
- 安装 crictl 工具用于本地容器调试
3.1 编写 containerd 安装配置脚本
创建install_containerd.sh脚本，采用国内镜像加速，确保安装速度：
|-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| bash #!/bin/bash set -euo pipefail CONTAINERD_VERSION="2.2.1" PAUSE_IMAGE="registry.aliyuncs.com/google_containers/pause:3.9" CRICTL_VERSION="v1.30.0" echo "=====================================" echo "开始安装containerd v{CONTAINERD_VERSION}" echo "=====================================" # 1. 安装containerd echo "1. 安装containerd..." sudo apt update -y sudo apt install -y containerd # 2. 生成并修改默认配置 echo "2. 生成并优化配置文件..." sudo mkdir -p /etc/containerd containerd config default \| sudo tee /etc/containerd/config.toml # 启用SystemdCgroup驱动（必须） sudo sed -i 's/SystemdCgroup = false/SystemdCgroup = true/' /etc/containerd/config.toml # 替换pause镜像为阿里云镜像 sudo sed -i "s\|sandbox = '.\*'\|sandbox = '{PAUSE_IMAGE}'|" /etc/containerd/config.toml # 3. 重启服务并设置开机自启 echo "3. 启动containerd服务..." sudo systemctl daemon-reload sudo systemctl enable --now containerd sudo systemctl restart containerd # 4. 安装crictl工具 echo "4. 安装crictl {CRICTL_VERSION}..." sudo wget -q https://ghproxy.net/https://github.com/kubernetes-sigs/cri-tools/releases/download/{CRICTL_VERSION}/crictl-{CRICTL_VERSION}-linux-amd64.tar.gz -O crictl.tar.gz sudo tar zxvf crictl.tar.gz -C /usr/local/bin/ rm -f crictl.tar.gz # 5. 配置crictl连接containerd echo "5. 配置crictl连接..." cat \<\
3.2 批量安装配置 containerd
在 批量安装配置 containerd 前，先手动配置单个节点 sudo 免密，对每个需要配置的节点执行：
|------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| bash # 以 ControlNodeB 为例,其它节点以此类推 ssh jack@192.168.0.152 # 在远程节点上执行 echo 'jack ALL=(ALL) NOPASSWD: ALL' | sudo tee /etc/sudoers.d/jack-nopasswd sudo chmod 440 /etc/sudoers.d/jack-nopasswd # 验证 sudo -n true && echo "配置成功" || echo "配置失败" # 退出 exit |

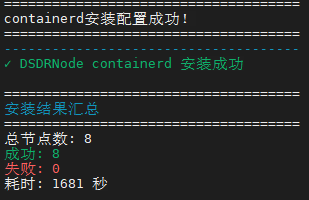

批量安装配置 containerd
|------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| bash # 批量安装containerd（跳过ControlNodeA） #!/bin/bash # 颜色定义 RED='\033[0;31m' GREEN='\033[0;32m' YELLOW='\033[1;33m' BLUE='\033[0;34m' NC='\033[0m' # 安装脚本路径 INSTALL_SCRIPT="install_containerd.sh" # 日志目录（使用绝对路径避免切换目录问题） LOG_DIR="{HOME}/install_log" echo "=====================================" echo -e "{BLUE}批量安装 containerd{NC}" echo "=====================================" # 检查安装脚本是否存在 if \[ ! -f "{INSTALL_SCRIPT}" ]; then echo -e "{RED}错误: {INSTALL_SCRIPT} 文件不存在{NC}" exit 1 fi # 检查节点列表 if \[ ! -f all_nodes.txt \]; then echo -e "{RED}错误: all_nodes.txt 文件不存在{NC}" exit 1 fi # 创建日志目录（强制创建，包括父目录） mkdir -p "{LOG_DIR}" || { echo -e "{RED}错误: 无法创建日志目录 {LOG_DIR}{NC}" exit 1 } # 验证日志目录可写 if \[ ! -w "{LOG_DIR}" ]; then echo -e "{RED}错误: 日志目录 {LOG_DIR} 不可写{NC}" exit 1 fi # 统计变量 total=0 success=0 failed=0 declare -a failed_nodes # 记录开始时间 start_time=(date +%s) while read -r ip hostname role; do # 跳过空行和注释 [[ -z "ip" \|\| "ip" =~ ^# ]] && continue if [ "{hostname}" != "ControlNodeA" \]; then total=((total + 1)) # 生成日志文件名 log_file="{LOG_DIR}/{hostname}_(date +%Y%m%d_%H%M%S).log" # 预先创建日志文件 touch "{log_file}" || { echo -e "{RED}✗ 无法创建日志文件: {log_file}{NC}" failed=((failed + 1)) failed_nodes+=("{hostname} (日志文件创建失败)") continue } echo "=====================================" echo -e "{YELLOW}[{total}\] 正在安装 containerd 到: {hostname} ({ip}){NC}" echo "=====================================" # 1. 测试连通性 if ! ping -c 1 -W 2 {ip} \> /dev/null 2\>\&1; then echo -e "{RED}✗ {hostname} 无法 ping 通{NC}" | tee -a "{log_file}" failed=((failed + 1)) failed_nodes+=("{hostname} (网络不通)") continue fi # 2. 复制安装脚本 echo -e "{BLUE}[1/2] 复制安装脚本...{NC}" \| tee -a "{log_file}" # 确保远程主机上存在 /home/jack 目录（静默执行） ssh -n -o ConnectTimeout=5 jack@{ip} "mkdir -p /home/jack" \>\> "{log_file}" 2>&1 if scp -o ConnectTimeout=5 "{INSTALL_SCRIPT}" jack@{ip}:/home/jack/ >> "{log_file}" 2\>\&1; then echo -e "{GREEN}✓ 脚本复制成功{NC}" \| tee -a "{log_file}" else echo -e "{RED}✗ 脚本复制失败{NC}" | tee -a "{log_file}" failed=((failed + 1)) failed_nodes+=("{hostname} (脚本复制失败)") continue fi # 3. 远程执行安装（关键修改：使用 tee 同时显示和记录） echo -e "{BLUE}[2/2] 执行安装脚本...{NC}" \| tee -a "{log_file}" echo -e "{BLUE}-------------------------------------{NC}" | tee -a "{log_file}" # 使用进程替换捕获退出码，同时用 tee 输出 exec 3\>\&1 # 保存标准输出 if ssh -n -o ConnectTimeout=10 jack@{ip} "sudo bash /home/jack/install_containerd.sh" 2>&1 | tee -a "{log_file}"; then echo -e "{BLUE}-------------------------------------{NC}" \| tee -a "{log_file}" success=((success + 1)) echo -e "{GREEN}✓ {hostname} containerd 安装成功{NC}" | tee -a "{log_file}" else echo -e "{BLUE}-------------------------------------{NC}" \| tee -a "{log_file}" failed=((failed + 1)) failed_nodes+=("{hostname} (安装失败，查看日志: {log_file})") echo -e "{RED}✗ {hostname} containerd 安装失败{NC}" | tee -a "{log_file}" echo -e "{YELLOW} 详细日志: {log_file}{NC}" fi echo "" fi done < all_nodes.txt # 计算耗时 end_time=(date +%s) duration=((end_time - start_time)) # 输出汇总 echo "=====================================" echo -e "{BLUE}安装结果汇总{NC}" echo "=====================================" echo -e "总节点数: {total}" echo -e "{GREEN}成功: {success}{NC}" echo -e "{RED}失败: {failed}{NC}" echo -e "耗时: {duration} 秒" echo "" # 显示失败节点 if [ {#failed_nodes\[@\]} -gt 0 \]; then echo -e "{RED}失败节点列表:{NC}" for node in "{failed_nodes[@]}"; do echo -e " {RED}✗{NC} {node}" done echo "" echo -e "{YELLOW}提示: 查看详细日志获取更多信息{NC}" echo -e "日志目录: {LOG_DIR}" fi echo "=====================================" # 给脚本添加执行权限 sudo chmod +x batch_install_containerd.sh # 执行脚本 ./batch_install_containerd.sh |

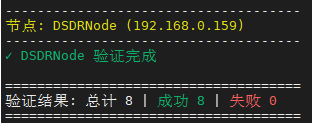

3.3 批量验证 containerd 配置
|-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| bash #!/bin/bash # 颜色定义 RED='\033[0;31m' GREEN='\033[0;32m' YELLOW='\033[1;33m' BLUE='\033[0;34m' NC='\033[0m' echo "=====================================" echo -e "{BLUE}全节点 containerd 配置批量验证{NC}" echo "=====================================" total=0 success=0 failed=0 while read -r ip hostname role; do [[ -z "ip" \|\| "ip" =~ ^# ]] && continue [ "{hostname}" == "ControlNodeA" \] \&\& continue total=((total + 1)) echo "-------------------------------------" echo -e "{YELLOW}节点: {hostname} ({ip}){NC}" echo "-------------------------------------" # 测试连通性 if ! ping -c 1 -W 2 {ip} \> /dev/null 2\>\&1; then echo -e "{RED}✗ 无法 ping 通{NC}" failed=((failed + 1)) echo "" continue fi # 使用 jack 连接执行验证 ssh -n -o ConnectTimeout=5 jack@{ip} bash \<\< 'EOF' 2\>/dev/null echo "containerd版本: " containerd --version 2\>/dev/null \|\| echo " 未安装" echo "服务状态: " sudo systemctl is-active containerd 2\>/dev/null \|\| echo " 服务未运行" sudo systemctl is-enabled containerd 2\>/dev/null \|\| echo " 未设置开机自启" echo "关键配置: " sudo grep -E 'SystemdCgroup\|sandbox' /etc/containerd/config.toml 2\>/dev/null \|\| echo " 配置文件不存在或无权限" echo "crictl连接: " if command -v crictl \> /dev/null 2\>\&1; then sudo crictl info \> /dev/null 2\>\&1 \&\& echo " 连接成功" \|\| echo " 连接失败" else echo " crictl 未安装" fi EOF if \[ ? -eq 0 ]; then echo -e "{GREEN}✓ {hostname} 验证完成{NC}" success=((success + 1)) else echo -e "{RED}✗ {hostname} 连接失败{NC}" failed=((failed + 1)) fi echo "" done < all_nodes.txt echo "=====================================" echo -e "{BLUE}验证结果汇总{NC}" echo "=====================================" echo -e "总计: {total} \| {GREEN}成功: {success}{NC} | {RED}失败: {failed}${NC}" echo "=====================================" # 给脚本添加执行权限 sudo chmod +x verify_containerd.sh # 执行脚本 ./verify_containerd.sh |
四、kubeconfig 权限分级配置与批量分发
完成所有节点基础配置后，进行 kubeconfig 的权限配置与分发。仅在控制平面节点和运维跳板机上安装 kubectl，工作节点不安装任何集群管控工具。
4.1 在 ControlNodeA 生成多角色 kubeconfig
步骤 1：备份原始管理员配置
|------------------------------------------------------------------------------------------------|
| bash # 备份原始admin.conf，防止操作失误 sudo cp /etc/kubernetes/admin.conf /etc/kubernetes/admin.conf.bak |
步骤 2：生成集群运维角色（cluster-ops）kubeconfig
创建专门用于日常运维的 ServiceAccount，避免直接使用超级管理员权限：
|-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| bash #!/bin/bash echo "=====================================" echo "创建 cluster-ops 账号并生成 kubeconfig" echo "=====================================" # 1. 创建 ServiceAccount echo "1. 创建 ServiceAccount..." kubectl create serviceaccount cluster-ops -n kube-system --dry-run=client -o yaml | kubectl apply -f - # 2. 创建 ClusterRoleBinding echo "2. 创建 ClusterRoleBinding..." kubectl create clusterrolebinding cluster-ops-admin \ --clusterrole=cluster-admin \ --serviceaccount=kube-system:cluster-ops \ --dry-run=client -o yaml | kubectl apply -f - # 3. 创建 Token Secret（使用 tee 方式） echo "3. 创建 Token Secret..." cat <<EOF | tee /tmp/cluster-ops-secret.yaml apiVersion: v1 kind: Secret metadata: name: cluster-ops-token namespace: kube-system annotations: kubernetes.io/service-account.name: cluster-ops type: kubernetes.io/service-account-token EOF kubectl apply -f /tmp/cluster-ops-secret.yaml rm -f /tmp/cluster-ops-secret.yaml # 4. 等待 Token 生成 echo "4. 等待 Token 生成..." for i in {1..10}; do OPS_TOKEN=(kubectl get secret cluster-ops-token -n kube-system -o jsonpath='{.data.token}' 2\>/dev/null \| base64 --decode) if \[ -n "OPS_TOKEN" ]; then echo "✓ Token 获取成功（第 {i} 次尝试）" break fi echo " 等待中... ({i}/10)" sleep 3 done if [ -z "OPS_TOKEN" \]; then echo "错误: 无法获取 Token，请检查 Secret 状态" kubectl describe secret cluster-ops-token -n kube-system exit 1 fi # 5. 获取 CA 证书 echo "5. 获取 CA 证书..." CA_CERT=(kubectl config view --raw -o jsonpath='{.clusters[0].cluster.certificate-authority-data}') if [ -z "CA_CERT" \]; then echo "错误: 无法获取 CA 证书" exit 1 fi echo "✓ CA 证书获取成功" # 6. 获取 API Server 地址 APISERVER=(kubectl config view --raw -o jsonpath='{.clusters[0].cluster.server}') echo "✓ API Server: {APISERVER}" # 7. 生成 kubeconfig 文件 echo "6. 生成 kubeconfig 文件..." cat \<\
步骤 3：准备管理员 kubeconfig
控制平面节点需要完整的集群管理权限，直接使用原始的 admin.conf：
|-------------------------------------------------------------------------------------------------------------------------------------------------------|
| bash # 复制admin.conf到当前目录 sudo cp /etc/kubernetes/admin.conf admin.kubeconfig sudo chown (id -u):(id -g) admin.kubeconfig chmod 600 admin.kubeconfig |
4.2 编写 kubectl 与 kubeconfig 批量分发脚本
强制关闭并删除 Swap
|-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| bash #!/bin/bash # force_disable_swap_v2.sh echo "=====================================" echo "强制关闭并禁用所有节点 Swap" echo "=====================================" while read -r ip hostname role; do [[ -z "ip" \|\| "ip" =~ ^# ]] && continue [ "{hostname}" == "ControlNodeA" \] \&\& continue echo "-------------------------------------" echo "处理: {hostname} ({ip})" ssh -t jack@{ip} bash << 'EOF' echo "=== 关闭前 ===" free | grep Swap sudo swapon --show echo "" echo "=== 关闭 Swap ===" sudo swapoff -a -v echo "" echo "=== 注释 fstab ===" sudo cp /etc/fstab /etc/fstab.bak sudo sed -i '/swap/s/^/# /' /etc/fstab echo "fstab 内容:" grep swap /etc/fstab echo "" echo "=== 删除 swap 文件 ===" sudo rm -f /swap.img /swapfile echo "" echo "=== 关闭后 ===" free | grep Swap sudo swapon --show 2>&1 || echo "无 swap 设备" EOF echo "" echo "✓ {hostname} 处理完成" echo "" done \< all_nodes.txt echo "=====================================" echo "完成！验证结果：" echo "=====================================" # 验证所有节点 while read -r ip hostname role; do \[\[ -z "ip" || "ip" =\~ \^# \]\] \&\& continue \[ "{hostname}" == "ControlNodeA" ] && continue result=(ssh -n jack@{ip} "free | grep Swap | awk '{print \2}'") if \[ "result" -eq 0 ]; then echo "✓ {hostname}: Swap 已完全关闭" else echo "✗ {hostname}: Swap 仍有 ${result} KB" fi done < all_nodes.txt # 运行修复脚本 chmod +x force_disable_swap_v2.sh ./force_disable_swap_v2.sh |
创建deploy_kubectl.sh脚本，根据节点角色自动分发对应的配置：
|-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| bash #!/bin/bash # ============================================ # 颜色定义 # ============================================ RED='\033[0;31m' GREEN='\033[0;32m' YELLOW='\033[1;33m' BLUE='\033[0;34m' NC='\033[0m' # ============================================ # 变量定义 # ============================================ KUBECTL_BIN="/usr/bin/kubectl" ADMIN_KUBECONFIG="./admin.kubeconfig" OPS_KUBECONFIG="./cluster-ops.kubeconfig" ALL_NODES="./all_nodes.txt" SSH_USER="jack" echo "=====================================" echo -e "{BLUE}部署 kubectl 和 kubeconfig{NC}" echo "=====================================" echo "" # 检查文件 for file in {KUBECTL_BIN} {ADMIN_KUBECONFIG} {OPS_KUBECONFIG} {ALL_NODES}; do if [ ! -f {file} \]; then echo -e "{RED}错误：文件 {file} 不存在！{NC}" exit 1 fi echo -e "{GREEN}✓{NC} {file}" done echo "" while read -r ip hostname role; do \[\[ -z "ip" || "ip" =\~ \^# \]\] \&\& continue \[ "{hostname}" == "ControlNodeA" ] && continue # 本地已有 echo "=====================================" echo -e "{YELLOW}处理节点: {hostname} ({ip}) 角色: {role}{NC}" echo "=====================================" # ============================================ # 工作节点：不安装任何东西 # ============================================ if \[ "{role}" == "worker" ]; then echo -e "{YELLOW}跳过（工作节点，不安装集群管控工具）{NC}" echo "" continue fi # ============================================ # control / ops 节点：安装 kubectl # ============================================ echo -e "{BLUE}\[1/3\] 安装 kubectl...{NC}" if ! scp {KUBECTL_BIN} {SSH_USER}@{ip}:/home/{SSH_USER}/kubectl 2>/dev/null; then echo -e "{RED}✗ kubectl 复制失败{NC}" continue fi ssh -n {SSH_USER}@{ip} "sudo mv /home/{SSH_USER}/kubectl /usr/local/bin/kubectl \&\& sudo chmod +x /usr/local/bin/kubectl" echo -e "{GREEN}✓ kubectl 安装完成{NC}" # ============================================ # 创建 .kube 目录 # ============================================ echo -e "{BLUE}[2/3] 分发 kubeconfig...{NC}" ssh -n {SSH_USER}@{ip} "mkdir -p /home/{SSH_USER}/.kube && chmod 700 /home/{SSH_USER}/.kube" # control 节点 → admin.kubeconfig，ops 节点 → cluster-ops.kubeconfig if \[ "{role}" == "control" ]; then scp {ADMIN_KUBECONFIG} {SSH_USER}@{ip}:/home/{SSH_USER}/.kube/config 2>/dev/null echo -e " → 分发 {GREEN}管理员{NC} kubeconfig" elif [ "{role}" == "ops" \]; then scp {OPS_KUBECONFIG} {SSH_USER}@{ip}:/home/{SSH_USER}/.kube/config 2\>/dev/null echo -e " → 分发 {YELLOW}运维{NC} kubeconfig" fi # ============================================ # 设置权限和自动补全 # ============================================ echo -e "{BLUE}[3/3] 配置环境...{NC}" ssh -n {SSH_USER}@{ip} bash \<\< 'EOF' chmod 600 /home/jack/.kube/config kubectl completion bash \> /home/jack/.kube/completion.bash if ! grep -q 'kubectl completion' /home/jack/.bashrc; then echo 'source /home/jack/.kube/completion.bash' \>\> /home/jack/.bashrc fi echo "✓ 配置完成" EOF echo -e "{GREEN}✓ {hostname} 部署完成{NC}" echo "" done < {ALL_NODES} echo "=====================================" echo -e "{GREEN}部署完成！${NC}" echo "=====================================" echo "" echo "权限分配总结：" echo " 控制平面节点 (ControlNodeB, ControlNodeC) → admin.kubeconfig（集群管理员）" echo " 运维跳板机 (DevOpsToolNode) → cluster-ops.kubeconfig（运维权限）" echo " 工作节点 (其余5个) → 未安装 kubectl" echo "" echo "验证命令：" echo " ./verify_kubectl.sh" echo "=====================================" |

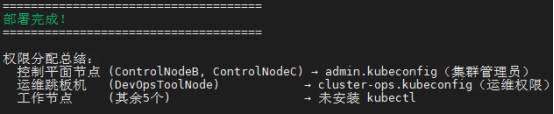

4.3 执行批量分发
|--------------------------------------------------------------------------|
| bash # 给脚本添加执行权限 chmod +x deploy_kubectl.sh # 执行批量分发 ./deploy_kubectl.sh |

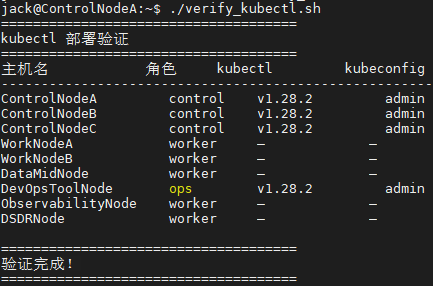

创建verify_kubectl.sh（验证脚本）
|---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| bash #!/bin/bash echo "=====================================" echo "kubectl 部署验证" echo "=====================================" printf "%-20s %-10s %-15s %-25s\n" "主机名" "角色" "kubectl" "kubeconfig" echo "-------------------------------------------------------------------------" while read -r ip hostname role; do [[ -z "ip" \|\| "ip" =~ ^# ]] && continue # 本地 ControlNodeA if [ "{hostname}" == "ControlNodeA" \]; then if command -v kubectl \&\>/dev/null; then ver=(kubectl version --client -o json 2>/dev/null | grep gitVersion | awk -F'"' '{print 4}') \[ -z "ver" ] && ver="已安装" else ver="未安装" fi printf "%-20s %-10s %-15s %-25s\n" "{hostname}" "control" "{ver}" "admin" continue fi # 工作节点 if [ "{role}" == "worker" \]; then printf "%-20s %-10s %-15s %-25s\\n" "{hostname}" "worker" "---" "---" continue fi # control / ops 节点 result=(ssh -n -o ConnectTimeout=5 -o BatchMode=yes jack@{ip} ' if command -v kubectl >/dev/null 2>&1; then ver=(kubectl version --client -o json 2\>/dev/null \| grep gitVersion \| awk -F"\\"" "{print \\4}") [ -n "ver" \] \&\& echo "kubectl:ver" || echo "kubectl:已安装" else echo "kubectl:未安装" fi if [ -f /home/jack/.kube/config ]; then kubectl get nodes >/dev/null 2>&1 && echo "config:admin" || echo "config:已配置" else echo "config:无" fi ' 2>/dev/null) if [ -z "result" \]; then printf "%-20s %-10s %-15s %-25s\\n" "{hostname}" "{role}" "连接失败" "连接失败" continue fi kubectl_ver=(echo "result" \| grep "kubectl:" \| cut -d: -f2-) config_type=(echo "result" \| grep "config:" \| cut -d: -f2-) printf "%-20s %-10s %-15s %-25s\\n" "{hostname}" "{role}" "{kubectl_ver:-未知}" "${config_type:-未知}" done < all_nodes.txt echo "" echo "=====================================" echo "验证完成！" echo "=====================================" # 给脚本添加执行权限 chmod +x verify_kubectl.sh # 执行验证脚本 ./verify_kubectl.sh |

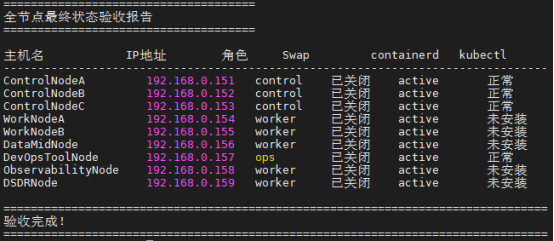

五、最终全节点状态验收
执行以下命令，一次性完成所有 9 个节点的最终状态验收，确保所有配置符合要求：
|------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| bash #!/bin/bash echo "=====================================" echo "全节点最终状态验收报告" echo "=====================================" echo "" printf "%-20s %-15s %-10s %-12s %-12s %-10s\n" "主机名" "IP地址" "角色" "Swap" "containerd" "kubectl" echo "--------------------------------------------------------------------------------" while read -r ip hostname role; do [[ -z "ip" \|\| "ip" =~ ^# ]] && continue if [ "{hostname}" == "ControlNodeA" \]; then swap_kb=(free | grep Swap | awk '{print 2}') \[ "swap_kb" -eq 0 ] && swap_status="已关闭" || swap_status="swap_kb KB" containerd_status=(systemctl is-active containerd 2>/dev/null || echo "未运行") kubectl_status=(command -v kubectl \&\>/dev/null \&\& kubectl get nodes \&\>/dev/null \&\& echo "正常" \|\| echo "未安装") else # 每条命令单独 SSH（简单可靠） swap_kb=(ssh -n -o ConnectTimeout=5 jack@{ip} "free \| grep Swap \| awk '{print \\2}'" 2>/dev/null) containerd_val=(ssh -n -o ConnectTimeout=5 jack@{ip} "sudo systemctl is-active containerd 2>/dev/null" 2>/dev/null) kubectl_val=(ssh -n -o ConnectTimeout=5 jack@{ip} "command -v kubectl >/dev/null 2>&1 && kubectl get nodes >/dev/null 2>&1 && echo '正常' || echo '未安装'" 2>/dev/null) if [ -n "swap_kb" \]; then \[ "swap_kb" -eq 0 ] && swap_status="已关闭" || swap_status="swap_kb KB" else swap_status="连接失败" fi containerd_status="{containerd_val:-连接失败}" kubectl_status="{kubectl_val:-连接失败}" fi printf "%-20s %-15s %-10s %-12s %-12s %-10s\\n" \\ "{hostname}" "{ip}" "{role}" "{swap_status}" "{containerd_status}" "${kubectl_status}" done < all_nodes.txt echo "" echo "================================================================================" echo "验收完成！" echo "================================================================================" # 给脚本添加执行权限 chmod +x final_check.sh # 执行批量分发 ./final_check.sh |
六、常见问题快速排查
|-------------------|-------------------------|-------------------------------------------------------|----------------------------------------|
| 问题现象 | 可能原因 | 解决方法 | |
| Swap 显示仍有空间 | /etc/fstab 存在多个 Swap 条目 | sudo sed -i '/swap/d' /etc/fstab && sudo swapoff -a | |
| containerd 服务启动失败 | 配置文件格式错误 | 重新生成默认配置：`sudo containerd config default | sudo tee /etc/containerd/config.toml` |
| crictl 连接失败 | socket 文件权限问题 | sudo chmod 666 /run/containerd/containerd.sock | |
| kubectl 连接集群超时 | 防火墙阻止 6443 端口 | 在 ControlNodeA 执行：sudo ufw allow 6443/tcp | |
| kubeconfig 权限报错 | 文件权限过大 | chmod 600 /root/.kube/config | |
总结
本文基于已完成的 SSH 免密环境，通过自动化脚本一次性完成了8 个节点的系统初始化、containerd 统一安装和 kubeconfig 批量分发。目前所有 9 个节点均已满足 Kubernetes 集群加入的全部前置条件，为下一步扩展为 3 控制平面 + 6 工作节点的高可用集群做好了充分准备。
本文为"搭建DevOps企业级仿真实验环境"系列的一部分，所有内容均基于实际硬件环境（32核64线程 / 128G内存 / 6T硬盘）编写，力求贴近真实企业部署场景。
欢迎各位 DevOps、SRE 爱好者，在评论区留言交流探讨，互相学习。
