系统环境
IDE:VB6
语言：vb

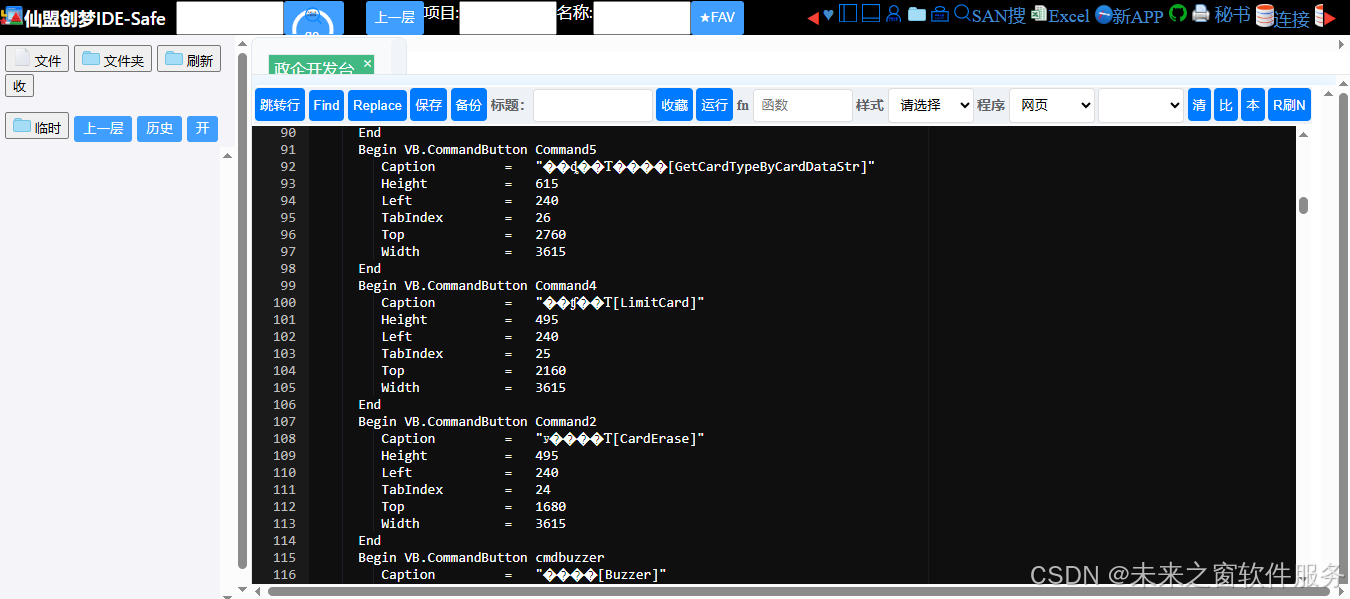

执行IDE:仙盟创梦IDE
完整代码

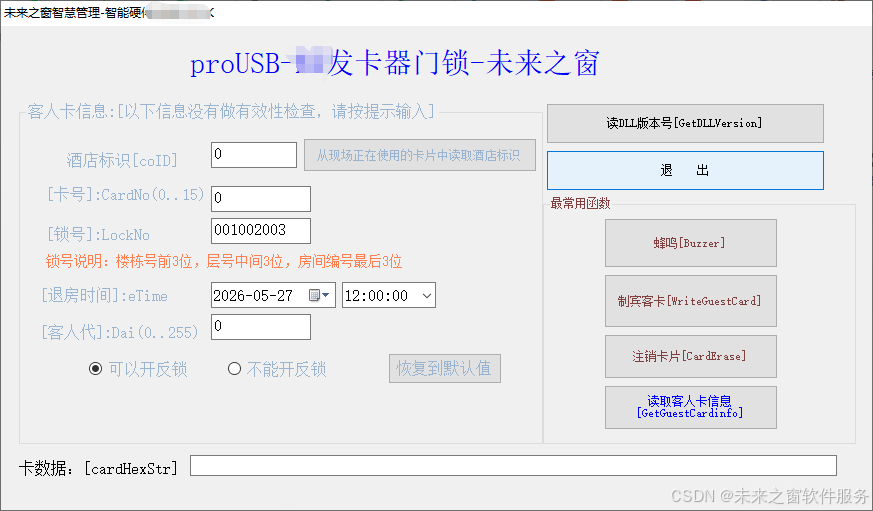

VERSION 5.00
Begin VB.Form Form1
Caption = "演示程序 DEMO"
ClientHeight = 9345
ClientLeft = 60
ClientTop = 345
ClientWidth = 14055
LinkTopic = "Form1"
MaxButton = 0 'False
MinButton = 0 'False
ScaleHeight = 9345
ScaleWidth = 14055
StartUpPosition = 1 '所有者中心
Begin VB.Frame Frame5
BeginProperty Font
Name = "宋体"
Size = 10.5
Charset = 134
Weight = 400
Underline = 0 'False
Italic = 0 'False
Strikethrough = 0 'False
EndProperty
ForeColor = &H000000FF&
Height = 1815
Left = 9480
TabIndex = 34
Top = 7200
Width = 4095
Begin VB.Label Label10
Caption = "请先用 门锁软件 发卡，确保发卡器与卡片是OK的，不要关闭门锁软件，然后打开本例程DEMO测试接口，谢谢！"
BeginProperty Font
Name = "宋体"
Size = 10.5
Charset = 134
Weight = 400
Underline = 0 'False
Italic = 0 'False
Strikethrough = 0 'False
EndProperty
ForeColor = &H00C00000&
Height = 735
Left = 240
TabIndex = 36
Top = 840
Width = 3615
End
Begin VB.Label Label14
Caption = "温馨提示"
BeginProperty Font
Name = "宋体"
Size = 15.75
Charset = 134
Weight = 400
Underline = 0 'False
Italic = 0 'False
Strikethrough = 0 'False
EndProperty
ForeColor = &H000000FF&
Height = 375
Left = 1200
TabIndex = 35
Top = 240
Width = 1935
End
End
Begin VB.Frame Frame4
Caption = "最常用函数"
Enabled = 0 'False
Height = 4695
Left = 9480
TabIndex = 20
Top = 2280
Width = 4095
Begin VB.CommandButton Command7
Caption = "读取客人离店时间[GetGuestETimeByCardDataStr]"
Height = 615
Left = 240
TabIndex = 28
Top = 3960
Width = 3615
End
Begin VB.CommandButton Command6
Caption = "读取客人卡锁号[GetGuestLockNoByCardDataStr]"
Height = 615
Left = 240
TabIndex = 27
Top = 3360
Width = 3615
End
Begin VB.CommandButton Command5
Caption = "读取卡片类型[GetCardTypeByCardDataStr]"
Height = 615
Left = 240
TabIndex = 26
Top = 2760
Width = 3615
End
Begin VB.CommandButton Command4
Caption = "挂失卡片[LimitCard]"
Height = 495
Left = 240
TabIndex = 25
Top = 2160
Width = 3615
End
Begin VB.CommandButton Command2
Caption = "注销卡片[CardErase]"
Height = 495
Left = 240
TabIndex = 24
Top = 1680
Width = 3615
End
Begin VB.CommandButton cmdbuzzer
Caption = "蜂鸣[Buzzer]"
Height = 495
Left = 240
TabIndex = 23
Top = 240
Width = 3615
End
Begin VB.CommandButton cmdwritecard
Caption = "制宾客卡[GuestCard]"
Height = 495
Left = 240
TabIndex = 22
Top = 1200
Width = 3615
End
Begin VB.CommandButton cmdreadcard
Caption = "读取卡数据[ReadCard]"
Height = 495
Left = 240
TabIndex = 21
Top = 720
Width = 3615
End
End
Begin VB.TextBox txtStrHex
BackColor = &H8000000B&
Enabled = 0 'False
BeginProperty Font
Name = "宋体"
Size = 10.5
Charset = 134
Weight = 700
Underline = 0 'False
Italic = 0 'False
Strikethrough = 0 'False
EndProperty
Height = 375
Left = 480
TabIndex = 18
Text = "txtStrHex"
Top = 6600
Width = 8775
End
Begin VB.CommandButton cmdExit
Caption = "退出"
Height = 495
Left = 9720
TabIndex = 16
Top = 1560
Width = 3735
End
Begin VB.CommandButton cmdGetDllVer
Caption = "读DLL版本号[GetDllVersion]"
Height = 495
Left = 9720
TabIndex = 15
Top = 960
Width = 3735
End
Begin VB.Frame Frame3
Caption = "使用说明"
BeginProperty Font
Name = "宋体"
Size = 10.5
Charset = 134
Weight = 400
Underline = 0 'False
Italic = 0 'False
Strikethrough = 0 'False
EndProperty
ForeColor = &H000000FF&
Height = 1815
Left = 480
TabIndex = 10
Top = 7200
Width = 8775
Begin VB.Label Label12
Caption = "4,读DLL版本为测试动态库，不涉及端口操作。"
ForeColor = &H00008000&
Height = 255
Left = 360
TabIndex = 14
Top = 1440
Width = 6015
End
Begin VB.Label Label9
Caption = "3,客人代号，是实现后卡覆盖前卡功能的，一般默认为0即可；"
ForeColor = &H000000FF&
Height = 255
Left = 360
TabIndex = 13
Top = 1080
Width = 5535
End
Begin VB.Label Label8
Caption = "2,按说明正确填写相应信息是能否发卡成功的关键步骤； "
ForeColor = &H00008000&
Height = 255
Left = 360
TabIndex = 12
Top = 720
Width = 5535
End
Begin VB.Label Label7
Caption = "1,USB端口打开之后, 才能进行发卡读卡等操作;"
ForeColor = &H000000FF&
Height = 255
Left = 360
TabIndex = 11
Top = 360
Width = 5895
End
End
Begin VB.CommandButton Command1
Caption = "第一步: 打开端口[initializeUSB]"
Height = 735
Left = 960
TabIndex = 1
Top = 1200
Width = 3615
End
Begin VB.Frame Frame1
Caption = "端口操作"
BeginProperty Font
Name = "宋体"
Size = 10.5
Charset = 134
Weight = 400
Underline = 0 'False
Italic = 0 'False
Strikethrough = 0 'False
EndProperty
ForeColor = &H000000FF&
Height = 1335
Left = 480
TabIndex = 0
Top = 840
Width = 8775
Begin VB.CommandButton Command3
Caption = "从现有卡片读取酒店标识"
Height = 375
Left = 4680
TabIndex = 31
Top = 720
Width = 3735
End
Begin VB.TextBox txtCoID
BeginProperty Font
Name = "宋体"
Size = 10.5
Charset = 134
Weight = 700
Underline = 0 'False
Italic = 0 'False
Strikethrough = 0 'False
EndProperty
Height = 270
Left = 6480
TabIndex = 30
Text = "txtCoID"
Top = 360
Width = 1575
End
Begin VB.Label Label23
Alignment = 1 'Right Justify
Caption = "酒店标识[coID]："
Height = 255
Left = 4560
TabIndex = 32
Top = 360
Width = 1695
End
End
Begin VB.Frame Frame2
Caption = "客人卡信息[注：以下输入框没有做有效性检查，请按提示输入]"
Enabled = 0 'False
BeginProperty Font
Name = "宋体"
Size = 10.5
Charset = 134
Weight = 400
Underline = 0 'False
Italic = 0 'False
Strikethrough = 0 'False
EndProperty
ForeColor = &H000000FF&
Height = 3855
Left = 480
TabIndex = 2
Top = 2280
Width = 8775
Begin VB.TextBox txtDai
BeginProperty Font
Name = "宋体"
Size = 10.5
Charset = 134
Weight = 700
Underline = 0 'False
Italic = 0 'False
Strikethrough = 0 'False
EndProperty
Height = 270
Left = 2520
TabIndex = 8
Text = "txtDai"
Top = 2640
Width = 855
End
Begin VB.TextBox txtETime
BeginProperty Font
Name = "宋体"
Size = 10.5
Charset = 134
Weight = 700
Underline = 0 'False
Italic = 0 'False
Strikethrough = 0 'False
EndProperty
Height = 375
Left = 2520
TabIndex = 6
Text = "txtETime"
Top = 1800
Width = 3375
End
Begin VB.TextBox txtLockNo
BeginProperty Font
Name = "宋体"
Size = 10.5
Charset = 134
Weight = 700
Underline = 0 'False
Italic = 0 'False
Strikethrough = 0 'False
EndProperty
Height = 270
Left = 2520
TabIndex = 4
Text = "txtLockNo"
Top = 720
Width = 1575
End
Begin VB.Label Label2
Caption = $"Form1.frx":0000
Height = 375
Left = 240
TabIndex = 33
Top = 3120
Width = 7575
End
Begin VB.Label Label4
Caption = "锁号，必须以门锁软件-房间定义 最后一列为准。新的门锁软件可以导出锁号"
ForeColor = &H000000FF&
Height = 255
Left = 960
TabIndex = 17
Top = 1200
Width = 7455
End
Begin VB.Label Label5
Caption = "（1-255循环）"
ForeColor = &H000000FF&
Height = 255
Left = 3480
TabIndex = 9
Top = 2640
Width = 1575
End
Begin VB.Label Label1
Alignment = 1 'Right Justify
Caption = "客人代[Dai]："
Height = 255
Left = 360
TabIndex = 7
Top = 2640
Width = 1935
End
Begin VB.Label Label29
Alignment = 1 'Right Justify
Caption = "预计退房时间[eTime]："
Height = 255
Left = 360
TabIndex = 5
Top = 1920
Width = 1935
End
Begin VB.Label Label27
Alignment = 1 'Right Justify
Caption = "锁号[LockNo]："
Height = 255
Left = 480
TabIndex = 3
Top = 720
Width = 1815
End
End
Begin VB.Label Label6
Alignment = 2 'Center
Caption = "门锁接口函数例程DEMO（新系统P50版）"
BeginProperty Font
Name = "宋体"
Size = 21.75
Charset = 134
Weight = 400
Underline = 0 'False
Italic = 0 'False
Strikethrough = 0 'False
EndProperty
Height = 495
Left = 0
TabIndex = 29
Top = 120
Width = 14175
End
Begin VB.Label Label3
Caption = "卡数据[CardHexStr]："
Height = 255
Left = 480
TabIndex = 19
Top = 6240
Width = 2055
End
End
Attribute VB_Name = "Form1"
Attribute VB_GlobalNameSpace = False
Attribute VB_Creatable = False
Attribute VB_PredeclaredId = True
Attribute VB_Exposed = False
'读取卡数据
Private Sub cmdreadcard_Click()
If rdCard <> True Then Exit Sub '先读卡
txtStrHex.Text = bufCard
MsgBox "卡ID号：" & Mid(bufCard, 25, 8), 64
End Sub
'制宾客卡
Private Sub cmdwritecard_Click()
Dim llock As Byte '反锁标志
Dim pdoors As Byte '公共门标志
Dim dlsCoID As Long '酒店标识
Dim CardNo As Integer '卡号(0-15)
Dim dai As Integer '客人代
Dim BTime As String '发卡时间,也就是电脑当前时间
Dim ETime As String '预计退房时间
Dim LockNo As String '锁号
If rdCard <> True Then Exit Sub '先读卡
txtStrHex.Text = bufCard
llock = 0
pdoors = 1 '公共门标志
dlsCoID = CLng(txtCoID.Text) '酒店标识
CardNo = 0
dai = CInt(txtDai.Text) Mod 256 '客人代
BTime = Format(Now, "YYMMDDHHMM") '发卡时间
ETime = Format(txtETime.Text, "YYMMDDHHMM") '预计退房时间
LockNo = txtLockNo.Text
st = GuestCard(flagUSB, dlsCoID, CardNo, dai, llock, pdoors, BTime, ETime, LockNo, bufHexStr)
If flagUSB = 1 Then Buzzer flagUSB, 20 '写卡后鸣叫一声，因为GuestCard函数本身不会有响声
txtStrHex.Text = bufHexStr
If st <> 0 Then
MsgBox "调用发卡函数失败, 错误代号为: " & CStr(st), 16
Else
MsgBox "调用发卡函数成功" & Chr(10) & Chr(10) & "注意: 并不代表数据已经写到卡里, 建议停顿一秒钟后调用ReadCard" & Chr(10) & "如果GuestCard与ReadCard的bufHexStr相同表示写卡成功", 64
End If
End Sub
'注销卡片
Private Sub Command2_Click()
Dim dlsCoID As Long '酒店标识
If rdCard <> True Then Exit Sub '先读卡
txtStrHex.Text = bufCard
dlsCoID = CLng(txtCoID.Text) '酒店标识
st = CardErase(flagUSB, dlsCoID, bufHexStr)
If flagUSB = 1 Then Buzzer flagUSB, 20 '写卡后鸣叫一声，因为CardErase函数本身不会有响声
txtStrHex.Text = bufHexStr
If st <> 0 Then
MsgBox "注销失败, 错误代号为: " & CStr(st), 16
Else
MsgBox "注销成功", 64
End If
End Sub
'卡片挂失
Private Sub Command4_Click()
Dim dlsCoID As Long '酒店标识
Dim limitNo As String * 4 '挂失卡号
Dim dai As Integer '代
If rdCard <> True Then Exit Sub '先读卡
txtStrHex.Text = bufCard
dlsCoID = CLng(txtCoID.Text) '酒店标识
CardNo = CInt(txtCardNo.Text) Mod 16 '卡号(0-15)
dai = CInt(txtDai.Text) Mod 256 '客人代
BTime = Format(Now, "YYMMDDHHMM") '发卡时间
limitNo = Chr(&H60) & Chr(&H12) & Chr(&HD2) & Chr(&H91) '挂失卡号: 6012D291
st = LimitCard(flagUSB, dlsCoID, CardNo, dai, BTime, limitNo, bufHexStr)
If flagUSB = 1 Then Buzzer flagUSB, 20 '写卡后鸣叫一声，因为LimitCard函数本身不会有响声
txtStrHex.Text = bufHexStr
If st <> 0 Then
MsgBox "挂失卡片失败, 错误代号为: " & CStr(st), 16
Else
MsgBox "调用挂失卡函数成功" & Chr(10) & "本例子挂失卡号为: 6012D291", 64
End If
End Sub
'读取卡片类型
Private Sub Command5_Click()
Dim s As String
Dim CardType As String * 16
If rdCard <> True Then Exit Sub '先读卡
txtStrHex.Text = bufCard
st = GetCardTypeByCardDataStr(bufCard, CardType)
If st <> 0 Then
MsgBox "卡数据串无效, 错误代号为: " & CStr(st), 48
Else
s = Left(CardType, 1)
If s = "0" Then
MsgBox "授权卡"
ElseIf s = "1" Then
MsgBox "记录卡"
ElseIf s = "2" Then
MsgBox "房号设置卡"
ElseIf s = "3" Then
MsgBox "时间设置卡"
ElseIf s = "4" Then
MsgBox "限制卡[挂失卡]"
ElseIf s = "5" Then
MsgBox "组号设置卡"
ElseIf s = "6" Then
MsgBox "客人卡"
ElseIf s = "7" Then
MsgBox "退房卡"
ElseIf s = "8" Then
MsgBox "组控卡"
ElseIf s = "9" Then
MsgBox "未知卡[无此类型]"
ElseIf s = "A" Then
MsgBox "应急卡"
ElseIf s = "B" Then
MsgBox "总控卡"
ElseIf s = "C" Then
MsgBox "楼栋卡"
ElseIf s = "D" Then
MsgBox "楼层卡"
ElseIf s = "E" Then
MsgBox "未知卡[无此类型]"
ElseIf s = "F" Then
MsgBox "空白卡"
End If
End If
End Sub
'读取客人卡锁号
Private Sub Command6_Click()
Dim dlsCoID As Long '酒店标识
Dim LockNo As String * 16
If rdCard <> True Then Exit Sub '先读卡
txtStrHex.Text = bufCard
dlsCoID = CLng(txtCoID.Text) '酒店标识
st = GetGuestLockNoByCardDataStr(dlsCoID, bufCard, LockNo)
If st = 0 Then
MsgBox "锁号: " & LockNo, 64
ElseIf st = 1 Then
MsgBox "卡数据串无效" & Chr(10) & bufCard, 48
ElseIf st = 2 Then
MsgBox "非本酒店卡" & Chr(10) & bufCard, 48
ElseIf st = 3 Then
MsgBox "不是客人卡" & Chr(10) & bufCard, 48
Else
MsgBox "未知返回值: " & CStr(st) & Chr(10) & bufCard, 48
End If
End Sub
'读取客人卡离店时间
Private Sub Command7_Click()
Dim dlsCoID As Long '酒店标识
Dim ETime As String * 16
If rdCard <> True Then Exit Sub '先读卡
txtStrHex.Text = bufCard
dlsCoID = CLng(txtCoID.Text) '酒店标识
st = GetGuestETimeByCardDataStr(dlsCoID, bufCard, ETime)
If st = 0 Then
MsgBox "离店时间: " & ETime, 64
ElseIf st = 1 Then
MsgBox "卡数据串无效" & Chr(10) & bufCard, 48
ElseIf st = 2 Then
MsgBox "非本酒店卡" & Chr(10) & bufCard, 48
ElseIf st = 3 Then
MsgBox "不是客人卡" & Chr(10) & bufCard, 48
Else
MsgBox "未知返回值: " & CStr(st) & Chr(10) & bufCard, 48
End If
End Sub
Private Sub Form_Load()
flagUSB = 1 '默认为pro免驱
txtCoID = "0"
Cmdreset_Click
End Sub
Private Sub Option1_Click()
flagUSB = 0 '有驱
End Sub
Private Sub Option2_Click()
flagUSB = 1 'pro免驱
End Sub
'关闭程序
Private Sub cmdExit_Click()
End
End Sub
'读取DLL版本信息
Private Sub cmdGetDllVer_Click()
Dim s As String * 128
st = GetDLLVersion(s)
If st = 0 Then
MsgBox "DLL版本号为：" & s, 64
Else
MsgBox "读DLL版本号错误, 错误代码为：" & CStr(st), 48
End If
End Sub
'USB初始化
Private Sub Command1_Click()
st = initializeUSB(1)
If st <> 0 Then
MsgBox "初始化USB端口失败, 错误代号为: " & CStr(st), 16
Else
MsgBox "初始化USB端口成功", 64
Frame2.Enabled = True
Frame4.Enabled = True
End If
End Sub
'将输入框恢复到默认值
Private Sub Cmdreset_Click()
txtCardNo = "1"
txtLockNo = "01020A"
txtETime = Format(Now + 1, "YYYY/MM/DD 14:00")
txtDai = "0"
txtStrHex = ""
End Sub
'蜂鸣器
Private Sub Cmdbuzzer_Click()
Dim st As Integer
st = Buzzer(flagUSB, 50) '发卡器鸣叫50x10ms
If st <> 0 Then
MsgBox "蜂鸣失败, 错误代号为: " & CStr(st), 16
End If
End Sub
'从现有卡片读取酒店标识
Private Sub Command3_Click()
Dim i As Long
Dim s As String
If rdCard <> True Then Exit Sub '先读卡
txtStrHex.Text = bufCard
If Mid(bufCard, 25, 8) = "FFFFFFFF" Then
txtCoID.Text = ""
MsgBox "此卡是空白卡，请换一张能开门的卡", 48
Exit Sub
End If
s = Mid(bufCard, 11, 4)
i = CLng("&H" + s) Mod 16384
s = Mid(bufCard, 8, 3)
i = i + (CLng("&H" + s) * 65536)
txtCoID.Text = CStr(i)
End Sub
人人皆为创造者，共创方能共成长
每个人都是使用者，也是创造者；是数字世界的消费者，更是价值的生产者与分享者。在智能时代的浪潮里，单打独斗的发展模式早已落幕，唯有开放连接、创意共创、利益共享，才能让个体价值汇聚成生态合力，让技术与创意双向奔赴，实现平台与伙伴的快速成长、共赢致远。
原创永久分成，共赴星辰大海
原创创意共创、永久收益分成，是东方仙盟始终坚守的核心理念。我们坚信，每一份原创智慧都值得被尊重与回馈，以永久分成锚定共创初心，让创意者长期享有价值红利，携手万千伙伴向着科技星辰大海笃定前行，拥抱硅基 生命与数字智能交融的未来，共筑跨越时代的数字文明共同体。
东方仙盟：拥抱知识开源，共筑数字新生态
在全球化与数字化浪潮中，东方仙盟始终秉持开放协作、知识共享的理念，积极拥抱开源技术与开放标准。我们相信，唯有打破技术壁垒、汇聚全球智慧，才能真正推动行业的可持续发展。
开源赋能中小商户：通过将前端异常检测、跨系统数据互联等核心能力开源化，东方仙盟为全球中小商户提供了低成本、高可靠的技术解决方案，让更多商家能够平等享受数字转型的红利。
共建行业标准：我们积极参与国际技术社区，与全球开发者、合作伙伴共同制定开放协议 与技术规范，推动跨境零售、文旅、餐饮等多业态的系统互联互通，构建更加公平、高效的数字生态。
知识普惠，共促发展：通过开源社区 、技术文档与培训体系，东方仙盟致力于将前沿技术转化为可落地的行业实践，赋能全球合作伙伴，共同培育创新人才，推动数字经济 的普惠式增长
阿雪技术观
在科技发展浪潮中，我们不妨积极投身技术共享。不满足于做受益者，更要主动担当贡献者 。无论是分享代码、撰写技术博客，还是参与开源项目 维护改进，每一个微小举动都可能蕴含推动技术进步的巨大能量。东方仙盟是汇聚力量的天地，我们携手在此探索硅基 生命，为科技进步添砖加瓦。
Hey folks, in this wild tech - driven world, why not dive headfirst into the whole tech - sharing scene? Don't just be the one reaping all the benefits; step up and be a contributor too. Whether you're tossing out your code snippets , hammering out some tech blogs, or getting your hands dirty with maintaining and sprucing up open - source projects, every little thing you do might just end up being a massive force that pushes tech forward. And guess what? The Eastern FairyAlliance is this awesome place where we all come together. We're gonna team up and explore the whole silicon - based life thing, and in the process, we'll be fueling the growth of technology
