单片机 ：STM32F407
开发板：DMF407电机开发板
平台：keil V5.31
HSE 为8MHZ
HSI为16MHZ
主函数：
int main(void)
{
uint8_t hour, min, sec, ampm;
uint8_t year, month, date, week;
uint8_t tbuf[40];
uint8_t t = 0;
HAL_Init(); /* 初始化HAL库 */
sys_stm32_clock_init(336, 8, 2, 7); /* 设置时钟,168Mhz */
delay_init(168); /* 延时初始化 */
usart_init(115200); /* 串口初始化为115200 */
usmart_dev.init(84); /* 初始化USMART */
led_init(); /* 初始化LED */
lcd_init(); /* 初始化LCD */
rtc_init(); /* 初始化RTC */
rtc_set_wakeup(RTC_WAKEUPCLOCK_CK_SPRE_16BITS, 0); /* 配置WAKE UP中断, 1秒钟中断一次 */
lcd_show_string(30, 50, 200, 16, 16, "STM32", RED);
lcd_show_string(30, 70, 200, 16, 16, "RTC TEST", RED);
lcd_show_string(30, 90, 200, 16, 16, "ATOM@ALIENTEK", RED);
while (1)
{
t++;
if ((t % 10) == 0) /* 每100ms更新一次显示数据 */
{
rtc_get_time(&hour, &min, &sec, &m);
sprintf((char *)tbuf, "Time:%02d:%02d:%02d", hour, min, sec);
lcd_show_string(30, 130, 210, 16, 16, (char*)tbuf, RED);
rtc_get_date(&year, &month, &date, &week);
sprintf((char *)tbuf, "Date:20%02d-%02d-%02d", year, month, date);
lcd_show_string(30, 150, 210, 16, 16, (char*)tbuf, RED);
sprintf((char *)tbuf, "Week:%d", week);
lcd_show_string(30, 170, 210, 16, 16, (char*)tbuf, RED);
}
if ((t % 20) == 0)
{
LED0_TOGGLE(); /* 每200ms,翻转一次LED0 */
}
delay_ms(10);
}
}配置：
uint8_t rtc_init(void)
{
uint16_t bkpflag = 0;
g_rtc_handle.Instance = RTC;
g_rtc_handle.Init.HourFormat = RTC_HOURFORMAT_24; /* RTC设置为24小时格式 */
g_rtc_handle.Init.AsynchPrediv = 0x7F; /* RTC异步分频系数(1~0x7F) */
g_rtc_handle.Init.SynchPrediv = 0xFF; /* RTC同步分频系数(0~0x7FFF) */
g_rtc_handle.Init.OutPut = RTC_OUTPUT_DISABLE;
g_rtc_handle.Init.OutPutPolarity = RTC_OUTPUT_POLARITY_HIGH;
g_rtc_handle.Init.OutPutType = RTC_OUTPUT_TYPE_OPENDRAIN;
/* 检查是不是第一次配置时钟 */
bkpflag = rtc_read_bkr(RTC_BKP_DR0); /* 读取BKP0的值 */
if (HAL_RTC_Init(&g_rtc_handle) != HAL_OK)
{
return 1;
}
if ((bkpflag != 0x5050) && (bkpflag != 0x5051)) /* 之前未初始化过, 重新配置 */
{
rtc_set_time(23, 59, 56, RTC_HOURFORMAT12_AM); /* 设置时间, 根据实际时间修改 */
rtc_set_date(26, 5, 28, 17); /* 设置日期 */
}
return 0;
}
void HAL_RTC_MspInit(RTC_HandleTypeDef* hrtc)
{
uint16_t retry = 200;
RCC_OscInitTypeDef rcc_osc_init_handle;
RCC_PeriphCLKInitTypeDef rcc_periphclk_init_handle;
__HAL_RCC_RTC_ENABLE(); /* RTC使能 */
HAL_PWR_EnableBkUpAccess(); /* 取消备份区域写保护 */
__HAL_RCC_PWR_CLK_ENABLE(); /* 使能电源时钟PWR */
/* 使用寄存器的方式去检测LSE是否可以正常工作 */
RCC->BDCR |= 1 << 0; /* 尝试开启LSE */
while (retry && ((RCC->BDCR & 0x02) == 0)) /* 等待LSE准备好 */
{
retry--;
delay_ms(5);
}
if (retry == 0) /* LSE起振失败 使用LSI */
{
rcc_osc_init_handle.OscillatorType = RCC_OSCILLATORTYPE_LSI; /* 选择要配置的振荡器 */
rcc_osc_init_handle.PLL.PLLState = RCC_PLL_NONE; /* PLL不配置 */
rcc_osc_init_handle.LSIState = RCC_LSI_ON; /* LSI状态:开启 */
HAL_RCC_OscConfig(&rcc_osc_init_handle); /* 配置设置的rcc_oscinitstruct */
rcc_periphclk_init_handle.PeriphClockSelection = RCC_PERIPHCLK_RTC; /* 选择要配置外设 RTC */
rcc_periphclk_init_handle.RTCClockSelection = RCC_RTCCLKSOURCE_LSI; /* RTC时钟源选择LSI */
HAL_RCCEx_PeriphCLKConfig(&rcc_periphclk_init_handle); /* 配置设置的rcc_periphclkinitstruct */
rtc_write_bkr(0, 0x5051);
}
else
{
rcc_osc_init_handle.OscillatorType = RCC_OSCILLATORTYPE_LSE; /* 选择要配置的振荡器 */
rcc_osc_init_handle.PLL.PLLState = RCC_PLL_NONE; /* PLL不配置 */
rcc_osc_init_handle.LSEState = RCC_LSE_ON; /* LSE状态:开启 */
HAL_RCC_OscConfig(&rcc_osc_init_handle); /* 配置设置的rcc_oscinitstruct */
rcc_periphclk_init_handle.PeriphClockSelection = RCC_PERIPHCLK_RTC; /* 选择要配置外设RTC */
rcc_periphclk_init_handle.RTCClockSelection = RCC_RTCCLKSOURCE_LSE; /* RTC时钟源选择LSE */
HAL_RCCEx_PeriphCLKConfig(&rcc_periphclk_init_handle); /* 配置设置的rcc_periphclkinitstruct */
rtc_write_bkr(0, 0x5050);
}
__HAL_RCC_RTC_ENABLE(); /* RTC使能 */
}
void rtc_set_wakeup(uint8_t wksel, uint16_t cnt)
{
__HAL_RTC_WAKEUPTIMER_CLEAR_FLAG(&g_rtc_handle, RTC_FLAG_WUTF); /* 清除RTC WAKE UP的标志 */
HAL_RTCEx_SetWakeUpTimer_IT(&g_rtc_handle, cnt, wksel); /* 设置重装载值和时钟 */
HAL_NVIC_SetPriority(RTC_WKUP_IRQn, 2, 2); /* 抢占优先级2,子优先级2 */
HAL_NVIC_EnableIRQ(RTC_WKUP_IRQn);
}
void RTC_WKUP_IRQHandler(void)
{
HAL_RTCEx_WakeUpTimerIRQHandler(&g_rtc_handle);
}
void HAL_RTCEx_WakeUpTimerEventCallback(RTC_HandleTypeDef *hrtc)
{
LED1_TOGGLE();
}
uint32_t rtc_read_bkr(uint32_t bkrx)
{
uint32_t temp = 0;
temp = RTC_BASE + 0x50 + bkrx * 4;
return (*(uint32_t *)temp); /* 返回读取到的值 */
}
HAL_StatusTypeDef rtc_set_time(uint8_t hour, uint8_t min, uint8_t sec, uint8_t ampm)
{
RTC_TimeTypeDef rtc_time_handle;
rtc_time_handle.Hours = hour;
rtc_time_handle.Minutes = min;
rtc_time_handle.Seconds = sec;
rtc_time_handle.TimeFormat = ampm;
rtc_time_handle.DayLightSaving = RTC_DAYLIGHTSAVING_NONE;
rtc_time_handle.StoreOperation = RTC_STOREOPERATION_RESET;
return HAL_RTC_SetTime(&g_rtc_handle, &rtc_time_handle, RTC_FORMAT_BIN);
}
HAL_StatusTypeDef rtc_set_date(uint8_t year, uint8_t month, uint8_t date, uint8_t week)
{
RTC_DateTypeDef rtc_date_handle;
rtc_date_handle.Date = date;
rtc_date_handle.Month = month;
rtc_date_handle.WeekDay = week;
rtc_date_handle.Year = year;
return HAL_RTC_SetDate(&g_rtc_handle, &rtc_date_handle, RTC_FORMAT_BIN);

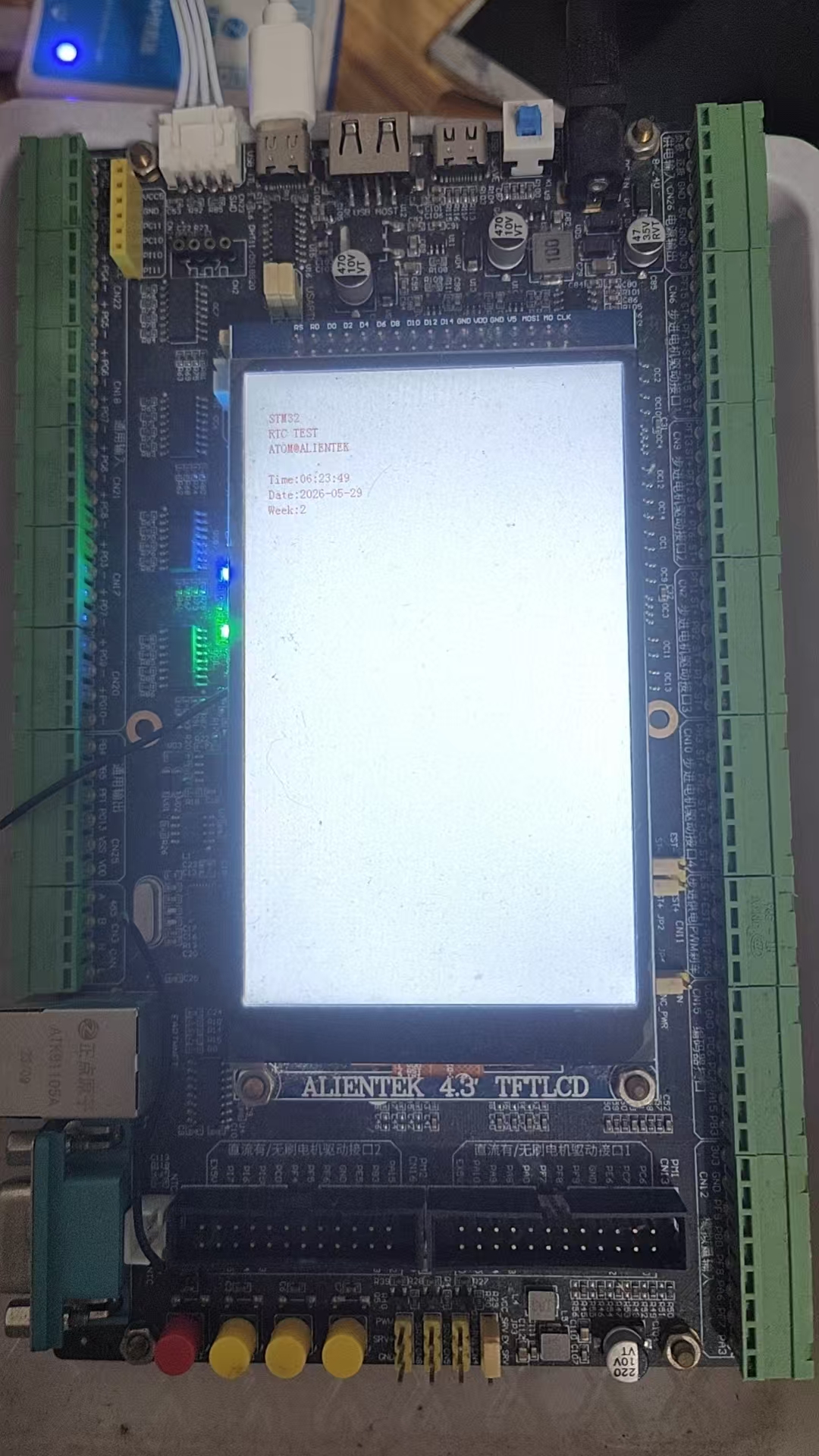

}测试结果：1s产生一次wakeup中断
rtc_set_wakeup(RTC_WAKEUPCLOCK_CK_SPRE_16BITS, 10); /* 配置WAKE UP中断, 10秒钟中断一次 */

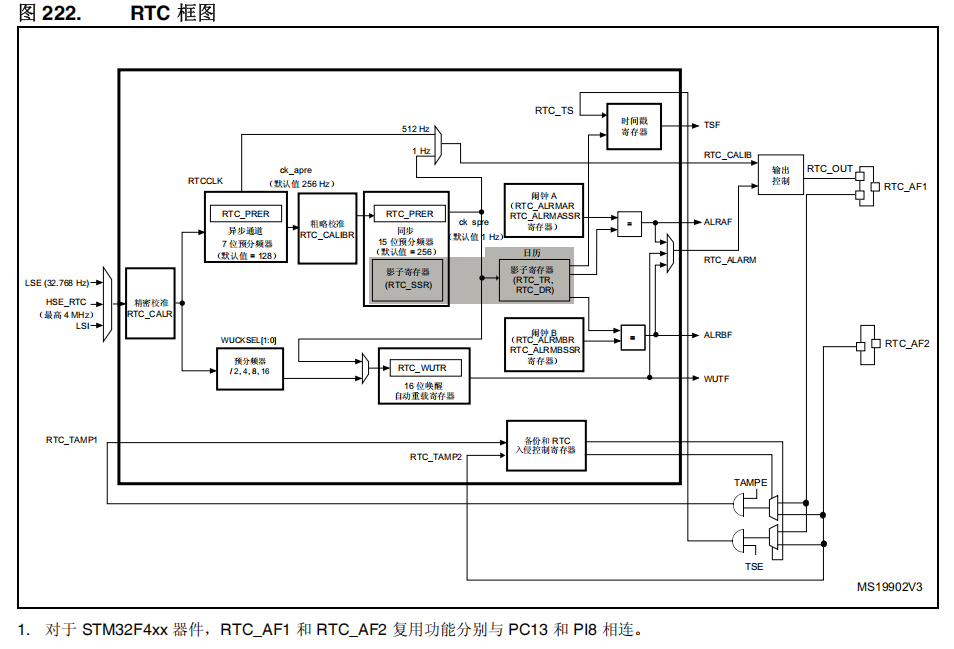

还可以利用RTC的入侵检测功能，复用PC13或PI8，防止产品被认为破坏。
