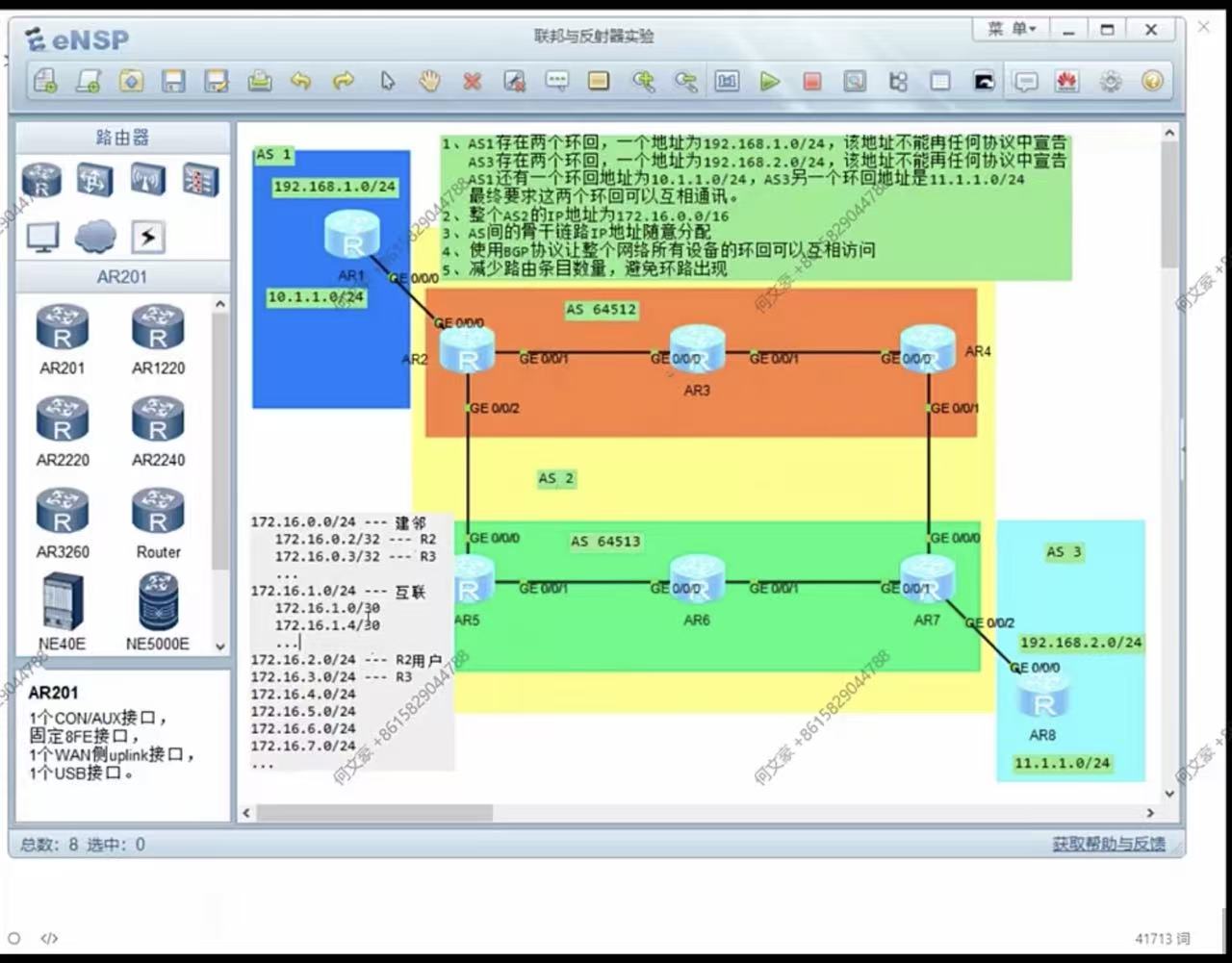

BGP作业

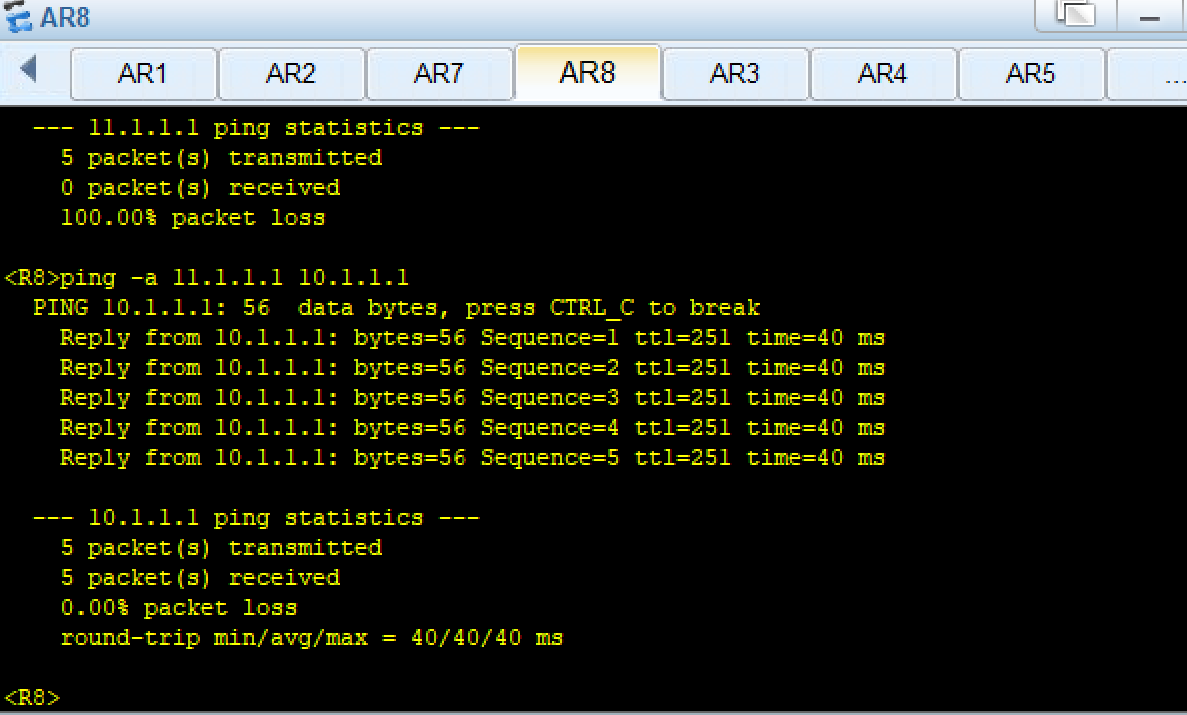

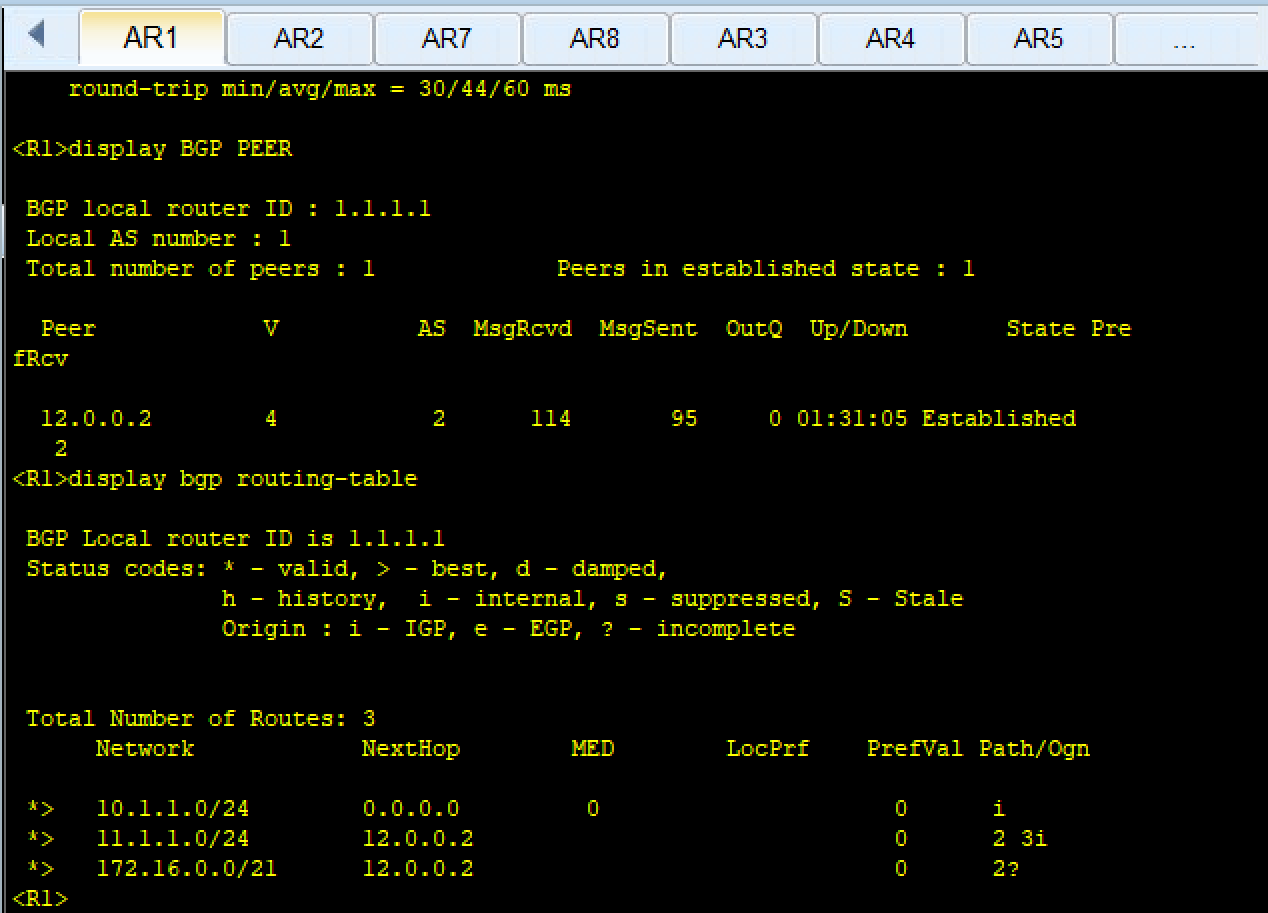

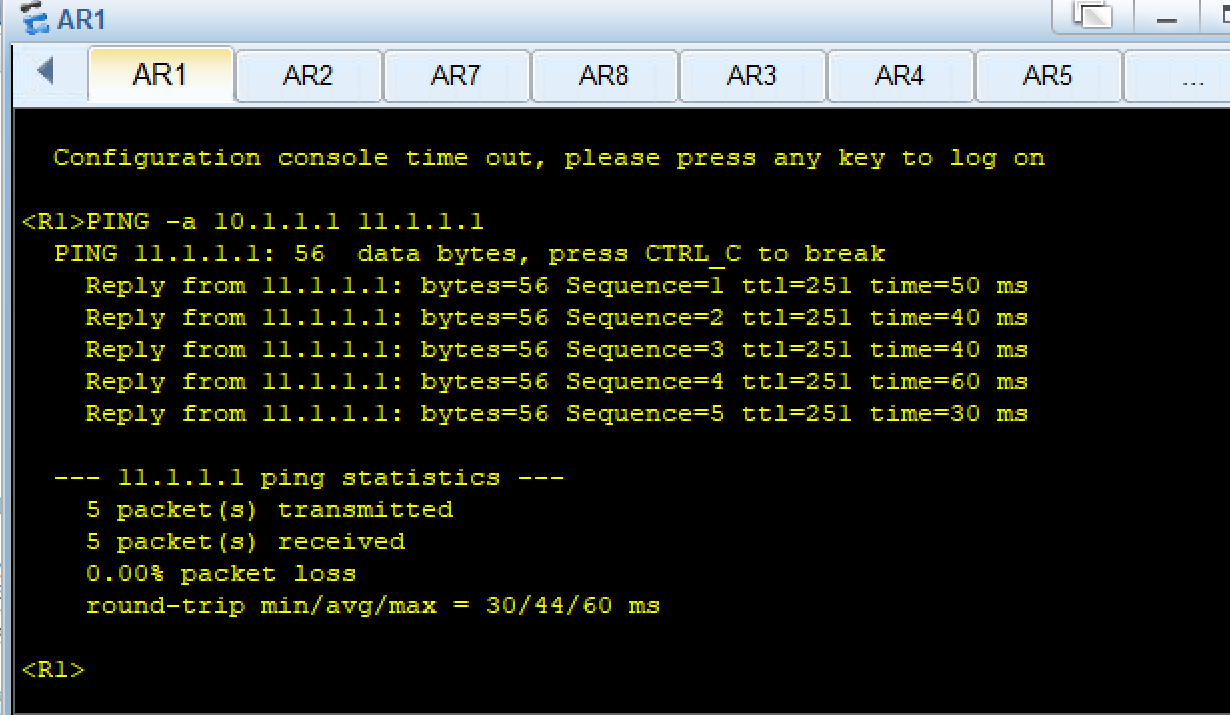

AR1和AR8互通

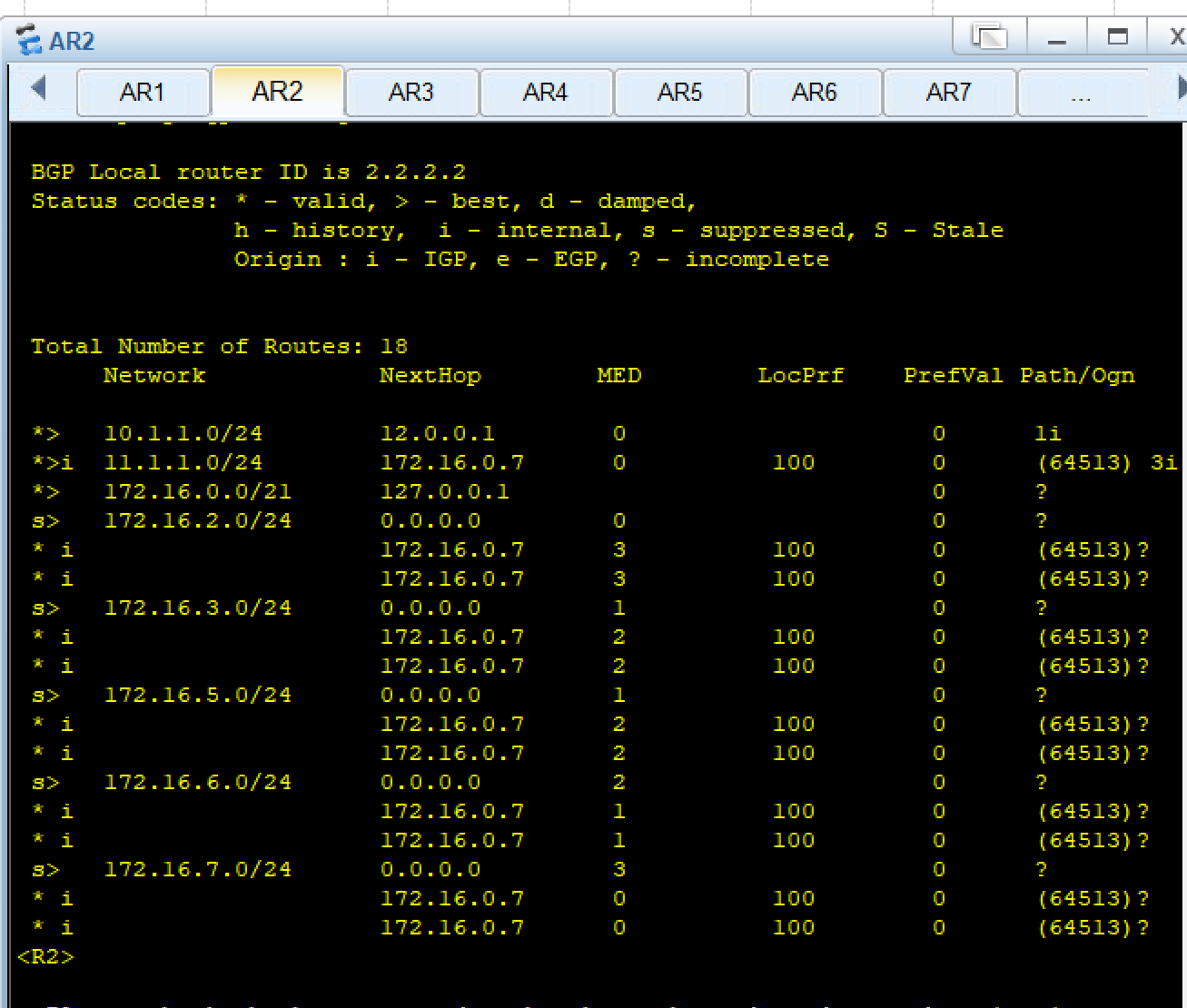

利用BGP AR3和AR6作为反射器选取客户端和非客户端

 AR3
ipv4-family unicast
  undo synchronization
  peer 172.16.0.2 enable
  peer 172.16.0.2 reflect-client
  peer 172.16.0.4 enable
  peer 172.16.0.4 reflect-client


AR6
 ipv4-family unicast
  undo synchronization
  peer 172.16.0.5 enable
  peer 172.16.0.5 reflect-client
  peer 172.16.0.7 enable
  peer 172.16.0.7 reflect-client

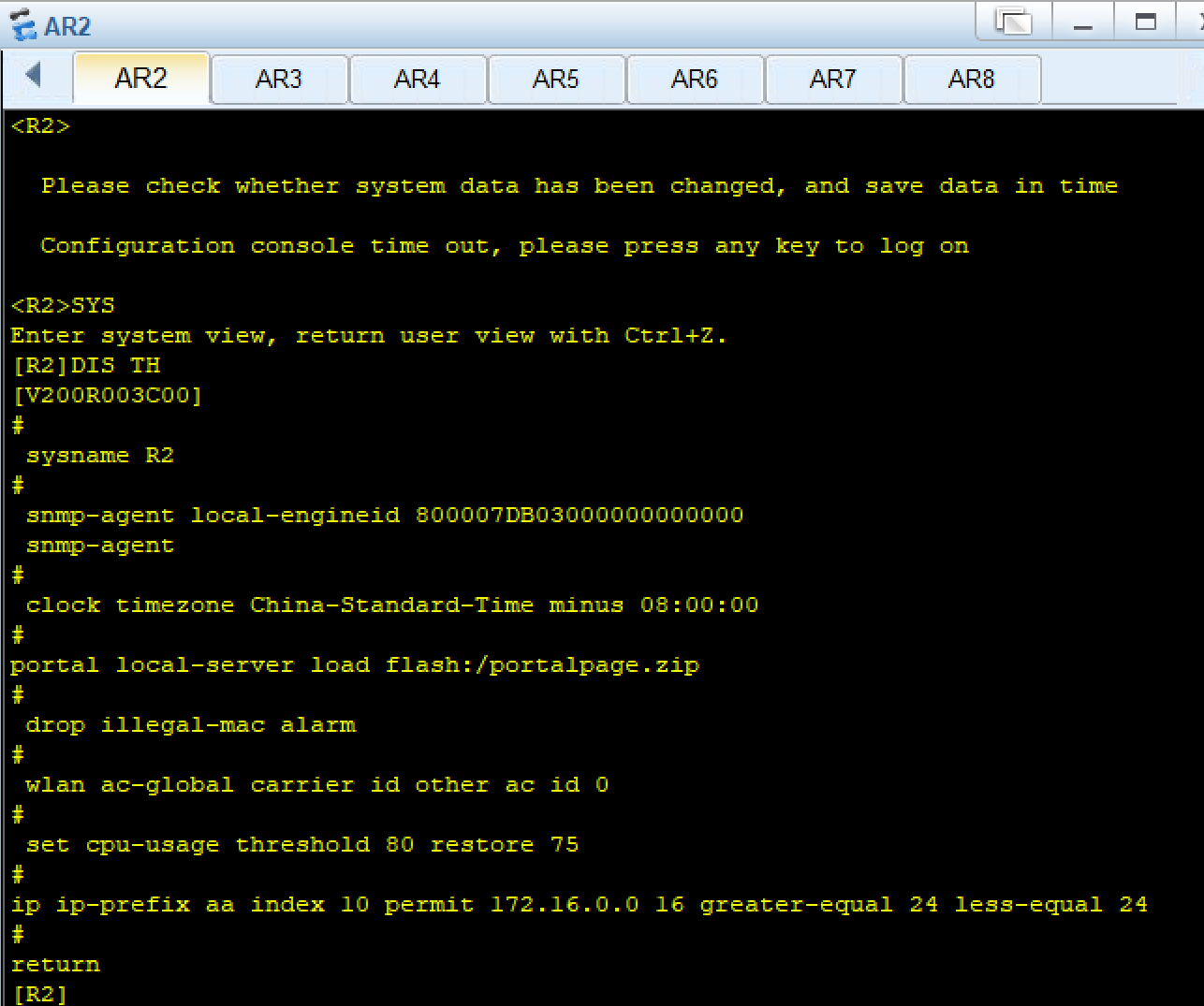

减少路由条目--手工聚合

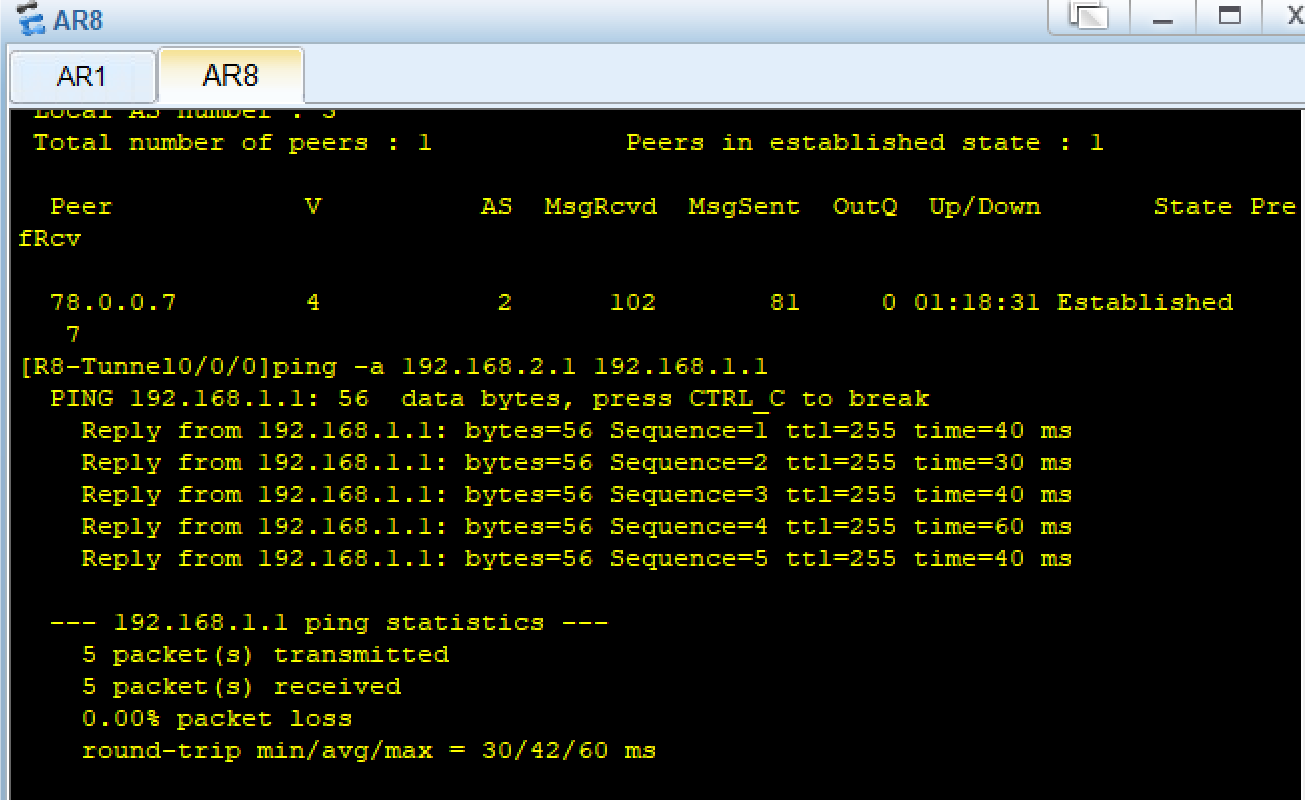

另外两个环回ping--vpn--MGRE 保证接口联通
