前言

【C# 项目实战】​ 拒绝枯燥理论，只讲落地干货！

本专栏收纳我在实际开发中总结的成熟解决方案，涵盖各类业务场景与疑难杂症。文章结构调整为「问题描述 -> 项目展示 -> 解决方案」，让你一眼看懂代码能做什么。所有案例均经过生产环境验证（已规避商业机密），旨在提供高复用性的处理逻辑。代码力求精简高效，专栏持续更新，欢迎关注，一起用C#征服复杂业务！

·提示：本专栏为项目实战篇，未接触项目开发的同学可能理解困难，不推荐阅读。

一、问题描述

MmsNT_Server 是后端，基于 .NET 10 + ABP 10.3，负责接口、登录认证、权限、数据库、业务逻辑。

MmsNT_Client 是主要前端，基于 Vue 3 + Vite + TypeScript + Vben Admin + Ant Design Vue，负责后台管理页面。

二、解决方案

遵循 ABP 分层 DDD：

Domain.Shared 放常量、枚举、本地化、ETO；

Domain 放实体、聚合根、领域服务、仓储接口；

Application.Contracts 放 DTO 和服务接口；

Application 放应用服务实现和映射；

EntityFrameworkCore 放 DbContext、仓储实现、迁移；

HttpApi 只在不用 Auto API 时写 Controller；

DbMigrator 负责迁移和种子数据。

三、软件开发（源码）

3.1 服务端命令行

项目初始化，在Developer PowerShell 中

bash 复制代码
abp install-libs

项目启动项

bash 复制代码
Step.MmsNT.HttpApi.Host

3.2 Step.MmsNT.DbMigrator

重新生成表结构，需要运行一下，生成初始化默认数据，否则无法登陆。

3.3 Step.MmsNT.Domain领域实体

手动，创建数据库表实体

Step.MmsNT.Domain\BasicData

3.4 Step.MmsNT.EntityFrameworkCore轻量级跨平台EF Core框架

E:\MyProject\mms\mms_server\src\Step.MmsNT.EntityFrameworkCore\Migrations\20260605033026_AddTAX_0009.cs

自动生成数据库CRUD命令

bash 复制代码
Add-Migration AddTAX_0009
Update-Database

AddTAX_0009

c# 复制代码
using System;
using Microsoft.EntityFrameworkCore.Migrations;
using Npgsql.EntityFrameworkCore.PostgreSQL.Metadata;

#nullable disable

namespace Step.MmsNT.Migrations
{
    /// <inheritdoc />
    public partial class AddTAX_0009 : Migration
    {
        /// <inheritdoc />
        protected override void Up(MigrationBuilder migrationBuilder)
        {
            migrationBuilder.CreateTable(
                name: "TAX_0009",
                columns: table => new
                {
                    Id = table.Column<int>(type: "integer", nullable: false, comment: "主键")
                        .Annotation("Npgsql:ValueGenerationStrategy", NpgsqlValueGenerationStrategy.IdentityByDefaultColumn),
                    C_IS_USING = table.Column<string>(type: "character varying(32)", maxLength: 32, nullable: false, comment: "有效标识"),
                    C_MACHINE_CD = table.Column<string>(type: "character varying(512)", maxLength: 512, nullable: false, comment: "机台/产线/机台组 码号/身份"),
                    C_MACHINE_NM = table.Column<string>(type: "character varying(512)", maxLength: 512, nullable: false, comment: "机台/产线/机台组 名称"),
                    C_SIM_MACHINE_CD = table.Column<string>(type: "character varying(512)", maxLength: 512, nullable: false, comment: "机台简码"),
                    C_PLAN_NO = table.Column<string>(type: "character varying(512)", maxLength: 512, nullable: false, comment: "作业计划"),
                    C_FATHER_MACHINE_ID = table.Column<string>(type: "character varying(512)", maxLength: 512, nullable: false, comment: "机台父编码"),
                    N_MACHINE_FIRST_FEW = table.Column<long>(type: "bigint", nullable: false, comment: "第几台"),
                    N_LAYER_LEVEL = table.Column<long>(type: "bigint", nullable: false, comment: "层级"),
                    C_PLANT_CD = table.Column<string>(type: "character varying(512)", maxLength: 512, nullable: false, comment: "实体工厂"),
                    C_PROC_CD = table.Column<string>(type: "character varying(512)", maxLength: 512, nullable: false, comment: "工序代码"),
                    C_MACHINE_FORM = table.Column<string>(type: "character varying(512)", maxLength: 512, nullable: false, comment: "机台形态"),
                    N_SEQ_NO = table.Column<long>(type: "bigint", nullable: false, comment: "顺序号"),
                    C_REMARK = table.Column<string>(type: "character varying(512)", maxLength: 512, nullable: true, comment: "备注"),
                    C_PRO_STATE = table.Column<string>(type: "character varying(512)", maxLength: 512, nullable: false, comment: "生产状态"),
                    C_MANU = table.Column<string>(type: "character varying(512)", maxLength: 512, nullable: false, comment: "厂商"),
                    C_MODEL = table.Column<string>(type: "character varying(512)", maxLength: 512, nullable: false, comment: "型号"),
                    C_MACHINE_TYPE = table.Column<string>(type: "character varying(512)", maxLength: 512, nullable: false, comment: "机台类型"),
                    C_WORKSHOP_NO = table.Column<string>(type: "character varying(512)", maxLength: 512, nullable: false, comment: "所属车间编码"),
                    C_WORK_CENTER = table.Column<string>(type: "character varying(512)", maxLength: 512, nullable: false, comment: "生产工作中心编码"),
                    C_MACHINE_PID = table.Column<string>(type: "character varying(512)", maxLength: 512, nullable: false, comment: "机台父主键"),
                    C_AUTHORITY_GROUP_ID = table.Column<string>(type: "character varying(512)", maxLength: 512, nullable: true, comment: "授权用户组ID"),
                    ExtraProperties = table.Column<string>(type: "text", nullable: false, comment: "扩展属性"),
                    ConcurrencyStamp = table.Column<string>(type: "character varying(40)", maxLength: 40, nullable: false, comment: "并发标识"),
                    CreationTime = table.Column<DateTime>(type: "timestamp without time zone", nullable: false, comment: "创建时间"),
                    CreatorId = table.Column<Guid>(type: "uuid", nullable: true, comment: "创建人ID"),
                    LastModificationTime = table.Column<DateTime>(type: "timestamp without time zone", nullable: true, comment: "最后修改时间"),
                    LastModifierId = table.Column<Guid>(type: "uuid", nullable: true, comment: "最后修改人ID"),
                    IsDeleted = table.Column<bool>(type: "boolean", nullable: false, defaultValue: false, comment: "是否删除"),
                    DeleterId = table.Column<Guid>(type: "uuid", nullable: true, comment: "删除人ID"),
                    DeletionTime = table.Column<DateTime>(type: "timestamp without time zone", nullable: true, comment: "删除时间")
                },
                constraints: table =>
                {
                    table.PrimaryKey("PK_TAX_0009", x => x.Id);
                },
                comment: "产线机台主数据");
        }

        /// <inheritdoc />
        protected override void Down(MigrationBuilder migrationBuilder)
        {
            migrationBuilder.DropTable(
                name: "TAX_0009");
        }
    }
}

MmsNTDbContext.cs

如果不添加，TAX_2036AutoMapperProfile 会找不到引用

c# 复制代码
public DbSet<TAX_2036> TAX_2036 { get; set; }

3.5 Step.MmsNT.Application应用服务

E:\MyProject\mms\mms_server\src\Step.MmsNT.Application\TAX_2036Service\TAX_2036Dtos\CreateUpdateTAX_2036Dto.cs

CreateUpdateTAX_2036Dto创建更新（新增修改）DTO

c# 复制代码
using System.ComponentModel.DataAnnotations;

namespace Step.MmsNT.TAX_2036Service;

public class CreateUpdateTAX_2036Dto
{
    [Required]
    [StringLength(512)]
    public string CPlantId { get; set; } = string.Empty;

    [Required]
    [StringLength(512)]
    public string CStoreHouse { get; set; } = string.Empty;

    [Required]
    [StringLength(30)]
    public string CStoLocation { get; set; } = string.Empty;

    [Required]
    [StringLength(30)]
    public string CStoType { get; set; } = string.Empty;

    [StringLength(10)]
    public string? CTlDj { get; set; }

    [StringLength(30)]
    public string? CStoLocationTxt { get; set; }

    [StringLength(100)]
    public string? CRemark { get; set; }

    [Required]
    [StringLength(10)]
    public string CIsUse { get; set; } = "Y";
}

E:\MyProject\mms\mms_server\src\Step.MmsNT.Application\TAX_2036Service\TAX_2036Dtos\GetTAX_2036ListInput.cs

GetTAX_2036ListInput输入（查询）参数DTO

c# 复制代码
using Volo.Abp.Application.Dtos;

namespace Step.MmsNT.TAX_2036Service;

public class GetTAX_2036ListInput : PagedAndSortedResultRequestDto
{
    public string? CPlantId { get; set; }

    public string? CStoreHouse { get; set; }

    public string? CStoLocation { get; set; }

    public string? CStoType { get; set; }

    public string? CStoLocationTxt { get; set; }

    public bool IncludeInvalidData { get; set; }
}

E:\MyProject\mms\mms_server\src\Step.MmsNT.Application\TAX_2036Service\TAX_2036Dtos\ITAX_2036AppService.cs

ITAX_2036AppService服务接口

c# 复制代码
using Volo.Abp.Application.Dtos;
using Volo.Abp.Application.Services;

namespace Step.MmsNT.TAX_2036Service;

public interface ITAX_2036AppService :
    ICrudAppService<
        TAX_2036Dto,
        int,
        GetTAX_2036ListInput,
        CreateUpdateTAX_2036Dto>
{
}

E:\MyProject\mms\mms_server\src\Step.MmsNT.Application\TAX_2036Service\TAX_2036Dtos\TAX_2036Dto.cs

TAX_2036Dto输出（结果）参数DTO

c# 复制代码
using Volo.Abp.Application.Dtos;

namespace Step.MmsNT.TAX_2036Service;

public class TAX_2036Dto : AuditedEntityDto<int>
{
    public string CPlantId { get; set; } = string.Empty;

    public string CStoreHouse { get; set; } = string.Empty;

    public string CStoLocation { get; set; } = string.Empty;

    public string CStoType { get; set; } = string.Empty;

    public string? CTlDj { get; set; }

    public string? CStoLocationTxt { get; set; }

    public string? CRemark { get; set; }

    public string CIsUse { get; set; } = string.Empty;
}

E:\MyProject\mms\mms_server\src\Step.MmsNT.Application\TAX_2036Service\TAX_2036AppService.cs

TAX_2036AppService服务方法实现

c# 复制代码
using Microsoft.AspNetCore.Authorization;
using Step.MmsNT.BasicData;
using Step.MmsNT.Permissions;
using System.Collections.Generic;
using System.Linq;
using System.Linq.Dynamic.Core;
using System.Threading.Tasks;
using Volo.Abp.Application.Dtos;
using Volo.Abp.Application.Services;
using Volo.Abp.Domain.Repositories;

namespace Step.MmsNT.TAX_2036Service;

[Authorize(MmsNTPermissions.Mes.BasicData.TAX_2036.Default)]
public class TAX_2036AppService : MmsNTAppService, ITAX_2036AppService
{
    private readonly IRepository<TAX_2036, int> _repository;

    public TAX_2036AppService(IRepository<TAX_2036, int> repository)
    {
        _repository = repository;
    }

    public async Task<TAX_2036Dto> GetAsync(int id)
    {
        var storageLocation = await _repository.GetAsync(id);
        return ObjectMapper.Map<TAX_2036, TAX_2036Dto>(storageLocation);
    }

    public async Task<PagedResultDto<TAX_2036Dto>> GetListAsync(GetTAX_2036ListInput input)
    {
        var queryable = await _repository.GetQueryableAsync();
        var filteredQuery = queryable
            .WhereIf(!string.IsNullOrWhiteSpace(input.CPlantId), storageLocation => storageLocation.CPlantId.Contains(input.CPlantId!))
            .WhereIf(!string.IsNullOrWhiteSpace(input.CStoreHouse), storageLocation => storageLocation.CStoreHouse.Contains(input.CStoreHouse!))
            .WhereIf(!string.IsNullOrWhiteSpace(input.CStoLocation), storageLocation => storageLocation.CStoLocation.Contains(input.CStoLocation!))
            .WhereIf(!string.IsNullOrWhiteSpace(input.CStoType), storageLocation => storageLocation.CStoType.Contains(input.CStoType!))
            .WhereIf(!string.IsNullOrWhiteSpace(input.CStoLocationTxt), storageLocation => storageLocation.CStoLocationTxt != null && storageLocation.CStoLocationTxt.Contains(input.CStoLocationTxt!));

        if (!input.IncludeInvalidData)
        {
            filteredQuery = filteredQuery.Where(storageLocation => storageLocation.CIsUse == "Y");
        }

        var query = filteredQuery
            .OrderBy(string.IsNullOrWhiteSpace(input.Sorting) ? nameof(TAX_2036.CStoLocation) : input.Sorting)
            .Skip(input.SkipCount)
            .Take(input.MaxResultCount);

        var storageLocations = await AsyncExecuter.ToListAsync(query);
        var totalCount = await AsyncExecuter.CountAsync(filteredQuery);

        return new PagedResultDto<TAX_2036Dto>(
            totalCount,
            ObjectMapper.Map<List<TAX_2036>, List<TAX_2036Dto>>(storageLocations)
        );
    }

    [Authorize(MmsNTPermissions.Mes.BasicData.TAX_2036.Create)]
    public async Task<TAX_2036Dto> CreateAsync(CreateUpdateTAX_2036Dto input)
    {
        var storageLocation = ObjectMapper.Map<CreateUpdateTAX_2036Dto, TAX_2036>(input);
        await _repository.InsertAsync(storageLocation);
        return ObjectMapper.Map<TAX_2036, TAX_2036Dto>(storageLocation);
    }

    [Authorize(MmsNTPermissions.Mes.BasicData.TAX_2036.Edit)]
    public async Task<TAX_2036Dto> UpdateAsync(int id, CreateUpdateTAX_2036Dto input)
    {
        var storageLocation = await _repository.GetAsync(id);
        ObjectMapper.Map(input, storageLocation);
        await _repository.UpdateAsync(storageLocation);
        return ObjectMapper.Map<TAX_2036, TAX_2036Dto>(storageLocation);
    }

    [Authorize(MmsNTPermissions.Mes.BasicData.TAX_2036.Delete)]
    public async Task DeleteAsync(int id)
    {
        await _repository.DeleteAsync(id);
    }
}

TAX_2036AutoMapperProfile.cs

c# 复制代码
using AutoMapper;
using Step.MmsNT.BasicData;

namespace Step.MmsNT.TAX_2036Service;

public class TAX_2036AutoMapperProfile : Profile
{
    public TAX_2036AutoMapperProfile()
    {
        CreateMap<TAX_2036, TAX_2036Dto>();
        CreateMap<CreateUpdateTAX_2036Dto, TAX_2036>();
    }
}

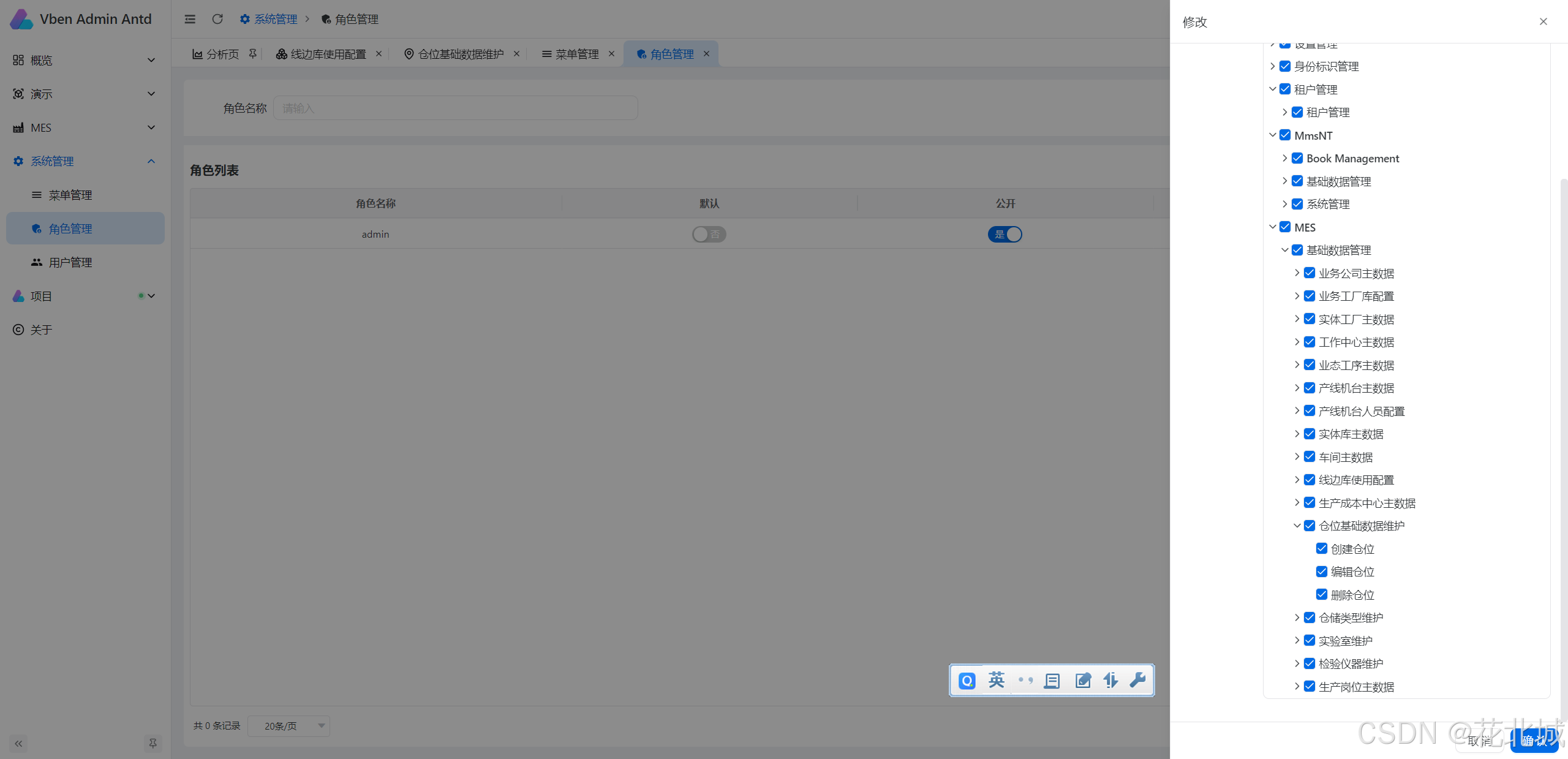

3.6 Step.MmsNT.Application.Contracts按钮权限

E:\MyProject\mms\mms_server\src\Step.MmsNT.Application.Contracts\Permissions\MmsNTPermissionDefinitionProvider.cs

MmsNTPermissionDefinitionProvider.cs

c# 复制代码
        var tax2036 = mesBasicData.AddChild(MmsNTPermissions.Mes.BasicData.TAX_2036.Default, L("Permission:TAX_2036"));
        tax2036.AddChild(MmsNTPermissions.Mes.BasicData.TAX_2036.Create, L("Permission:TAX_2036.Create"));
        tax2036.AddChild(MmsNTPermissions.Mes.BasicData.TAX_2036.Edit, L("Permission:TAX_2036.Edit"));
        tax2036.AddChild(MmsNTPermissions.Mes.BasicData.TAX_2036.Delete, L("Permission:TAX_2036.Delete"));

MmsNTPermissions.cs

c# 复制代码
public static class TAX_2036
{
    public const string Default = ModuleName + ".TAX_2036";
    public const string Create = Default + ".Create";
    public const string Edit = Default + ".Edit";
    public const string Delete = Default + ".Delete";
}

3.7 Step.MmsNT.Domain.Shared国际化多语言

E:\MyProject\mms\mms_server\src\Step.MmsNT.Domain.Shared\Localization\MmsNT\en.json

json 复制代码
"Permission:TAX_2036": "Storage Location Master Data",
"Permission:TAX_2036.Create": "Create Storage Location",
"Permission:TAX_2036.Edit": "Edit Storage Location",
"Permission:TAX_2036.Delete": "Delete Storage Location",

E:\MyProject\mms\mms_server\src\Step.MmsNT.Domain.Shared\Localization\MmsNT\zh-Hans.json

json 复制代码
"Permission:TAX_2036": "仓位基础数据维护",
"Permission:TAX_2036.Create": "创建仓位",
"Permission:TAX_2036.Edit": "编辑仓位",
"Permission:TAX_2036.Delete": "删除仓位",

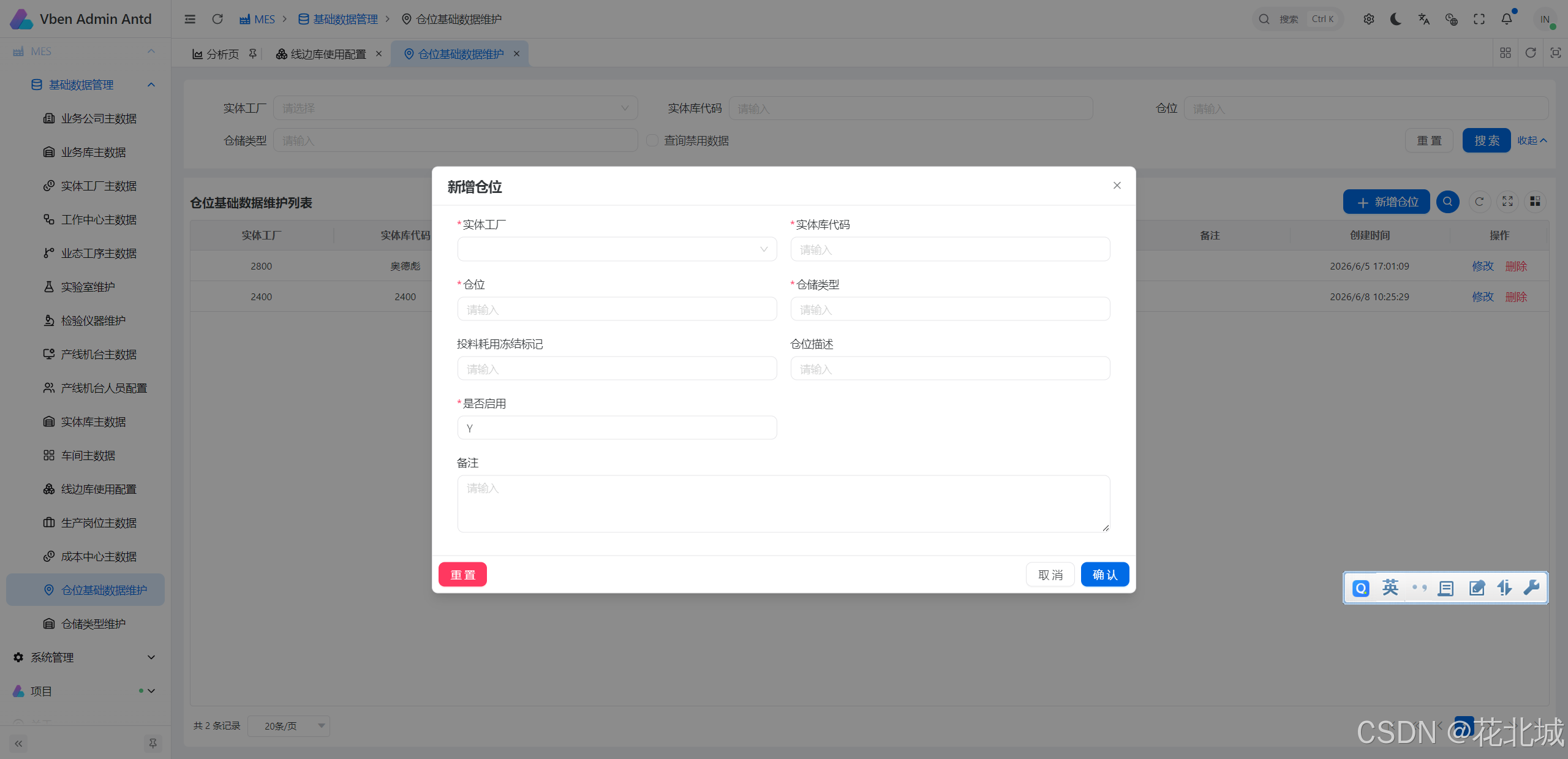

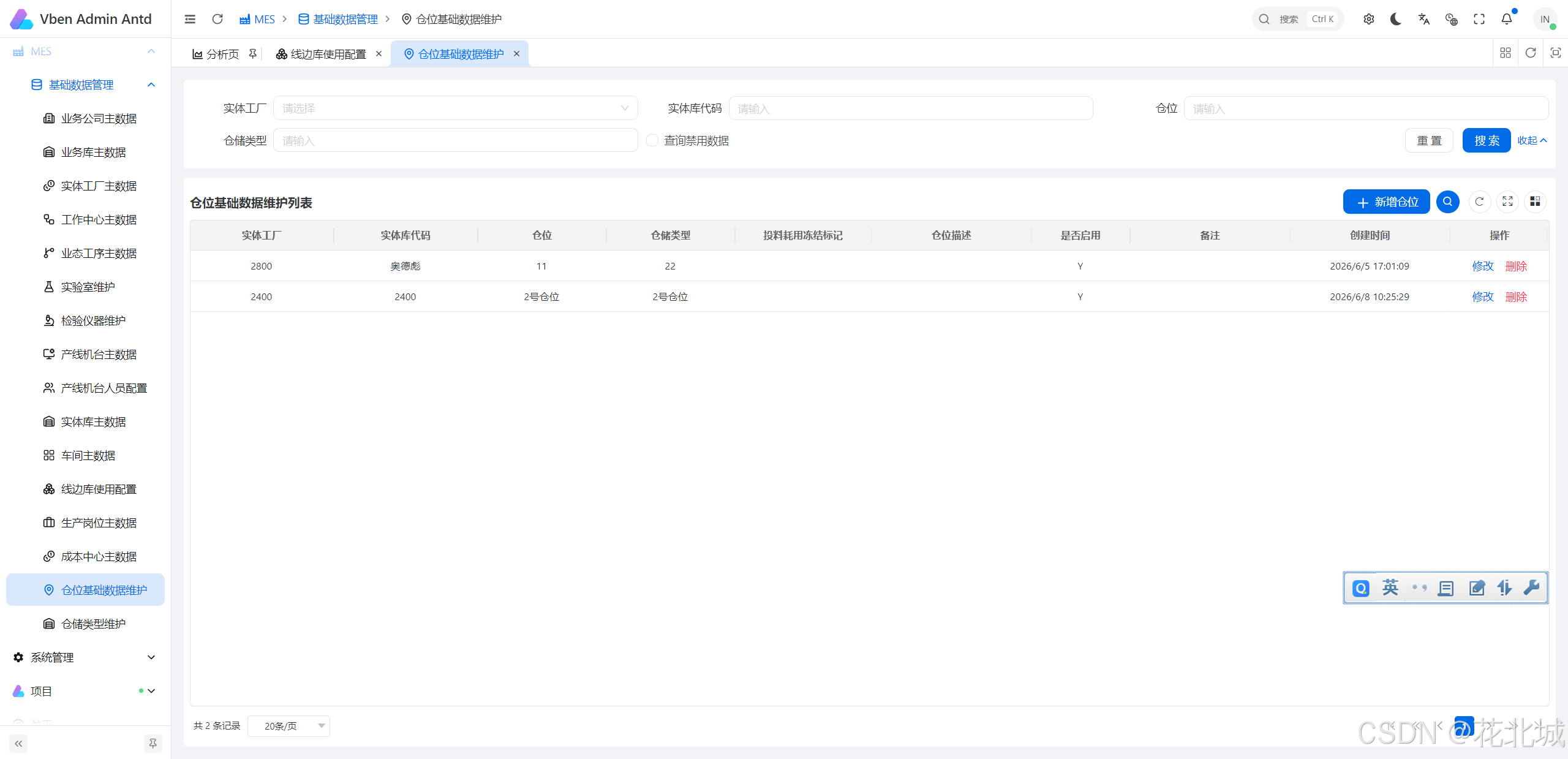

四、项目展示

五、资源链接

相关推荐
电商API_180079052471 小时前
Python 实现闲鱼商品列表批量采集，接口异常重试机制搭建
大数据·开发语言·数据库·爬虫·python
DogDaoDao1 小时前
深入理解 Qt：从原理到实战的全景指南
开发语言·qt·程序员
放下华子我只抽RuiKe51 小时前
FastAPI 全栈后端（四）：认证与授权
开发语言·前端·javascript·python·深度学习·react.js·fastapi
我是唐青枫2 小时前
Java Spring Data JPA 实战指南：Repository 查询、分页与实体映射
java·开发语言
张忠琳2 小时前
【Go 1.26.4】(Part 2) Go 1.26.4 超深度分析 — Runtime GMP 调度器 (proc.go + runtime2.go)
开发语言·golang
阿坤带你走近大数据2 小时前
java中泛型不能用基础数据类型
java·开发语言
weixin_307779132 小时前
从脚本执行到智能体协作：AI辅助测试能力的范式重构
运维·开发语言·人工智能·算法·测试用例
云絮.3 小时前
增删改查操作
java·开发语言
themingyi3 小时前
Abaqus2024安装python包pandas
开发语言·python·pandas
热门推荐
01《置身钉内》原文-可播放阅读02Claude Code、Codex、Cursor三分天下：2026年AI编程Agent生态全景剖析03【AI】2026 年具身智能模型和世界模型总结04AI科技热点日报 | 2026年6月1日05GitHub 镜像站点062026 AI 编程工具终极实战指南：Cursor vs Claude Code vs Copilot，开发者该怎么选？072026年6月AI行业全景：从百模大战到Agent元年，这30天发生了什么？082026 年 AI 编程工具终极横评：Cursor vs Claude Code vs Copilot vs Windsurf09Codex 下载安装指南：Windows 和 macOS 官方版下载10【踩坑记录 | 第一篇】微软商店无法使用时，如何手动安装 OpenAI Codex？附`.msix`文件系统错误解决方法
