ALV通过GOS服务实现上传PDF附件

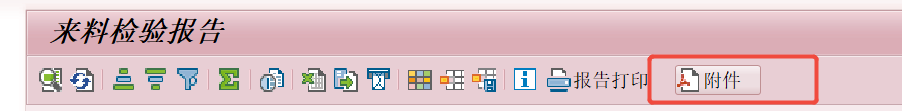

1.GUI状态按钮信息

2.user_command代码

FORM frm_user_command USING r_ucomm LIKE sy-ucomm"屏幕流
                         rs_selfield TYPE slis_selfield.

  CALL FUNCTION 'GET_GLOBALS_FROM_SLVC_FULLSCR'
    IMPORTING
      e_grid = go_grid.

  go_grid->check_changed_data( ).

  CASE r_ucomm.
    WHEN 'ZPDF'.
      PERFORM frm_get_pdflist.
  ENDCASE.

ENDFORM.

FORM frm_get_pdflist .

  DATA: ls_object TYPE sibflporb.

  DATA(lt_sel) = gt_out[].
  DELETE lt_sel WHERE sel = ''.

  READ TABLE gt_out WITH KEY sel  = 'X'.
  IF sy-subrc NE 0.
    MESSAGE e001(00) WITH '请选择数据'.
  ELSEIF lines( lt_sel ) > 1.
    MESSAGE e001(00) WITH '一次只能选择一个检验批'.
  ELSE.

    ls_object-objtype = 'BUS2045'.
    ls_object-instid  = gt_out-prueflos.
    ls_object-catid = 'BO'.

    CALL FUNCTION 'GOS_ATTACHMENT_LIST_POPUP'
      EXPORTING
        is_object = ls_object
        ip_mode   = 'E'.    " Display
  ENDIF.

ENDFORM.

3.ALV代码

 CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY_LVC'
    EXPORTING
      i_callback_program       = sy-repid
      is_layout_lvc            = gw_layout
      it_fieldcat_lvc          = gt_fieldcat
      i_default                = 'X'
      i_save                   = 'A'
      i_callback_user_command  = 'FRM_USER_COMMAND'
      i_callback_pf_status_set = 'SET_PF_STATUS'
    TABLES
      t_outtab                 = gt_out
    EXCEPTIONS
      program_error            = 1
      OTHERS                   = 2.



FORM set_pf_status USING rt_extab TYPE slis_t_extab.


  SET PF-STATUS 'STATUS_001'.


ENDFORM.

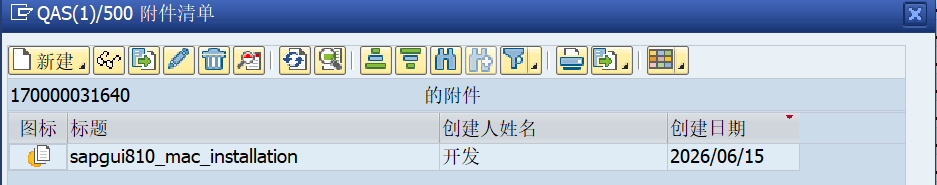

4.效果
