Shader "MyCustom/BlendMode"
{
Properties
{
// A图
_TexTop ("_TexTop", 2D) = "white" {}
// B图
_TexBottom ("_TexBottom", 2D) = "white" {}
}
SubShader
{
CGINCLUDE
// 适配unity Gamma空间 和 linear空间 的宏
#ifdef UNITY_COLORSPACE_GAMMA
#define _ColorLinear2Gamma(c) c
#define _ColorGamma2Linear(c) c
#else
#define _ColorLinear2Gamma(c) pow(c, 0.455)
#define _ColorGamma2Linear(c) pow(c, 2.2)
#endif
// 用于色向转换的公式
const float EPSILON = 1e-10;
float3 _hue2rgb(float hue)
{
// Hue [0..1] to RGB [0..1]
// See http://www.chilliant.com/rgb2hsv.html
float3 rgb = abs(hue * 6. - float3(3, 2, 4)) * float3(1, -1, -1) + float3(-1, 2, 2);
return clamp(rgb, 0., 1.);
}
float3 _rgb2hcv(float3 rgb)
{
// RGB [0..1] to Hue-Chroma-Value [0..1]
// Based on work by Sam Hocevar and Emil Persson
float4 p = (rgb.g < rgb.b) ? float4(rgb.bg, -1., 2. / 3.) : float4(rgb.gb, 0., -1. / 3.);
float4 q = (rgb.r < p.x) ? float4(p.xyw, rgb.r) : float4(rgb.r, p.yzx);
float c = q.x - min(q.w, q.y);
float h = abs((q.w - q.y) / (6. * c + EPSILON) + q.z);
return float3(h, c, q.x);
}
float3 _hsb2rgb(float3 hsl)
{
// Hue-Saturation-Lightness [0..1] to RGB [0..1]
float3 rgb = _hue2rgb(hsl.x);
float c = (1. - abs(2. * hsl.z - 1.)) * hsl.y;
return (rgb - 0.5) * c + hsl.z;
}
float3 _rgb2hsb(float3 rgb)
{
// RGB [0..1] to Hue-Saturation-Lightness [0..1]
float3 hcv = _rgb2hcv(rgb);
float z = hcv.z - hcv.y * 0.5;
float s = hcv.y / (1. - abs(z * 2. - 1.) + EPSILON);
return float3(hcv.x, s, z);
}
// 正常
float3 _normal(float3 srcColor, float3 dstColor)
{
float3 col = srcColor;
return col;
}
// 变暗
float3 _darken(float3 srcColor, float3 dstColor)
{
float3 col = min(srcColor, dstColor);
return col;
}
// 正片叠底
float3 _multiply(float3 srcColor, float3 dstColor)
{
float3 col = srcColor * dstColor;
return col;
}
// 颜色加深
float3 _colorBurn(float3 srcColor, float3 dstColor)
{
float3 col = 1 - (1 - dstColor) / srcColor;
col = saturate(col);
return col;
}
// 线性加深
float3 _linearBurn(float3 srcColor, float3 dstColor)
{
float3 col = srcColor + dstColor - 1;
col = saturate(col);
return col;
}
// 深色
float3 _darkerColor(float3 srcColor, float3 dstColor)
{
// step(a, x): 如果 x < a，返回 0, 如果 x >= a，返回 1
float flag = step(srcColor.r * 0.22 + srcColor.g * 0.707 + srcColor.b * 0.071, dstColor.r * 0.22 + dstColor.g * 0.707 + dstColor.b * 0.071);
float3 col = flag * srcColor + (1 - flag) * dstColor;
return col;
}
// Lighten变亮组
// 变亮
float3 _lighten(float3 srcColor, float3 dstColor)
{
float3 col = max(srcColor, dstColor);
return col;
}
// 滤色, screen是multiply的相反值
float3 _screen(float3 srcColor, float3 dstColor)
{
float3 col = srcColor + dstColor - srcColor * dstColor;
return col;
}
// 颜色减淡, 与_colorBurn的实现相反
float3 _colorDodge(float3 srcColor, float3 dstColor)
{
float3 col = dstColor / (1 - srcColor);
col = saturate(col);
return col;
}
// 线性减淡（添加）
float3 _linearDodgeAdd(float3 srcColor, float3 dstColor)
{
float3 col = srcColor + dstColor;
return col;
}
// 浅色, 灰度计算同"深色"，但是取值交换
float3 _ligherColor(float3 srcColor, float3 dstColor)
{
// step(a, x): 如果 x < a，返回 0, 如果 x >= a，返回 1
float flag = step(srcColor.r * 0.22 + srcColor.g * 0.707 + srcColor.b * 0.071, dstColor.r * 0.22 + dstColor.g * 0.707 + dstColor.b * 0.071);
float3 col = flag * dstColor + (1 - flag) * srcColor;
return col;
}
// 对比融合组
// 叠加
float3 _overlay(float3 srcColor, float3 dstColor)
{
float3 flag = step(0.5, dstColor);
float3 col = flag * (1 - 2 * (1 - srcColor) * (1 - dstColor)) + (1- flag) * (2 * srcColor * dstColor);
return col;
}
// 柔光
float3 _softLight(float3 srcColor, float3 dstColor)
{
float3 flag = step(0.5, srcColor);
float3 col = flag * (1 - (1 - dstColor) * (1 - (srcColor - 0.5))) + (1 - flag) * (dstColor * (srcColor + 0.5));
return col;
}
// 强光
float3 _hardLight(float3 srcColor, float3 dstColor)
{
float3 flag = step(0.5, srcColor);
float3 col = flag * (1 - (1 - dstColor) * (1 - 2 * (srcColor - 0.5))) + (1 - flag) * (dstColor * (2 * srcColor));
return col;
}
// 亮光
float3 _vividLight(float3 srcColor, float3 dstColor)
{
float3 flag = step(0.5, srcColor);
float3 col = flag * (dstColor / (1 - 2 * (srcColor - 0.5))) + (1 - flag) * (dstColor * (2 * srcColor));
return col;
}
// 线性光
float3 _linearLight(float3 srcColor, float3 dstColor)
{
//float3 flag = step(0.5, srcColor);
//float3 col = flag * (dstColor + 2 * srcColor - 1) + (1 - flag) * (dstColor + 2 * srcColor - 1);
float3 col = dstColor + 2 * srcColor - 1;
col = saturate(col);
return col;
}
// 点光
float3 _pinLight(float3 srcColor, float3 dstColor)
{
float3 flag = step(0.5, srcColor);
float3 col = flag * (max(dstColor, 2 * (srcColor - 0.5))) + (1 - flag) * (min(dstColor, 2 * srcColor));
return col;
}
// 实色混合
float3 _hardMix(float3 srcColor, float3 dstColor)
{
float3 flag = step(1 - dstColor, srcColor);
float3 col = flag;
return col;
}
// 差集组
// 差集
float3 _difference(float3 srcColor, float3 dstColor)
{
float3 col = abs(dstColor - srcColor);
return col;
}
// 排除
float3 _exclusion(float3 srcColor, float3 dstColor)
{
float3 col = srcColor + dstColor - 2 * srcColor * dstColor;
return col;
}
// 减去
float3 _subtract(float3 srcColor, float3 dstColor)
{
float3 col = dstColor - srcColor;
col = saturate(col);
return col;
}
// 划分
float3 _divide(float3 srcColor, float3 dstColor)
{
float3 col = dstColor / srcColor;
return col;
}
// 色彩组
// 色相
float3 _hue(float3 srcColor, float3 dstColor)
{
float3 col = _rgb2hsb(dstColor);
col.x = _rgb2hsb(srcColor).x;
col = _hsb2rgb(col);
col = saturate(col);
return col;
}
// 饱和度
float3 _saturate(float3 srcColor, float3 dstColor)
{
float3 col = _rgb2hsb(dstColor);
col.y = _rgb2hsb(srcColor).y;
col = _hsb2rgb(col);
col = saturate(col);
return col;
}
// 饱和度
float3 _luminosity(float3 srcColor, float3 dstColor)
{
float3 col = _rgb2hsb(dstColor);
col.z = _rgb2hsb(srcColor).z;
col = _hsb2rgb(col);
col = saturate(col);
return col;
}
// 颜色
float3 _color(float3 srcColor, float3 dstColor)
{
float3 col = _rgb2hsb(dstColor);
col.xy = _rgb2hsb(srcColor).xy;
col = _hsb2rgb(col);
col = saturate(col);
return col;
}
ENDCG
Pass
{
Tags { "RenderType"="Transparent" "Queue"="Transparent" }
ZWrite Off
Blend SrcAlpha OneMinusSrcAlpha
CGPROGRAM
#pragma vertex vert
#pragma fragment frag
// 引入宏定义
#pragma shader_feature PS_NORMAL PS_DARKEN PS_MULTIPLY PS_COLORBURN PS_LINEARBURN PS_DARKERCOLOR PS_LIGHTEN PS_SCREEN PS_COLORDODGE PS_LINEARDODGEADD PS_LIGHTERCOLOR PS_OVERLAY PS_SOFTLIGHT PS_HARDLIGHT PS_VIVIDLIGHT PS_LINEARLIGHT PS_PINLIGHT PS_HARDMIX PS_DIFFERENCE PS_EXCLUSION PS_SUBTRACT PS_DIVIDE PS_HUE PS_SATURATION PS_COLOR PS_LUMINOSITY
#include "UnityCG.cginc"
struct appdata
{
float4 vertex : POSITION;
float2 uv : TEXCOORD0;
};
struct v2f
{
float2 uv : TEXCOORD0;
float4 vertex : SV_POSITION;
};
sampler2D _TexTop;
sampler2D _TexBottom;
float4 _TexTop_ST;
v2f vert (appdata v)
{
v2f o;
o.vertex = UnityObjectToClipPos(v.vertex);
o.uv = v.uv;
return o;
}
fixed4 frag (v2f i) : SV_Target
{
// 采集图片
float4 topColor = tex2D(_TexTop, i.uv);
float4 bottomColor = tex2D(_TexBottom, i.uv);
// 由于Photoshop采用Gamma空间，转换Linear到Gamma
float3 srcColor = _ColorLinear2Gamma(topColor.rgb);
float3 dstColor = _ColorLinear2Gamma(bottomColor.rgb);
float3 blend = 0;
// 根据模式继续混合
#ifdef PS_NORMAL
blend = _normal(srcColor, dstColor);
#elif PS_DARKEN
blend = _darken(srcColor, dstColor);
#elif PS_MULTIPLY
blend = _multiply(srcColor, dstColor);
#elif PS_COLORBURN
blend = _colorBurn(srcColor, dstColor);
#elif PS_LINEARBURN
blend = _linearBurn(srcColor, dstColor);
#elif PS_DARKERCOLOR
blend = _darkerColor(srcColor, dstColor);
#elif PS_LIGHTEN
blend = _lighten(srcColor, dstColor);
#elif PS_SCREEN
blend = _screen(srcColor, dstColor);
#elif PS_COLORDODGE
blend = _colorDodge(srcColor, dstColor);
#elif PS_LINEARDODGEADD
blend = _linearDodgeAdd(srcColor, dstColor);
#elif PS_LIGHTERCOLOR
blend = _lighterColor(srcColor, dstColor);
#elif PS_OVERLAY
blend = _overlay(srcColor, dstColor);
#elif PS_SOFTLIGHT
blend = _softLight(srcColor, dstColor);
#elif PS_HARDLIGHT
blend = _hardLight(srcColor, dstColor);
#elif PS_VIVIDLIGHT
blend = _vividLight(srcColor, dstColor);
#elif PS_LINEARLIGHT
blend = _linearLight(srcColor, dstColor);
#elif PS_PINLIGHT
blend = _pinLight(srcColor, dstColor);
#elif PS_HARDMIX
blend = _hardMix(srcColor, dstColor);
#elif PS_DIFFERENCE
blend = _difference(srcColor, dstColor);
#elif PS_EXCLUSION
blend = _exclusion(srcColor, dstColor);
#elif PS_SUBTRACT
blend = _subtract(srcColor, dstColor);
#elif PS_DIVIDE
blend = _divide(srcColor, dstColor);
#elif PS_HUE
blend = _hue(srcColor, dstColor);
#elif PS_SATURATION
blend = _saturation(srcColor, dstColor);
#elif PS_COLOR
blend = _color(srcColor, dstColor);
#elif PS_LUMINOSITY
blend = _luminosity(srcColor, dstColor);
#else
blend = 0;
#endif
// 转换回linear空间适配Unity输出
blend = _ColorGamma2Linear(blend);
// Alpha通道混合，交集为1为混合部分
float blendPart = min(topColor.a, bottomColor.a);
// 贴图都带有alpha
float4 finalColor = 1;
// 图片其他部分采用原色
finalColor.rgb = topColor.rgb * (topColor.a - blendPart) + bottomColor.rgb * (bottomColor.a - blendPart) + blend * blendPart;
finalColor.a = max(topColor.a, bottomColor.a);
//// photoshop图片做混合
//finalColor.rgb = blend;
//finalColor.a = 1;
return finalColor;
}
ENDCG
}
}
CustomEditor "GUIExtension.MyCustomBlendModeShaderGUI"
}前言：本节介绍了各种Blending混合方式是如何工作的，并使用它们完成Photoshop中对应的效果
混合模式shader中定义
Blend SrcFactor Dstsactor
最终的颜色=(shader计算的颜色*SrcFactor)+(屏幕已有的颜色*DstFactor)
- One // 1
- Zero // 0
- SrcColor // shader计算后的rgb值
- SrcAlpha // shader计算后alpha值
- DrcColor // 帧缓冲区的源rgb值(屏幕已有颜色)
- DrcAlpha // 帧缓冲区的源alpha值(屏幕已有颜色的alpha值)
- OneMinusSrcColor // 1 - SrcColor
- OneMinusSrcAlpha // 1 - SrcAlpha
- OneMinusDstColor // 1 - DstColor
- OneMinusDstAlpha // 1 - DstAlpha

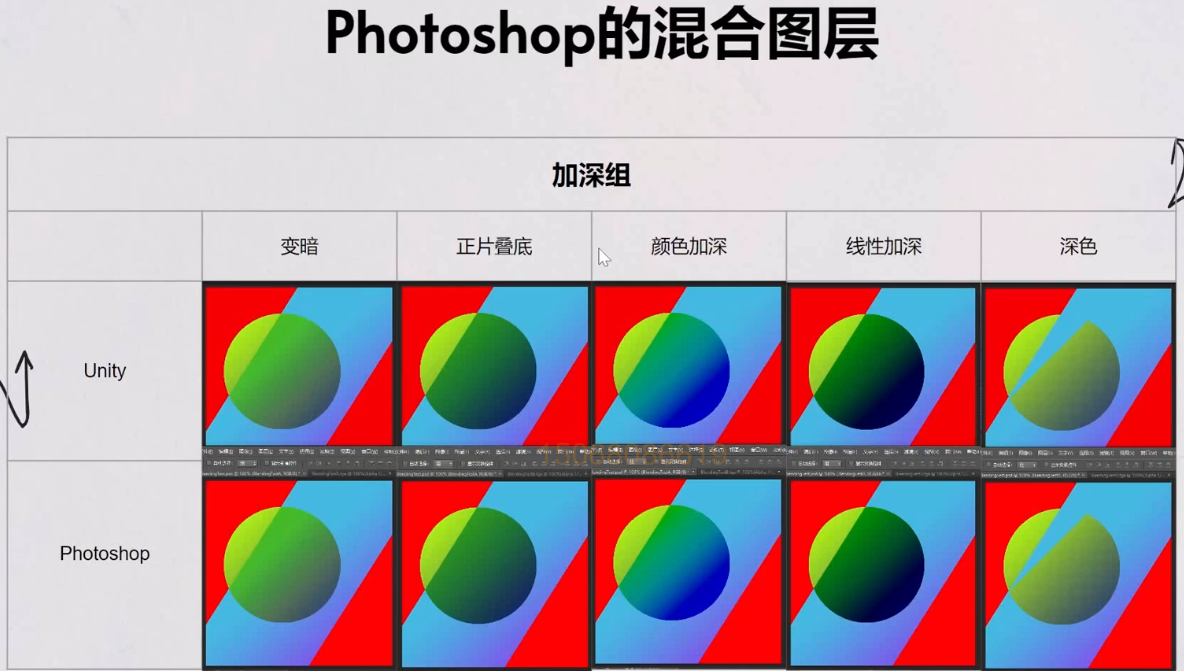

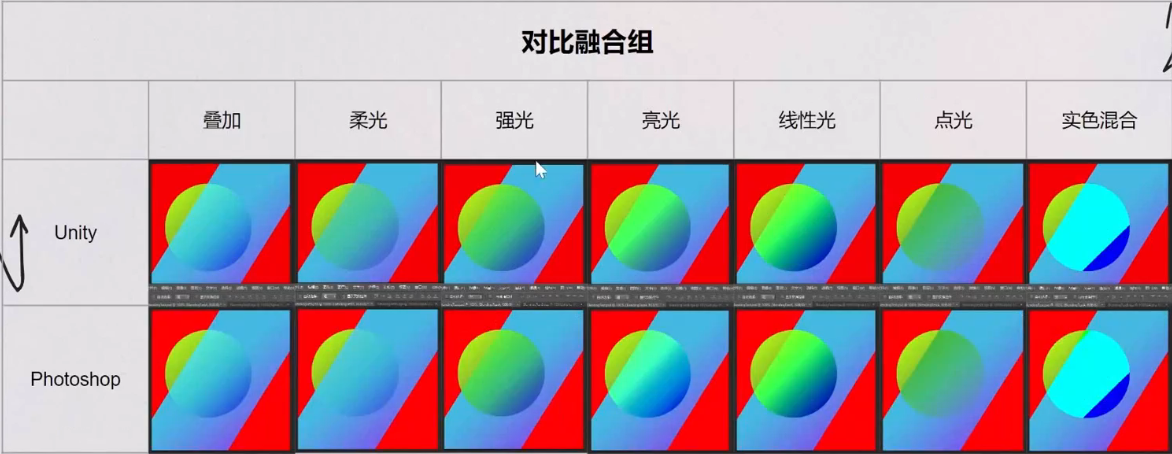

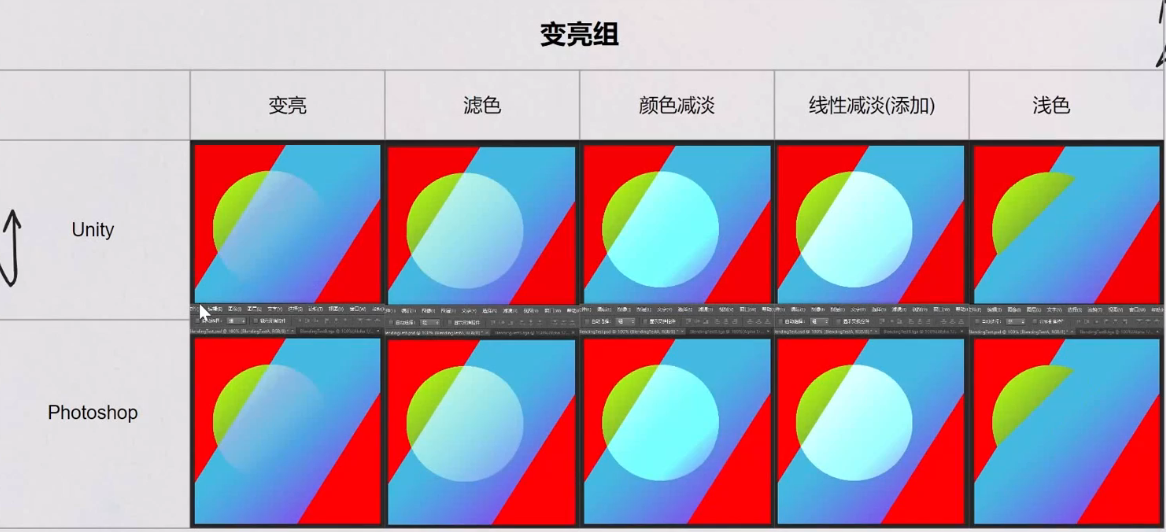

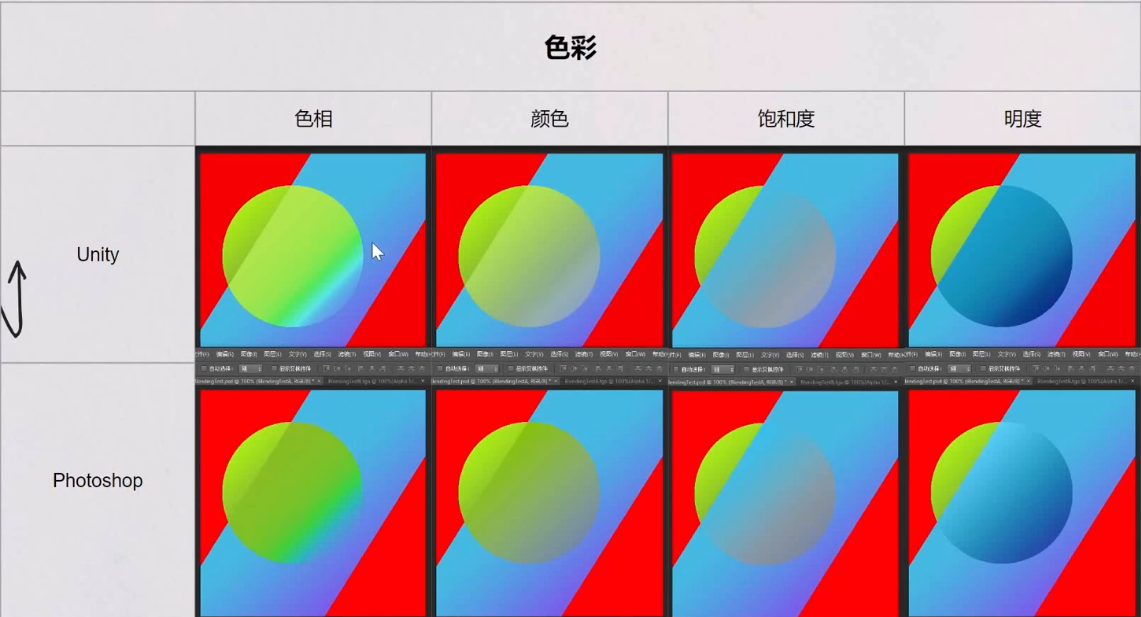

Photoshop效果对比
代码实现
原图片A及Alpha通道：
原图片B及Alpha通道
