一、项目介绍
本项目是一个 轻量级消息队列系统 ，参考 RabbitMQ 的 AMQP 协议设计思想，所有设计围绕消息中转、解耦异步、可靠分发三大底层思想展开。
本报告针对自定义协议消息队列（MQ）项目的单元测试进行全面汇总分析。测试覆盖了数据库持久化、内存数据管理、消息文件存储、客户端通信、消息路由、虚拟主机等核心模块，验证了系统各功能组件的正确性与稳定性。
二、操作环境
|--------|------------------------|
| 项目 | 说明 |
| 测试框架 | JUnit 5 (Jupiter) |
| 项目框架 | Spring Boot |
| 测试模块数量 | 6 个测试类 |
| 开发软件 | IntelliJ IDEA 2025.3.1 |
| 操作系统 | Windows 11 |
三、基于RabbitMQ实现的API核心功能
1、需求分析
（1）生产者（Producer）：往队列放消息
（2）消费者（Consumer）：从队列取消息
（3）中间人（Broker）：整个消息队列的服务器
（4）发布（Publish）：生产者向中间人投递消息的过程
（5）订阅（Subscribe）：消费者从中间人这里取数据注册的过程
（6）消费（Consume）：消费者从这里取走数据的过程
2、（Broker）服务器核心API
创建队列 (queueDeclare)
销毁队列 (queueDelete)
创建交换机 (exchangeDeclare)
销毁交换机 (exchangeDelete)
创建绑定 (queueBind)
解除绑定 (queueUnbind)
发布消息 (basicPublish)
订阅消息 (basicConsume)
确认消息 (basicAck)
3、（Channel）客户端核心API
创建 Connection（TCP连接）
关闭 Connection（断开TCP连接）
创建 Channel
关闭 Channel
创建队列 (queueDeclare)
销毁队列 (queueDelete)
创建交换机 (exchangeDeclare)
销毁交换机 (exchangeDelete)
创建绑定 (queueBind)
解除绑定 (queueUnbind)
发布消息 (basicPublish)
订阅消息 (basicConsume)
确认消息 (basicAck)

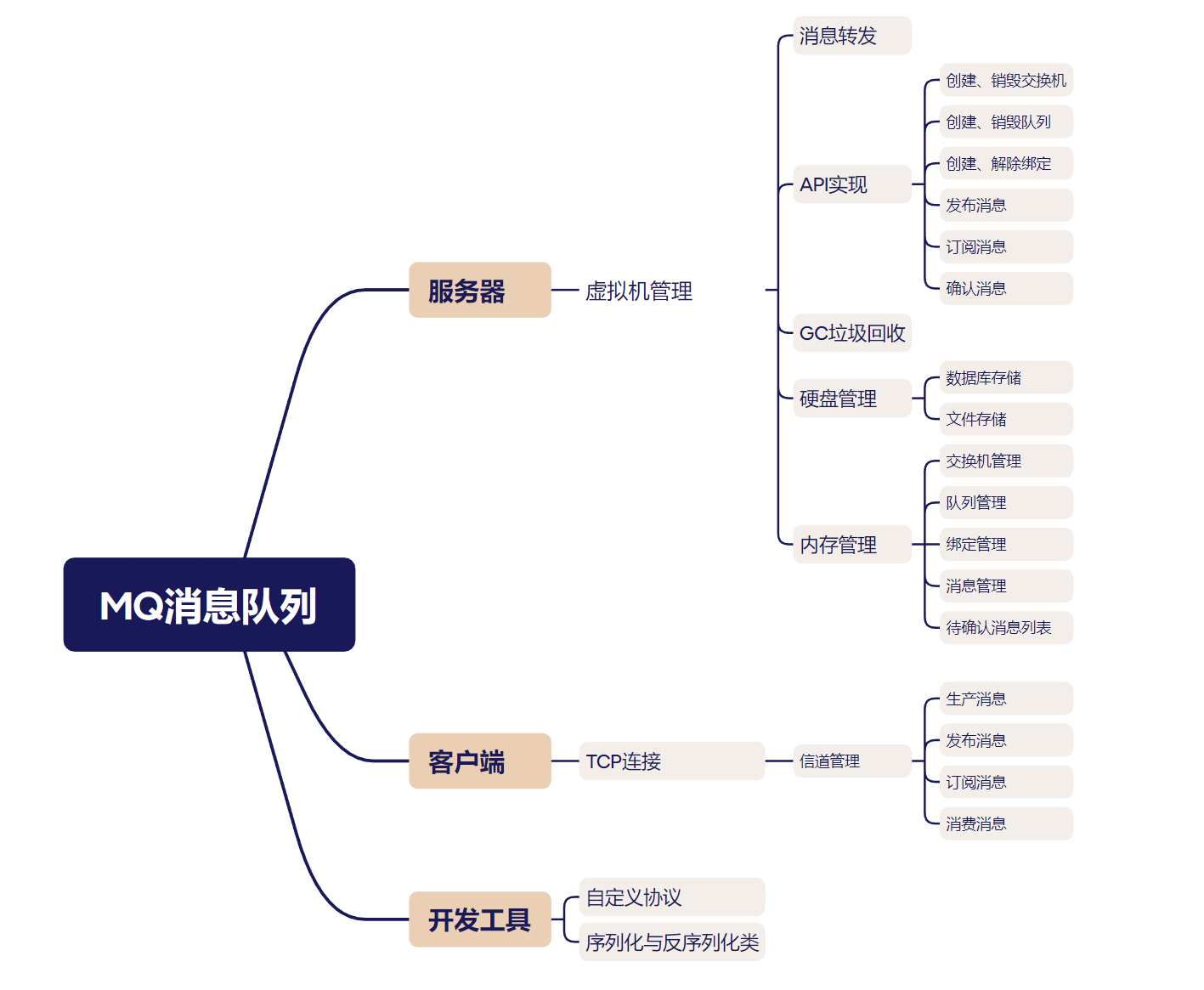

四、基本架构
五、单元测试
1、数据库管理测试：DataBaseManagerTests
| 测试方法 | 测试内容 |
|---|---|
| testInitTable | 验证数据库初始化后存在默认 DIRECT 交换机，队列为空，绑定为空 |
| testInsertExchange | 验证交换机插入功能，校验名称、类型、持久化、自动删除、扩展参数等属性 |
| testDeleteExchange | 验证交换机删除功能，删除后查询数量应减少 |
| testInsertQueue | 验证队列插入功能，校验名称、持久化、排他、自动删除等属性 |
| testDeleteQueue | 验证队列删除功能 |
| testInsertBinding | 验证绑定关系插入功能，校验交换机名、队列名、bindingKey |
| testDeleteBinding | 验证绑定关系删除功能 |
测试代码：
java
package com.mq;
import com.mq.mqserver.datacenter.DataBaseManager;
import com.mq.mqserver.model.Binding;
import com.mq.mqserver.model.Exchange;
import com.mq.mqserver.model.ExchangeType;
import com.mq.mqserver.model.MSGQueue;
import org.junit.jupiter.api.AfterEach;
import org.junit.jupiter.api.Assertions;
import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.test.context.SpringBootTest;
import java.util.List;
//单元测试建库建表操作
@SpringBootTest
public class DataBaseManagerTests {
private DataBaseManager dataBaseManager = new DataBaseManager();
//准备工作(每个用例执行前都要调用这个方法)
@BeforeEach
public void setUp(){
//因为在init中，需要通过后context对象拿到metaMapper实例，所以需要先把context对象搞出来
MqApplication.context = SpringApplication.run(MqApplication.class);
dataBaseManager.init();
}
//收尾工作(每个用例执行后都要调用这个方法)
@AfterEach
public void tearDown(){
//清空数据库操作（meta.db）
//先关闭context对象才能删除数据库,因为context对象持有了MetaMapper的实例，metaMapper又打开了meta.db数据库文件
//如果 meta.db 被别人打开了, 此时的删除文件操作是不会成功的
//另一方面是占用了8080端口需要释放掉
MqApplication.context.close();
dataBaseManager.deleteDB();
}
//检查交换机的数据操作,已经有个初始创建的交换机，所以不需要再次初始化
@Test
public void testInitTable(){
List<Exchange> exchangeList = dataBaseManager.selectAllExchanges();
List<MSGQueue> queueList = dataBaseManager.selectAllQueues();
List<Binding> bindingList = dataBaseManager.selectAllBindings();
//使用断言来检查结果
// assertEquals 判定结果是不是相等.
// 注意这俩参数的顺序. 虽然比较相等, 谁在前谁在后, 无所谓.
// 但是 assertEquals 的形参, 第一个形参叫做 expected (预期的), 第二个形参叫做 actual (实际的)
Assertions.assertEquals(1,exchangeList.size());
Assertions.assertEquals("", exchangeList.get(0).getName());
Assertions.assertEquals(ExchangeType.DIRECT, exchangeList.get(0).getType());
Assertions.assertEquals(0, queueList.size());
Assertions.assertEquals(0, bindingList.size());
}
/*
* 交换机的创建与消除
*
* */
//创建交换机表
private Exchange createTestExchange(String exchangeName){
Exchange exchange = new Exchange();
exchange.setName(exchangeName);
exchange.setType(ExchangeType.FANOUT);
exchange.setAutoDelete(false);
exchange.setDurable(true);
exchange.setArguments("aaa",1);
exchange.setArguments("sss",2);
return exchange;
}
//实现插入交换机
@Test
public void testInsertExchange(){
Exchange exchange = createTestExchange("testExchange");
dataBaseManager.insertExchange(exchange);
//插入完毕查询结果
List<Exchange> list = dataBaseManager.selectAllExchanges();
//因为初始化已经存在了一个默认交换机，在这里我们需要查询插入的是否存在
Assertions.assertEquals(2,list.size());
Exchange newExchange = list.get(1);
Assertions.assertEquals("testExchange",newExchange.getName());
Assertions.assertEquals(ExchangeType.FANOUT,newExchange.getType());
Assertions.assertEquals(false, newExchange.isAutoDelete());
Assertions.assertEquals(true, newExchange.isDurable());
Assertions.assertEquals(1,newExchange.getArguments("aaa"));
Assertions.assertEquals(2,newExchange.getArguments("sss"));
}
@Test
public void testDeleteExchange(){
//先插入创建
Exchange exchange = createTestExchange("testExchange");
dataBaseManager.insertExchange(exchange);
//插入完毕查询结果
List<Exchange> list = dataBaseManager.selectAllExchanges();
Assertions.assertEquals(2,list.size());
Exchange newExchange = list.get(1);
Assertions.assertEquals("testExchange",newExchange.getName());
//实现删除操作
dataBaseManager.deleteExchange("testExchange");
//查看有没有删除
list = dataBaseManager.selectAllExchanges();
Assertions.assertEquals(1,list.size());
Assertions.assertEquals("", list.get(0).getName());
}
/*
* 消息队列的创建与消除
*
* */
private MSGQueue createTestQueue(String queueName) {
MSGQueue queue = new MSGQueue();
queue.setName(queueName);
queue.setDurable(true);
queue.setAutoDelete(false);
queue.setExclusive(false);
queue.setArguments("aaa", 1);
queue.setArguments("bbb", 2);
return queue;
}
@Test
public void testInsertQueue() {
MSGQueue queue = createTestQueue("testQueue");
dataBaseManager.insertQueue(queue);
List<MSGQueue> queueList = dataBaseManager.selectAllQueues();
Assertions.assertEquals(1, queueList.size());
MSGQueue newQueue = queueList.get(0);
Assertions.assertEquals("testQueue", newQueue.getName());
Assertions.assertEquals(true, newQueue.isDurable());
Assertions.assertEquals(false, newQueue.isAutoDelete());
Assertions.assertEquals(false, newQueue.isExclusive());
Assertions.assertEquals(1, newQueue.getArguments("aaa"));
Assertions.assertEquals(2, newQueue.getArguments("bbb"));
}
@Test
public void testDeleteQueue() {
MSGQueue queue = createTestQueue("testQueue");
dataBaseManager.insertQueue(queue);
List<MSGQueue> queueList = dataBaseManager.selectAllQueues();
Assertions.assertEquals(1, queueList.size());
// 进行删除
dataBaseManager.deleteQueue("testQueue");
queueList = dataBaseManager.selectAllQueues();
Assertions.assertEquals(0, queueList.size());
}
/*
* 绑定表的创建与消除
*
* */
private Binding createTestBinding(String exchangeName, String queueName) {
Binding binding = new Binding();
binding.setExchangeName(exchangeName);
binding.setQueueName(queueName);
binding.setBindingKey("testBindingKey");
return binding;
}
@Test
public void testInsertBinding() {
Binding binding = createTestBinding("testExchange", "testQueue");
dataBaseManager.insertBinding(binding);
List<Binding> bindingList = dataBaseManager.selectAllBindings();
Assertions.assertEquals(1, bindingList.size());
Assertions.assertEquals("testExchange", bindingList.get(0).getExchangeName());
Assertions.assertEquals("testQueue", bindingList.get(0).getQueueName());
Assertions.assertEquals("testBindingKey", bindingList.get(0).getBindingKey());
}
@Test
public void testDeleteBinding() {
Binding binding = createTestBinding("testExchange", "testQueue");
dataBaseManager.insertBinding(binding);
List<Binding> bindingList = dataBaseManager.selectAllBindings();
Assertions.assertEquals(1, bindingList.size());
// 删除
Binding toDeleteBinding = createTestBinding("testExchange", "testQueue");
dataBaseManager.deleteBinding(toDeleteBinding);
bindingList = dataBaseManager.selectAllBindings();
Assertions.assertEquals(0, bindingList.size());
}

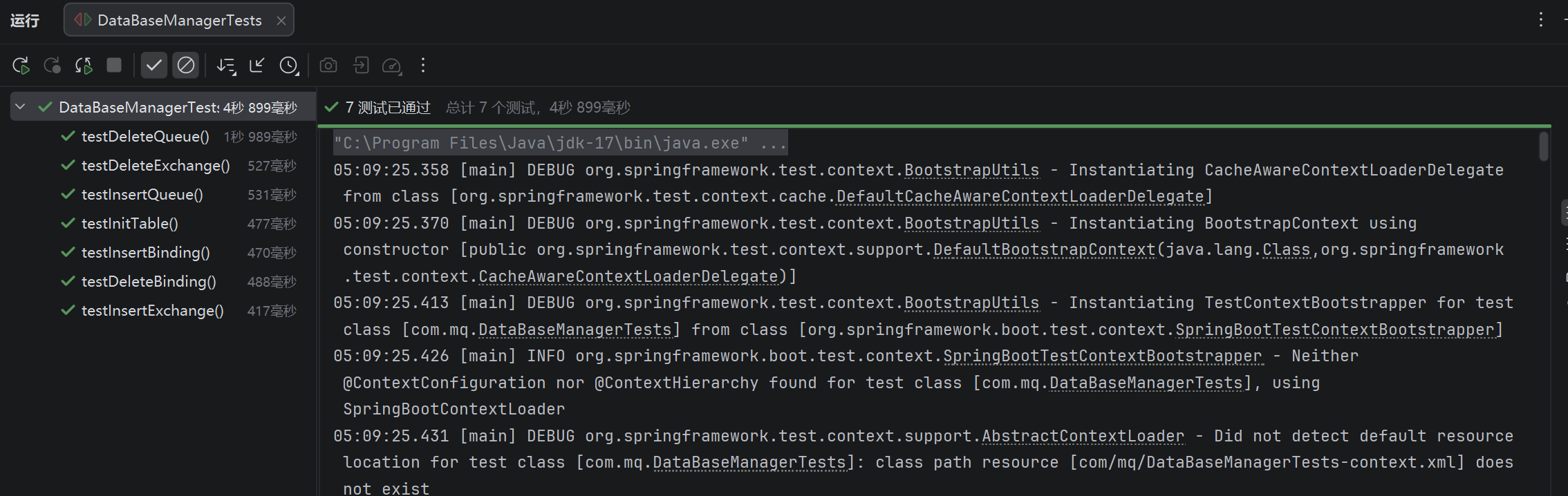

}测试结果：用例全部通过

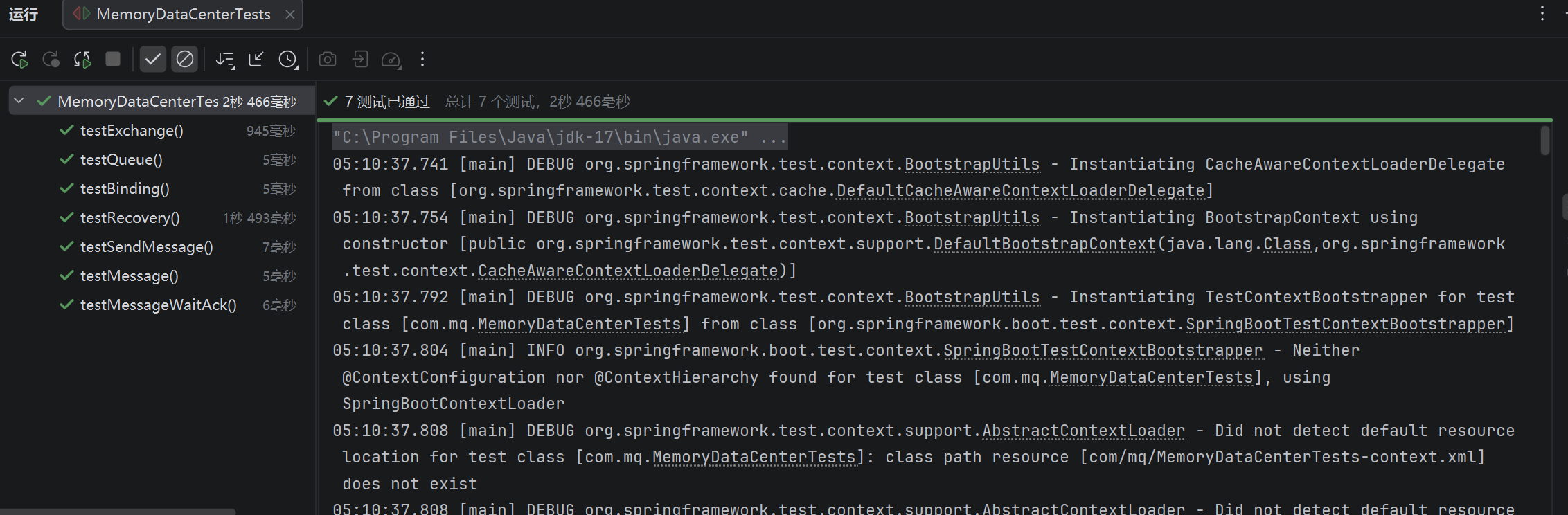

2、内存数据中心测试：MemoryDataCenterTests
| 测试方法 | 测试内容 |
|---|---|
| testExchange | 验证内存中交换机的插入、查询、删除操作 |
| testQueue | 验证内存中队列的插入、查询、删除操作 |
| testBinding | 验证内存中绑定关系的插入、查询、删除及按交换机批量查询 |
| testMessage | 验证消息在内存中的添加与移除 |
| testSendMessage | 验证消息发送到队列及按顺序出队（FIFO），测试 10 条消息的顺序一致性 |
| testMessageWaitAck | 验证待确认消息（WaitAck）的添加、查询与移除，支持消息确认机制 |
| testRecovery | 验证从磁盘数据恢复到内存的完整流程，涵盖交换机、队列、绑定、消息全量恢复 |
测试代码：
java
package com.mq;
import com.mq.common.MqException;
import com.mq.mqserver.datacenter.DiskDataCenter;
import com.mq.mqserver.datacenter.MemoryDataCenter;
import com.mq.mqserver.model.*;
import org.apache.tomcat.util.http.fileupload.FileUtils;
import org.junit.jupiter.api.AfterEach;
import org.junit.jupiter.api.Assertions;
import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.test.context.SpringBootTest;
import java.io.File;
import java.io.IOException;
import java.util.ArrayList;
import java.util.List;
import java.util.concurrent.ConcurrentHashMap;
/**
* Created with IntelliJ IDEA.
* Description:
* User: ASUS
* Date: 2026-07-08
* Time: 02:35
*/
@SpringBootTest
public class MemoryDataCenterTests {
private MemoryDataCenter memoryDataCenter = null;
@BeforeEach
public void setUp() {
memoryDataCenter = new MemoryDataCenter();
}
@AfterEach
public void tearDown() {
memoryDataCenter = null;
}
// 创建一个测试交换机
private Exchange createTestExchange(String exchangeName) {
Exchange exchange = new Exchange();
exchange.setName(exchangeName);
exchange.setType(ExchangeType.DIRECT);
exchange.setAutoDelete(false);
exchange.setDurable(true);
return exchange;
}
// 创建一个测试队列
private MSGQueue createTestQueue(String queueName) {
MSGQueue queue = new MSGQueue();
queue.setName(queueName);
queue.setDurable(true);
queue.setExclusive(false);
queue.setAutoDelete(false);
return queue;
}
// 针对交换机进行测试
@Test
public void testExchange() {
// 1. 先构造一个交换机并插入.
Exchange expectedExchange = createTestExchange("testExchange");
memoryDataCenter.insertExchange(expectedExchange);
// 2. 查询出这个交换机, 比较结果是否一致. 此处直接比较这俩引用指向同一个对象.
Exchange actualExchange = memoryDataCenter.getExchange("testExchange");
Assertions.assertEquals(expectedExchange, actualExchange);
// 3. 删除这个交换机
memoryDataCenter.deleteExchange("testExchange");
// 4. 再查一次, 看是否就查不到了
actualExchange = memoryDataCenter.getExchange("testExchange");
Assertions.assertNull(actualExchange);
}
// 针对队列进行测试
@Test
public void testQueue() {
// 1. 构造一个队列, 并插入
MSGQueue expectedQueue = createTestQueue("testQueue");
memoryDataCenter.insertQueue(expectedQueue);
// 2. 查询这个队列, 并比较
MSGQueue actualQueue = memoryDataCenter.getMSGQueue("testQueue");
Assertions.assertEquals(expectedQueue, actualQueue);
// 3. 删除这个队列
memoryDataCenter.deleteQueue("testQueue");
// 4. 再次查询队列, 看是否能查到
actualQueue = memoryDataCenter.getMSGQueue("testQueue");
Assertions.assertNull(actualQueue);
}
// 针对绑定进行测试
@Test
public void testBinding() throws MqException {
Binding expectedBinding = new Binding();
expectedBinding.setExchangeName("testExchange");
expectedBinding.setQueueName("testQueue");
expectedBinding.setBindingKey("testBindingKey");
memoryDataCenter.insertBinding(expectedBinding);
Binding actualBinding = memoryDataCenter.getBinding("testExchange", "testQueue");
Assertions.assertEquals(expectedBinding, actualBinding);
ConcurrentHashMap<String, Binding> bindingMap = memoryDataCenter.getBindings("testExchange");
Assertions.assertEquals(1, bindingMap.size());
Assertions.assertEquals(expectedBinding, bindingMap.get("testQueue"));
memoryDataCenter.deleteBinding(expectedBinding);
actualBinding = memoryDataCenter.getBinding("testExchange", "testQueue");
Assertions.assertNull(actualBinding);
}
private Message createTestMessage(String content) {
Message message = Message.createMessageWithId("testRoutingKey", null, content.getBytes());
return message;
}
@Test
public void testMessage() {
Message expectedMessage = createTestMessage("testMessage");
memoryDataCenter.addMessage(expectedMessage);
Message actualMessage = memoryDataCenter.getMessage(expectedMessage.getMessageId());
Assertions.assertEquals(expectedMessage, actualMessage);
memoryDataCenter.removeMessage(expectedMessage.getMessageId());
actualMessage = memoryDataCenter.getMessage(expectedMessage.getMessageId());
Assertions.assertNull(actualMessage);
}
@Test
public void testSendMessage() {
// 1. 创建一个队列, 创建 10 条消息, 把这些消息都插入队列中.
MSGQueue queue = createTestQueue("testQueue");
List<Message> expectedMessages = new ArrayList<>();
for (int i = 0; i < 10; i++) {
Message message = createTestMessage("testMessage" + i);
memoryDataCenter.sendMessage(queue, message);
expectedMessages.add(message);
}
// 2. 从队列中取出这些消息.
List<Message> actualMessages = new ArrayList<>();
while (true) {
Message message = memoryDataCenter.pollMessage("testQueue");
if (message == null) {
break;
}
actualMessages.add(message);
}
// 3. 比较取出的消息和之前的消息是否一致.
Assertions.assertEquals(expectedMessages.size(), actualMessages.size());
for (int i = 0; i < expectedMessages.size(); i++) {
Assertions.assertEquals(expectedMessages.get(i), actualMessages.get(i));
}
}
@Test
public void testMessageWaitAck() {
Message expectedMessage = createTestMessage("expectedMessage");
memoryDataCenter.addMessageWaitAck("testQueue", expectedMessage);
Message actualMessage = memoryDataCenter.getMessageWaitAck("testQueue", expectedMessage.getMessageId());
Assertions.assertEquals(expectedMessage, actualMessage);
memoryDataCenter.removeMessageWaitAck("testQueue", expectedMessage.getMessageId());
actualMessage = memoryDataCenter.getMessageWaitAck("testQueue", expectedMessage.getMessageId());
Assertions.assertNull(actualMessage);
}
@Test
public void testRecovery() throws IOException, MqException, ClassNotFoundException {
// 由于后续需要进行数据库操作, 依赖 MyBatis. 就需要先启动 SpringApplication, 这样才能进行后续的数据库操作.
MqApplication.context = SpringApplication.run(MqApplication.class);
// 1. 在硬盘上构造好数据
DiskDataCenter diskDataCenter = new DiskDataCenter();
diskDataCenter.init();
// 构造交换机
Exchange expectedExchange = createTestExchange("testExchange");
diskDataCenter.insertExchange(expectedExchange);
// 构造队列
MSGQueue expectedQueue = createTestQueue("testQueue");
diskDataCenter.insertQueue(expectedQueue);
// 构造绑定
Binding expectedBinding = new Binding();
expectedBinding.setExchangeName("testExchange");
expectedBinding.setQueueName("testQueue");
expectedBinding.setBindingKey("testBindingKey");
diskDataCenter.insertBinding(expectedBinding);
// 构造消息
Message expectedMessage = createTestMessage("testContent");
diskDataCenter.sendMessage(expectedQueue, expectedMessage);
// 2. 执行恢复操作
memoryDataCenter.recovery(diskDataCenter);
// 3. 对比结果
Exchange actualExchange = memoryDataCenter.getExchange("testExchange");
Assertions.assertEquals(expectedExchange.getName(), actualExchange.getName());
Assertions.assertEquals(expectedExchange.getType(), actualExchange.getType());
Assertions.assertEquals(expectedExchange.isDurable(), actualExchange.isDurable());
Assertions.assertEquals(expectedExchange.isAutoDelete(), actualExchange.isAutoDelete());
MSGQueue actualQueue = memoryDataCenter.getMSGQueue("testQueue");
Assertions.assertEquals(expectedQueue.getName(), actualQueue.getName());
Assertions.assertEquals(expectedQueue.isDurable(), actualQueue.isDurable());
Assertions.assertEquals(expectedQueue.isAutoDelete(), actualQueue.isAutoDelete());
Assertions.assertEquals(expectedQueue.isExclusive(), actualQueue.isExclusive());
Binding actualBinding = memoryDataCenter.getBinding("testExchange", "testQueue");
Assertions.assertEquals(expectedBinding.getExchangeName(), actualBinding.getExchangeName());
Assertions.assertEquals(expectedBinding.getQueueName(), actualBinding.getQueueName());
Assertions.assertEquals(expectedBinding.getBindingKey(), actualBinding.getBindingKey());
Message actualMessage = memoryDataCenter.pollMessage("testQueue");
Assertions.assertEquals(expectedMessage.getMessageId(), actualMessage.getMessageId());
Assertions.assertEquals(expectedMessage.getRoutingKey(), actualMessage.getRoutingKey());
Assertions.assertEquals(expectedMessage.getDeliverMode(), actualMessage.getDeliverMode());
Assertions.assertArrayEquals(expectedMessage.getBody(), actualMessage.getBody());
// 4. 清理硬盘的数据, 把整个 data 目录里的内容都删掉(包含了 meta.db 和 队列的目录).
MqApplication.context.close();
File dataDir = new File("./data");
FileUtils.deleteDirectory(dataDir);
}
}测试结果：用例全部通过
3、消息文件管理测试：MessageFileManagerTests
| 测试方法 | 测试内容 |
|---|---|
| testCreateFiles | 验证队列数据文件与统计文件的创建 |
| testReadWriteStat | 验证统计信息（消息总数、有效消息数）的写入与读取，通过反射调用私有方法 |
| testSendMessage | 验证单条消息写入文件，校验消息ID、路由键、投递模式、消息体完整性 |
| testLoadAllMessageFromQueue | 验证批量读取 100 条消息，校验所有消息内容与有效性标记 |
| testDeleteMessage | 验证消息逻辑删除（标记无效），删除后有效消息数量正确 |
| testGC | 验证垃圾回收机制，删除 50% 消息后执行 GC，文件体积应缩小，有效消息保持完整 |
测试代码：
java
package com.mq;
import com.mq.common.MqException;
import com.mq.mqserver.datacenter.MessageFileManager;
import com.mq.mqserver.model.MSGQueue;
import com.mq.mqserver.model.Message;
import org.junit.jupiter.api.AfterEach;
import org.junit.jupiter.api.Assertions;
import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.util.ReflectionTestUtils;
import java.io.File;
import java.io.IOException;
import java.util.LinkedList;
import java.util.List;
@SpringBootTest
public class MessageFileManagerTests {
private MessageFileManager messageFileManager = new MessageFileManager();
//初始化俩个测试队列目录及文件
private static final String queueName1 = "testQueue1";
private static final String queueName2 = "testQueue2";
@BeforeEach
public void setUp() throws IOException{
//先创建两个队列的目录以及数据文件
messageFileManager.createQueueFiles(queueName1);
messageFileManager.createQueueFiles(queueName2);
}
@AfterEach
public void tearDown() throws IOException{
//删除刚刚的队列目录文件
messageFileManager.destroyQueueFiles(queueName1);
messageFileManager.destroyQueueFiles(queueName2);
}
@Test
public void testCreateFiles(){
//验证文件是否存在
File queueDataFile1 = new File("./data/" + queueName1 + "/queue_data.txt");
Assertions.assertEquals(true,queueDataFile1.isFile());
}
//测试写入和读取文件
@Test
public void testReadWriteStat(){
//创建消息总量
MessageFileManager.Stat stat = new MessageFileManager.Stat();
stat.totalCount = 100;
stat.validCount = 50;
// 此处就需要使用反射的方式, 来调用 writeStat 和 readStat
// 此处使用 Spring 帮我们封装好的 反射 的工具类.
//参数1是方法所在的类 参数2是方法名称 参数3,4是方法后面跟的参数
ReflectionTestUtils.invokeMethod(messageFileManager,"writeStat",queueName1,stat);
MessageFileManager.Stat newStat = ReflectionTestUtils.invokeMethod(messageFileManager,"readStat",queueName1);
Assertions.assertEquals(100, newStat.totalCount);
Assertions.assertEquals(50, newStat.validCount);
System.out.println("测试 readStat 和 writeStat 完成!");
}
//创建新队列
private MSGQueue createTestQueue(String queueName){
MSGQueue queue = new MSGQueue();
queue.setName(queueName);
queue.setDurable(true);
queue.setAutoDelete(false);
queue.setExclusive(false);
return queue;
}
//创建新消息
private Message createTestMessage(String content) {
//使用工厂方法构造
Message message = Message.createMessageWithId("testRoutingKey",null,content.getBytes());
return message;
}
//设置信息
@Test
public void testSendMessage() throws IOException, MqException, ClassNotFoundException {
//构造消息，发送消息内容
Message message = createTestMessage("测试消息内容");
//使用已经创建好的目录的相应队列
MSGQueue queue = createTestQueue(queueName1);
messageFileManager.sendMessage(queue,message);
//检测stat 文件
MessageFileManager.Stat stat = ReflectionTestUtils.invokeMethod(messageFileManager,"readStat",queueName1);
Assertions.assertEquals(1, stat.totalCount);
Assertions.assertEquals(1, stat.validCount);
//检查data文件
LinkedList<Message> messages = messageFileManager.loadAllMessageFromQueue(queueName1);
Assertions.assertEquals(1, messages.size());
Message curMessage = messages.get(0);
Assertions.assertEquals(message.getMessageId(), curMessage.getMessageId());
Assertions.assertEquals(message.getRoutingKey(), curMessage.getRoutingKey());
Assertions.assertEquals(message.getDeliverMode(), curMessage.getDeliverMode());
// 比较两个字节数组的内容是否相同, 不能直接使用 assertEquals 了.
Assertions.assertArrayEquals(message.getBody(), curMessage.getBody());
System.out.println("message: "+curMessage);
}
@Test
public void testLoadAllMessageFromQueue() throws IOException, MqException, ClassNotFoundException {
// 往队列中插入 100 条消息, 然后验证看看这 100 条消息从文件中读取之后, 是否和最初是一致的.
MSGQueue queue = createTestQueue(queueName1);
List<Message> expectedMessages = new LinkedList<>();
for (int i = 0; i < 100; i++) {
Message message = createTestMessage("testMessage" + i);
messageFileManager.sendMessage(queue, message);
expectedMessages.add(message);
}
// 读取所有消息
LinkedList<Message> actualMessages = messageFileManager.loadAllMessageFromQueue(queueName1);
Assertions.assertEquals(expectedMessages.size(), actualMessages.size());
for (int i = 0; i < expectedMessages.size(); i++) {
Message expectedMessage = expectedMessages.get(i);
Message actualMessage = actualMessages.get(i);
System.out.println("[" + i + "] actualMessage=" + actualMessage);
Assertions.assertEquals(expectedMessage.getMessageId(), actualMessage.getMessageId());
Assertions.assertEquals(expectedMessage.getRoutingKey(), actualMessage.getRoutingKey());
Assertions.assertEquals(expectedMessage.getDeliverMode(), actualMessage.getDeliverMode());
Assertions.assertArrayEquals(expectedMessage.getBody(), actualMessage.getBody());
Assertions.assertEquals(0x1, actualMessage.getIsValid());
}
}
@Test
public void testDeleteMessage() throws IOException, MqException, ClassNotFoundException {
// 创建队列, 写入 10 个消息. 删除其中的几个消息. 再把所有消息读取出来, 判定是否符合预期.
MSGQueue queue = createTestQueue(queueName1);
List<Message> expectedMessages = new LinkedList<>();
for (int i = 0; i < 10; i++) {
Message message = createTestMessage("testMessage" + i);
messageFileManager.sendMessage(queue, message);
expectedMessages.add(message);
}
// 删除其中的三个消息
messageFileManager.deleteMessage(queue, expectedMessages.get(7));
messageFileManager.deleteMessage(queue, expectedMessages.get(8));
messageFileManager.deleteMessage(queue, expectedMessages.get(9));
// 对比这里的内容是否正确.
LinkedList<Message> actualMessages = messageFileManager.loadAllMessageFromQueue(queueName1);
Assertions.assertEquals(7, actualMessages.size());
for (int i = 0; i < actualMessages.size(); i++) {
Message expectedMessage = expectedMessages.get(i);
Message actualMessage = actualMessages.get(i);
System.out.println("[" + i + "] actualMessage=" + actualMessage);
Assertions.assertEquals(expectedMessage.getMessageId(), actualMessage.getMessageId());
Assertions.assertEquals(expectedMessage.getRoutingKey(), actualMessage.getRoutingKey());
Assertions.assertEquals(expectedMessage.getDeliverMode(), actualMessage.getDeliverMode());
Assertions.assertArrayEquals(expectedMessage.getBody(), actualMessage.getBody());
Assertions.assertEquals(0x1, actualMessage.getIsValid());
}
}
@Test
public void testGC() throws IOException, MqException, ClassNotFoundException {
// 先往队列中写 100 个消息. 获取到文件大小.
// 再把 100 个消息中的一半, 都给删除掉(比如把下标为偶数的消息都删除)
// 再手动调用 gc 方法, 检测得到的新的文件的大小是否比之前缩小了.
MSGQueue queue = createTestQueue(queueName1);
List<Message> expectedMessages = new LinkedList<>();
for (int i = 0; i < 100; i++) {
Message message = createTestMessage("testMessage" + i);
messageFileManager.sendMessage(queue, message);
expectedMessages.add(message);
}
// 获取 gc 前的文件大小
File beforeGCFile = new File("./data/" + queueName1 + "/queue_data.txt");
long beforeGCLength = beforeGCFile.length();
// 删除偶数下标的消息
for (int i = 0; i < 100; i += 2) {
messageFileManager.deleteMessage(queue, expectedMessages.get(i));
}
// 手动调用 gc
messageFileManager.gc(queue);
// 重新读取文件, 验证新的文件的内容是不是和之前的内容匹配
LinkedList<Message> actualMessages = messageFileManager.loadAllMessageFromQueue(queueName1);
Assertions.assertEquals(50, actualMessages.size());
for (int i = 0; i < actualMessages.size(); i++) {
// 把之前消息偶数下标的删了, 剩下的就是奇数下标的元素了.
// actual 中的 0 对应 expected 的 1
// actual 中的 1 对应 expected 的 3
// actual 中的 2 对应 expected 的 5
// actual 中的 i 对应 expected 的 2 * i + 1
Message expectedMessage = expectedMessages.get(2 * i + 1);
Message actualMessage = actualMessages.get(i);
Assertions.assertEquals(expectedMessage.getMessageId(), actualMessage.getMessageId());
Assertions.assertEquals(expectedMessage.getRoutingKey(), actualMessage.getRoutingKey());
Assertions.assertEquals(expectedMessage.getDeliverMode(), actualMessage.getDeliverMode());
Assertions.assertArrayEquals(expectedMessage.getBody(), actualMessage.getBody());
Assertions.assertEquals(0x1, actualMessage.getIsValid());
}
// 获取新的文件的大小
File afterGCFile = new File("./data/" + queueName1 + "/queue_data.txt");
long afterGCLength = afterGCFile.length();
System.out.println("before: " + beforeGCLength);
System.out.println("after: " + afterGCLength);
Assertions.assertTrue(beforeGCLength > afterGCLength);
}

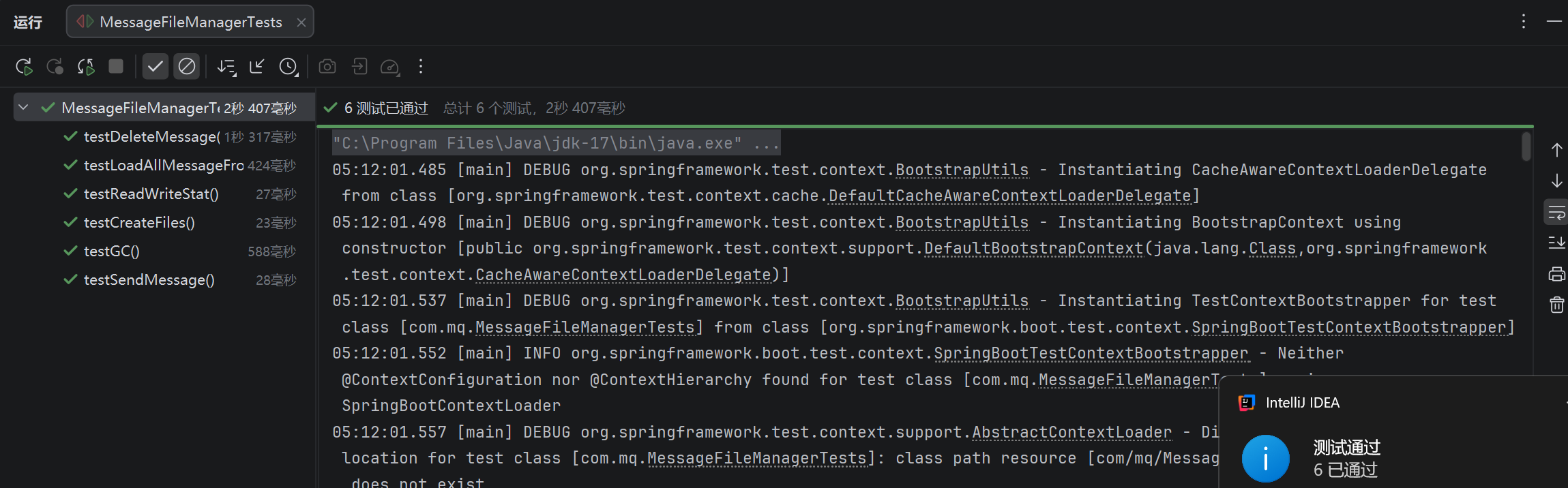

}测试结果：用例全部通过
4、客户端测试（MqClientTests）
| 测试方法 | 测试内容 |
|---|---|
| testConnection | 验证客户端与 Broker 建立连接 |
| testChannel | 验证在连接上创建通信信道（Channel） |
| testExchange | 验证通过客户端声明与删除交换机 |
| testQueue | 验证通过客户端声明与删除队列 |
| testBinding | 验证通过客户端绑定与解绑队列和交换机 |
| testMessage | 验证完整消息生产消费流程：发布消息 → 订阅消费 → 回调校验消息体 |
测试代码：
java
package com.mq;
import com.mq.common.Consumer;
import com.mq.common.MqException;
import com.mq.mqclient.Channel;
import com.mq.mqclient.Connection;
import com.mq.mqclient.ConnectionFactory;
import com.mq.mqserver.mapper.BrokerServer;
import com.mq.mqserver.model.BasicProperties;
import com.mq.mqserver.model.ExchangeType;
import org.apache.tomcat.util.http.fileupload.FileUtils;
import org.junit.jupiter.api.AfterEach;
import org.junit.jupiter.api.Assertions;
import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.test.context.SpringBootTest;
import java.io.File;
import java.io.IOException;
@SpringBootTest
public class MqClientTests {
private BrokerServer brokerServer = null;
private ConnectionFactory factory = null;
private Thread t = null;
@BeforeEach
public void setUp() throws IOException {
// 1. 先启动服务器
MqApplication.context = SpringApplication.run(MqApplication.class);
brokerServer = new BrokerServer(9090);
t = new Thread(() -> {
// 这个 start 方法会进入一个死循环. 使用一个新的线程来运行 start 即可!
try {
brokerServer.start();
} catch (IOException e) {
e.printStackTrace();
}
});
t.start();
// 2. 配置 ConnectionFactory
factory = new ConnectionFactory();
factory.setHost("127.0.0.1");
factory.setPort(9090);
}
@AfterEach
public void tearDown() throws IOException {
// 停止服务器
brokerServer.stop();
// t.join();
MqApplication.context.close();
// 删除必要的文件
File file = new File("./data");
FileUtils.deleteDirectory(file);
factory = null;
}
@Test
public void testConnection() throws IOException {
Connection connection = factory.newConnection();
Assertions.assertNotNull(connection);
}
@Test
public void testChannel() throws IOException {
Connection connection = factory.newConnection();
Assertions.assertNotNull(connection);
Channel channel = connection.createChannel();
Assertions.assertNotNull(channel);
}
@Test
public void testExchange() throws IOException {
Connection connection = factory.newConnection();
Assertions.assertNotNull(connection);
Channel channel = connection.createChannel();
Assertions.assertNotNull(channel);
boolean ok = channel.exchangeDeclare("testExchange", ExchangeType.DIRECT, true, false, null);
Assertions.assertTrue(ok);
ok = channel.exchangeDelete("testExchange");
Assertions.assertTrue(ok);
// 此处稳妥起见, 把改关闭的要进行关闭.
channel.close();
connection.close();
}
@Test
public void testQueue() throws IOException {
Connection connection = factory.newConnection();
Assertions.assertNotNull(connection);
Channel channel = connection.createChannel();
Assertions.assertNotNull(channel);
boolean ok = channel.queueDeclare("testQueue", true, false, false, null);
Assertions.assertTrue(ok);
ok = channel.queueDelete("testQueue");
Assertions.assertTrue(ok);
channel.close();
connection.close();
}
@Test
public void testBinding() throws IOException {
Connection connection = factory.newConnection();
Assertions.assertNotNull(connection);
Channel channel = connection.createChannel();
Assertions.assertNotNull(channel);
boolean ok = channel.exchangeDeclare("testExchange", ExchangeType.DIRECT, true, false, null);
Assertions.assertTrue(ok);
ok = channel.queueDeclare("testQueue", true, false, false, null);
Assertions.assertTrue(ok);
ok = channel.queueBind("testQueue", "testExchange", "testBindingKey");
Assertions.assertTrue(ok);
ok = channel.queueUnbind("testQueue", "testExchange");
Assertions.assertTrue(ok);
channel.close();
connection.close();
}
@Test
public void testMessage() throws IOException, MqException, InterruptedException {
Connection connection = factory.newConnection();
Assertions.assertNotNull(connection);
Channel channel = connection.createChannel();
Assertions.assertNotNull(channel);
boolean ok = channel.exchangeDeclare("testExchange", ExchangeType.DIRECT, true, false, null);
Assertions.assertTrue(ok);
ok = channel.queueDeclare("testQueue", true, false, false, null);
Assertions.assertTrue(ok);
byte[] requestBody = "hello".getBytes();
ok = channel.basicPublish("testExchange", "testQueue", null, requestBody);
Assertions.assertTrue(ok);
ok = channel.basicConsume("testQueue", true, new Consumer() {
@Override
public void handleDelivery(String consumerTag, BasicProperties basicProperties, byte[] body) throws MqException, IOException {
System.out.println("[消费数据] 开始!");
System.out.println("consumerTag=" + consumerTag);
System.out.println("basicProperties=" + basicProperties);
Assertions.assertArrayEquals(requestBody, body);
System.out.println("[消费数据] 结束!");
}
});
Assertions.assertTrue(ok);
Thread.sleep(500);
channel.close();
connection.close();
}

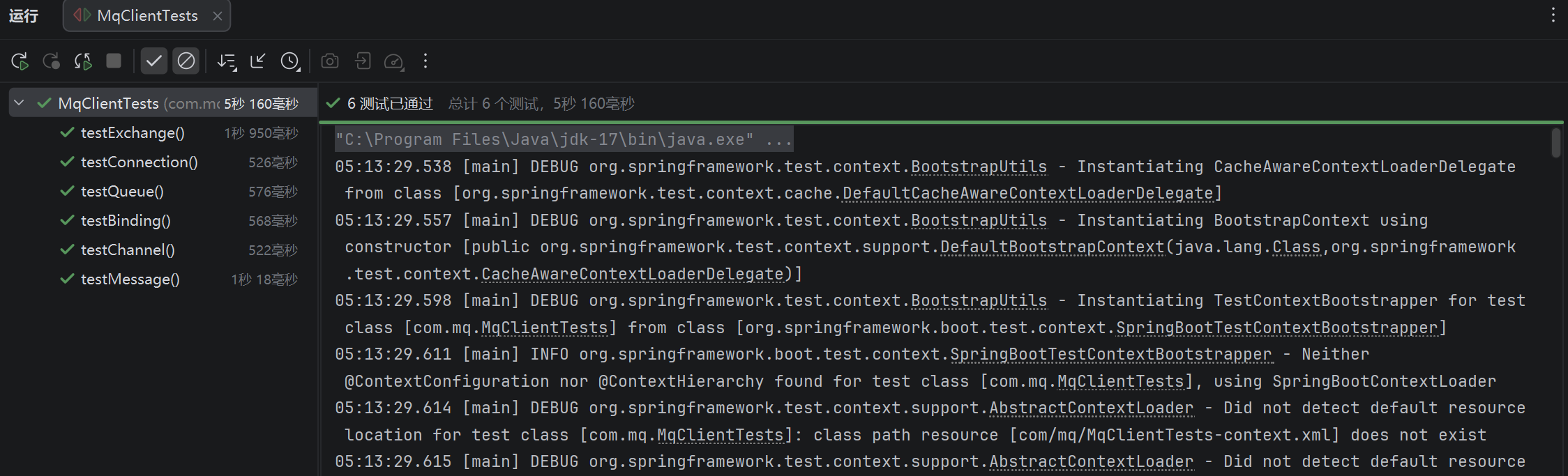

}测试结果：用例全部通过
5、路由测试 （RouterTests）
| Binding Key | Routing Key | 预期结果 |
|---|---|---|
| aaa | aaa | 匹配 |
| aaa.bbb | aaa.bbb | 匹配 |
| aaa.bbb | aaa.bbb.ccc | 不匹配 |
| aaa.bbb | aaa.ccc | 不匹配 |
| aaa.bbb.ccc | aaa.bbb.ccc | 匹配 |
| aaa.* | aaa.bbb | 匹配（单级通配） |
| aaa.*.bbb | aaa.bbb.ccc | 不匹配 |
| *.aaa.bbb | aaa.bbb | 不匹配 |
| # | aaa.bbb.ccc | 匹配（全匹配） |
| aaa.# | aaa.bbb | 匹配（多级通配） |
| aaa.# | aaa.bbb.ccc | 匹配（多级通配） |
| aaa.#.ccc | aaa.ccc | 匹配（零级匹配） |
| aaa.#.ccc | aaa.bbb.ccc | 匹配（一级匹配） |
| aaa.#.ccc | aaa.aaa.bbb.ccc | 匹配（多级匹配） |
| #.ccc | ccc | 匹配（前缀零级） |
| #.ccc | aaa.bbb.ccc | 匹配（前缀多级） |
测试代码：
java
package com.mq;
import com.mq.common.MqException;
import com.mq.mqserver.model.Binding;
import com.mq.mqserver.model.ExchangeType;
import com.mq.mqserver.model.Message;
import com.mq.mqserver.model.Router;
import org.junit.jupiter.api.AfterEach;
import org.junit.jupiter.api.Assertions;
import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;
import org.springframework.boot.test.context.SpringBootTest;
@SpringBootTest
public class RouterTests {
private Router router = new Router();
private Binding binding = null;
private Message message = null;
@BeforeEach
public void setUp() {
binding = new Binding();
message = new Message();
}
@AfterEach
public void tearDown() {
binding = null;
message = null;
}
@Test
public void test1() throws MqException {
binding.setBindingKey("aaa");
message.setRoutingKey("aaa");
Assertions.assertTrue(router.route(ExchangeType.TOPIC, binding, message));
}
@Test
public void test2() throws MqException {
binding.setBindingKey("aaa.bbb");
message.setRoutingKey("aaa.bbb");
Assertions.assertTrue(router.route(ExchangeType.TOPIC, binding, message));
}
@Test
public void test3() throws MqException {
binding.setBindingKey("aaa.bbb");
message.setRoutingKey("aaa.bbb.ccc");
Assertions.assertFalse(router.route(ExchangeType.TOPIC, binding, message));
}
@Test
public void test4() throws MqException {
binding.setBindingKey("aaa.bbb");
message.setRoutingKey("aaa.ccc");
Assertions.assertFalse(router.route(ExchangeType.TOPIC, binding, message));
}
@Test
public void test5() throws MqException {
binding.setBindingKey("aaa.bbb.ccc");
message.setRoutingKey("aaa.bbb.ccc");
Assertions.assertTrue(router.route(ExchangeType.TOPIC, binding, message));
}
@Test
public void test6() throws MqException {
binding.setBindingKey("aaa.*");
message.setRoutingKey("aaa.bbb");
Assertions.assertTrue(router.route(ExchangeType.TOPIC, binding, message));
}
@Test
public void test7() throws MqException {
binding.setBindingKey("aaa.*.bbb");
message.setRoutingKey("aaa.bbb.ccc");
Assertions.assertFalse(router.route(ExchangeType.TOPIC, binding, message));
}
@Test
public void test8() throws MqException {
binding.setBindingKey("*.aaa.bbb");
message.setRoutingKey("aaa.bbb");
Assertions.assertFalse(router.route(ExchangeType.TOPIC, binding, message));
}
@Test
public void test9() throws MqException {
binding.setBindingKey("#");
message.setRoutingKey("aaa.bbb.ccc");
Assertions.assertTrue(router.route(ExchangeType.TOPIC, binding, message));
}
@Test
public void test10() throws MqException {
binding.setBindingKey("aaa.#");
message.setRoutingKey("aaa.bbb");
Assertions.assertTrue(router.route(ExchangeType.TOPIC, binding, message));
}
@Test
public void test11() throws MqException {
binding.setBindingKey("aaa.#");
message.setRoutingKey("aaa.bbb.ccc");
Assertions.assertTrue(router.route(ExchangeType.TOPIC, binding, message));
}
@Test
public void test12() throws MqException {
binding.setBindingKey("aaa.#.ccc");
message.setRoutingKey("aaa.ccc");
Assertions.assertTrue(router.route(ExchangeType.TOPIC, binding, message));
}
@Test
public void test13() throws MqException {
binding.setBindingKey("aaa.#.ccc");
message.setRoutingKey("aaa.bbb.ccc");
Assertions.assertTrue(router.route(ExchangeType.TOPIC, binding, message));
}
@Test
public void test14() throws MqException {
binding.setBindingKey("aaa.#.ccc");
message.setRoutingKey("aaa.aaa.bbb.ccc");
Assertions.assertTrue(router.route(ExchangeType.TOPIC, binding, message));
}
@Test
public void test15() throws MqException {
binding.setBindingKey("#.ccc");
message.setRoutingKey("ccc");
Assertions.assertTrue(router.route(ExchangeType.TOPIC, binding, message));
}
@Test
public void test16() throws MqException {
binding.setBindingKey("#.ccc");
message.setRoutingKey("aaa.bbb.ccc");
Assertions.assertTrue(router.route(ExchangeType.TOPIC, binding, message));
}

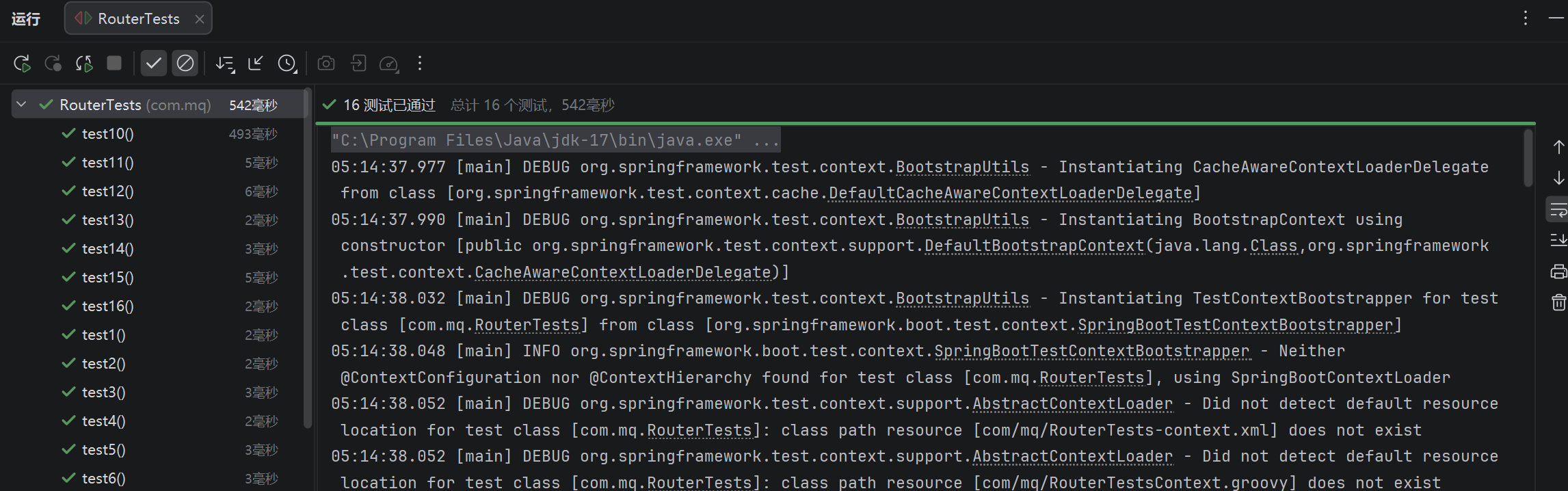

}测试结果：用例全部通过

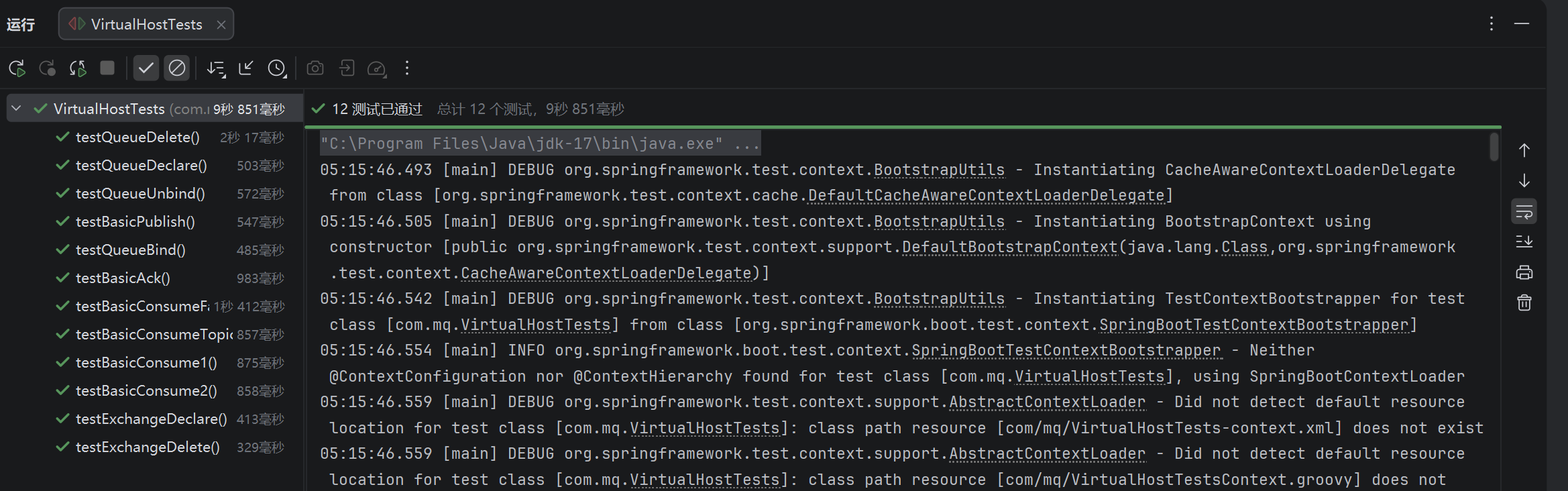

6、虚拟主机测试（VirtualHostTests）
| 测试方法 | 测试内容 |
|---|---|
| testExchangeDeclare | 验证交换机声明 |
| testExchangeDelete | 验证交换机删除 |
| testQueueDeclare | 验证队列声明 |
| testQueueDelete | 验证队列删除 |
| testQueueBind | 验证队列绑定交换机 |
| testQueueUnbind | 验证队列解绑 |
| testBasicPublish | 验证消息发布到交换机 |
| testBasicConsume1 | 验证先订阅后发消息的消费模式（DIRECT 交换机） |
| testBasicConsume2 | 验证先发消息后订阅的消费模式（消息堆积后消费） |
| testBasicConsumeFanout | 验证 FANOUT 交换机广播模式：一条消息分发到两个绑定队列 |
| testBasicConsumeTopic | 验证 TOPIC 交换机路由模式：按 bindingKey 规则匹配投递 |
| testBasicAck | 验证手动消息确认机制（autoAck=false），消费者调用 basicAck 确认 |
测试代码：
java
package com.mq;
import com.mq.common.Consumer;
import com.mq.mqserver.mapper.VirtualHost;
import com.mq.mqserver.model.BasicProperties;
import com.mq.mqserver.model.ExchangeType;
import org.apache.tomcat.util.http.fileupload.FileUtils;
import org.junit.jupiter.api.AfterEach;
import org.junit.jupiter.api.Assertions;
import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.test.context.SpringBootTest;
import java.io.File;
import java.io.IOException;
@SpringBootTest
public class VirtualHostTests {
private VirtualHost virtualHost = null;
@BeforeEach
public void setUp() {
MqApplication.context = SpringApplication.run(MqApplication.class);
virtualHost = new VirtualHost("default");
}
@AfterEach
public void tearDown() throws IOException {
MqApplication.context.close();
virtualHost = null;
// 把硬盘的目录删除掉
File dataDir = new File("./data");
FileUtils.deleteDirectory(dataDir);
}
@Test
public void testExchangeDeclare() {
boolean ok = virtualHost.exchangeDeclare("testExchange", ExchangeType.DIRECT,
true, false, null);
Assertions.assertTrue(ok);
}
@Test
public void testExchangeDelete() {
boolean ok = virtualHost.exchangeDeclare("testExchange", ExchangeType.DIRECT,
true, false, null);
Assertions.assertTrue(ok);
ok = virtualHost.exchangeDelete("testExchange");
Assertions.assertTrue(ok);
}
@Test
public void testQueueDeclare() {
boolean ok = virtualHost.queueDeclare("testQueue", true,
false, false, null);
Assertions.assertTrue(ok);
}
@Test
public void testQueueDelete() {
boolean ok = virtualHost.queueDeclare("testQueue", true,
false, false, null);
Assertions.assertTrue(ok);
ok = virtualHost.queueDelete("testQueue");
Assertions.assertTrue(ok);
}
@Test
public void testQueueBind() {
boolean ok = virtualHost.queueDeclare("testQueue", true,
false, false, null);
Assertions.assertTrue(ok);
ok = virtualHost.exchangeDeclare("testExchange", ExchangeType.DIRECT,
true, false, null);
Assertions.assertTrue(ok);
ok = virtualHost.queueBind("testQueue", "testExchange", "testBindingKey");
Assertions.assertTrue(ok);
}
@Test
public void testQueueUnbind() {
boolean ok = virtualHost.queueDeclare("testQueue", true,
false, false, null);
Assertions.assertTrue(ok);
ok = virtualHost.exchangeDeclare("testExchange", ExchangeType.DIRECT,
true, false, null);
Assertions.assertTrue(ok);
ok = virtualHost.queueBind("testQueue", "testExchange", "testBindingKey");
Assertions.assertTrue(ok);
ok = virtualHost.queueUnbind("testQueue", "testExchange");
Assertions.assertTrue(ok);
}
@Test
public void testBasicPublish() {
boolean ok = virtualHost.queueDeclare("testQueue", true,
false, false, null);
Assertions.assertTrue(ok);
ok = virtualHost.exchangeDeclare("testExchange", ExchangeType.DIRECT,
true, false, null);
Assertions.assertTrue(ok);
ok = virtualHost.basicPublish("testExchange", "testQueue", null,
"hello".getBytes());
Assertions.assertTrue(ok);
}
// 先订阅队列, 后发送消息
@Test
public void testBasicConsume1() throws InterruptedException {
boolean ok = virtualHost.queueDeclare("testQueue", true,
false, false, null);
Assertions.assertTrue(ok);
ok = virtualHost.exchangeDeclare("testExchange", ExchangeType.DIRECT,
true, false, null);
Assertions.assertTrue(ok);
// 先订阅队列
ok = virtualHost.basicConsume("testConsumerTag", "testQueue", true, new Consumer() {
@Override
public void handleDelivery(String consumerTag, BasicProperties basicProperties, byte[] body) {
try {
// 消费者自身设定的回调方法.
System.out.println("messageId=" + basicProperties.getMessageId());
System.out.println("body=" + new String(body, 0, body.length));
Assertions.assertEquals("testQueue", basicProperties.getRoutingKey());
Assertions.assertEquals(1, basicProperties.getDeliverMode());
Assertions.assertArrayEquals("hello".getBytes(), body);
} catch (Error e) {
// 断言如果失败, 抛出的是 Error, 而不是 Exception!
e.printStackTrace();
System.out.println("error");
}
}
});
Assertions.assertTrue(ok);
Thread.sleep(500);
// 再发送消息
ok = virtualHost.basicPublish("testExchange", "testQueue", null,
"hello".getBytes());
Assertions.assertTrue(ok);
}
// 先发送消息, 后订阅队列.
@Test
public void testBasicConsume2() throws InterruptedException {
boolean ok = virtualHost.queueDeclare("testQueue", true,
false, false, null);
Assertions.assertTrue(ok);
ok = virtualHost.exchangeDeclare("testExchange", ExchangeType.DIRECT,
true, false, null);
Assertions.assertTrue(ok);
// 先发送消息
ok = virtualHost.basicPublish("testExchange", "testQueue", null,
"hello".getBytes());
Assertions.assertTrue(ok);
// 再订阅队列
ok = virtualHost.basicConsume("testConsumerTag", "testQueue", true, new Consumer() {
@Override
public void handleDelivery(String consumerTag, BasicProperties basicProperties, byte[] body) {
// 消费者自身设定的回调方法.
System.out.println("messageId=" + basicProperties.getMessageId());
System.out.println("body=" + new String(body, 0, body.length));
Assertions.assertEquals("testQueue", basicProperties.getRoutingKey());
Assertions.assertEquals(1, basicProperties.getDeliverMode());
Assertions.assertArrayEquals("hello".getBytes(), body);
}
});
Assertions.assertTrue(ok);
Thread.sleep(500);
}
@Test
public void testBasicConsumeFanout() throws InterruptedException {
boolean ok = virtualHost.exchangeDeclare("testExchange", ExchangeType.FANOUT, false, false, null);
Assertions.assertTrue(ok);
ok = virtualHost.queueDeclare("testQueue1", false, false, false, null);
Assertions.assertTrue(ok);
ok = virtualHost.queueBind("testQueue1", "testExchange", "");
Assertions.assertTrue(ok);
ok = virtualHost.queueDeclare("testQueue2", false, false, false, null);
Assertions.assertTrue(ok);
ok = virtualHost.queueBind("testQueue2", "testExchange", "");
Assertions.assertTrue(ok);
// 往交换机中发布一个消息
ok = virtualHost.basicPublish("testExchange", "", null, "hello".getBytes());
Assertions.assertTrue(ok);
Thread.sleep(500);
// 两个消费者订阅上述的两个队列.
ok = virtualHost.basicConsume("testConsumer1", "testQueue1", true, new Consumer() {
@Override
public void handleDelivery(String consumerTag, BasicProperties basicProperties, byte[] body) {
System.out.println("consumerTag=" + consumerTag);
System.out.println("messageId=" + basicProperties.getMessageId());
Assertions.assertArrayEquals("hello".getBytes(), body);
}
});
Assertions.assertTrue(ok);
ok = virtualHost.basicConsume("testConsumer2", "testQueue2", true, new Consumer() {
@Override
public void handleDelivery(String consumerTag, BasicProperties basicProperties, byte[] body) {
System.out.println("consumerTag=" + consumerTag);
System.out.println("messageId=" + basicProperties.getMessageId());
Assertions.assertArrayEquals("hello".getBytes(), body);
}
});
Assertions.assertTrue(ok);
Thread.sleep(500);
}
@Test
public void testBasicConsumeTopic() throws InterruptedException {
boolean ok = virtualHost.exchangeDeclare("testExchange", ExchangeType.TOPIC, false, false, null);
Assertions.assertTrue(ok);
ok = virtualHost.queueDeclare("testQueue", false, false, false, null);
Assertions.assertTrue(ok);
ok = virtualHost.queueBind("testQueue", "testExchange", "aaa.*.bbb");
Assertions.assertTrue(ok);
ok = virtualHost.basicPublish("testExchange", "aaa.ccc.bbb", null, "hello".getBytes());
Assertions.assertTrue(ok);
ok = virtualHost.basicConsume("testConsumer", "testQueue", true, new Consumer() {
@Override
public void handleDelivery(String consumerTag, BasicProperties basicProperties, byte[] body) {
System.out.println("consumerTag=" + consumerTag);
System.out.println("messageId=" + basicProperties.getMessageId());
Assertions.assertArrayEquals("hello".getBytes(), body);
}
});
Assertions.assertTrue(ok);
Thread.sleep(500);
}
@Test
public void testBasicAck() throws InterruptedException {
boolean ok = virtualHost.queueDeclare("testQueue", true,
false, false, null);
Assertions.assertTrue(ok);
ok = virtualHost.exchangeDeclare("testExchange", ExchangeType.DIRECT,
true, false, null);
Assertions.assertTrue(ok);
// 先发送消息
ok = virtualHost.basicPublish("testExchange", "testQueue", null,
"hello".getBytes());
Assertions.assertTrue(ok);
// 再订阅队列 [要改的地方, 把 autoAck 改成 false]
ok = virtualHost.basicConsume("testConsumerTag", "testQueue", false, new Consumer() {
@Override
public void handleDelivery(String consumerTag, BasicProperties basicProperties, byte[] body) {
// 消费者自身设定的回调方法.
System.out.println("messageId=" + basicProperties.getMessageId());
System.out.println("body=" + new String(body, 0, body.length));
Assertions.assertEquals("testQueue", basicProperties.getRoutingKey());
Assertions.assertEquals(1, basicProperties.getDeliverMode());
Assertions.assertArrayEquals("hello".getBytes(), body);
// [要改的地方, 新增手动调用 basicAck]
boolean ok = virtualHost.basicAck("testQueue", basicProperties.getMessageId());
Assertions.assertTrue(ok);
}
});
Assertions.assertTrue(ok);
Thread.sleep(500);
}
}测试结果：用例全部通过
