rust开发wasm与浏览器(js)交互

效果

1.流程图

bash 复制代码

HTML按钮
   |
   v
JavaScript
   |
   v
md5_encrypt("hello wasm") || start("hello from javascript")
   |
   v
Rust WASM
   |
   v
md5::compute() || format!("");
   |
   v
返回32位hash

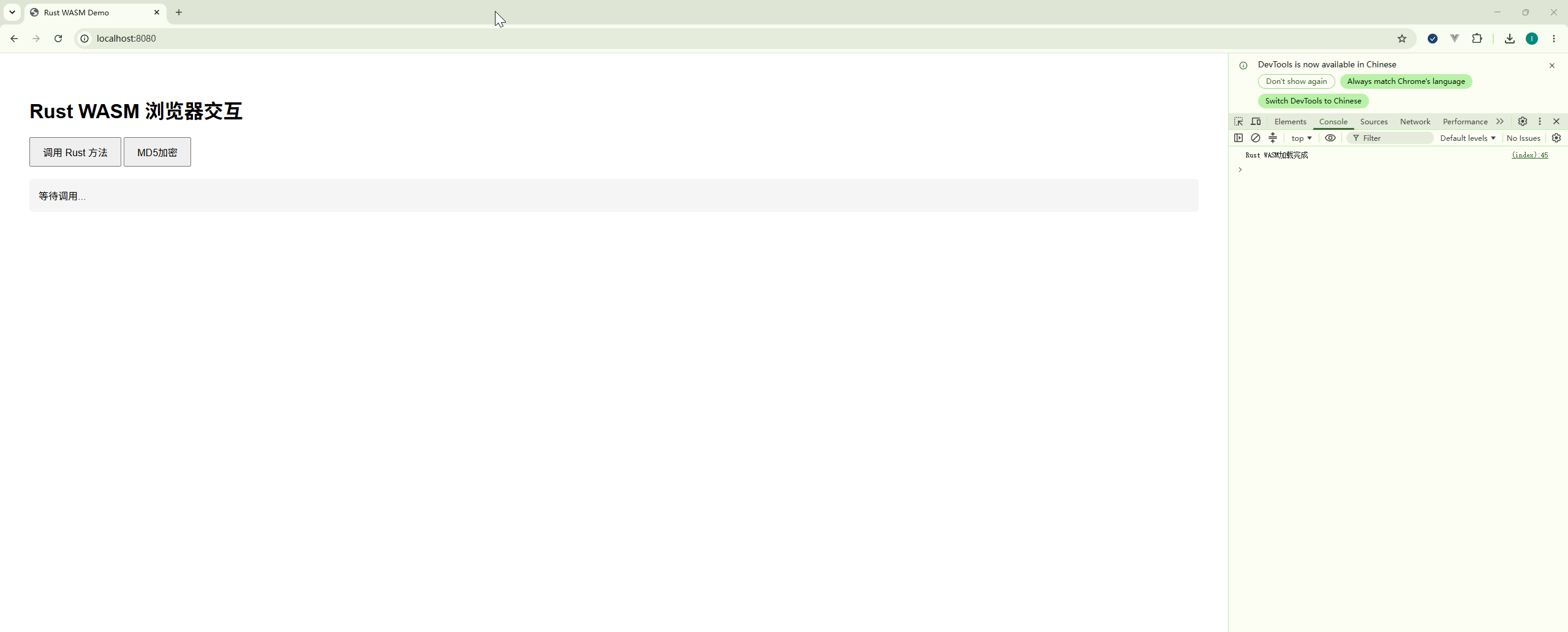

2.效果图

前言

使用rust的lib开发库，给js调用，js是使用了原生简单编写一下交互效果，然后使用了docker（docker-compose）进行运行

开始

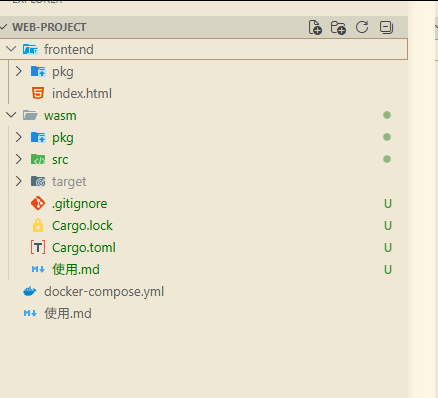

项目架构图

bash 复制代码

web-project
├── docker-compose.yml
├── frontend【原生前端】
├── wasm【rust库】

docker-compose.yml

bash 复制代码

services:

  nginx:

    image: nginx:latest

    container_name: wasm-nginx


    ports:

      - "8080:80"


    volumes:

      - ./frontend:/usr/share/nginx/html:ro


    restart: always

rust 复制代码

docker compose up -d

frontend

项目架构图

html 复制代码

web-project\frontend
├── index.html
└── pkg
   ├── wasm.d.ts
   ├── wasm.js
   ├── wasm_bg.wasm
   └── wasm_bg.wasm.d.ts

pkg是rust打包的目录【由rust生成】

index.html

html 复制代码

<!DOCTYPE html>
<head>
    <meta charset="UTF-8">
    <title>Rust WASM Demo</title>
    <style>
        body {
            font-family: Arial;
            padding: 40px;
        }
        button {
            padding: 10px 20px;
            font-size: 16px;
            cursor: pointer;
        }
        #result {
            margin-top: 20px;
            padding: 15px;
            background: #f5f5f5;
            border-radius: 5px;

        }

    </style>
</head>
<body>
    <div>
        <div>
            <h1>Rust WASM 浏览器交互</h1>
        </div>
        <div>
            <button id="btn">调用 Rust 方法</button>
            <button id="md5Btn">MD5加密</button>
        </div>
        <div id="result">等待调用...</div>
    </div>
</body>

<script type="module">
import init, {start, md5_encrypt} from "./pkg/wasm.js";

let wasmReady = false;
async function initWasm(){
    await init();
    wasmReady = true;
    console.log("Rust WASM加载完成");
}
initWasm();

const btn = document.getElementById("btn");
const result = document.getElementById("result");
const md5Btn = document.getElementById("md5Btn");
btn.onclick = function() {
    if(!wasmReady){
        result.innerHTML = "WASM还未加载";
        return;
    }
    // 调用 Rust 方法
    let rustResult = start("hello from javascript");
    // 显示 Rust 返回结果
    result.innerHTML = rustResult;
};
md5Btn.onclick = function () {
    let rustResult = md5_encrypt("hello wasm");
    console.log("===md5===", rustResult);
    // 显示 Rust 返回结果
    result.innerHTML = rustResult;
};
</script>

wasm

rust 复制代码

rustc --version
cargo --version
rustup --version


需要的依赖

rustup install stable

rustup target add wasm32-unknown-unknown

cargo install wasm-bindgen-cli

创建lib库项目
cargo new wasm --lib

项目架构图

html 复制代码

web-project\wasm
├── Cargo.lock
├── Cargo.toml
├── pkg
|  ├── wasm.d.ts
|  ├── wasm.js
|  ├── wasm_bg.wasm
|  └── wasm_bg.wasm.d.ts
├── src
|  ├── lib.rs
|  └── main.rs

Cargo.toml

rust 复制代码

[package]
name = "wasm"
version = "0.1.0"
edition = "2024"

[lib]
crate-type = ["cdylib",  "rlib"]

[dependencies]
wasm-bindgen = "0.2"
md5 = "0.7"

src/lib.rs

rust 复制代码

use wasm_bindgen::prelude::*;

#[wasm_bindgen]
pub fn start(str_input: String) -> String {
    let result = format!("Rust wasm received: {}", str_input);
    result
}

// MD5加密方法
#[wasm_bindgen]
pub fn md5_encrypt(input: String) -> String {
    let digest = md5::compute(input.as_bytes());
    format!("{:x}",digest)
}

// #[cfg(test)]
// mod tests {
//     use super::*;
//     #[test]
//     fn test_start() {
//         let result = start("hello".to_string());
//         assert_eq!(result,"Rust wasm received: hello");
//     }
// }

src/main.rs

用cargo run 来测试lib库的方法

rust 复制代码

fn main() {
    let str = "hello cargo run";
    let result = wasm::start(str.to_string());
    println!("{}",result);
}

pkg是打包生成的

rust 复制代码

打包成wasm文件
cargo build --target wasm32-unknown-unknown --release
生成到pkg
wasm-bindgen --target web --out-dir pkg target/wasm32-unknown-unknown/release/wasm.wasm

总结

先是rust开发好lib库，然后打包成pkg，在给到前端(javaScript)调用，前端资源使用docker-compose运行
