直流减速电机 + STM32 控制接线方案

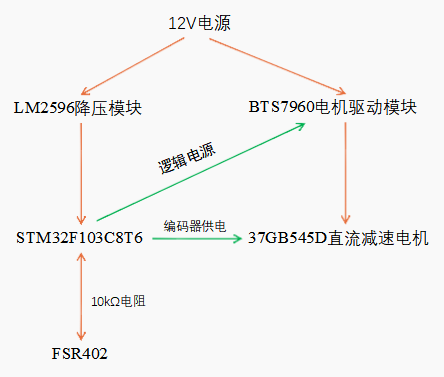

总接线图

1.BTS7960 接电源和电机

BTS7960	连接
B+	12V电源正极
B-	12V电源负极
M+	电机动力线1
M-	电机动力线2

2.BTS7960 接 STM32F103ZET6

BTS7960引脚	STM32引脚	功能
RPWM	PA6 / TIM3_CH1	正转PWM
LPWM	PA7 / TIM3_CH2	反转PWM
R_EN	PB0	右桥使能
L_EN	PB1	左桥使能
VCC	LM2596的5V输出	驱动模块逻辑供电
GND	STM32 GND	信号参考地

3.37GB545D 编码器接 STM32F103ZET6

37GB545D 编码器	STM32F103ZET6	功能说明
编码器 VCC（红）	5V	编码器供电，功耗约 10mA，可直接从 STM32 的 5V 引脚取电
编码器 GND（黑）	GND	与 STM32、BTS7960 驱动板单点共地
编码器 A 相	PA0 / TIM2_CH1	编码器 A 相正交信号输入
编码器 B 相	PA1 / TIM2_CH2	编码器 B 相正交信号输入

4.LM2596 降压模块接线

复制代码

12V电源 + → LM2596 IN+
12V电源 - → LM2596 IN-

LM2596 OUT+ → STM32 5V
LM2596 OUT- → STM32 GND

先不要连接STM32

给LM2596输入端接入12V
用万用表测量OUT+与OUT-
调节电位器
将输出调到约 5.0V
确认稳定后再接STM32

5.FSR402压力传感器接线

复制代码

STM32 3.3V
   │
 FSR402
   │
   ├── PA2 / ADC1_IN2
   │
 10kΩ
   │
STM32 GND

完整代码

复制代码

Z：当前位置设置为张开零点
C：夹持
T：剪切
R：复位张开
S：立即停止

1. 人工将机构完全张开
2. 发送Z，将当前位置设置为零点
3. 发送C，执行夹持
4. 等待状态显示CLAMPED
5. 发送T，继续运动完成剪切
6. 发送R，反转回到张开零点

/* USER CODE BEGIN Includes */

#include <stdbool.h>
#include <stdint.h>
#include <stdlib.h>
#include <stdio.h>
#include <stdarg.h>
#include <string.h>

extern TIM_HandleTypeDef htim2;    // 编码器定时器
extern TIM_HandleTypeDef htim3;    // PWM输出定时器
extern ADC_HandleTypeDef hadc1;    // FSR采样ADC
extern UART_HandleTypeDef huart1;  // 调试串口

/* USER CODE BEGIN PV */

/* =========================================================
 * BTS7960引脚
 * ========================================================= */
#define MOTOR_REN_PORT          GPIOB
#define MOTOR_REN_PIN           GPIO_PIN_0
#define MOTOR_LEN_PORT          GPIOB
#define MOTOR_LEN_PIN           GPIO_PIN_1

/* =========================================================
 * 电机与编码器方向极性
 * 方向反了直接改 ±1，不用改接线
 * ========================================================= */
#define MOTOR_POLARITY          1   // 1=正转夹持，-1=反转夹持
#define ENCODER_POLARITY        1   // 1=夹持计数增加，-1=夹持计数减少

/* =========================================================
 * 位置参数(必须根据实际机械行程逐步标定)
 * ========================================================= */
#define CLAMP_MAX_POSITION      300L    // 最大夹持位置
#define CUT_EXTRA_COUNTS        120L    // 夹持后剪切增量行程
#define SAFETY_MAX_POSITION     600L    // 绝对安全行程上限
#define POSITION_DEAD_ZONE      5L      // 位置误差死区

/* =========================================================
 * 电机PWM参数，范围0～1000
 * ========================================================= */
#define MOTOR_MIN_PWM           100     // 克服静摩擦最低PWM
#define CLAMP_MAX_PWM           280     // 夹持阶段最大PWM
#define CUT_MAX_PWM             380     // 剪切阶段最大PWM
#define RESET_MAX_PWM           300     // 复位阶段最大PWM
#define CUT_HOLD_PWM            0       // 剪切到位保持PWM，调试建议先设0
#define KP_NUM                  2       // 比例控制系数 P = 误差*KP_NUM/KP_DEN
#define KP_DEN                  1

/* =========================================================
 * 时间保护参数
 * ========================================================= */
#define CLAMP_TIMEOUT_MS        4000UL
#define CUT_TIMEOUT_MS          3000UL
#define RESET_TIMEOUT_MS        5000UL
#define CUT_HOLD_TIME_MS        200UL

/* =========================================================
 * FSR402压力传感器参数
 * ========================================================= */
#define FSR_CALIBRATION_SAMPLES 100U    // 空载校准采样次数
#define FSR_TRIGGER_OFFSET      300U    // 触发偏移量（ADC值）
#define FSR_CONFIRM_TIMES       5U      // 连续触发确认次数

/* =========================================================
 * 状态机
 * ========================================================= */
typedef enum
{
    STATE_STOPPED = 0,
    STATE_IDLE,
    STATE_CLAMPING,
    STATE_CLAMPED,
    STATE_CUTTING,
    STATE_CUT_HOLD,
    STATE_CUT_DONE,
    STATE_RESETTING,
    STATE_ERROR
} GripperState;

static GripperState gripperState = STATE_STOPPED;

/* =========================================================
 * 编码器变量
 * ========================================================= */
static uint16_t encoderLastCounter = 0;
static int32_t encoderPosition = 0;
static int32_t actualClampPosition = 0; // 实际夹持位置
static int32_t currentCutTarget = 0;// 当前剪切目标位置

/* =========================================================
 * FSR变量
 * ========================================================= */
static uint16_t fsrBaseValue = 0;
static uint16_t fsrFilteredValue = 0;
static uint8_t fsrConfirmCounter = 0;

/* =========================================================
 * 状态和时间变量
 * ========================================================= */
static uint32_t stateStartTime = 0;
static uint32_t lastFSRTime = 0;
static uint32_t lastPrintTime = 0;
static bool zeroValid = false;

/* =========================================================
 * 串口变量
 * ========================================================= */
static uint8_t uartRxByte = 0;
static volatile uint8_t receivedCommand = 0;
static volatile bool commandReady = false;

/* USER CODE BEGIN 0 */

/* =========================================================
 * 串口打印
 * ========================================================= */
static void UART_Printf(const char *format, ...)
{
    char buffer[180];

    va_list args;
    va_start(args, format);
    vsnprintf(buffer, sizeof(buffer), format, args);
    va_end(args);

    HAL_UART_Transmit(&huart1,
                      (uint8_t *)buffer,
                      strlen(buffer),
                      100);
}

/* =========================================================
 * BTS7960使能控制
 * ========================================================= */
static void Motor_Enable(bool enable)
{
    GPIO_PinState pinState;

    pinState = enable ? GPIO_PIN_SET : GPIO_PIN_RESET;

    HAL_GPIO_WritePin(MOTOR_REN_PORT,
                      MOTOR_REN_PIN,
                      pinState);

    HAL_GPIO_WritePin(MOTOR_LEN_PORT,
                      MOTOR_LEN_PIN,
                      pinState);
}

/* =========================================================
 * BTS7960 PWM控制
 *
 * logicalPWM：正数：夹持/剪切方向;负数：张开/复位方向;0：停止
 * 范围：-1000～1000
 * ========================================================= */
static void Motor_SetPWM(int16_t logicalPWM)
{
    int32_t physicalPWM;
    uint32_t period;
    uint32_t compareValue;

    if (logicalPWM > 1000)
    {
        logicalPWM = 1000;
    }
    else if (logicalPWM < -1000)
    {
        logicalPWM = -1000;
    }

    physicalPWM =
        (int32_t)logicalPWM * MOTOR_POLARITY;

    period = __HAL_TIM_GET_AUTORELOAD(&htim3);

    if (physicalPWM > 0)
    {
        compareValue =
            ((uint32_t)physicalPWM * period) / 1000U;

        /* RPWM输出，电机向夹持方向运动 */
        __HAL_TIM_SET_COMPARE(&htim3,
                              TIM_CHANNEL_1,
                              compareValue);

        __HAL_TIM_SET_COMPARE(&htim3,
                              TIM_CHANNEL_2,
                              0);
    }
    else if (physicalPWM < 0)
    {
        compareValue =
            ((uint32_t)(-physicalPWM) * period) / 1000U;

        /* LPWM输出，电机向张开方向运动 */
        __HAL_TIM_SET_COMPARE(&htim3,
                              TIM_CHANNEL_1,
                              0);

        __HAL_TIM_SET_COMPARE(&htim3,
                              TIM_CHANNEL_2,
                              compareValue);
    }
    else
    {
        __HAL_TIM_SET_COMPARE(&htim3,
                              TIM_CHANNEL_1,
                              0);

        __HAL_TIM_SET_COMPARE(&htim3,
                              TIM_CHANNEL_2,
                              0);
    }
}

static void Motor_Stop(void)
{
    Motor_SetPWM(0);
}

/* =========================================================
 * 编码器位置更新
 *
 * TIM2为16位循环计数器。
 * int16_t差值可以处理65535到0之间的正常回绕。
 * ========================================================= */

static void Encoder_Update(void)
{
    uint16_t currentCounter;
    int16_t counterDifference;

    currentCounter =
        (uint16_t)__HAL_TIM_GET_COUNTER(&htim2);

    counterDifference =
        (int16_t)(currentCounter - encoderLastCounter);

    encoderLastCounter = currentCounter;

    encoderPosition +=
        (int32_t)counterDifference * ENCODER_POLARITY;
}

static int32_t Encoder_GetPosition(void)
{
    return encoderPosition;
}

static void Encoder_SetZero(void)
{
    Motor_Stop();

    __HAL_TIM_SET_COUNTER(&htim2, 0);

    encoderLastCounter = 0;
    encoderPosition = 0;
}

/* =========================================================
 * ADC读取FSR402
 * ========================================================= */

static uint16_t FSR_ReadRaw(void)
{
    uint16_t adcValue = 0;

    HAL_ADC_Start(&hadc1);

    if (HAL_ADC_PollForConversion(&hadc1, 10) == HAL_OK)
    {
        adcValue =
            (uint16_t)HAL_ADC_GetValue(&hadc1);
    }

    HAL_ADC_Stop(&hadc1);

    return adcValue;
}

/* 上电空载校准 */

static void FSR_Calibrate(void)
{
    uint32_t sum = 0;

    UART_Printf("\r\nFSR开始空载校准，请勿按压传感器。\r\n");

    for (uint16_t i = 0;
         i < FSR_CALIBRATION_SAMPLES;
         i++)
    {
        sum += FSR_ReadRaw();
        HAL_Delay(10);
    }

    fsrBaseValue =
        (uint16_t)(sum / FSR_CALIBRATION_SAMPLES);

    fsrFilteredValue = fsrBaseValue;

    UART_Printf("FSR空载值：%u\r\n", fsrBaseValue);

    UART_Printf("FSR触发值：%u\r\n",
                (unsigned int)(fsrBaseValue +
                               FSR_TRIGGER_OFFSET));
}

/* FSR低通滤波 */

static void FSR_Update(void)
{
    uint16_t rawValue;

    rawValue = FSR_ReadRaw();

    /*
     * 一阶低通滤波：
     * 新值 = 7/8旧值 + 1/8当前值
     */
    fsrFilteredValue =
        (uint16_t)(((uint32_t)fsrFilteredValue * 7U +
                    rawValue) / 8U);
}

/* 连续多次达到阈值才确认夹持 */

static bool FSR_TriggerConfirmed(void)
{
    uint32_t triggerThreshold;

    triggerThreshold =
        (uint32_t)fsrBaseValue +
        FSR_TRIGGER_OFFSET;

    if (fsrFilteredValue >= triggerThreshold)
    {
        if (fsrConfirmCounter < FSR_CONFIRM_TIMES)
        {
            fsrConfirmCounter++;
        }
    }
    else
    {
        fsrConfirmCounter = 0;
    }

    if (fsrConfirmCounter >= FSR_CONFIRM_TIMES)
    {
        fsrConfirmCounter = 0;
        return true;
    }

    return false;
}

/* =========================================================
 * 位置比例控制
 *
 * 返回true：达到目标位置
 * 返回false：仍在运行
 * ========================================================= */

static bool Position_MoveTo(int32_t targetPosition,
                            int16_t maximumPWM)
{
    int32_t currentPosition;
    int32_t positionError;
    int32_t absoluteError;
    int32_t pwmOutput;

    currentPosition = Encoder_GetPosition();
    positionError = targetPosition - currentPosition;

    absoluteError =
        positionError >= 0 ?
        positionError :
        -positionError;

    if (absoluteError <= POSITION_DEAD_ZONE)
    {
        Motor_Stop();
        return true;
    }

    pwmOutput =
        positionError * KP_NUM / KP_DEN;

    if (pwmOutput > maximumPWM)
    {
        pwmOutput = maximumPWM;
    }
    else if (pwmOutput < -maximumPWM)
    {
        pwmOutput = -maximumPWM;
    }

    /*
     * 误差较小时，比例输出可能无法克服齿轮箱摩擦，
     * 因此增加最低有效PWM。
     */
    if (pwmOutput > 0 &&
        pwmOutput < MOTOR_MIN_PWM)
    {
        pwmOutput = MOTOR_MIN_PWM;
    }
    else if (pwmOutput < 0 &&
             pwmOutput > -MOTOR_MIN_PWM)
    {
        pwmOutput = -MOTOR_MIN_PWM;
    }

    Motor_SetPWM((int16_t)pwmOutput);

    return false;
}

/* =========================================================
 * 状态切换
 * ========================================================= */

static void Enter_State(GripperState newState)
{
    gripperState = newState;
    stateStartTime = HAL_GetTick();
    fsrConfirmCounter = 0;
}

static void Enter_Error(const char *message)
{
    Motor_Stop();
    Motor_Enable(false);

    gripperState = STATE_ERROR;

    UART_Printf("\r\n故障：%s\r\n", message);
    UART_Printf("请检查机构，再发送R或Z命令。\r\n");
}

static const char *Get_StateName(GripperState state)
{
    switch (state)
    {
        case STATE_STOPPED:
            return "STOPPED";

        case STATE_IDLE:
            return "IDLE";

        case STATE_CLAMPING:
            return "CLAMPING";

        case STATE_CLAMPED:
            return "CLAMPED";

        case STATE_CUTTING:
            return "CUTTING";

        case STATE_CUT_HOLD:
            return "CUT_HOLD";

        case STATE_CUT_DONE:
            return "CUT_DONE";

        case STATE_RESETTING:
            return "RESETTING";

        case STATE_ERROR:
            return "ERROR";

        default:
            return "UNKNOWN";
    }
}

/* =========================================================
 * 串口命令处理
 * ========================================================= */

static void Handle_Command(uint8_t command)
{
    /* 小写字母自动转换为大写 */
    if (command >= 'a' && command <= 'z')
    {
        command =
            (uint8_t)(command - 'a' + 'A');
    }

    switch (command)
    {
        /* ---------------------------------------------
         * Z：人工张开后，将当前位置设置为零点
         * --------------------------------------------- */
        case 'Z':

            Motor_Stop();
            Motor_Enable(true);

            Encoder_SetZero();

            zeroValid = true;

            Enter_State(STATE_IDLE);

            UART_Printf("\r\n当前位置已设置为张开零点。\r\n");
            break;

        /* ---------------------------------------------
         * C：夹持
         * --------------------------------------------- */
        case 'C':

            if (!zeroValid)
            {
                UART_Printf("\r\n请先人工完全张开机构，再发送Z。\r\n");
                break;
            }

            if (gripperState != STATE_IDLE)
            {
                UART_Printf("\r\n当前状态不允许执行夹持。\r\n");
                break;
            }

            Motor_Enable(true);
            Enter_State(STATE_CLAMPING);

            UART_Printf("\r\n开始夹持。\r\n");
            break;

        /* ---------------------------------------------
         * T：剪切
         * --------------------------------------------- */
        case 'T':

            if (gripperState != STATE_CLAMPED)
            {
                UART_Printf("\r\n必须先完成夹持才能剪切。\r\n");
                break;
            }

            currentCutTarget =
                actualClampPosition +
                CUT_EXTRA_COUNTS;

            if (currentCutTarget >
                    SAFETY_MAX_POSITION ||
                currentCutTarget < 0)
            {
                Enter_Error("剪切目标超出安全行程");
                break;
            }

            Motor_Enable(true);
            Enter_State(STATE_CUTTING);

            UART_Printf("\r\n开始剪切，目标位置=%ld\r\n",
                        (long)currentCutTarget);
            break;

        /* ---------------------------------------------
         * R：复位张开
         * --------------------------------------------- */
        case 'R':

            if (!zeroValid)
            {
                UART_Printf("\r\n零点无效，请人工张开并发送Z。\r\n");
                break;
            }

            Motor_Stop();
            Motor_Enable(true);

            Enter_State(STATE_RESETTING);

            UART_Printf("\r\n开始复位张开。\r\n");
            break;

        /* ---------------------------------------------
         * S：停止
         * --------------------------------------------- */
        case 'S':

            Motor_Stop();
            Motor_Enable(false);

            Enter_State(STATE_STOPPED);

            UART_Printf("\r\n电机已停止，BTS7960已关闭。\r\n");
            break;

        default:
            break;
    }
}

/* =========================================================
 * 夹持剪切状态机
 * ========================================================= */

static void Gripper_Task(void)
{
    uint32_t now;

    now = HAL_GetTick();

    /* 持续更新编码器累计位置 */
    Encoder_Update();

    /* 处理串口命令 */
    if (commandReady)
    {
        uint8_t command;

        command = receivedCommand;
        commandReady = false;

        Handle_Command(command);
    }

    /* 每10ms采集一次FSR */
    if (now - lastFSRTime >= 10UL)
    {
        lastFSRTime = now;
        FSR_Update();
    }

    switch (gripperState)
    {
        /* ---------------------------------------------
         * 停止状态
         * --------------------------------------------- */
        case STATE_STOPPED:

            Motor_Stop();
            break;

        /* ---------------------------------------------
         * 待机
         * --------------------------------------------- */
        case STATE_IDLE:

            Motor_Stop();
            break;

        /* ---------------------------------------------
         * 夹持
         * --------------------------------------------- */
        case STATE_CLAMPING:

            /*
             * 夹持停止条件：
             * 1.FSR连续检测到压力；
             * 2.到达最大夹持位置；
             * 3.夹持动作超时。
             */

            if (FSR_TriggerConfirmed())
            {
                Motor_Stop();

                actualClampPosition =
                    Encoder_GetPosition();

                Enter_State(STATE_CLAMPED);

                UART_Printf(
                    "\r\nFSR达到阈值，夹持完成，位置=%ld\r\n",
                    (long)actualClampPosition);
            }
            else if (Position_MoveTo(CLAMP_MAX_POSITION,
                                     CLAMP_MAX_PWM))
            {
                Motor_Stop();

                actualClampPosition =
                    Encoder_GetPosition();

                Enter_State(STATE_CLAMPED);

                UART_Printf(
                    "\r\n达到最大夹持位置，位置=%ld\r\n",
                    (long)actualClampPosition);
            }
            else if (now - stateStartTime >=
                     CLAMP_TIMEOUT_MS)
            {
                Enter_Error("夹持超时");
            }

            break;

        /* ---------------------------------------------
         * 已完成夹持
         * --------------------------------------------- */
        case STATE_CLAMPED:

            /*
             * 默认停止输出，避免减速电机长时间堵转发热。
             * 如果机构会明显回弹，后续再增加压力闭环保压。
             */
            Motor_Stop();
            break;

        /* ---------------------------------------------
         * 剪切
         * --------------------------------------------- */
        case STATE_CUTTING:

            if (Position_MoveTo(currentCutTarget,
                                CUT_MAX_PWM))
            {
                Motor_Stop();

                Enter_State(STATE_CUT_HOLD);

                UART_Printf("\r\n到达剪切位置。\r\n");
            }
            else if (now - stateStartTime >=
                     CUT_TIMEOUT_MS)
            {
                Enter_Error("剪切动作超时");
            }

            break;

        /* ---------------------------------------------
         * 剪切短时保持
         * --------------------------------------------- */
        case STATE_CUT_HOLD:

            if (CUT_HOLD_PWM > 0)
            {
                Motor_SetPWM(CUT_HOLD_PWM);
            }
            else
            {
                Motor_Stop();
            }

            if (now - stateStartTime >=
                CUT_HOLD_TIME_MS)
            {
                Motor_Stop();

                Enter_State(STATE_CUT_DONE);

                UART_Printf(
                    "\r\n剪切完成，发送R进行复位。\r\n");
            }

            break;

        /* ---------------------------------------------
         * 剪切完成
         * --------------------------------------------- */
        case STATE_CUT_DONE:

            Motor_Stop();
            break;

        /* ---------------------------------------------
         * 复位回到零点
         * --------------------------------------------- */
        case STATE_RESETTING:

            if (Position_MoveTo(0,
                                RESET_MAX_PWM))
            {
                Motor_Stop();

                Enter_State(STATE_IDLE);

                UART_Printf(
                    "\r\n复位完成，机构已回到张开位置。\r\n");
            }
            else if (now - stateStartTime >=
                     RESET_TIMEOUT_MS)
            {
                Enter_Error("复位动作超时");
            }

            break;

        /* ---------------------------------------------
         * 故障
         * --------------------------------------------- */
        case STATE_ERROR:

            Motor_Stop();
            break;

        default:

            Enter_Error("未知状态");
            break;
    }

    /* 每500ms打印状态 */
    if (now - lastPrintTime >= 500UL)
    {
        lastPrintTime = now;

        UART_Printf(
            "状态=%s  编码器=%ld  FSR=%u\r\n",
            Get_StateName(gripperState),
            (long)Encoder_GetPosition(),
            fsrFilteredValue);
    }
}

/* =========================================================
 * USART1单字节接收中断
 * ========================================================= */

void HAL_UART_RxCpltCallback(UART_HandleTypeDef *huart)
{
    if (huart->Instance == USART1)
    {
        receivedCommand = uartRxByte;
        commandReady = true;

        HAL_UART_Receive_IT(&huart1,
                            &uartRxByte,
                            1);
    }
}

/* USER CODE BEGIN 2 */

/* ADC校准 */
HAL_ADCEx_Calibration_Start(&hadc1);

/* 启动TIM2编码器模式 */
HAL_TIM_Encoder_Start(&htim2,TIM_CHANNEL_ALL);

/* 编码器计数清零 */
__HAL_TIM_SET_COUNTER(&htim2, 0);
encoderLastCounter = 0;
encoderPosition = 0;

/* 启动TIM3双路PWM */
HAL_TIM_PWM_Start(&htim3, TIM_CHANNEL_1);
HAL_TIM_PWM_Start(&htim3,TIM_CHANNEL_2);

/* 上电时电机保持停止，驱动器关闭 */
Motor_Stop();
Motor_Enable(false);

/* FSR空载校准 */
FSR_Calibrate();

/* 启动USART1中断接收 */
HAL_UART_Receive_IT(&huart1,&uartRxByte,1);

 /* 开机提示 */
UART_Printf("\r\n");
UART_Printf("====================================\r\n");
UART_Printf("葡萄夹剪一体末端执行器启动\r\n");
UART_Printf("控制器：STM32F103ZET6\r\n");
UART_Printf("电机：JGB37-545带磁性编码器\r\n");
UART_Printf("------------------------------------\r\n");
UART_Printf("请先人工将机构放到完全张开位置\r\n");
UART_Printf("Z：设置当前位置为零点\r\n");
UART_Printf("C：夹持\r\n");
UART_Printf("T：剪切\r\n");
UART_Printf("R：复位张开\r\n");
UART_Printf("S：立即停止\r\n");
UART_Printf("====================================\r\n");

/* USER CODE BEGIN 3 */

while (1)
{
    Gripper_Task();
    HAL_Delay(1);// 控制周期约1ms
}
