🛠️ Ingress配置与应用：Kubernetes 的流量管理法宝

🖥️ 机器B中安装

在Kubernetes(K8S)中，Ingress是一种API资源，用于管理外部用户如何访问集群内的服务。通过定义Ingress规则，用户可以指定如何将外部HTTP和HTTPS请求路由到Kubernetes集群内部的不同服务。它通常结合Ingress Controller使用，后者是一个负责实现和执行这些路由规则的组件。

📜 Ingress简介

Ingress的主要特点：

  1. 反向代理功能 ：Ingress充当集群外部和内部服务之间的反向代理，管理外部流量如何进入集群。

  2. 支持HTTP/HTTPS路由 ：Ingress允许基于URL路径、域名等进行流量路由。例如，你可以将/api的请求路由到一个服务，将/web的请求路由到另一个服务。

  3. TLS终结 ：Ingress支持通过TLS证书实现HTTPS加密访问，通常用于对外暴露的服务。

  4. 负载均衡 ：通过Ingress Controller的负载均衡能力，可以根据流量均衡地分配请求到集群中的多个副本。

  5. 路径和主机匹配 ：Ingress可以基于请求的URL路径（如/login）或主机名（如www.example.com）将请求定向到不同的服务。

Ingress Controller

为了使Ingress规则生效，需要部署一个Ingress Controller。它是一个负责监控和实现这些路由规则的负载均衡器。常见的Ingress Controller包括 NGINX Ingress Controller、Traefik和HAProxy Ingress Controller。

🏗️ Ingress Controller安装

由于网络原因，我们将官网文件下载到服务器并修改镜像

bash 复制代码
wget get https://kind.sigs.k8s.io/examples/ingress/deploy-ingress-nginx.yaml

修改内容：

  • image ：由于网路原因镜像下载不下来，需要更换代理; 具体地址看下面的deploy-ingress-nginx.yaml
  • ports ：由于我这里存在80、443端口冲突，所以需要更改端口；这一步不是必须。

配置文件deploy-ingress-nginx.yaml和nginx-ingress.yaml可以从我的github上获取

🔧 具体的配置文件deploy-ingress-nginx.yaml：

yaml 复制代码
apiVersion: v1
kind: Namespace
metadata:
  labels:
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx
---
apiVersion: v1
automountServiceAccountToken: true
kind: ServiceAccount
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.12.0-beta.0
  name: ingress-nginx
  namespace: ingress-nginx
---
apiVersion: v1
automountServiceAccountToken: true
kind: ServiceAccount
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.12.0-beta.0
  name: ingress-nginx-admission
  namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.12.0-beta.0
  name: ingress-nginx
  namespace: ingress-nginx
rules:
- apiGroups:
  - ""
  resources:
  - namespaces
  verbs:
  - get
- apiGroups:
  - ""
  resources:
  - configmaps
  - pods
  - secrets
  - endpoints
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - services
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - networking.k8s.io
  resources:
  - ingresses
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - networking.k8s.io
  resources:
  - ingresses/status
  verbs:
  - update
- apiGroups:
  - networking.k8s.io
  resources:
  - ingressclasses
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - coordination.k8s.io
  resourceNames:
  - ingress-nginx-leader
  resources:
  - leases
  verbs:
  - get
  - update
- apiGroups:
  - coordination.k8s.io
  resources:
  - leases
  verbs:
  - create
- apiGroups:
  - ""
  resources:
  - events
  verbs:
  - create
  - patch
- apiGroups:
  - discovery.k8s.io
  resources:
  - endpointslices
  verbs:
  - list
  - watch
  - get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.12.0-beta.0
  name: ingress-nginx-admission
  namespace: ingress-nginx
rules:
- apiGroups:
  - ""
  resources:
  - secrets
  verbs:
  - get
  - create
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.12.0-beta.0
  name: ingress-nginx
rules:
- apiGroups:
  - ""
  resources:
  - configmaps
  - endpoints
  - nodes
  - pods
  - secrets
  - namespaces
  verbs:
  - list
  - watch
  - create
  - get
  - update
- apiGroups:
  - coordination.k8s.io
  resources:
  - leases
  verbs:
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - nodes
  verbs:
  - get
- apiGroups:
  - ""
  resources:
  - services
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - networking.k8s.io
  resources:
  - ingresses
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - events
  verbs:
  - create
  - patch
- apiGroups:
  - networking.k8s.io
  resources:
  - ingresses/status
  verbs:
  - update
- apiGroups:
  - networking.k8s.io
  resources:
  - ingressclasses
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - discovery.k8s.io
  resources:
  - endpointslices
  verbs:
  - list
  - watch
  - get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.12.0-beta.0
  name: ingress-nginx-admission
rules:
- apiGroups:
  - admissionregistration.k8s.io
  resources:
  - validatingwebhookconfigurations
  verbs:
  - get
  - update
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.12.0-beta.0
  name: ingress-nginx
  namespace: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx
subjects:
- kind: ServiceAccount
  name: ingress-nginx
  namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.12.0-beta.0
  name: ingress-nginx-admission
  namespace: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx-admission
subjects:
- kind: ServiceAccount
  name: ingress-nginx-admission
  namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.12.0-beta.0
  name: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx
subjects:
- kind: ServiceAccount
  name: ingress-nginx
  namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.12.0-beta.0
  name: ingress-nginx-admission
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx-admission
subjects:
- kind: ServiceAccount
  name: ingress-nginx-admission
  namespace: ingress-nginx
---
apiVersion: v1
data: null
kind: ConfigMap
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.12.0-beta.0
  name: ingress-nginx-controller
  namespace: ingress-nginx
---

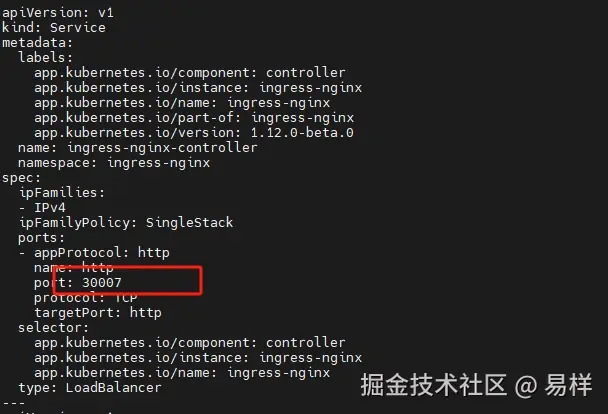

apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.12.0-beta.0
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  ipFamilies:
  - IPv4
  ipFamilyPolicy: SingleStack
  ports:
  - appProtocol: http
    name: http
    port: 30007
    protocol: TCP
    targetPort: http
  selector:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  type: LoadBalancer
---

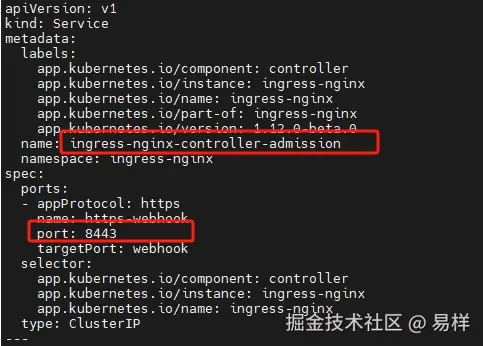

apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.12.0-beta.0
  name: ingress-nginx-controller-admission
  namespace: ingress-nginx
spec:
  ports:
  - appProtocol: https
    name: https-webhook
    port: 8443
    targetPort: webhook
  selector:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  type: ClusterIP
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.12.0-beta.0
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  minReadySeconds: 0
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app.kubernetes.io/component: controller
      app.kubernetes.io/instance: ingress-nginx
      app.kubernetes.io/name: ingress-nginx
  strategy:
    rollingUpdate:
      maxUnavailable: 1
    type: RollingUpdate
  template:
    metadata:
      labels:
        app.kubernetes.io/component: controller
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.12.0-beta.0
    spec:
      containers:

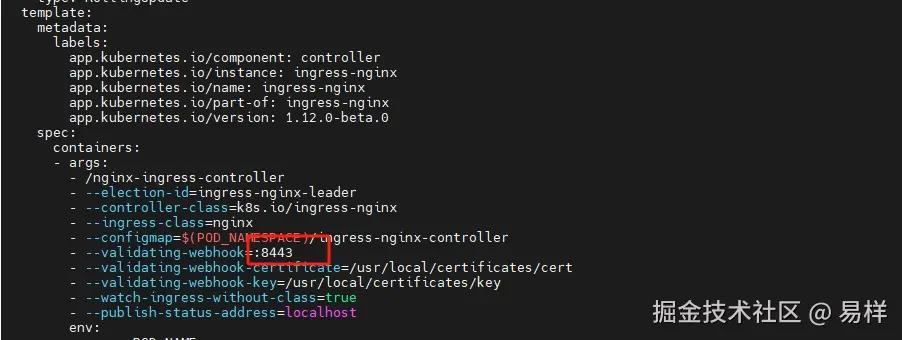

      - args:
        - /nginx-ingress-controller
        - --election-id=ingress-nginx-leader
        - --controller-class=k8s.io/ingress-nginx
        - --ingress-class=nginx
        - --configmap=$(POD_NAMESPACE)/ingress-nginx-controller
        - --validating-webhook=:8443
        - --validating-webhook-certificate=/usr/local/certificates/cert
        - --validating-webhook-key=/usr/local/certificates/key
        - --watch-ingress-without-class=true
        - --publish-status-address=localhost
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        - name: LD_PRELOAD
          value: /usr/local/lib/libmimalloc.so
        image: cf-workers-docker-io-eu5.pages.dev/willdockerhub/ingress-nginx-controller:v1.2.0-beta.1
        imagePullPolicy: IfNotPresent
        lifecycle:
          preStop:
            exec:
              command:
              - /wait-shutdown

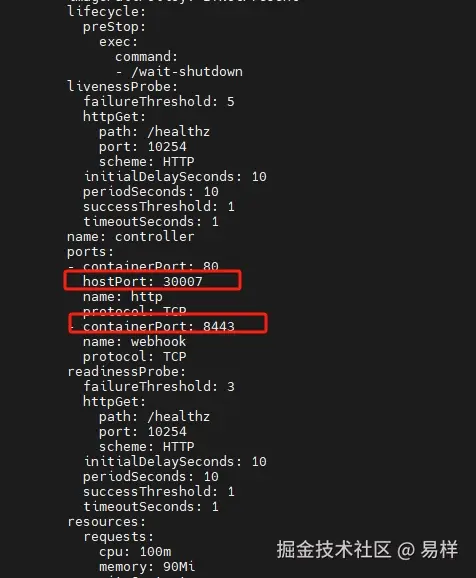

        livenessProbe:
          failureThreshold: 5
          httpGet:
            path: /healthz
            port: 10254
            scheme: HTTP
          initialDelaySeconds: 10
          periodSeconds: 10
          successThreshold: 1
          timeoutSeconds: 1
        name: controller
        ports:
        - containerPort: 80
          hostPort: 30007
          name: http
          protocol: TCP
        - containerPort: 8443
          name: webhook
          protocol: TCP
        readinessProbe:
          failureThreshold: 3
          httpGet:
            path: /healthz
            port: 10254
            scheme: HTTP
          initialDelaySeconds: 10
          periodSeconds: 10
          successThreshold: 1
          timeoutSeconds: 1
        resources:
          requests:
            cpu: 100m
            memory: 90Mi
        securityContext:
          allowPrivilegeEscalation: false
          capabilities:
            add:
            - NET_BIND_SERVICE
            drop:
            - ALL
          readOnlyRootFilesystem: false
          runAsGroup: 82
          runAsNonRoot: true
          runAsUser: 101
          seccompProfile:
            type: RuntimeDefault
        volumeMounts:
        - mountPath: /usr/local/certificates/
          name: webhook-cert
          readOnly: true
      dnsPolicy: ClusterFirst
      nodeSelector:
        kubernetes.io/os: linux
      serviceAccountName: ingress-nginx
      terminationGracePeriodSeconds: 0
      tolerations:
      - effect: NoSchedule
        key: node-role.kubernetes.io/master
        operator: Equal
      - effect: NoSchedule
        key: node-role.kubernetes.io/control-plane
        operator: Equal
      volumes:
      - name: webhook-cert
        secret:
          secretName: ingress-nginx-admission
---
apiVersion: batch/v1
kind: Job
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.12.0-beta.0
  name: ingress-nginx-admission-create
  namespace: ingress-nginx
spec:
  template:
    metadata:
      labels:
        app.kubernetes.io/component: admission-webhook
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.12.0-beta.0
      name: ingress-nginx-admission-create
    spec:
      containers:
      - args:
        - create
        - --host=ingress-nginx-controller-admission,ingress-nginx-controller-admission.$(POD_NAMESPACE).svc
        - --namespace=$(POD_NAMESPACE)
        - --secret-name=ingress-nginx-admission
        env:
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        image: cf-workers-docker-io-eu5.pages.dev/dyrnq/kube-webhook-certgen:v20231226-1a7112e06
        imagePullPolicy: IfNotPresent
        name: create
        securityContext:
          allowPrivilegeEscalation: false
          capabilities:
            drop:
            - ALL
          readOnlyRootFilesystem: true
          runAsGroup: 65532
          runAsNonRoot: true
          runAsUser: 65532
          seccompProfile:
            type: RuntimeDefault
      nodeSelector:
        kubernetes.io/os: linux
      restartPolicy: OnFailure
      serviceAccountName: ingress-nginx-admission
---
apiVersion: batch/v1
kind: Job
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.12.0-beta.0
  name: ingress-nginx-admission-patch
  namespace: ingress-nginx
spec:
  template:
    metadata:
      labels:
        app.kubernetes.io/component: admission-webhook
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.12.0-beta.0
      name: ingress-nginx-admission-patch
    spec:
      containers:
      - args:
        - patch
        - --webhook-name=ingress-nginx-admission
        - --namespace=$(POD_NAMESPACE)
        - --patch-mutating=false
        - --secret-name=ingress-nginx-admission
        - --patch-failure-policy=Fail
        env:
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        image: cf-workers-docker-io-eu5.pages.dev/dyrnq/kube-webhook-certgen:v20231226-1a7112e06
        imagePullPolicy: IfNotPresent
        name: patch
        securityContext:
          allowPrivilegeEscalation: false
          capabilities:
            drop:
            - ALL
          readOnlyRootFilesystem: true
          runAsGroup: 65532
          runAsNonRoot: true
          runAsUser: 65532
          seccompProfile:
            type: RuntimeDefault
      nodeSelector:
        kubernetes.io/os: linux
      restartPolicy: OnFailure
      serviceAccountName: ingress-nginx-admission
---
apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.12.0-beta.0
  name: nginx
spec:
  controller: k8s.io/ingress-nginx
---

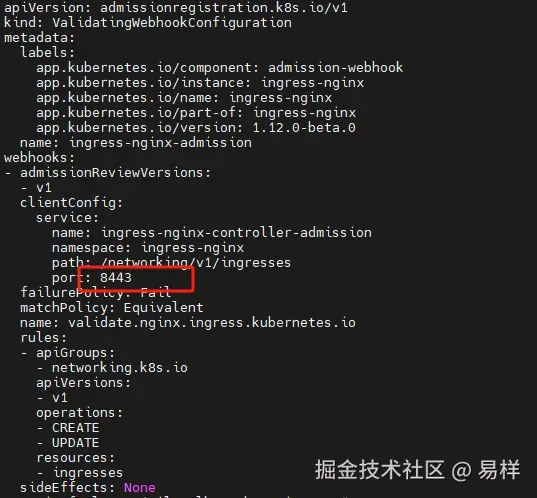

apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingWebhookConfiguration
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.12.0-beta.0
  name: ingress-nginx-admission
webhooks:
- admissionReviewVersions:
  - v1
  clientConfig:
    service:
      name: ingress-nginx-controller-admission
      namespace: ingress-nginx
      path: /networking/v1/ingresses
      port: 8443
  failurePolicy: Fail
  matchPolicy: Equivalent
  name: validate.nginx.ingress.kubernetes.io
  rules:
  - apiGroups:
    - networking.k8s.io
    apiVersions:
    - v1
    operations:
    - CREATE
    - UPDATE
    resources:
    - ingresses
  sideEffects: None

🔨 先创建命名空间ingress-nginx

bash 复制代码
kubectl create namespace ingress-nginx

🔨 执行以下命令安装, -n指定命名空间ingress-nginx。

bash 复制代码
kubectl apply -f deploy-ingress-nginx.yaml -n ingress-nginx

🏁 查看是否安装成功✅,Status状态Completed、Running表示成功✅。

🌐 Nginx Ingress规则

接下来，创建 nginx-ingress.yaml 文件并编写规则：

yaml 复制代码
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: nginx-ingress
  namespace: develop
spec:
  ingressClassName: nginx
  rules:
  - host: <your-domain>
    http:
      paths:
      - pathType: Prefix
        path: /api
        backend:
          service:
            name: release-test
            port:
              number: 30001
      - pathType: Prefix
        path: /user
        backend:
          service:
            name: release-test
            port:
              number: 30001
      - pathType: Prefix
        path: /
        backend:
          service:
            name: release-frontend
            port:
              number: 30002

⚠️ 注意 namespace: develop

执行以下命令部署:

复制代码
kubectl apply -f nginx-ingress.yaml -n develop

📊 查看部署：

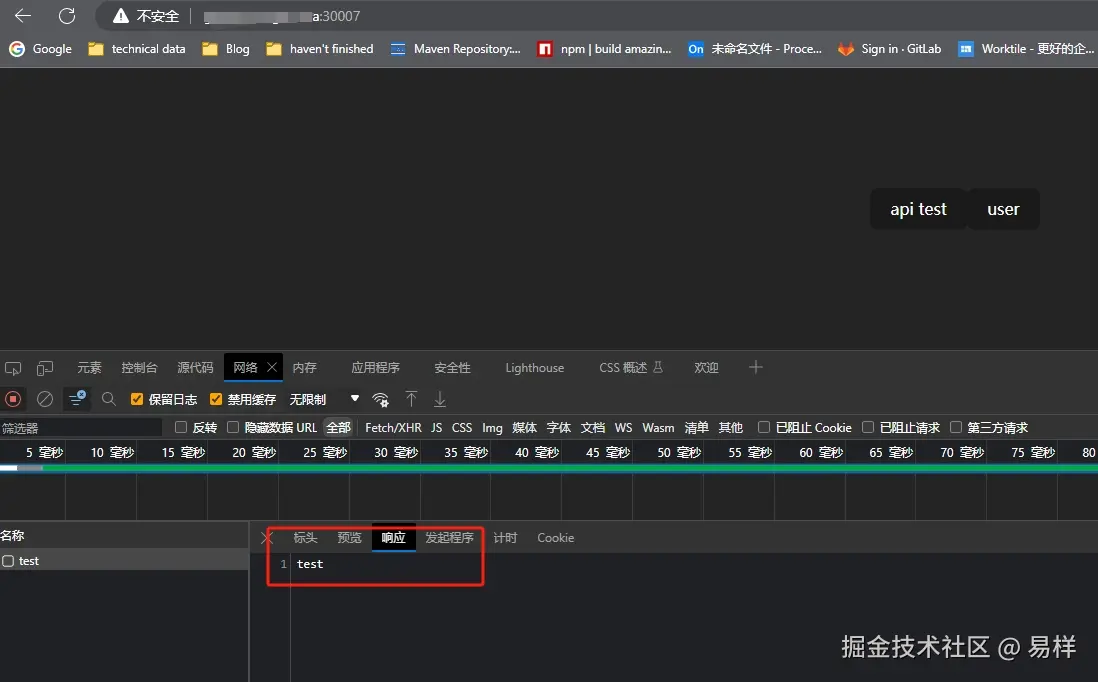

至此，我们🌐 浏览器访问http://<your-domain>:30007

还记得前面我们30002访问前端界面，调用后台接口返回的结果嘛？ 这次正确返回了接口内容。

📌 结语 通过以上步骤，我们成功在 Kubernetes 集群中部署并配置了 Ingress Controller 和相关规则。Ingress 提供了一种简洁而灵活的方式来管理集群外部的流量，尤其适用于有多个服务需要暴露的场景。

相关推荐
易样2 小时前
企业级Devops— 打造完整 CICD 实践指南(九)：Jenkins自动化构建
自动化运维·devops
易样2 小时前
企业级Devops— 打造完整 CICD 实践指南(八)：容器化实战
自动化运维·devops
易样2 小时前
企业级Devops— 打造完整 CICD 实践指南(七)：远程连接Kubernetes集群
自动化运维·devops
易样2 小时前
企业级Devops— 打造完整 CICD 实践指南(五)：Harbor企业级镜像仓库
自动化运维·devops
易样2 小时前
企业级Devops— 打造完整 CICD 实践指南(六)：Kubernetes集群搭建
自动化运维·devops
易样2 小时前
企业级Devops— 打造完整 CICD 实践指南(十一)：Rancher可视化管理
自动化运维·devops
易样3 小时前
企业级Devops— 打造完整 CICD 实践指南(四)：Gitlab代码仓库搭建
自动化运维·devops
易样3 小时前
企业级Devops— 打造完整 CICD 实践指南(三)：Jenkins搭建
自动化运维·devops
易样3 小时前
企业级Devops— 打造完整 CICD 实践指南(一)：手册核心内容亮点
devops
热门推荐
01GitHub 镜像站点02如何新建文件夹？ 电脑新建文件夹的4种方法03国内可直接用、免费额度/永久免费的大模型API清单（含 SiliconFlow、火山、阿里、智谱、百度、Kimi、DeepSeek、DMXAPI 等）042026年7月AI圈大地震：GPT-5.6被政府限制、Claude入驻Slack、Anthropic自研芯片05微信历史版本含下载地址（ Windows PC | 安卓 | MAC ）及设置微信不更新062026 国产 AI 大模型横评：DeepSeek、通义千问、Kimi、文心一言、星火、豆包谁更能打？07AI 编程 IDE 全景解析 2026：Agent 全面接管开发链路08Agnes AI 免费 API 接入指南：文本、生图、生视频，一套接口全免费09历年考研数学一、数学二、数学三真题试卷及答案PDF102026开年大模型最新对比解析及场景落地指南
