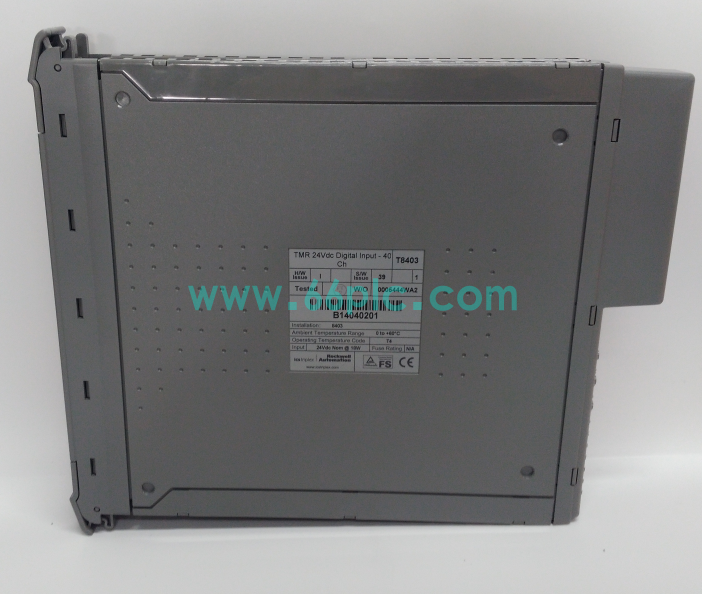

ICS TRIPLEX T8403 TMR Digital Input Module

ICS TRIPLEX T8403 is a TMR triple‑modular redundant digital input module for Rockwell Trusted SIS safety instrumented system. It collects 24VDC dry‑contact and active digital signals from field switches, relays and sensors, adopts two‑out‑of‑three voting mechanism to ensure signal validity for safety interlock logic processing.

This rack‑plug‑in module supports SOE sequence‑of‑event recording with 1ms resolution, channel‑level line fault detection and 2500V galvanic isolation. It obtains TÜV SIL3 safety certification. Widely used as replacement spare‑parts for power, petrochemical and chemical plant safety interlock cabinet maintenance and retrofit projects.


Main Specifications

  • Brand: ICS TRIPLEX (Rockwell Automation)
  • Model: T8403
  • Product Type: TMR Digital Input Module
  • Applicable System: Trusted Safety Instrumented System(SIS)
  • Input: 40‑channel 24VDC dry‑contact / NPN‑PNP active input
  • Safety Level: IEC61508 SIL3, TÜV certified
  • Special Feature: 1ms resolution SOE event sequence recording
  • Isolation: 2500V electrical‑optical isolation per channel
  • Installation: Trusted standard rack slot mounting
  • Operating Temperature Range:‑40°C ~ +70°C

Core Functions

  • Acquire field digital status signals from safety‑related switches, relays and sensors
  • TMR triple‑modular redundant two‑out‑of‑three voting eliminates single‑point‑failure risk
  • Support channel‑by‑channel open‑circuit and short‑circuit line fault monitoring function
  • Realize high‑precision SOE event timestamp recording for accident post‑mortem analysis
  • Opto‑electrical isolation circuit suppresses industrial site electromagnetic interference
  • Transmit sampled digital data and fault diagnosis information via rack internal backplane bus
  • Front‑panel LED indicators display channel status, fault and diagnostic alarm information
  • Complete hardware self‑diagnosis for fast fault location and maintenance guidance
  • Standard plug‑in mechanical design for convenient installation and on‑site spare‑part replacement
  • Provide reliable safety‑grade digital signal acquisition channel for SIS interlock hardware station

Application Scenarios

  • Power plant unit SIS safety interlock cabinet digital signal acquisition configuration
  • Petrochemical plant large‑scale safety instrumented system field‑signal input projects
  • Chemical industry high‑risk process safety protection and interlock‑control hardware stations
  • Metallurgy industry key equipment safety monitoring and signal‑collection application scenarios
  • Industrial renovation projects, digital‑input‑module replacement and SIS system upgrade
  • Trusted rack maintenance and spare‑parts backup for legacy industrial facilities
  • ICS TRIPLEX SIS spare‑parts inventory and on‑site safety cabinet maintenance supporting projects
