06.RK3588部署Qwen3-VL - 对外提供大模型服务

(╹◡╹)2026-08-10 10:55

对外提供大模型推理API接口，或者UI界面

1.API调用方式

板端Qwen3-VL提供了两种API调用方式：RKLLM-Server-Flask Demo和KLLM-Server-Gradio Demo
两者底层共用一套 librkllmrt RKLLM 推理库，模型加载、NPU 推理逻辑完全一致，差异仅在对外交互方式、使用场景、部署目标。
核心定位对比

  • RKLLM-Server-Flask
    后端 API 服务，无界面，供程序调用
    基于 Flask 轻量 Web 框架，只提供 HTTP 接口（/chat、/stream、/generate 等）
    纯 JSON 数据流，支持流式 SSE 输出
    面向：前端页面、小程序、设备 MCU、Python/Java 客户端、自动化脚本、第三方系统对接
  • RKLLM-Server-Gradio
    带可视化网页前端，人机直接对话调试工具
    Gradio 封装完整 WebUI：输入框、发送按钮、对话历史、参数滑块（温度、top_p、max_tokens）

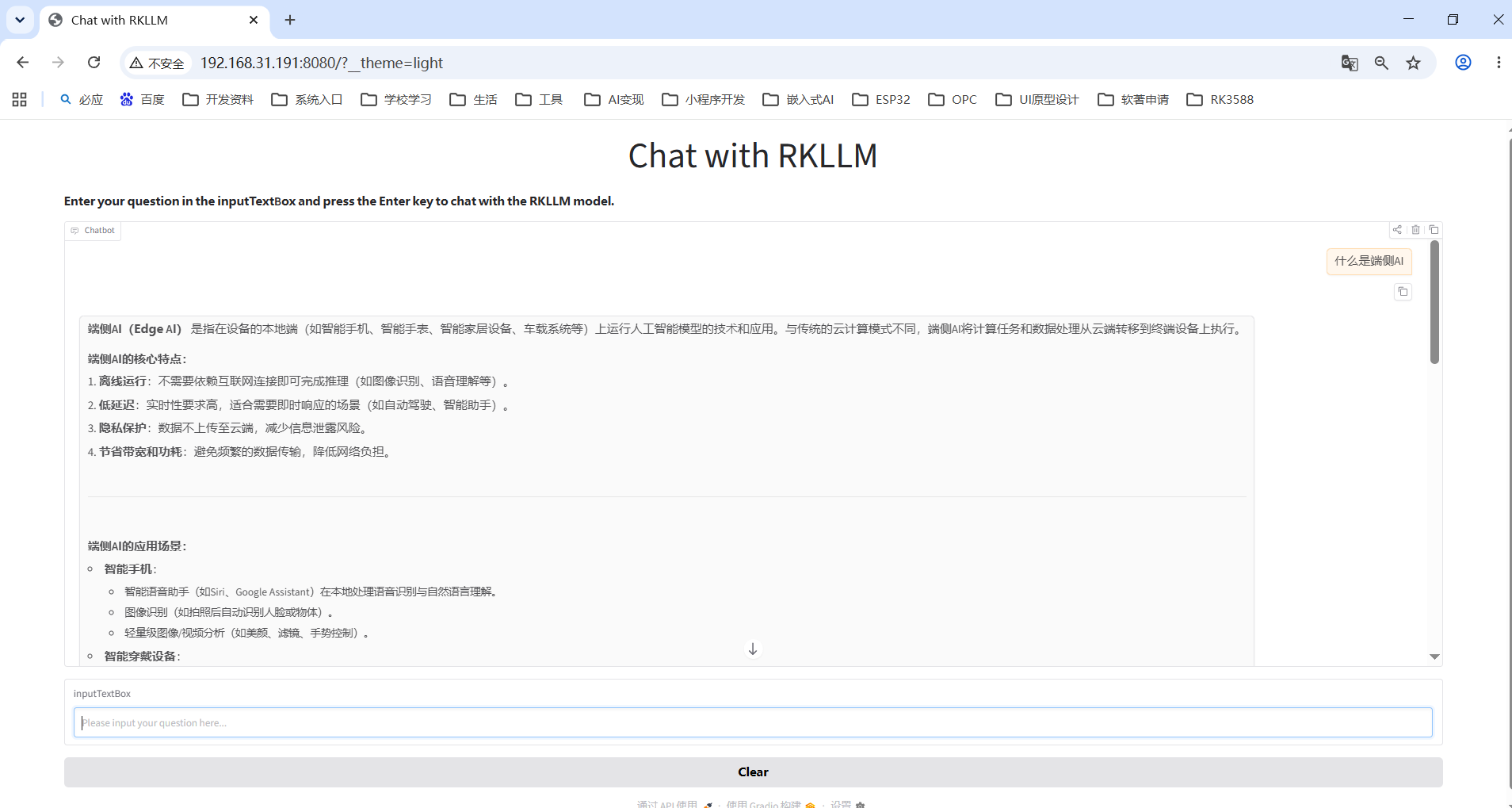

    内置交互页面，浏览器打开地址直接聊天，不用写调用代码
    面向：开发调试、快速验证模型效果、产品演示、无代码快速测试

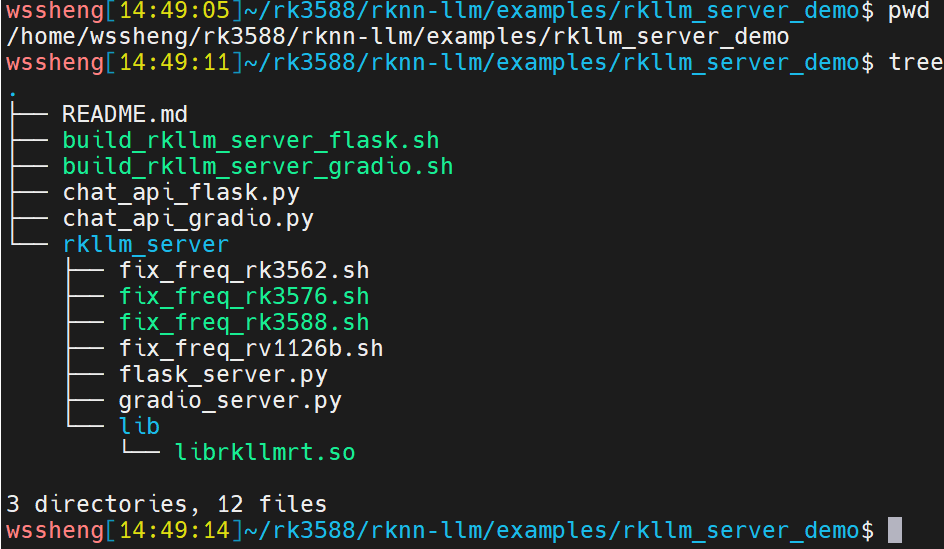

  • 虚拟机端代码结构

2.RKLLM-Server-Flask方式

在虚拟机里进行RKLLM-Server-Flask大模型API服务部署前，需要先确定RK3588的IP地址，后续会用到这个地址

部署脚本：build_rkllm_server_flask.sh，这个脚本是"部署 + 首次启动"一体脚本

复制代码
./build_rkllm_server_flask.sh --help
Usage: ./build_rkllm_server_flask.sh --workshop [RKLLM-Server Working Path] --model_path [Absolute Path of Converted RKLLM Model on Board] --platform [Target Platform: rk3588/rk3576] [--lora_path [Lora Model Path]] [--prompt_cache_path [Prompt Cache File Path]]

2.1 参数解释

--workshop：RKLLM 服务工作目录（开发板上的绝对路径）

作用：用于存放服务代码、运行日志、KV 缓存、进程锁、临时文件

要求：板子本地可读写、空间充足，目录不存在脚本会自动创建

--model_path：RKLLM 量化模型文件板子端绝对路径

作用：指定推理加载的 .rkllm 主模型权重

注意：必须是转换完成、适配对应平台的模型文件

--platform：目标硬件平台，可选值：

rk3588：瑞芯微 RK3588 开发板

rk3576：瑞芯微 RK3576 开发板

脚本会根据平台加载对应底层 RKNN/RKLLM 运行库。

以下是可选扩展参数（按需添加，不传走默认）

--lora_path：LoRA 微调模型文件路径

场景：主模型基础上加载微调 LoRA 权重做专属任务

不传：不加载 LoRA，仅运行基础大模型

传参：填写板子上 LoRA rkllm 文件绝对路径

--prompt_cache_path：提示词缓存文件路径

作用：缓存固定系统 Prompt、上下文 KV 缓存，减少重复推理、提速首词生成

不传：不开启 Prompt 缓存功能

传参：指定缓存文件存放路径，重启服务可复用缓存

2.2 部署API服务

来到虚拟机 rkllm_server_dem 目录，板子和虚拟机之间需要adb连接正常，部署时会通过adb把文件自动传到板子上

执行如下命令

复制代码
./build_rkllm_server_flask.sh --workshop /userdata/aidemo/qwen3-vl/rkllm-server --model_path /userdata/aidemo/qwen3-vl/models/qwen3-vl-2b-instruct_w8a8_rk3588.rkllm --platform rk3588

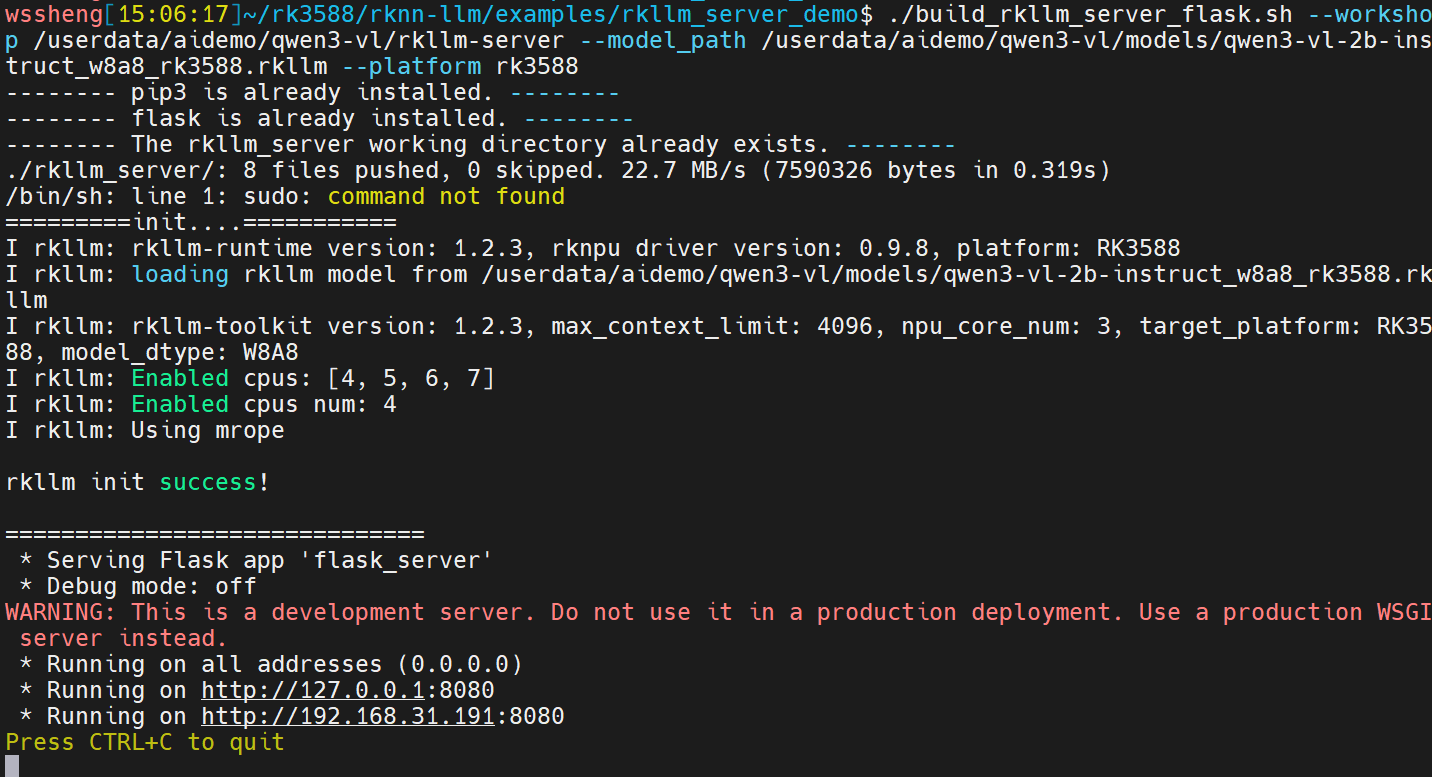

看到如下打印就是部署完成了

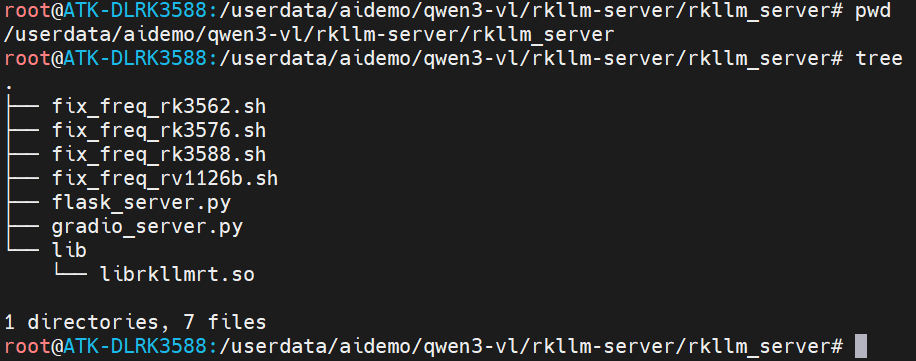

此时可以看到板子上部署了API 服务

后续可以直接在板子上启动该服务（不需要每次都从虚拟机上执行build_rkllm_server_flask.sh来拉起服务）

复制代码
python flask_server.py --rkllm_model_path /userdata/aidemo/qwen3-vl/models/qwen3-vl-2b-instruct_w8a8_rk3588.rkllm ----target_platform rk3588

2.3 测试API连接板端大模型

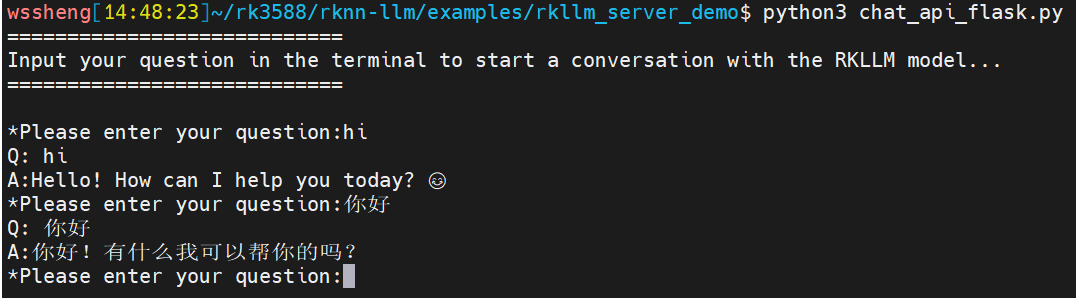

我们通过chat_api_flask.py来测试通过API连接板端大模型，chat_api_flask.py里有指定板子的IP地址，需要改为板子的实际IP，改完之后执行如下指令

复制代码
python3 chat_api_flask.py

2.4 错误解决

2.4.1 ModuleNotFoundError: No module named 'flask'

登录开发板终端，手动安装：

复制代码
pip3 install flask

2.4.2 so库找不到

比如OSError: libgomp.so.1: cannot open shared object file

确保libgomp.so.1 librkllmrt.so librknnrt.so在板子的/usr/lib/目录

3.KLLM-Server-Gradio方式

3.1代码修改

因为板子上6.18.0的Gradio与gradio_server.py里的部分接口不兼容，需要修改gradio_server.py，把如下代码覆盖掉rkllm_server/gradio_server.py即可

复制代码
import ctypes
import sys
import os
import subprocess
import resource
import threading
import time
import gradio as gr
import argparse
Set environment variables
os.environ["GRADIO_SERVER_NAME"] = "0.0.0.0"
os.environ["GRADIO_SERVER_PORT"] = "8080"
Set the dynamic library path
rkllm_lib = ctypes.CDLL('lib/librkllmrt.so')
Define the structures from the library
RKLLM_Handle_t = ctypes.c_void_p
userdata = ctypes.c_void_p(None)
LLMCallState = ctypes.c_int
LLMCallState.RKLLM_RUN_NORMAL  = 0
LLMCallState.RKLLM_RUN_WAITING  = 1
LLMCallState.RKLLM_RUN_FINISH  = 2
LLMCallState.RKLLM_RUN_ERROR   = 3
RKLLMInputType = ctypes.c_int
RKLLMInputType.RKLLM_INPUT_PROMPT      = 0
RKLLMInputType.RKLLM_INPUT_TOKEN       = 1
RKLLMInputType.RKLLM_INPUT_EMBED       = 2
RKLLMInputType.RKLLM_INPUT_MULTIMODAL  = 3
RKLLMInferMode = ctypes.c_int
RKLLMInferMode.RKLLM_INFER_GENERATE = 0
RKLLMInferMode.RKLLM_INFER_GET_LAST_HIDDEN_LAYER = 1
RKLLMInferMode.RKLLM_INFER_GET_LOGITS = 2
class RKLLMExtendParam(ctypes.Structure):
fields = [
("base_domain_id", ctypes.c_int32),
("embed_flash", ctypes.c_int8),
("enabled_cpus_num", ctypes.c_int8),
("enabled_cpus_mask", ctypes.c_uint32),
("n_batch", ctypes.c_uint8),
("use_cross_attn", ctypes.c_int8),
("reserved", ctypes.c_uint8 * 104)
]
class RKLLMParam(ctypes.Structure):
fields = [
("model_path", ctypes.c_char_p),
("max_context_len", ctypes.c_int32),
("max_new_tokens", ctypes.c_int32),
("top_k", ctypes.c_int32),
("n_keep", ctypes.c_int32),
("top_p", ctypes.c_float),
("temperature", ctypes.c_float),
("repeat_penalty", ctypes.c_float),
("frequency_penalty", ctypes.c_float),
("presence_penalty", ctypes.c_float),
("mirostat", ctypes.c_int32),
("mirostat_tau", ctypes.c_float),
("mirostat_eta", ctypes.c_float),
("skip_special_token", ctypes.c_bool),
("is_async", ctypes.c_bool),
("img_start", ctypes.c_char_p),
("img_end", ctypes.c_char_p),
("img_content", ctypes.c_char_p),
("extend_param", RKLLMExtendParam),
]
class RKLLMLoraAdapter(ctypes.Structure):
fields = [
("lora_adapter_path", ctypes.c_char_p),
("lora_adapter_name", ctypes.c_char_p),
("scale", ctypes.c_float)
]
class RKLLMEmbedInput(ctypes.Structure):
fields = [
("embed", ctypes.POINTER(ctypes.c_float)),
("n_tokens", ctypes.c_size_t)
]
class RKLLMTokenInput(ctypes.Structure):
fields = [
("input_ids", ctypes.POINTER(ctypes.c_int32)),
("n_tokens", ctypes.c_size_t)
]
class RKLLMMultiModalInput(ctypes.Structure):
fields = [
("prompt", ctypes.c_char_p),
("image_embed", ctypes.POINTER(ctypes.c_float)),
("n_image_tokens", ctypes.c_size_t),
("n_image", ctypes.c_size_t),
("image_width", ctypes.c_size_t),
("image_height", ctypes.c_size_t)
]
class RKLLMInputUnion(ctypes.Union):
fields = [
("prompt_input", ctypes.c_char_p),
("embed_input", RKLLMEmbedInput),
("token_input", RKLLMTokenInput),
("multimodal_input", RKLLMMultiModalInput)
]
class RKLLMInput(ctypes.Structure):
fields = [
("role", ctypes.c_char_p),
("enable_thinking", ctypes.c_bool),
("input_type", RKLLMInputType),
("input_data", RKLLMInputUnion)
]
class RKLLMLoraParam(ctypes.Structure):
fields = [
("lora_adapter_name", ctypes.c_char_p)
]
class RKLLMPromptCacheParam(ctypes.Structure):
fields = [
("save_prompt_cache", ctypes.c_int),
("prompt_cache_path", ctypes.c_char_p)
]
class RKLLMInferParam(ctypes.Structure):
fields = [
("mode", RKLLMInferMode),
("lora_params", ctypes.POINTER(RKLLMLoraParam)),
("prompt_cache_params", ctypes.POINTER(RKLLMPromptCacheParam)),
("keep_history", ctypes.c_int)
]
class RKLLMResultLastHiddenLayer(ctypes.Structure):
fields = [
("hidden_states", ctypes.POINTER(ctypes.c_float)),
("embd_size", ctypes.c_int),
("num_tokens", ctypes.c_int)
]
class RKLLMResultLogits(ctypes.Structure):
fields = [
("logits", ctypes.POINTER(ctypes.c_float)),
("vocab_size", ctypes.c_int),
("num_tokens", ctypes.c_int)
]
class RKLLMPerfStat(ctypes.Structure):
fields = [
("prefill_time_ms", ctypes.c_float),
("prefill_tokens", ctypes.c_int),
("generate_time_ms", ctypes.c_float),
("generate_tokens", ctypes.c_int),
("memory_usage_mb", ctypes.c_float)
]
class RKLLMResult(ctypes.Structure):
fields = [
("text", ctypes.c_char_p),
("token_id", ctypes.c_int),
("last_hidden_layer", RKLLMResultLastHiddenLayer),
("logits", RKLLMResultLogits),
("perf", RKLLMPerfStat)
]
Define global variables to store the callback function output for displaying in the Gradio interface
global_text = []
global_state = -1
split_byte_data = bytes(b"") # Used to store the segmented byte data
Define the callback function
def callback_impl(result, userdata, state):
global global_text, global_state, split_byte_data
if state == LLMCallState.RKLLM_RUN_FINISH:
global_state = state
print("\n")
sys.stdout.flush()
elif state == LLMCallState.RKLLM_RUN_ERROR:
global_state = state
print("run error")
sys.stdout.flush()
elif state == LLMCallState.RKLLM_RUN_NORMAL:
global_state = state
global_text.append(result.contents.text.decode('utf-8'))
return 0
Connect the callback function between the Python side and the C++ side
callback_type = ctypes.CFUNCTYPE(ctypes.c_int, ctypes.POINTER(RKLLMResult), ctypes.c_void_p, ctypes.c_int)
callback = callback_type(callback_impl)
新增：提取messages中的纯文本，兼容str / list[{type,text}]两种格式
def extract_text(content):
if isinstance(content, str):
return content
elif isinstance(content, list):
text_buf = ""
for item in content:
if item.get("type") == "text":
text_buf += item.get("text", "")
return text_buf
return ""
Define the RKLLM class, which includes initialization, inference, and release operations for the RKLLM model in the dynamic library
class RKLLM(object):
def init(self, model_path, lora_model_path = None, prompt_cache_path = None, platform = "rk3588"):
rkllm_param = RKLLMParam()
rkllm_param.model_path = bytes(model_path, 'utf-8')
    rkllm_param.max_context_len = 4096
    rkllm_param.max_new_tokens = 4096
    rkllm_param.skip_special_token = True
    rkllm_param.n_keep = -1
    rkllm_param.top_k = 1
    rkllm_param.top_p = 0.9
    rkllm_param.temperature = 0.8
    rkllm_param.repeat_penalty = 1.1
    rkllm_param.frequency_penalty = 0.0
    rkllm_param.presence_penalty = 0.0

    rkllm_param.mirostat = 0
    rkllm_param.mirostat_tau = 5.0
    rkllm_param.mirostat_eta = 0.1

    rkllm_param.is_async = False

    rkllm_param.img_start = "".encode('utf-8')
    rkllm_param.img_end = "".encode('utf-8')
    rkllm_param.img_content = "".encode('utf-8')

    rkllm_param.extend_param.base_domain_id = 0
    rkllm_param.extend_param.embed_flash = 1
    rkllm_param.extend_param.n_batch = 1
    rkllm_param.extend_param.use_cross_attn = 0
    rkllm_param.extend_param.enabled_cpus_num = 4
    if platform.lower() in ["rk3576", "rk3588"]:
        rkllm_param.extend_param.enabled_cpus_mask = (1 << 4)|(1 << 5)|(1 << 6)|(1 << 7)
    else:
        rkllm_param.extend_param.enabled_cpus_mask = (1 << 0)|(1 << 1)|(1 << 2)|(1 << 3)
    self.handle = RKLLM_Handle_t()

    self.rkllm_init = rkllm_lib.rkllm_init
    self.rkllm_init.argtypes = [ctypes.POINTER(RKLLM_Handle_t), ctypes.POINTER(RKLLMParam), callback_type]
    self.rkllm_init.restype = ctypes.c_int
    ret = self.rkllm_init(ctypes.byref(self.handle), ctypes.byref(rkllm_param), callback)
    if (ret != 0):
        print("\nrkllm init failed\n")
        exit(0)
    else:
        print("\nrkllm init success!\n")
    self.rkllm_run = rkllm_lib.rkllm_run
    self.rkllm_run.argtypes = [RKLLM_Handle_t, ctypes.POINTER(RKLLMInput), ctypes.POINTER(RKLLMInferParam), ctypes.c_void_p]
    self.rkllm_run.restype = ctypes.c_int

    self.set_chat_template = rkllm_lib.rkllm_set_chat_template
    self.set_chat_template.argtypes = [RKLLM_Handle_t, ctypes.c_char_p, ctypes.c_char_p, ctypes.c_char_p]
    self.set_chat_template.restype = ctypes.c_int

    system_prompt = "<|im_start|>system You are a helpful assistant. <|im_end|>"
    prompt_prefix = "<|im_start|>user"
    prompt_postfix = "<|im_end|><|im_start|>assistant"
    # self.set_chat_template(self.handle, ctypes.c_char_p(system_prompt.encode('utf-8')), ctypes.c_char_p(prompt_prefix.encode('utf-8')), ctypes.c_char_p(prompt_postfix.encode('utf-8')))

    self.rkllm_destroy = rkllm_lib.rkllm_destroy
    self.rkllm_destroy.argtypes = [RKLLM_Handle_t]
    self.rkllm_destroy.restype = ctypes.c_int

    rkllm_lora_params = None
    if lora_model_path:
        lora_adapter_name = "test"
        lora_adapter = RKLLMLoraAdapter()
        ctypes.memset(ctypes.byref(lora_adapter), 0, ctypes.sizeof(RKLLMLoraAdapter))
        lora_adapter.lora_adapter_path = ctypes.c_char_p((lora_model_path).encode('utf-8'))
        lora_adapter.lora_adapter_name = ctypes.c_char_p((lora_adapter_name).encode('utf-8'))
        lora_adapter.scale = 1.0

        rkllm_load_lora = rkllm_lib.rkllm_load_lora
        rkllm_load_lora.argtypes = [RKLLM_Handle_t, ctypes.POINTER(RKLLMLoraAdapter)]
        rkllm_load_lora.restype = ctypes.c_int
        rkllm_load_lora(self.handle, ctypes.byref(lora_adapter))
        rkllm_lora_params = RKLLMLoraParam()
        rkllm_lora_params.lora_adapter_name = ctypes.c_char_p((lora_adapter_name).encode('utf-8'))

    self.rkllm_infer_params = RKLLMInferParam()
    ctypes.memset(ctypes.byref(self.rkllm_infer_params), 0, ctypes.sizeof(RKLLMInferParam))
    self.rkllm_infer_params.mode = RKLLMInferMode.RKLLM_INFER_GENERATE
    self.rkllm_infer_params.lora_params = ctypes.pointer(rkllm_lora_params) if rkllm_lora_params else None
    self.rkllm_infer_params.keep_history = 0

    self.prompt_cache_path = None
    if prompt_cache_path:
        self.prompt_cache_path = prompt_cache_path

        rkllm_load_prompt_cache = rkllm_lib.rkllm_load_prompt_cache
        rkllm_load_prompt_cache.argtypes = [RKLLM_Handle_t, ctypes.c_char_p]
        rkllm_load_prompt_cache.restype = ctypes.c_int
        rkllm_load_prompt_cache(self.handle, ctypes.c_char_p((prompt_cache_path).encode('utf-8')))

def run(self, prompt):
    rkllm_input = RKLLMInput()
    rkllm_input.role = "user".encode('utf-8')
    rkllm_input.enable_thinking = ctypes.c_bool(False)
    rkllm_input.input_type = RKLLMInputType.RKLLM_INPUT_PROMPT
    rkllm_input.input_data.prompt_input = ctypes.c_char_p(prompt.encode('utf-8'))
    self.rkllm_run(self.handle, ctypes.byref(rkllm_input), ctypes.byref(self.rkllm_infer_params), None)
    return

def release(self):
    self.rkllm_destroy(self.handle)

if name == "main":
parser = argparse.ArgumentParser()
parser.add_argument('--rkllm_model_path', type=str, required=True, help='Absolute path of the converted RKLLM model on the Linux board;')
parser.add_argument('--target_platform', type=str, required=True, help='Target platform: e.g., rk3588/rk3576;')
parser.add_argument('--lora_model_path', type=str, help='Absolute path of the lora_model on the Linux board;')
parser.add_argument('--prompt_cache_path', type=str, help='Absolute path of the prompt_cache file on the Linux board;')
args = parser.parse_args()
if not os.path.exists(args.rkllm_model_path):
    print("Error: Please provide the correct rkllm model path, and ensure it is the absolute path on the board.")
    sys.stdout.flush()
    exit()

if not (args.target_platform in ["rk3588", "rk3576", "rv1126b", "rk3562"]):
    print("Error: Please specify the correct target platform: rk3588/rk3576/rv1126b/rk3562.")
    sys.stdout.flush()
    exit()

if args.lora_model_path:
    if not os.path.exists(args.lora_model_path):
        print("Error: Please provide the correct lora_model path, and advise it is the absolute path on the board.")
        sys.stdout.flush()
        exit()

if args.prompt_cache_path:
    if not os.path.exists(args.prompt_cache_path):
        print("Error: Please provide the correct prompt_cache_file path, and advise it is the absolute path on the board.")
        sys.stdout.flush()
        exit()

# Fix frequency
command = "sudo bash fix_freq_{}.sh".format(args.target_platform)
subprocess.run(command, shell=True)

# Set resource limit
resource.setrlimit(resource.RLIMIT_NOFILE, (102400, 102400))

# Initialize RKLLM model
print("=========init....===========")
sys.stdout.flush()
model_path = args.rkllm_model_path
rkllm_model = RKLLM(model_path, args.lora_model_path, args.prompt_cache_path, args.target_platform)
print("==============================")
sys.stdout.flush()

# Record the user's input prompt
def get_user_input(user_message, history):
    history.append({"role": "user", "content": user_message})
    return "", history

# Retrieve the output from the RKLLM model and print it in a streaming manner
def get_RKLLM_output(history):
    global global_text, global_state
    global_text = []
    global_state = -1

    # 核心修复：提取纯文本，兼容list格式content
    content_raw = history[-1]["content"]
    user_prompt = extract_text(content_raw)
    model_thread = threading.Thread(target=rkllm_model.run, args=(user_prompt,))
    model_thread.start()

    history.append({"role": "assistant", "content": ""})

    model_thread_finished = False
    while not model_thread_finished:
        while len(global_text) > 0:
            chunk = global_text.pop(0)
            history[-1]["content"] += chunk
            time.sleep(0.005)
            yield history

        model_thread.join(timeout=0.005)
        model_thread_finished = not model_thread.is_alive()

# Create a Gradio interface
with gr.Blocks(title="Chat with RKLLM") as chatRKLLM:
    gr.Markdown("<div align='center'><font size='70'> Chat with RKLLM </font></div>")
    gr.Markdown("### Enter your question in the inputTextBox and press the Enter key to chat with the RKLLM model.")
    rkllmServer = gr.Chatbot(height=600)
    msg = gr.Textbox(placeholder="Please input your question here...", label="inputTextBox")
    clear = gr.Button("Clear")

    msg.submit(get_user_input, [msg, rkllmServer], [msg, rkllmServer], queue=False).then(get_RKLLM_output, rkllmServer, rkllmServer)
    clear.click(lambda: [], None, rkllmServer, queue=False)

chatRKLLM.queue()
chatRKLLM.launch()

print("====================")
print("RKLLM model inference completed, releasing RKLLM model resources...")
rkllm_model.release()
print("====================")

3.2 部署到板端

在虚拟机上执行如下指令把相关代码部署到板子上，这个也是"部署+首次初始化一体"的脚本。

复制代码
./build_rkllm_server_gradio.sh --workshop /userdata/aidemo/qwen3-vl/gradio-server --model_path /userdata/aidemo/qwen3-vl/models/qwen3-vl-2b-instruct_w8a8_rk3588.rkllm --platform rk3588

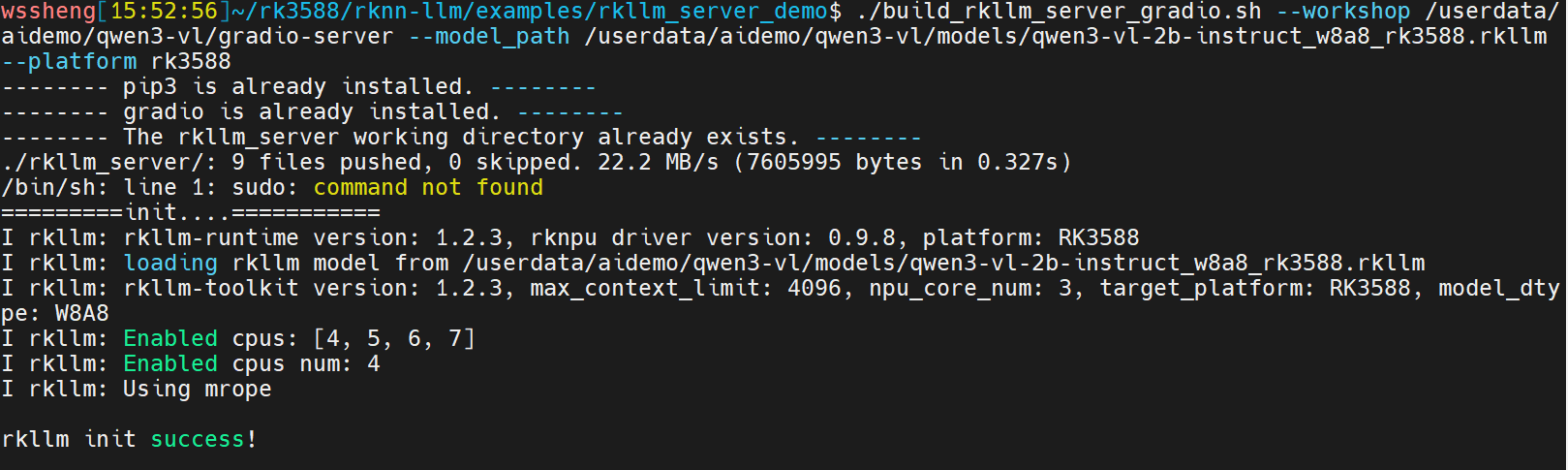

看到以上打印说明部署和板端服务启动都成功了。

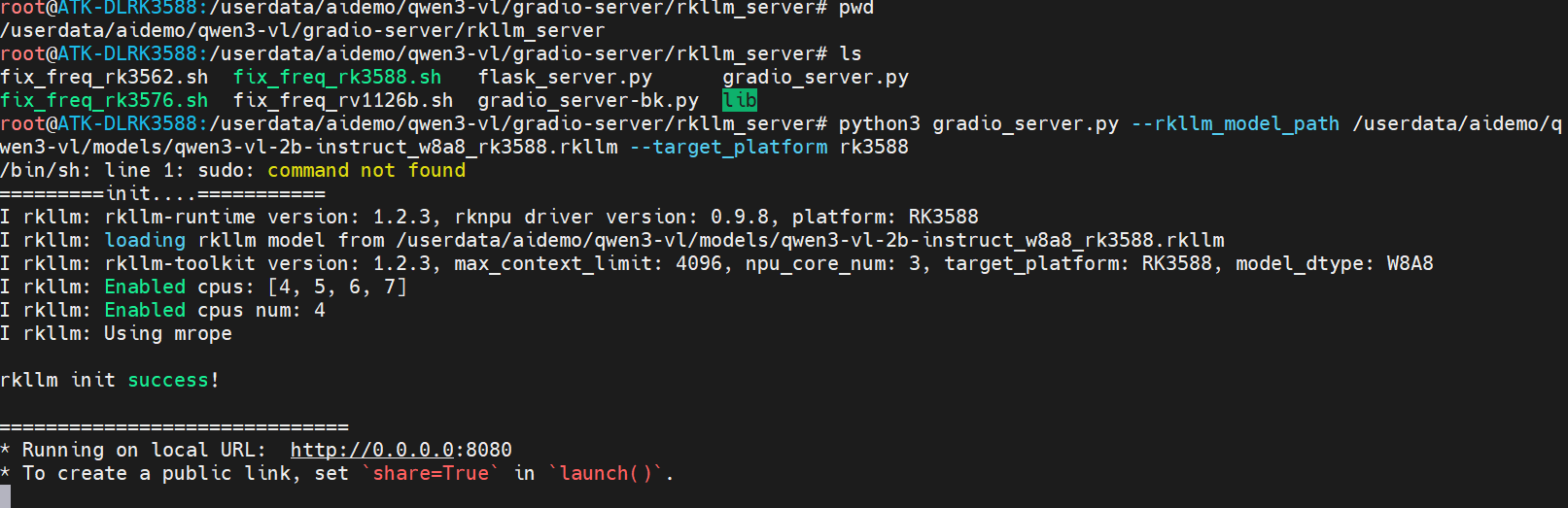

后续可以在板子上拉起这个服务，在板子上执行如下指令：

复制代码
python3 gradio_server.py --rkllm_model_path /userdata/aidemo/qwen3-vl/models/qwen3-vl-2b-instruct_w8a8_rk3588.rkllm --target_platform rk3588

现在就可以在浏览器里进行对话了，打开 http://192.168.31.191:8080，其中192.168.31.191需要替换为自己实际板子的IP

3.3报错解决

ModuleNotFoundError: No module named 'gradio'

在板子上执行

复制代码
pip3 install gradio

我现在的gradio版本是6.18.0

相关推荐
尘中远40 分钟前
7大开源Agent源码对比解读——架构对比
ai·开源·agent·codex·harness
JXJD20042 小时前
【无标题】
人工智能·ai·自动化
aichitang20242 小时前
希尔伯特空间中的正交性
人工智能·学习·机器学习·ai·泛函分析
张忠琳2 小时前
【deepseek-harness】Cordis 时空可组合性编程范式 — 三段式精读笔记（二）
ai·agent·deepseek·harness·cordis·dsh
coft3 小时前
Pi Agent 架构与关键功能全解析
ai·ai编程
哥不是小萝莉3 小时前
AI 编码 Agent 从原理到可运行代码
ai·agent
图王大胜3 小时前
万物演化论00(序章) 从宇宙到AI
人工智能·ai·宇宙·演化·文明·生命科学
技术小事4 小时前
How To Use Claude 怎么使用Claude
ai·claude
笑霸final4 小时前
不用上传服务器！用 Vue3 + ONNX Runtime Web 在浏览器本地实现智能抠图
运维·前端·图像处理·ai·onnx·canva可画·web性能优化
一切皆是因缘际会4 小时前
多时空虚拟中心—— 全域同源基座与脑机谐振应用架构
ai·系统架构·脑机接口·虚拟全球网络控制中心·元宇宙世界底层架构·原生多时空架构
热门推荐
01国内可直接用、免费额度/永久免费的大模型API清单（含 SiliconFlow、火山、阿里、智谱、百度、Kimi、DeepSeek、DMXAPI 等）02GitHub 镜像站点03ZCode 周末送额度活动开启：3 亿 Token 免费领取04历年考研数学一、数学二、数学三真题试卷及答案PDF052026 国产 AI 大模型横评：DeepSeek、通义千问、Kimi、文心一言、星火、豆包谁更能打？06微信历史版本含下载地址（ Windows PC | 安卓 | MAC ）及设置微信不更新07Agnes AI 免费 API 接入指南：文本、生图、生视频，一套接口全免费08AI 编程 IDE 全景解析 2026：Agent 全面接管开发链路09蜘蛛磁力 搜索引擎大全，如何使用蜘蛛磁力查找磁力链接10VSCode+CodeX扩展，无法启动
