在SAP中，货源清单是控制物料只能从特定供应商处采购的主数据，它定义了物料与供应商、工厂、采购组织之间的合法供应关系
相对于逐条使用事务代码 ME01 维护货源清单，开发自定义程序，通过Excel批量维护货源清单，能够降低用户的使用门槛，同时提升用户的工作效率

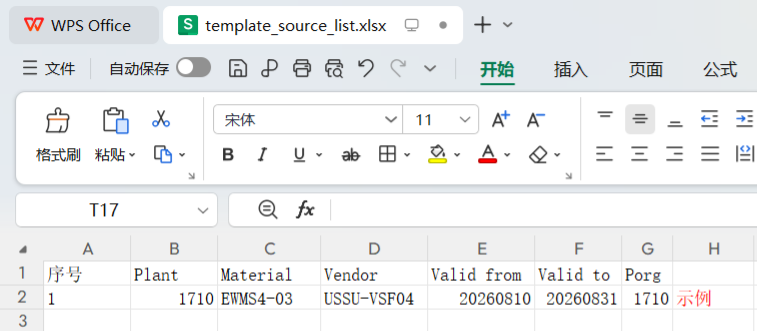

Excel导入模板
效果展示

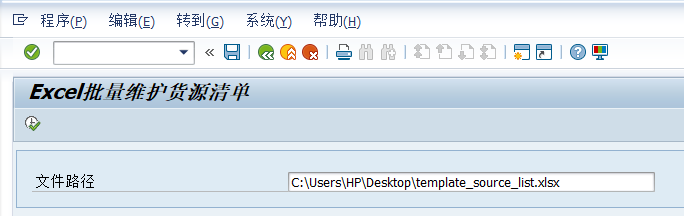

用户在Excel导入模板填写相关信息以后，进行文件上传操作
点击
执行按钮，效果如下所示：
提示Tips：自定义程序，增设了数据校验逻辑，当用户执行Excel文件上传以后，会进行ALV报表呈现用户上传的结果，如果消息灯报红灯，表明Excel填写的信息在SAP系统里面不存在，或者格式输入不正确，点击【批量导入】按钮创建维护货源清单的时候，消息灯报红的那一行明细是无法创建或更新货源清单的

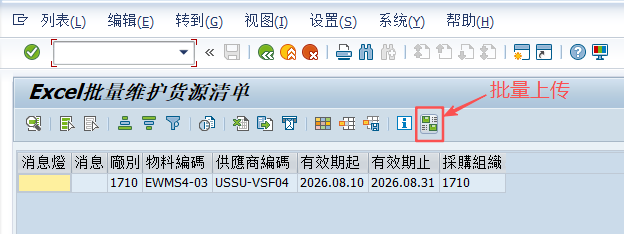

点击【批量导入】按钮，执行结果呈现如下图所示

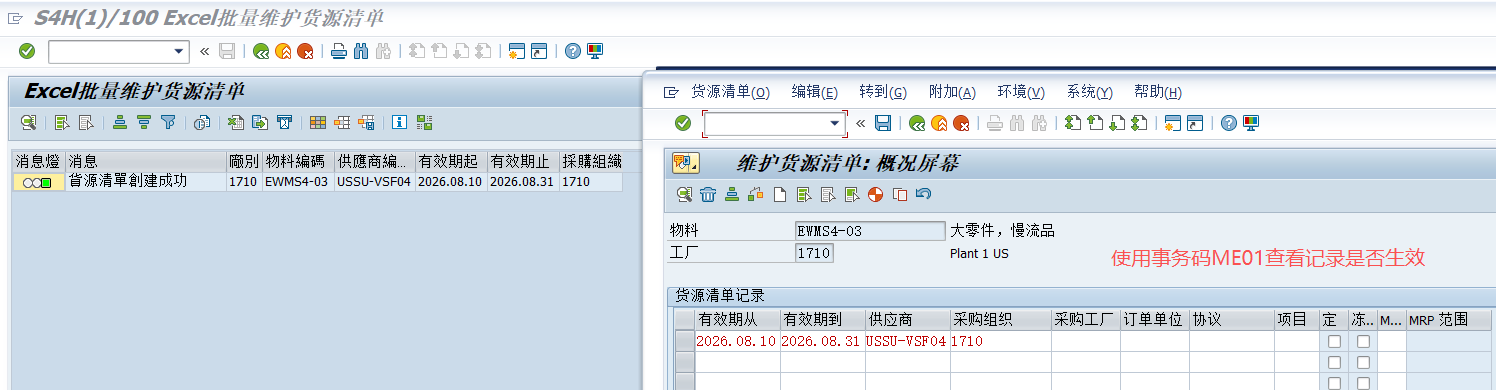

我们可以看到ALV报表的消息灯报绿灯，表明Excel指定的那行明细已经成功导入到SAP系统中了，我们可以使用ME01 或者 ME03 去查看成功导入的那行明细信息
完整代码如下所示
主程序(zrs0513)
*&---------------------------------------------------------------------*
*& Report ZRS0513 *
*&---------------------------------------------------------------------*
************************************************************************
* Program ID: ZRS0513
* Program Description: Excel批量維護貨源清單
* Programmer Name : Andy
* Create Date: 2026/08/17
* Change History:
*----------------------------------------------------------------------*
* Ver. SR/Project Date Author Description
*------- --------------- ------------ ---------- ----------------------*
* V001 2026/08 Andy Excel批量維護貨源清單
*----------------------------------------------------------------------*
REPORT zrs0513.
INCLUDE zrs0513_top. " 數據定義
INCLUDE zrs0513_f01. " 子例程
*----------------------------------------------------------------------*
* DESC: INITIALIZATION
*----------------------------------------------------------------------*
INITIALIZATION.
*----------------------------------------------------------------------*
* DESC: AT SELECTION-SCREEN ON VALUE-REQUEST FOR [field] 事件
*----------------------------------------------------------------------*
AT SELECTION-SCREEN ON VALUE-REQUEST FOR p_path. " 為選擇屏幕的自定義字段提供搜索幫助
PERFORM frm_get_path.
*----------------------------------------------------------------------*
* DESC: AT SELECTION-SCREEN
*----------------------------------------------------------------------*
AT SELECTION-SCREEN.
*----------------------------------------------------------------------*
* DESC: START-OF-SELECTION
*----------------------------------------------------------------------*
START-OF-SELECTION.
PERFORM frm_upload_excel. " 解析Excel文件中的數据
PERFORM frm_get_output. " 將Upload數据存放到呈現ALV的相關內表
*----------------------------------------------------------------------*
* DESC: END-OF-SELECTION
*----------------------------------------------------------------------*
END-OF-SELECTION.
PERFORM frm_display_alv. " ALV呈現數据INCLUDE程序(zrs0513_top)
*&---------------------------------------------------------------------*
*& 包含 ZRS0513_TOP
*&---------------------------------------------------------------------*
TYPE-POOLS: slis.
TABLES: eord.
* 選擇屏幕
SELECTION-SCREEN BEGIN OF BLOCK b1 WITH FRAME TITLE TEXT-001.

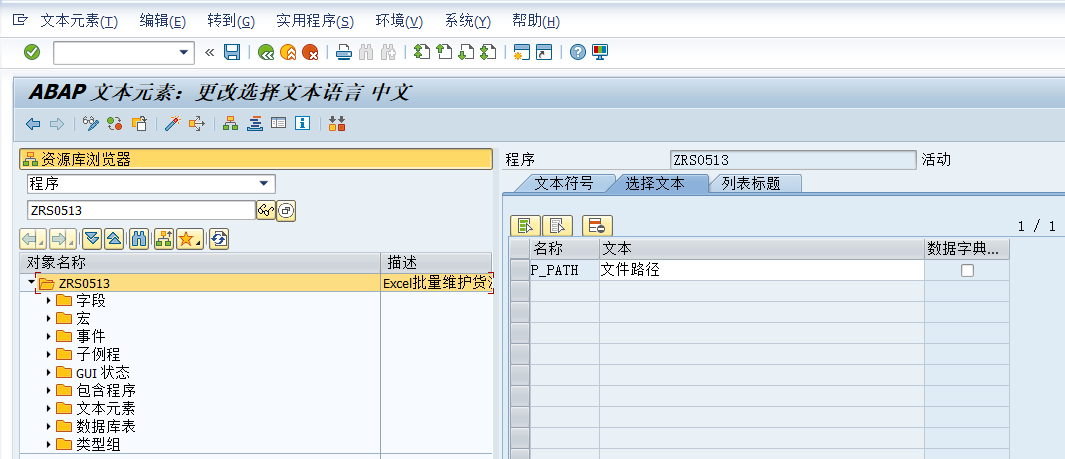

PARAMETERS: p_path TYPE rlgrap-filename. " 上傳文件路徑
SELECTION-SCREEN END OF BLOCK b1.
* 自定義數據類型
TYPES: BEGIN OF ty_upload,
werks TYPE eord-werks, " Plant
matnr TYPE eord-matnr, " Material
lifnr TYPE eord-lifnr, " Vendor
vdatu TYPE eord-vdatu, " Valid From
bdatu TYPE eord-bdatu, " Valid To
ekorg TYPE eord-ekorg, " POrg
END OF ty_upload.
TYPES: BEGIN OF ty_output,
werks TYPE eord-werks, " Plant
matnr TYPE eord-matnr, " Material
lifnr TYPE eord-lifnr, " Vendor
vdatu TYPE eord-vdatu, " Valid From
bdatu TYPE eord-bdatu, " Valid To
ekorg TYPE eord-ekorg, " POrg
msg TYPE bapi_msg, " 消息
status TYPE icon_d, " 消息燈
sel(1) TYPE c, " 選擇標志
END OF ty_output.
* 定義內表和結構體變量
DATA: gs_upload TYPE ty_upload,
gt_upload TYPE STANDARD TABLE OF ty_upload, " gt_upload內表用于存儲解析上傳的Excel文件數据
gs_output TYPE ty_output,
gt_output TYPE STANDARD TABLE OF ty_output. " gt_output內表用于存儲展示在ALV報表的數据
* ALV參數定義
DATA: gs_layout TYPE lvc_s_layo, " 用于定義ALV表單的相關格式、屬性
gs_fcat TYPE lvc_s_fcat, " 字段目錄工作區
gt_fcat LIKE TABLE OF gs_fcat. " 字段目錄內表INCLUDE程序(zrs0513_f01)
*&---------------------------------------------------------------------*
*& 包含 ZRS0513_F01
*&---------------------------------------------------------------------*
*&---------------------------------------------------------------------*
*& Form frm_get_path
*&---------------------------------------------------------------------*
* 獲取文件上傳路徑
*----------------------------------------------------------------------*
form frm_get_path.
data: lt_file_table type filetable,
lv_rc type i,
lv_initial_path type string value 'C:\',
ls_file type file_info.
" ABAP對象模式(調用類的方法)---提供文件選擇對話框的方式獲取文件的完整路徑
call method cl_gui_frontend_services=>file_open_dialog
exporting
initial_directory = lv_initial_path " 默認上傳路徑
changing
file_table = lt_file_table " 上傳文件的完整路徑
rc = lv_rc
exceptions
file_open_dialog_failed = 1
cntl_error = 2
error_no_gui = 3
not_supported_by_gui = 4
others = 5.
if sy-subrc = 0.
read table lt_file_table into ls_file index 1.
if sy-subrc = 0.
p_path = ls_file-filename. " 文件路徑賦值
endif.
endif.
endform. "frm_get_path
*&---------------------------------------------------------------------*
*& Form frm_upload_excel
*&---------------------------------------------------------------------*
* 解析Excel文件中的數据
*----------------------------------------------------------------------*
form frm_upload_excel.
data: lv_filename type rlgrap-filename,
lt_data type standard table of alsmex_tabline,
ls_data type alsmex_tabline.
field-symbols: <lfv_value> type any. " 顯式聲明字段符號
if p_path is not initial. " 判斷文件路徑是否不為空
lv_filename = p_path. " 賦值
" 調用函數，讀取Excel文件中的數据存放到內表中
call function 'ALSM_EXCEL_TO_INTERNAL_TABLE'
exporting
filename = lv_filename " 導入的文件名稱路徑
i_begin_col = 2 " 導入單元格的開始列
i_begin_row = 2 " 導入單元格的開始行
i_end_col = 255 " 導入單元格的結束列
i_end_row = 65536 " 導入單元格的結束行
tables
intern = lt_data " 內表,存儲單元格中的內容
exceptions
inconsistent_parameters = 1
upload_ole = 2
others = 3.
" 將內表lt_data中的值轉換到內表gt_upload中
loop at lt_data into ls_data.
assign component ls_data-col of structure gs_upload to <lfv_value>.
shift ls_data-value left deleting leading space. " 去除空格
<lfv_value> = ls_data-value. " 賦值
at end of row.
append gs_upload to gt_upload.
clear gs_upload.
endat.
endloop.
else.
message '文件路徑為空，請上傳文件!' type 'I'.
endif.
endform. " frm_upload_excel
*&---------------------------------------------------------------------*
*& Form frm_get_output
*&---------------------------------------------------------------------*
* 將Upload數据存放到呈現ALV的相關內表
*----------------------------------------------------------------------*
form frm_get_output.
" 校驗用的變量
data: lv_plant_check like t001w-werks,
lv_matnr_check like mara-matnr,
lv_marc_check like mara-matnr,
lv_lifnr_check like lfa1-lifnr,
lv_lfm1_check like lfa1-lifnr,
lv_ekorg_check like t024e-ekorg.
constants: lv_icon_red type char4 value '@0A@'. " 紅色LED圖標代碼
constants: lv_icon_green type char4 value '@08@'. " 綠色LED圖標代碼
refresh gt_output.
loop at gt_upload into gs_upload.
" 供應商增加前導零
call function 'CONVERSION_EXIT_ALPHA_INPUT'
exporting
input = gs_upload-lifnr
importing
output = gs_upload-lifnr. " 補0后的結果
move-corresponding gs_upload to gs_output. " 賦值
append gs_output to gt_output.
clear: gs_upload, gs_output.
endloop.
field-symbols: <lfs_output> type ty_output.
* 數據校驗
if gt_output is not initial.
loop at gt_output assigning <lfs_output>.
* 校驗工廠
if <lfs_output>-werks is initial.
<lfs_output>-status = lv_icon_red.

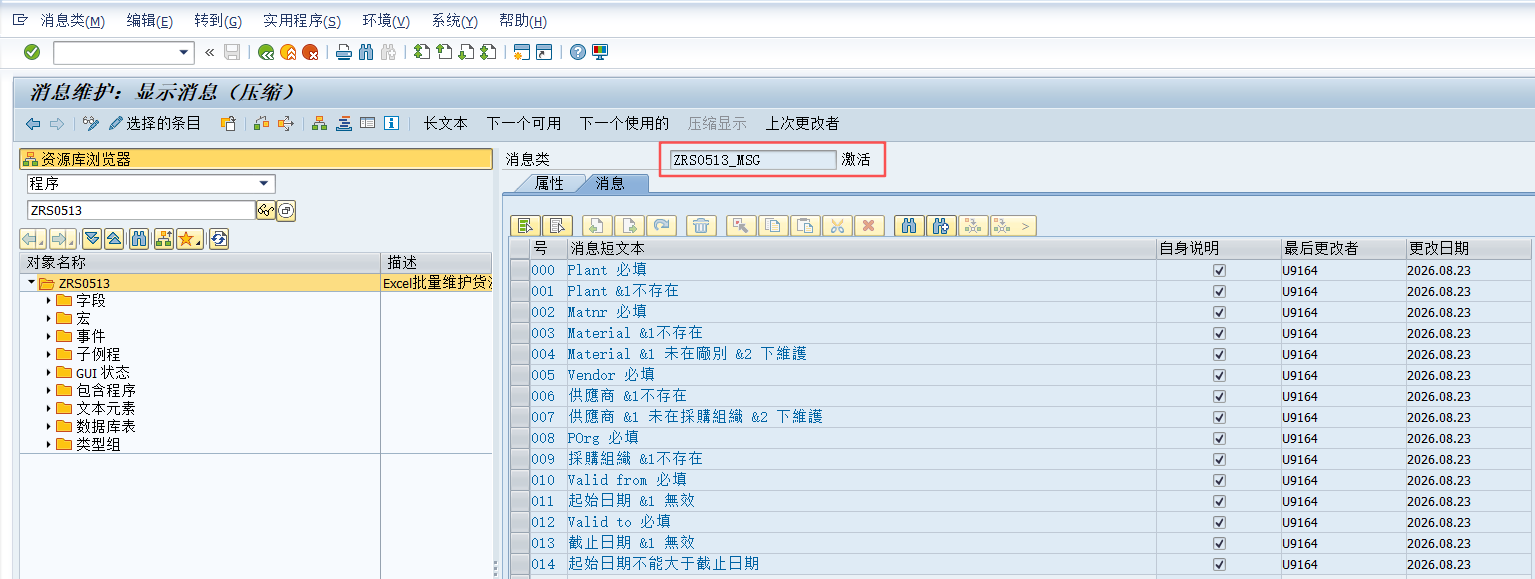

message e000(zrs0513_msg) into <lfs_output>-msg. " Plant 必填
continue.
else.
select single werks from t001w
into lv_plant_check
where werks = <lfs_output>-werks.
if sy-subrc <> 0.
<lfs_output>-status = lv_icon_red.
message e001(zrs0513_msg) with <lfs_output>-werks into <lfs_output>-msg. " Plant &1不存在
continue.
endif.
endif.
* 校驗物料
if <lfs_output>-matnr is initial.
<lfs_output>-status = lv_icon_red.
message e002(zrs0513_msg) into <lfs_output>-msg. " Matnr 必填
continue.
else.
select single matnr from mara
into lv_matnr_check
where matnr = <lfs_output>-matnr.
if sy-subrc <> 0.
<lfs_output>-status = lv_icon_red.
message e003(zrs0513_msg) with <lfs_output>-matnr into <lfs_output>-msg. " Material &1不存在
continue.
else.
" 檢查物料是否在工厂下維護
select single matnr from marc
into lv_marc_check
where matnr = <lfs_output>-matnr
and werks = <lfs_output>-werks.
if sy-subrc <> 0.
<lfs_output>-status = lv_icon_red.
message e004(zrs0513_msg) with <lfs_output>-matnr <lfs_output>-werks into <lfs_output>-msg. " Material &1 未在廠別 &2 下維護
continue.
endif.
endif.
endif.
* 校驗供應商
if <lfs_output>-lifnr is initial.
<lfs_output>-status = lv_icon_red.
message e005(zrs0513_msg) into <lfs_output>-msg. " Vendor 必填
continue.
else.
select single lifnr from lfa1
into lv_lifnr_check
where lifnr = <lfs_output>-lifnr.
if sy-subrc <> 0.
<lfs_output>-status = lv_icon_red.
message e006(zrs0513_msg) with <lfs_output>-lifnr into <lfs_output>-msg. " 供應商 &1不存在
continue.
else.
" 檢查供應商是否在采購組織下維護
select single lifnr from lfm1
into lv_lfm1_check
where lifnr = <lfs_output>-lifnr
and ekorg = <lfs_output>-ekorg.
if sy-subrc <> 0.
<lfs_output>-status = lv_icon_red.
message e007(zrs0513_msg) with <lfs_output>-lifnr <lfs_output>-ekorg into <lfs_output>-msg. " 供應商 &1 未在採購組織 &2 下維護
continue.
endif.
endif.
endif.
* 校驗採購組織
if <lfs_output>-ekorg is initial.
<lfs_output>-status = lv_icon_red.
message e008(zrs0513_msg) into <lfs_output>-msg. " POrg 必填
continue.
else.
select single ekorg from t024e
into lv_ekorg_check
where ekorg = <lfs_output>-ekorg.
if sy-subrc <> 0.
<lfs_output>-status = lv_icon_red.
message e009(zrs0513_msg) with <lfs_output>-ekorg into <lfs_output>-msg. " 採購組織 &1不存在
continue.
endif.
endif.
* 校驗日期
if <lfs_output>-vdatu is initial.
<lfs_output>-status = lv_icon_red.
message e010(zrs0513_msg) into <lfs_output>-msg. " Valid from 必填
continue.
else.
call function 'DATE_CHECK_PLAUSIBILITY'
exporting
date = <lfs_output>-vdatu
exceptions
plausibility_check_failed = 1
others = 2.
if sy-subrc <> 0.
<lfs_output>-status = lv_icon_red.
message e011(zrs0513_msg) with <lfs_output>-vdatu into <lfs_output>-msg. " 起始日期 &1 無效
continue.
endif.
endif.
if <lfs_output>-bdatu is initial.
<lfs_output>-status = lv_icon_red.
message e012(zrs0513_msg) into <lfs_output>-msg. " Valid to 必填
continue.
else.
call function 'DATE_CHECK_PLAUSIBILITY'
exporting
date = <lfs_output>-bdatu
exceptions
plausibility_check_failed = 1
others = 2.
if sy-subrc <> 0.
<lfs_output>-status = lv_icon_red.
message e013(zrs0513_msg) with <lfs_output>-bdatu into <lfs_output>-msg. " 截止日期 &1 無效
continue.
endif.
endif.
" 檢查起始日期是否小于等于截止日期
if <lfs_output>-vdatu is not initial and <lfs_output>-bdatu is not initial.
if <lfs_output>-vdatu > <lfs_output>-bdatu.
<lfs_output>-status = lv_icon_red.
message e014(zrs0513_msg) into <lfs_output>-msg. " 起始日期不能大于截止日期
continue.
endif.
endif.
endloop.
endif.
endform. " frm_get_output
*&---------------------------------------------------------------------*
*& Form frm_display_alv
*&---------------------------------------------------------------------*
* ALV呈現數据
*----------------------------------------------------------------------*
form frm_display_alv.
perform frm_alv_set_fields.
" 調用函數顯示ALV數据
call function 'REUSE_ALV_GRID_DISPLAY_LVC'
exporting
i_callback_program = sy-cprog
i_callback_pf_status_set = 'FRM_SET_PF_STATUS' " 子例程(設置狀態欄)
i_callback_user_command = 'FRM_USER_COMMAND' " 子例程(用戶指令響應)
i_bypassing_buffer = abap_true
is_layout_lvc = gs_layout " 設置ALV布局
it_fieldcat_lvc = gt_fcat " 設置ALV列屬性
i_save = 'A'
tables
t_outtab = gt_output " 內表數据
exceptions
program_error = 1
others = 2.
endform. " frm_display_alv
*&---------------------------------------------------------------------*
*& Form frm_alv_set_fields
*&---------------------------------------------------------------------*
* 設置ALV樣式和字段屬性
*----------------------------------------------------------------------*
form frm_alv_set_fields.
* 設置行的屬性(alv界面格式)
clear gs_layout.
gs_layout-box_fname = 'SEL'. " 選擇標識
gs_layout-zebra = abap_true. " 斑馬條紋顯示
gs_layout-cwidth_opt = abap_true. " 优化列寬設置
gs_layout-col_opt = abap_true.
* ALV字段處理宏
define catalog.
gs_fcat-fieldname = &1. " 設置要輸出的表格列的值，在內表中定義的字段名(必須大寫)
gs_fcat-scrtext_l = &2. " 設置要輸出的表格列的列名，即ALV報表顯示的列名
gs_fcat-no_zero = &3. " 去除前導零
gs_fcat-edit = &4. " 可編輯
gs_fcat-just = &5. " 對齊方式
gs_fcat-key = &6. " 關鍵字段
append gs_fcat to gt_fcat.
end-of-definition.
* &1 &2 &3 &4 &5 &6
catalog:
'STATUS' '消息燈' '' '' 'C' 'abap_true', " 消息燈
'MSG' '消息' '' '' '' 'abap_true', " 消息
'WERKS' '廠別' '' '' '' 'abap_true', " Plant
'MATNR' '物料編碼' '' '' '' 'abap_true', " Material
'LIFNR' '供應商編碼' '' '' '' 'abap_true', " Vendor
'VDATU' '有效期起' '' '' '' 'abap_true', " Valid From
'BDATU' '有效期止' '' '' '' 'abap_true', " Valid To
'EKORG' '採購組織' '' '' '' 'abap_true'. " POrg
endform. " frm_alv_set_fields
* 設置狀態欄
form frm_set_pf_status using ct_extab type slis_t_extab.

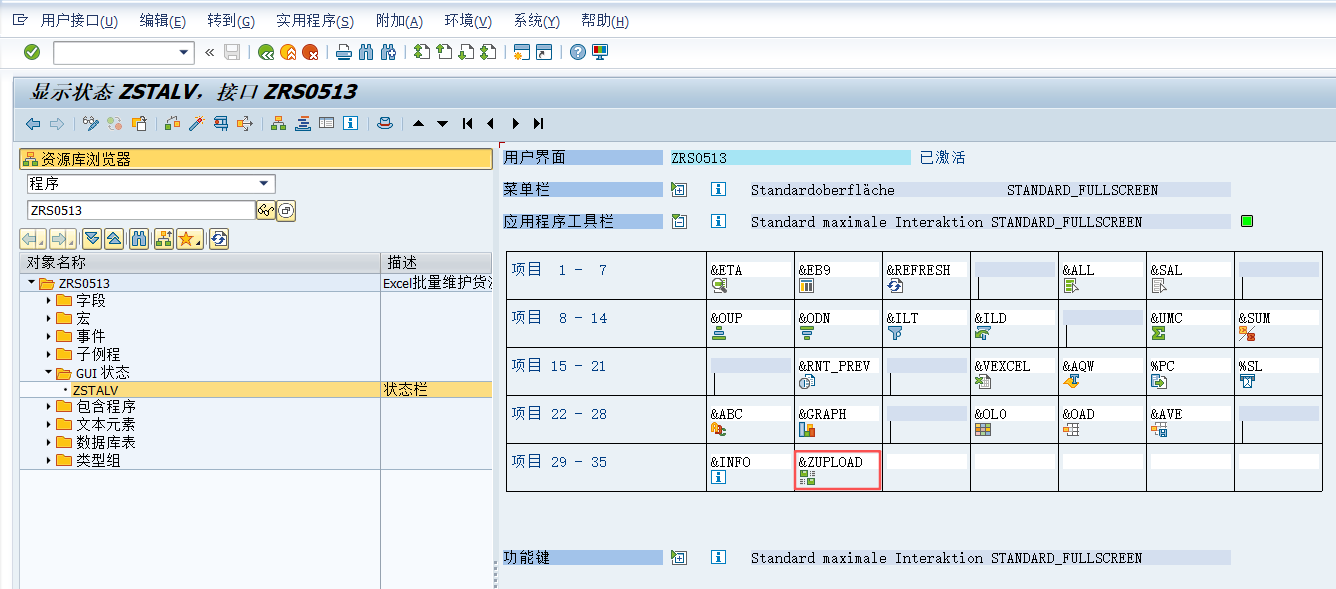

set pf-status 'ZSTALV' excluding ct_extab.
endform. "frm_set_pf_status
* 設置用戶指令響應
form frm_user_command using pv_ucomm like sy-ucomm
ps_selfield type slis_selfield.
case pv_ucomm.
when '&ZUPLOAD'.
perform frm_import_data.
endcase.
ps_selfield-refresh = 'X'. " 強制刷新
endform. "frm_user_command
*&---------------------------------------------------------------------*
*& Form frm_import_data
*&---------------------------------------------------------------------*
* 批量導入維護貨源清單
*----------------------------------------------------------------------*
form frm_import_data.
data: lt_eordu like table of eordu with header line.
constants: lv_icon_red type char4 value '@0A@'. " 紅色LED圖標代碼
constants: lv_icon_green type char4 value '@08@'. " 綠色LED圖標代碼
data: lv_zeord type eord-zeord,
lv_infnr type eine-infnr.
* 調用函數之前需要對數据進行排序
sort gt_output by werks matnr. " 排序
field-symbols: <lfs_output> type ty_output.
* ALV獲取可以進行批導的數据(消息燈不報紅的數据)
loop at gt_output assigning <lfs_output> where status is initial.
clear: lt_eordu, lt_eordu[], lv_zeord, lv_infnr.
refresh lt_eordu.
" 檢查貨源清單是否存在
select single zeord
from eord
into lv_zeord
where matnr = <lfs_output>-matnr
and lifnr = <lfs_output>-lifnr
and werks = <lfs_output>-werks
and ekorg = <lfs_output>-ekorg.
move-corresponding <lfs_output> to lt_eordu. " 賦值
lt_eordu-erdat = sy-datum.
lt_eordu-ernam = sy-uname.
if sy-subrc = 0 and lv_zeord is not initial.
" 記錄已存在,更新
lt_eordu-kz = 'U'.
lt_eordu-zeord = lv_zeord. " 更新時傳入系統記錄號
else.
" 記錄不存在,新增
lt_eordu-kz = 'I'.
endif.
append lt_eordu.
call function 'ME_INITIALIZE_SOURCE_LIST'. " 源清單維護初始化
call function 'ME_DIRECT_INPUT_SOURCE_LIST'
exporting
i_matnr = lt_eordu-matnr
i_werks = lt_eordu-werks
tables
t_eord = lt_eordu[]
exceptions
plant_missing = 1
material_missing = 2
error_message = 4
others = 3.
if sy-subrc ne 0.
call function 'BAPI_TRANSACTION_ROLLBACK'.
<lfs_output>-status = lv_icon_red. " 消息燈報紅
message id sy-msgid type 'E' number sy-msgno with sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4 into <lfs_output>-msg.
else.
call function 'ME_POST_SOURCE_LIST_NEW'
exporting
i_matnr = lt_eordu-matnr.
call function 'BAPI_TRANSACTION_COMMIT'
exporting
wait = 'X'.
<lfs_output>-status = lv_icon_green. " 消息燈報綠
if lt_eordu-kz = 'U'.
<lfs_output>-msg = '貨源清單更新成功'.
else.
<lfs_output>-msg = '貨源清單創建成功'.
endif.
endif.
endloop.
endform. " frm_import_data上述代码涉及的消息类以及文本元素如下所示
消息类(ZRS0513_MSG)文本内容
TEXT-001文本内容
GUI STATUS状态栏
