综述：消息队列的协作模式分如下2种:

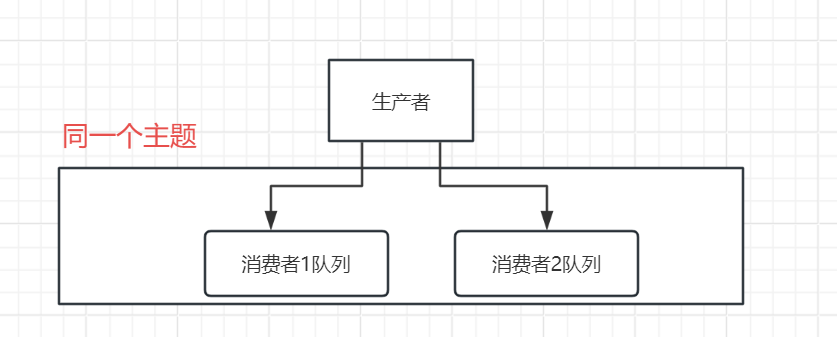

(1) 只有一个主题的推拉模式。只有一个主题，消息生产者将消息推送到(一个或多个)队列中，消息消费者从队列中拉取消息进行处理。

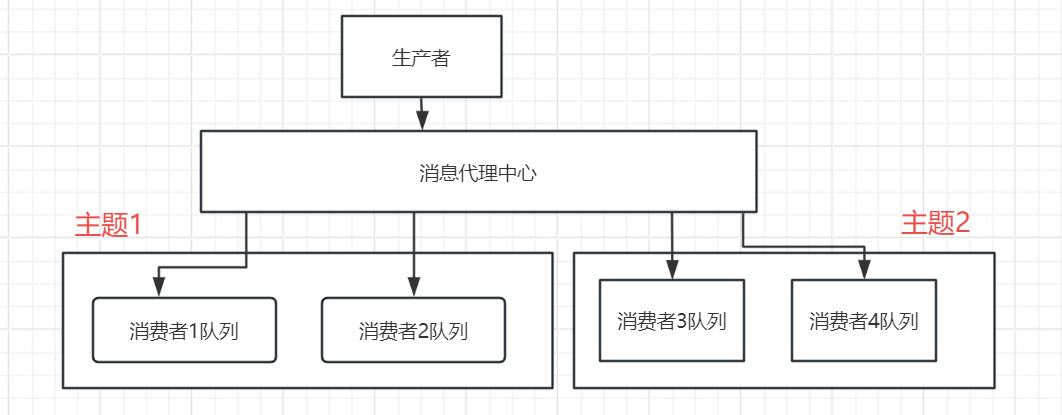

(2) 发布/订阅模式。会有多个主题。消息被发送到一个主题，多个消费者订阅该主题，并从对应的队列中接收消息。
一、只有一个主题的推拉模式举例
python
from abc import ABC
import threading
import queue
import copy
import time
#生产者/消费者基类
class BaseComponent(ABC):
def __init__(self):
self._producers = []
self._consumers = []
def bind_producer(self, upstream):
self._producers.append(upstream)
def bind_consumer(self, downstream):
self._consumers.append(downstream)
class Send_Recv(BaseComponent):
def __init__(self):
super().__init__()
self._work_flag = None
def start(self):
self._work_flag = True
def send_msg(self, msg):
pass
def stop(self):
self._work_flag = False
class SendConsumer(BaseComponent):
def __init__(self):
super().__init__()
self._send_thread = None
self._run_flag = None
def start(self):
self._run_flag = True
self._send_thread = threading.Thread(name="MainThread", target=self._main_process)
self._send_thread.start()
def _main_process(self):
while self._run_flag:
data=[0x02]
received_data = self._producers[0].send_msg(data)
for consumer in self._consumers:
consumer.consume(received_data)
def consume(self, msg):
#消费数据
pass
def stop(self) -> None:
self._run_flag = False
class DataParseConsumer_1(BaseComponent):
def __init__(self):
super().__init__()
self._data_queue = queue.Queue()
def consume(self, raw_data):
#把数据放在缓存队列中
self._data_queue.put(copy.copy(raw_data))
pass
def _get_data(self):
while self._run_flag:
try:
data = self._data_queue.get(block=False)
except queue.Empty as e:
time.sleep(0.001)
continue
# 处理data
def start(self):
self._run_flag = True
super().start()
pass
def stop(self):
super().stop()
class DataParseConsumer_2(BaseComponent):
def __init__(self):
super().__init__()
self._data_queue = queue.Queue()
def consume(self, raw_data):
#把数据放在缓存队列中
self._data_queue.put(copy.copy(raw_data))
pass
def _get_data(self):
while self._run_flag:
try:
data = self._data_queue.get(block=False)
except queue.Empty as e:
time.sleep(0.001)
continue
# 处理data
def start(self):
self._run_flag = True
super().start()
pass
def stop(self):
super().stop()
def bind_producer_and_consumer(producer, consumer):
producer.bind_consumer(consumer)
consumer.bind_producer(producer)
#生成生产者/消费者对象
data_parse_consume_1 = DataParseConsumer_1()
data_parse_consume_2 = DataParseConsumer_2()
p = Send_Recv()
p_c = SendConsumer()
#关联生产者/消费者对象
bind_producer_and_consumer(p, p_c)
bind_producer_and_consumer(p_c, data_parse_consume_1)
bind_producer_and_consumer(p_c, data_parse_consume_2)上述举例中，对于p_c来说，data_parse_consume_1和data_parse_consume_2都是消费者，属于同一个主题。
p_c的_consumers有同属于一个主题的两个消费者，即[data_parse_consume_1, data_parse_consume_2]。
二、下面举例两个主题的消息队列
python
import threading
import time
import queue
from typing import Dict, List
class MessageBroker:
"""发布订阅消息代理中心：维护主题->订阅者队列映射"""
def __init__(self):
# key: topic主题, value: 该主题下所有订阅者的队列列表
self._topics: Dict[str, List[queue.Queue]] = {}
self._lock = threading.Lock()
self._exit_sentinel = None # 哨兵退出标记
def subscribe(self, topic: str) -> queue.Queue:
"""订阅某个主题，返回该订阅者专属队列"""
sub_q = queue.Queue()
with self._lock:
if topic not in self._topics:
self._topics[topic] = []
self._topics[topic].append(sub_q)
return sub_q
def unsubscribe(self, topic: str, sub_q: queue.Queue):
"""取消订阅"""
with self._lock:
if topic in self._topics and sub_q in self._topics[topic]:
self._topics[topic].remove(sub_q)
def publish(self, topic: str, msg):
"""发布消息：广播给该主题全部订阅者，每个订阅者队列放入一份消息副本"""
with self._lock:
if topic not in self._topics:
return
for q in self._topics[topic]:
q.put(msg)
def broadcast_exit(self, topic: str):
"""给指定主题所有订阅者发送退出哨兵消息，通知线程退出"""
self.publish(topic, self._exit_sentinel)
class Publisher(threading.Thread):
"""发布者(生产者)：面向对象封装，向指定主题发布消息"""
def __init__(self, broker: MessageBroker, topic: str, publish_cnt: int, name: str):
super().__init__()
self.broker = broker
self.topic = topic
self.publish_cnt = publish_cnt
self.name = name
def run(self):
for i in range(self.publish_cnt):
msg = {"publisher": self.name, "data": f"data_{i}"}
self.broker.publish(self.topic, msg)
print(f"【{self.name}】发布主题[{self.topic}] → {msg}")
time.sleep(0.3)
print(f"==== {self.name} 发布完成 ====")
class Subscriber(threading.Thread):
"""订阅者(消费者)：订阅主题，接收广播消息"""
def __init__(self, broker: MessageBroker, topic: str, name: str):
super().__init__()
self.broker = broker
self.topic = topic
self.name = name
self.sub_queue = broker.subscribe(topic) # 订阅，拿到专属队列
def run(self):
while True:
msg = self.sub_queue.get()
# 读到哨兵，退出循环
if msg is None:
print(f"==== {self.name} 收到退出信号，结束订阅 ====")
self.sub_queue.task_done()
break
print(f"【{self.name}】收到主题[{self.topic}]消息: {msg}")
time.sleep(0.5) # 模拟消费耗时
self.sub_queue.task_done()
def close(self):
self.broker.unsubscribe(self.topic, self.sub_queue)
if __name__ == "__main__":
# 1. 创建消息代理中心
broker = MessageBroker()
topic_name = "sensor_topic"
# 2. 创建发布者（生产者）
pub1 = Publisher(broker, topic=topic_name, publish_cnt=4, name="发布者‑A")
# 3. 创建2个订阅者，订阅同一个主题；发布一条消息两个订阅者都会收到
sub1 = Subscriber(broker, topic=topic_name, name="订阅者‑1")
sub2 = Subscriber(broker, topic=topic_name, name="订阅者‑2")
# 启动线程
pub1.start()
sub1.start()
sub2.start()
# 等待发布者全部消息发布完毕
pub1.join()
# 广播退出信号，通知该主题所有订阅者退出
broker.broadcast_exit(topic_name)
# 等待订阅者线程安全结束
sub1.join()
sub2.join()
sub1.close()
sub2.close()
print("\n>>> 整个发布‑订阅程序全部结束")broker是消息代理中心，其_topics可以有多个主题。
_topics={"主题1":订阅者1的queue1, 订阅者1的queue2, "主题2":订阅者3的queue3, 订阅者4的queue4}
