过程：
对r1：
system-view
sysname r1
dhcp enable
ip pool VLAN100
gateway-list 192.168.100.1
network 192.168.100.0 mask 255.255.255.0
quit
ip pool VLAN200
gateway-list 192.168.200.1
network 192.168.200.0 mask 255.255.255.0
quit
interface GigabitEthernet 0/0/0
undo shutdown
quit
interface GigabitEthernet 0/0/0.100
dot1q termination vid 100
ip address 192.168.100.1 255.255.255.0
arp broadcast enable
dhcp select global
quit
interface GigabitEthernet 0/0/0.200
dot1q termination vid 200
ip address 192.168.200.1 255.255.255.0
arp broadcast enable
dhcp select global
对LSW1：
system-view
sysname LSW1
vlan batch 100 200
interface GigabitEthernet 0/0/1
port link-type access
port default vlan 100
interface GigabitEthernet 0/0/2
port link-type access
port default vlan 200
interface GigabitEthernet 0/0/3
port link-type trunk
port trunk allow-pass vlan 100 200
interface GigabitEthernet 0/0/4
port link-type trunk
port trunk allow-pass vlan 100 200
对LSW2：
system-view
sysname LSW2
vlan batch 100 200
interface GigabitEthernet 0/0/1
port link-type access
port default vlan 100
interface GigabitEthernet 0/0/2
port link-type access
port default vlan 200
interface GigabitEthernet 0/0/3
port link-type trunk
port trunk allow-pass vlan 100 200

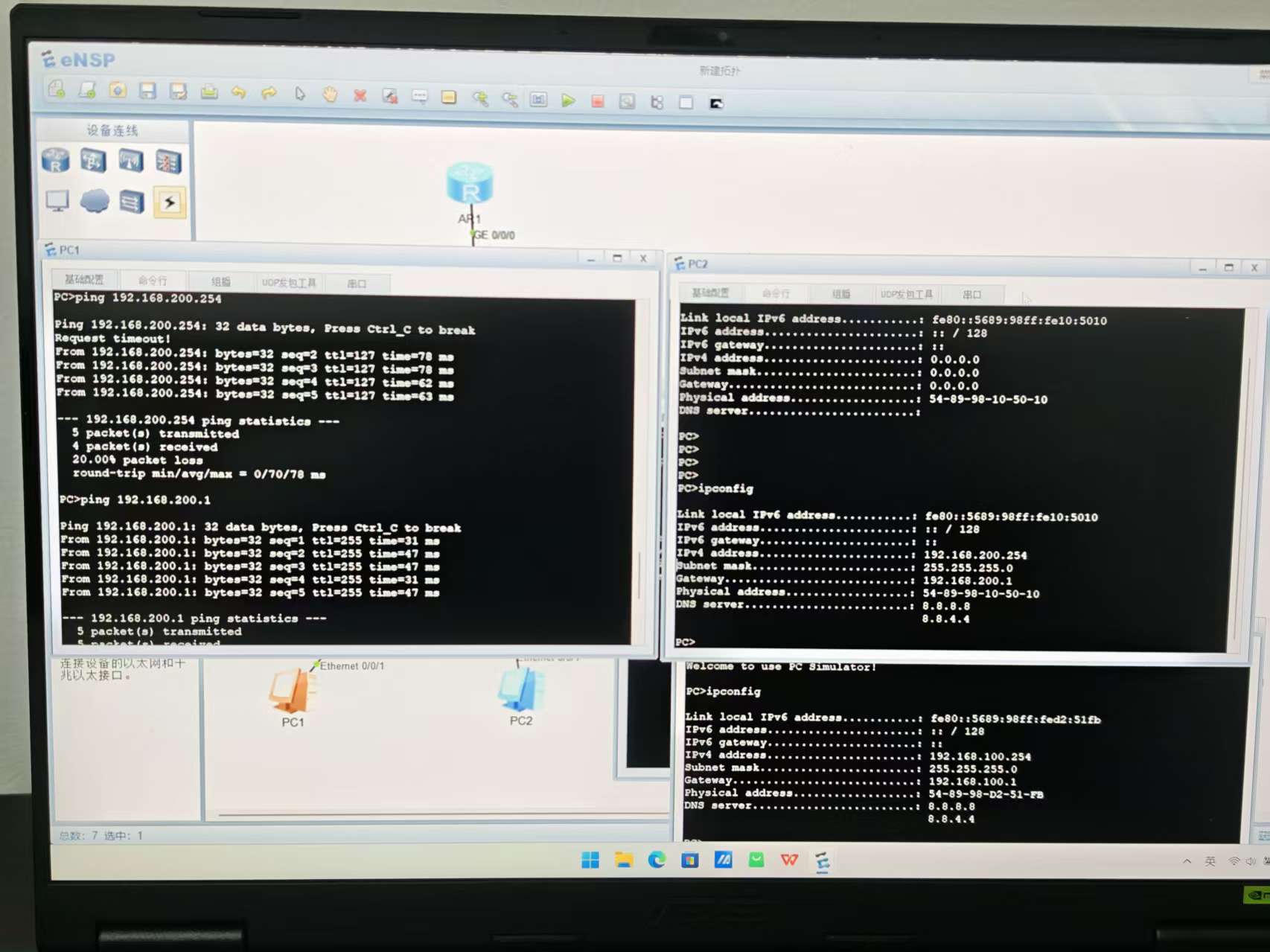

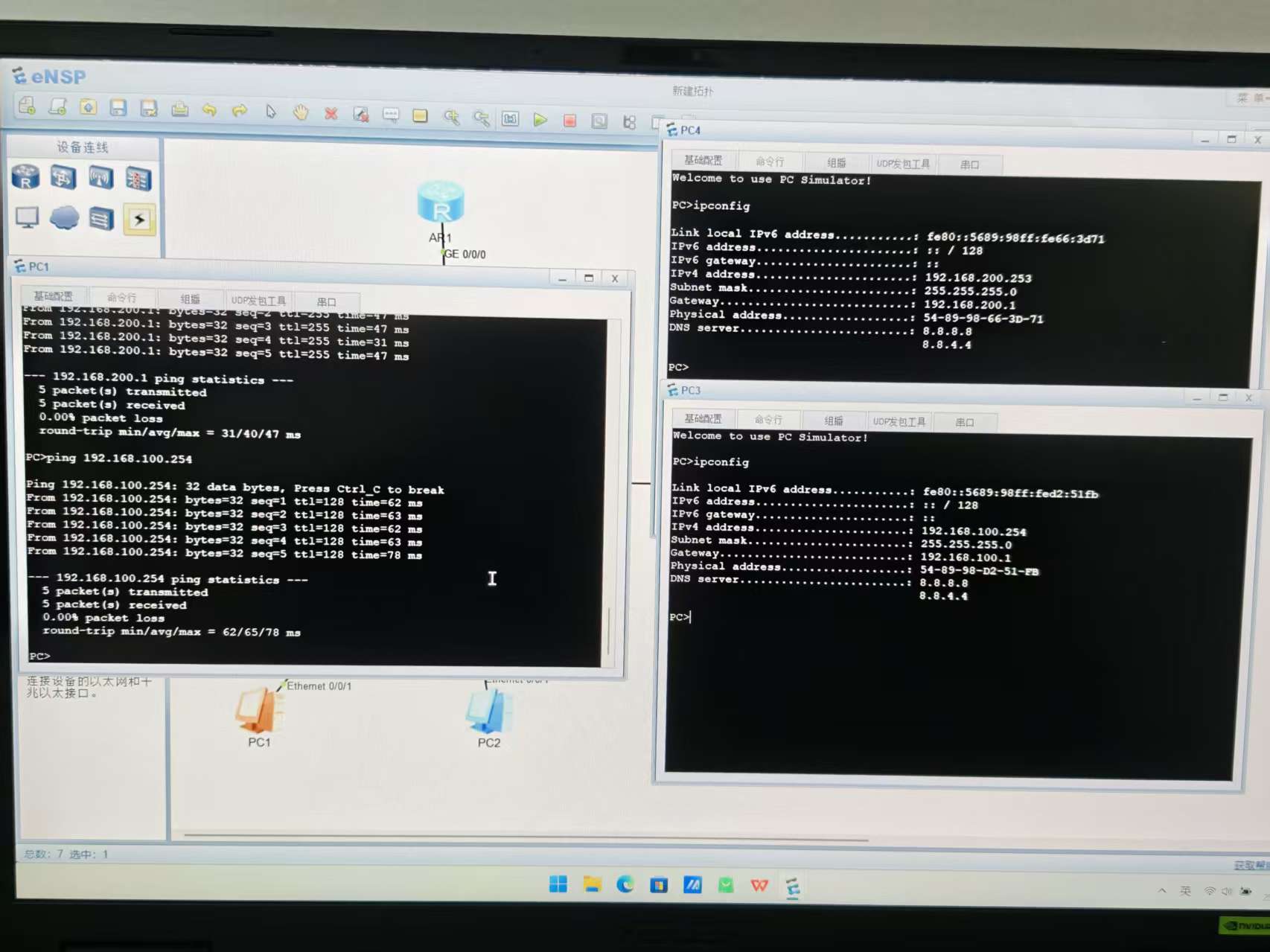

结果
