AndroidKMP之网络请求

1.前言：

前面2篇讲解过KMP初探和瀑布流，感觉KMP还是挺有意思的，这篇主要讲解KMP中的网络请求实现和遇到的问题，直接上代码。

2.项目总览：

ruby 复制代码
KMPWanDemo/

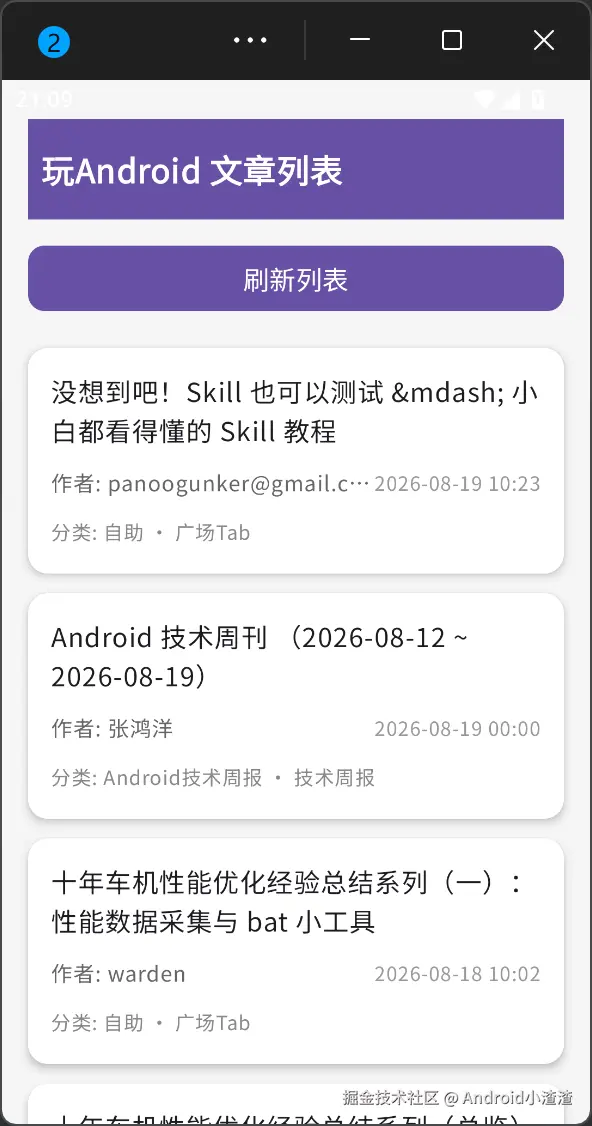

├─ androidApp/          # Android壳模块，只负责Activity，无业务

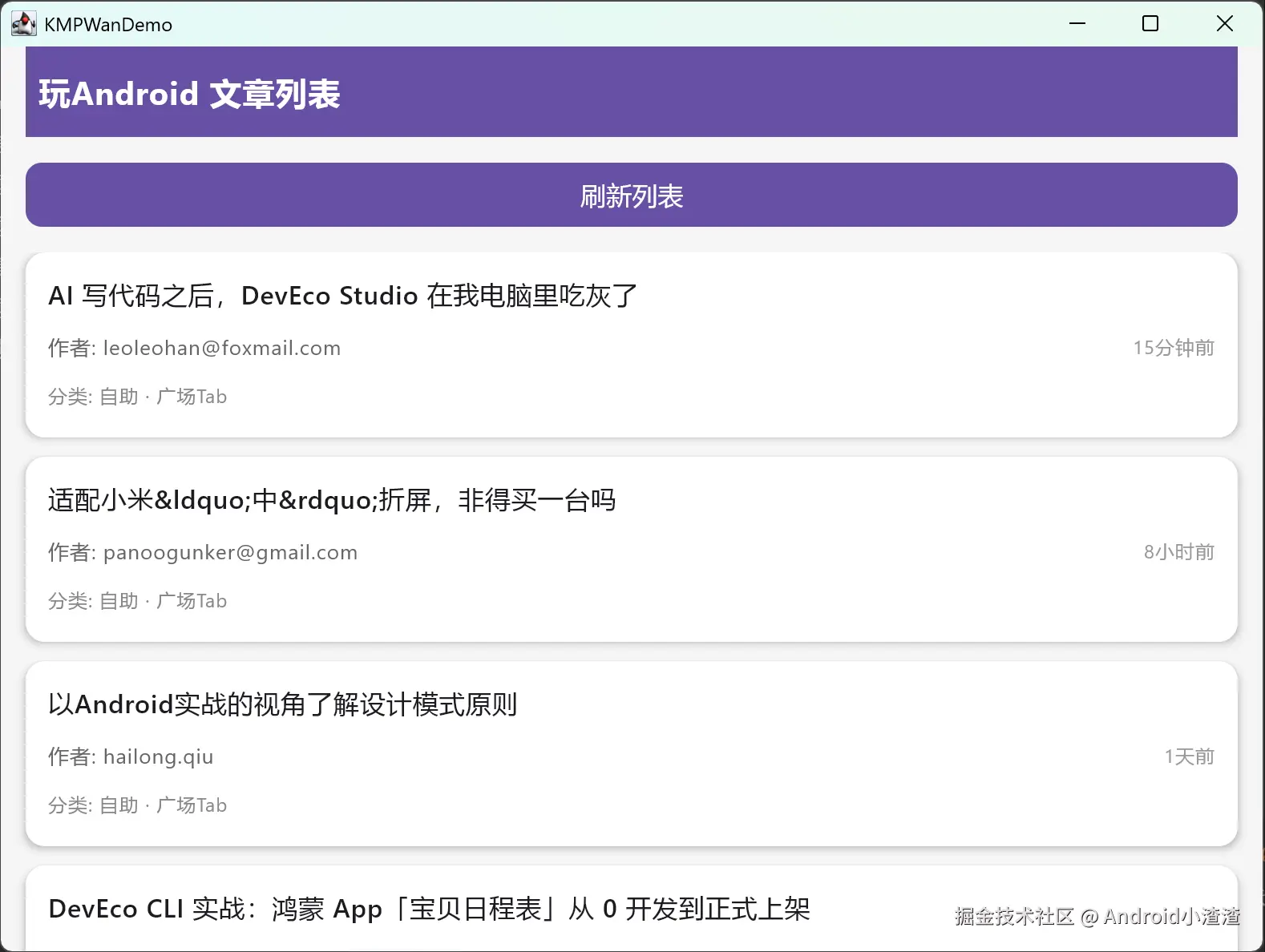

├─ desktopApp/          # JVM桌面壳，只负责窗口入口
├─ iosApp/              # iOS壳，ComposeUIViewController入口

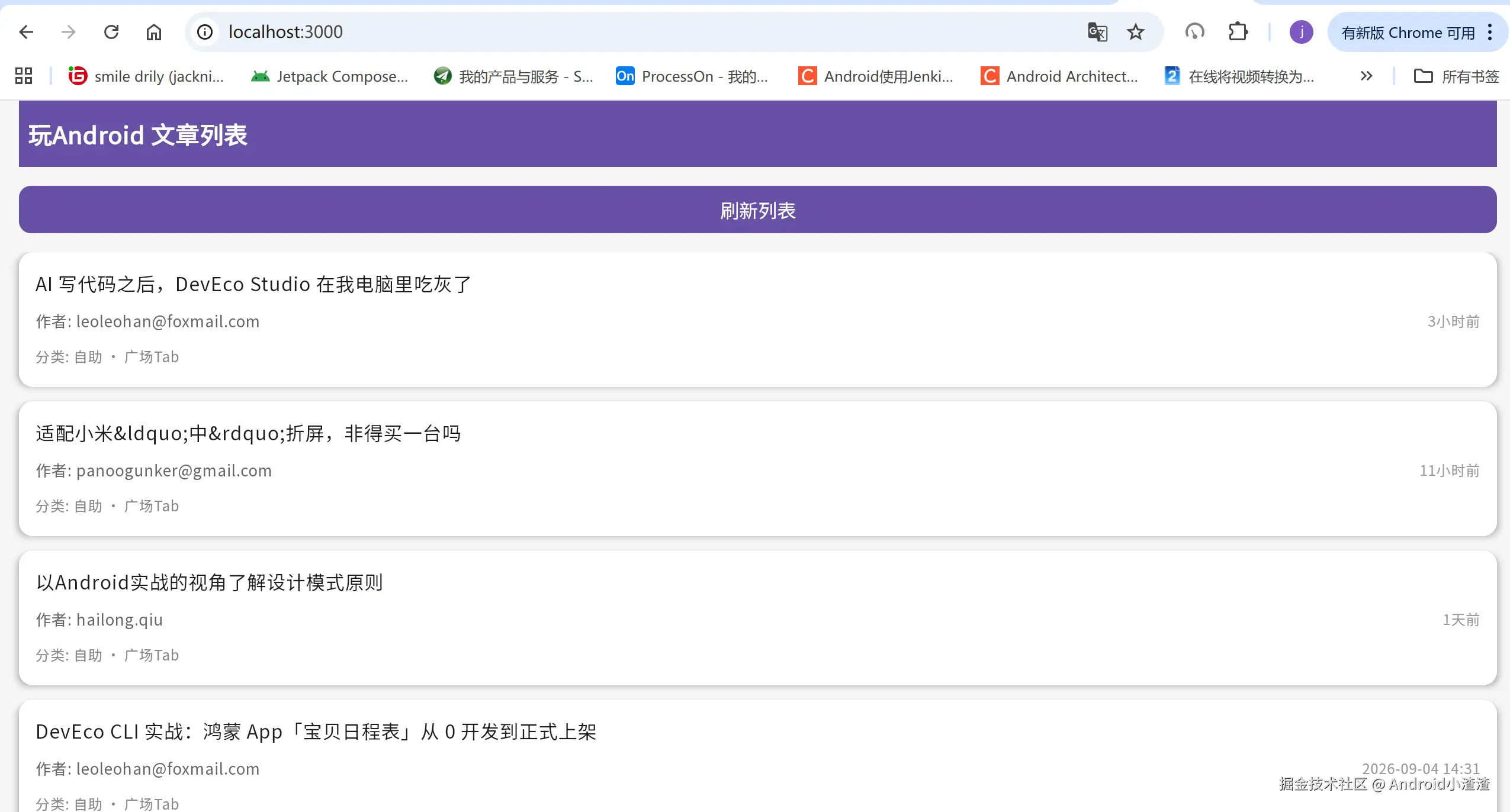

├─ webApp/              # WasmJs/JS网页壳，ComposeViewport入口
└─ shared/              # 核心跨平台业务模块
   └─ src
      ├─ commonMain
      │  ├─ composeResources/        # compose‑resources资源（字体、图片）
      │  │  └─ font/
      │  └─ kotlin/com/example/kmpwandemo
      │     ├─ data                 # 数据模型层（序列化实体）
      │     │  ├─ Article.kt
      │     │  └─ ArticleListResponse.kt
      │     ├─ net                  # 网络工厂、expect声明、日志工具
      │     │  ├─ HttpClientFactory.kt   // expect fun createKtorHttpClient()
      │     │  └─ AppLogger.kt          // expect日志封装
      │     ├─ http                 # Repository业务仓库层
      │     │  └─ WanRepository.kt
      │     ├─ ui                   # Compose UI全部页面组件
      │     │  ├─ screen
      │     │  │  └─ ArticleListScreen.kt
      │     │  └─ component         # 可复用小组件
      │     │     └─ ArticleItem.kt
      │     ├─ viewmodel            # MVI ViewModel
      │     │  └─ ArticleListViewModel.kt
      │     ├─ theme                # 主题、字体、Typography
      │     │  ├─ AppFonts.kt
      │     │  └─ FontProvider.kt
      │     ├─ App.kt               # 根Compose组件
      │     └─ Platform.kt          // expect fun getWanBaseUrl()
      │
      ├─ androidMain/kotlin/com/example/kmpwandemo
      │  ├─ net
      │  │  ├─ HttpClientFactory.android.kt // actual 客户端 okhttp
      │  │  └─ AppLogger.android.kt
      │  └─ Platform.android.kt             // actual getWanBaseUrl
      │
      ├─ jvmMain/kotlin/com/example/kmpwandemo
      │  ├─ net
      │  │  ├─ HttpClientFactory.jvm.kt     // actual 客户端 java
      │  │  └─ AppLogger.jvm.kt
      │  └─ Platform.jvm.kt                 // actual getWanBaseUrl【桌面】
      │
      ├─ iosMain/kotlin/com/example/kmpwandemo
      │  ├─ net
      │  │  ├─ HttpClientFactory.ios.kt
      │  │  └─ AppLogger.ios.kt
      │  └─ Platform.ios.kt
      │
      ├─ jsMain/kotlin/com/example/kmpwandemo
      │  ├─ net
      │  │  ├─ HttpClientFactory.js.kt
      │  │  └─ AppLogger.js.kt
      │  └─ Platform.js.kt
      │
      └─ wasmJsMain/kotlin/com/example/kmpwandemo
         ├─ net
         │  ├─ HttpClientFactory.wasm.kt
         │  └─ AppLogger.wasm.kt
         └─ Platform.wasm.kt
​

3.项目架构：

技术栈：Kotlin Multiplatform + Compose Multiplatform (M3) + Ktor + ViewModel (MVI) + expect‑actual 多平台适配

支持：Android / JVM 桌面 /iOS/ JS / WasmJs

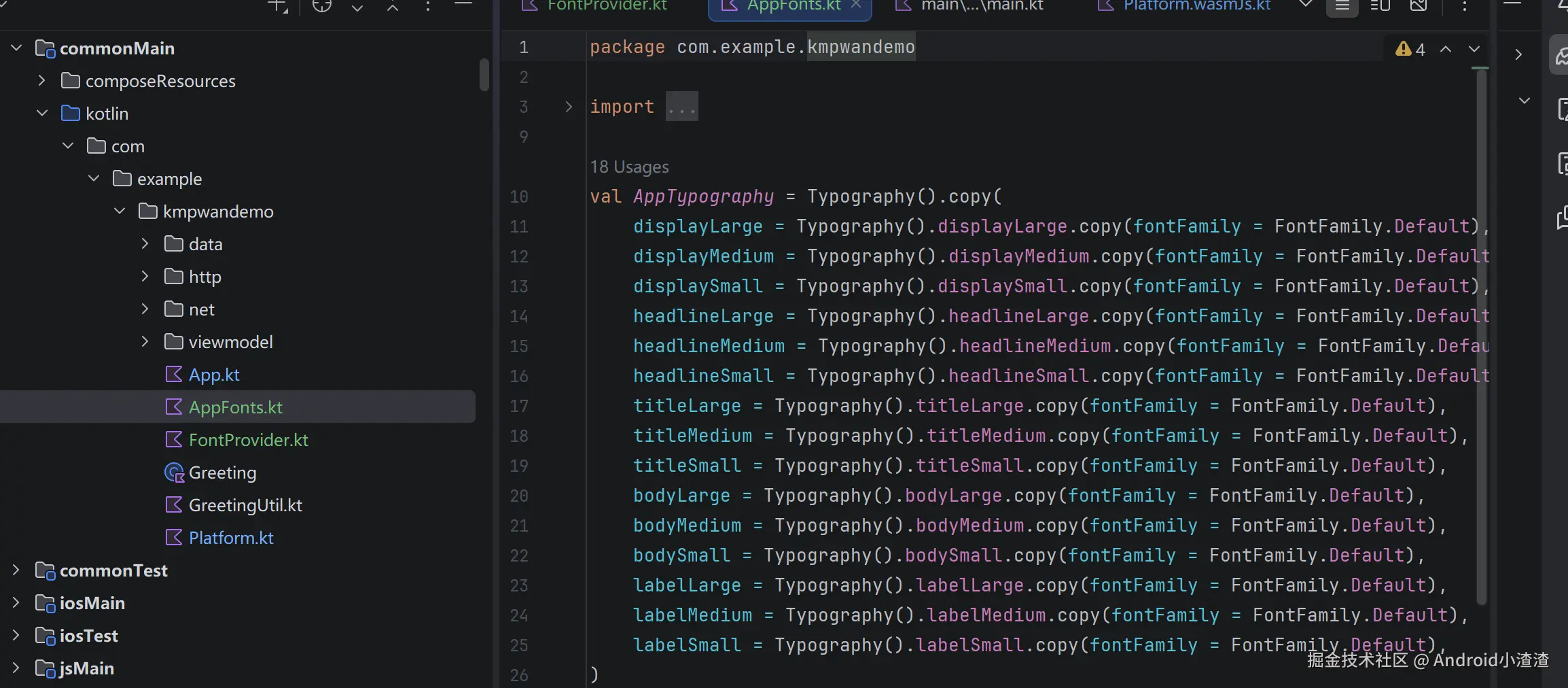

资源：compose‑resources 字体资源，全部封装于 common 层，各平台不直接访问Res

4.分层简要回顾：

分层 职责
data kotlinx‑serialization 数据实体
net 多平台 HttpClient 工厂、日志 expect‑actual
http Repository，封装 suspend 网络请求
viewmodel MVI：Intent + UiState + ViewModel，持有 Repository
ui/screen 页面 Composable，收集状态，分发 Intent
ui/component 通用 UI 子组件
theme 字体、Typography、颜色主题

5.遇到问题：

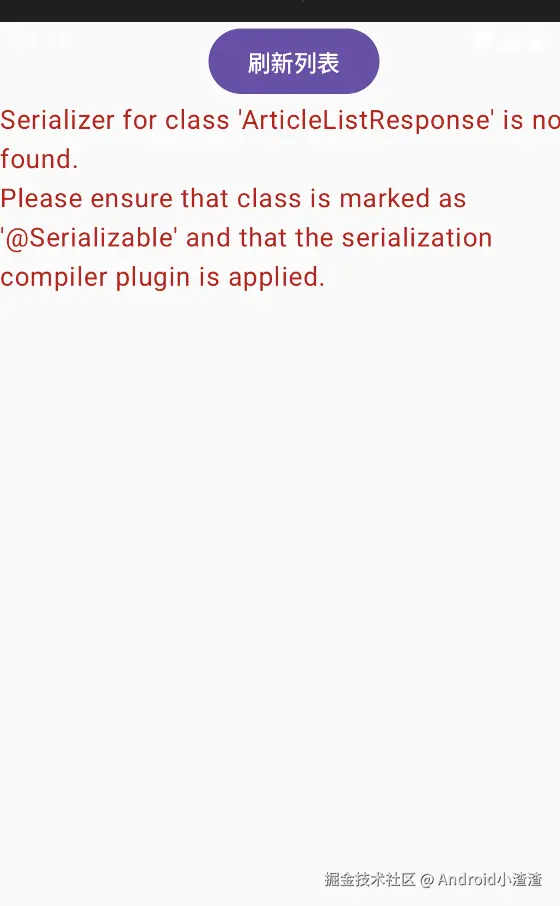

5.1 问题1Serializable序列化失败

原因：导入了错误的依赖包和插件

kotlin 复制代码
package com.example.kmpwandemo.data
import kotlinx.serialization.Serializable  @Serializable data class WanResponse<T>(     val data: T,     val errorCode: Int,     val errorMsg: String )  @Serializable data class Article(     val id: Long,     val title: String,     val author: String,     val desc: String,     val link: String )  @Serializable data class ArticleListData(     val datas: List<Article>,     val total: Int )  @Serializable data class ArticleListResponse(     val data: ArticleListData,     val errorCode: Int,     val errorMsg: String ) package com.example.kmpwandemo.http  import com.example.kmpwandemo.data.ArticleListData import com.example.kmpwandemo.data.ArticleListResponse import com.example.kmpwandemo.data.WanResponse import [com.example.kmpwandemo.net](https://com.example.kmpwandemo.net).createKtorHttpClient import io.ktor.client.HttpClient import io.ktor.client.call.body import io.ktor.client.plugins.contentnegotiation.ContentNegotiation import io.ktor.client.request.get import io.ktor.serialization.kotlinx.json.json import kotlinx.serialization.json.Json import io.ktor.client.plugins.logging.*  class WanRepository {     private val httpClient: HttpClient = createKtorHttpClient().config {         install(Logging){             level = LogLevel.BODY         }         install(ContentNegotiation) {             json(Json {                 ignoreUnknownKeys = true                 prettyPrint = false                 isLenient = true             })         }     }      suspend fun getArticleList(page: Int): ArticleListResponse {         val resp = httpClient.get("https://www.wanandroid.com/article/list/$page/json")         return resp.body ()} }
​
​

解决方法：

在libs.versions.toml加上Serialization插件配置：

统一使用org.jetbrains.kotlin.plugin.serialization

ini 复制代码
[versions]
agp = "9.3.0"
android-compileSdk = "37"
android-minSdk = "26"
android-targetSdk = "36"
androidx-activity = "1.13.0"
androidx-appcompat = "1.8.0"
androidx-core = "1.19.0"
androidx-espresso = "3.7.0"
androidx-lifecycle = "2.11.0-beta01"
androidx-testExt = "1.3.0"
composeMultiplatform = "1.11.1"
junit = "4.13.2"
kotlin = "2.4.10"
kotlin-wrappers = "2026.8.4"
kotlinx-coroutines = "1.11.0"
ktor = "3.5.2"
ktorClientLogging = "3.5.2"
material3 = "1.11.0-alpha07"
coroutines = "1.9.0"
lifecycle-viewmodel = "2.8.6"
​
[libraries]
kotlin-test = { module = "org.jetbrains.kotlin:kotlin-test", version.ref = "kotlin" }
kotlin-testJunit = { module = "org.jetbrains.kotlin:kotlin-test-junit", version.ref = "kotlin" }
junit = { module = "junit:junit", version.ref = "junit" }
androidx-core-ktx = { module = "androidx.core:core-ktx", version.ref = "androidx-core" }
androidx-testExt-junit = { module = "androidx.test.ext:junit", version.ref = "androidx-testExt" }
androidx-espresso-core = { module = "androidx.test.espresso:espresso-core", version.ref = "androidx-espresso" }
androidx-appcompat = { module = "androidx.appcompat:appcompat", version.ref = "androidx-appcompat" }
androidx-activity-compose = { module = "androidx.activity:activity-compose", version.ref = "androidx-activity" }
compose-uiTooling = { module = "org.jetbrains.compose.ui:ui-tooling", version.ref = "composeMultiplatform" }
androidx-lifecycle-viewmodelCompose = { module = "org.jetbrains.androidx.lifecycle:lifecycle-viewmodel-compose", version.ref = "androidx-lifecycle" }
androidx-lifecycle-runtimeCompose = { module = "org.jetbrains.androidx.lifecycle:lifecycle-runtime-compose", version.ref = "androidx-lifecycle" }
compose-runtime = { module = "org.jetbrains.compose.runtime:runtime", version.ref = "composeMultiplatform" }
compose-foundation = { module = "org.jetbrains.compose.foundation:foundation", version.ref = "composeMultiplatform" }
compose-material3 = { module = "org.jetbrains.compose.material3:material3", version.ref = "material3" }
compose-ui = { module = "org.jetbrains.compose.ui:ui", version.ref = "composeMultiplatform" }
compose-components-resources = { module = "org.jetbrains.compose.components:components-resources", version.ref = "composeMultiplatform" }
compose-uiToolingPreview = { module = "org.jetbrains.compose.ui:ui-tooling-preview", version.ref = "composeMultiplatform" }
kotlinx-coroutinesSwing = { module = "org.jetbrains.kotlinx:kotlinx-coroutines-swing", version.ref = "kotlinx-coroutines" }
kotlinx-serialization-json = { module = "org.jetbrains.kotlinx:kotlinx-serialization-json", version.ref = "kotlinx-coroutines" }
wrappers-browser = { module = "org.jetbrains.kotlin-wrappers:kotlin-browser", version.ref = "kotlin-wrappers" }
ktor-client-core = { module = "io.ktor:ktor-client-core", version.ref = "ktor" }
ktor-client-okhttp = { module = "io.ktor:ktor-client-okhttp", version.ref = "ktor" }
ktor-client-js = { module = "io.ktor:ktor-client-js", version.ref = "ktor" }
ktor-client-darwin = { module = "io.ktor:ktor-client-darwin", version.ref = "ktor" }
ktor-client-content-negotiation = { module = "io.ktor:ktor-client-content-negotiation", version.ref = "ktor" }
ktor-serialization-kotlinx-json = { module = "io.ktor:ktor-serialization-kotlinx-json", version.ref = "ktor" }
ktor-client-cio = { module = "io.ktor:ktor-client-cio", version.ref = "ktor" }
ktor-client-android = { module = "io.ktor:ktor-client-android", version.ref = "ktor" }
ktor-client-wasm = { module = "io.ktor:ktor-client-js-wasm-js", version.ref = "ktor" }
ktor-client-java = { module = "io.ktor:ktor-client-java", version.ref = "ktor" }
ktor-client-logging = { module = "io.ktor:ktor-client-logging", version.ref = "ktorClientLogging" }
kotlinx-coroutines-core = { module = "org.jetbrains.kotlinx:kotlinx-coroutines-core", version.ref = "coroutines" }
[plugins]
androidApplication = { id = "com.android.application", version.ref = "agp" }
androidMultiplatformLibrary = { id = "com.android.kotlin.multiplatform.library", version.ref = "agp" }
composeMultiplatform = { id = "org.jetbrains.compose", version.ref = "composeMultiplatform" }
composeCompiler = { id = "org.jetbrains.kotlin.plugin.compose", version.ref = "kotlin" }
kotlinJvm = { id = "org.jetbrains.kotlin.jvm", version.ref = "kotlin" }
kotlinMultiplatform = { id = "org.jetbrains.kotlin.multiplatform", version.ref = "kotlin" }
kotlinSerialization = { id = "org.jetbrains.kotlin.plugin.serialization", version.ref = "kotlin" }

在shared模块添加依赖：

scss 复制代码
plugins {
    alias(libs.plugins.kotlinMultiplatform)
    alias(libs.plugins.androidMultiplatformLibrary)
    alias(libs.plugins.composeMultiplatform)
    alias(libs.plugins.composeCompiler)
    alias(libs.plugins.kotlinSerialization)
}

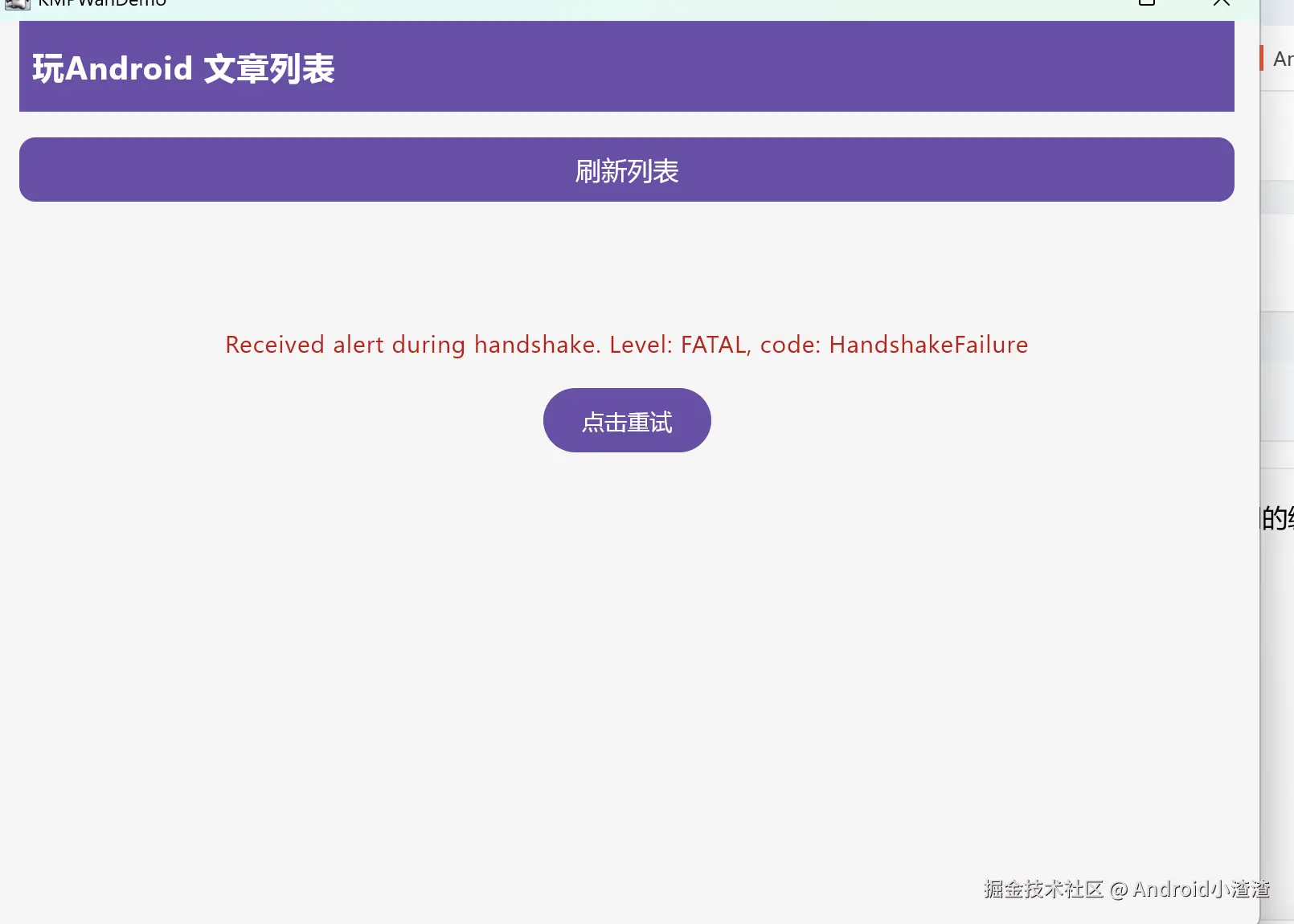

5.2 问题2桌面端报错：

根因：Ktor CIO 引擎在 JVM 桌面端的 TLS 实现兼容性差，访问 wanandroid 的 HTTPS 时握手失败。这是 CIO 引擎的已知问题。

修复桌面端改用Java引擎

JVM 平台有 3 个引擎可选：CIO、Java、OkHttp。桌面端推荐用 ktor-client-java，基于 JDK 内置 HttpClient，TLS 兼容性最好。

scss 复制代码

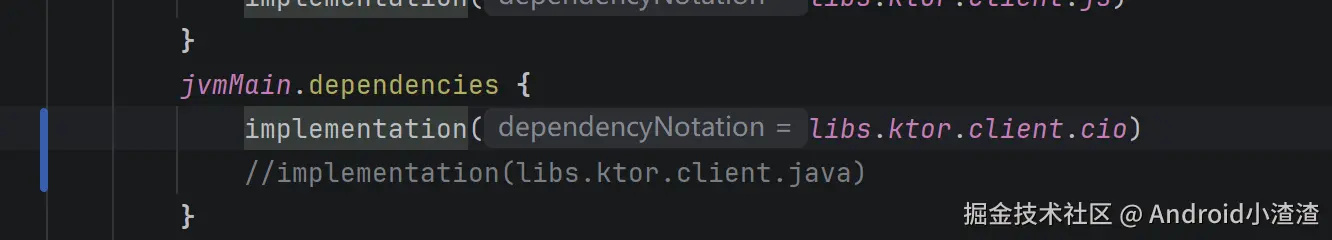

jvmMain.dependencies {
    //implementation(libs.ktor.client.cio)
    implementation(libs.ktor.client.java)
}

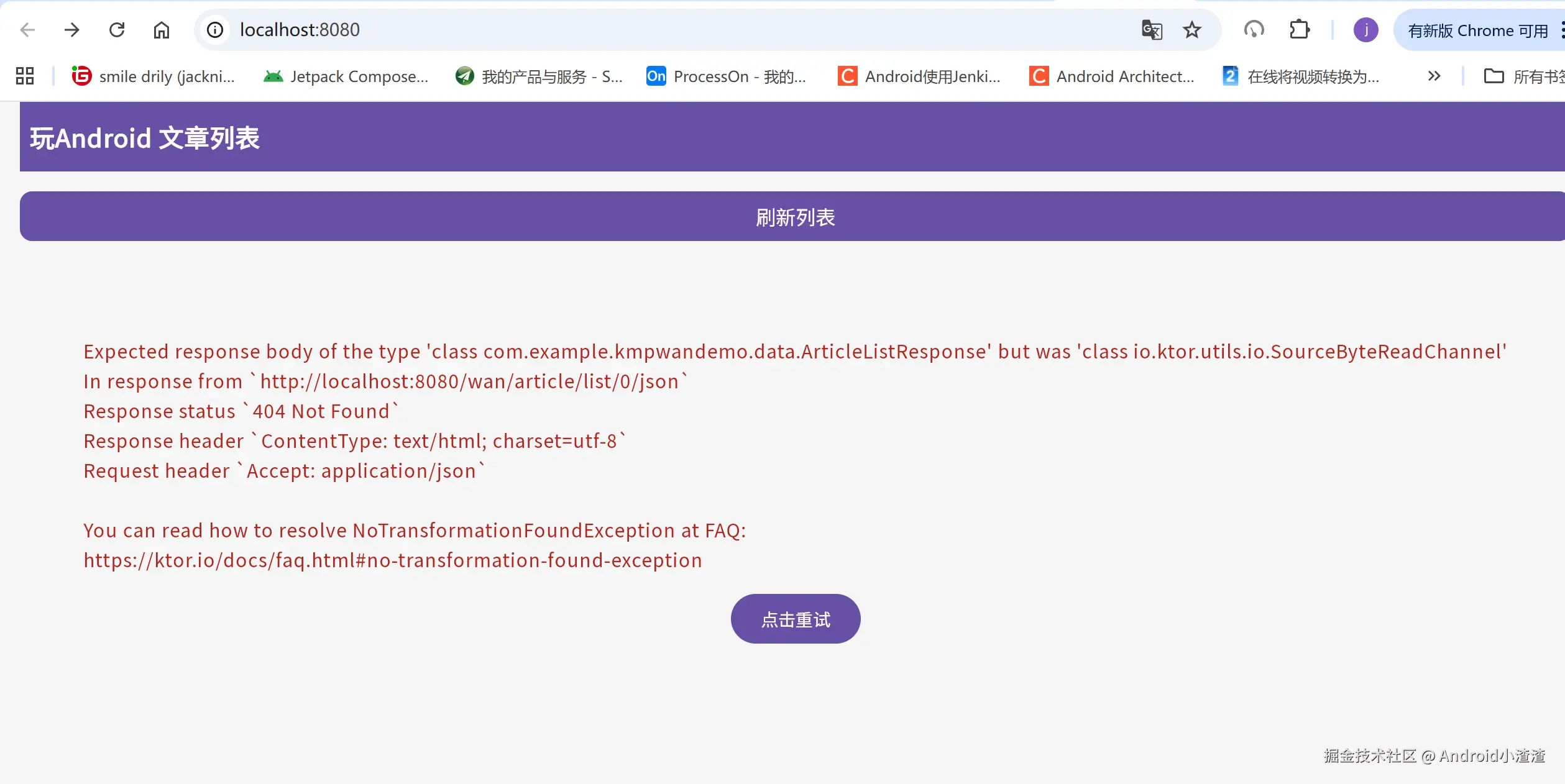

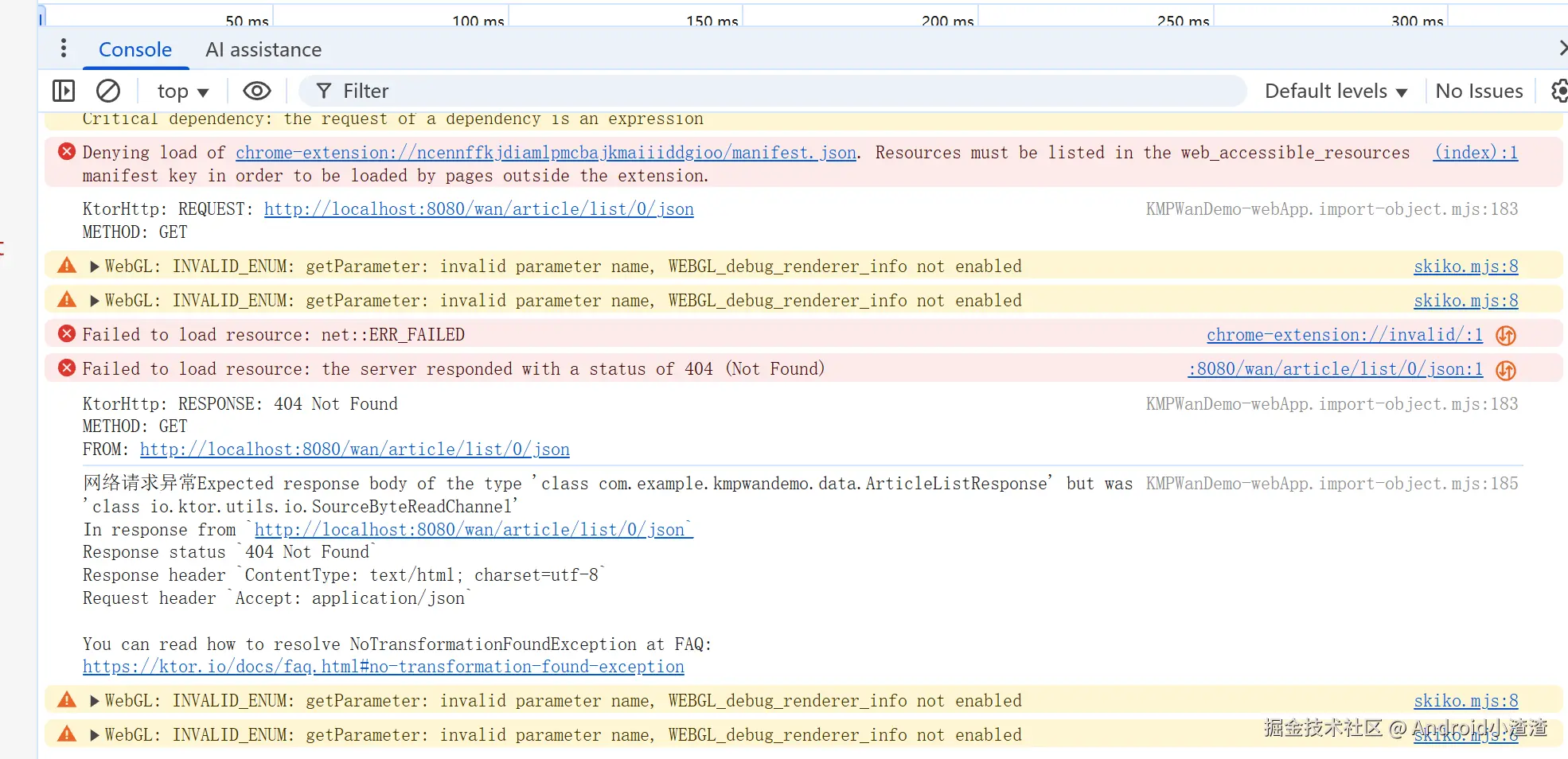

5.3 问题3Ktor导包错误

原因:jsMain、webMain、jvm平台Ktor导包错误

ruby 复制代码
1:40:31: Executing 'wasmJsBrowserDevelopmentRun'...
Executing tasks: [wasmJsBrowserDevelopmentRun] in project D:\workspce\KMPWanDemo\webApp
Reusing configuration cache.
​
>
> Task :shared:convertXmlValueResourcesForWebMain NO-SOURCE
> Task :shared:generateExpectResourceCollectorsForCommonMain UP-TO-DATE
> Task :kotlinWasmKotlinNpmCachesSetup
> Task :shared:copyNonXmlValueResourcesForWasmJsMain NO-SOURCE
> Task :shared:generateComposeResClass UP-TO-DATE
> Task :webApp:kmpPartiallyResolvedDependenciesChecker
> Task :shared:convertXmlValueResourcesForWasmJsMain NO-SOURCE
> Task :shared:kmpPartiallyResolvedDependenciesChecker
> Task :shared:checkWasmJsMainComposeLibrariesCompatibility
> Task :shared:copyNonXmlValueResourcesForWebMain NO-SOURCE
> Task :webApp:checkKotlinGradlePluginConfigurationErrors SKIPPED
> Task :webApp:checkWasmJsMainComposeLibrariesCompatibility
> Task :webApp:convertXmlValueResourcesForWasmJsMain NO-SOURCE
> Task :shared:checkKotlinGradlePluginConfigurationErrors SKIPPED
> Task :shared:convertXmlValueResourcesForCommonMain NO-SOURCE
> Task :webApp:generateComposeResClass SKIPPED
> Task :webApp:convertXmlValueResourcesForCommonMain NO-SOURCE
> Task :shared:prepareComposeResourcesTaskForWasmJsMain NO-SOURCE
> Task :webApp:generateExpectResourceCollectorsForCommonMain SKIPPED
> Task :webApp:copyNonXmlValueResourcesForCommonMain NO-SOURCE
> Task :webApp:convertXmlValueResourcesForWebMain NO-SOURCE
> Task :shared:generateResourceAccessorsForWasmJsMain NO-SOURCE
> Task :webApp:copyNonXmlValueResourcesForWasmJsMain NO-SOURCE
> Task :webApp:copyNonXmlValueResourcesForWebMain NO-SOURCE
> Task :webApp:unpackSkikoWasmRuntime UP-TO-DATE
> Task :shared:prepareComposeResourcesTaskForWebMain NO-SOURCE
> Task :shared:copyNonXmlValueResourcesForCommonMain UP-TO-DATE
> Task :kotlinWasmRestoreYarnLock
> Task :webApp:processSkikoRuntimeForKWasm UP-TO-DATE
> Task :shared:generateResourceAccessorsForWebMain NO-SOURCE
> Task :webApp:prepareComposeResourcesTaskForWebMain NO-SOURCE
> Task :webApp:prepareComposeResourcesTaskForCommonMain NO-SOURCE
> Task :webApp:generateResourceAccessorsForWebMain SKIPPED
> Task :webApp:generateResourceAccessorsForCommonMain SKIPPED
> Task :webApp:prepareComposeResourcesTaskForWasmJsMain NO-SOURCE
> Task :webApp:generateResourceAccessorsForWasmJsMain SKIPPED
> Task :webApp:generateActualResourceCollectorsForWasmJsMain SKIPPED
> Task :shared:prepareComposeResourcesTaskForCommonMain UP-TO-DATE
> Task :webApp:assembleWasmJsMainResources UP-TO-DATE
> Task :shared:wasmJsPackageJson UP-TO-DATE
> Task :shared:generateResourceAccessorsForCommonMain UP-TO-DATE
> Task :shared:generateActualResourceCollectorsForWasmJsMain UP-TO-DATE
> Task :shared:assembleWasmJsMainResources UP-TO-DATE
> Task :webApp:wasmJsResolveSelfResourcesCopyHierarchicalMultiplatformResources UP-TO-DATE
> Task :shared:wasmJsCopyHierarchicalMultiplatformResources UP-TO-DATE
> Task :webApp:wasmJsPackageJson UP-TO-DATE
> Task :shared:wasmJsZipMultiplatformResourcesForPublication UP-TO-DATE
> Task :shared:wasmJsTestPackageJson UP-TO-DATE
> Task :webApp:wasmJsResolveResourcesFromDependencies UP-TO-DATE
> Task :webApp:wasmJsTestPackageJson UP-TO-DATE
> Task :webApp:wasmJsAggregateResources UP-TO-DATE
> Task :webApp:wasmJsProcessResources UP-TO-DATE
> Task :shared:wasmJsPublicPackageJson UP-TO-DATE
> Task :shared:compileKotlinWasmJs UP-TO-DATE
> Task :webApp:wasmJsPublicPackageJson UP-TO-DATE
> Task :webApp:compileKotlinWasmJs UP-TO-DATE
> Task :webApp:wasmJsMainClasses UP-TO-DATE
> Task :webApp:wasmJsTestPublicPackageJson UP-TO-DATE
> Task :shared:wasmJsTestPublicPackageJson UP-TO-DATE
> Task :kotlinWasmPackageJsonUmbrella UP-TO-DATE
> Task :wasmRootPackageJson UP-TO-DATE
> Task :webApp:compileDevelopmentExecutableKotlinWasmJs UP-TO-DATE
> Task :webApp:wasmJsDevelopmentExecutableCompileSync UP-TO-DATE
> Task :kotlinWasmNodeJsSetup UP-TO-DATE
> Task :kotlinWasmYarnSetup UP-TO-DATE
> Task :kotlinWasmNpmInstall UP-TO-DATE
> Task :kotlinWasmStoreYarnLock UP-TO-DATE
> Task :kotlinWasmToolingSetup UP-TO-DATE
> Task :webApp:wasmJsBrowserDevelopmentRun
>  [webpack-dev-server] Project is running at:
>  [webpack-dev-server] Loopback: [http://localhost:8080/](http://localhost:8080/), http://[::1]:8080/
>  [webpack-dev-server] On Your Network (IPv4): [http://169.254.16.140:8080/](http://169.254.16.140:8080/)
>  [webpack-dev-server] Content not from webpack is served from 'D:\workspce\KMPWanDemo\build\wasm\packages\KMPWanDemo-webApp\kotlin, D:\workspce\KMPWanDemo\webApp\build\processedResources\wasmJs\main, D:\workspce\KMPWanDemo' directory
> Critical dependency: the request of a dependency is an expression
> webpack 5.101.3 compiled with 1 warning in 786 ms
> asset 72436c62c9a3a9ce2d78.wasm 24.2 MiB [emitted] [immutable] [from: kotlin/KMPWanDemo-webApp.wasm] (auxiliary name: main)
> asset 6e23e5428398b92da386.wasm 8.25 MiB [emitted] [immutable] [from: kotlin/skiko.wasm] (auxiliary name: main)
> asset webApp.js 3.85 MiB [emitted] (name: main)
> runtime modules 30.1 KiB 13 modules
> javascript modules 1.44 MiB
>   modules by path C:/Users/Cloud/.kotlin/kotlin-npm-tooling/yarn/e49be039833f93cd8352f956b903151a...(truncated) 114 KiB
>     modules by path C:/Users/Cloud/.kotlin/kotlin-npm-tooling/yarn/e49be039833f93cd8352f956b903151a/...(truncated) 90.2 KiB 8 modules
>     modules by path C:/Users/Cloud/.kotlin/kotlin-npm-tooling/yarn/e49be039833f93cd8352f956b903151a/...(truncated) 5.17 KiB 4 modules
>     C:\Users\Cloud.kotlin\kotlin-npm-tooling\yarn\e49be039833f93cd8352f956b903151a...(truncated) 14.5 KiB [built] [code generated]
>     C:\Users\Cloud.kotlin\kotlin-npm-tooling\yarn\e49be039833f93cd8352f956b903151a...(truncated) 4.16 KiB [built] [code generated]
>   modules by path ./kotlin/ 971 KiB
>     modules by path ./kotlin/*.mjs 966 KiB 4 modules
>     ./kotlin/custom-formatters.js 5.06 KiB [built] [code generated]
>     ./kotlin/ lazy strict namespace object 160 bytes [built] [code generated]
>   ../../node_modules/@js-joda/core/dist/js-joda.esm.js 392 KiB [built] [code generated]
> asset modules 32.5 MiB (asset) 84 bytes (javascript)
>   ./kotlin/KMPWanDemo-webApp.wasm 24.2 MiB (asset) 42 bytes (javascript) [built] [code generated]
>   ./kotlin/skiko.wasm 8.25 MiB (asset) 42 bytes (javascript) [built] [code generated]
​

解决方法：

scss 复制代码
androidMain.dependencies {
    implementation(libs.compose.uiToolingPreview)
    implementation(libs.compose.uiTooling)
    implementation(libs.ktor.client.okhttp)
}
webMain.dependencies{
    implementation(libs.ktor.client.js)
}
jvmMain.dependencies {
    //implementation(libs.ktor.client.cio)
    implementation(libs.ktor.client.java)
}
jsMain.dependencies {
    implementation(libs.wrappers.browser)
    implementation(libs.ktor.client.js)
}
iosMain.dependencies{
        implementation(libs.ktor.client.darwin)
}
wasmJsMain.dependencies {
    implementation(libs.ktor.client.wasm) //wasm浏览器引擎
}

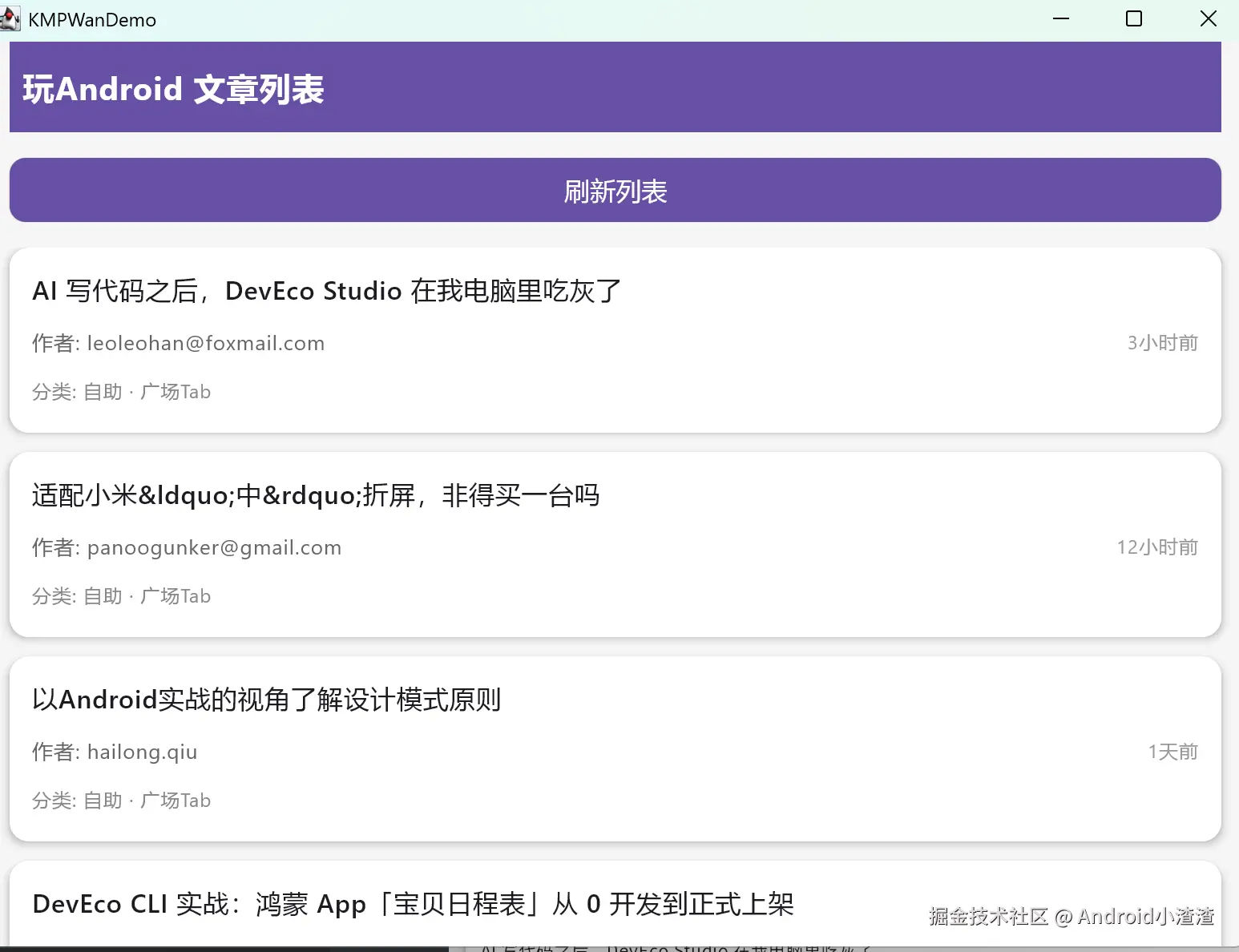

运行效果：

5.4 问题4WasmJs浏览器跨域：

markdown 复制代码
> wanandroid 接口 `https://www.wanandroid.com/article/list/0/json` **没有配置 CORS 允许浏览器跨域**
> 浏览器 Wasm 环境发起网络请求，直接报 CORS blocked，请求直接失败。
​
- Android/JVM 桌面：不存在浏览器 CORS 限制，可以正常请求
- WasmJs (浏览器)：受浏览器同源策略，**直接访问 wanandroid 接口会被拦截**

解决方法：

在webApp新建webpack.config.d目录------新建一个webpack.config.js文件。

lua 复制代码
config.devServer = config.devServer || {}
config.devServer.proxy = {
    '/api': {
        target: 'https://www.wanandroid.com',
        changeOrigin: true,
        pathRewrite: { '^/api': '' }
    }
}

5.5 Web端网络请求失败：

解决方法：使用npm开启代理,下载node.js,导入本地环境，前端同学应该玩得很溜，这里就不展开讲解详细步骤了.

arduino 复制代码

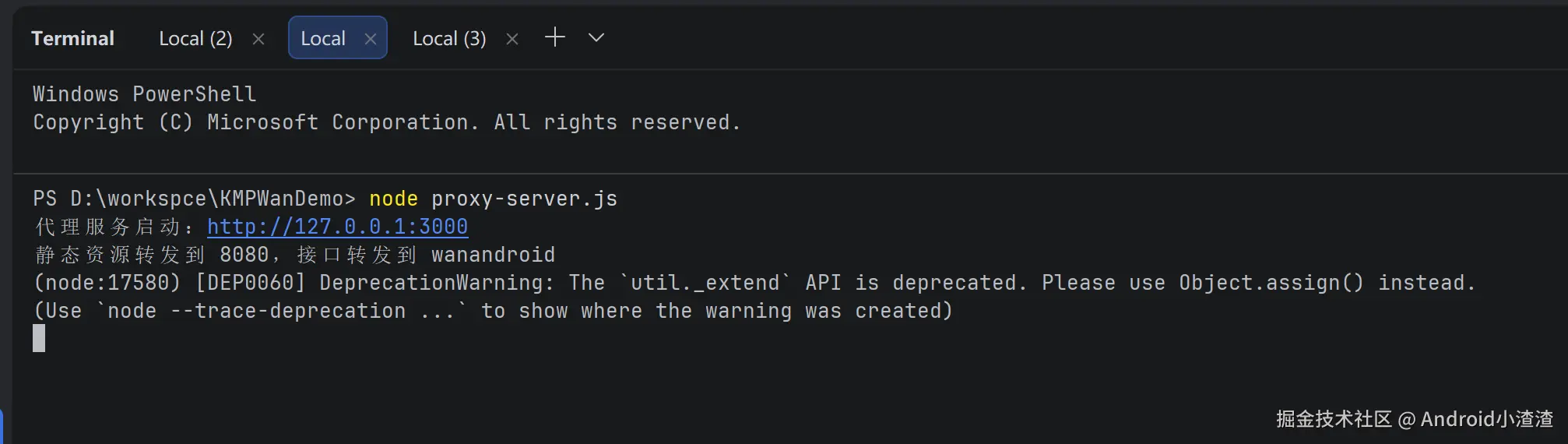

PS D:\workspce\KMPWanDemo> npm install
PS D:\workspce\KMPWanDemo> npm install http-proxy
PS D:\workspce\KMPWanDemo> node proxy-server.js
代理服务启动：http://127.0.0.1:3000
静态资源转发到 8080，接口转发到 wanandroid

在项目根目录有一个代理文件:proxy-server.js

javascript 复制代码
const http = require('http');
const httpProxy = require('http-proxy');

const proxy = httpProxy.createProxyServer({
    target: 'https://www.wanandroid.com',
    changeOrigin: true
});

// 拦截代理返回响应，强制json接口utf‑8
proxy.on('proxyRes', function (proxyRes, req, res) {
    if (req.url.startsWith("/wan")) {
        // 强制设置json编码
        proxyRes.headers['content-type'] = 'application/json; charset=utf-8';
        // 清除可能乱码的旧头
        delete proxyRes.headers['content-encoding'];
    }
});

// 捕获代理异常，防止崩溃
proxy.on('error', function (err, req, res) {
    if (!res.headersSent) {
        res.writeHead(500, { 'Content-Type': 'text/plain;charset=utf-8' });
    }
    res.end("Proxy error: " + err.message);
});

const server = http.createServer((req, res) => {
    if (req.url.startsWith("/wan")) {
        req.url = req.url.replace("/wan", "");
        proxy.web(req, res);
    } else {
        // wasmJs开发服务 8080
        proxy.web(req, res, {
            target: "http://127.0.0.1:8080"
        });
    }
});

server.listen(3000, "127.0.0.1", () => {
    console.log("代理服务启动：http://127.0.0.1:3000");
    console.log("静态资源转发到 8080，接口转发到 wanandroid");
});

由于我是本地运行的，端口号代理的是3000，所以运行的时候也要修改端口号，不改会报错

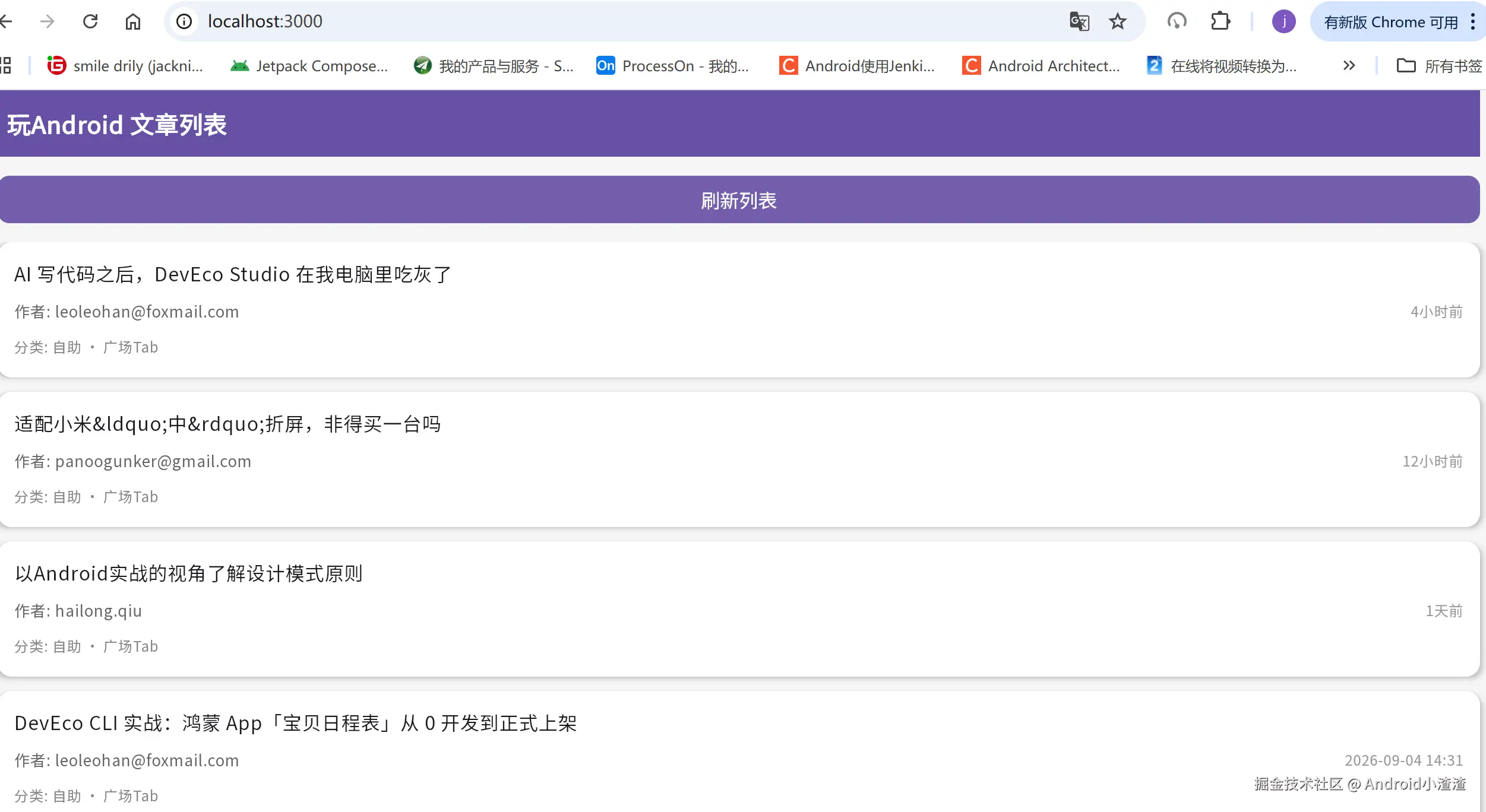

修改成http://localhost:3000/：

这里的端口根据你自己的测试代码来修改，改成一致即可

5.6 web端请求显示乱码：

修改Index.html和webApp都不行，最后使用本地的字体，在commonMain封装：

scss 复制代码
package com.example.kmpwandemo

import androidx.compose.material3.Typography
import androidx.compose.ui.text.font.FontFamily
import androidx.compose.ui.text.font.FontWeight
import kmpwandemo.shared.generated.resources.NotoSansSC_Regular
import kmpwandemo.shared.generated.resources.Res
import org.jetbrains.compose.resources.Font

val AppTypography = Typography().copy(
    displayLarge = Typography().displayLarge.copy(fontFamily = FontFamily.Default),
    displayMedium = Typography().displayMedium.copy(fontFamily = FontFamily.Default),
    displaySmall = Typography().displaySmall.copy(fontFamily = FontFamily.Default),
    headlineLarge = Typography().headlineLarge.copy(fontFamily = FontFamily.Default),
    headlineMedium = Typography().headlineMedium.copy(fontFamily = FontFamily.Default),
    headlineSmall = Typography().headlineSmall.copy(fontFamily = FontFamily.Default),
    titleLarge = Typography().titleLarge.copy(fontFamily = FontFamily.Default),
    titleMedium = Typography().titleMedium.copy(fontFamily = FontFamily.Default),
    titleSmall = Typography().titleSmall.copy(fontFamily = FontFamily.Default),
    bodyLarge = Typography().bodyLarge.copy(fontFamily = FontFamily.Default),
    bodyMedium = Typography().bodyMedium.copy(fontFamily = FontFamily.Default),
    bodySmall = Typography().bodySmall.copy(fontFamily = FontFamily.Default),
    labelLarge = Typography().labelLarge.copy(fontFamily = FontFamily.Default),
    labelMedium = Typography().labelMedium.copy(fontFamily = FontFamily.Default),
    labelSmall = Typography().labelSmall.copy(fontFamily = FontFamily.Default),
)
ini 复制代码
package com.example.kmpwandemo

import androidx.compose.runtime.Composable
import androidx.compose.runtime.remember
import androidx.compose.ui.text.font.FontFamily
import androidx.compose.ui.text.font.FontWeight
import kmpwandemo.shared.generated.resources.NotoSansSC_Regular
import org.jetbrains.compose.resources.Font
import kmpwandemo.shared.generated.resources.Res

@Composable
fun rememberNotoSansFontFamily(): FontFamily {
    val font = Font(
        resource = Res.font.NotoSansSC_Regular,
        weight = FontWeight.Normal
    )
    return FontFamily(font)
}

@Composable
fun rememberCustomTypography() : androidx.compose.material3.Typography {
    val family = rememberNotoSansFontFamily()
    return remember(AppTypography, family) {
        AppTypography.copy(
            displayLarge = AppTypography.displayLarge.copy(fontFamily = family),
            displayMedium = AppTypography.displayMedium.copy(fontFamily = family),
            displaySmall = AppTypography.displaySmall.copy(fontFamily = family),
            headlineLarge = AppTypography.headlineLarge.copy(fontFamily = family),
            headlineMedium = AppTypography.headlineMedium.copy(fontFamily = family),
            headlineSmall = AppTypography.headlineSmall.copy(fontFamily = family),
            titleLarge = AppTypography.titleLarge.copy(fontFamily = family),
            titleMedium = AppTypography.titleMedium.copy(fontFamily = family),
            titleSmall = AppTypography.titleSmall.copy(fontFamily = family),
            bodyLarge = AppTypography.bodyLarge.copy(fontFamily = family),
            bodyMedium = AppTypography.bodyMedium.copy(fontFamily = family),
            bodySmall = AppTypography.bodySmall.copy(fontFamily = family),
            labelLarge = AppTypography.labelLarge.copy(fontFamily = family),
            labelMedium = AppTypography.labelMedium.copy(fontFamily = family),
            labelSmall = AppTypography.labelSmall.copy(fontFamily = family),
        )
    }
}

这里为了统一把Android、web、桌面端都修改成一个字体

web端修改：

kotlin 复制代码
package com.example.kmpwandemo

import androidx.compose.ui.ExperimentalComposeUiApi
import androidx.compose.ui.window.ComposeViewport
import androidx.compose.material3.MaterialTheme
import com.example.kmpwandemo.viewmodel.ArticleListScreen

@OptIn(ExperimentalComposeUiApi::class)
fun main() {
    ComposeViewport {
        val customTypography = rememberCustomTypography()
        MaterialTheme(typography = customTypography) {
            ArticleListScreen()
        }
    }
}

Android端修改：

kotlin 复制代码
package com.example.kmpwandemo

import android.os.Bundle
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.activity.enableEdgeToEdge
import androidx.compose.material3.MaterialTheme
import androidx.compose.runtime.Composable
import androidx.compose.ui.tooling.preview.Preview
import com.example.kmpwandemo.viewmodel.ArticleListScreen

class MainActivity : ComponentActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        enableEdgeToEdge()
        super.onCreate(savedInstanceState)

        setContent {
            val customTypography = rememberCustomTypography()
            MaterialTheme(typography = customTypography) {
                ArticleListScreen()
            }
        }
    }
}

@Preview
@Composable
fun AppAndroidPreview() {
    val customTypography = rememberCustomTypography()
    MaterialTheme(typography = customTypography) {
        ArticleListScreen()
    }
}

桌面端修改：

kotlin 复制代码
package com.example.kmpwandemo

import androidx.compose.material3.MaterialTheme
import androidx.compose.ui.window.Window
import androidx.compose.ui.window.application
import com.example.kmpwandemo.viewmodel.ArticleListScreen

fun main() = application {
    Window(
        onCloseRequest = ::exitApplication,
        title = "KMPWanDemo",
    ) {
        val customTypography = rememberCustomTypography()
        MaterialTheme(typography = customTypography) {
            ArticleListScreen()
        }
    }
}

6.主界面：

kotlin 复制代码
package com.example.kmpwandemo

import androidx.compose.material3.MaterialTheme
import androidx.compose.runtime.*
import androidx.compose.ui.tooling.preview.Preview
import com.example.kmpwandemo.viewmodel.ArticleListScreen

@Composable
@Preview
fun App() {
    MaterialTheme(typography = AppTypography) {
        ArticleListScreen()
    }
}
ini 复制代码
package com.example.kmpwandemo.viewmodel
​
import androidx.compose.foundation.background
import androidx.compose.foundation.layout.Arrangement
import androidx.compose.foundation.layout.Box
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.Row
import androidx.compose.foundation.layout.Spacer
import androidx.compose.foundation.layout.WindowInsets
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.height
import androidx.compose.foundation.layout.padding
import androidx.compose.foundation.layout.statusBars
import androidx.compose.foundation.layout.windowInsetsPadding
import androidx.compose.foundation.lazy.LazyColumn
import androidx.compose.foundation.lazy.items
import androidx.compose.foundation.shape.RoundedCornerShape
import androidx.compose.material3.Button
import androidx.compose.material3.ButtonDefaults
import androidx.compose.material3.Card
import androidx.compose.material3.CardDefaults
import androidx.compose.material3.CircularProgressIndicator
import androidx.compose.material3.MaterialTheme
import androidx.compose.material3.Surface
import androidx.compose.material3.Text
import androidx.compose.runtime.Composable
import androidx.compose.runtime.getValue
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.text.font.FontWeight
import androidx.compose.ui.text.style.TextOverflow
import androidx.compose.ui.unit.dp
import androidx.compose.ui.unit.sp
import androidx.lifecycle.compose.collectAsStateWithLifecycle
import androidx.lifecycle.viewmodel.compose.viewModel
import com.example.kmpwandemo.data.Article
import com.example.kmpwandemo.net.createKtorHttpClient
​
@Composable
fun ArticleListScreen() {
    val viewModel: ArticleListViewModel = viewModel{
        ArticleListViewModel(createKtorHttpClient())
    }
    val uiState by viewModel.uiState.collectAsStateWithLifecycle()
​
    // 背景色统一
    Box(
        modifier = Modifier
            .fillMaxSize()
            .background(Color(0xFFF5F5F5))
            .windowInsetsPadding(WindowInsets.statusBars)
    ) {
        Column(
            modifier = Modifier
                .fillMaxSize()
                .padding(horizontal = 16.dp)
        ) {
            // 顶部标题栏
            Surface(
                color = MaterialTheme.colorScheme.primary,
                modifier = Modifier.fillMaxWidth()
            ) {
                Column(
                    modifier = Modifier.padding(vertical = 16.dp, horizontal = 8.dp)
                ) {
                    Text(
                        text = "玩Android 文章列表",
                        fontSize = 20.sp,
                        fontWeight = FontWeight.Bold,
                        color = Color.White
                    )
                }
            }
​
            // 刷新按钮
            Button(
                onClick = { viewModel.dispatch(ArticleIntent.Refresh) },
                modifier = Modifier
                    .fillMaxWidth()
                    .padding(vertical = 12.dp),
                colors = ButtonDefaults.buttonColors(
                    containerColor = MaterialTheme.colorScheme.primary
                ),
                shape = RoundedCornerShape(10.dp)
            ) {
                Text("刷新列表", fontSize = 16.sp)
            }
​
            when (val state = uiState) {
                is ArticleUiState.Loading -> {
                    Box(
                        modifier = Modifier
                            .fillMaxWidth()
                            .padding(top = 60.dp),
                        contentAlignment = Alignment.Center
                    ) {
                        CircularProgressIndicator(color = MaterialTheme.colorScheme.primary)
                    }
                }
​
                is ArticleUiState.Error -> {
                    // 错误状态 + 重试
                    Column(
                        modifier = Modifier
                            .fillMaxWidth()
                            .padding(top = 60.dp),
                        horizontalAlignment = Alignment.CenterHorizontally
                    ) {
                        Text(
                            text = state.msg,
                            color = MaterialTheme.colorScheme.error,
                            fontSize = 15.sp
                        )
                        Spacer(modifier = Modifier.height(12.dp))
                        Button(onClick = { viewModel.dispatch(ArticleIntent.Refresh) }) {
                            Text("点击重试")
                        }
                    }
                }
​
                is ArticleUiState.Success -> {
                    if (state.list.isEmpty()) {
                        Box(
                            modifier = Modifier.fillMaxWidth().padding(top = 80.dp),
                            contentAlignment = Alignment.Center
                        ) {
                            Text("暂无数据", color = Color.Gray, fontSize = 16.sp)
                        }
                    } else {
                        LazyColumn(
                            verticalArrangement = Arrangement.spacedBy(12.dp),
                            modifier = Modifier.fillMaxWidth()
                        ) {
                            items(state.list) { article ->
                                ArticleItem(article)
                            }
                        }
                    }
                }
            }
        }
    }
}
​
@Composable
fun ArticleItem(article: Article) {
    val author = article.author.ifBlank { article.shareUser }
​
    Card(
        modifier = Modifier
            .fillMaxWidth(),
        shape = RoundedCornerShape(12.dp),
        elevation = CardDefaults.cardElevation(defaultElevation = 3.dp),
        colors = CardDefaults.cardColors(containerColor = Color.White)
    ) {
        Column(modifier = Modifier.padding(14.dp)) {
            // 标题
            Text(
                text = article.title,
                fontSize = 16.sp,
                fontWeight = FontWeight.Medium,
                maxLines = 2,
                overflow = TextOverflow.Ellipsis
            )
​
            Spacer(modifier = Modifier.height(8.dp))
​
            // 作者 + 时间
            Row(
                modifier = Modifier.fillMaxWidth(),
                verticalAlignment = Alignment.CenterVertically
            ) {
                // 作者
                Text(
                    text = if (author.isNotBlank()) "作者: $author" else "匿名",
                    fontSize = 13.sp,
                    color = Color(0xFF666666),
                    modifier = Modifier.weight(1f),
                    maxLines = 1,
                    overflow = TextOverflow.Ellipsis
                )
                // 时间
                Text(
                    text = article.niceDate,
                    fontSize = 12.sp,
                    color = Color(0xFF999999)
                )
            }
​
            // 章节信息
            if (article.chapterName.isNotBlank()) {
                Spacer(modifier = Modifier.height(6.dp))
                Text(
                    text = "分类: ${article.chapterName} · ${article.superChapterName}",
                    fontSize = 12.sp,
                    color = Color(0xFF888888)
                )
            }
        }
    }
}

7.网络请求：

kotlin 复制代码
package com.example.kmpwandemo.net

import io.ktor.client.HttpClient

expect fun createKtorHttpClient(): HttpClient
kotlin 复制代码
package com.example.kmpwandemo.http

import com.example.kmpwandemo.data.ArticleListData
import com.example.kmpwandemo.data.ArticleListResponse
import com.example.kmpwandemo.getWanBaseUrl
import com.example.kmpwandemo.net.createKtorHttpClient
import io.ktor.client.HttpClient
import io.ktor.client.call.body
import io.ktor.client.plugins.contentnegotiation.ContentNegotiation
import io.ktor.client.request.get
import io.ktor.serialization.kotlinx.json.json
import kotlinx.serialization.json.Json
import io.ktor.client.plugins.logging.*
/**
 * 自定义Ktor日志，KMP全平台，Android输出Logcat，其他平台System.out
 */
class KtorCustomLogger : Logger {
    override fun log(message: String) {
        // Android Studio Logcat过滤标签:KtorHttp
        println("KtorHttp: $message")
    }
}

class WanRepository {
    private val httpClient: HttpClient = createKtorHttpClient().config {
        install(Logging){
            logger = KtorCustomLogger()
            level = LogLevel.INFO
        }
        install(ContentNegotiation) {
            json(Json {
                ignoreUnknownKeys = true
                prettyPrint = false
                isLenient = true
            })
        }
    }

    suspend fun getArticleList(page: Int): ArticleListResponse {
        val url = "${getWanBaseUrl()}/article/list/$page/json"
        val resp = httpClient.get(url)
        return resp.body()
    }
}
kotlin 复制代码
package com.example.kmpwandemo.viewmodel
​
import androidx.lifecycle.ViewModel
import androidx.lifecycle.viewModelScope
import com.example.kmpwandemo.data.Article
import com.example.kmpwandemo.http.WanRepository
import io.ktor.client.HttpClient
import kotlinx.coroutines.flow.MutableStateFlow
import kotlinx.coroutines.flow.StateFlow
import kotlinx.coroutines.flow.asStateFlow
import kotlinx.coroutines.launch
​
// MVI Intent：UI发出的动作
sealed class ArticleIntent {
    object Refresh : ArticleIntent()
}
​
// MVI UiState：页面状态
sealed class ArticleUiState {
    object Loading : ArticleUiState()
    data class Success(val list: List<Article>) : ArticleUiState()
    data class Error(val msg: String) : ArticleUiState()
}
​
class ArticleListViewModel(createKtorHttpClient: HttpClient) : ViewModel() {
    private val repo = WanRepository()
​
    private val _uiState = MutableStateFlow<ArticleUiState>(ArticleUiState.Loading)
    val uiState: StateFlow<ArticleUiState> = _uiState.asStateFlow()
​
    // 接收UI Intent
    fun dispatch(intent: ArticleIntent) {
        when (intent) {
            ArticleIntent.Refresh -> loadArticleList()
        }
    }
​
    private fun loadArticleList() {
        viewModelScope.launch {
            _uiState.value = ArticleUiState.Loading
            try {
                val res = repo.getArticleList(0)
                if (res.errorCode == 0) {
                    _uiState.value = ArticleUiState.Success(res.data.datas)
                } else {
                    _uiState.value = ArticleUiState.Error(res.errorMsg)
                }
            } catch (e: Exception) {
                _uiState.value = ArticleUiState.Error(e.message ?: "网络请求异常")
                print("网络请求异常"+e.message)
            }
        }
    }
​
    init {
        dispatch(ArticleIntent.Refresh)
    }
}

8.效果截图：

Android端：

桌面端：

web端：

9.总结：

项目概况

基于 Kotlin Multiplatform + Compose Multiplatform (M3) + Ktor + MVI 架构 实现跨平台玩 Android文章列表Demo，一套代码同时运行在 Android、JVM 桌面、iOS、JS、WasmJs 五个平台。

采用分层架构：data数据实体‑net多平台网络工厂‑http仓库层Repository‑viewmodel(MVI)‑ui界面层；利用expect‑actual完成平台差异化实现；compose‑resources统一管理字体资源，壳子模块只做入口，不掺杂业务逻辑。

核心实现要点

  1. 多平台 Ktor 网络 通过expect fun createKtorHttpClient():HttpClient做声明，各平台源集提供对应 actual 引擎实现：
  • Android：ktor‑client‑okhttp
  • JVM 桌面：ktor‑client‑java（规避 CIO 引擎 TLS 握手兼容问题）
  • iOS：ktor‑client‑darwin
  • JS/WasmJs：ktor‑client‑js / ktor‑client‑wasm

2.序列化 引入kotlin‑plugin‑serialization插件，使用@Serializable注解定义实体，Ktor 安装ContentNegotiation完成 JSON 解析。

3.MVI 单向数据流

  • sealed class ArticleIntent：定义用户行为（刷新）
  • sealed class ArticleUiState：统一页面状态：Loading / Success / Error
  • ViewModel 持有 Repository，viewModelScope执行协程网络；UI 层collectAsStateWithLifecycle监听状态渲染页面。

4.跨平台字体统一 把 NotoSansSC 中文字体放入commonMain/composeResources，封装rememberCustomTypography()对外暴露，所有壳模块 (Android / 桌面 / Web) 统一使用该 Typography，解决 WasmJs 网页中文乱码 ，壳模块禁止直接访问Res，规避 internal 访问报错。

踩坑清单 & 解决方案

问题 现象 解决方案
1. 序列化失败 @Serializable 不生效 toml 配置kotlinSerialization插件，shared 模块应用该插件
2.JVM 桌面网络 HTTPS 握手失败 CIO 引擎 TLS 兼容性差 jvmMain 使用ktor‑client‑java引擎，放弃 cio
3.WasmJs 浏览器 CORS 跨域 浏览器拦截 wanandroid 接口请求 两种方案：①webpack devServer 代理；②独立 node 代理服务器转发接口请求，访问代理地址
4.WasmJs 中文乱码 网页端中文显示方框乱码 common 层引入中文字体，封装 Typography，所有平台统一应用该字体
5.expect‑actual 编译报错 no actual declaration for JVM 每个 expect，所有 target 平台必须补齐 actual 实现，极易漏掉 jvmMain 桌面端
6.Ktor 引擎导包错误 各平台使用错误 http 引擎 各个 sourceSets 分别引入对应平台 ktor 客户端依赖，commonMain 只引入ktor‑client‑core核心包

整个过程调试和完整跑下来还是很有意思的，感觉回到的刚学开发的时候，遇到各种问题，哈哈！!当然后期可以把js部署在远程服务器，js乱码问题肯定还有更优方案，这里就不研究了，后面有时间再玩玩,大佬们如果有更好的方案可以直接提出，我会努力改进，ai时代既要合理利用ai，还要跟进新技术,未来KMP应该还是会有很大发展，纯属个人爱好。

10.项目源码地址：

gitee.com/jackning_ad...

相关推荐
aqi004 小时前
鸿蒙版本的JSBridge兼容与安卓配套的H5啦
android·华为·harmonyos·鸿蒙·移动应用
事圆则缓5 小时前
MVVM 的理解与设计
android·android jetpack
码农阿豪6 小时前
我把 OpenClaw 装进旧安卓手机后，又折腾了 3 天：飞书、ADB、SSH 全部打通
android·智能手机·飞书
有什么事7 小时前
把安卓搬上云端：云手机系统改造与内核优化拆解
android·智能手机
方白羽8 小时前
性能分析：Android Studio Profiler
android·性能优化·app
没文化的阿浩8 小时前
【MySQL】用户管理
android·mysql·adb
FlightYe9 小时前
音视频修炼之基础理论（五）：AAC格式与解析
android·linux·c++·音视频·aac
法欧特斯卡雷特10 小时前
Kotlin 2.4.20 现已发布，新特性多不多？
android·开源·全栈
摇滚侠10 小时前
《SpringBoot 3：入门与应用实战》第 12 章 JDBC 与事务 使用 JdbcTemplate 阅读笔记 31
android·spring boot·笔记
热门推荐
01国内可直接用、免费额度/永久免费的大模型API清单（含 SiliconFlow、火山、阿里、智谱、百度、Kimi、DeepSeek、DMXAPI 等）02GitHub 镜像站点03历年考研数学一、数学二、数学三真题试卷及答案PDF04蜘蛛磁力 搜索引擎大全，如何使用蜘蛛磁力查找磁力链接052026 国产 AI 大模型横评：DeepSeek、通义千问、Kimi、文心一言、星火、豆包谁更能打？06微信历史版本含下载地址（ Windows PC | 安卓 | MAC ）及设置微信不更新07ZCode 周末送额度活动开启：3 亿 Token 免费领取08Agnes AI 免费 API 接入指南：文本、生图、生视频，一套接口全免费09AI 编程 IDE 全景解析 2026：Agent 全面接管开发链路10VSCode+CodeX扩展，无法启动
