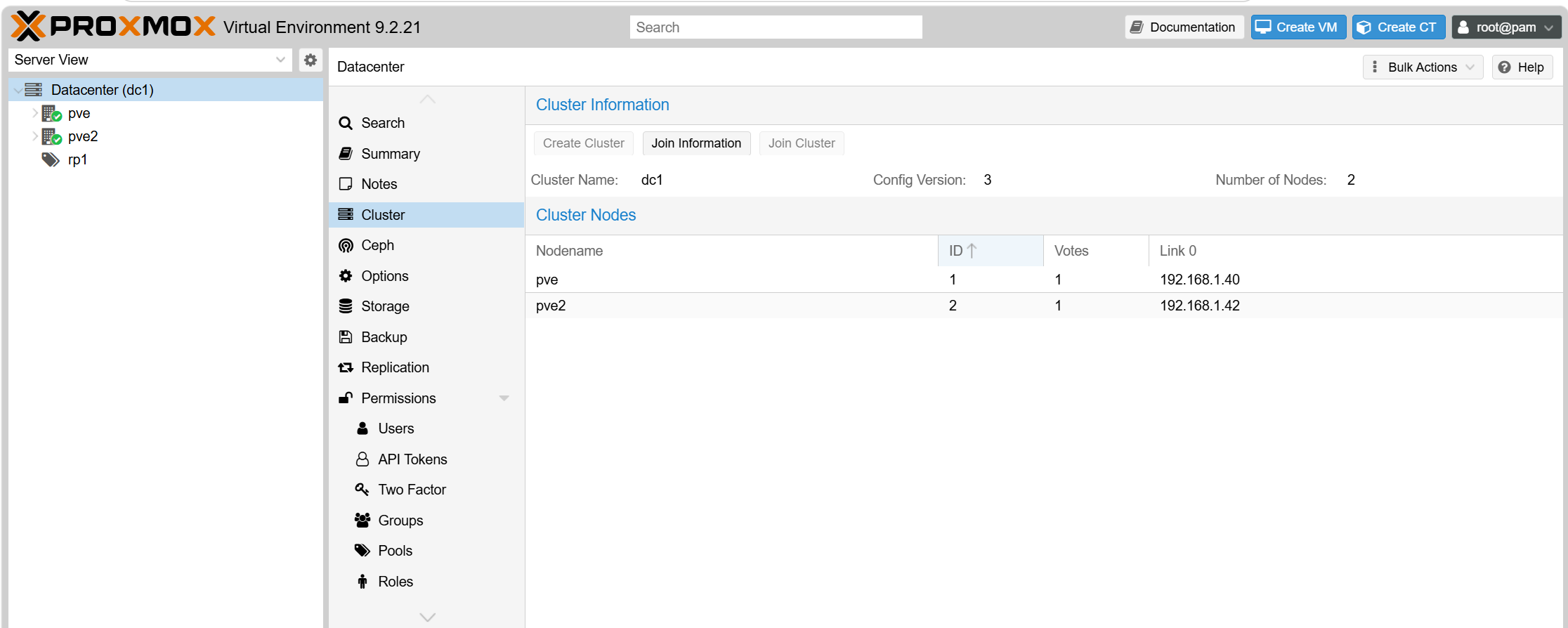

PVE UI界面
2台PVE+Qdevice（仲裁）环境状态查看
root@pve2:~# pvecm status
Cluster information
-------------------
Name: dc1
Config Version: 3
Transport: knet
Secure auth: on
Quorum information
------------------
Date: Wed Oct 7 23:39:03 2026
Quorum provider: corosync_votequorum
Nodes: 2
Node ID: 0x00000002
Ring ID: 1.9
Quorate: Yes
Votequorum information
----------------------
Expected votes: 3
Highest expected: 3
Total votes: 2
Quorum: 2
Flags: Quorate Qdevice
Membership information
----------------------
Nodeid Votes Qdevice Name
0x00000001 1 A,NV,NMW 192.168.1.40
0x00000002 1 A,NV,NMW 192.168.1.42 (local)
0x00000000 0 Qdevice (votes 1)查看本地 corosync-qdevice 和远端 192.168.1.43 qnetd 的连接详情
root@pve2:~# corosync-qdevice-tool -s
Qdevice information
-------------------
Model: Net
Node ID: 2
Configuration version: 3
Configured node list:
0 Node ID = 1
1 Node ID = 2
Membership node list: 1, 2
Qdevice-net information
----------------------
Cluster name: dc1
QNetd host: 192.168.1.43:5403
Algorithm: Fifty-Fifty split
Tie-breaker: Node with lowest node ID
State: Connecting后续中....
