一、CTSV
1.Analog Headset Audio Test
去除模拟耳机path

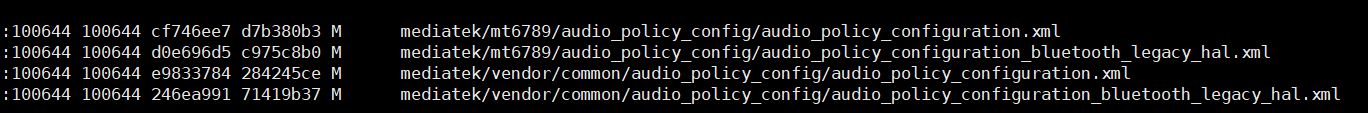

修改路径，修改内容如下
<profile name="" format="AUDIO_FORMAT_PCM_16_BIT"
samplingRates="44100 48000" channelMasks="AUDIO_CHANNEL_OUT_STEREO"/>
</devicePort>
- <devicePort tagName="Wired Headset" type="AUDIO_DEVICE_OUT_WIRED_HEADSET" role="sink">
- <profile name="" format="AUDIO_FORMAT_PCM_32_BIT"
- samplingRates="44100 48000" channelMasks="AUDIO_CHANNEL_OUT_STEREO"/>
- <profile name="" format="AUDIO_FORMAT_PCM_16_BIT"
- samplingRates="44100 48000" channelMasks="AUDIO_CHANNEL_OUT_STEREO"/>
- </devicePort>
- <devicePort tagName="Wired Headphones" type="AUDIO_DEVICE_OUT_WIRED_HEADPHONE" role="sink">
- <profile name="" format="AUDIO_FORMAT_PCM_32_BIT"
- samplingRates="44100 48000" channelMasks="AUDIO_CHANNEL_OUT_STEREO"/>
- <profile name="" format="AUDIO_FORMAT_PCM_16_BIT"
- samplingRates="44100 48000" channelMasks="AUDIO_CHANNEL_OUT_STEREO"/>
- </devicePort>
<devicePort tagName="HDMI" type="AUDIO_DEVICE_OUT_AUX_DIGITAL" role="sink">
<profile name="" format="AUDIO_FORMAT_PCM_32_BIT"
samplingRates="8000 11025 16000 22050 32000 44100 48000 64000 88200 96000 128000 176400 192000"
@@ -172,12 +160,6 @@
<profile name="" format="AUDIO_FORMAT_PCM_16_BIT"
samplingRates="8000 16000" channelMasks="AUDIO_CHANNEL_OUT_MONO"/>
</devicePort>
- <devicePort tagName="Analog Dock Headset" type="AUDIO_DEVICE_OUT_ANLG_DOCK_HEADSET" role="sink">
- <profile name="" format="AUDIO_FORMAT_PCM_32_BIT"
- samplingRates="44100 48000" channelMasks="AUDIO_CHANNEL_OUT_STEREO"/>
- <profile name="" format="AUDIO_FORMAT_PCM_16_BIT"
- samplingRates="44100 48000" channelMasks="AUDIO_CHANNEL_OUT_STEREO"/>
- </devicePort>
<devicePort tagName="Digital Dock Headset" type="AUDIO_DEVICE_OUT_DGTL_DOCK_HEADSET" role="sink">
<profile name="" format="AUDIO_FORMAT_PCM_32_BIT"
samplingRates="44100 48000" channelMasks="AUDIO_CHANNEL_OUT_STEREO"/>
@@ -210,11 +192,6 @@
samplingRates="8000 16000 32000 44100 48000"
channelMasks="AUDIO_CHANNEL_IN_MONO AUDIO_CHANNEL_IN_STEREO"/>
</devicePort>
- <devicePort tagName="Wired Headset Mic" type="AUDIO_DEVICE_IN_WIRED_HEADSET" role="source">
- <profile name="" format="AUDIO_FORMAT_PCM_16_BIT"
- samplingRates="8000 16000 32000 44100 48000"
- channelMasks="AUDIO_CHANNEL_IN_MONO AUDIO_CHANNEL_IN_STEREO"/>
- </devicePort>
<devicePort tagName="BT SCO Headset Mic" type="AUDIO_DEVICE_IN_BLUETOOTH_SCO_HEADSET" role="source">
<profile name="" format="AUDIO_FORMAT_PCM_16_BIT"
samplingRates="8000 16000" channelMasks="AUDIO_CHANNEL_IN_MONO"/>
@@ -257,10 +234,6 @@
sources="primary output,deep_buffer,voip_rx,mmap_no_irq_out,fast,Voice Call In"/>
<route type="mix" sink="Speaker"
sources="primary output,deep_buffer,mmap_no_irq_out,fast,FM Tuner In,voip_rx,Voice Call In"/>
- <route type="mix" sink="Wired Headset"
- sources="primary output,deep_buffer,mmap_no_irq_out,fast,FM Tuner In,voip_rx,Voice Call In"/>
- <route type="mix" sink="Wired Headphones"
- sources="primary output,deep_buffer,mmap_no_irq_out,fast,FM Tuner In,voip_rx,Voice Call In"/>
<route type="mix" sink="USB Device Out"
sources="primary output,deep_buffer,fast,FM Tuner In,voip_rx,Voice Call In,hifi_playback"/>
<route type="mix" sink="USB Headset Out"
@@ -271,8 +244,6 @@
sources="primary output,deep_buffer,fast,voip_rx,Voice Call In"/>
<route type="mix" sink="BT SCO Car Kit"
sources="primary output,deep_buffer,fast,voip_rx,Voice Call In"/>
- <route type="mix" sink="Analog Dock Headset"
- sources="primary output"/>
<route type="mix" sink="Digital Dock Headset"
sources="primary output"/>
<route type="mix" sink="FM Tuner Out"
@@ -280,11 +251,11 @@
<route type="mix" sink="HDMI"
sources="hdmi_mix_output"/>
<route type="mix" sink="Telephony Tx"
- sources="Built-In Mic,Built-In Back Mic,Wired Headset Mic,BT SCO Headset Mic,USB Device In,USB Headset In,incall_music_uplink"/>
+ sources="Built-In Mic,Built-In Back Mic,BT SCO Headset Mic,USB Device In,USB Headset In,incall_music_uplink"/>
<route type="mix" sink="primary input"
- sources="Built-In Mic,Built-In Back Mic,Wired Headset Mic,BT SCO Headset Mic,AUX Digital In,USB Device In,USB Headset In"/>
+ sources="Built-In Mic,Built-In Back Mic,BT SCO Headset Mic,AUX Digital In,USB Device In,USB Headset In"/>
<route type="mix" sink="mmap_no_irq_in"
- sources="Built-In Mic,Built-In Back Mic,Wired Headset Mic"/>
+ sources="Built-In Mic,Built-In Back Mic"/>
<route type="mix" sink="voice tx"
sources="Voice Call In"/>
<route type="mix" sink="FM Tuner input"
@@ -292,9 +263,9 @@
<route type="mix" sink="hifi_input"
sources="USB Device In,USB Headset In"/>
<route type="mix" sink="voip_tx"
- sources="Built-In Mic,Built-In Back Mic,Wired Headset Mic,BT SCO Headset Mic,AUX Digital In,USB Device In,USB Headset In"/>
+ sources="Built-In Mic,Built-In Back Mic,BT SCO Headset Mic,AUX Digital In,USB Device In,USB Headset In"/>
<route type="mix" sink="fast input"
- sources="Built-In Mic,Built-In Back Mic,Wired Headset Mic,BT SCO Headset Mic,AUX Digital In,USB Device In,USB Headset In"/>
+ sources="Built-In Mic,Built-In Back Mic,BT SCO Headset Mic,AUX Digital In,USB Device In,USB Headset In"/>
</routes>

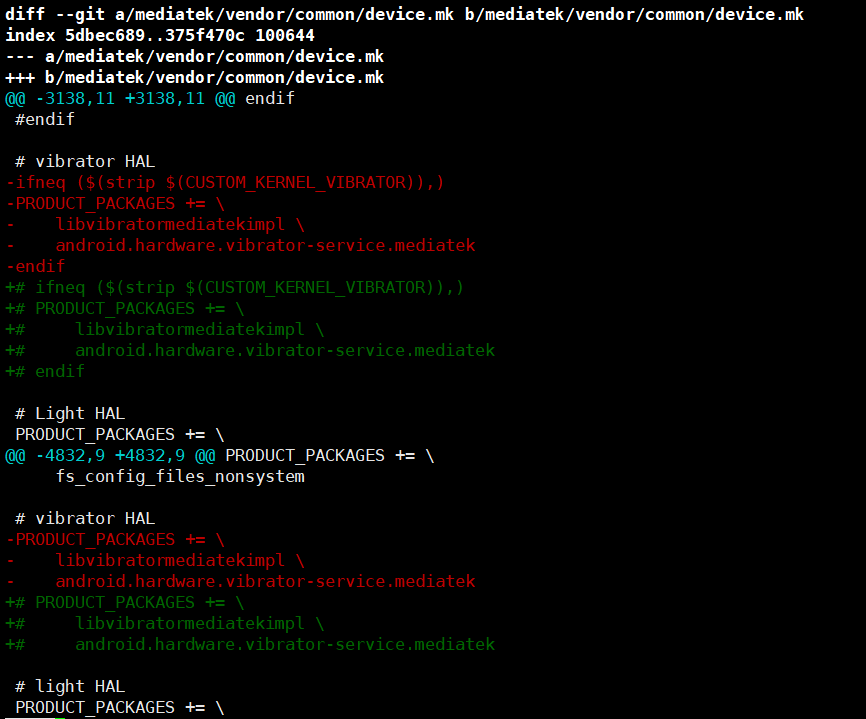

</module>2.Has Vibrator Test
去掉vibr服务

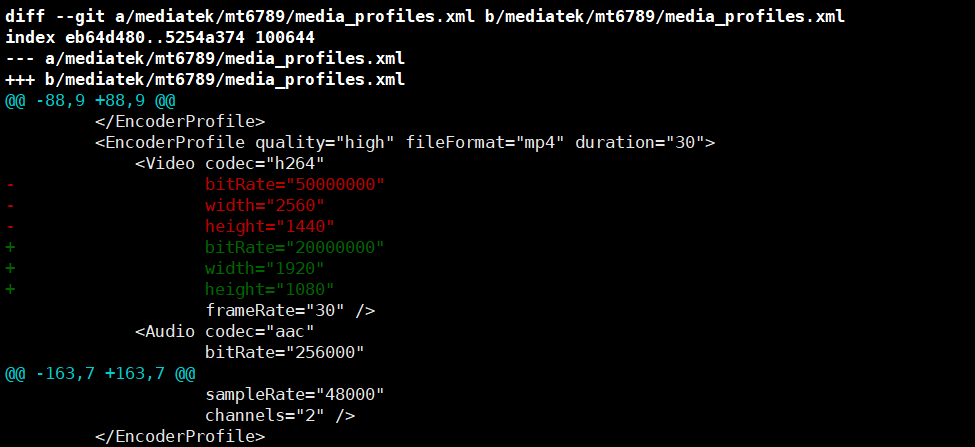

3.camera video 闪退问题
实际上是摄像头的profile不支持，修改成1920 1080 30帧视频模式就行了

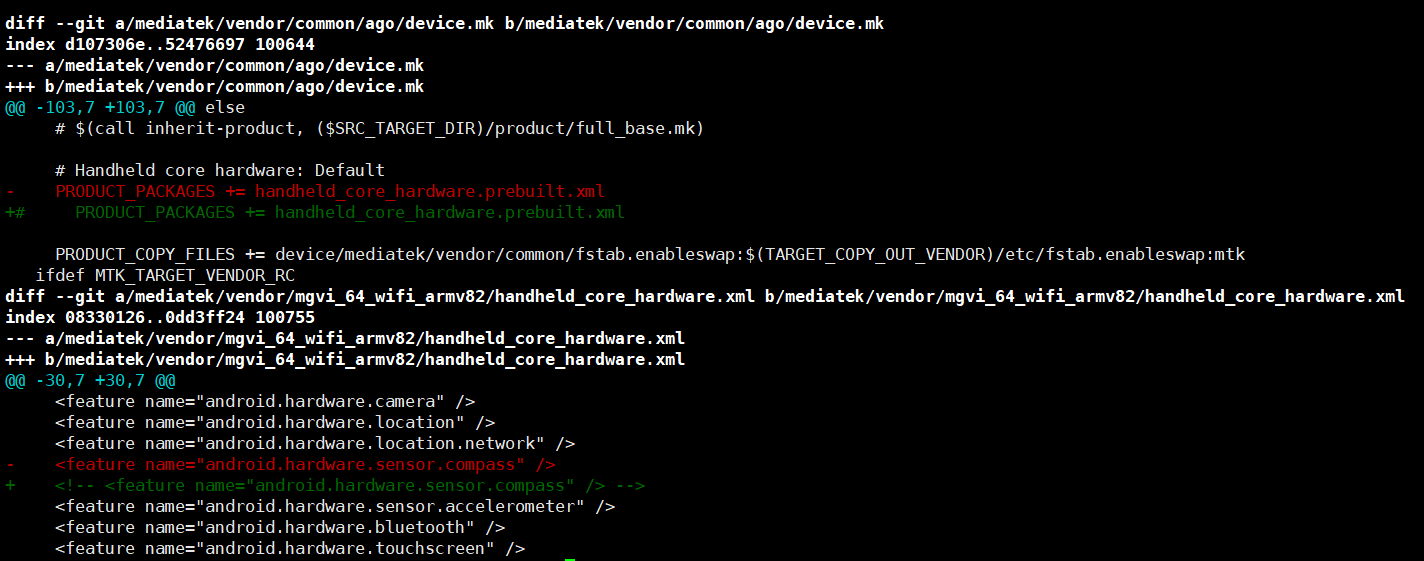

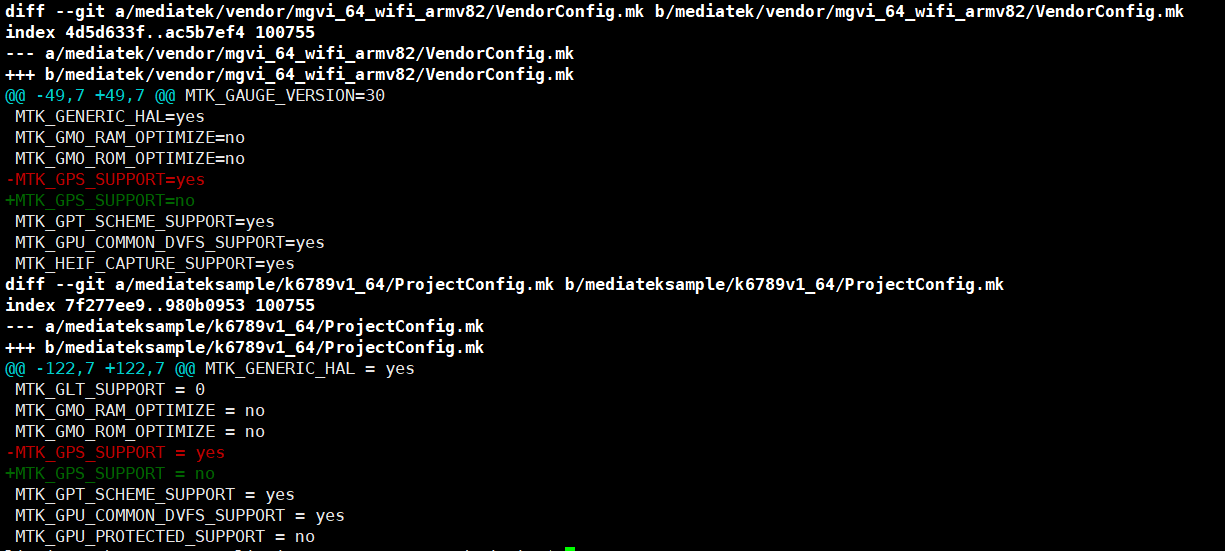

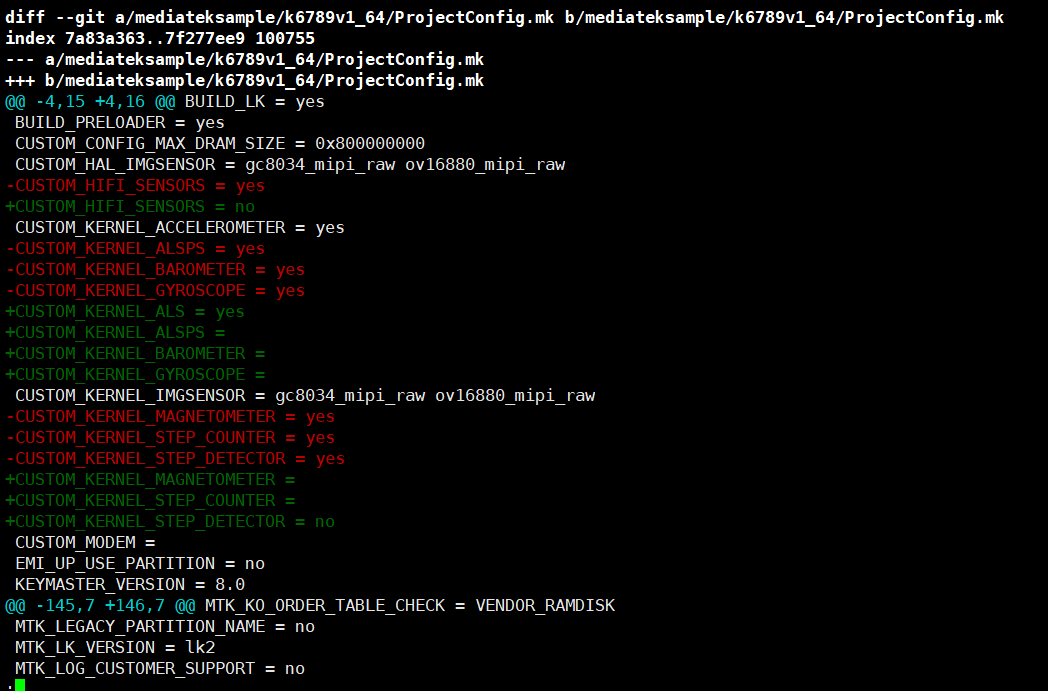

4.去除无用的sensor
同时要去掉没用到的sensor的服务
可以输入查看是否还存在这些sensor

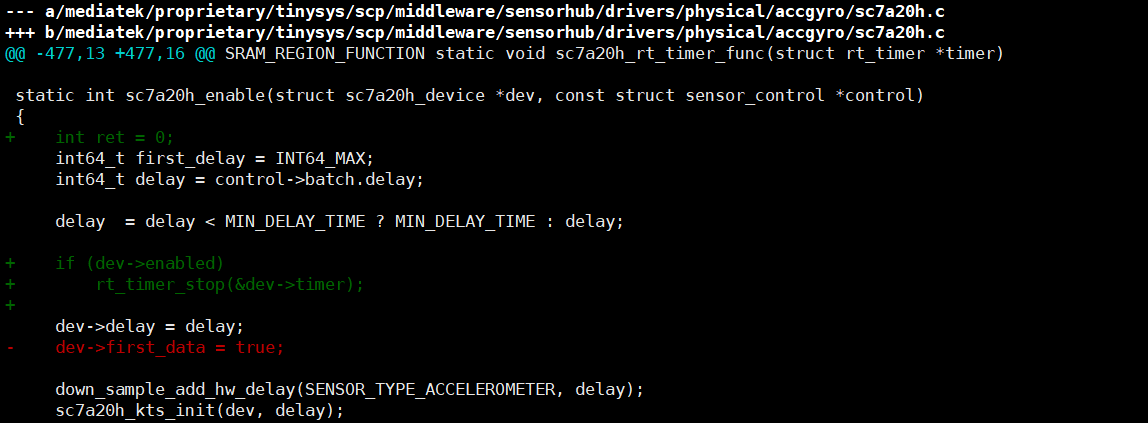

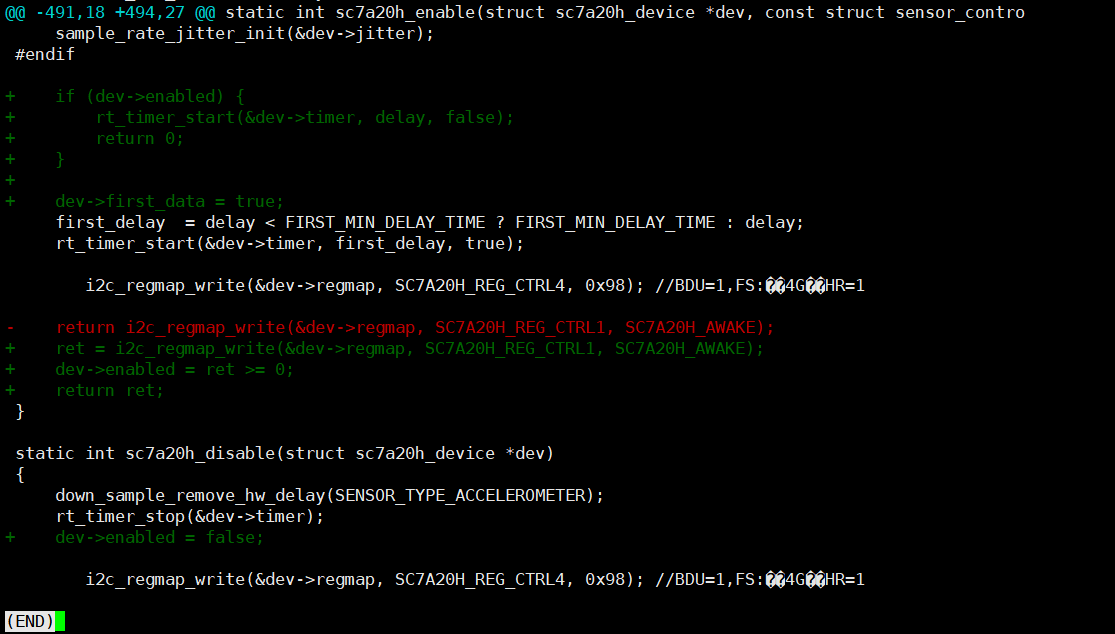

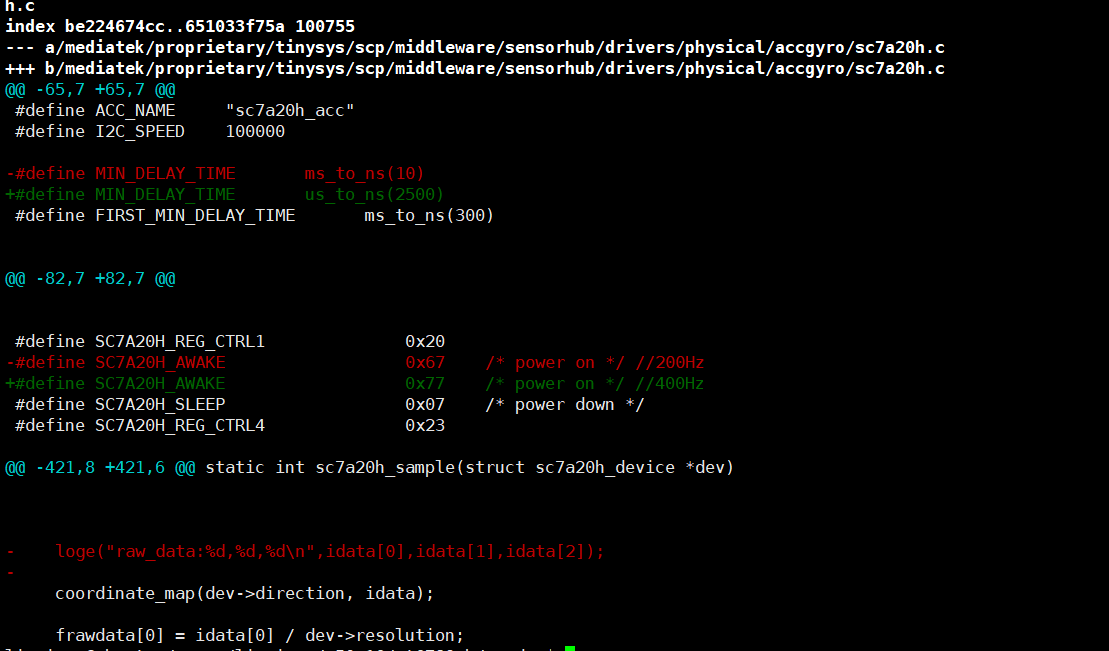

adb shell pm list features | Select-String 'location.gps|sensor.compass'5.提高传感器的采样率
GMS的采样率都必须在200-400hz以内

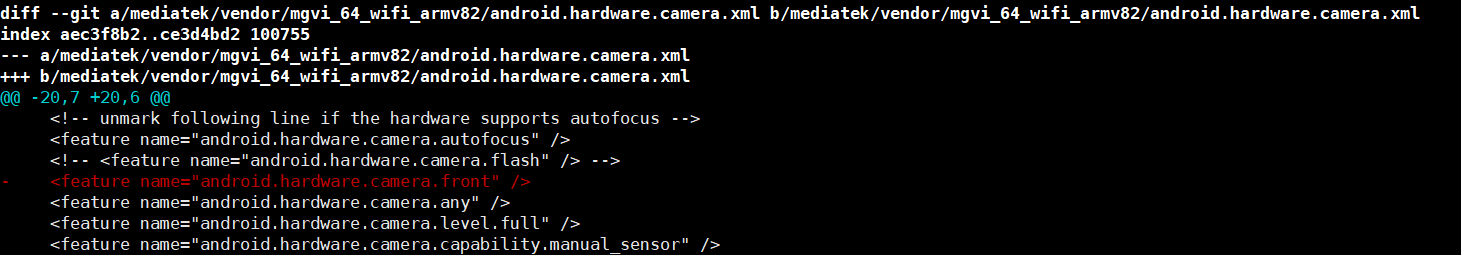

6.去除前摄声明

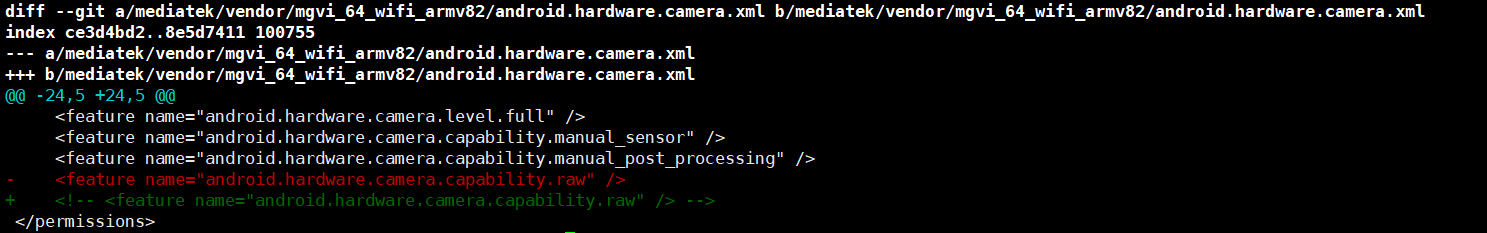

7.去除camera raw格式
二、ITS

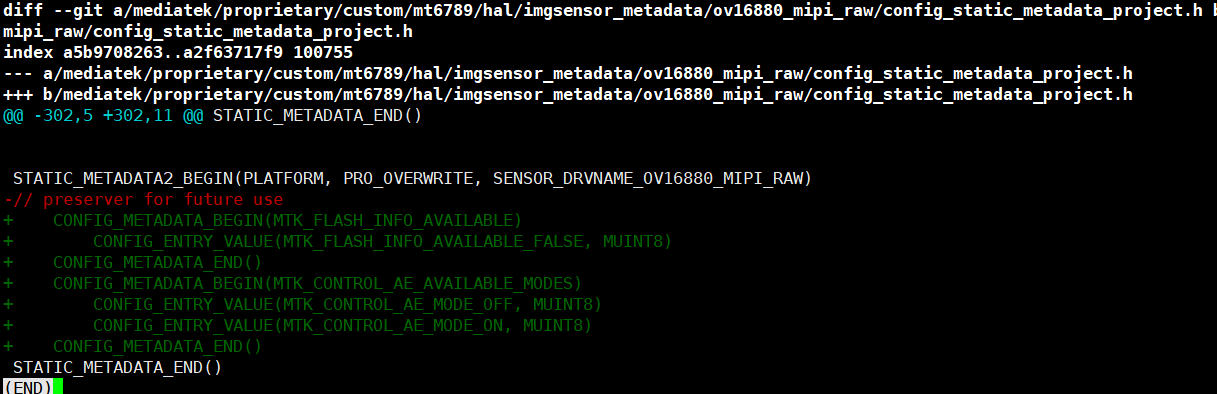

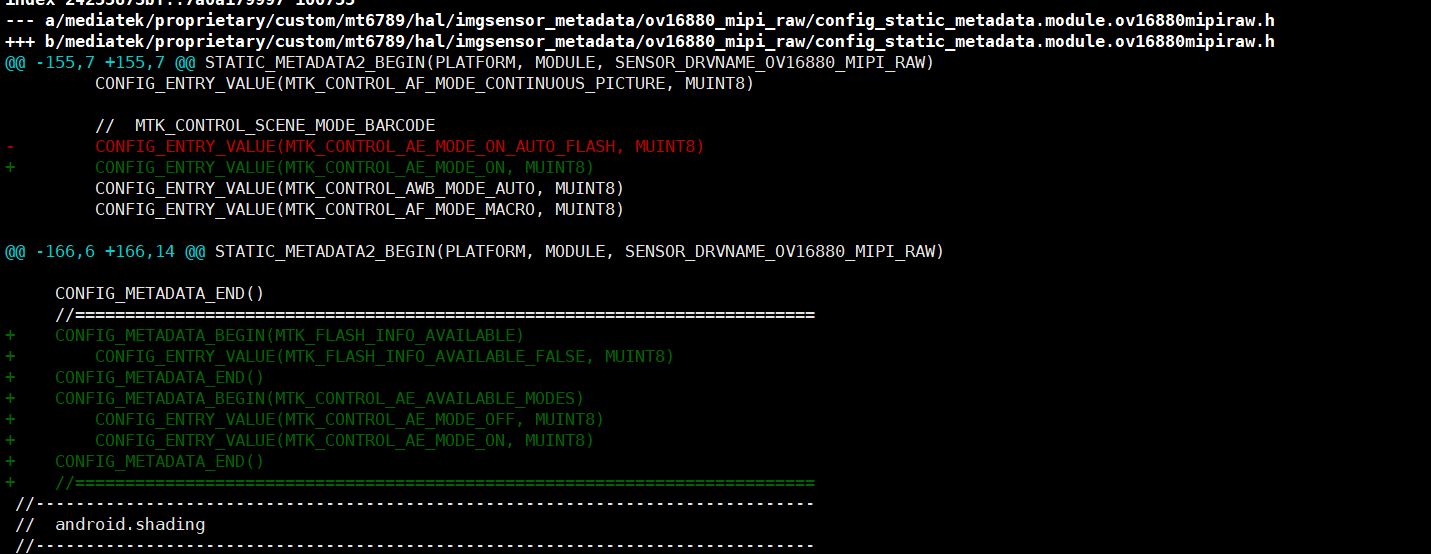

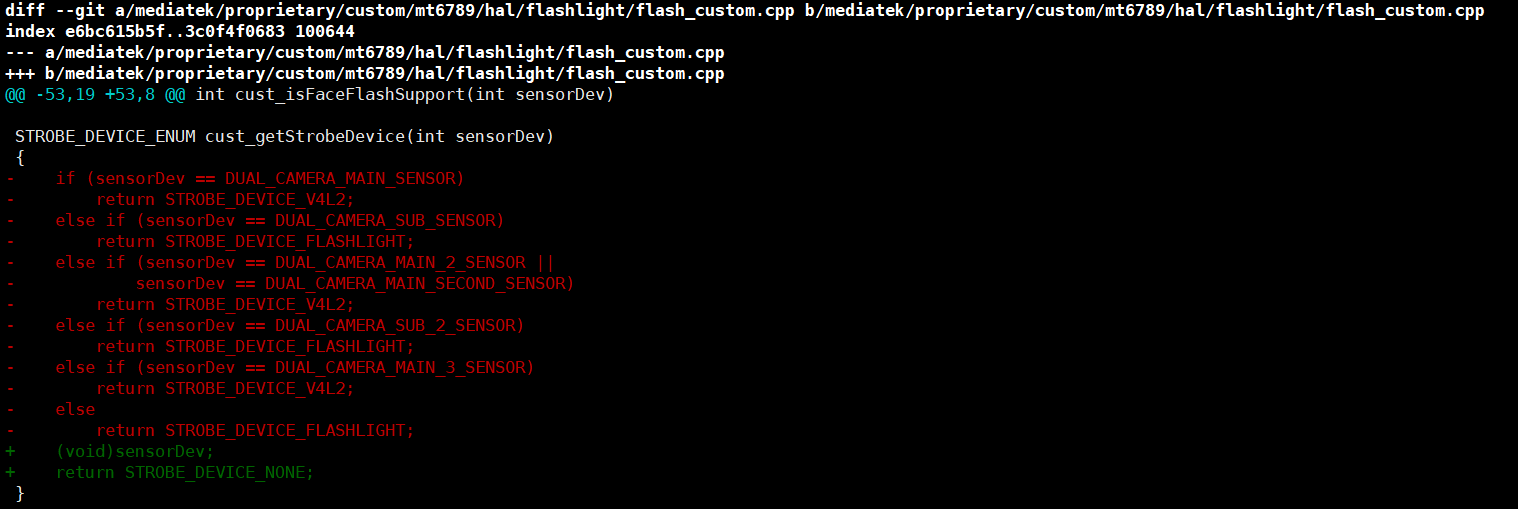

1. 去除后摄闪光灯

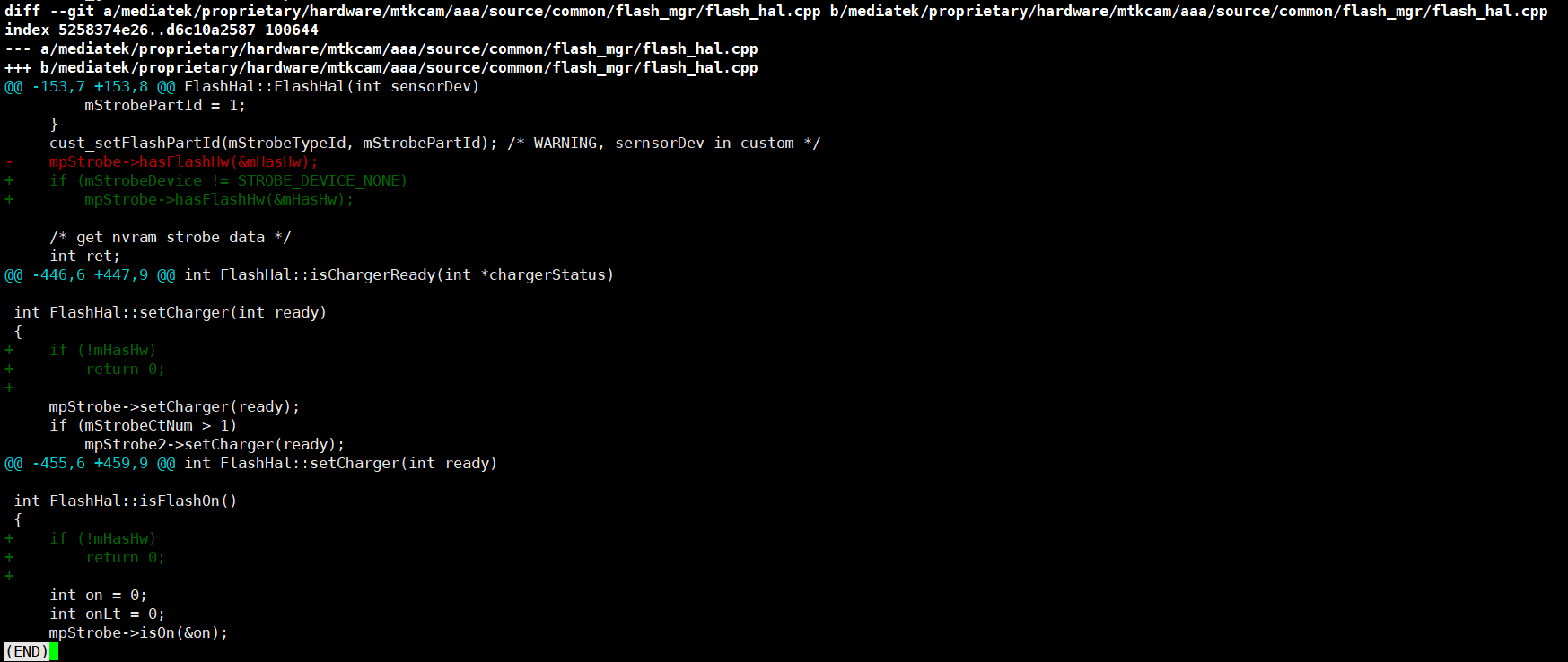

还要再hal层去除！！！
