物联网 · 盛世宏博 · 协议驱动 · RS485 · Modbus RTU · 档案监控平台

关键词：档案环境监控平台、恒湿消毒净化一体机、RS485协议驱动、Modbus RTU、数据模型归一化、多厂家适配、驱动开发标签：#物联网 #Modbus #RS485 #TCP/IP #POE供电 #腾讯云 #Python #以太网温湿度传感器 #网口温湿度变送器 #机房监控

一、为什么需要专门的协议驱动

档案监控平台不是通用SCADA，它面对的是特定行业设备+特定业务语义。通用Modbus驱动只能解决"读寄存器"，但解决不了：

厂家甲的湿度在0x0002，厂家乙的在40003
甲用0-based地址，乙用1-based，平台下发时容易算错
甲的温度×0.1℃，乙的×0.01℃，缩放因子不同
甲有消毒使能寄存器，乙只有干接点外挂
故障码是位标志，不同厂家位定义完全不同
平台需要的是"env.humidity.return"这种业务语义，不是"40003"

协议驱动 = 通用通信能力 + 设备厂商方言 + 业务数据模型

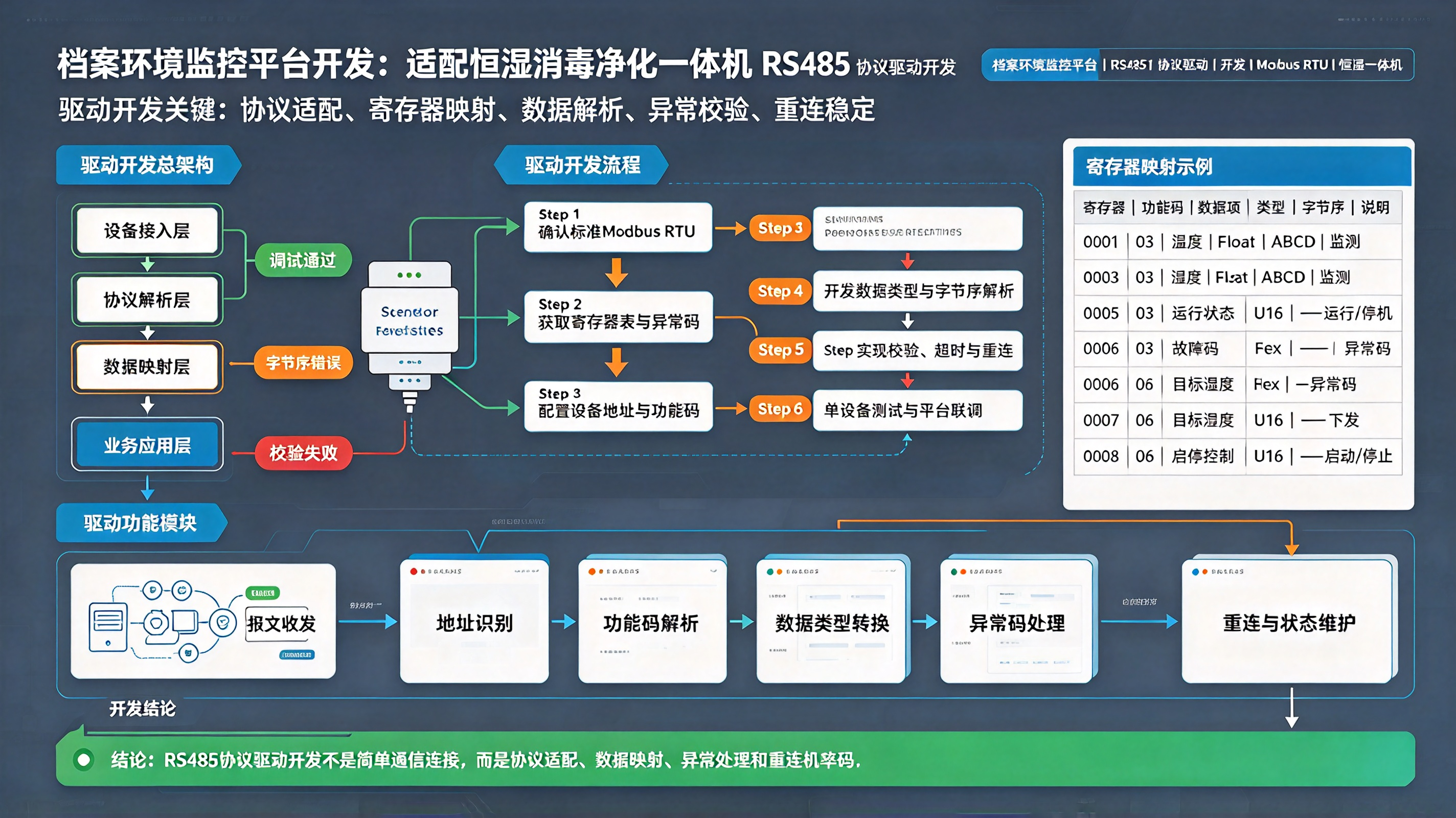

二、驱动架构设计

2.1 分层架构

复制代码

┌─────────────────────────────────────────────────────────┐ │ 档案环境监控平台（业务层） │ │ 设备管理 · 数据点模型 · 联动引擎 · 告警 · 报表 │ ├─────────────────────────────────────────────────────────┤ │ 协议驱动层（本文核心） │ │ ┌──────────┐ ┌──────────┐ ┌──────────────────────┐ │ │ │ 驱动管理器│ │ 设备适配器│ │ 寄存器映射引擎 │ │ │ │ 生命周期 │ │ 厂家A/B/C│ │ 地址偏移·缩放·字节序│ │ │ └──────────┘ └──────────┘ └──────────────────────┘ │ ├─────────────────────────────────────────────────────────┤ │ 通信层（通用能力） │ │ ┌──────────┐ ┌──────────┐ ┌──────────────────────┐ │ │ │ ModbusRTU│ │ ModbusTCP│ │ 串口管理 · 超时重试 │ │ │ │ 主站栈 │ │ 客户端 │ │ 帧间隔 · 并发控制 │ │ │ └──────────┘ └──────────┘ └──────────────────────┘ │ ├─────────────────────────────────────────────────────────┤ │ 硬件接口层 │ │ 串口服务器 / USB-RS485 / 边缘网关 / 直接串口 │ └─────────────────────────────────────────────────────────┘

复制

2.2 核心抽象

复制代码

driver_core.py - 驱动核心抽象 from abc import ABC, abstractmethod from dataclasses import dataclass, field from typing import Dict, List, Optional, Union from enum import Enum class DataType(Enum): U16 = "uint16" S16 = "int16" U32 = "uint32" S32 = "int32" F32 = "float32" BIT = "bit" class AccessMode(Enum): RO = "readonly" WO = "writeonly" RW = "readwrite" @dataclass class RegisterMap: """寄存器映射定义""" name: str # 统一数据点名 display_name: str # 显示名称 function_code: int # Modbus功能码 (3=保持寄存器, 4=输入寄存器) address: int # 寄存器地址（厂家原始地址） data_type: DataType scale: float = 1.0 # 缩放因子 offset: float = 0.0 # 偏移量 unit: str = "" access: AccessMode = AccessMode.RO bit_index: Optional $int$ = None # 位标志时指定位号 description: str = "" @dataclass class DeviceProfile: """设备厂商档案""" vendor: str # 厂家名称 model: str # 设备型号 protocol: str # 协议类型 address_mode: str # "0-based" 或 "1-based" baudrate: int = 9600 bytesize: int = 8 parity: str = "N" stopbits: int = 1 slave_id_range: tuple = (1, 247) registers: List $RegisterMap$ = field(default_factory=list) read_groups: List $Dict$ = field(default_factory=list) # 连续读取分组

复制

三、多厂家适配器实现

3.1 厂家甲适配器

复制代码

adapter_vendor_a.py VENDOR_A_PROFILE = DeviceProfile( vendor="厂家甲", model="HSP-A系列", protocol="Modbus RTU", address_mode="0-based", baudrate=9600, registers= $RegisterMap( name="env.temp.return", display_name="回风温度", function_code=4, # 输入寄存器 address=0x0001, data_type=DataType.U16, scale=0.1, unit="℃", access=AccessMode.RO ), RegisterMap( name="env.humidity.return", display_name="回风湿度", function_code=4, address=0x0002, data_type=DataType.U16, scale=0.1, unit="%RH", access=AccessMode.RO ), RegisterMap( name="ctrl.hum_setpoint", display_name="设定湿度", function_code=3, # 保持寄存器 address=0x0064, data_type=DataType.U16, scale=0.1, unit="%RH", access=AccessMode.RW ), RegisterMap( name="dev.run_status", display_name="运行状态", function_code=3, address=0x0000, data_type=DataType.U16, access=AccessMode.RO ), RegisterMap( name="dev.fault_code", display_name="故障码", function_code=3, address=0x000F, data_type=DataType.U16, access=AccessMode.RO ), # 消毒使能（干接点外挂，无RS485接口） # 通过串口服务器DO模拟按键$ , read_groups= $# 连续读取分组：减少帧数 {"start": 0x0000, "count": 3, "function_code": 4}, # 状态+温湿度 {"start": 0x0000, "count": 1, "function_code": 3}, # 运行模式 {"start": 0x000F, "count": 1, "function_code": 3}, # 故障码$ )

复制

3.2 厂家乙适配器

复制代码

adapter_vendor_b.py VENDOR_B_PROFILE = DeviceProfile( vendor="厂家乙", model="HSP-B系列", protocol="Modbus RTU", address_mode="1-based", # 关键差异！ baudrate=9600, registers= $RegisterMap( name="env.temp.return", display_name="回风温度", function_code=4, address=40002, # 1-based，实际对应0x0001 data_type=DataType.U16, scale=0.1, unit="℃", access=AccessMode.RO ), RegisterMap( name="env.humidity.return", display_name="回风湿度", function_code=4, address=40003, # 1-based，实际对应0x0002 data_type=DataType.U16, scale=0.1, unit="%RH", access=AccessMode.RO ), RegisterMap( name="ctrl.hum_setpoint", display_name="设定湿度", function_code=3, address=40101, # 1-based data_type=DataType.U16, scale=0.1, unit="%RH", access=AccessMode.RW ), RegisterMap( name="dev.run_status", display_name="运行状态", function_code=3, address=40001, data_type=DataType.U16, access=AccessMode.RO ), RegisterMap( name="dev.fault_code", display_name="故障码", function_code=3, address=40016, data_type=DataType.U16, access=AccessMode.RO ), RegisterMap( name="disinfect.enable", display_name="消毒使能", function_code=3, address=40120, data_type=DataType.U16, access=AccessMode.RW ),$ , read_groups= ${"start": 40001, "count": 3, "function_code": 4}, # 状态+温湿度 {"start": 40001, "count": 1, "function_code": 3}, # 运行模式 {"start": 40016, "count": 1, "function_code": 3}, # 故障码$ )

复制

3.3 地址转换引擎

复制代码

address_translator.py class AddressTranslator: """处理0-based和1-based地址差异""" @staticmethod def to_wire_address(profile: DeviceProfile, logical_address: int) -> int: """ 将逻辑地址转为实际通信地址 0-based厂家：直接用 1-based厂家：减1（因为Modbus协议本身是0-based的） """ if profile.address_mode == "0-based": return logical_address elif profile.address_mode == "1-based": # 1-based地址40001 → 协议地址0x0000 if 30001 <= logical_address <= 39999: # 输入寄存器 return logical_address - 30001 elif 40001 <= logical_address <= 49999: # 保持寄存器 return logical_address - 40001 else: return logical_address else: raise ValueError(f"Unknown address mode: {profile.address_mode}") @staticmethod def to_logical_address(profile: DeviceProfile, wire_address: int, register_type: str) -> int: """将协议地址转为逻辑地址""" if profile.address_mode == "0-based": return wire_address elif profile.address_mode == "1-based": if register_type == "input": return wire_address + 30001 elif register_type == "holding": return wire_address + 40001 else: return wire_address else: raise ValueError(f"Unknown address mode: {profile.address_mode}")

复制

四、驱动管理器

复制代码

driver_manager.py import time import threading from queue import Queue, Empty from typing import Callable, Dict, List class DeviceDriver: """单设备驱动实例""" def init(self, device_id: str, slave_id: int, profile: DeviceProfile, comm_channel): self.device_id = device_id self.slave_id = slave_id self.profile = profile self.comm = comm_channel # 串口/网关通信句柄 self.translator = AddressTranslator() self._last_read: Dict $str, float$ = {} self._last_write: Dict $str, float$ = {} self._fail_count: Dict $str, int$ = {} self._online = True self._lock = threading.Lock() def read_point(self, point_name: str) -> Optional $float$ : """读取单个数据点""" reg = self._find_register(point_name) if not reg: return None wire_addr = self.translator.to_wire_address(self.profile, reg.address) with self._lock: try: raw = self.comm.read_registers( slave=self.slave_id, function_code=reg.function_code, address=wire_addr, count=self._get_data_length(reg.data_type) ) if raw is None: self._fail_count $point_name$ = self._fail_count.get(point_name, 0) + 1 return None value = self._decode(raw, reg) self._last_read $point_name$ = value self._fail_count $point_name$ = 0 return value except Exception as e: self._fail_count $point_name$ = self._fail_count.get(point_name, 0) + 1 return None def write_point(self, point_name: str, value: float) -> bool: """写入单个数据点""" reg = self._find_register(point_name) if not reg or reg.access == AccessMode.RO: return False wire_addr = self.translator.to_wire_address(self.profile, reg.address) encoded = self._encode(value, reg) with self._lock: try: result = self.comm.write_registers( slave=self.slave_id, address=wire_addr, values=encoded ) if result: self._last_write $point_name$ = value # 写后回读确认 time.sleep(0.05) readback = self.read_point(point_name) if readback is not None and abs(readback - value) < 0.01: return True return False except Exception: return False def read_group(self, group: Dict) -> Dict $str, float$ : """按分组连续读取（减少帧数）""" results = {} start_addr = group $"start"$ count = group $"count"$ fc = group $"function_code"$ wire_addr = self.translator.to_wire_address(self.profile, start_addr) with self._lock: try: raw = self.comm.read_registers( slave=self.slave_id, function_code=fc, address=wire_addr, count=count ) if raw is None: return results # 解析分组内各寄存器 for reg in self.profile.registers: reg_wire = self.translator.to_wire_address(self.profile, reg.address) if fc == reg.function_code: offset = reg_wire - wire_addr if 0 <= offset < len(raw): # 单寄存器值提取 val = raw $offset$ decoded = self._apply_scale(val, reg) results $reg.name$ = decoded except Exception: pass return results def _decode(self, raw: List $int$ , reg: RegisterMap) -> float: """原始数据解码""" if reg.data_type in (DataType.U16, DataType.S16): val = raw $0$ if reg.data_type == DataType.S16 and val > 32767: val -= 65536 elif reg.data_type == DataType.U32: val = (raw $0$ << 16) | raw $1$ elif reg.data_type == DataType.F32: import struct packed = struct.pack('>HH', raw $0$ , raw $1$ ) val = struct.unpack('>f', packed) $0$ else: val = raw $0$ return self._apply_scale(val, reg) def _apply_scale(self, val: float, reg: RegisterMap) -> float: return val * reg.scale + reg.offset def _encode(self, value: float, reg: RegisterMap) -> List $int$ : """编码写入值""" raw_val = int((value - reg.offset) / reg.scale) if reg.data_type in (DataType.U16, DataType.S16): return $raw_val \& 0xFFFF$ elif reg.data_type == DataType.U32: return $(raw_val \>\> 16) \& 0xFFFF, raw_val \& 0xFFFF$ else: return $raw_val \& 0xFFFF$ def _get_data_length(self, data_type: DataType) -> int: if data_type in (DataType.U16, DataType.S16, DataType.BIT): return 1 elif data_type in (DataType.U32, DataType.S32, DataType.F32): return 2 return 1 def _find_register(self, point_name: str) -> Optional $RegisterMap$ : for reg in self.profile.registers: if reg.name == point_name: return reg return None @property def online(self) -> bool: return self._online def set_online(self, status: bool): self._online = status class DriverManager: """驱动管理器：管理所有设备驱动实例""" def init(self, poll_interval=5.0, offline_poll=30.0): self.drivers: Dict $str, DeviceDriver$ = {} self.poll_interval = poll_interval self.offline_poll = offline_poll self._running = False self._poll_thread = None self._data_callback: Optional $Callable$ = None self._alarm_callback: Optional $Callable$ = None def register_device(self, device_id: str, slave_id: int, profile: DeviceProfile, comm_channel) -> DeviceDriver: """注册设备""" driver = DeviceDriver(device_id, slave_id, profile, comm_channel) self.drivers $device_id$ = driver return driver def unregister_device(self, device_id: str): """注销设备""" if device_id in self.drivers: del self.drivers $device_id$ def start(self): """启动轮询""" self._running = True self._poll_thread = threading.Thread(target=self._poll_loop, daemon=True) self._poll_thread.start() def stop(self): """停止轮询""" self._running = False if self._poll_thread: self._poll_thread.join(timeout=5) def set_data_callback(self, callback: Callable): self._data_callback = callback def set_alarm_callback(self, callback: Callable): self._alarm_callback = callback def _poll_loop(self): """主轮询循环""" while self._running: for device_id, driver in self.drivers.items(): try: if driver.online: # 在线设备：按分组读取 for group in driver.profile.read_groups: results = driver.read_group(group) if results and self._data_callback: self._data_callback(device_id, results) time.sleep(0.02) # 帧间间隔 else: # 离线设备：低频探活 if self._should_probe(driver): result = driver.read_point("dev.run_status") if result is not None: driver.set_online(True) if self._alarm_callback: self._alarm_callback(device_id, "RECOVERED", {}) except Exception as e: pass time.sleep(self.poll_interval) def _should_probe(self, driver: DeviceDriver) -> bool: """判断是否该探活（简化：按时间）""" return True # 实际应记录上次探活时间 def write_control(self, device_id: str, point_name: str, value: float) -> bool: """平台下发控制指令""" if device_id not in self.drivers: return False driver = self.drivers $device_id$ return driver.write_point(point_name, value)

复制

五、平台集成接口

复制代码

platform_integration.py class PlatformBridge: """驱动层与平台业务层的桥梁""" def init(self, driver_manager: DriverManager): self.dm = driver_manager self.dm.set_data_callback(self._on_data) self.dm.set_alarm_callback(self._on_alarm) def _on_data(self, device_id: str, data: Dict): """数据回调：推送到平台时序库""" # 实际实现中写入InfluxDB/TDengine for point_name, value in data.items(): record = { "device_id": device_id, "point": point_name, "value": value, "timestamp": time.time() } # push_to_timeseries(record) pass def _on_alarm(self, device_id: str, alarm_type: str, detail: Dict): """告警回调""" # 推送告警到平台 pass def get_unified_model(self, device_id: str) -> Dict: """获取设备的统一数据模型视图""" if device_id not in self.dm.drivers: return {} driver = self.dm.drivers $device_id$ model = {} for reg in driver.profile.registers: value = driver.read_point(reg.name) if value is not None: model $reg.name$ = { "value": value, "unit": reg.unit, "display": reg.display_name, "timestamp": time.time() } return model def control_device(self, device_id: str, action: str, params: Dict) -> bool: """平台控制接口""" mapping = { "set_humidity": "ctrl.hum_setpoint", "set_mode": "dev.run_status", "start_disinfect": "disinfect.enable", } point_name = mapping.get(action) if not point_name: return False value = params.get("value", 0) return self.dm.write_control(device_id, point_name, value)

复制

六、配置与部署

6.1 设备配置文件（YAML）

复制代码

devices.yaml - 设备配置 global: poll_interval: 5 offline_poll: 30 comm_timeout: 0.4 retry_count: 2 inter_frame_delay: 0.02 channels: - id: "uart_bus_1" type: "serial" port: "/dev/ttyUSB0" baudrate: 9600 bytesize: 8 parity: "N" stopbits: 1 - id: "tcp_gateway_a" type: "tcp" host: "192.168.1.101" port: 502 unit_id: 1 devices: - id: "HSP-A01" name: "一体机-01（A库）" vendor: "厂家甲" model: "HSP-A系列" channel: "uart_bus_1" slave_id: 1 zone: "A库" profile: "vendor_a" - id: "HSP-B01" name: "一体机-02（A库）" vendor: "厂家乙" model: "HSP-B系列" channel: "uart_bus_1" slave_id: 2 zone: "A库" profile: "vendor_b" - id: "HSP-A02" name: "一体机-03（B库）" vendor: "厂家甲" model: "HSP-A系列" channel: "uart_bus_1" slave_id: 3 zone: "B库" profile: "vendor_a"

复制

6.2 驱动初始化

复制代码

main.py - 驱动启动入口 import yaml from driver_manager import DriverManager from adapter_vendor_a import VENDOR_A_PROFILE from adapter_vendor_b import VENDOR_B_PROFILE from platform_integration import PlatformBridge PROFILES = { "vendor_a": VENDOR_A_PROFILE, "vendor_b": VENDOR_B_PROFILE, } def load_config(path="devices.yaml"): with open(path, 'r') as f: return yaml.safe_load(f) def main(): config = load_config() dm = DriverManager( poll_interval=config $"global"$ $"poll_interval"$ , offline_poll=config $"global"$ $"offline_poll"$ ) # 初始化通信通道 channels = {} for ch_cfg in config $"channels"$ : if ch_cfg $"type"$ == "serial": # 实际实现中初始化串口 channels $ch_cfg\["id"$ ] = init_serial(ch_cfg) elif ch_cfg $"type"$ == "tcp": channels $ch_cfg\["id"$ ] = init_tcp(ch_cfg) # 注册设备 for dev_cfg in config $"devices"$ : profile = PROFILES $dev_cfg\["profile"$ ] channel = channels $dev_cfg\["channel"$ ] dm.register_device( device_id=dev_cfg $"id"$ , slave_id=dev_cfg $"slave_id"$ , profile=profile, comm_channel=channel ) # 平台桥接 bridge = PlatformBridge(dm) # 启动 dm.start() # 主循环（平台业务逻辑） try: while True: time.sleep(1) except KeyboardInterrupt: dm.stop() if name == "main": main()

复制

七、典型坑（驱动开发专属）

地址偏移算错：1-based厂家手册写40001，代码里直接传40001给pymodbus。解决：地址转换引擎统一处理。
缩放因子硬编码：不同厂家×0.1、×0.01混用，数据差10倍。解决：寄存器映射表带scale字段。
字节序没处理：32位值高低位颠倒。解决：按厂家手册指定endian。
轮询不分组：100个数据点发100帧。解决：连续地址合并读取。
写后不回读：写了设定值就认为成功。解决：写后50ms回读确认。
离线设备不降频：掉线设备仍5秒轮询。解决：离线标记+低频探活。
故障码位解析错：把整个U16当故障等级。解决：按位定义逐位解析。
多设备并发写冲突：平台同时下发两台设备写指令。解决：写操作串行化+锁。
寄存器跨页不合并：0x0002和0x0064不连续，硬合并导致读到垃圾。解决：分组时检查连续性。
CRC校验失败不重试：一次失败就放弃。解决：至少重试2次再标记失败。

八、小结

恒湿消毒净化一体机的RS485协议驱动开发，核心不是"怎么读Modbus"，而是怎么把多厂家、多方言的设备归一化为平台能理解的统一定义。做好三件事：

设备档案（Profile）：把每个厂家的寄存器表、地址模式、缩放因子、字节序固化成结构化配置
地址转换引擎：0-based/1-based自动适配，平台侧只认统一逻辑地址
驱动管理器：生命周期管理、分组轮询、超时容错、离线探活、写后回读

驱动层做好了，平台业务层就只需要关心"env.humidity.return是多少"和"ctrl.hum_setpoint设成多少"，不用管底下是厂家甲还是厂家乙、地址是0x0002还是40003。这才是档案环境监控平台该有的架构。
