Autosar之统计SWC中port、runnable、信号名等信息（三）

不爱吃鱼的蔓热莓2026-10-15 14:40

为了方便查看swc中port、runnable等信息，将数据提取到表格中。

1、gen_swc_stats.py

python 复制代码
#!/usr/bin/env python3
"""Generate Excel report: Complete SWC Port / Signal / Runnable mapping."""

import os
import re
import xml.etree.ElementTree as ET
from collections import defaultdict
from openpyxl import Workbook
from openpyxl.styles import Font, Alignment, PatternFill, Border, Side
from openpyxl.utils import get_column_letter

COMP_DIR = r"d:\workspace\0_Demo\\davinci\ImportFiles\Swcs"
OUTPUT = r"d:\workspace\0_Demo\tools\J1939_SWC_Statistics.xlsx"
NS = {"ar": "http://autosar.org/schema/r4.0"}

OUR_ECUS = ["ABS_EBS_ESC", "ADMC", "ADSC", "CGW", "ECAS", "EHSP_G", "EHSP_P", "EPB", "IAPU", "PMS"]


def parse_swc(filepath):
    """Parse one SWC ARXML and return structured data."""
    tree = ET.parse(filepath)
    root = tree.getroot()

    ports = []       # {name, direction:'Tx'|'Rx', signal_name, if_ref}
    runnables = []   # {name, period_sec, data_refs: [{signal_name, direction}]}
    signal_port_map = defaultdict(list)  # signal_name -> [{port_name, direction}]
    signal_runnable_map = defaultdict(list)  # signal_name -> [{runnable_name, direction}]

    # -- Parse ports --
    for pp in root.iter("{http://autosar.org/schema/r4.0}P-PORT-PROTOTYPE"):
        sn = pp.find("ar:SHORT-NAME", NS)
        if_ref = pp.find("ar:PROVIDED-INTERFACE-TREF", NS)
        if sn is not None:
            port_name = sn.text
            signal_name = port_name[2:] if port_name.startswith("Pp") else port_name
            ports.append({"name": port_name, "direction": "Tx", "signal_name": signal_name,
                          "if_ref": if_ref.text if if_ref is not None else ""})
            signal_port_map[signal_name].append({"port_name": port_name, "direction": "Tx"})

    for rp in root.iter("{http://autosar.org/schema/r4.0}R-PORT-PROTOTYPE"):
        sn = rp.find("ar:SHORT-NAME", NS)
        if_ref = rp.find("ar:REQUIRED-INTERFACE-TREF", NS)
        if sn is not None:
            port_name = sn.text
            signal_name = port_name[2:] if port_name.startswith("Rp") else port_name
            ports.append({"name": port_name, "direction": "Rx", "signal_name": signal_name,
                          "if_ref": if_ref.text if if_ref is not None else ""})
            signal_port_map[signal_name].append({"port_name": port_name, "direction": "Rx"})

    # -- Parse runnables --
    for re_el in root.iter("{http://autosar.org/schema/r4.0}RUNNABLE-ENTITY"):
        rn_sn = re_el.find("ar:SHORT-NAME", NS)
        rn_name = rn_sn.text if rn_sn is not None else "N/A"
        interval = re_el.find("ar:MINIMUM-START-INTERVAL", NS)
        period = interval.text if interval is not None else "N/A"

        # Extract data references
        data_refs = []
        # RX: DATA-RECEIVE-POINT-BY-ARGUMENTS
        for drp in re_el.findall("ar:DATA-RECEIVE-POINT-BY-ARGUMENTS", NS):
            vdp_ref = drp.find("ar:VARIABLE-DATA-PROTOTYPE-REF", NS)
            if vdp_ref is not None and vdp_ref.text:
                # /UserApplication/SwcJ1939/PortInterfaces/PiSIGNAL/DeSIGNAL
                sig = _extract_signal_from_ref(vdp_ref.text)
                data_refs.append({"signal_name": sig, "direction": "Rx"})
                signal_runnable_map[sig].append({"runnable_name": rn_name, "direction": "Rx"})
        # TX: DATA-SEND-POINTS
        for dsp in re_el.findall("ar:DATA-SEND-POINTS", NS):
            vdp_ref = dsp.find("ar:VARIABLE-DATA-PROTOTYPE-REF", NS)
            if vdp_ref is not None and vdp_ref.text:
                sig = _extract_signal_from_ref(vdp_ref.text)
                data_refs.append({"signal_name": sig, "direction": "Tx"})
                signal_runnable_map[sig].append({"runnable_name": rn_name, "direction": "Tx"})

        runnables.append({"name": rn_name, "period_sec": period, "data_refs": data_refs})

    return ports, runnables, signal_port_map, signal_runnable_map


def _extract_signal_from_ref(ref_text):
    """Extract signal name from a VDP reference like:
    /UserApplication/SwcJ1939/PortInterfaces/PiSignalName/DeSignalName
    """
    m = re.search(r"/Pi(\w+)/De", ref_text)
    return m.group(1) if m else ref_text


# ── Parse all ECUs ────────────────────────────────────────────────────────────
all_data = {}
for ecu in OUR_ECUS:
    filepath = os.path.join(COMP_DIR, f"CtAp{ecu}.arxml")
    if os.path.exists(filepath):
        ports, runnables, spm, srm = parse_swc(filepath)
        all_data[ecu] = {
            "ports": ports, "runnables": runnables,
            "signal_port_map": spm, "signal_runnable_map": srm,
        }

# ── Styles ────────────────────────────────────────────────────────────────────
hdr_font = Font(name="Microsoft YaHei", size=11, bold=True, color="FFFFFF")
hdr_fill = PatternFill(start_color="4472C4", end_color="4472C4", fill_type="solid")
sub_fill = PatternFill(start_color="D9E2F3", end_color="D9E2F3", fill_type="solid")
sub_font = Font(name="Microsoft YaHei", size=10, bold=True)
title_font = Font(name="Microsoft YaHei", size=14, bold=True, color="1F4E79")
data_font = Font(name="Consolas", size=10)
small_font = Font(name="Consolas", size=9)
tx_font = Font(name="Consolas", size=10, color="2F5496")
rx_font = Font(name="Consolas", size=10, color="C00000")
boundary = Border(
    left=Side(style="thin"), right=Side(style="thin"),
    top=Side(style="thin"), bottom=Side(style="thin"),
)
ctr = Alignment(horizontal="center", vertical="center")
wrap = Alignment(horizontal="left", vertical="center", wrap_text=True)

wb = Workbook()
sheet_idx = 0

# ═══════════════════════════════════════════════════════════════════════════════
# Sheet 1: Summary
# ═══════════════════════════════════════════════════════════════════════════════
ws = wb.active
ws.title = "1-Summary"

ws.merge_cells("A1:H1")
ws["A1"] = "J1939 SWC Statistics - CHA_CAN_GEELY_CV_G3_L3_V4.1_20250623_ADMC.arxml"
ws["A1"].font = title_font
ws["A1"].alignment = Alignment(horizontal="center", vertical="center")
ws.row_dimensions[1].height = 32

headers = ["ECU", "SWC Name", "P-Port (TX)", "R-Port (RX)", "Total Port",
           "Runnable", "TX Runnable", "RX Runnable"]
for ci, h in enumerate(headers, 1):
    c = ws.cell(row=3, column=ci, value=h)
    c.font = hdr_font; c.fill = hdr_fill; c.alignment = ctr; c.border = boundary
ws.row_dimensions[3].height = 30

for ri, ecu in enumerate(OUR_ECUS, 4):
    d = all_data.get(ecu)
    if not d:
        continue
    pports = [p for p in d["ports"] if p["direction"] == "Tx"]
    rports = [p for p in d["ports"] if p["direction"] == "Rx"]
    rn_tx = [r for r in d["runnables"] if any(dr["direction"] == "Tx" for dr in r["data_refs"])]
    rn_rx = [r for r in d["runnables"] if any(dr["direction"] == "Rx" for dr in r["data_refs"])]
    vals = [ecu, f"CtAp{ecu}", len(pports), len(rports), len(d["ports"]),
            len(d["runnables"]), len(rn_tx), len(rn_rx)]
    for ci, v in enumerate(vals, 1):
        c = ws.cell(row=ri, column=ci, value=v)
        c.font = data_font; c.alignment = ctr; c.border = boundary

# Totals
tr = 4 + len(OUR_ECUS)
tot_fill = PatternFill(start_color="FFF2CC", end_color="FFF2CC", fill_type="solid")
for ci in range(1, 9):
    ws.cell(row=tr, column=ci).fill = tot_fill; ws.cell(row=tr, column=ci).border = boundary
    ws.cell(row=tr, column=ci).font = Font(name="Consolas", size=10, bold=True)
    ws.cell(row=tr, column=ci).alignment = ctr
ws.cell(row=tr, column=1, value="TOTAL")
ws.cell(row=tr, column=3, value=sum(len([p for p in all_data[e]["ports"] if p["direction"]=="Tx"]) for e in OUR_ECUS))
ws.cell(row=tr, column=4, value=sum(len([p for p in all_data[e]["ports"] if p["direction"]=="Rx"]) for e in OUR_ECUS))
ws.cell(row=tr, column=5, value=sum(len(all_data[e]["ports"]) for e in OUR_ECUS))
ws.cell(row=tr, column=6, value=sum(len(all_data[e]["runnables"]) for e in OUR_ECUS))
ws.cell(row=tr, column=7, value=sum(len([r for r in all_data[e]["runnables"] if any(dr["direction"]=="Tx" for dr in r["data_refs"])]) for e in OUR_ECUS))
ws.cell(row=tr, column=8, value=sum(len([r for r in all_data[e]["runnables"] if any(dr["direction"]=="Rx" for dr in r["data_refs"])]) for e in OUR_ECUS))

for i, w in enumerate([16, 22, 13, 13, 13, 13, 13, 13], 1):
    ws.column_dimensions[get_column_letter(i)].width = w
for ri in range(4, tr):
    if ri % 2 == 0:
        for ci in range(1, 9):
            ws.cell(row=ri, column=ci).fill = PatternFill(start_color="F2F2F2", end_color="F2F2F2", fill_type="solid")

# ═══════════════════════════════════════════════════════════════════════════════

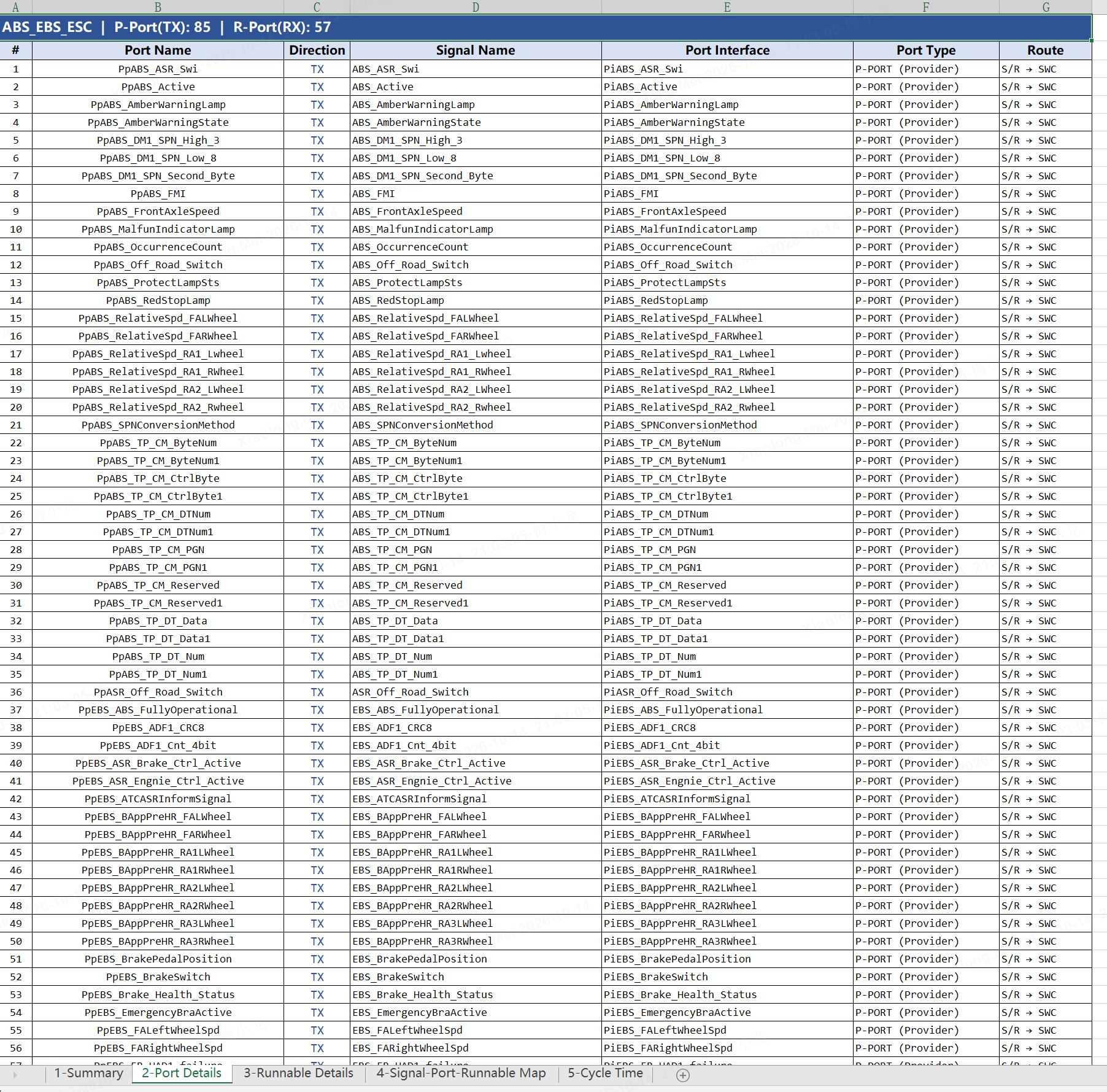

# Sheet 2: Port Details (one section per ECU, Port Name + Signal Name)
# ═══════════════════════════════════════════════════════════════════════════════
ws2 = wb.create_sheet("2-Port Details")

row = 1
for ecu in OUR_ECUS:
    d = all_data.get(ecu)
    if not d:
        continue

    # ECU header
    ws2.merge_cells(start_row=row, start_column=1, end_row=row, end_column=7)
    c = ws2.cell(row=row, column=1, value=f"{ecu}  |  P-Port(TX): {len([p for p in d['ports'] if p['direction']=='Tx'])}  |  R-Port(RX): {len([p for p in d['ports'] if p['direction']=='Rx'])}")
    c.font = Font(name="Microsoft YaHei", size=11, bold=True, color="FFFFFF")
    c.fill = PatternFill(start_color="2F5496", end_color="2F5496", fill_type="solid")
    c.alignment = Alignment(horizontal="left", vertical="center")
    for cc in range(2, 8):
        ws2.cell(row=row, column=cc).fill = PatternFill(start_color="2F5496", end_color="2F5496", fill_type="solid")
    ws2.row_dimensions[row].height = 22
    row += 1

    # Sub-header
    for ci, h in enumerate(["#", "Port Name", "Direction", "Signal Name", "Port Interface", "Port Type", "Route"], 1):
        c = ws2.cell(row=row, column=ci, value=h)
        c.font = sub_font; c.fill = sub_fill; c.alignment = ctr; c.border = boundary
    row += 1

    for i, p in enumerate(d["ports"], 1):
        vals = [i, p["name"], "TX" if p["direction"]=="Tx" else "RX",
                p["signal_name"], f"Pi{p['signal_name']}",
                "P-PORT (Provider)" if p["direction"]=="Tx" else "R-PORT (Require)",
                "S/R → SWC" if p["direction"]=="Tx" else "SWC ← S/R"]
        for ci, v in enumerate(vals, 1):
            c = ws2.cell(row=row, column=ci, value=v)
            c.font = small_font
            c.alignment = ctr if ci <= 3 else wrap
            c.border = boundary
            if ci == 3:
                c.font = tx_font if p["direction"]=="Tx" else rx_font
        row += 1

    row += 1  # blank

ws2.column_dimensions["A"].width = 5
ws2.column_dimensions["B"].width = 38
ws2.column_dimensions["C"].width = 10
ws2.column_dimensions["D"].width = 38
ws2.column_dimensions["E"].width = 38
ws2.column_dimensions["F"].width = 22
ws2.column_dimensions["G"].width = 14

# ═══════════════════════════════════════════════════════════════════════════════
# Sheet 3: Runnable Details
# ═══════════════════════════════════════════════════════════════════════════════
ws3 = wb.create_sheet("3-Runnable Details")

row = 1
for ecu in OUR_ECUS:
    d = all_data.get(ecu)
    if not d:
        continue

    ws3.merge_cells(start_row=row, start_column=1, end_row=row, end_column=7)
    c = ws3.cell(row=row, column=1, value=f"{ecu}  |  Runnables: {len(d['runnables'])}")
    c.font = Font(name="Microsoft YaHei", size=11, bold=True, color="FFFFFF")
    c.fill = PatternFill(start_color="2F5496", end_color="2F5496", fill_type="solid")
    c.alignment = Alignment(horizontal="left", vertical="center")
    for cc in range(2, 8):
        ws3.cell(row=row, column=cc).fill = PatternFill(start_color="2F5496", end_color="2F5496", fill_type="solid")
    ws3.row_dimensions[row].height = 22
    row += 1

    for ci, h in enumerate(["#", "Runnable Name", "Direction", "Period (s)", "Period (ms)", "Signal Count", "Signals"], 1):
        c = ws3.cell(row=row, column=ci, value=h)
        c.font = sub_font; c.fill = sub_fill; c.alignment = ctr; c.border = boundary
    row += 1

    for i, rn in enumerate(d["runnables"], 1):
        # Determine primary direction
        dirs = set(dr["direction"] for dr in rn["data_refs"])
        direction = "Tx/Rx" if len(dirs) > 1 else (list(dirs)[0] if dirs else "N/A")
        try:
            period_ms = int(float(rn["period_sec"]) * 1000)
        except ValueError:
            period_ms = rn["period_sec"]
        signals = list(set(dr["signal_name"] for dr in rn["data_refs"]))

        vals = [i, rn["name"], direction, rn["period_sec"], period_ms, len(signals),
                ", ".join(sorted(signals))]
        for ci, v in enumerate(vals, 1):
            c = ws3.cell(row=row, column=ci, value=v)
            c.font = small_font
            c.alignment = ctr if ci <= 6 else wrap
            c.border = boundary
            if ci == 3:
                c.font = tx_font if direction=="Tx" else (rx_font if direction=="Rx" else small_font)
        row += 1

    row += 1

ws3.column_dimensions["A"].width = 5
ws3.column_dimensions["B"].width = 42
ws3.column_dimensions["C"].width = 10
ws3.column_dimensions["D"].width = 12
ws3.column_dimensions["E"].width = 12
ws3.column_dimensions["F"].width = 12
ws3.column_dimensions["G"].width = 90

# ═══════════════════════════════════════════════════════════════════════════════
# Sheet 4: Signal -> Port -> Runnable  Mapping (master mapping)
# ═══════════════════════════════════════════════════════════════════════════════
ws4 = wb.create_sheet("4-Signal-Port-Runnable Map")

ws4.merge_cells("A1:G1")
ws4["A1"] = "Signal -> Port -> Runnable  Full Mapping (All ECUs)"
ws4["A1"].font = title_font
ws4["A1"].alignment = Alignment(horizontal="center", vertical="center")
ws4.row_dimensions[1].height = 30

for ci, h in enumerate(["ECU", "Signal Name", "TX Port", "RX Port", "TX Runnable", "RX Runnable", "Cycle (ms)"], 1):
    c = ws4.cell(row=3, column=ci, value=h)
    c.font = hdr_font; c.fill = hdr_fill; c.alignment = ctr; c.border = boundary
ws4.row_dimensions[3].height = 22

row = 4
for ecu in OUR_ECUS:
    d = all_data.get(ecu)
    if not d:
        continue

    # Build per-signal view across all ports and runnables
    all_signals = set()
    for p in d["ports"]:
        all_signals.add(p["signal_name"])
    for rn in d["runnables"]:
        for dr in rn["data_refs"]:
            all_signals.add(dr["signal_name"])

    for sig in sorted(all_signals):
        tx_port = next((p["name"] for p in d["ports"] if p["signal_name"]==sig and p["direction"]=="Tx"), "")
        rx_port = next((p["name"] for p in d["ports"] if p["signal_name"]==sig and p["direction"]=="Rx"), "")
        tx_rns = []
        rx_rns = []
        for rn in d["runnables"]:
            for dr in rn["data_refs"]:
                if dr["signal_name"] == sig:
                    if dr["direction"] == "Tx":
                        tx_rns.append(rn["name"])
                    else:
                        rx_rns.append(rn["name"])
        # Get cycle time from first runnable
        cycle = ""
        for rn in d["runnables"]:
            for dr in rn["data_refs"]:
                if dr["signal_name"] == sig:
                    try:
                        cycle = f"{int(float(rn['period_sec'])*1000)}"
                    except ValueError:
                        cycle = rn["period_sec"]
                    break
            if cycle:
                break

        # Deduplicate
        tx_rns_unique = list(dict.fromkeys(tx_rns))
        rx_rns_unique = list(dict.fromkeys(rx_rns))

        vals = [ecu, sig,
                tx_port, rx_port,
                "\n".join(tx_rns_unique), "\n".join(rx_rns_unique),
                cycle]
        for ci, v in enumerate(vals, 1):
            c = ws4.cell(row=row, column=ci, value=v)
            c.font = small_font
            c.alignment = ctr if ci <= 2 else wrap
            c.border = boundary
            if ci == 3:
                c.font = tx_font if tx_port else small_font
            elif ci == 4:
                c.font = rx_font if rx_port else small_font
        row += 1

ws4.column_dimensions["A"].width = 16
ws4.column_dimensions["B"].width = 36
ws4.column_dimensions["C"].width = 38
ws4.column_dimensions["D"].width = 38
ws4.column_dimensions["E"].width = 42
ws4.column_dimensions["F"].width = 42
ws4.column_dimensions["G"].width = 10

# ═══════════════════════════════════════════════════════════════════════════════
# Sheet 5: Cycle Time Distribution
# ═══════════════════════════════════════════════════════════════════════════════
ws5 = wb.create_sheet("5-Cycle Time")

ws5.merge_cells("A1:F1")
ws5["A1"] = "Runnable Cycle Time Distribution"
ws5["A1"].font = title_font
ws5["A1"].alignment = Alignment(horizontal="center", vertical="center")
ws5.row_dimensions[1].height = 30

for ci, h in enumerate(["Cycle (ms)", "Cycle (s)", "ECU Count", "Runnable Count", "ECUs", "Runnable Names"], 1):
    c = ws5.cell(row=3, column=ci, value=h)
    c.font = hdr_font; c.fill = hdr_fill; c.alignment = ctr; c.border = boundary

cycle_groups = defaultdict(lambda: {"ecus": defaultdict(list), "total": 0})
for ecu in OUR_ECUS:
    d = all_data.get(ecu)
    if not d:
        continue
    for rn in d["runnables"]:
        try:
            ms = int(float(rn["period_sec"]) * 1000)
        except ValueError:
            ms = 0
        cycle_groups[ms]["ecus"][ecu].append(rn["name"])
        cycle_groups[ms]["total"] += 1

row = 4
for ms in sorted(cycle_groups.keys()):
    g = cycle_groups[ms]
    ecu_list = ", ".join(f"{e}({len(v)})" for e, v in sorted(g["ecus"].items()))
    all_names = []
    for e, v in sorted(g["ecus"].items()):
        all_names.extend(v)
    vals = [ms, ms / 1000.0, len(g["ecus"]), g["total"], ecu_list, "\n".join(sorted(all_names))]
    for ci, v in enumerate(vals, 1):
        c = ws5.cell(row=row, column=ci, value=v)
        c.font = small_font
        c.alignment = ctr if ci <= 4 else wrap
        c.border = boundary
    row += 1

ws5.column_dimensions["A"].width = 12
ws5.column_dimensions["B"].width = 12
ws5.column_dimensions["C"].width = 12
ws5.column_dimensions["D"].width = 14
ws5.column_dimensions["E"].width = 40
ws5.column_dimensions["F"].width = 100

# ── Save ──────────────────────────────────────────────────────────────────────
wb.save(OUTPUT)
print(f"[OK] Excel: {OUTPUT}")
print(f"     Sheets: 1-Summary | 2-Port Details | 3-Runnable Details | 4-Signal-Port-Runnable Map | 5-Cycle Time")
tot_pp = sum(len([p for p in all_data[e]["ports"] if p["direction"]=="Tx"]) for e in OUR_ECUS)
tot_rp = sum(len([p for p in all_data[e]["ports"] if p["direction"]=="Rx"]) for e in OUR_ECUS)
tot_rn = sum(len(all_data[e]["runnables"]) for e in OUR_ECUS)
print(f"     Total P-Port(TX): {tot_pp}  |  R-Port(RX): {tot_rp}  |  Runnables: {tot_rn}")

提示：

只需要指定这两个参数内容即可：

COMP_DIR ：arxml数据文件所在的文件夹路径

OUTPUT ：Excel输出路径

最终输出的数据表如下：

相关推荐
北城笑笑3 小时前
Server 18 ，Nginx 双服务器 HTTP转HTTPS 代理实战（ HTTP 地址换 HTTPS 域名 ）
运维·服务器·前端·后端·nginx·http·https
紫洋葱hh3 小时前
Go 入门基础：类型、变量与运算符
开发语言·后端·ai·golang
打工仔折腾 AI3 小时前
Qt网络编程实战：UDP、TCP到HTTP的落地经验与选型
网络·人工智能·后端·python·qt·udp·ai agent 实战
打工仔折腾 AI3 小时前
SQL 编辑器不是高级记事本：KStudio 与 KSQL Developer 的建表与增删改查手法
数据库·人工智能·后端·python·sql·编辑器·ai agent 实战
拖孩3 小时前
# AI 帮我写的小程序，上线不到一个月流量主突然爆了
前端·后端·微信小程序
考虑考虑4 小时前
JFROG手动上传包
运维·后端·自动化运维
Java爱好狂.5 小时前
挑战一周速通Spring+SpringBoot+SpringCloud！
java·后端·spring·springboot·架构师·java面试·java程序员
柠檬味拥抱5 小时前
基于 YOLO11 的 18 类户外生活垃圾智能检测系统：从模型到 Streamlit 全流程实战
后端
得物技术5 小时前
动态规则的 Agent 实践：用确定性工程驾驭 LLM 的资产智能验收
人工智能·后端·llm
热门推荐
01国内可直接用、免费额度/永久免费的大模型API清单（含 SiliconFlow、火山、阿里、智谱、百度、Kimi、DeepSeek、DMXAPI 等）02历年考研数学一、数学二、数学三真题试卷及答案PDF03「全语录+省流版」邵艾伦 × 孙宇晨：聊风口、聊个人IP、聊年轻人如何抓住 AI 时代的机会04GitHub 镜像站点05Windows 10/11 如何退出微软账户并改用本地账户登录（含找不到选项的解决方法）06Telegram APK 下载安装完整指南 — 2026年最新07蜘蛛磁力 搜索引擎大全，如何使用蜘蛛磁力查找磁力链接08微信历史版本含下载地址（ Windows PC | 安卓 | MAC ）及设置微信不更新09轻量化AI渗透武器库｜ARTEX自主攻防系统、资产梳理、漏洞挖掘、链路分析全流程智能化落地10几个好用的ip纯净度检测网站
