| 基于JFM7VX690T36 的四路40Gbps的PCIeX8 全国产化卡 |
| |-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------| |

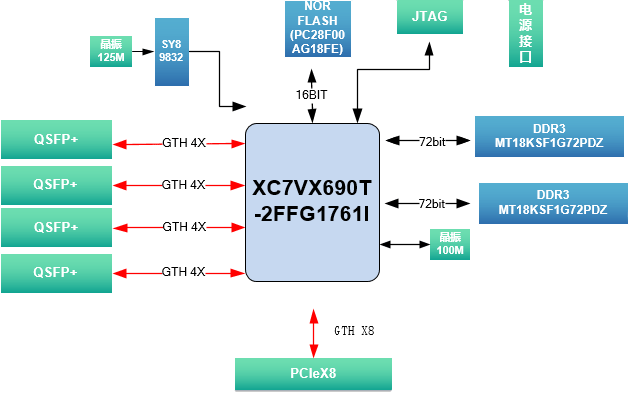

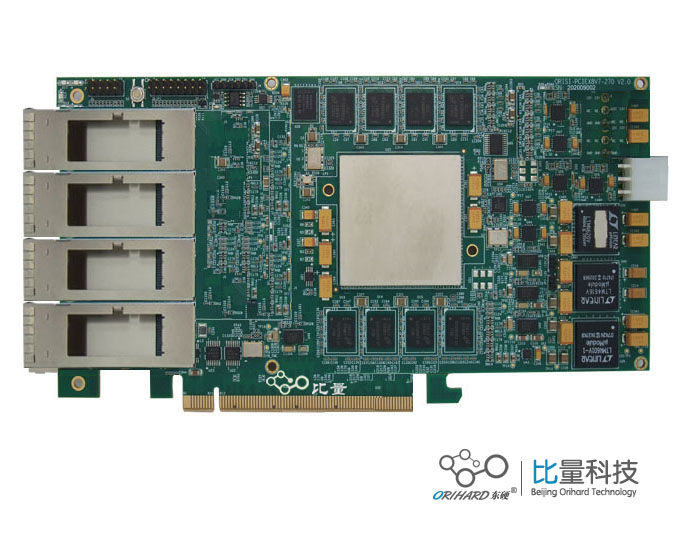

一、板卡概述 本板卡基于JFM7VX690T36 芯片，支持PCIeX8、两组 72bit DDR3容量8GByte，支持4路QSFP+ 接口，板卡支持各种FMC子卡扩展。软件支持windows，Linux操作系统。
二、功能和技术指标： |---------|------------------------------------------| | 板卡功能 | 参数内容 | | 主处理器 | JFM7VX690T36 | | 板卡标准 | PCI EXPRESS CARD SPECIFICATION, REV. 1.1 | | 电气规范 | PCIe包括2.0、3.0版本 | | 光纤 | 4路QSFP+，每路40Gbps | | 板载缓存 | 两组DDR3 每组容量2GB，72bit @800MHz | | 加载Flash | BPI Flash 128Mbyte, PC28F00AG18FE | | PCIe | PCIe V3.0 X8 | | 低速接口 | 12路 IO 1.8V IO | | 板卡尺寸 | 全高 2/3长 | | 板卡重量 | （含散热片） | | 板卡供电 | +12V@5A | | 板卡功耗 | 50W | | 工作温度 | Industrial -20℃到+70℃ | 三、接口测试软件: |-----------|----------------------------------------------| | 板卡功能 | 参数内容 | | 主处理器 | JFM7VX690T36 | | 软件版本 | Vivado 2017.4 | | 编程语言 | Verilog | | 板卡接口测试程序 | DDR测试、光纤测试、PCIe IO模式测试 | | 板卡接口应用程序 | PCIe V3.0 XDMA 测试FPGA程序， Windows 7，Linux驱动程序 | | 板载FMC测试程序 | 根据子卡型号提供对应的测试接口程序 | 四、应用领域 软件无线电处理平台 图形图像硬件加速器 Net FPGA | |
