跨系统平台实践:在内网自建kylin服务版系统yum源

本文介绍在内网中搭建某国产Linux系统yum源服务器。

一、背景

某局域网因故不能连接互联网,在Linux中安装缺少的软件较麻烦,为此,抽时间研究了如何在内网搭建Linux源,并进行了实践。同时为后续在内网中安装软件、更新补丁做技术储备。

二、分析

2.1、目标分析

目标系统为kylin服务器版,软件安装方式为yum,分析官方源的地址可知,NS为根目录,下有多个目录,V10下有多个不同发行版本目录,如当前使用的版本为V10SP3-2403,再直接到os/adv/lic,下有base和updates,下有不同架构名称。如:

https://update.cs2c.com.cn/NS/V10/V10SP3-2403/os/adv/lic/base/

x86架构的rpm软件包位置如下:

https://update.cs2c.com.cn/NS/V10/V10SP3-2403/os/adv/lic/updates/x86_64/Packages/

2.2、步骤分析

根据搜索到的资料,搭建yum服务主要有几个步骤:

1、需要一台中介服务器,能连互联网。

2、yum支持http、https、ftp方式下载安装。大部分使用http方式,可用httpd、nginx、candy等在中介服务器上搭建http服务器。

3、再同步官方源文件到指定目录,该目录能够在网页上打开。

4、在需要安装软件的机器上,更新yum源仓库地址,即可安装软件。

三、实践

3.1、总体设计

1、经个人评估,目前能预见的时间内,访问量不会很大,为减少部署时间,不借用第三方软件,而是使用golang编写http服务器,可在运行时指定目录,指定端口。

2、经分析,工程/运行目录设计如下:

复制代码
# tree -L 5
.
├── http_server
├── http_server.go
├── log
├── repos
│   └── x86_64
│       ├── base
│       │   └── ks10-adv-os
│       │       ├── Packages
│       │       └── repodata
│       └── updates
│           └── ks10-adv-updates
│               ├── Packages
│               └── repodata
└── run.sh

11 directories, 5 files

其中,http_server为http服务器运行程序,repos为软件源的目录,具体是:

base类型的安装包文件在repos/x86_64/base/ks10-adv-os/Packages/目录,数据文件在repos/x86_64/base/ks10-adv-os/Packages/repodata/

updates类型的安装包文件在repos/x86_64/updates/ks10-adv-updates/Packages/目录,数据文件在repos/x86_64/updates/ks10-adv-updates/repodata/

相比于官方源的地址减少了一些目录。如此设计repos,是因为使用reposync下载时自动创建了ks10-adv-osks10-adv-updates目录,因此,在下文中指定仓库地址时,会与官方的不同。

3、笔者使用2台电脑进行实验,一台为中介服务器,IP为192.168.28.28,端口为87。另一台为本地虚拟机,用来安装软件以验证源服务器是否正常。两者硬件架构、操作系统均相同。

3.2、搭建http服务器

起初,笔者使用了nginx镜像搭建http服务器,后舍弃掉,改为自建服务器,源码见附录。

在测试过程中,由于服务器开了防火墙,因此需要开放相应的端口,示例如下:

复制代码
sudo firewall-cmd --add-port=9000/tcp --permanent
sudo firewall-cmd --add-port=87/tcp --permanent
sudo firewall-cmd --reload
sudo firewall-cmd --add-masquerade --permanent  # docker相关
sudo firewall-cmd --reload

查看开放端口:
sudo firewall-cmd --list-ports

查看防火墙状态:
sudo systemctl status firewalld

3.3、同步远程仓库

一般地,需要在中介服务器上,使用reposync命令同步

复制代码
# 同步 BaseOS
nohup dnf reposync --repoid=ks10-adv-os --download-metadata --remote-time --newest-only -p repos/x86_64/base &

# 同步 Updates
nohup dnf reposync --repoid=ks10-adv-updates --download-metadata --remote-time --newest-only -p repos/x86_64/updates/ &

ks10-adv-os 表示yum仓库配置字段名,在/etc/yum.repos.d/kylin_x86_64.repo中可查
--remote-time 表示保持远程仓库文件的修改时间

注:如已下载有,则会跳过。

上述命令执行完毕后,仓库体积大约占用18GB。由于使用后台方式下载,没有计算具体的耗时。笔者网速一般快,大概个把小时即完成。

但是,起初笔者并没有那么多时间等待,于是找了另外的途径。以安装bison为例,将官方的baserepodata下载到中介服务器repos/x86_64/base/ks10-adv-os/Packages/repodata/目录中,再找到bison-3.6.4-3.ky10.x86_64.rpm安装文件,放到repos/x86_64/base/ks10-adv-os/Packages/目录中。官方具体目录为:

https://update.cs2c.com.cn/NS/V10/V10SP3-2403/os/adv/lic/base/x86_64/repodata/、https://update.cs2c.com.cn/NS/V10/V10SP3-2403/os/adv/lic/base/x86_64/Packages/。

通过上述方法,可以较快地验证。当然,还是需要同步完所有的文件才算完整。

要再次说明的是,笔者的中介服务器为x86架构,而虚拟机也是x86架构,两者操作系统相同。中介服务器本身的源没有修改,因此,reposync能正常同步,至于使用不同架构,限于精力,笔者未进行试验。

3.4、运行服务器

命令:

复制代码
./http_server --dir ./repos -p 87

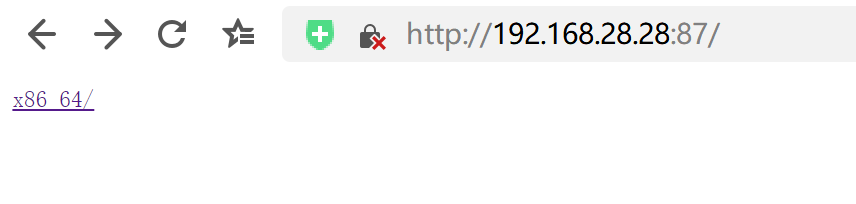

在浏览器中访问,效果如下:

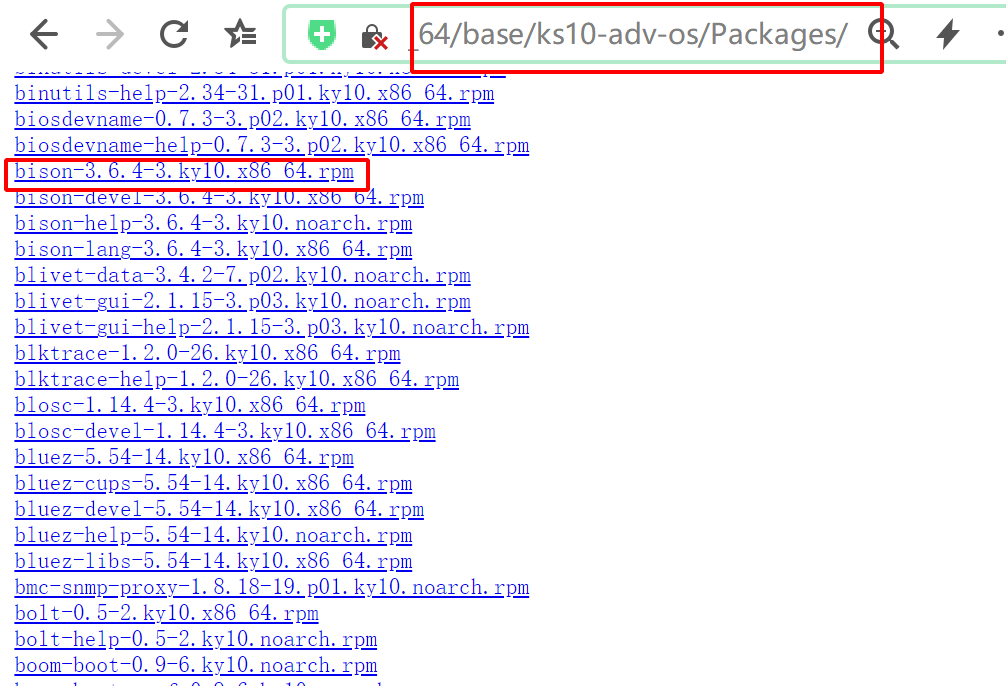

下面是更新完所有包的截图:

3.5、仓库配置

服务器准备就绪后,就可以进行验证了,在虚拟机中,查看官方的kylin_x86_64.repo 文件:

复制代码
# cat /etc/yum.repos.d/kylin_x86_64.repo
###Kylin Linux Advanced Server 10 - os repo###

[ks10-adv-os]
name = Kylin Linux Advanced Server 10 - Os
baseurl = https://update.cs2c.com.cn/NS/V10/V10SP3-2403/os/adv/lic/base/$basearch/
gpgcheck = 1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-kylin
enabled = 1

[ks10-adv-updates]
name = Kylin Linux Advanced Server 10 - Updates
baseurl = https://update.cs2c.com.cn/NS/V10/V10SP3-2403/os/adv/lic/updates/$basearch/
gpgcheck = 1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-kylin
enabled = 1

[ks10-adv-addons]
name = Kylin Linux Advanced Server 10 - Addons
baseurl = https://update.cs2c.com.cn/NS/V10/V10SP3-2403/os/adv/lic/addons/$basearch/
gpgcheck = 1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-kylin
enabled = 0

根据官方示例修改,新建inner_kylin_x86_64.repo文件:

复制代码
###Kylin Linux Advanced Server 10 - 内部源服务配置###

[ks10-adv-os-inner]
name = Kylin Linux Advanced Server 10 - Os
#baseurl = http://192.168.28.28:87/V10SP3-2403/os/adv/lic/base/$basearch/
baseurl = http://172.16.9.19:87/x86_64/base/ks10-adv-os/
gpgcheck = 0
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-kylin
enabled = 1

[ks10-adv-updates-inner]
name = Kylin Linux Advanced Server 10 - Updates
#baseurl = http://192.168.28.28:87/V10SP3-2403/os/adv/lic/updates/$basearch/
baseurl = http://172.16.9.19:87/x86_64/updates/ks10-adv-updates/
gpgcheck = 0
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-kylin
enabled = 1

主要修改了baseurl为实际的URL,另外不使能gpgcheck。经确认,官方文件的ks10-adv-addons指示的地址没有找到,因此未添加。

备份原来的,拷贝新的:

复制代码
sudo mv /etc/yum.repos.d/kylin_x86_64.repo /etc/yum.repos.d/backup
sudo cp inner_kylin_x86_64.repo /etc/yum.repos.d/

3.6、更新源仓库

在虚拟机中更新缓存,命令如下:

复制代码
sudo yum clean all  # 清理缓存
sudo yum repolist enabled  # 列出可用的仓库列表。
sudo yum makecache  # 生成缓存,以便Yum可以使用新的仓库。

下面列出可用仓库列表信息(与上述配置文件一致):

复制代码
$ sudo yum repolist enabled
repo id                                 repo name
ks10-adv-os-inner                       Kylin Linux Advanced Server 10 - Os
ks10-adv-updates-inner                  Kylin Linux Advanced Server 10 - Updates

下面生成缓存信息:

复制代码
$ sudo yum makecache
Kylin Linux Advanced Server 10 - Os                                156 kB/s | 3.7 kB     00:00
Kylin Linux Advanced Server 10 - Updates                           3.7 MB/s | 9.8 MB     00:02
Metadata cache created.

3.7、安装软件示例

以安装bison软件为例,命令如下:

复制代码
sudo dnf install bison

输出信息如下:

复制代码
$ sudo dnf install bison
Last metadata expiration check: 0:02:15 ago on 2025年04月02日 星期三 19时13分39秒.
Dependencies resolved.
===================================================================================================
 Package           Architecture       Version                  Repository                     Size
===================================================================================================
Installing:
 bison             x86_64             3.6.4-3.ky10             ks10-adv-os-inner             333 k

Transaction Summary
===================================================================================================
Install  1 Package

Total download size: 333 k
Installed size: 1.1 M
Is this ok [y/N]: y
Downloading Packages:
bison-3.6.4-3.ky10.x86_64.rpm                                      712 kB/s | 333 kB     00:00
---------------------------------------------------------------------------------------------------
Total                                                              704 kB/s | 333 kB     00:00
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
  Preparing        :                                                                           1/1
  Installing       : bison-3.6.4-3.ky10.x86_64                                                 1/1
  Verifying        : bison-3.6.4-3.ky10.x86_64                                                 1/1

Installed:
  bison-3.6.4-3.ky10.x86_64

Complete!

使用自建http服务,日志输出示例:

复制代码
[INFO] 2025/04/02 19:15:57 10.20.5.103 | GET /x86_64/base/ks10-adv-os/Packages/bison-3.6.4-3.ky10.x86_64.rpm | 11.020931ms

查看版本号:

复制代码
$ bison --version
bison (GNU Bison) 3.6.4
Written by Robert Corbett and Richard Stallman.

Copyright (C) 2020 Free Software Foundation, Inc.
This is free software; see the source for copying conditions.  There is NO
warranty; not even for MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.

输出结果与上文的版本一致,至此,完成了验证,实现了闭环。

四、小结

目前只是在测试阶段。还没有正式使用,根据网上说法,可以用crontab脚本定期更新。不过,在笔者的环境中,需要将外部网络服务器的仓库文件,手动拷贝到内部网络的服务器上,鉴于其体积有18GB------即使压缩了,体积也有17GB,再考虑到网速问题,工作耗时还是不少的。另外,目前也没有细究如何做增量同步。

而其它如arm架构,桌面版本源,等,只能择机再做了。自去年年底有心想做,到现在3个多月了,有个阶段性结果,也是个交待了。

附:http服务器http_server.go源码

复制代码
/*
本工程全部代码由AI工具经过多轮迭代生成
*/
package main

import (
        "flag"
        "fmt"
        "io"
        "log"
        "net/http"
        "os"
        "path/filepath"
        "time"
)

var (
        dir  = flag.String("dir", ".", "Directory to serve")
        port = flag.String("p", "8000", "Port to listen on")
)

// 自定义日志记录器
var (
        infoLogger  *log.Logger
        errorLogger *log.Logger
)

func initLoggers() error {
        // 创建 log 目录(如果不存在)
        if err := os.MkdirAll("log", 0755); err != nil {
                return fmt.Errorf("failed to create log directory: %v", err)
        }

        // 按日期命名日志文件(如 ./log/2023-10-01.log)
        logFileName := filepath.Join("log", time.Now().Format("2006-01-02")+".log")
        logFile, err := os.OpenFile(logFileName, os.O_CREATE|os.O_APPEND|os.O_WRONLY, 0644)
        if err != nil {
                return fmt.Errorf("failed to open log file: %v", err)
        }

        // 同时输出到文件和控制台
        multiWriter := io.MultiWriter(os.Stdout, logFile)
        infoLogger = log.New(multiWriter, "[INFO] ", log.LstdFlags)
        errorLogger = log.New(multiWriter, "[ERROR] ", log.LstdFlags)
        return nil
}

func loggingMiddleware(next http.Handler) http.Handler {
        return http.HandlerFunc(func(w http.ResponseWriter, r *http.Request) {
                start := time.Now()
                next.ServeHTTP(w, r)
                // 记录:IP | 方法 | 路径 | 耗时
                infoLogger.Printf("%s | %s %s | %v",
                        getClientIP(r),
                        r.Method,
                        r.URL.Path,
                        time.Since(start),
                )
        })
}

func getClientIP(r *http.Request) string {
        // 获取真实 IP(处理代理情况)
        ip := r.Header.Get("X-Forwarded-For")
        if ip == "" {
                ip = r.Header.Get("X-Real-IP")
        }
        if ip == "" {
                ip = r.RemoteAddr
        }
        return ip
}

func main() {
        flag.Parse()

        // 初始化日志系统
        if err := initLoggers(); err != nil {
                log.Fatalf("Init failed: %v", err)
        }

        // 检查目录是否存在
        if _, err := os.Stat(*dir); os.IsNotExist(err) {
                errorLogger.Fatalf("Directory %s does not exist", *dir)
        }

        // 标准化目录路径
        absDir, err := filepath.Abs(*dir)
        if err != nil {
                errorLogger.Fatalf("Failed to get absolute path: %v", err)
        }

        // 文件服务器 + 日志中间件
        fs := loggingMiddleware(http.FileServer(http.Dir(absDir)))

        // 启动服务器
        addr := fmt.Sprintf(":%s", *port)
        infoLogger.Printf("Serving directory %s on http://0.0.0.0:%s", absDir, *port)
        errorLogger.Fatal(http.ListenAndServe(addr, fs))
}

附:其它

下载示例

复制代码
[toll@192 yum_nginx]$ flex
-bash: flex:未找到命令
[toll@192 yum_nginx]$ sudo yum install flex
Last metadata expiration check: 0:01:13 ago on 2025年04月01日 星期二 19时30分21秒.
Dependencies resolved.
===================================================================================================
 Package           Architecture        Version                      Repository                Size
===================================================================================================
Installing:
 flex              x86_64              2.6.4-5.ky10                 ks10-adv-os              305 k

Transaction Summary
===================================================================================================
Install  1 Package

Total download size: 305 k
Installed size: 909 k
Is this ok [y/N]: y
Downloading Packages:
[MIRROR] flex-2.6.4-5.ky10.x86_64.rpm: Status code: 404 for http://192.168.28.28:87/V10SP3-2403/os/adv/lic/base/x86_64/Packages/flex-2.6.4-5.ky10.x86_64.rpm (IP: 192.168.28.24)
[MIRROR] flex-2.6.4-5.ky10.x86_64.rpm: Status code: 404 for http://192.168.28.28:87/V10SP3-2403/os/adv/lic/base/x86_64/Packages/flex-2.6.4-5.ky10.x86_64.rpm (IP: 192.168.28.24)
[MIRROR] flex-2.6.4-5.ky10.x86_64.rpm: Status code: 404 for http://192.168.28.28:87/V10SP3-2403/os/adv/lic/base/x86_64/Packages/flex-2.6.4-5.ky10.x86_64.rpm (IP: 192.168.28.24)
[MIRROR] flex-2.6.4-5.ky10.x86_64.rpm: Status code: 404 for http://192.168.28.28:87/V10SP3-2403/os/adv/lic/base/x86_64/Packages/flex-2.6.4-5.ky10.x86_64.rpm (IP: 192.168.28.24)
[FAILED] flex-2.6.4-5.ky10.x86_64.rpm: No more mirrors to try - All mirrors were already tried without success

The downloaded packages were saved in cache until the next successful transaction.
You can remove cached packages by executing 'yum clean packages'.
Error: Error downloading packages:
  flex-2.6.4-5.ky10.x86_64: Cannot download, all mirrors were already tried without success
[toll@192 yum_nginx]$ sudo yum install flex
Kylin Linux Advanced Server 10 - Os                                1.2 MB/s | 3.7 kB     00:00
Dependencies resolved.
===================================================================================================
 Package           Architecture        Version                      Repository                Size
===================================================================================================
Installing:
 flex              x86_64              2.6.4-5.ky10                 ks10-adv-os              305 k

Transaction Summary
===================================================================================================
Install  1 Package

Total download size: 305 k
Installed size: 909 k
Is this ok [y/N]: y
Downloading Packages:
flex-2.6.4-5.ky10.x86_64.rpm                                        38 MB/s | 305 kB     00:00
---------------------------------------------------------------------------------------------------
Total                                                               30 MB/s | 305 kB     00:00
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
  Preparing        :                                                                           1/1
  Installing       : flex-2.6.4-5.ky10.x86_64                                                  1/1
  Running scriptlet: flex-2.6.4-5.ky10.x86_64                                                  1/1
  Verifying        : flex-2.6.4-5.ky10.x86_64                                                  1/1

Installed:
  flex-2.6.4-5.ky10.x86_64

Complete!
[toll@192 yum_nginx]$

卸载flex同时卸载其它依赖库示例

复制代码
sudo yum remove flex
Dependencies resolved.
===================================================================================================
 Package                     Architecture   Version                        Repository         Size
===================================================================================================
Removing:
 flex                        x86_64         2.6.4-5.ky10                   @anaconda         909 k
Removing dependent packages:
 kpatch                      x86_64         1:0.9.1-20.p01.ky10            @anaconda         312 k
Removing unused dependencies:
 bison                       x86_64         3.6.4-3.ky10                   @anaconda         1.1 M
 e2fsprogs-devel             x86_64         1.45.6-20.ky10                 @anaconda         1.0 M
 keyutils-libs-devel         x86_64         1.6.3-4.ky10                   @anaconda          12 k
 krb5-devel                  x86_64         1.18.2-8.ky10                  @anaconda         824 k
 libverto-devel              x86_64         0.3.1-6.ky10                   @anaconda          31 k
 openssl-devel               x86_64         1:1.1.1f-31.p23.ky10           @anaconda         7.9 M

Transaction Summary
===================================================================================================
Remove  8 Packages

Freed space: 12 M
Is this ok [y/N]: y
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
  Preparing        :                                                                           1/1
  Running scriptlet: kpatch-1:0.9.1-20.p01.ky10.x86_64                                         1/1
  Erasing          : kpatch-1:0.9.1-20.p01.ky10.x86_64                                         1/8
  Running scriptlet: kpatch-1:0.9.1-20.p01.ky10.x86_64                                         1/8
  Erasing          : openssl-devel-1:1.1.1f-31.p23.ky10.x86_64                                 2/8
  Erasing          : krb5-devel-1.18.2-8.ky10.x86_64                                           3/8
  Running scriptlet: e2fsprogs-devel-1.45.6-20.ky10.x86_64                                     4/8
  Erasing          : e2fsprogs-devel-1.45.6-20.ky10.x86_64                                     4/8
  Erasing          : keyutils-libs-devel-1.6.3-4.ky10.x86_64                                   5/8
  Erasing          : libverto-devel-0.3.1-6.ky10.x86_64                                        6/8
  Erasing          : bison-3.6.4-3.ky10.x86_64                                                 7/8
  Running scriptlet: flex-2.6.4-5.ky10.x86_64                                                  8/8
  Erasing          : flex-2.6.4-5.ky10.x86_64                                                  8/8
  Running scriptlet: flex-2.6.4-5.ky10.x86_64                                                  8/8
  Verifying        : bison-3.6.4-3.ky10.x86_64                                                 1/8
  Verifying        : e2fsprogs-devel-1.45.6-20.ky10.x86_64                                     2/8
  Verifying        : flex-2.6.4-5.ky10.x86_64                                                  3/8
  Verifying        : keyutils-libs-devel-1.6.3-4.ky10.x86_64                                   4/8
  Verifying        : kpatch-1:0.9.1-20.p01.ky10.x86_64                                         5/8
  Verifying        : krb5-devel-1.18.2-8.ky10.x86_64                                           6/8
  Verifying        : libverto-devel-0.3.1-6.ky10.x86_64                                        7/8
  Verifying        : openssl-devel-1:1.1.1f-31.p23.ky10.x86_64                                 8/8

Removed:
  bison-3.6.4-3.ky10.x86_64                    e2fsprogs-devel-1.45.6-20.ky10.x86_64
  flex-2.6.4-5.ky10.x86_64                     keyutils-libs-devel-1.6.3-4.ky10.x86_64
  kpatch-1:0.9.1-20.p01.ky10.x86_64            krb5-devel-1.18.2-8.ky10.x86_64
  libverto-devel-0.3.1-6.ky10.x86_64           openssl-devel-1:1.1.1f-31.p23.ky10.x86_64

Complete!
[toll@192 yum_nginx]$ sudo yum install flex
Last metadata expiration check: 0:37:41 ago on 2025年04月01日 星期二 17时59分10秒.
Dependencies resolved.
===================================================================================================
 Package           Architecture        Version                      Repository                Size
===================================================================================================
Installing:
 flex              x86_64              2.6.4-5.ky10                 ks10-adv-os              305 k

Transaction Summary
===================================================================================================
Install  1 Package

Total download size: 305 k
Installed size: 909 k
Is this ok [y/N]: y
Downloading Packages:
flex-2.6.4-5.ky10.x86_64.rpm                                       1.8 MB/s | 305 kB     00:00
---------------------------------------------------------------------------------------------------
Total                                                              1.8 MB/s | 305 kB     00:00
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
  Preparing        :                                                                           1/1
  Installing       : flex-2.6.4-5.ky10.x86_64                                                  1/1
  Running scriptlet: flex-2.6.4-5.ky10.x86_64                                                  1/1
  Verifying        : flex-2.6.4-5.ky10.x86_64                                                  1/1

Installed:
  flex-2.6.4-5.ky10.x86_64

Complete!

保持远程文件修改时间

复制代码
# ls repos/x86_64/base/ks10-adv-os/Packages/bison-* -lh
-rw-r--r-- 1 root root 334K  4月 26  2024 repos/x86_64/base/ks10-adv-os/Packages/bison-3.6.4-3.ky10.x86_64.rpm
-rw-r--r-- 1 root root  35K  4月 26  2024 repos/x86_64/base/ks10-adv-os/Packages/bison-devel-3.6.4-3.ky10.x86_64.rpm
-rw-r--r-- 1 root root 245K  4月 26  2024 repos/x86_64/base/ks10-adv-os/Packages/bison-help-3.6.4-3.ky10.noarch.rpm
-rw-r--r-- 1 root root 144K  4月 26  2024 repos/x86_64/base/ks10-adv-os/Packages/bison-lang-3.6.4-3.ky10.x86_64.rpm

可以看到,是2024年4月底更新的。

相关推荐
counsellor几秒前
CentOS 7安装hyperscan
linux·centos·hyperscan
电星托马斯3 分钟前
Linux系统CentOS 6.3安装图文详解
linux·运维·服务器·程序人生·centos
啞謎专家6 分钟前
CentOS中挂载新盘LVM指南:轻松扩展存储空间,解决磁盘容量不足问题
linux·运维·服务器
s_little_monster18 分钟前
【Linux】进程信号的捕捉处理
linux·运维·服务器·经验分享·笔记·学习·学习方法
一大Cpp29 分钟前
Ubuntu与本地用户交流是两种小方法
linux·运维·ubuntu
小王不会写code33 分钟前
CentOS 7 镜像源失效解决方案(2025年)
linux·运维·centos
zyplanke36 分钟前
CentOS Linux升级内核kernel方法
linux·运维·centos
go_bai1 小时前
Linux环境基础开发工具——(2)vim
linux·开发语言·经验分享·笔记·vim·学习方法
这儿有一堆花3 小时前
Kali Linux 2025.1a:主题焕新与树莓派支持的深度解析
linux·运维·服务器
