Logic gate circuits are fundamental building blocks of digital electronics, performing basic logical operations like AND, OR, NOT, etc., and are used in various devices like computers, smartphones, and memory chips.
Here's a more detailed explanation:
1，What are Logic Gates?
Definition :
Logic gates are electronic circuits that act as switches, processing binary inputs (0 or 1) to produce a binary output based on a specific logical operation.
Function :
They implement Boolean algebra, allowing for the manipulation and processing of digital information.
Basic Types:
The most common types include AND, OR, NOT, NAND, NOR, XOR, and XNOR.
Truth Tables:
Each logic gate has a truth table that defines the output for all possible input combinations.
Applications:
Logic gates are used in a wide range of applications, including:
- Digital Electronics: CPUs, memory chips, and other digital devices.
- Computer Systems: Building blocks for arithmetic logic units (ALUs), registers, and multiplexers.
- Control Systems: Implementing logic for automated processes.
2, How Logic Gates Work
Binary Processing:
Logic gates work with binary values (0 and 1), representing "off" and "on" states, respectively.
Voltage Levels:
In electronic circuits, these binary values are often represented by different voltage levels (e.g., 0V for 0 and a positive voltage for 1).
Transistors as Switches:
Logic gates are typically implemented using transistors, which act as electronic switches, turning on or off based on the input signals.

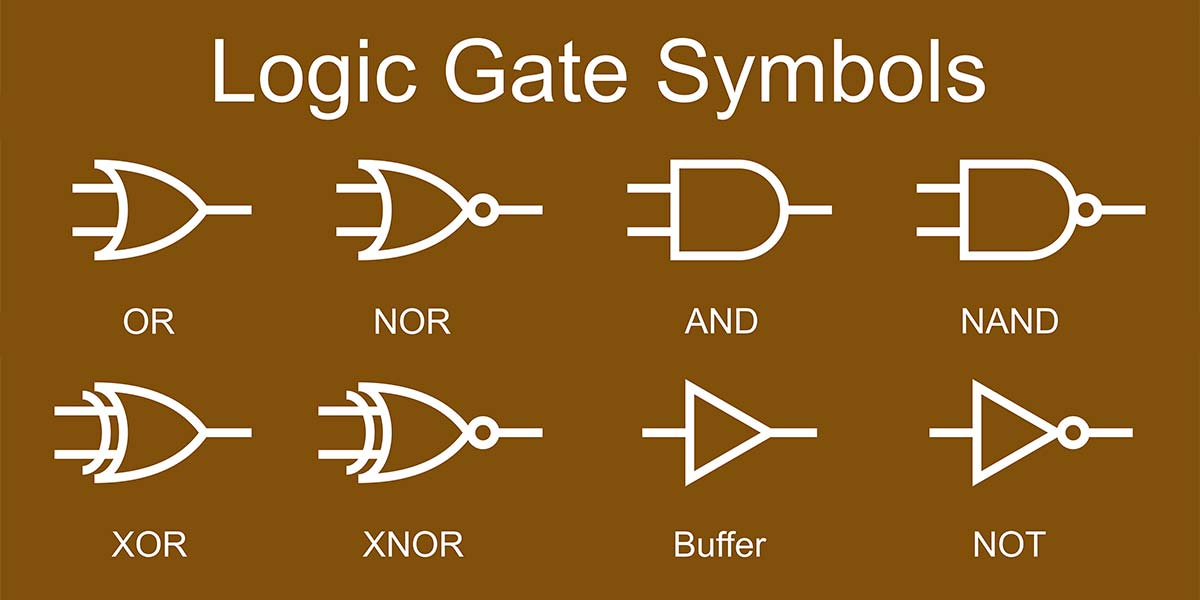

Examples of Logic Gates
- AND Gate: Outputs 1 only if all inputs are 1.
- OR Gate: Outputs 1 if any input is 1.
- NOT Gate: Inverts the input (0 becomes 1, and 1 becomes 0).
- NAND Gate: Outputs 1 only if any input is 0.
- NOR Gate: Outputs 1 only if all inputs are 0.
- XOR Gate: Outputs 1 if the inputs are different.
- XNOR Gate: Outputs 1 if the inputs are the same.
