【Python 开源】你的 Windows 关机助手——PyQt5 版定时关机工具

🖥️ 你的 Windows 关机助手------PyQt5 版定时关机工具

相关资源文件已经打包成EXE文件,可双击直接运行程序,且文章末尾已附上相关源码,以供大家学习交流,博主主页还有更多Python相关程序案例,秉着开源精神的想法,望大家喜欢,点个关注不迷路!!!

📌 概述

在日常使用电脑的过程中,我们经常会遇到需要定时关机的场景,比如:

  • 夜间下载文件,想让电脑在任务完成后自动关机。
  • 长时间运行的程序,需要在某个时间点关闭系统。
  • 限制电脑使用时间,避免长时间占用资源。

虽然 Windows 自带 shutdown 命令可以定时关机,但操作方式较为繁琐,缺乏可视化界面。因此,本篇文章将带大家实现一个基于 PyQt5 的 Windows 定时关机工具,支持定时或延时关机、重启、注销,并提供系统托盘功能,方便随时管理关机任务。

🎯 功能介绍

本工具主要具备以下功能:

定时关机 ------ 设定具体时间,到点自动关机。

延时关机 ------ 设置倒计时,倒计时结束后自动关机。

重启 & 注销 ------ 除关机外,还可执行系统重启和注销操作。

取消操作 ------ 关机前可随时取消,避免误操作。

系统托盘支持 ------ 运行后最小化到系统托盘,不影响日常操作。

人性化提示 ------ 关机前弹出提醒,避免突发关机。

🔧 代码实现

📌 1. 安装依赖

在运行代码之前,我们需要先安装 PyQt5 库:

复制代码
pip install PyQt5 pyqt5-tools

📌 2. 代码编写

以下是完整的代码实现:

复制代码
import sys
import os
import time
from PyQt5.QtWidgets import QApplication, QWidget, QLabel, QPushButton, QVBoxLayout, QTimeEdit, QSystemTrayIcon, QMenu, QAction
from PyQt5.QtGui import QIcon
from PyQt5.QtCore import QTimer, QTime

class ShutdownApp(QWidget):
    def __init__(self):
        super().__init__()
        self.initUI()

    def initUI(self):
        self.setWindowTitle('Windows 定时关机工具')
        self.setGeometry(600, 300, 300, 200)

        self.label = QLabel('请选择关机时间:', self)
        self.timeEdit = QTimeEdit(self)
        self.timeEdit.setDisplayFormat("HH:mm")

        self.startButton = QPushButton('设置关机', self)
        self.startButton.clicked.connect(self.scheduleShutdown)

        self.cancelButton = QPushButton('取消关机', self)
        self.cancelButton.clicked.connect(self.cancelShutdown)

        layout = QVBoxLayout()
        layout.addWidget(self.label)
        layout.addWidget(self.timeEdit)
        layout.addWidget(self.startButton)
        layout.addWidget(self.cancelButton)

        self.setLayout(layout)

        # 托盘功能
        self.trayIcon = QSystemTrayIcon(QIcon("icon.png"), self)
        trayMenu = QMenu()
        exitAction = QAction("退出", self)
        exitAction.triggered.connect(self.close)
        trayMenu.addAction(exitAction)
        self.trayIcon.setContextMenu(trayMenu)
        self.trayIcon.show()

    def scheduleShutdown(self):
        shutdown_time = self.timeEdit.time()
        current_time = QTime.currentTime()
        seconds = current_time.secsTo(shutdown_time)

        if seconds <= 0:
            self.label.setText("请选择一个未来的时间!")
            return

        self.label.setText(f"关机已设置,将在 {shutdown_time.toString()} 执行")
        os.system(f'shutdown -s -t {seconds}')

    def cancelShutdown(self):
        os.system('shutdown -a')
        self.label.setText("关机已取消!")

if __name__ == '__main__':
    app = QApplication(sys.argv)
    ex = ShutdownApp()
    ex.show()
    sys.exit(app.exec_())

📌 功能使用

🛠️ 1. 运行软件

复制代码
python shutdown_tool.py

⏳ 2. 设置定时关机

  • 选择时间
  • 点击 "设置关机"
  • 程序将计算剩余时间,并执行关机命令

🚫 3. 取消关机

  • 如果想取消定时关机,点击 "取消关机" 按钮

  • 也可以手动在命令行执行:

    复制代码
    shutdown -a

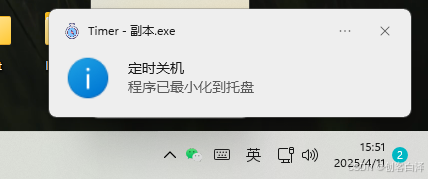

🔽 4. 系统托盘

  • 运行后可最小化到托盘
  • 右键点击托盘图标可 退出应用

📊 技术要点解析

1️⃣ 关机命令

Windows 提供 shutdown 命令来执行关机任务:

  • 定时关机

    复制代码
    shutdown -s -t 秒数
  • 取消关机

    复制代码
    shutdown -a

2️⃣ 计算关机时间

我们使用 QTime 计算当前时间到设定时间的 秒数,避免时间计算错误:

复制代码
seconds = current_time.secsTo(shutdown_time)

3️⃣ 托盘图标支持

使用 QSystemTrayIcon 实现最小化到托盘:

复制代码
self.trayIcon = QSystemTrayIcon(QIcon("icon.png"), self)

这样即使窗口关闭,应用仍能在后台运行。

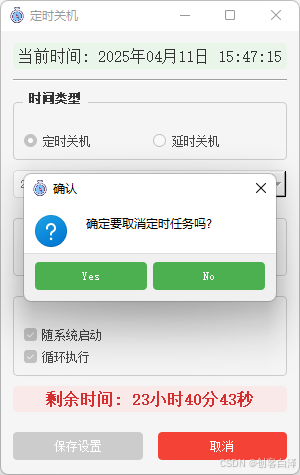

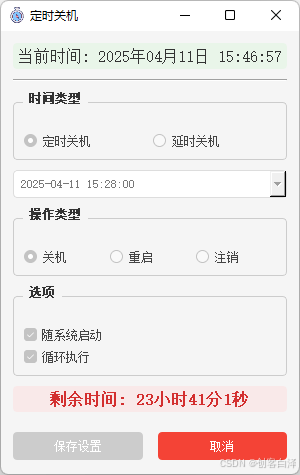

运行效果




相关源码

python 复制代码
import os
import sys
import time
import configparser
import win32api
import win32con
from datetime import datetime, timedelta
from PyQt5.QtWidgets import (QApplication, QMainWindow, QWidget, QVBoxLayout, QHBoxLayout,
                            QGroupBox, QRadioButton, QDateTimeEdit, QLabel, QPushButton,
                            QCheckBox, QSystemTrayIcon, QMenu, QMessageBox, QSpacerItem,
                            QSizePolicy, QFrame)
from PyQt5.QtCore import Qt, QTimer, QDateTime, QTime, QSize, QSharedMemory
from PyQt5.QtGui import QIcon, QFont, QPalette, QColor

def resource_path(relative_path):
    """ 获取资源的绝对路径,适用于开发环境和PyInstaller单文件模式 """
    if hasattr(sys, '_MEIPASS'):
        # PyInstaller创建的临时文件夹
        return os.path.join(sys._MEIPASS, relative_path)
    return os.path.join(os.path.abspath('.'), relative_path)

class ShutdownApp(QMainWindow):
    def __init__(self):
        super().__init__()
        self.task_running = False
        self.config_file = os.path.join(os.getenv('APPDATA'), 'shutdown_config.ini')
        self.first_show = True  # 用于跟踪是否是第一次显示

        self.setup_ui_style()
        self.init_ui()
        self.load_config()

        # 系统托盘
        self.tray_icon = QSystemTrayIcon(self)
        self.tray_icon.setIcon(QIcon(resource_path("icon.ico")))
        self.tray_icon.setToolTip("定时关机")
        self.tray_icon.activated.connect(self.tray_icon_activated)

        # 托盘菜单
        self.tray_menu = QMenu()
        self.show_action = self.tray_menu.addAction("显示")
        self.exit_action = self.tray_menu.addAction("退出")
        self.show_action.triggered.connect(self.show_normal)
        self.exit_action.triggered.connect(self.confirm_exit)
        self.tray_icon.setContextMenu(self.tray_menu)
        self.tray_icon.show()  # 确保托盘图标显示

        # 显示当前时间
        self.timer = QTimer(self)
        self.timer.timeout.connect(self.update_current_time)
        self.timer.start(1000)

        # 剩余时间计时器
        self.countdown_timer = QTimer(self)
        self.countdown_timer.timeout.connect(self.update_remaining_time)

    def setup_ui_style(self):
        """设置全局UI样式"""
        self.setStyleSheet("""
            QMainWindow {
                background-color: #f5f5f5;
            }
            QGroupBox {
                border: 1px solid #ccc;
                border-radius: 4px;
                margin-top: 10px;
                padding-top: 15px;
                font-weight: bold;
                color: #333;
            }
            QGroupBox::title {
                subcontrol-origin: margin;
                left: 10px;
                padding: 0 3px;
            }
            QRadioButton, QCheckBox {
                color: #444;
            }
            QPushButton {
                background-color: #4CAF50;
                color: white;
                border: none;
                padding: 8px 16px;
                border-radius: 4px;
                min-width: 80px;
            }
            QPushButton:hover {
                background-color: #45a049;
            }
            QPushButton:disabled {
                background-color: #cccccc;
            }
            QPushButton#cancel_btn {
                background-color: #f44336;
            }
            QPushButton#cancel_btn:hover {
                background-color: #d32f2f;
            }
            QDateTimeEdit {
                padding: 5px;
                border: 1px solid #ddd;
                border-radius: 4px;
            }
            QLabel#current_time_label {
                font-size: 16px;
                color: #333;
                padding: 5px;
                background-color: #e9f5e9;
                border-radius: 4px;
            }
            QLabel#remaining_time_label {
                font-size: 16px;
                color: #d32f2f;
                font-weight: bold;
                padding: 5px;
                background-color: #f9e9e9;
                border-radius: 4px;
            }
        """)

    def init_ui(self):
        self.setWindowTitle("定时关机")
        self.setWindowIcon(QIcon(resource_path("icon.ico")))
        self.resize(300, 440)

        # 主窗口布局
        main_widget = QWidget()
        self.setCentralWidget(main_widget)
        layout = QVBoxLayout(main_widget)
        layout.setContentsMargins(12, 12, 12, 12)
        layout.setSpacing(10)

        # 当前时间显示
        self.current_time_label = QLabel()
        self.current_time_label.setAlignment(Qt.AlignCenter)
        self.current_time_label.setObjectName("current_time_label")
        layout.addWidget(self.current_time_label)

        # 添加分隔线
        line = QFrame()
        line.setFrameShape(QFrame.HLine)
        line.setFrameShadow(QFrame.Sunken)
        layout.addWidget(line)

        # 定时/延时选择
        time_type_group = QGroupBox("时间类型")
        time_type_layout = QHBoxLayout()
        time_type_layout.setContentsMargins(10, 15, 10, 10)

        self.fixed_time_radio = QRadioButton("定时关机")
        self.delay_time_radio = QRadioButton("延时关机")
        self.fixed_time_radio.setChecked(True)

        time_type_layout.addWidget(self.fixed_time_radio)
        time_type_layout.addWidget(self.delay_time_radio)
        time_type_group.setLayout(time_type_layout)
        layout.addWidget(time_type_group)

        # 定时时间选择
        self.fixed_datetime = QDateTimeEdit()
        self.fixed_datetime.setDisplayFormat("yyyy-MM-dd HH:mm:ss")
        self.fixed_datetime.setDateTime(QDateTime.currentDateTime())
        self.fixed_datetime.setCalendarPopup(True)
        layout.addWidget(self.fixed_datetime)

        # 延时时间选择
        self.delay_datetime = QDateTimeEdit()
        self.delay_datetime.setDisplayFormat("HH:mm:ss")
        self.delay_datetime.setTime(QTime(0, 0, 0))
        self.delay_datetime.setVisible(False)
        layout.addWidget(self.delay_datetime)

        # 连接信号
        self.fixed_time_radio.toggled.connect(self.on_time_type_changed)

        # 操作类型
        action_group = QGroupBox("操作类型")
        action_layout = QHBoxLayout()
        action_layout.setContentsMargins(10, 15, 10, 10)

        self.shutdown_radio = QRadioButton("关机")
        self.restart_radio = QRadioButton("重启")
        self.logoff_radio = QRadioButton("注销")
        self.shutdown_radio.setChecked(True)

        action_layout.addWidget(self.shutdown_radio)
        action_layout.addWidget(self.restart_radio)
        action_layout.addWidget(self.logoff_radio)
        action_group.setLayout(action_layout)
        layout.addWidget(action_group)

        # 选项
        options_group = QGroupBox("选项")
        options_layout = QVBoxLayout()
        options_layout.setContentsMargins(10, 15, 10, 10)

        self.auto_start_check = QCheckBox("随系统启动")
        self.loop_exec_check = QCheckBox("循环执行")

        options_layout.addWidget(self.auto_start_check)
        options_layout.addWidget(self.loop_exec_check)
        options_group.setLayout(options_layout)
        layout.addWidget(options_group)

        # 剩余时间显示
        self.remaining_time_label = QLabel()
        self.remaining_time_label.setAlignment(Qt.AlignCenter)
        self.remaining_time_label.setObjectName("remaining_time_label")
        layout.addWidget(self.remaining_time_label)

        # 按钮布局
        button_layout = QHBoxLayout()
        button_layout.setContentsMargins(0, 10, 0, 0)
        button_layout.setSpacing(15)

        self.save_btn = QPushButton("保存设置")
        self.cancel_btn = QPushButton("取消")
        self.cancel_btn.setObjectName("cancel_btn")
        self.cancel_btn.setEnabled(False)

        self.save_btn.clicked.connect(self.save_config)
        self.cancel_btn.clicked.connect(self.cancel_task)

        button_layout.addWidget(self.save_btn)
        button_layout.addWidget(self.cancel_btn)
        layout.addLayout(button_layout)

        # 添加弹簧使布局更紧凑
        layout.addSpacerItem(QSpacerItem(20, 10, QSizePolicy.Minimum, QSizePolicy.Expanding))

    def on_time_type_changed(self, checked):
        self.fixed_datetime.setVisible(checked)
        self.delay_datetime.setVisible(not checked)

    def update_current_time(self):
        current_time = datetime.now().strftime("%Y年%m月%d日 %H:%M:%S")
        self.current_time_label.setText(f"当前时间: {current_time}")

    def save_config(self):
        config = configparser.ConfigParser()
        config['task'] = {
            'time_type': 'fixed' if self.fixed_time_radio.isChecked() else 'delay',
            'time': self.fixed_datetime.dateTime().toString("HHmmss") if self.fixed_time_radio.isChecked() else self.delay_datetime.time().toString("HHmmss"),
            'execute_type': 'shutdown' if self.shutdown_radio.isChecked() else 'restart' if self.restart_radio.isChecked() else 'logoff',
            'auto_start': '1' if self.auto_start_check.isChecked() else '0',
            'task_circ': '1' if self.loop_exec_check.isChecked() else '0'
        }

        with open(self.config_file, 'w') as f:
            config.write(f)

        self.set_auto_start(self.auto_start_check.isChecked())
        self.cancel_btn.setEnabled(True)  # 保存后启用取消按钮
        self.start_task()

    def load_config(self):
        if not os.path.exists(self.config_file):
            return

        config = configparser.ConfigParser()
        config.read(self.config_file)

        if 'task' in config:
            task_config = config['task']

            # 时间类型
            if task_config.get('time_type', 'fixed') == 'fixed':
                self.fixed_time_radio.setChecked(True)
                time_str = task_config.get('time', '000000')
                qtime = QTime.fromString(time_str, "HHmmss")
                current_date = QDateTime.currentDateTime()
                self.fixed_datetime.setDateTime(QDateTime(current_date.date(), qtime))
            else:
                self.delay_time_radio.setChecked(True)
                time_str = task_config.get('time', '000000')
                qtime = QTime.fromString(time_str, "HHmmss")
                self.delay_datetime.setTime(qtime)

            # 操作类型
            execute_type = task_config.get('execute_type', 'shutdown')
            if execute_type == 'shutdown':
                self.shutdown_radio.setChecked(True)
            elif execute_type == 'restart':
                self.restart_radio.setChecked(True)
            else:
                self.logoff_radio.setChecked(True)

            # 选项
            self.auto_start_check.setChecked(task_config.get('auto_start', '0') == '1')
            self.loop_exec_check.setChecked(task_config.get('task_circ', '0') == '1')

            if self.loop_exec_check.isChecked():
                self.cancel_btn.setEnabled(True)
                self.start_task()

    def set_auto_start(self, enable):
        key = win32con.HKEY_CURRENT_USER
        sub_key = r"Software\Microsoft\Windows\CurrentVersion\Run"

        try:
            reg_key = win32api.RegOpenKey(key, sub_key, 0, win32con.KEY_ALL_ACCESS)
            if enable:
                win32api.RegSetValueEx(reg_key, "定时关机", 0, win32con.REG_SZ, sys.executable)
            else:
                try:
                    win32api.RegDeleteValue(reg_key, "定时关机")
                except:
                    pass
            win32api.RegCloseKey(reg_key)
        except Exception as e:
            QMessageBox.warning(self, "警告", f"设置自启动失败: {str(e)}")

    def start_task(self):
        if self.task_running:
            return

        self.task_running = True
        self.toggle_components(True)

        if self.fixed_time_radio.isChecked():
            target_time = self.fixed_datetime.dateTime().toPyDateTime()
            now = datetime.now()

            if target_time < now:
                target_time += timedelta(days=1)

            self.target_time = target_time
        else:
            delay = self.delay_datetime.time()
            self.target_time = datetime.now() + timedelta(
                hours=delay.hour(),
                minutes=delay.minute(),
                seconds=delay.second()
            )

        self.countdown_timer.start(1000)
        self.update_remaining_time()

    def update_remaining_time(self):
        now = datetime.now()
        remaining = self.target_time - now

        if remaining.total_seconds() <= 0:
            self.execute_action()
            if self.loop_exec_check.isChecked():
                self.start_task()
            else:
                self.cancel_task()
            return

        hours, remainder = divmod(int(remaining.total_seconds()), 3600)
        minutes, seconds = divmod(remainder, 60)
        remaining_str = f"{hours}小时{minutes}分{seconds}秒"
        self.remaining_time_label.setText(f"剩余时间: {remaining_str}")

        # 更新托盘提示
        self.tray_icon.setToolTip(f"定时关机\n剩余时间: {remaining_str}")

    def execute_action(self):
        if self.shutdown_radio.isChecked():
            os.system("shutdown -s -t 0")
        elif self.restart_radio.isChecked():
            os.system("shutdown -r -t 0")
        else:
            os.system("shutdown -l")

    def cancel_task(self):
        """取消定时任务"""
        if not self.task_running:
            QMessageBox.warning(self, "警告", "没有正在运行的任务")
            return

        reply = QMessageBox.question(
            self,
            "确认",
            "确定要取消定时任务吗?",
            QMessageBox.Yes | QMessageBox.No
        )

        if reply == QMessageBox.Yes:
            self.task_running = False
            self.countdown_timer.stop()
            self.remaining_time_label.setText("")
            self.tray_icon.setToolTip("定时关机")
            self.toggle_components(False)
            self.cancel_btn.setEnabled(False)

            # 显示取消成功的提示
            QMessageBox.information(self, "提示", "定时任务已取消", QMessageBox.Ok)

    def toggle_components(self, disabled):
        self.fixed_time_radio.setDisabled(disabled)
        self.delay_time_radio.setDisabled(disabled)
        self.fixed_datetime.setDisabled(disabled)
        self.delay_datetime.setDisabled(disabled)
        self.shutdown_radio.setDisabled(disabled)
        self.restart_radio.setDisabled(disabled)
        self.logoff_radio.setDisabled(disabled)
        self.auto_start_check.setDisabled(disabled)
        self.loop_exec_check.setDisabled(disabled)
        self.save_btn.setDisabled(disabled)

    def tray_icon_activated(self, reason):
        if reason == QSystemTrayIcon.DoubleClick:
            self.show_normal()

    def show_normal(self):
        self.show()
        self.setWindowState(self.windowState() & ~Qt.WindowMinimized)
        self.activateWindow()
        self.raise_()

    def closeEvent(self, event):
        """重写关闭事件,改为最小化到托盘"""
        if self.isVisible():
            self.hide()
            self.tray_icon.show()  # 确保托盘图标显示
            if not self.first_show:  # 第一次启动时不显示消息
                self.tray_icon.showMessage(
                    "定时关机",
                    "程序已最小化到托盘",
                    QSystemTrayIcon.Information,
                    2000
                )
            self.first_show = False
            event.ignore()
        else:
            # 真正退出程序
            self.tray_icon.hide()
            event.accept()

    def confirm_exit(self):
        reply = QMessageBox.question(self, '确认', '是否退出?',
                                    QMessageBox.Yes | QMessageBox.No, QMessageBox.No)
        if reply == QMessageBox.Yes:
            self.tray_icon.hide()
            QApplication.quit()

def main():
    # 防止重复运行
    shared = QSharedMemory("定时关机")
    if not shared.create(512, QSharedMemory.ReadWrite):
        QMessageBox.warning(None, "警告", "程序已经在运行!")
        sys.exit(0)

    # 设置高DPI支持
    QApplication.setAttribute(Qt.AA_EnableHighDpiScaling)

    app = QApplication(sys.argv)
    window = ShutdownApp()

    # 如果配置了随系统启动且循环执行,则不显示窗口
    config_file = os.path.join(os.getenv('APPDATA'), 'shutdown_config.ini')
    if os.path.exists(config_file):
        config = configparser.ConfigParser()
        config.read(config_file)

        if 'task' in config and config['task'].get('auto_start', '0') == '1':
            if config['task'].get('task_circ', '0') == '1':
                window.showMinimized()
            else:
                window.show()
        else:
            window.show()
    else:
        window.show()

    sys.exit(app.exec_())

if __name__ == '__main__':
    main()

🎉 总结与优化方向

🔹 优点

界面简洁,操作方便

系统托盘支持,后台静默运行

支持定时 & 倒计时模式,满足不同需求

🔹 可优化方向

🚀 支持多任务管理(同时设置多个定时任务)

🚀 增加日志记录(记录每次关机任务)

🚀 增加任务进度条(倒计时可视化显示)

如果你对这个工具感兴趣,可以尝试优化它,让它变得更加智能!💡

你会如何改进这个工具?欢迎在评论区交流你的想法! 🚀

📥 资源下载

🚀 赶快下载体验吧,如果觉得有帮助,欢迎 Star 支持!

相关推荐
程序视点2 小时前
Window 10文件拷贝总是卡很久?快来试试这款小工具,榨干硬盘速度!
windows
AI生存日记3 小时前
百度文心大模型 4.5 系列全面开源 英特尔同步支持端侧部署
人工智能·百度·开源·open ai大模型
wuk9983 小时前
基于MATLAB编制的锂离子电池伪二维模型
linux·windows·github
步、步、为营3 小时前
.net开源库SignalR
开源·.net
烛阴4 小时前
简单入门Python装饰器
前端·python
lzb_kkk4 小时前
【C++】C++四种类型转换操作符详解
开发语言·c++·windows·1024程序员节
好开心啊没烦恼4 小时前
Python 数据分析:numpy,说人话,说说数组维度。听故事学知识点怎么这么容易?
开发语言·人工智能·python·数据挖掘·数据分析·numpy
面朝大海,春不暖,花不开4 小时前
使用 Python 实现 ETL 流程:从文本文件提取到数据处理的全面指南
python·etl·原型模式
2301_805054565 小时前
Python训练营打卡Day59(2025.7.3)
开发语言·python
万千思绪6 小时前
【PyCharm 2025.1.2配置debug】
ide·python·pycharm
