20250422通过TF卡给视熙科技的机芯刷机的步骤

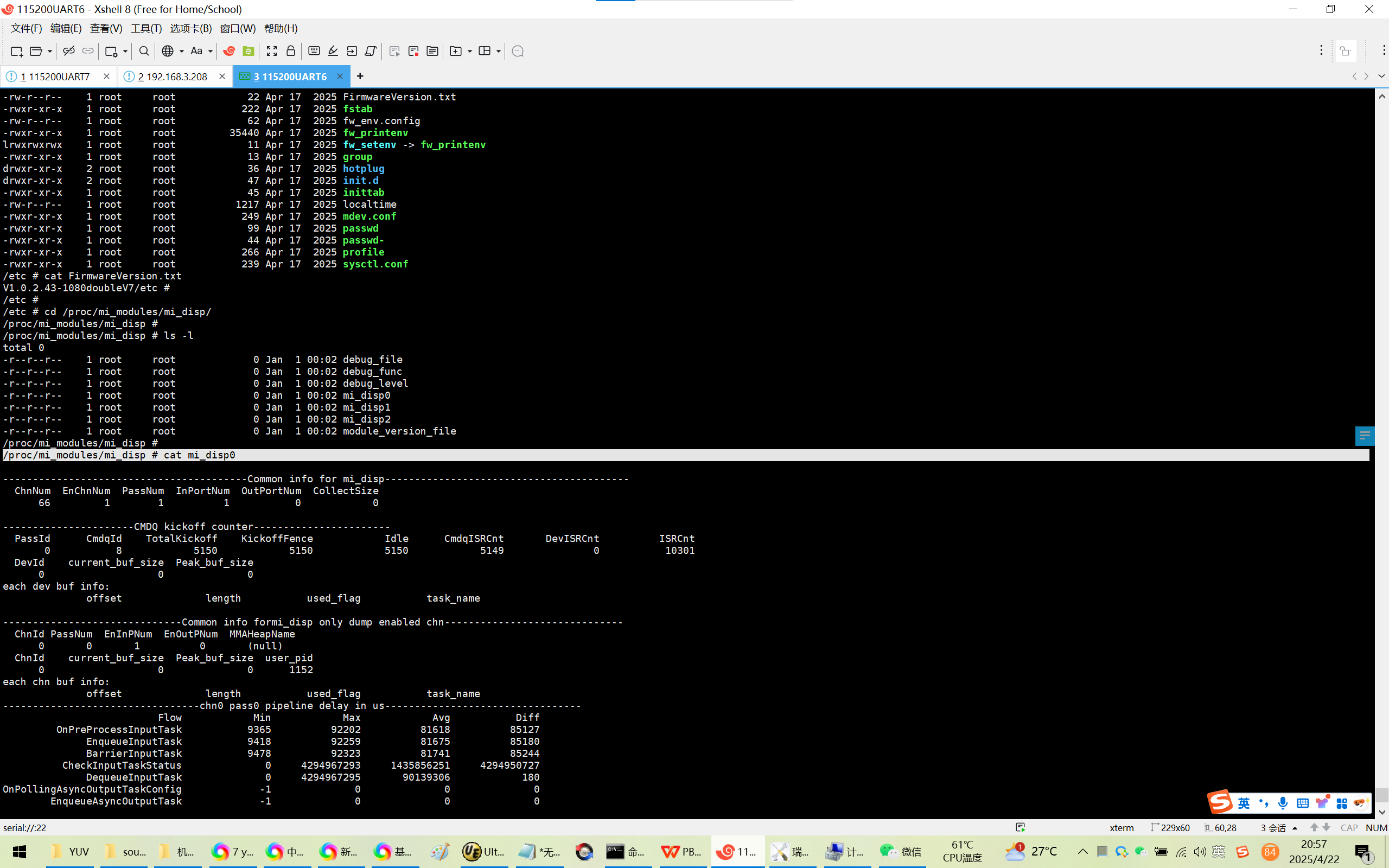

/etc # cat FirmwareVersion.txt

V1.0.2.43-1080doubleV7/etc #

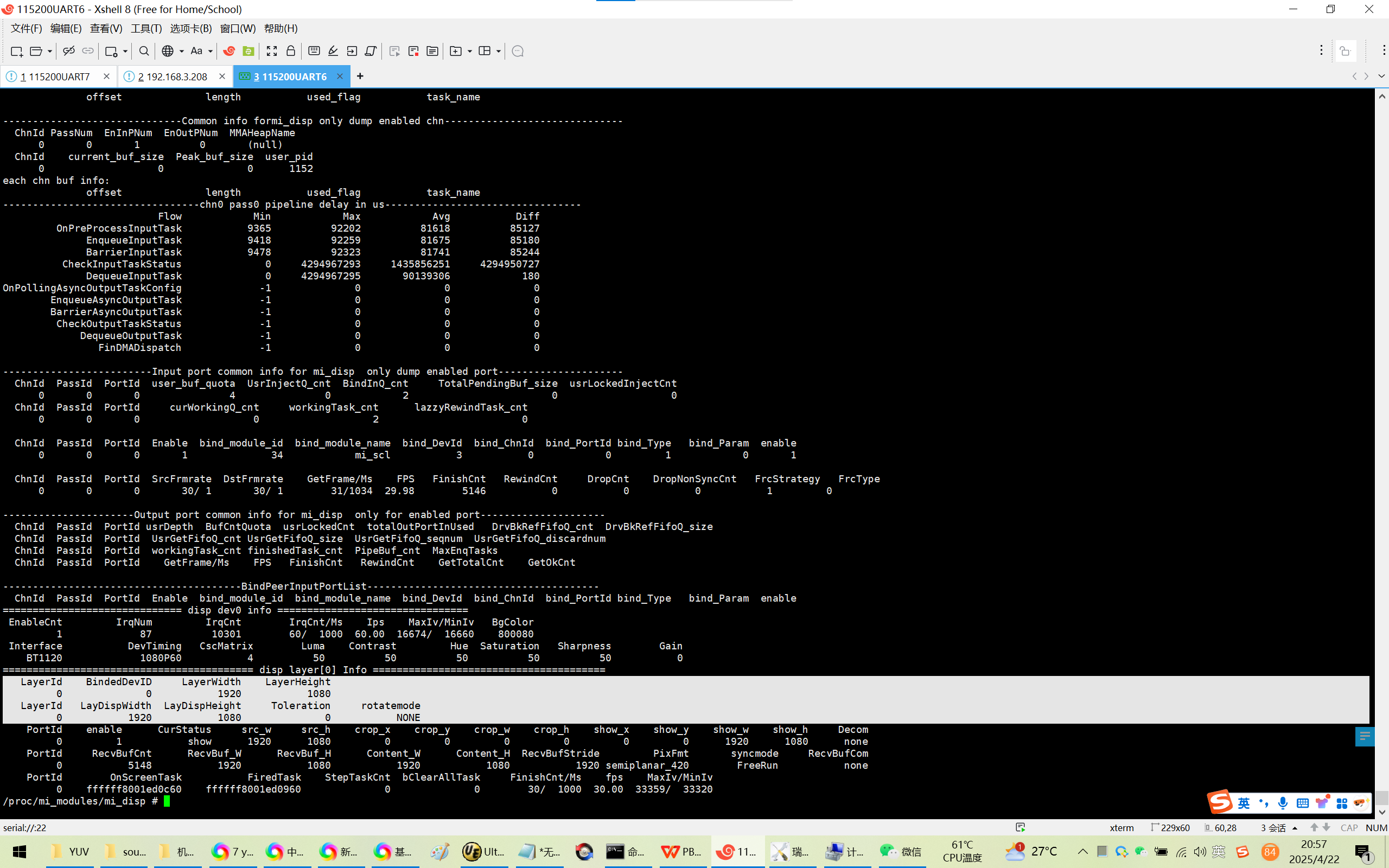

/proc/mi_modules/mi_disp # cat mi_disp0

LayerId BindedDevID LayerWidth LayerHeight

0 0 1920 1080

LayerId LayDispWidth LayDispHeight Toleration rotatemode

0 1920 1080 0 NONE

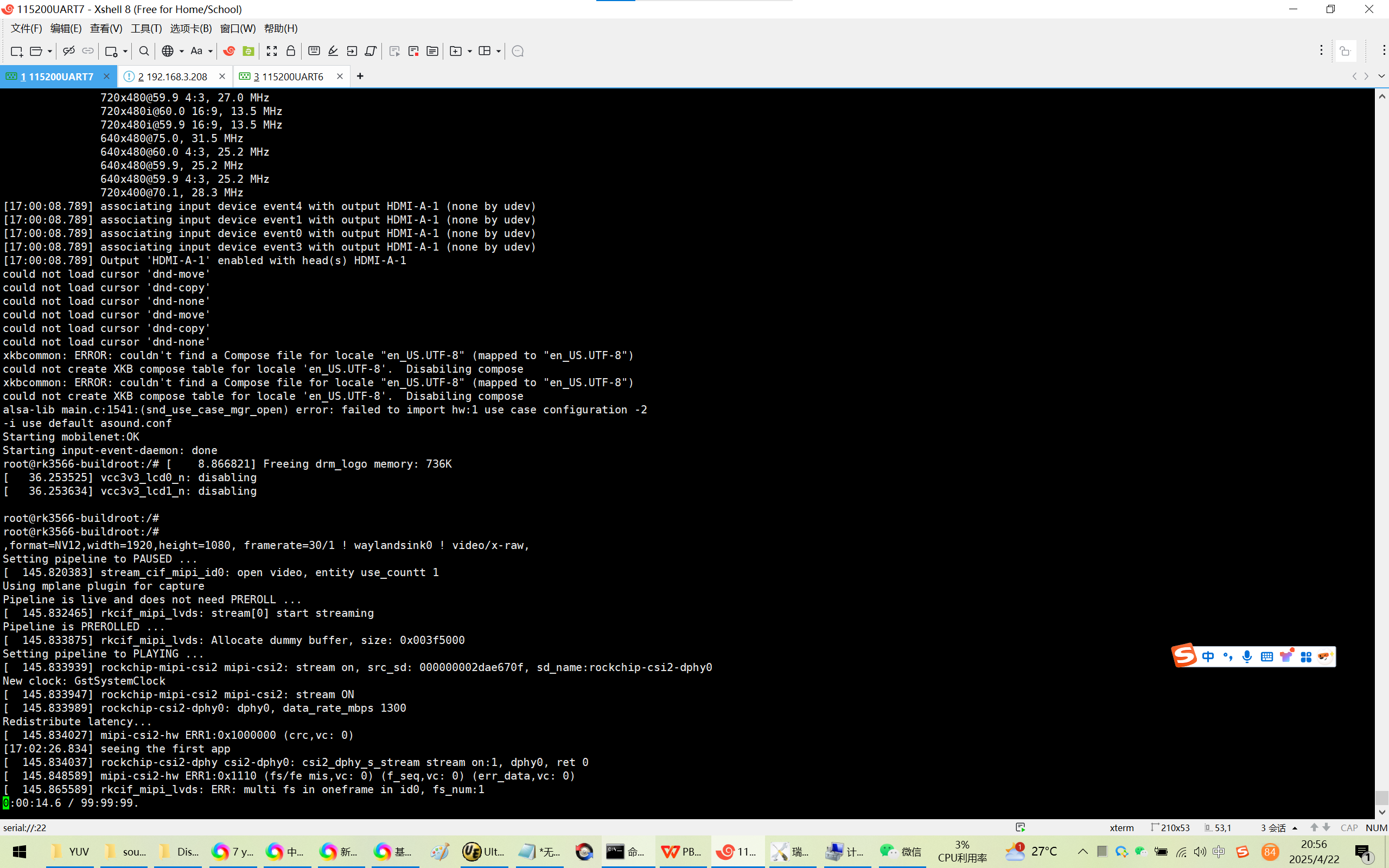

gst-launch-1.0 v4l2src device=/dev/video0 ! video/x-raw,format=NV12,width=1920,height=1080, framerate=30/1 ! waylandsink

v4l2-ctl --verbose -d /dev/video0 --set-fmt-video=width=1920,height=1080,pixelformat=UYVY --stream-mmap=8 --stream-count=20 --stream-to=./cap.yuv --stream-poll

v4l2-ctl --verbose -d /dev/video0 --set-fmt-video=width=1920,height=1080,pixelformat=UYVY --stream-mmap=8 --stream-count=20 --stream-to=./cap3.yuv --stream-poll

v4l2-ctl --verbose -d /dev/video0 --set-fmt-video=width=1920,height=1080,pixelformat=UYVY --stream-mmap=8 --stream-count=1200 --stream-to=./cap1200.yuv --stream-poll

20250422通过TF卡给视熙科技的机芯刷机的步骤

2025/4/22 20:43

百度：diskgenius

https://www.diskgenius.cn/

https://www.diskgenius.cn/download.php

https://eassos.lanzoue.com/DG64

【也可以使用RJ45模式/通过以太网方式刷机】

TF卡我使用的是32GB的SanDisk卡。

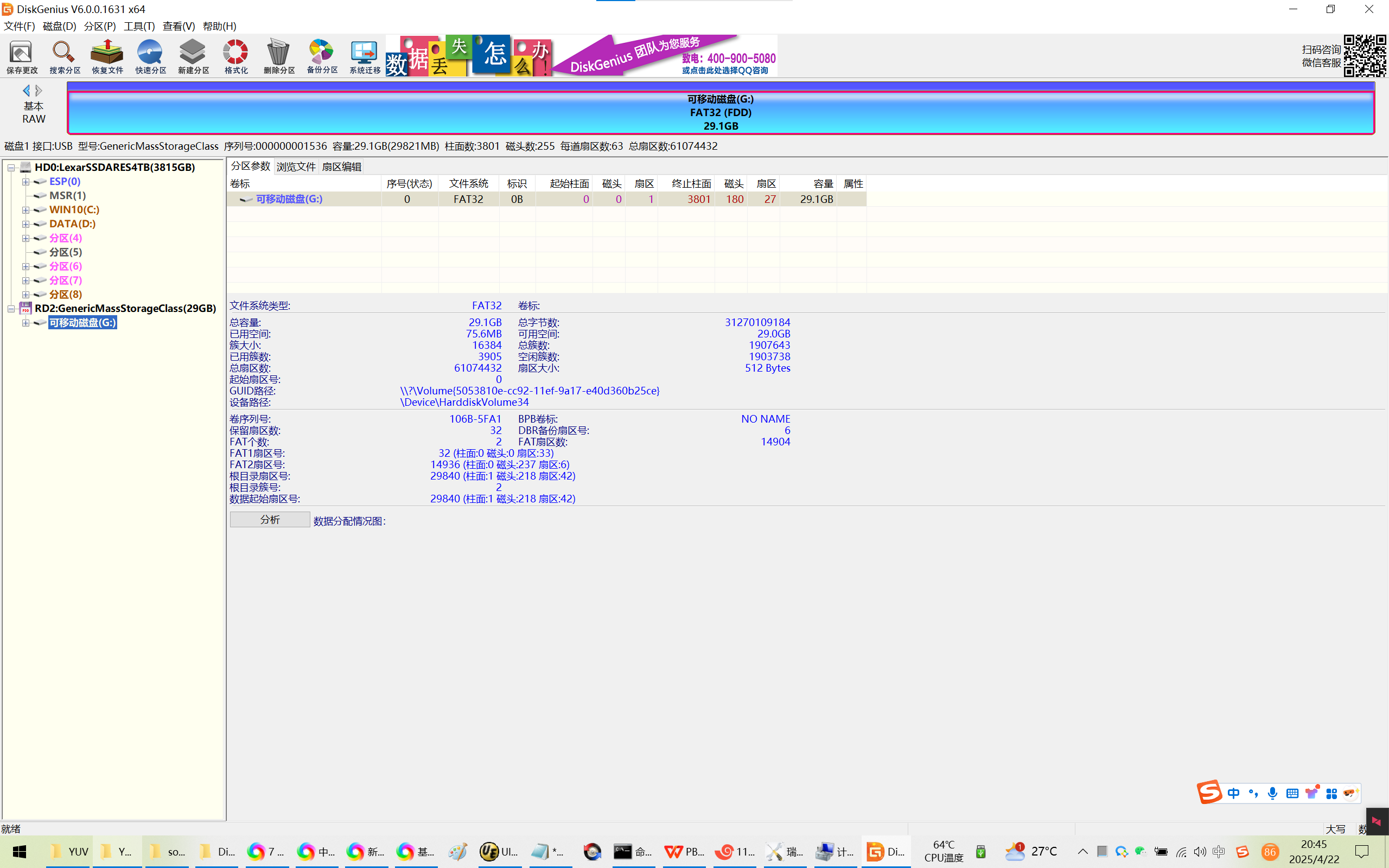

使用DiskGenius V6.0.0.1631 x64版本将TF卡格式化为FAT32格式。

转换分区表类型为MBR格式（B）

重建主引导记录（MBR）（M）

这张TF卡异常了，换一张啦！大哥！

之后将机芯厂给你的ZIP固件：V1.0.2.43-1080doubleV7_20250417_152248.zip

解压缩：

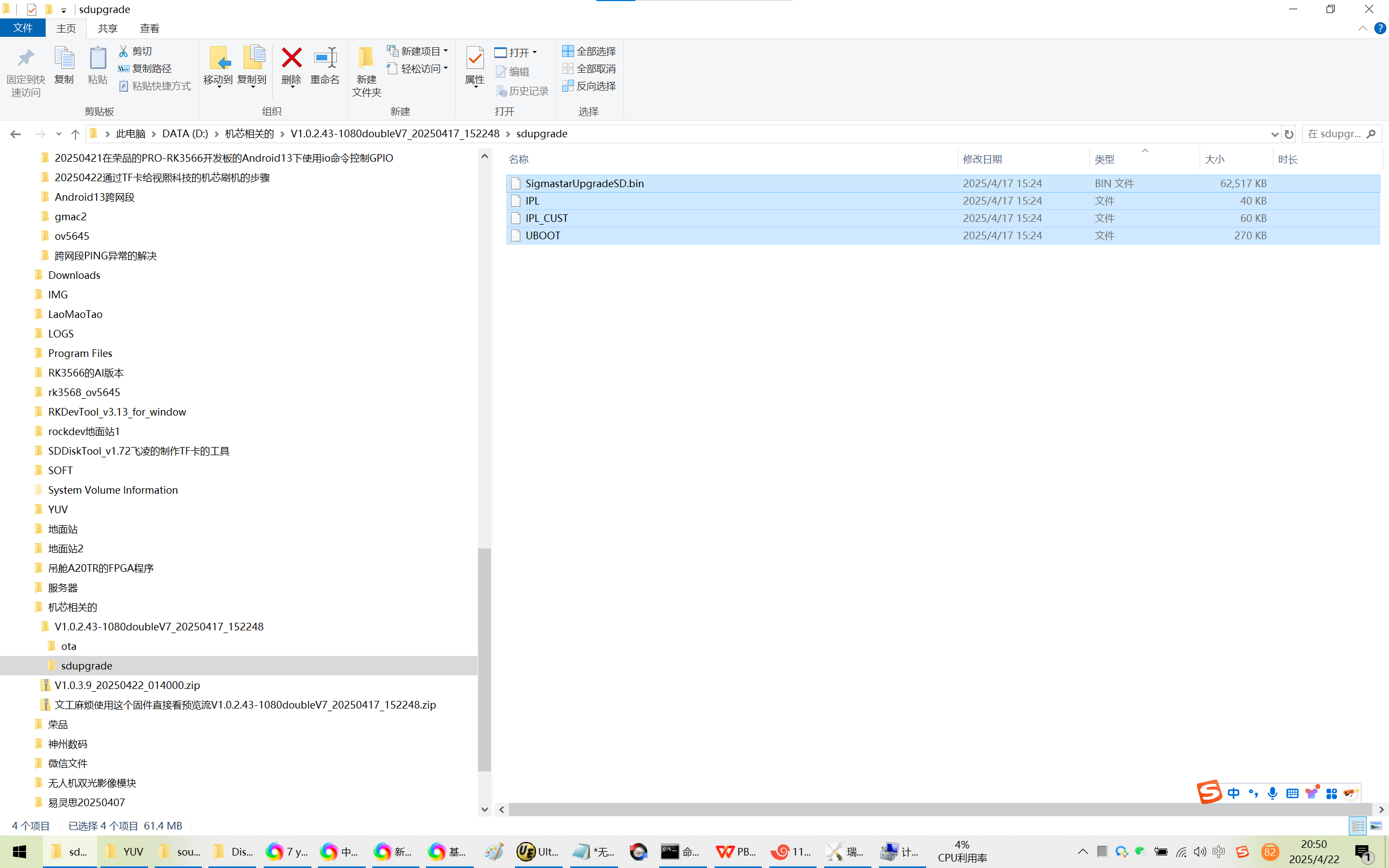

得到OTA、sdupgrade目录。

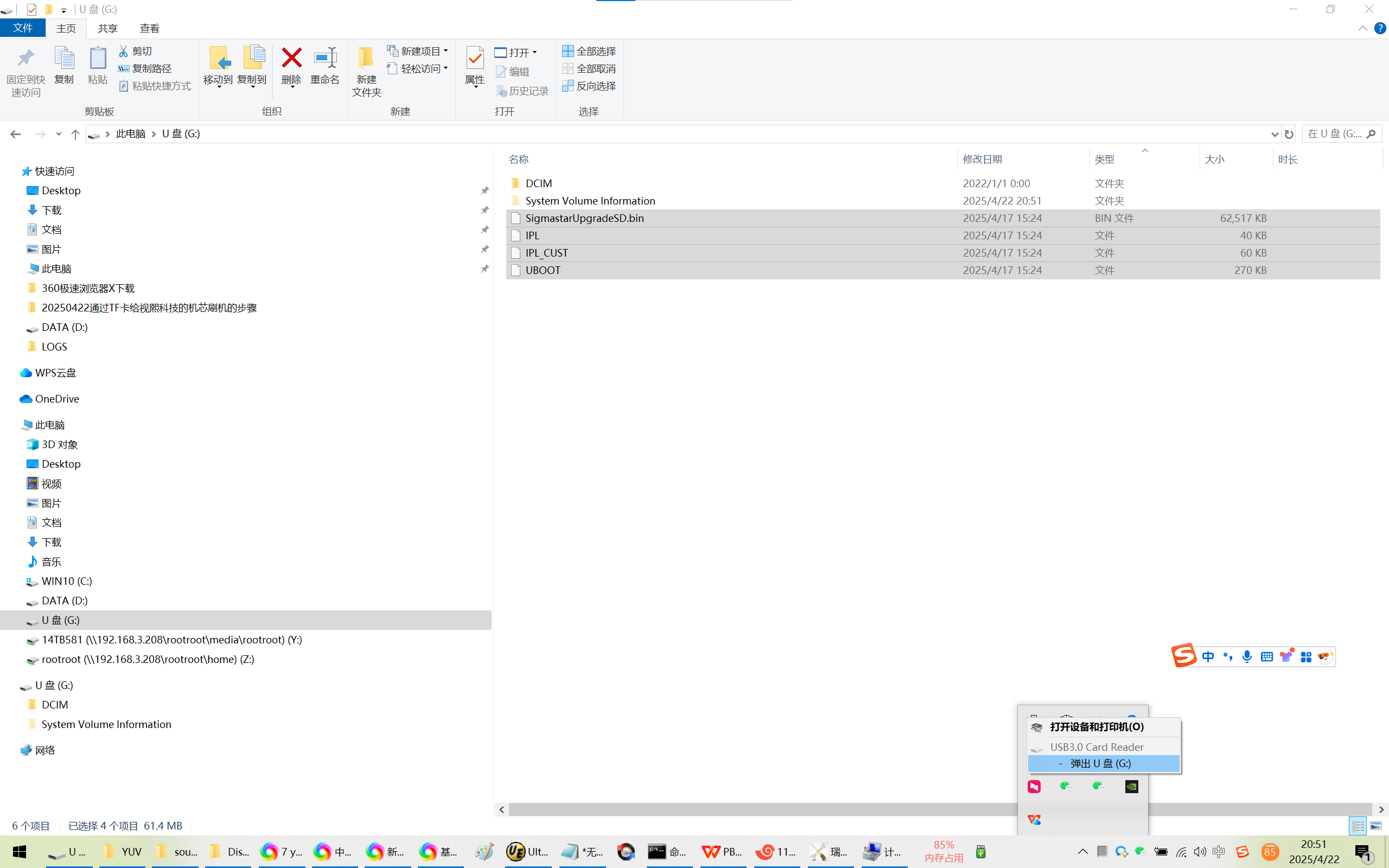

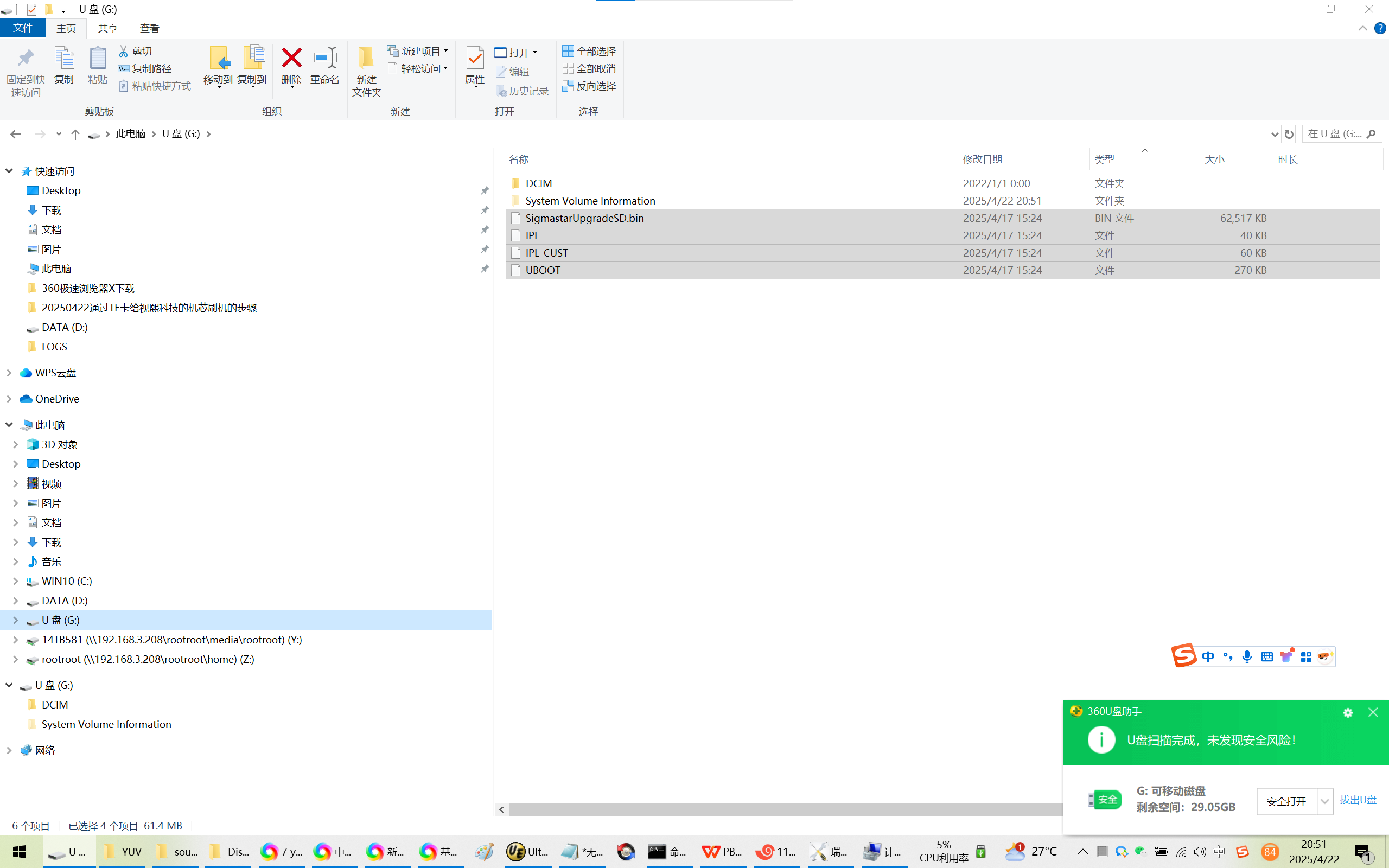

将sdupgrade目录中的4个文件拷贝到TF卡的根目录：

SigmastarUpgradeSD.bin

IPL

IPL_CUST

UBOOT

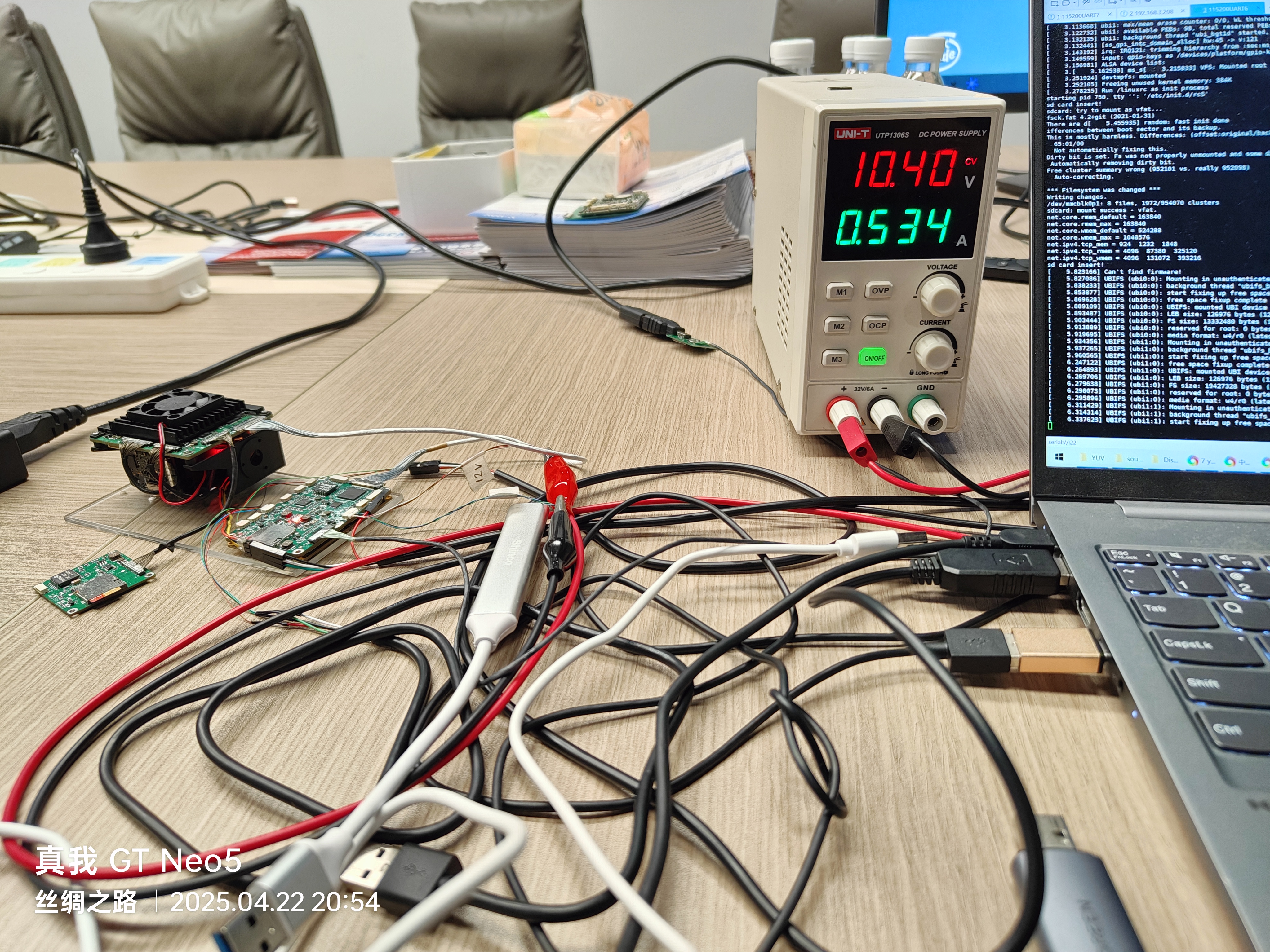

插入到机芯连接的小板上的TF卡卡槽。

【小经验，在开机的时候，将TF卡插入卡槽，通过机芯的串口去读写TF卡，可以看到4个文件即为TF卡工作正常！】

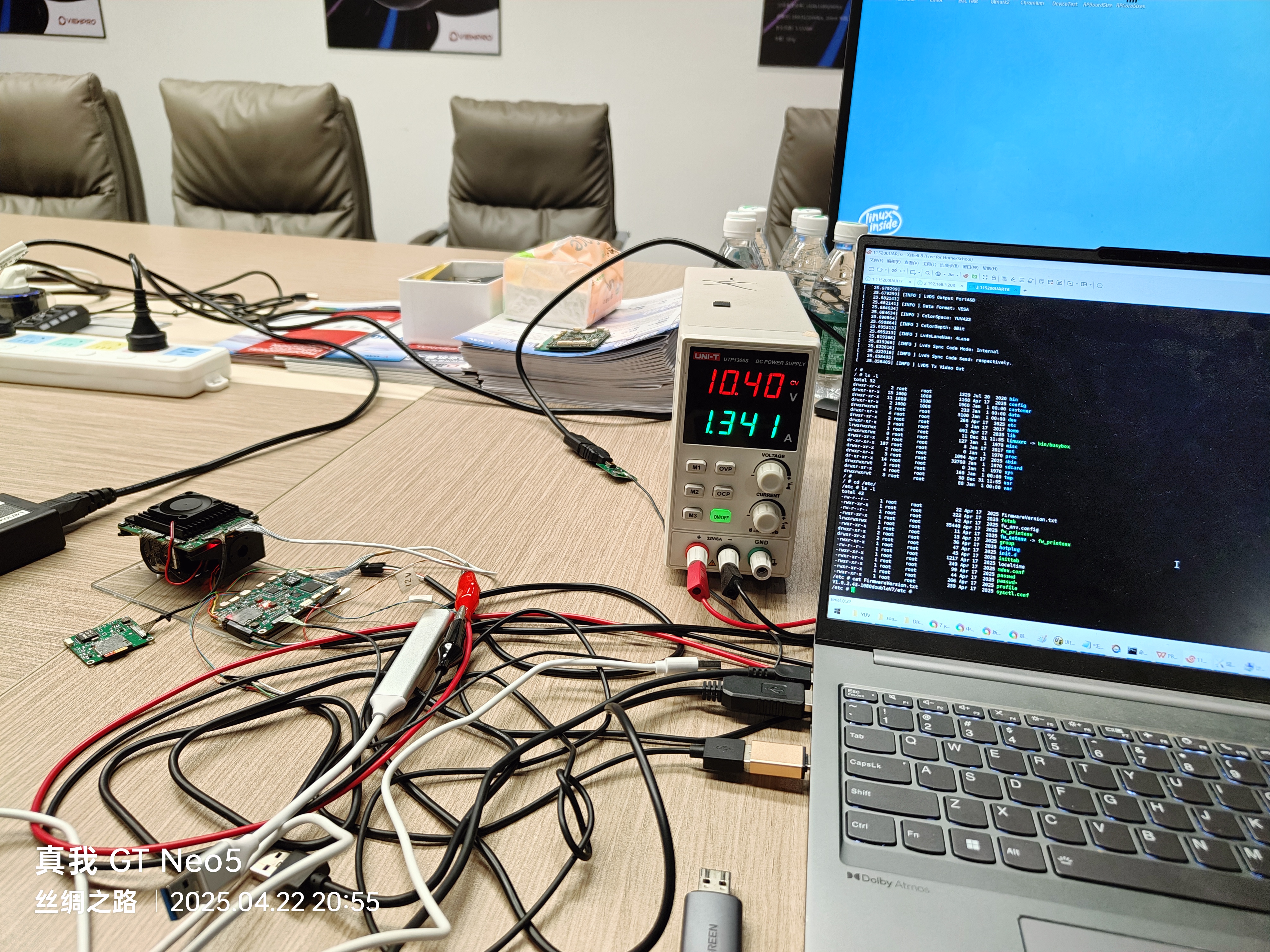

断电既可刷机。

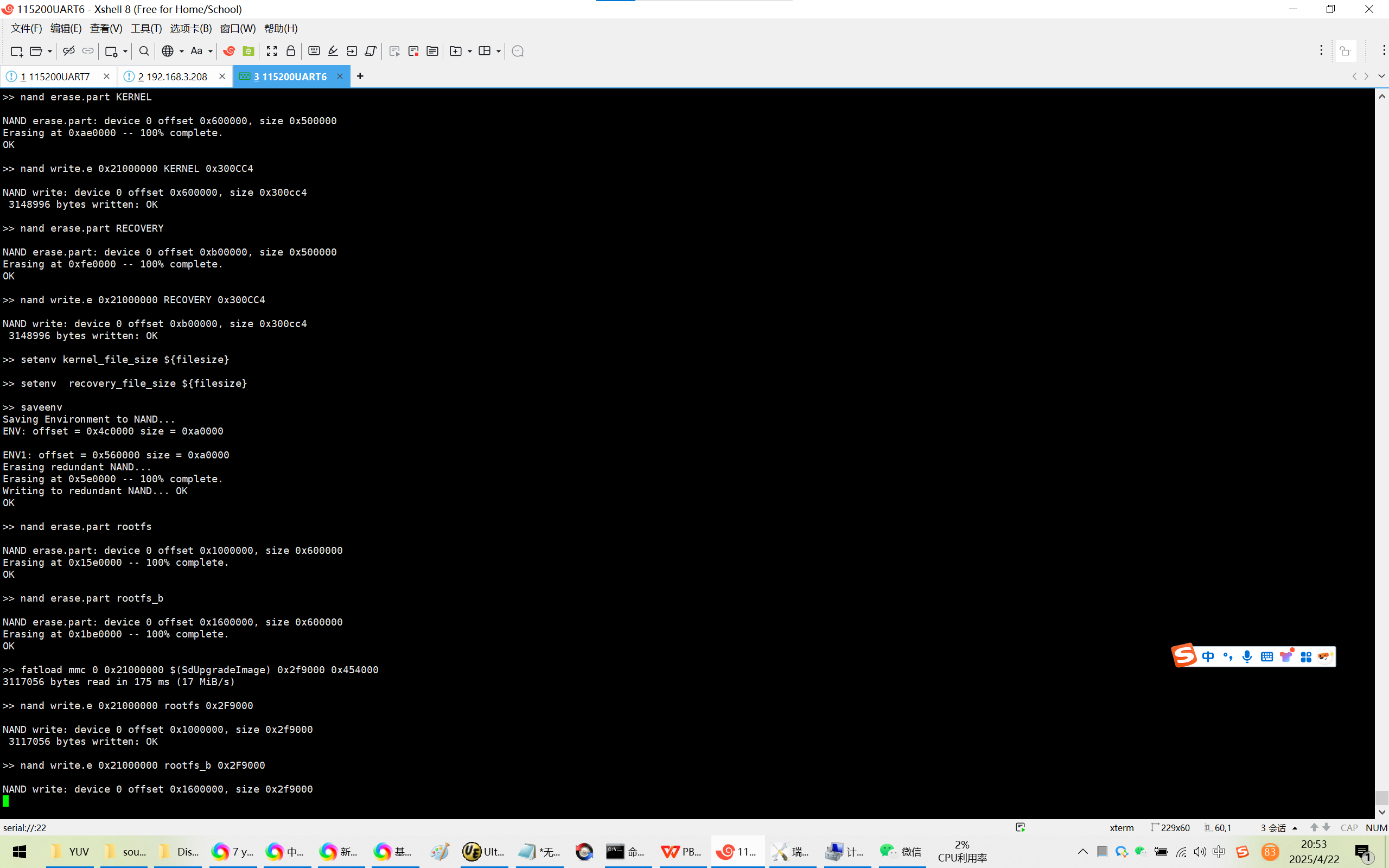

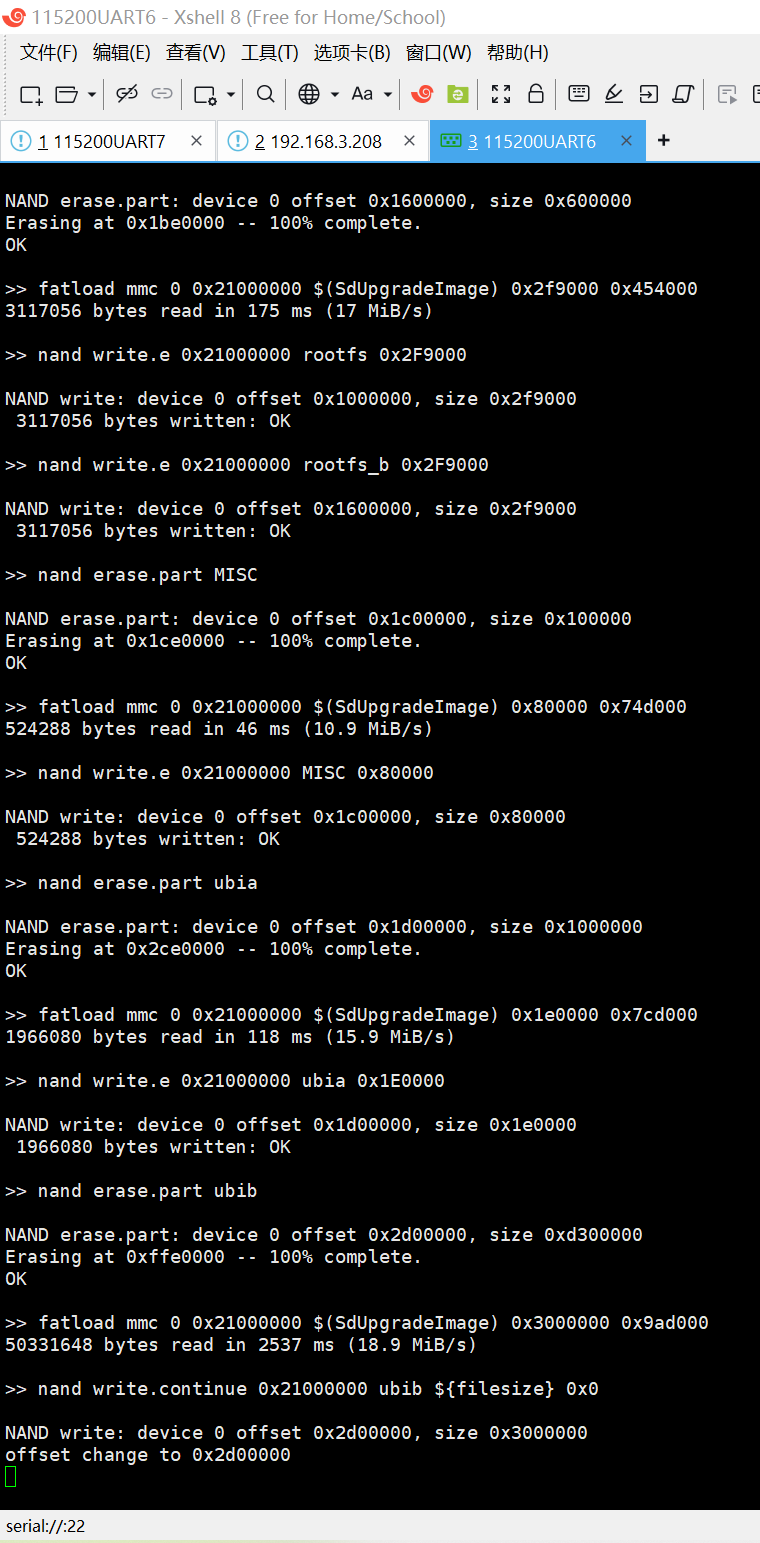

刷机的完整LOG：
