canal同步mysql到mysql主要配置

1、canal.admin 配置和启动命令

cat conf/application.yml

bash 复制代码

server:
  port: 8089
spring:
  jackson:
    date-format: yyyy-MM-dd HH:mm:ss
    time-zone: GMT+8

spring.datasource:
  address: 127.0.0.1:3308
  database: canal_manager
  username: canal
  password: canal
  #driver-class-name: com.mysql.jdbc.Driver
  driver-class-name: com.mysql.cj.jdbc.Driver
  #  8.0 添加&allowPublicKeyRetrieval=true
  url: jdbc:mysql://${spring.datasource.address}/${spring.datasource.database}?useUnicode=true&characterEncoding=UTF-8&useSSL=false
  hikari:
    auto-commit: false
    maximum-pool-size: 30000
    minimum-idle: 10

canal:
  adminUser: admin
  adminPasswd: 123456
  admin:
    registerIp: 10.1.0.98  # 集群注册使用的IP
    serverPort: 11110  # Admin服务端口

启动命令，需要先初始化数据库。

bash 复制代码

conf/canal_manager.sql

bash 复制代码

./bin/startup.sh

2、canal.deployer 配置和启动命令

cat canal_local.properties

bash 复制代码

# register ip
canal.register.ip = 10.1.0.98

# canal admin config
canal.admin.manager = 10.1.0.98:8089
canal.admin.port = 11110
canal.admin.user = admin
#canal.admin.passwd = 123456
# select password('123456')
# 如果遇到mysql8.0，可以使用select upper(sha1(unhex(sha1('123456'))))

canal.admin.passwd = 6BB4837EB74329105EE4568DDA7DC67ED2CA2AD9
# admin auto register
canal.admin.register.auto = true
#canal.admin.register.cluster = default
#canal.admin.register.name = default

## 注册到Admin的配置
#canal.admin.manager.url = http://10.1.0.98:8089/api/v1/${canal.admin.manager.url.base}
#canal.admin.port = 11110
#canal.admin.user = admin
#canal.admin.passwd = 123456
#
## 自动注册配置
#canal.admin.register.auto = true
#canal.admin.register.cluster = default  # 集群名称

启动命令：

bash 复制代码

./bin/startup.sh  local

3、配置 instance

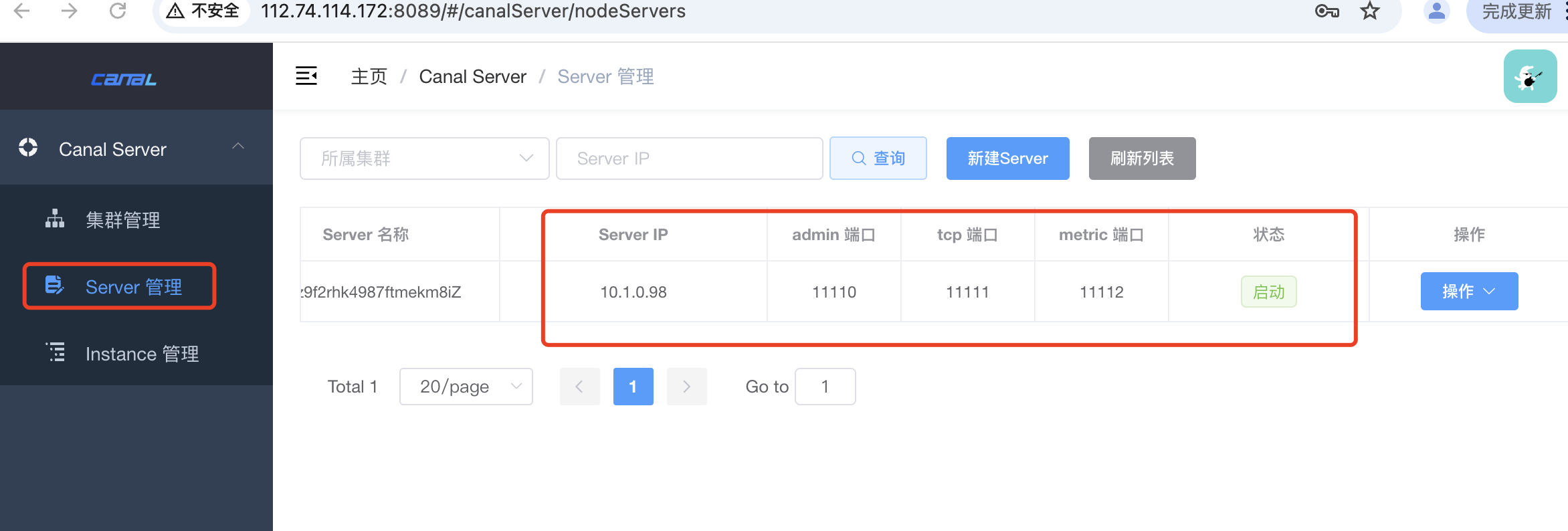

启动 canal.deployer 会自动注册到admin

配置instance

bash 复制代码

#################################################
## mysql serverId , v1.0.26+ will autoGen
# canal.instance.mysql.slaveId=0

# enable gtid use true/false
canal.instance.gtidon=false

# position info
canal.instance.master.address=127.0.0.1:3307
canal.instance.master.journal.name=
canal.instance.master.position=
canal.instance.master.timestamp=
canal.instance.master.gtid=

# rds oss binlog
canal.instance.rds.accesskey=
canal.instance.rds.secretkey=
canal.instance.rds.instanceId=

# table meta tsdb info
canal.instance.tsdb.enable=true
#canal.instance.tsdb.url=jdbc:mysql://127.0.0.1:3306/canal_tsdb
#canal.instance.tsdb.dbUsername=canal
#canal.instance.tsdb.dbPassword=canal

#canal.instance.standby.address =
#canal.instance.standby.journal.name =
#canal.instance.standby.position =
#canal.instance.standby.timestamp =
#canal.instance.standby.gtid=

# username/password
canal.instance.dbUsername=canal
canal.instance.dbPassword=canal
canal.instance.connectionCharset = UTF-8
# enable druid Decrypt database password
canal.instance.enableDruid=false
#canal.instance.pwdPublicKey=MFwwDQYJKoZIhvcNAQEBBQADSwAwSAJBALK4BUxdDltRRE5/zXpVEVPUgunvscYFtEip3pmLlhrWpacX7y7GCMo2/JM6LeHmiiNdH1FWgGCpUfircSwlWKUCAwEAAQ==

# table regex
canal.instance.filter.regex=.*\\..*
# table black regex
canal.instance.filter.black.regex=
# table field filter(format: schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.field=test1.t_product:id/subject/keywords,test2.t_company:id/name/contact/ch
# table field black filter(format: schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.black.field=test1.t_product:subject/product_image,test2.t_company:id/name/contact/ch

# mq config
canal.mq.topic=example
# dynamic topic route by schema or table regex
#canal.mq.dynamicTopic=mytest1.user,mytest2\\..*,.*\\..*
canal.mq.partition=0
# hash partition config
#canal.mq.partitionsNum=3
#canal.mq.partitionHash=test.table:id^name,.*\\..*
#################################################

4、canal.adapter 配置和启动命令

cat conf/application.yml

bash 复制代码

server:
  port: 8081
spring:
  jackson:
    date-format: yyyy-MM-dd HH:mm:ss
    time-zone: GMT+8
    default-property-inclusion: non_null

canal.conf:
  mode: tcp #tcp kafka rocketMQ rabbitMQ
  flatMessage: true
  zookeeperHosts:
  syncBatchSize: 1000
  retries: -1
  timeout:
  accessKey:
  secretKey:
  consumerProperties:
#    # canal tcp consumer
    canal.tcp.server.host: 127.0.0.1:11111
    canal.tcp.zookeeper.hosts:
    canal.tcp.batch.size: 500
    canal.tcp.username:
    canal.tcp.password:
  srcDataSources:
    defaultDS:
      url: jdbc:mysql://127.0.0.1:3307/db1?useUnicode=true&useSSL=false
      username: canal
      password: canal
  canalAdapters:
  - instance: qiji66 # canal instance Name or mq topic name
    groups:
    - groupId: g1
      outerAdapters:
      - name: logger
      - name: rdb
        key: mysql1
        properties:
          jdbc.driverClassName: com.mysql.jdbc.Driver
          # 8.0 添加&allowPublicKeyRetrieval=true
          jdbc.url: jdbc:mysql://127.0.0.1:3308/db1?useUnicode=true&useSSL=false
          jdbc.username: canal
          jdbc.password: canal
          druid.stat.enable: false
          druid.stat.slowSqlMillis: 1000

cat rdb/mytest_user.yml

bash 复制代码

## Mirror schema synchronize config
dataSourceKey: defaultDS
destination: qiji66
groupId: g1
outerAdapterKey: mysql1
concurrent: true
dbMapping:
  mirrorDb: true
  database: db1

启动

bash 复制代码

./bin/startup.sh
