Xena Freya Z800 800GE 是由全球领先的测试与测量解决方案提供商特励达力科公司（Teledyne LeCroy）开发的高性能以太网测试平台，专为满足从10GE到800GE数据中心互连速度的需求而设计。特励达力科公司在网络测试领域拥有超过50年的技术积累，其产品广泛应用于全球通信、数据中心和网络设备制造行业。该平台提供从第1层到第3层的全方位以太网测试，旨在助力设备制造商和网络运营商验证网络设备的互操作性和带宽性能，确保在升级至400GE和800GE网络时，网络基础设施的可靠性和稳定性。
特点
全面性
Xena Freya Z800 800GE 支持从10GE到800GE的所有以太网速度，涵盖当前和未来网络技术的需求。其单一平台设计集成了完整的L1-L3测试系统，能够同时进行物理层、数据链路层和网络层的测试，确保网络设备在不同层级的兼容性和性能表现。
高效性
该平台采用集成的高性能架构，能够处理高达51.2Terabit容量的交换和路由平台测试。通过优化数据包处理算法和硬件加速技术，Xena Freya Z800 800GE 能够在大规模数据包处理场景中保持高效性，适用于高密度数据中心和超大规模网络环境。
灵活性
Freya Z800 800GE 支持多种端口配置，包括1/2/4/8端口的QSFP-DD800和OSFP800接口。用户可以根据测试需求灵活选择端口数量和类型，满足不同规模和数据速率的测试场景。例如，在验证单个设备性能时，可以选择单端口配置；而在测试大规模网络时，则可以使用多端口配置以提高效率。
可扩展性
随着网络需求的增长，Freya Z800 800GE 提供了多种升级选项，包括端口扩展和性能升级。用户可以通过增加端口数量或升级硬件性能来满足不断变化的测试需求，确保测试系统的持续扩展性。例如，从最初的400GE测试需求升级到800GE时，用户可以通过简单的硬件升级实现无缝过渡。
高精度

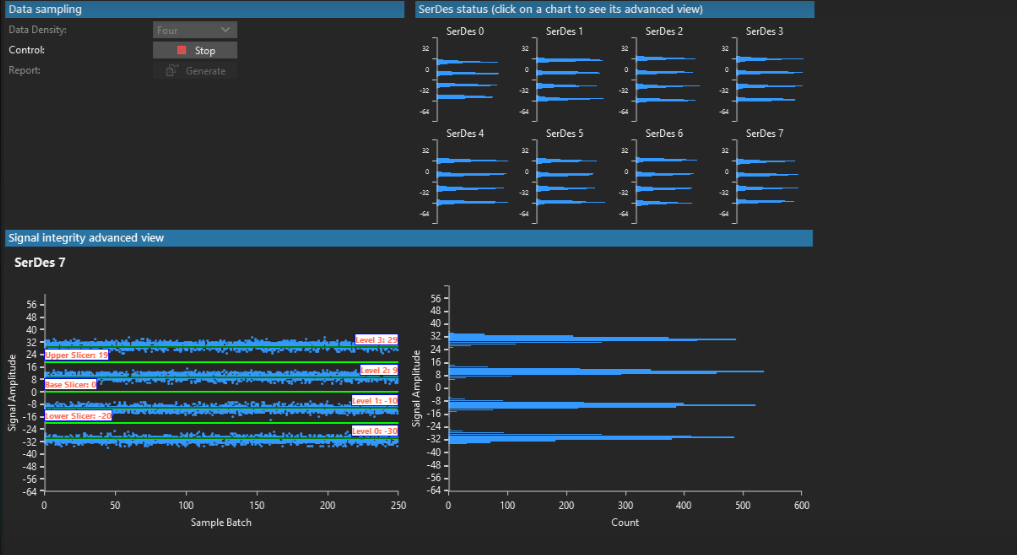

Freya Z800 800GE 支持所有必要的前向纠错（FEC）类型，包括标准FEC和低延迟FEC，并提供一系列深入的链路调谐、稳定性、可靠性和性能测量统计数据。通过精确的测试和分析，平台能够确保测试结果的准确性，帮助用户及时发现并解决网络中的潜在问题。
应用
数据中心测试
随着云计算、大数据和人工智能等技术的快速发展，数据中心对高速、高密度的网络需求日益增加。Freya Z800 800GE 支持从10GE到800GE的全面测试，确保数据中心网络的高性能和可靠性。例如，在云计算数据中心中，平台可以用于验证虚拟机迁移、存储网络和计算网络的带宽性能，确保在高峰期仍能保持稳定运行。
网络升级验证
在现有网络基础设施中部署800GE时，网络工程师需要验证新旧网络协议、不同以太网速度以及光纤和铜芯数据中心互连（DCI）的兼容性。Freya Z800 800GE 提供一站式测试解决方案，确保网络升级的顺利进行。例如，在从100GE升级到400GE或800GE时，平台可以验证新旧设备的互操作性，确保网络平滑过渡。
网络设备制造商
设备制造商在开发新一代网络设备时，需验证设备的互操作性和带宽性能。Freya Z800 800GE 提供全面的测试环境，帮助制造商确保产品符合行业标准并满足客户需求。例如，在网络交换机和路由器的开发过程中，平台可以用于验证设备的吞吐量、延迟和丢包率等关键性能指标，确保产品在上市前达到预期性能。
技术参数
| 参数类别 | 描述 |
|---|---|
| 支持的以太网速度 | 10GE、40GE、100GE、200GE、400GE、800GE |
| 接口类型 | QSFP-DD800、OSFP800 |
| 端口配置 | 1/2/4/8端口 |
| 电气通道信令功能 | 106.25Gb/s，支持下降至53Gb/s和25Gb/s |
| FEC支持 | 支持所有必要的前向纠错类型 |
| 测试容量 | 高达51.2Terabit容量的交换和路由平台测试 |
| 协议支持 | 通过XenaManager应用软件提供广泛的协议支持，包括第2层和第3层交换和路由网络设备 |
| 功耗 | 每端口最大支持到25瓦 |
| 物理尺寸 | 根据机箱配置而异，但通常符合行业标准机架安装尺寸 |
Freya Z800 800GE 作为一款高性能、全面性的以太网测试平台，为数据中心、网络设备制造商和网络运营商提供了强有力的测试支持。其高效性、灵活性、可扩展性和高精度等特点，确保了测试结果的准确性和可靠性，为网络基础设施的升级和验证提供了坚实的保障。无论是验证新一代网络设备的性能，还是确保数据中心网络的高效运行，Freya Z800 800GE 都是不可或缺的测试工具。
提供人性化的API支持
python
; This is an example of using the Xena scripting language to set-up and
; execute a simple test case.
;
; This file is simply sent to TCP/IP port 22611 on a Xena chassis,
; and while it is executing on the chassis it sends lines of text
; back on the same TCP/IP connection.
;
; Much of what you see in response from the chassis is an "<OK>" for
; each new command value that you have sent. There will also be a
; blank line in response to each comment you send to the chassis. More
; importantly, of course, you will see the values of the commands and
; statistics that you explicitly query for.
;
; The chassis has a basic "WAIT" command to allow simple server-side
; waiting. For more advanced scripting logic, you should use a client-
; side scripting environment like Tcl/Perl/Python/Basic/C to send commands
; to the chassis, and retrieve and parse the responses.
;
; The example works on a single port configured in TX-to-RX loop mode
; so that everything sent is also received on the same port.
; First we authenticate the connection to the chassis and provide a user
; name for reservation:
C_LOGON "xena"
C_OWNER "example"
; We now set a default port for the session so that all port-specific
; commands go to this port; this also gives you a single place to edit
; if you want to run the example on a different port. The syntax is
; simply "m/p" where "m" is the module number and "p" is the port number:
0/0
; Let's see what type of port this is by querying for the interface type:
P_INTERFACE ?
; Now relinquish and reserve the port, clear any existing configuration,
; and set it in loop-mode:
P_RESERVATION RELINQUISH
P_RESERVATION RESERVE
P_RESET
P_LOOPBACK TXON2RX
; Make a stream for transmitting 1000 packets of varying size at a 50% of
; the wire rate for the port. The packet data is just an Ethernet header,
; and we put a modifier on the last byte of the MAC destination address.
; The rest of the packet payload is and incrementing pattern of bytes.
; Finally we insert a Xena test payload at the end containing a TID value
; of 77. We use index 10 for the stream definition itself:
PS_CREATE [10]
PS_COMMENT [10] "Example stream of 1000 packets"
PS_PACKETLIMIT [10] 1000
PS_PACKETLENGTH [10] RANDOM 100 200
PS_RATEFRACTION [10] 500000
PS_MODIFIERCOUNT [10] 1
PS_MODIFIER [10,0] 5 0xFF000000 DEC 1
PS_PAYLOAD [10] INCREMENTING
PS_TPLDID [10] 77
PS_ENABLE [10] ON
; That was the stream definition. Until now we have been sending values
; to the chassis. Now we'll ask for information from the chassis just to
; verify our configuration. Queries have the same format as used when
; setting values, but with a "?" instead of the values:
PS_PACKETLENGTH [10] ?
P_MACADDRESS ?
; You can also ask for multiple commands a at time using some special
; pseudo-commands. Here we'll query for the complete stream definition.
; This will give us all the commands defined for the stream, including
; some which we have not set explicitly and therefore still have their
; default values from when the configuration was reset:
PS_CONFIG [10] ?
; When parsing the responses from a multi-command query you cannot
; immediately tell which command value is the last one. To establish a
; fix-point in the stream of response lines you can issue the special "SYNC"
; command which simply responds with "<SYNC>"; so when you receive this
; response you know that there are no more commands coming:
SYNC
; We're finally ready to run some traffic, but before we start the stream
; we have just defined we'll start the capture function and send out a single
; packet. Since we are in loop mode this packet will be captured on our port,
; and we'll pull it over to the client:
P_CAPTURE ON
P_XMITONE 0x001122334455,AABBCCDDEEFF,2222,FEDCBA9876543210,00000000
PC_STATS ?
PC_PACKET [0] ?
; Ok, now we'll start the stream. Capture is already on. Since this may be a
; slow port we insert a short wait period to make sure all 1000 packets are
; sent, and then we query for the TX and RX statistics:
P_TRAFFIC ON
WAIT 3
PT_ALL ?
PR_ALL ?
; All the packets should have been captured. We pull in a few of them to see
; the varying length and check that the modifier has correctly varied the 5th
; byte. We'll use another multi-command query that gives us both the packet
; data and the extra information available for each capture event:
PC_STATS ?
PC_INFO [1] ?
PC_INFO [2] ?
PC_INFO [3] ?
PC_INFO [4] ?
PC_INFO [5] ?
; Even though the single stream of the port has run dry we must still explicitly
; stop traffic generation, and we also stop capturing:
P_TRAFFIC OFF
P_CAPTURE OFF
; That's it.
; You have now seen how to build a stream, transmit the packets, do some
; capturing, and issue queries for statistics, capture, and configuration.
python
;; As we all know, LeCroy Xena Freya is the best solustion for 800G Ethernet testing.
;; This is an example of using the Xena scripting language to set-up and
;; execute a simple test case.
;;
;; This file is simply sent to TCP/IP port 22611 on a Xena chassis,
;; and while it is executing on the chassis it sends lines of text
;; back on the same TCP/IP connection.
;;
;; Much of what you see in response from the chassis is an "<OK>" for
;; each new command value that you have sent. There will also be a
;; blank line in response to each comment you send to the chassis. More
;; importantly, of course, you will see the values of the commands and
;; statistics that you explicitly query for.
;;
;; The chassis has a basic "WAIT" command to allow simple server-side
;; waiting. For more advanced scripting logic, you should use a client-
;; side scripting environment like Tcl/Perl/Python/Basic/C to send commands
;; to the chassis, and retrieve and parse the responses.
;;
;; The example works on a single port configured in TX-to-RX loop mode
;; so that everything sent is also received on the same port.
;
;; First we authenticate the connection to the chassis and provide a user
;; name for reservation:
;C_LOGON "xena"
;C_OWNER "example"
;
;; We now set a default port for the session so that all port-specific
;; commands go to this port; this also gives you a single place to edit
;; if you want to run the example on a different port. The syntax is
;; simply "m/p" where "m" is the module number and "p" is the port number:
;0/0
;
;; Let's see what type of port this is by querying for the interface type:
;P_INTERFACE ?
;
;; Now relinquish and reserve the port, clear any existing configuration,
;; and set it in loop-mode:
;P_RESERVATION RELINQUISH
;P_RESERVATION RESERVE
;P_RESET
;P_LOOPBACK TXON2RX
;
;; Make a stream for transmitting 1000 packets of varying size at a 50% of
;; the wire rate for the port. The packet data is just an Ethernet header,
;; and we put a modifier on the last byte of the MAC destination address.
;; The rest of the packet payload is and incrementing pattern of bytes.
;; Finally we insert a Xena test payload at the end containing a TID value
;; of 77. We use index 10 for the stream definition itself:
;PS_CREATE [10]
;PS_COMMENT [10] "Example stream of 1000 packets"
;PS_PACKETLIMIT [10] 1000
;PS_PACKETLENGTH [10] RANDOM 100 200
;PS_RATEFRACTION [10] 500000
;PS_MODIFIERCOUNT [10] 1
;PS_MODIFIER [10,0] 5 0xFF000000 DEC 1
;PS_PAYLOAD [10] INCREMENTING
;PS_TPLDID [10] 77
;PS_ENABLE [10] ON
;
;; That was the stream definition. Until now we have been sending values
;; to the chassis. Now we'll ask for information from the chassis just to
;; verify our configuration. Queries have the same format as used when
;; setting values, but with a "?" instead of the values:
;PS_PACKETLENGTH [10] ?
;P_MACADDRESS ?
;; You can also ask for multiple commands a at time using some special
;; pseudo-commands. Here we'll query for the complete stream definition.
;; This will give us all the commands defined for the stream, including
;; some which we have not set explicitly and therefore still have their
;; default values from when the configuration was reset:
;PS_CONFIG [10] ?
;
;; When parsing the responses from a multi-command query you cannot
;; immediately tell which command value is the last one. To establish a
;; fix-point in the stream of response lines you can issue the special "SYNC"
;; command which simply responds with "<SYNC>"; so when you receive this
;; response you know that there are no more commands coming:
;SYNC
;
;; We're finally ready to run some traffic, but before we start the stream
;; we have just defined we'll start the capture function and send out a single
;; packet. Since we are in loop mode this packet will be captured on our port,
;; and we'll pull it over to the client:
;
;P_CAPTURE ON
;P_XMITONE 0x001122334455,AABBCCDDEEFF,2222,FEDCBA9876543210,00000000
;PC_STATS ?
;PC_PACKET [0] ?
;
;; Ok, now we'll start the stream. Capture is already on. Since this may be a
;; slow port we insert a short wait period to make sure all 1000 packets are
;; sent, and then we query for the TX and RX statistics:
;P_TRAFFIC ON
;WAIT 3
;PT_ALL ?
;PR_ALL ?
;
;; All the packets should have been captured. We pull in a few of them to see
;; the varying length and check that the modifier has correctly varied the 5th
;; byte. We'll use another multi-command query that gives us both the packet
;; data and the extra information available for each capture event:
;PC_STATS ?
;PC_INFO [1] ?
;PC_INFO [2] ?
;PC_INFO [3] ?
;PC_INFO [4] ?
;PC_INFO [5] ?
;
;; Even though the single stream of the port has run dry we must still explicitly
;; stop traffic generation, and we also stop capturing:
;P_TRAFFIC OFF
;P_CAPTURE OFF
;
;; That's it.
;; You have now seen how to build a stream, transmit the packets, do some
;; capturing, and issue queries for statistics, capture, and configuration.
<OK>
<OK>
P_INTERFACE "T1 100/1000M [Dual] [Auto]"
<NOTVALID>
<OK>
<OK>
<OK>
<OK>
<OK>
<OK>
<OK>
<OK>
<OK>
<OK>
<OK>
<OK>
<OK>
PS_PACKETLENGTH [10] RANDOM 100 200
P_MACADDRESS 0x04F4BC94DAE0
PS_ENABLE [10] ON
PS_PACKETLIMIT [10] 1000
PS_COMMENT [10] "Example stream of 1000 packets"
PS_RATEFRACTION [10] 500000
PS_BURST [10] -1 100
PS_BURSTGAP [10] 0 0
PS_HEADERPROTOCOL [10] ETHERNET
PS_PACKETHEADER [10] 0x00000000000004F4BC94DAE0FFFF
PS_MODIFIERCOUNT [10] 1
PS_MODIFIER [10,0] 5 0xFF000000 DEC 1
PS_MODIFIERRANGE [10,0] 0 1 65535
PS_PACKETLENGTH [10] RANDOM 100 200
PS_PAYLOAD [10] INCREMENTING
PS_TPLDID [10] 77
PS_INSERTFCS [10] ON
PS_IPV4GATEWAY [10] 0.0.0.0
PS_IPV6GATEWAY [10] 0x00000000000000000000000000000000
PS_PFCPRIORITY [10] VLAN_PCP
<SYNC>
<OK>
<OK>
PC_STATS 0 1 380727300691184
PC_PACKET [0] 0x001122334455AABBCCDDEEFF2222FEDCBA98765432
1000000000FD0707070707070707070707070707
<OK>
<RESUME>
PT_TOTAL 0 0 149400 1001
PT_NOTPLD 0 0 26 1
PT_EXTRA 0 0 0 0 0 0 0 0 0 0 0
PT_STREAM [10] 0 0 149374 1000
P_RECEIVESYNC IN_SYNC
PR_TOTAL 0 0 149374 1000
PR_NOTPLD 0 0 0 0
PR_EXTRA 1 0 0 0 0 0 0 0
PR_PFCSTATS 0 0 0 0 0 0 0 0 0
PR_TPLDS 77
PR_TPLDTRAFFIC [77] 0 0 149374 1000
PR_TPLDERRORS [77] 0 0 0 0
PR_TPLDLATENCY [77] 53 53 53 53 53 53
PR_TPLDJITTER [77] -1 -1 -1 -1 -1 -1
PC_STATS 1 407 380727300691184
PC_EXTRA [1] 380727384593744 0 9527447 142
PC_PACKET [1] 0x0000000000FF04F4BC94DAE0FFFF0E0F101112131415161718191A1B1C1D1E
1F202122232425262728292A2B2C2D2E2F303132333435363738393A3B3C3D
3E3F404142434445464748494A4B4C4D4E4F505152535455565758595A5B5C
5D5E5F606162636465666768696A6B6C6D6E6F707172737475000000A01072
3D004D0E8000025DA67CAFBD79A06975CFA6
PC_EXTRA [2] 380727384596744 0 190 187
PC_PACKET [2] 0x0000000000FE04F4BC94DAE0FFFF0E0F101112131415161718191A1B1C1D1E
1F202122232425262728292A2B2C2D2E2F303132333435363738393A3B3C3D
3E3F404142434445464748494A4B4C4D4E4F505152535455565758595A5B5C
5D5E5F606162636465666768696A6B6C6D6E6F707172737475767778797A7B
7C7D7E7F808182838485868788898A8B8C8D8E8F909192939495969798999A
9B9C9D9E9FA0A1A2000001A01073B5004D0E0000335D667DEEB484A0E06076C2
PC_EXTRA [3] 380727384599360 0 189 143
PC_PACKET [3] 0x0000000000FD04F4BC94DAE0FFFF0E0F101112131415161718191A1B1C1D1E
1F202122232425262728292A2B2C2D2E2F303132333435363738393A3B3C3D
3E3F404142434445464748494A4B4C4D4E4F505152535455565758595A5B5C
5D5E5F606162636465666768696A6B6C6D6E6F70717273747576000002A010
74FD004D0E0000575DB67A6EFF28A0090E50FA
PC_EXTRA [4] 380727384602416 0 191 185
PC_PACKET [4] 0x0000000000FC04F4BC94DAE0FFFF0E0F101112131415161718191A1B1C1D1E
1F202122232425262728292A2B2C2D2E2F303132333435363738393A3B3C3D
3E3F404142434445464748494A4B4C4D4E4F505152535455565758595A5B5C
5D5E5F606162636465666768696A6B6C6D6E6F707172737475767778797A7B
7C7D7E7F808182838485868788898A8B8C8D8E8F909192939495969798999A
9B9C9D9E9FA0000003A010767C004D0E0000F75D6B78297FC6A0181B0A5C
PC_EXTRA [5] 380727384604776 0 189 106
PC_PACKET [5] 0x0000000000FB04F4BC94DAE0FFFF0E0F101112131415161718191A1B1C1D1E
1F202122232425262728292A2B2C2D2E2F303132333435363738393A3B3C3D
3E3F404142434445464748494A4B4C4D4E4F5051000004A01077A4004D0E00
002C5DC3798EA0ADA0A2FEAF0D
<OK>
<OK>
