MAC与VLAN绑定实现安全组网

生气要吃糖吖2025-05-29 17:25

组网需求

组网拓扑

配置文件

测试结果

基于MAC划分vlan

组网需求

实现MAC与vlan绑定，防止私接设备访问：

CE1下联PC2,3配置Hybird接口
配置untag vlan 100，禁止vlan 1
接口开启mac-vlan
绑定mac与vlan

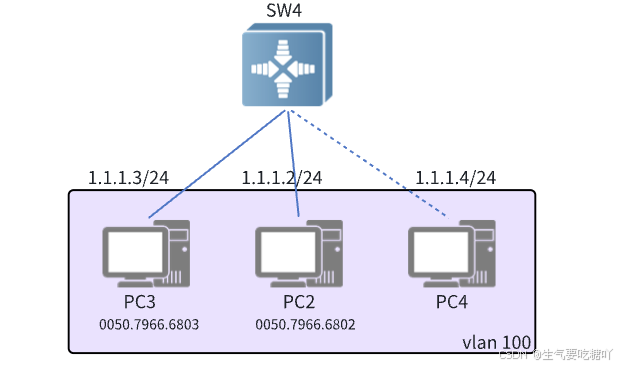

组网拓扑

配置文件

bash 复制代码

!
mac-vlan mac-address 0050.7966.6802 vlan 100 priority 0
mac-vlan mac-address 0050.7966.6803 vlan 100 priority 0
!
interface GigabitEthernet 0/1
 switchport mode hybrid
 switchport hybrid allowed vlan only tagged 2-99,101-4094
 switchport hybrid allowed vlan add untagged 100
 mac-vlan enable
!
interface GigabitEthernet 0/2
 switchport mode hybrid
 switchport hybrid allowed vlan only tagged 2-99,101-4094
 switchport hybrid allowed vlan add untagged 100
 mac-vlan enable
!

测试结果

bash 复制代码

VPCS> ping 1.1.1.2

84 bytes from 1.1.1.2 icmp_seq=1 ttl=64 time=1.568 ms
84 bytes from 1.1.1.2 icmp_seq=2 ttl=64 time=1.767 ms
84 bytes from 1.1.1.2 icmp_seq=3 ttl=64 time=1.793 ms
84 bytes from 1.1.1.2 icmp_seq=4 ttl=64 time=1.542 ms
84 bytes from 1.1.1.2 icmp_seq=5 ttl=64 time=1.838 ms

VPCS> ping 1.1.1.4

host (1.1.1.4) not reachable
