1 基本概念
1.1 关于RoutingKey和Binding Key
在介绍工作模式前，首先介绍两个概念：
RoutingKey ：路由键，由生产者 生产消息时指定的字符串，交换机会根据路由键来匹配绑定键，匹配成功则将该消息路由到绑定的队列。
Binding Key ：绑定键，RabbitMQ中交换机和队列的绑定关系。
上述两个键实际上决定了两种工作模式：路由模式和通配符模式。由于路由键通常和绑定键进行匹配，大多数情况两个值是一样的（除了通配符模式外）因此RabbitMQ官方有时也会将这两个键混淆为RoutingKey，遇到这个名字时需要根据上下文分辨出说的是哪种键。
1.2 交换机类型
RabbitMQ的工作模式主要是根据交换机类型来划分的。交换机类型由AMQP协议定义，有6种：Fanout广播、Direct定向、Topic通配符、headers类型、System和自定义，其中RabbitMQ用到了前4种：
Fanout广播 ：交换机将消息分发给所有绑定的队列（对应发布订阅模式）。
Direct定向 ：交换机根据RoutingKey将消息分发给与Binding Key一样的队列（对应路由模式）。
Topic通配符： 交换机根据RoutingKey将消息分发给与Binding Key（此时该值可以为通配符）匹配的队列（对应通配符模式）。
headers类型： 不依赖RoutingKey来进行匹配，而是根据消息中的headers属性匹配队列，性能很差，实际中几乎不用。
2 Simple（简单模式）
2.1 模式介绍

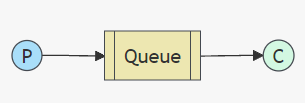

P是生产者Producer，C是消费者Consumer。
****特点：****一个生产者，一个消费者，消息只被消费一次。又称为点对点模式。
****适用场景：****消息只被单个消费者处理的场景。
2.2 使用案例
简单模式在RabbitMQ介绍已经用代码演示过了这里不再演示。
3 Work Queue（工作队列）

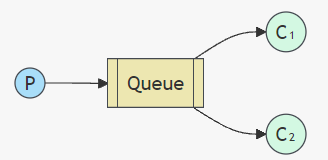

3.1 模式介绍
****特点：****一个生产者，多个消费者，消息只被消费一次，多个消费者共同处理这些消息。
****适用场景：****集群环境中做异步处理。比如订票系统，订票成功消息发送到RabbitMQ中，由多个短信服务共同处理这些消息。
注意：简单模式和工作队列模式在RabbitMQ中并不是没有用到交换机，而是对于交换机的功能仅仅就是简单转发而已。
3.2 使用案例

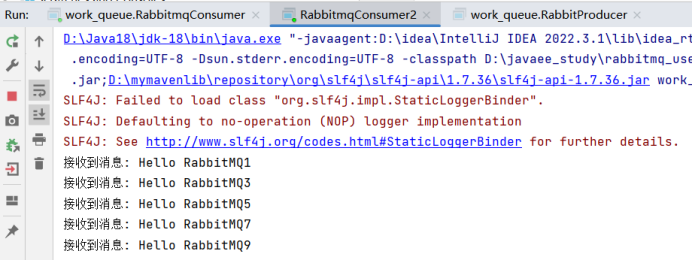

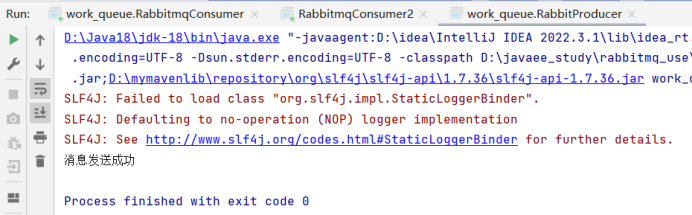

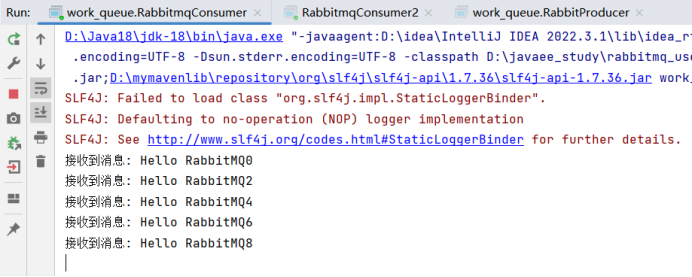

一个生产者，两个消费者，实际代码和简单模式一样，只是启动了两个消费者而已。需要注意的是必须先启动消费者再启动生产者，否则先启动生产者再启动第一个消费者后，第二个消费者还未来得及启动第一个消费者就将消息全部消费了。
java
// RabbitMQ的连接配置
public class RabbitMQConnection {
public static final String HOST = "192.168.217.150"; //ip
public static final int PORT = 5672; //端口号
public static final String VIRTUALHOST = "testVirtual"; //虚拟机名称,默认为/
public static final String USERNAME = "admin"; //user,默认guest
public static final String PASSWORD = "admin"; //password,默认guest
public static final String QUEUE = "queue1"; //队列
}
java
// 生产者
public class RabbitProducer {
public static void main(String[] args) throws Exception {
//1.创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
//2.设置参数
factory.setHost(RabbitMQConnection.HOST);
factory.setPort(RabbitMQConnection.PORT);
factory.setVirtualHost(RabbitMQConnection.VIRTUALHOST);
factory.setUsername(RabbitMQConnection.USERNAME);
factory.setPassword(RabbitMQConnection.PASSWORD);
//3.创建连接Connection
Connection connection = factory.newConnection();
//4.创建channel通道
Channel channel = connection.createChannel();
//5.声明队列
//如果没有队列,会自动创建,如果有,则不创建
channel.queueDeclare(RabbitMQConnection.QUEUE, true, false, false, null);
//6. 通过channel发送消息到队列中
for (int i = 0; i < 10; i++) {
String msg = "Hello RabbitMQ" + i;
//使用的是内置交换机,使用内置交换机时,routingKey要和队列名称⼀样,才可以路由到对应的队列上去
channel.basicPublish("", RabbitMQConnection.QUEUE, null, msg.getBytes());
}
//7.释放资源
System.out.println("消息发送成功");
channel.close();
connection.close();
}
}
java
// 消费者1
public class RabbitmqConsumer {
public static void main(String[] args) throws Exception {
//1.创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
//2.设置参数
factory.setHost(RabbitMQConnection.HOST);
factory.setPort(RabbitMQConnection.PORT);
factory.setVirtualHost(RabbitMQConnection.VIRTUALHOST);
factory.setUsername(RabbitMQConnection.USERNAME);
factory.setPassword(RabbitMQConnection.PASSWORD);
//3.创建连接Connection
Connection connection = factory.newConnection();
//4. 创建channel通道
Channel channel = connection.createChannel();
//5. 声明队列
//如果没有队列,会自动创建,如果有,则不创建
channel.queueDeclare(RabbitMQConnection.QUEUE, true, false, false, null);
//6. 接收消息,并消费
// DefaultConsumer是Consumer的接口实现
DefaultConsumer consumer = new DefaultConsumer(channel) {
@Override
public void handleDelivery(String consumerTag, Envelope envelope,
AMQP.BasicProperties properties, byte[] body) throws IOException {
System.out.println("接收到消息: " + new String(body));
}
};
channel.basicConsume(RabbitMQConnection.QUEUE, true, consumer);
//等待回调函数执行完毕之后(防止消息没有接收完毕就立即执行关闭),再关闭资源
// TimeUnit.SECONDS.sleep(5);
//7.释放资源,消费者相当于是一个监听程序,不需要关闭资源
//注意:顺序不可改变(要么只关闭连接,通道也会关闭;但是如果先关闭连接,通道已经关闭了再调用通道就报错)
// channel.close();
// connection.close();
}
}
java
// 消费者2
public class RabbitmqConsumer2 {
public static void main(String[] args) throws Exception {
//1.创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
//2.设置参数
factory.setHost(RabbitMQConnection.HOST);
factory.setPort(RabbitMQConnection.PORT);
factory.setVirtualHost(RabbitMQConnection.VIRTUALHOST);
factory.setUsername(RabbitMQConnection.USERNAME);
factory.setPassword(RabbitMQConnection.PASSWORD);
//3.创建连接Connection
Connection connection = factory.newConnection();
//4. 创建channel通道
Channel channel = connection.createChannel();
//5. 声明队列
//如果没有队列,会自动创建,如果有,则不创建
channel.queueDeclare(RabbitMQConnection.QUEUE, true, false, false, null);
//6. 接收消息,并消费
// DefaultConsumer是Consumer的接口实现
DefaultConsumer consumer = new DefaultConsumer(channel) {
@Override
public void handleDelivery(String consumerTag, Envelope envelope,
AMQP.BasicProperties properties, byte[] body) throws IOException {
System.out.println("接收到消息: " + new String(body));
}
};
channel.basicConsume(RabbitMQConnection.QUEUE, true, consumer);
//等待回调函数执行完毕之后(防止消息没有接收完毕就立即执行关闭),再关闭资源
// TimeUnit.SECONDS.sleep(5);
//7.释放资源,消费者相当于是一个监听程序,不需要关闭资源
//注意:顺序不可改变(要么只关闭连接,通道也会关闭;但是如果先关闭连接,通道已经关闭了再调用通道就报错)
// channel.close();
// connection.close();
}
}
4 Publish/Subscribe（发布/订阅模式）
4.1 模式介绍

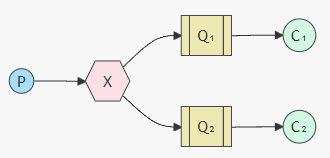

特点： 一个生产者，多个消费者，Fanout广播类型交换机 ，交换机将每条消息均复制多份广播给所有绑定的队列，每个消费者收到的消息都一样。
****适用场景：****消息需要被所有消费者都接收，比如实时通知或广播消息。还是订单系统，订单下单成功后，消息会被广播给不同的服务：物流服务、用户通知服务、店铺服务、支付服务等等。
4.2 使用案例

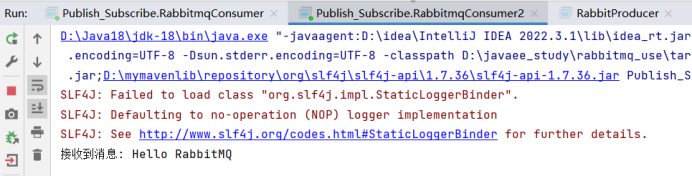

一个生产者，两个消费者，第一个消费者订阅队列1，第二消费者订阅队列2：
java
// RabbitMQ的连接配置
public class RabbitMQConnection {
public static final String HOST = "192.168.217.150"; //ip
public static final int PORT = 5672; //端口号
public static final String VIRTUALHOST = "testVirtual"; //虚拟机名称,默认为/
public static final String USERNAME = "admin"; //user,默认guest
public static final String PASSWORD = "admin"; //password,默认guest
public static final String QUEUE = "queue1"; //队列
// 发布订阅模式
public static final String FANOUT_EXCHANGE = "fanout.exchange"; //广播交换机
public static final String FANOUT_QUEUE1 = "fanout.queue1"; //广播交换机绑定队列1
public static final String FANOUT_QUEUE2 = "fanout.queue2"; //广播交换机绑定队列2
}
java
// 生产者
public class RabbitProducer {
public static void main(String[] args) throws Exception {
//1.创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
//2.设置参数
factory.setHost(RabbitMQConnection.HOST);
factory.setPort(RabbitMQConnection.PORT);
factory.setVirtualHost(RabbitMQConnection.VIRTUALHOST);
factory.setUsername(RabbitMQConnection.USERNAME);
factory.setPassword(RabbitMQConnection.PASSWORD);
//3.创建连接Connection
Connection connection = factory.newConnection();
//4.创建channel通道
Channel channel = connection.createChannel();
//5.声明交换机(交换机名称、广播类型、是否持久化)
channel.exchangeDeclare(RabbitMQConnection.FANOUT_EXCHANGE, BuiltinExchangeType.FANOUT, true);
//6.声明队列
channel.queueDeclare(RabbitMQConnection.FANOUT_QUEUE1, true, false, false, null);
channel.queueDeclare(RabbitMQConnection.FANOUT_QUEUE2, true, false, false, null);
//7.交换机绑定队列(队列、交换机、RoutingKey)
//RoutingKey为""表示交换机收到任何消息都会路由给队列
channel.queueBind(RabbitMQConnection.FANOUT_QUEUE1, RabbitMQConnection.FANOUT_EXCHANGE, "");
channel.queueBind(RabbitMQConnection.FANOUT_QUEUE2, RabbitMQConnection.FANOUT_EXCHANGE, "");
//8. 通过channel发送消息到队列中(交换机、RoutingKey、属性、消息内容)
String msg = "Hello RabbitMQ";
channel.basicPublish(RabbitMQConnection.FANOUT_EXCHANGE, "", null, msg.getBytes());
//9.释放资源
System.out.println("消息发送成功");
channel.close();
connection.close();
}
}
java
// 消费者1
public class RabbitmqConsumer {
public static void main(String[] args) throws Exception {
//1.创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
//2.设置参数
factory.setHost(RabbitMQConnection.HOST);
factory.setPort(RabbitMQConnection.PORT);
factory.setVirtualHost(RabbitMQConnection.VIRTUALHOST);
factory.setUsername(RabbitMQConnection.USERNAME);
factory.setPassword(RabbitMQConnection.PASSWORD);
//3.创建连接Connection
Connection connection = factory.newConnection();
//4.创建channel通道
Channel channel = connection.createChannel();
//5.声明队列(消费者不需要声明交换机)
//如果没有队列,会自动创建,如果有,则不创建
channel.queueDeclare(RabbitMQConnection.FANOUT_QUEUE1, true, false, false, null);
//6.接收消息,并消费
// DefaultConsumer是Consumer的接口实现
DefaultConsumer consumer = new DefaultConsumer(channel) {
@Override
public void handleDelivery(String consumerTag, Envelope envelope,
AMQP.BasicProperties properties, byte[] body) throws IOException {
System.out.println("接收到消息: " + new String(body));
}
};
channel.basicConsume(RabbitMQConnection.FANOUT_QUEUE1, true, consumer);
}
}
java
// 消费者2
public class RabbitmqConsumer2 {
public static void main(String[] args) throws Exception {
//1.创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
//2.设置参数
factory.setHost(RabbitMQConnection.HOST);
factory.setPort(RabbitMQConnection.PORT);
factory.setVirtualHost(RabbitMQConnection.VIRTUALHOST);
factory.setUsername(RabbitMQConnection.USERNAME);
factory.setPassword(RabbitMQConnection.PASSWORD);
//3.创建连接Connection
Connection connection = factory.newConnection();
//4.创建channel通道
Channel channel = connection.createChannel();
//5.声明队列(消费者不需要声明交换机)
//如果没有队列,会自动创建,如果有,则不创建
channel.queueDeclare(RabbitMQConnection.FANOUT_QUEUE2, true, false, false, null);
//6.接收消息,并消费
// DefaultConsumer是Consumer的接口实现
DefaultConsumer consumer = new DefaultConsumer(channel) {
@Override
public void handleDelivery(String consumerTag, Envelope envelope,
AMQP.BasicProperties properties, byte[] body) throws IOException {
System.out.println("接收到消息: " + new String(body));
}
};
channel.basicConsume(RabbitMQConnection.FANOUT_QUEUE2, true, consumer);
}
}

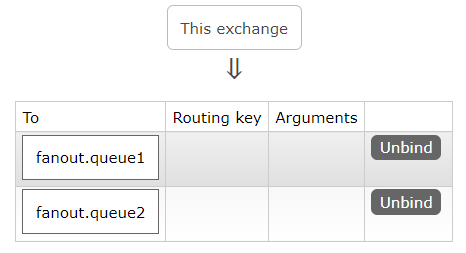

在管理界面可以查看交换机和队列的绑定关系：
5 Routing（路由模式）
5.1 模式介绍

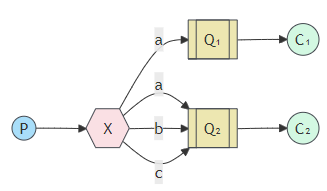

特点： 一个生产者，多个消费者，Direct定向类型交换机，交换机根据路由键RoutingKey匹配Binding Key，把消息路由给指定队列。
假设RoutingKey=a，则消息会被路由给Q1和Q2；假设RoutingKey=b，则消息只会被路由给Q2。
****适用场景：****根据特定规则分发消息的场景。比如日志持久化场景，日志有不同级别Error、Warning、Info、Debug等等，根据不同级别的日志分发到不同队列，再由不同文件服务持久化到不同的文件中。
5.2 使用案例

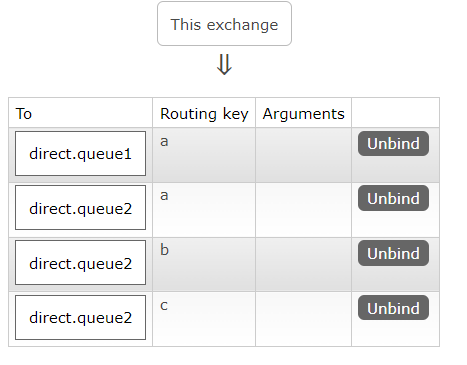

按照上图来构建绑定关系：
java
// RabbitMQ的连接配置
public class RabbitMQConnection {
public static final String HOST = "192.168.217.150"; //ip
public static final int PORT = 5672; //端口号
public static final String VIRTUALHOST = "testVirtual"; //虚拟机名称,默认为/
public static final String USERNAME = "admin"; //user,默认guest
public static final String PASSWORD = "admin"; //password,默认guest
public static final String QUEUE = "queue1"; //队列
// 发布订阅模式
public static final String FANOUT_EXCHANGE = "fanout.exchange"; //广播交换机
public static final String FANOUT_QUEUE1 = "fanout.queue1"; //广播交换机绑定队列1
public static final String FANOUT_QUEUE2 = "fanout.queue2"; //广播交换机绑定队列2
// 路由模式
public static final String DIRECT_EXCHANGE = "direct.exchange"; //定向交换机
public static final String DIRECT_QUEUE1 = "direct.queue1"; //定向交换机绑定队列1
public static final String DIRECT_QUEUE2 = "direct.queue2"; //定向交换机绑定队列2
}
java
// 生产者
public class RabbitProducer {
public static void main(String[] args) throws Exception {
//1.创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
//2.设置参数
factory.setHost(RabbitMQConnection.HOST);
factory.setPort(RabbitMQConnection.PORT);
factory.setVirtualHost(RabbitMQConnection.VIRTUALHOST);
factory.setUsername(RabbitMQConnection.USERNAME);
factory.setPassword(RabbitMQConnection.PASSWORD);
//3.创建连接Connection
Connection connection = factory.newConnection();
//4.创建channel通道
Channel channel = connection.createChannel();
//5.声明交换机(交换机名称、定向类型、是否持久化)
channel.exchangeDeclare(RabbitMQConnection.DIRECT_EXCHANGE, BuiltinExchangeType.DIRECT, true);
//6.声明队列
channel.queueDeclare(RabbitMQConnection.DIRECT_QUEUE1, true, false, false, null);
channel.queueDeclare(RabbitMQConnection.DIRECT_QUEUE2, true, false, false, null);
//7.交换机绑定队列(队列、交换机、RoutingKey)
channel.queueBind(RabbitMQConnection.DIRECT_QUEUE1, RabbitMQConnection.DIRECT_EXCHANGE, "a");
channel.queueBind(RabbitMQConnection.DIRECT_QUEUE2, RabbitMQConnection.DIRECT_EXCHANGE, "a");
channel.queueBind(RabbitMQConnection.DIRECT_QUEUE2, RabbitMQConnection.DIRECT_EXCHANGE, "b");
channel.queueBind(RabbitMQConnection.DIRECT_QUEUE2, RabbitMQConnection.DIRECT_EXCHANGE, "c");
//8. 通过channel发送消息到队列中(交换机、RoutingKey、属性、消息内容)
String msg_a = "Hello RabbitMQ RoutingKey = a";
channel.basicPublish(RabbitMQConnection.DIRECT_EXCHANGE, "a", null, msg_a.getBytes());
String msg_b = "Hello RabbitMQ RoutingKey = b";
channel.basicPublish(RabbitMQConnection.DIRECT_EXCHANGE, "b", null, msg_b.getBytes());
String msg_c = "Hello RabbitMQ RoutingKey = c";
channel.basicPublish(RabbitMQConnection.DIRECT_EXCHANGE, "c", null, msg_c.getBytes());
//9.释放资源
System.out.println("消息发送成功");
channel.close();
connection.close();
}
}
java

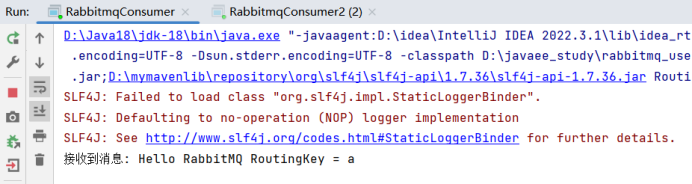

// 消费者1
public class RabbitmqConsumer {
public static void main(String[] args) throws Exception {
//1.创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
//2.设置参数
factory.setHost(RabbitMQConnection.HOST);
factory.setPort(RabbitMQConnection.PORT);
factory.setVirtualHost(RabbitMQConnection.VIRTUALHOST);
factory.setUsername(RabbitMQConnection.USERNAME);
factory.setPassword(RabbitMQConnection.PASSWORD);
//3.创建连接Connection
Connection connection = factory.newConnection();
//4.创建channel通道
Channel channel = connection.createChannel();
//5.声明队列(消费者不需要声明交换机)
//如果没有队列,会自动创建,如果有,则不创建
channel.queueDeclare(RabbitMQConnection.DIRECT_QUEUE1, true, false, false, null);
//6.接收消息,并消费
// DefaultConsumer是Consumer的接口实现
DefaultConsumer consumer = new DefaultConsumer(channel) {
@Override
public void handleDelivery(String consumerTag, Envelope envelope,
AMQP.BasicProperties properties, byte[] body) throws IOException {
System.out.println("接收到消息: " + new String(body));
}
};
channel.basicConsume(RabbitMQConnection.DIRECT_QUEUE1, true, consumer);
}
}
java
// 消费者2
public class RabbitmqConsumer2 {
public static void main(String[] args) throws Exception {
//1.创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
//2.设置参数
factory.setHost(RabbitMQConnection.HOST);
factory.setPort(RabbitMQConnection.PORT);
factory.setVirtualHost(RabbitMQConnection.VIRTUALHOST);
factory.setUsername(RabbitMQConnection.USERNAME);
factory.setPassword(RabbitMQConnection.PASSWORD);
//3.创建连接Connection
Connection connection = factory.newConnection();
//4.创建channel通道
Channel channel = connection.createChannel();
//5.声明队列(消费者不需要声明交换机)
//如果没有队列,会自动创建,如果有,则不创建
channel.queueDeclare(RabbitMQConnection.DIRECT_QUEUE2, true, false, false, null);
//6.接收消息,并消费
// DefaultConsumer是Consumer的接口实现
DefaultConsumer consumer = new DefaultConsumer(channel) {
@Override
public void handleDelivery(String consumerTag, Envelope envelope,
AMQP.BasicProperties properties, byte[] body) throws IOException {
System.out.println("接收到消息: " + new String(body));
}
};
channel.basicConsume(RabbitMQConnection.DIRECT_QUEUE2, true, consumer);
}
}
交换机和队列绑定关系如下：
6 Topics（通配符模式）
6.1 模式介绍

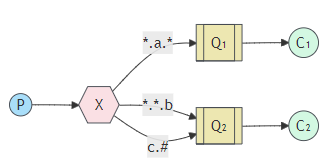

特点： 一个生产者，多个消费者，Topics通配符类型交换机，交换机根据路由键RoutingKey匹配满足要求的Binding Key，把消息路由给所有满足的队列。
通配符：*表示匹配一个单词（单词可以有多个字符），.来进行分隔，#表示匹配多个单词。
假设RoutingKey=a.a.a，则消息会被路由给Q1；假设RoutingKey=a.a.b，则消息会被路由给Q2。
****适用场景：****灵活匹配和过滤消息的场景。
6.2 使用案例
按照上图构建交换机和队列绑定关系：
java
// RabbitMQ的连接配置
public class RabbitMQConnection {
public static final String HOST = "192.168.217.150"; //ip
public static final int PORT = 5672; //端口号
public static final String VIRTUALHOST = "testVirtual"; //虚拟机名称,默认为/
public static final String USERNAME = "admin"; //user,默认guest
public static final String PASSWORD = "admin"; //password,默认guest
public static final String QUEUE = "queue1"; //队列
// 发布订阅模式
public static final String FANOUT_EXCHANGE = "fanout.exchange"; //广播交换机
public static final String FANOUT_QUEUE1 = "fanout.queue1"; //广播交换机绑定队列1
public static final String FANOUT_QUEUE2 = "fanout.queue2"; //广播交换机绑定队列2
// 路由模式
public static final String DIRECT_EXCHANGE = "direct.exchange"; //定向交换机
public static final String DIRECT_QUEUE1 = "direct.queue1"; //定向交换机绑定队列1
public static final String DIRECT_QUEUE2 = "direct.queue2"; //定向交换机绑定队列2
// 通配符模式
public static final String TOPIC_EXCHANGE = "topic.exchange"; //通配符交换机
public static final String TOPIC_QUEUE1 = "topic.queue1"; //通配符交换机绑定队列1
public static final String TOPIC_QUEUE2 = "topic.queue2"; //通配符交换机绑定队列2
}
java
// 生产者
public class RabbitProducer {
public static void main(String[] args) throws Exception {
//1.创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
//2.设置参数
factory.setHost(RabbitMQConnection.HOST);
factory.setPort(RabbitMQConnection.PORT);
factory.setVirtualHost(RabbitMQConnection.VIRTUALHOST);
factory.setUsername(RabbitMQConnection.USERNAME);
factory.setPassword(RabbitMQConnection.PASSWORD);
//3.创建连接Connection
Connection connection = factory.newConnection();
//4.创建channel通道
Channel channel = connection.createChannel();
//5.声明交换机(交换机名称、定向类型、是否持久化)
channel.exchangeDeclare(RabbitMQConnection.TOPIC_EXCHANGE, BuiltinExchangeType.TOPIC, true);
//6.声明队列
channel.queueDeclare(RabbitMQConnection.TOPIC_QUEUE1, true, false, false, null);
channel.queueDeclare(RabbitMQConnection.TOPIC_QUEUE2, true, false, false, null);
//7.交换机绑定队列(队列、交换机、RoutingKey)
channel.queueBind(RabbitMQConnection.TOPIC_QUEUE1, RabbitMQConnection.TOPIC_EXCHANGE, "*.a.*");
channel.queueBind(RabbitMQConnection.TOPIC_QUEUE2, RabbitMQConnection.TOPIC_EXCHANGE, "*.*.b");
channel.queueBind(RabbitMQConnection.TOPIC_QUEUE2, RabbitMQConnection.TOPIC_EXCHANGE, "c.#");
//8. 通过channel发送消息到队列中(交换机、RoutingKey、属性、消息内容)
String msg_a = "Hello RabbitMQ RoutingKey = apple.a.dog";
channel.basicPublish(RabbitMQConnection.TOPIC_EXCHANGE, "apple.a.dog", null, msg_a.getBytes());//转发到Q1
String msg_b = "Hello RabbitMQ RoutingKey = apple.a.b";
channel.basicPublish(RabbitMQConnection.TOPIC_EXCHANGE, "apple.a.b", null, msg_b.getBytes());//转发到Q1和Q2
String msg_c = "Hello RabbitMQ RoutingKey = c.apple.dog";
channel.basicPublish(RabbitMQConnection.TOPIC_EXCHANGE, "c.apple.dog", null, msg_c.getBytes());//转发到Q2
//9.释放资源
System.out.println("消息发送成功");
channel.close();
connection.close();
}
}
java

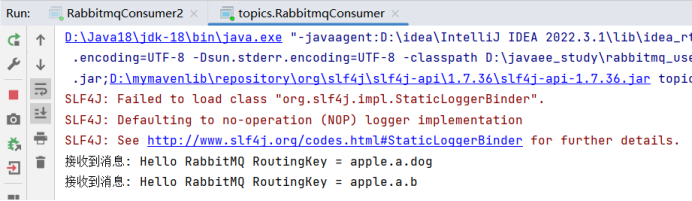

// 消费者1
public class RabbitmqConsumer {
public static void main(String[] args) throws Exception {
//1.创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
//2.设置参数
factory.setHost(RabbitMQConnection.HOST);
factory.setPort(RabbitMQConnection.PORT);
factory.setVirtualHost(RabbitMQConnection.VIRTUALHOST);
factory.setUsername(RabbitMQConnection.USERNAME);
factory.setPassword(RabbitMQConnection.PASSWORD);
//3.创建连接Connection
Connection connection = factory.newConnection();
//4.创建channel通道
Channel channel = connection.createChannel();
//5.声明队列(消费者不需要声明交换机)
//如果没有队列,会自动创建,如果有,则不创建
channel.queueDeclare(RabbitMQConnection.TOPIC_QUEUE1, true, false, false, null);
//6.接收消息,并消费
// DefaultConsumer是Consumer的接口实现
DefaultConsumer consumer = new DefaultConsumer(channel) {
@Override
public void handleDelivery(String consumerTag, Envelope envelope,
AMQP.BasicProperties properties, byte[] body) throws IOException {
System.out.println("接收到消息: " + new String(body));
}
};
channel.basicConsume(RabbitMQConnection.TOPIC_QUEUE1, true, consumer);
}
}
java

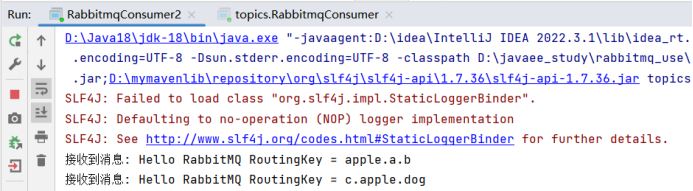

// 消费者2
public class RabbitmqConsumer2 {
public static void main(String[] args) throws Exception {
//1.创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
//2.设置参数
factory.setHost(RabbitMQConnection.HOST);
factory.setPort(RabbitMQConnection.PORT);
factory.setVirtualHost(RabbitMQConnection.VIRTUALHOST);
factory.setUsername(RabbitMQConnection.USERNAME);
factory.setPassword(RabbitMQConnection.PASSWORD);
//3.创建连接Connection
Connection connection = factory.newConnection();
//4.创建channel通道
Channel channel = connection.createChannel();
//5.声明队列(消费者不需要声明交换机)
//如果没有队列,会自动创建,如果有,则不创建
channel.queueDeclare(RabbitMQConnection.TOPIC_QUEUE2, true, false, false, null);
//6.接收消息,并消费
// DefaultConsumer是Consumer的接口实现
DefaultConsumer consumer = new DefaultConsumer(channel) {
@Override
public void handleDelivery(String consumerTag, Envelope envelope,
AMQP.BasicProperties properties, byte[] body) throws IOException {
System.out.println("接收到消息: " + new String(body));
}
};
channel.basicConsume(RabbitMQConnection.TOPIC_QUEUE2, true, consumer);
}
}

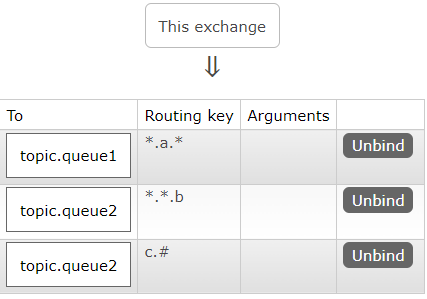

交换机和队列绑定关系如下：
7 RPC（RPC模式）
7.1 模式介绍
特点： 实现远程通信 ，没有生产者和消费者，只有客户端Client和服务端Serve r，由RabbitMQ作为消息中间件提供两个队列RPC和Reply实现请求和响应的通信。request携带reply_to（指定响应应该放到哪个队列）和correlation_id（请求和响应关联id，指明队列中响应是对哪个请求回复的）两个属性，而reply携带correlation_id属性来表示该响应关联的是哪个请求。
****理解：****RPC模式实际上类似HTTP协议，但是好处是通过在应用层工作，即使不太了解网络协议，也可以实现客户端和服务器的远程通信（并且这种方式是异步的）。
****适用场景：****远程通信的高可用性和流量监控的场景。
7.2 使用案例
当发送请求的时候，Client相当于生产者，Server相当于消费者；当返回响应时，Server相当于生产者，Client相当于消费者。
java
// RabbitMQ的连接配置
public class RabbitMQConnection {
public static final String HOST = "192.168.217.150"; //ip
public static final int PORT = 5672; //端口号
public static final String VIRTUALHOST = "testVirtual"; //虚拟机名称,默认为/
public static final String USERNAME = "admin"; //user,默认guest
public static final String PASSWORD = "admin"; //password,默认guest
public static final String QUEUE = "queue1"; //队列
// 发布订阅模式
public static final String FANOUT_EXCHANGE = "fanout.exchange"; //广播交换机
public static final String FANOUT_QUEUE1 = "fanout.queue1"; //广播交换机绑定队列1
public static final String FANOUT_QUEUE2 = "fanout.queue2"; //广播交换机绑定队列2
// 路由模式
public static final String DIRECT_EXCHANGE = "direct.exchange"; //定向交换机
public static final String DIRECT_QUEUE1 = "direct.queue1"; //定向交换机绑定队列1
public static final String DIRECT_QUEUE2 = "direct.queue2"; //定向交换机绑定队列2
// 通配符模式
public static final String TOPIC_EXCHANGE = "topic.exchange"; //通配符交换机
public static final String TOPIC_QUEUE1 = "topic.queue1"; //通配符交换机绑定队列1
public static final String TOPIC_QUEUE2 = "topic.queue2"; //通配符交换机绑定队列2
// RPC模式
public static final String RPC_REQUEST_QUEUE = "rpc.request.queue"; //请求队列
public static final String RPC_RESPONSE_QUEUE = "rpc.response.queue"; //响应队列
}
java
//客户端
public class RpcClient {
public static void main(String[] args) throws Exception{
//1.创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
//2.设置参数
factory.setHost(RabbitMQConnection.HOST);
factory.setPort(RabbitMQConnection.PORT);
factory.setVirtualHost(RabbitMQConnection.VIRTUALHOST);
factory.setUsername(RabbitMQConnection.USERNAME);
factory.setPassword(RabbitMQConnection.PASSWORD);
//3.创建连接Connection
Connection connection = factory.newConnection();
//4.创建channel通道
Channel channel = connection.createChannel();
//5.不声明交换机(使用默认的)
//6.声明队列
channel.queueDeclare(RabbitMQConnection.RPC_REQUEST_QUEUE, true, false, false, null);
channel.queueDeclare(RabbitMQConnection.RPC_RESPONSE_QUEUE, true, false, false, null);
//7.发送请求:通过channel发送消息到请求队列中(交换机、RoutingKey(这里指明发送的队列)、属性、消息内容)
String msg = "Hello Server!I am Client";
//使用建造者模式创建BasicProperties对象
//correlationId()设置消息的唯一ID(用UUID生成)
String correlationID = UUID.randomUUID().toString();
AMQP.BasicProperties properties = new AMQP.BasicProperties().builder()
.correlationId(correlationID)
.replyTo(RabbitMQConnection.RPC_RESPONSE_QUEUE)
.build();
channel.basicPublish("", RabbitMQConnection.RPC_REQUEST_QUEUE, properties, msg.getBytes());
System.out.println("消息发送成功");
//8.接收响应
//使用阻塞队列,保证同步关系,防止还未接收到响应代码就执行结束
final BlockingQueue<String> blockingQueue = new ArrayBlockingQueue<>(1);
DefaultConsumer consumer = new DefaultConsumer(channel){
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
String responseMsg = new String(body);
System.out.println("接收到的响应是:" + responseMsg);
if(correlationID.equals(properties.getCorrelationId())){
//如果correlationID值一样,则把该消息加入到阻塞队列中
blockingQueue.offer(responseMsg);
}
}
};
channel.basicConsume(RabbitMQConnection.RPC_RESPONSE_QUEUE,true, consumer);
String result = blockingQueue.take();

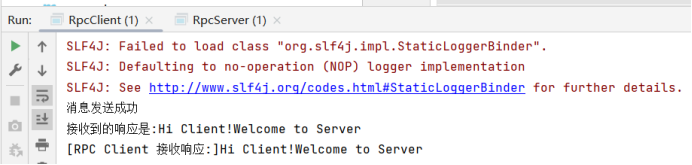

System.out.println("[RPC Client 接收响应:]" + result);
}
}
java
//服务器
public class RpcServer {
public static void main(String[] args) throws Exception{
//1.创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
//2.设置参数
factory.setHost(RabbitMQConnection.HOST);
factory.setPort(RabbitMQConnection.PORT);
factory.setVirtualHost(RabbitMQConnection.VIRTUALHOST);
factory.setUsername(RabbitMQConnection.USERNAME);
factory.setPassword(RabbitMQConnection.PASSWORD);
//3.创建连接Connection
Connection connection = factory.newConnection();
//4.创建channel通道
Channel channel = connection.createChannel();
//5.声明队列
channel.queueDeclare(RabbitMQConnection.RPC_REQUEST_QUEUE, true, false, false, null);
channel.queueDeclare(RabbitMQConnection.RPC_RESPONSE_QUEUE, true, false, false, null);
//6.接收响应
//设置同时最多只能获取一条消息(否则队列中消息很多分不清哪个是自己需要的)
channel.basicQos(1);
DefaultConsumer consumer = new DefaultConsumer(channel){
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
String request = new String(body, "UTF-8");

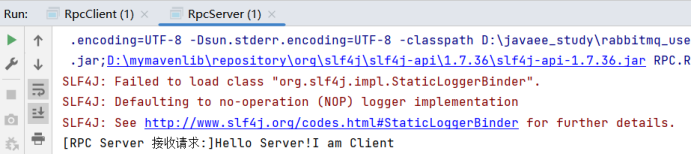

System.out.println("[RPC Server 接收请求:]" + request);
//7.发送响应
String response = "Hi Client!Welcome to Server";
//需要在响应中添加correlationId
AMQP.BasicProperties basicProperties= new AMQP.BasicProperties().builder()
.correlationId(properties.getCorrelationId())
.build();
channel.basicPublish("", properties.getReplyTo(), basicProperties, response.getBytes());
//消费者接收到消息后可以自动确认和手动确认,如果选择不自动确认,需要使用basicAck()手动确认
//手动确认会生成确认的唯一ID,envelope中获取,basicAck(确认唯一ID,是否批量确认)
channel.basicAck(envelope.getDeliveryTag(), false);
}
};
//(订阅队列,是否自动确认,处理行为)
channel.basicConsume(RabbitMQConnection.RPC_REQUEST_QUEUE, false, consumer);
}
}
8 Publisher Confirms（发布确认模式）
8.1 模式介绍
消息丢失三种情况：
1.生产者发送给RabbitMQ过程中丢了；（发布确认模式解决）
2.RabbitMQ因为自身内部原因导致消息丢失；（RabbitMQ持久化）
3.RabbitMQ发送给消费者，由于消费者没有处理好消息而RabbitMQ内部已经将处理失败的消息丢失。（手动确认basicAck()）
特点： RabbitMQ提供的确保消息可靠传输到RabbitMQ服务器的机制（情况（1）），生产者（通过channel.confirmSelect()设置confirm模式，发送的每条消息都有id）发送消息给RabbitMQ，RabbitMQ收到后会异步地给生产者返回ACK（包含消息id）。
策略：
1.Publishing Messages Individually(单独确认)：生产者每发送一条消息都等待RabbitMQ的一次确认后再发送消息；
2.Publishing Messages in Batches(批量确认)：生产者每发送一批消息，等待这批消息的确认；
3.Handling Publisher Confirms Asynchronously(异步确认)：提供回调方法，RabbitMQ发送一条或一批消息的确认后由回调方法通知生产者进行处理。
****适用场景：****对数据安全性要求较高的场景。
注意： 生产者与RabbitMQ通过TCP建立连接，TCP就有ACK机制，为什么还需要RabbitMQ的发布确认模式？TCP的ACK机制工作在传输层 ，只能确认数据是否被传输到接收缓冲区 ，但是从接收缓冲区到交换机再到队列（如果有持久化还需要持久化到硬盘），这段处理消息也可能会传输也可能失败或丢失，这是应用层范围，TCP协议无感知。而发布确认模式工作在应用层，其设计目的就是保证从消息发送到消息入队列、持久化到硬盘的成功或失败是可以被感知的，从而确保消息可靠传输。
8.2 使用案例
java
public class Confirm {
public static final Integer MESSAGE_COUNT = 10000;
public static Connection getConnection() throws IOException, TimeoutException {
//1.创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
//2.设置参数
factory.setHost(RabbitMQConnection.HOST);
factory.setPort(RabbitMQConnection.PORT);
factory.setVirtualHost(RabbitMQConnection.VIRTUALHOST);
factory.setUsername(RabbitMQConnection.USERNAME);
factory.setPassword(RabbitMQConnection.PASSWORD);
//3.创建连接Connection
return factory.newConnection();
}
public static void main(String[] args) throws IOException, TimeoutException, InterruptedException {
//（1）Publishing Messages Individually(单独确认)
publishingMessagesIndividually();
//（2）Publishing Messages in Batches(批量确认)
publishingMessagesInBatches();
//（3）Handling Publisher Confirms Asynchronously(异步确认)
handlingPublisherConfirmsAsynchronously();
}
java
private static void handlingPublisherConfirmsAsynchronously() throws IOException, TimeoutException, InterruptedException {
try(Connection connection = getConnection()) {
//1.开启通道
Channel channel = connection.createChannel();
//2.为通道设置确认模式
channel.confirmSelect();
//3.声明队列
channel.queueDeclare(RabbitMQConnection.PUBLISHER_CONFIRMS_QUEUE3, true, false, false, null);
//4.添加确认监听器
//用有序集合存储还未确认的消息ID
SortedSet<Long> confirmSeqNo = Collections.synchronizedSortedSet(new TreeSet<>());
channel.addConfirmListener(new ConfirmListener() {
@Override
public void handleAck(long l, boolean b) throws IOException {
if(b){
//如果是批量确认,获取确认ID并清除集合中ID值以前的所有ID
//headSet()返回小于参数的集合
confirmSeqNo.headSet(l+1).clear();
}else{
//如果不是批量确认,则清除集合中ID值
confirmSeqNo.remove(l);
}
}
@Override
public void handleNack(long l, boolean b) throws IOException {
if(b){
//如果是批量确认,获取确认ID并清除集合中ID值以前的所有ID
//headSet()返回小于参数的集合
confirmSeqNo.headSet(l+1).clear();
}else{
//如果不是批量确认,则清除集合中ID值
confirmSeqNo.remove(l);
}
//对于Nack(RabbitMQ内部问题导致消息丢失),通常需要进行消息重发,具体什么策略看业务
}
});
//5.发送消息
long start = System.currentTimeMillis();
for (int i = 0; i < MESSAGE_COUNT; i++) {
String msg = "message" + i;
//获取消息ID
long seqNo = channel.getNextPublishSeqNo();
channel.basicPublish("", RabbitMQConnection.PUBLISHER_CONFIRMS_QUEUE3, null, msg.getBytes());
//发送后把消息ID放入有序集合等待异步确认
confirmSeqNo.add(seqNo);
}
//异步等待确认,直到所有的ID都确认完毕
while(!confirmSeqNo.isEmpty()){
//减少CPU空转浪费
Thread.sleep(10);
}
long end = System.currentTimeMillis();
System.out.printf("异步确认策略: %d 条消息发送完毕, 共计等待 %d ms \n",MESSAGE_COUNT,(end - start));
}
}
private static void publishingMessagesInBatches() throws IOException, TimeoutException, InterruptedException {
try(Connection connection = getConnection()) {
//1.开启通道
Channel channel = connection.createChannel();
//2.为通道设置确认模式
channel.confirmSelect();
//3.声明队列
channel.queueDeclare(RabbitMQConnection.PUBLISHER_CONFIRMS_QUEUE2, true, false, false, null);
//4.发送消息
long start = System.currentTimeMillis();
int batch = 200;
int count = 0;
for (int i = 0; i < MESSAGE_COUNT; i++) {
String msg = "message" + i;
channel.basicPublish("", RabbitMQConnection.PUBLISHER_CONFIRMS_QUEUE2, null, msg.getBytes());
count++;
//每200条进行一次确认
if(count == batch){
//等待确认(超时时间5s)
channel.waitForConfirmsOrDie(5000);
count = 0;
}
}
//确认剩余还未确认的消息
if(count > 0){
channel.waitForConfirmsOrDie(5000);
}
long end = System.currentTimeMillis();
System.out.printf("批量确认策略: %d 条消息发送完毕, 共计等待 %d ms \n",MESSAGE_COUNT,(end - start));
}
}
private static void publishingMessagesIndividually() throws IOException, TimeoutException, InterruptedException {
try(Connection connection = getConnection()) {
//1.开启通道
Channel channel = connection.createChannel();
//2.为通道设置确认模式
channel.confirmSelect();
//3.声明队列
channel.queueDeclare(RabbitMQConnection.PUBLISHER_CONFIRMS_QUEUE1, true, false, false, null);
//4.发送消息
long start = System.currentTimeMillis();
for (int i = 0; i < MESSAGE_COUNT; i++) {
String msg = "message" + i;
channel.basicPublish("", RabbitMQConnection.PUBLISHER_CONFIRMS_QUEUE1, null, msg.getBytes());
//等待确认(超时时间5s)
channel.waitForConfirmsOrDie(5000);
}
long end = System.currentTimeMillis();
System.out.printf("单独确认策略: %d 条消息发送完毕, 共计等待 %d ms \n",MESSAGE_COUNT,(end - start));
}
}
}

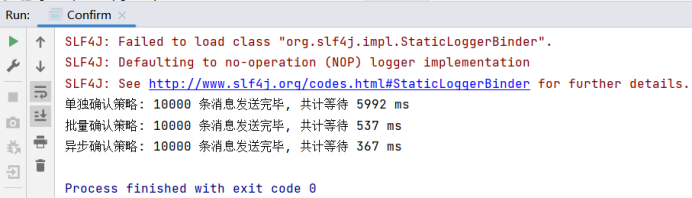

可以发现，消息量很大的情况下，异步确认最快，单独确认最慢。这是由于单独确认每发一条消息，生产者就要阻塞等待RabbitMQ服务器返回的确认，浪费时间。而批量确认阻塞等待的次数少了，用时也就减少了。异步确认最大化的利用CPU和时间等资源，让生产者可以同时进行消息发送和确认等待的过程。
9 SpringBoot实现RabbitMQ常用的四种工作模式（工作队列、发布订阅、路由、通配符）
9.1 引入依赖
XML
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-amqp</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.springframework.amqp</groupId>
<artifactId>spring-rabbit-test</artifactId>
<scope>test</scope>
</dependency>9.2 配置文件
bash
#配置方式1,配置RabbitMQ的基本信息
#spring:
# rabbitmq:
# host: 192.168.217.150
# port: 5672
# username: admin
# password: admin
# virtual-host: testVirtual
#配置方式2,格式:amqp://username:password@Ip:port/virtual-host
spring:
rabbitmq:
addresses: amqp://admin:admin@192.168.217.150:5672/testVirtual9.3 具体实现
9.3.1 Work Queue（工作队列）
相关配置的通用代码（队列名称、声明队列），在SpringBoot中，队列声明均是以对象形式（Bean）存在，这样方便Spring进行管理：
java
public class RabbitMQConnection {
public static final String WORK_QUEUE = "work_queue";
}
java
@Configuration
public class RabbitMQConfig {
@Bean("workQueue")
public Queue workQueue(){
return QueueBuilder.durable(RabbitMQConnection.WORK_QUEUE).build();
}
}生产者代码：
java
@RestController
@RequestMapping("/producer")
public class ProducerController {
@Autowired
private RabbitTemplate rabbitTemplate;

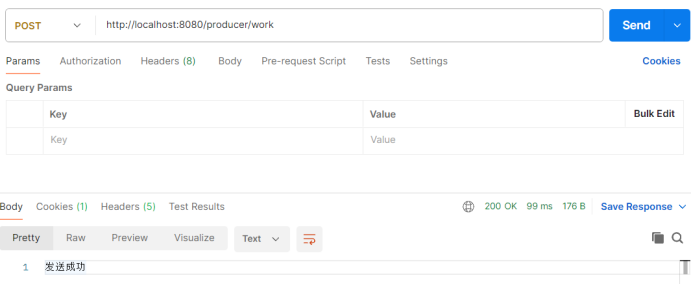

@RequestMapping("work")
public String work(){
//内置交换机RoutingKey和队列名称一致
rabbitTemplate.convertAndSend("", RabbitMQConnection.WORK_QUEUE,"Hello SpringBoot RabbitMQ");
return "发送成功";
}
}@RabbitListener注解注释到方法就表示消费者（也可以注释到类）。注解需要带上队列名作为参数，表示消费者订阅的队列。
该注解注释的方法可以填写三种类型的参数：
**Message（org.springframework.amqp.core.Message）：**消息内容+消息属性（消息ID、队列信息等等）。
**String：**消息内容。
**Channel（com.rabbitmq.client.Channel）：**RabbitMQ通道对象，可以用于更高级操作比如手动确认消息。
消费者代码（实际中一个消费者写一个类，这里方便演示才写到一起）：
java
@Component
public class WorkListener {
//消费者1
@RabbitListener(queues = RabbitMQConnection.WORK_QUEUE)
public void queueListener1(Message message){
System.out.println("listener 1["+RabbitMQConnection.WORK_QUEUE+"]收到消息:" + message);
}
//消费者2
@RabbitListener(queues = RabbitMQConnection.WORK_QUEUE)
public void queueListener2(Message message){
System.out.println("listener 2["+RabbitMQConnection.WORK_QUEUE+"]收到消息:" + message);
}
}

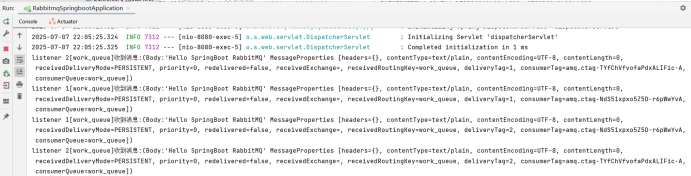

具体的Message信息如下：listener 1[work_queue]收到消息:(Body:'Hello SpringBoot RabbitMQ' MessageProperties [headers={}, contentType=text/plain, contentEncoding=UTF-8, contentLength=0, receivedDeliveryMode=PERSISTENT, priority=0, redelivered=false, receivedExchange=, receivedRoutingKey=work_queue, deliveryTag=1, consumerTag=amq.ctag-NdS51xpxo5Z5D-r6pWwYvA, consumerQueue=work_queue])
deliveryTag表示消息ID，一个通道channel的消息ID是递增的，不同通道的消息ID独立。
9.3.2 Publish/Subscribe（发布订阅）
相关配置的通用代码（队列名称、交换机名称、声明队列和交换机）：
java
public class RabbitMQConnection {
public static final String FANOUT_QUEUE1 = "fanout.queue1";
public static final String FANOUT_QUEUE2 = "fanout.queue2";
public static final String FANOUT_EXCHANGE = "fanout.exchange";
}
java
@Configuration
public class RabbitMQConfig {
@Bean("fanoutQueue1")
public Queue fanoutQueue1(){
return QueueBuilder.durable(RabbitMQConnection.FANOUT_QUEUE1).build();
}
@Bean("fanoutQueue2")
public Queue fanoutQueue2(){
return QueueBuilder.durable(RabbitMQConnection.FANOUT_QUEUE1).build();
}
@Bean("fanoutExchange")
public FanoutExchange fanoutExchange(){
return ExchangeBuilder.fanoutExchange(RabbitMQConnection.FANOUT_EXCHANGE).durable(true).build();
}
@Bean("fanoutQueueBinding1")
public Binding fanoutQueueBinding1(@Qualifier("fanoutExchange") FanoutExchange fanoutExchange, @Qualifier("fanoutQueue1") Queue queue){
return BindingBuilder.bind(queue).to(fanoutExchange);
}
@Bean("fanoutQueueBinding2")
public Binding fanoutQueueBinding2(@Qualifier("fanoutExchange") FanoutExchange fanoutExchange, @Qualifier("fanoutQueue2") Queue queue){
return BindingBuilder.bind(queue).to(fanoutExchange);
}
}在绑定队列和交换机的时候，方法形参是队列名和交换机名，而Spring加载Bean的时候会自动注入参数，按照形参名查找Bean的名称，因此如果不加@Qualifier注解指定形参对应的Bean，Spring就会找不到Bean而报错。
生产者代码：
java
@RestController
@RequestMapping("/producer")
public class ProducerController {
@Autowired
private RabbitTemplate rabbitTemplate;
@RequestMapping("fanout")
public String fanout(){
rabbitTemplate.convertAndSend(RabbitMQConnection.FANOUT_EXCHANGE, "","Hello SpringBoot RabbitMQ");
return "发送成功";
}
}消费者代码：
java
@Component
public class FanoutListener {
//消费者1
@RabbitListener(queues = RabbitMQConnection.FANOUT_QUEUE1)
public void queueListener1(String message){
System.out.println("listener 1["+RabbitMQConnection.FANOUT_QUEUE1+"]收到消息:" + message);
}
//消费者2
@RabbitListener(queues = RabbitMQConnection.FANOUT_QUEUE2)
public void queueListener2(String message){
System.out.println("listener 2["+RabbitMQConnection.FANOUT_QUEUE2+"]收到消息:" + message);
}
}
9.3.3 Routing（路由）
相关配置的通用代码（队列名称、交换机名称、声明队列和交换机）：
java
public class RabbitMQConnection {
public static final String ROUTING_QUEUE1 = "routing.queue1";
public static final String ROUTING_QUEUE2 = "routing.queue2";
public static final String DIRECT_EXCHANGE = "direct.exchange";
}
java
@Configuration
public class RabbitMQConfig {
@Bean("routingQueue1")
public Queue routingQueue1(){
return QueueBuilder.durable(RabbitMQConnection.ROUTING_QUEUE1).build();
}
@Bean("routingQueue2")
public Queue routingQueue2(){
return QueueBuilder.durable(RabbitMQConnection.ROUTING_QUEUE2).build();
}
@Bean("directExchange")
public DirectExchange directExchange(){
return ExchangeBuilder.directExchange(RabbitMQConnection.DIRECT_EXCHANGE).durable(true).build();
}
@Bean("routingQueueBinding1")
public Binding routingQueueBinding1(@Qualifier("directExchange") DirectExchange directExchange, @Qualifier("routingQueue1") Queue queue){
return BindingBuilder.bind(queue).to(directExchange).with("apple");
}
@Bean("routingQueueBinding2")
public Binding routingQueueBinding2(@Qualifier("directExchange") DirectExchange directExchange, @Qualifier("routingQueue2") Queue queue){
return BindingBuilder.bind(queue).to(directExchange).with("dog");
}
@Bean("routingQueueBinding3")
public Binding routingQueueBinding3(@Qualifier("directExchange") DirectExchange directExchange, @Qualifier("routingQueue2") Queue queue){
return BindingBuilder.bind(queue).to(directExchange).with("apple");
}
}生产者代码如下：
java
@RestController
@RequestMapping("/producer")
public class ProducerController {
@Autowired
private RabbitTemplate rabbitTemplate;
@RequestMapping("routing")
public String routing(String routingKey){
rabbitTemplate.convertAndSend(RabbitMQConnection.DIRECT_EXCHANGE, routingKey,"Hello SpringBoot RabbitMQ routingKey="+routingKey);
return "发送成功";
}
}消费者代码如下：
java
@Component
public class RoutingListener {
//消费者1
@RabbitListener(queues = RabbitMQConnection.ROUTING_QUEUE1)
public void queueListener1(String message){
System.out.println("listener 1["+RabbitMQConnection.ROUTING_QUEUE1+"]收到消息:" + message);
}
//消费者2
@RabbitListener(queues = RabbitMQConnection.ROUTING_QUEUE2)
public void queueListener2(String message){
System.out.println("listener 2["+RabbitMQConnection.ROUTING_QUEUE2+"]收到消息:" + message);
}
}依次发送routingKey为apple和dog的两条消息，结果如下：
9.3.4 Topics（通配符）
相关配置的通用代码（队列名称、交换机名称、声明队列和交换机）：
java
public class RabbitMQConnection {
public static final String TOPIC_QUEUE1 = "topic.queue1";
public static final String TOPIC_QUEUE2 = "topic.queue2";
public static final String TOPIC_EXCHANGE = "topic.exchange";
}
java
@Configuration
public class RabbitMQConfig {
@Bean("topicQueue1")
public Queue topicQueue1(){
return QueueBuilder.durable(RabbitMQConnection.TOPIC_QUEUE1).build();
}
@Bean("topicQueue2")
public Queue topicQueue2(){
return QueueBuilder.durable(RabbitMQConnection.TOPIC_QUEUE2).build();
}
@Bean("topicExchange")
public TopicExchange topicExchange(){
return ExchangeBuilder.topicExchange(RabbitMQConnection.TOPIC_EXCHANGE).durable(true).build();
}
@Bean("topicQueueBinding1")
public Binding topicQueueBinding1(@Qualifier("topicExchange") TopicExchange topicExchange, @Qualifier("topicQueue1") Queue queue){
return BindingBuilder.bind(queue).to(topicExchange).with("*.a.*");
}
@Bean("topicQueueBinding2")
public Binding topicQueueBinding2(@Qualifier("topicExchange") TopicExchange topicExchange, @Qualifier("topicQueue2") Queue queue){
return BindingBuilder.bind(queue).to(topicExchange).with("*.*.b");
}
@Bean("topicQueueBinding3")
public Binding topicQueueBinding3(@Qualifier("topicExchange") TopicExchange topicExchange, @Qualifier("topicQueue2") Queue queue){
return BindingBuilder.bind(queue).to(topicExchange).with("c.#");
}
}生产者代码：
java
@RestController
@RequestMapping("/producer")
public class ProducerController {
@Autowired
private RabbitTemplate rabbitTemplate;
@RequestMapping("topic")
public String topic(String routingKey){
rabbitTemplate.convertAndSend(RabbitMQConnection.TOPIC_EXCHANGE, routingKey,"Hello SpringBoot RabbitMQ routingKey="+routingKey);
return "发送成功";
}
}消费者代码：
java
@Component
public class TopicListener {
//消费者1
@RabbitListener(queues = RabbitMQConnection.TOPIC_QUEUE1)
public void queueListener1(String message){
System.out.println("listener 1["+RabbitMQConnection.TOPIC_QUEUE1+"]收到消息:" + message);
}
//消费者2
@RabbitListener(queues = RabbitMQConnection.TOPIC_QUEUE2)
public void queueListener2(String message){
System.out.println("listener 2["+RabbitMQConnection.TOPIC_QUEUE2+"]收到消息:" + message);
}
}依次发送routingKey为apple.a.dog、apple.a.b和c.apple.dog三条消息，结果如下：
注意：如果把@RabbitListener注解放到类上，那类中可能存在多种消息类型的消费者方法（比如Message、String甚至可能是对象），此时@RabbitListener就不知道需要哪种方法。此时需要在方法上添加@RabbitHandle注解，这样当监听的队列有消息时，就可以根据消息类型来匹配对应的处理方法。
9.3.5 消息内容为对象
当消息内容为对象时，由于RabbitMQ只能接受序列化的内容，因此需要对对象进行序列化再传输。RabbitMQ推荐JSON格式，使用Jackson2JsonMessageConverter（spring的amqp包提供）作为JSON序列化的转化器，把它设置到RabbitTemplate中，此时传输的对象就会自动进行JSON序列化。
java
@Bean
public Jackson2JsonMessageConverter jackson2JsonMessageConverter() {
return new Jackson2JsonMessageConverter();
}
@Bean
public RabbitTemplate rabbitTemplate(ConnectionFactory connectionFactory) {
RabbitTemplate template = new RabbitTemplate(connectionFactory);
template.setMessageConverter(jackson2JsonMessageConverter()); // 设置消息转换器
return template;
}如果生产者使用了JSON来序列化对象，那么消费者拿到对象就要使用JSON反序列化才能解析该对象，因此上述代码不仅要放到生产者所在的服务里，也要放到消费者所在的服务里。
10 RabbitMQ的消息传递模式
RabbitMQ支持两种消息传递模式：推模式和拉模式，主要是以推模式工作的。
推模式是指RabbitMQ主动把消息推送给消费者，只要队列有消息，会全部推送给订阅队列的消费者（SpringBoot中使用channel.basicConsume()来订阅队列）。因此推模式适合对数据实时性要求较高的场景。
拉模式是指消费者主动从队列中获取消息并消费（SpringBoot中使用channel.basicGet()来拉取消息），一次拉取一条消息消费完再拉取消息。消费者可以按照自身处理消息的速度来消费，因此拉模式适合流量控制、需要大规模计算资源处理消息的场景。
下篇文章：
