跳跃表可视化深度解析：动态演示数据结构核心原理

跳跃表可视化深度解析：动态演示数据结构核心原理

一、跳跃表基础概念与核心优势

跳跃表（SkipList）是一种基于多层索引链表的数据结构，通过概率平衡实现高效的插入、删除和查找操作。其核心优势体现在：

1. ​时间复杂度优化​

   • 查找/插入/删除平均时间复杂度为O(log n)，媲美平衡树但实现更简单
     • 通过构建多级索引实现快速跳转，类似二分查找的效果
     • 例如在10亿数据中查找，只需约30次比较（log₂10⁹≈29.9）
   • 最坏情况时间复杂度为O(n)，但概率极低
     • 当所有元素都集中在顶层时发生，概率为1/(2^n)

2. ​动态结构特性​

   • 支持动态扩容和元素随机分布
     • 插入新元素时，通过随机算法决定其层级（如掷硬币法）
     • 示例：Redis的有序集合(zset)就采用跳表实现
   • 通过概率算法自动调节层级结构
     • 每个元素有50%概率晋升到上一层
     • 层级高度期望值为log₂n，保持平衡

3. ​有序性保障​

   • 基底层保持元素有序排列
     • 最底层是完整的单向链表，存储所有元素
     • 上层链表都是下层的子集，作为快速通道
   • 支持快速范围查询和有序遍历
     • 可以先定位区间起点，然后顺序遍历
     • 应用场景：数据库索引、内存缓存等需要范围查询的场景

4. ​实现优势​（补充）

   • 相比平衡树：
     • 实现简单（约100行代码vs数百行）
     • 不需要复杂的旋转操作
   • 相比哈希表：
     • 保持数据有序性
     • 支持高效的范围查询

二、可视化工具核心功能解析

1. 数据结构设计

class SkipListNode {
    constructor(key, value, level) {
        this.key = key;        // 节点键值
        this.value = value;    // 存储数据
        this.forward = new Array(level + 1).fill(null); // 多层指针
    }
}

class SkipList {
    constructor() {
        this.maxLevel = 16;    // 最大层级
        this.p = 0.5;          // 节点晋升概率
        this.level = 0;        // 当前最高层级
        this.header = new SkipListNode(null, null, this.maxLevel); // 头节点
        this.size = 0;         // 元素总数
    }
    // 随机生成节点层级
    randomLevel() {
        let level = 0;
        while (Math.random() < this.p && level < this.maxLevel) {
            level++;
        }
        return level;
    }
    // 其他核心方法：insert/delete/search
}

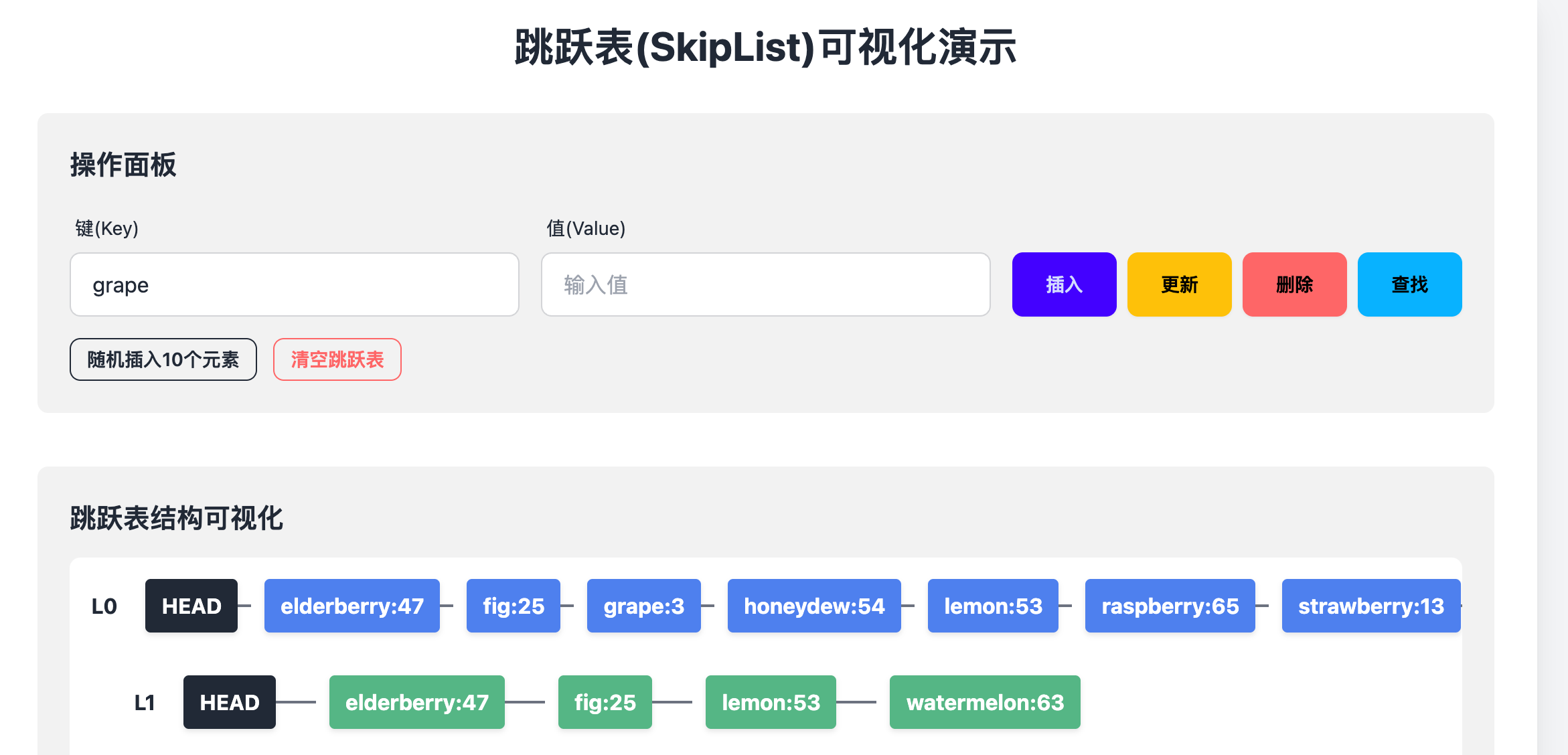

2. 可视化实现原理

(1) 分层渲染机制

function renderSkipList() {
    // 从最高层到第0层逆向渲染
    for (let level = skiplist.level; level >= 0; level--) {
        // 创建层级容器
        const levelDiv = document.createElement('div');
        // 添加头节点标识
        const headerNode = document.createElement('div');
        headerNode.className = 'node header-node';
        headerNode.textContent = 'HEAD';
        // 渲染当前层所有节点
        let current = skiplist.header.forward[level];
        while (current) {
            const node = document.createElement('div');
            node.className = `node level-${level % 5}`; // 按层级着色
            node.textContent = `${current.key}:${current.value}`;
            levelDiv.appendChild(node);
            current = current.forward[level];
        }
        visualization.appendChild(levelDiv);
    }
}

(2) 动态交互功能

• 路径高亮：搜索时实时标记访问路径
• 动画演示：插入/删除操作时的节点变化过程
• 状态监控：实时显示元素数量、最大层级和内存占用

---

三、核心操作流程演示

1. 插入操作流程

App SkipList Visualizer 插入(key=3, value=A) 生成随机层级(3层) 更新各层指针 触发重绘 动态添加新节点 App SkipList Visualizer

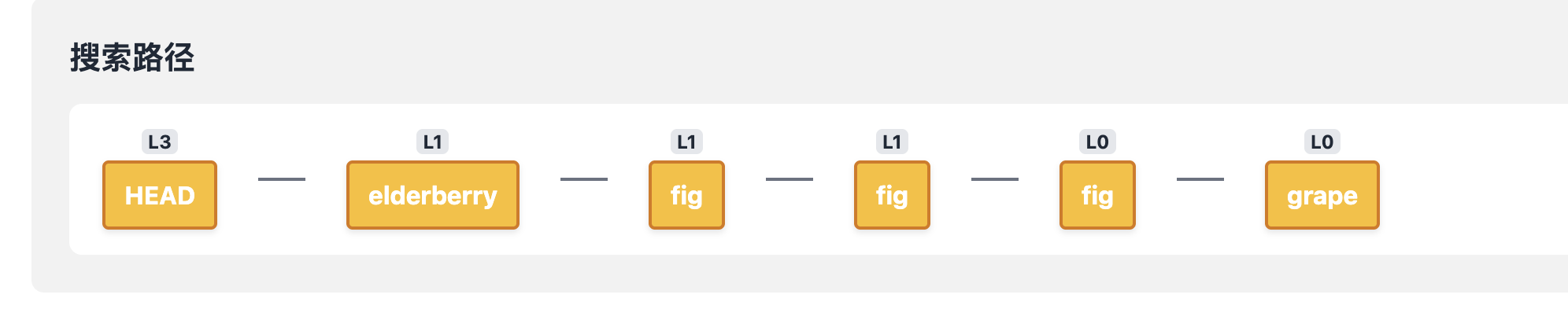

2. 搜索路径追踪

async function searchAndHighlight(key) {
    // 重置所有节点样式
    document.querySelectorAll('.node').forEach(node => {
        node.classList.remove('visited', 'found');
    });

    let current = skiplist.header;
    const path = [];

    // 从最高层开始搜索
    for (let i = skiplist.level; i >= 0; i--) {
        while (current.forward[i] && current.forward[i].key < key) {
            path.push(current.forward[i]); // 记录路径节点
            current = current.forward[i];
        }
    }

    // 最终定位目标节点
    current = current.forward[0];
    if (current.key === key) {
        path.push(current); // 添加目标节点到路径
        highlightPath(path); // 触发高亮动画
    }
}

3. 删除操作实现

function deleteNode(key) {
    const update = new Array(this.maxLevel + 1).fill(null);
    let current = this.header;

    // 定位前驱节点
    for (let i = this.level; i >= 0; i--) {
        while (current.forward[i] && current.forward[i].key < key) {
            update[i] = current;
            current = current.forward[i];
        }
    }

    // 更新指针关系
    current = current.forward[0];
    if (current.key === key) {
        for (let i = 0; i <= this.level; i++) {
            if (update[i].forward[i] !== current) break;
            update[i].forward[i] = current.forward[i];
        }
        // 自动降级处理
        while (this.level > 0 && this.header.forward[this.level] === null) {
            this.level--;
        }
    }
}

---

四、性能监控与优化

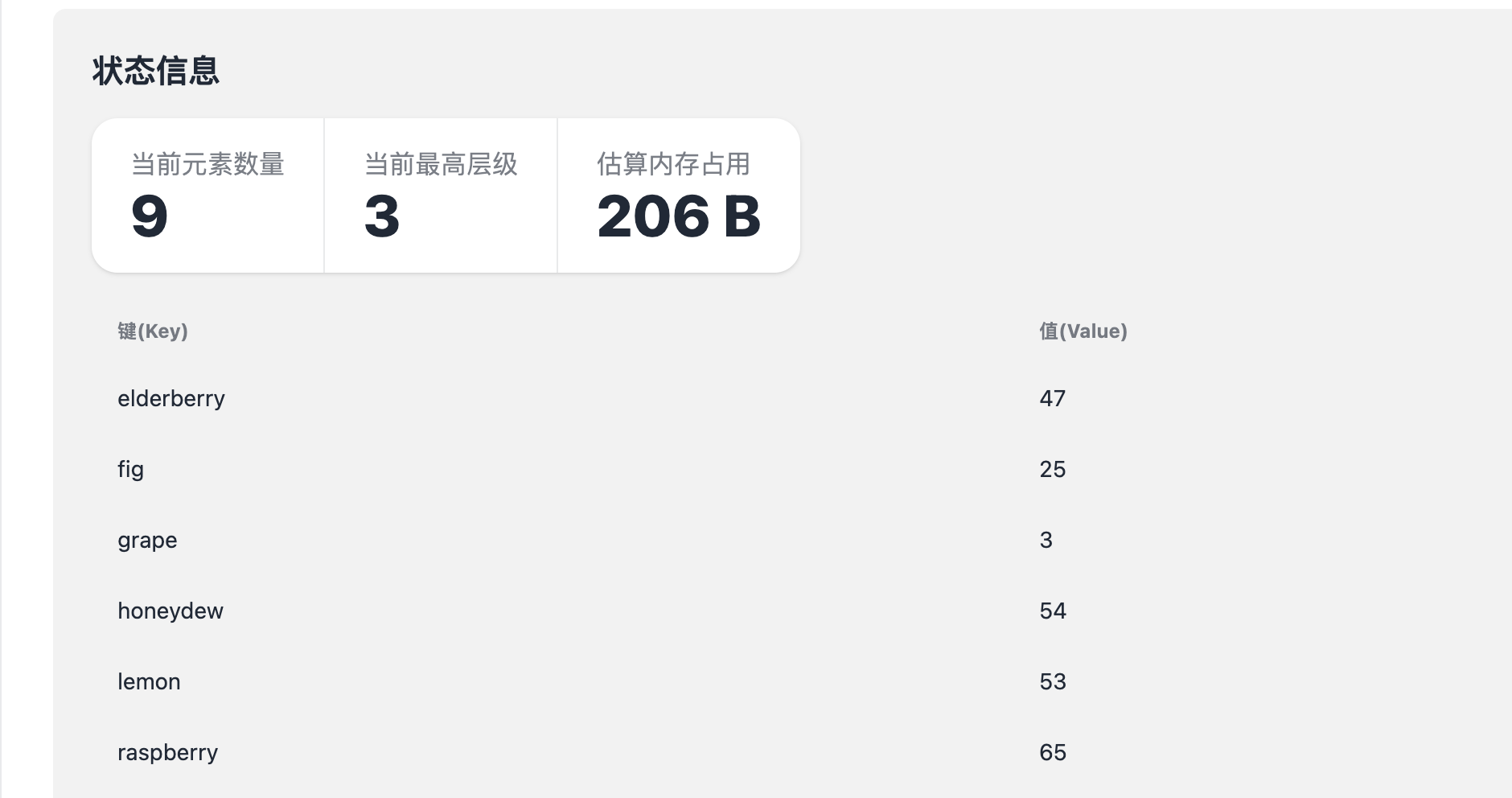

1. 状态监控面板

监控指标	实现原理	优化价值
元素数量	实时统计链表节点总数	预估内存占用
最大层级	动态跟踪最高有效索引层	评估概率平衡效果
内存占用	计算节点指针和键值存储总量	优化存储结构设计

2. 可视化性能优化

1. 虚拟滚动：只渲染可视区域内的节点
2. 批量更新：合并多个DOM操作减少重绘
3. 内存回收：及时清理无效节点引用

---

五、应用场景与扩展

1. 典型应用场景

• 数据库索引：MySQL的InnoDB存储引擎使用类似结构优化索引查询
• 缓存系统：Redis的Sorted Set实现依赖跳表结构
• 实时排行榜：游戏积分系统的快速排名查询

2. 扩展功能建议

1. 持久化存储：增加localStorage数据持久化功能
2. 分布式扩展：模拟多节点跳表集群
3. 性能对比：与红黑树、B+树的可视化对比

---

完整代码

<!DOCTYPE html>
<html lang="zh-CN" data-theme="light">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>跳跃表(SkipList)可视化演示</title>
    <script src="https://cdn.tailwindcss.com"></script>
    <link href="https://cdn.bootcdn.net/ajax/libs/daisyui/4.12.10/full.min.css" rel="stylesheet">
    <style>
        .node {
            position: relative;
            display: inline-block;
            margin: 0 5px;
            padding: 8px 12px;
            border-radius: 4px;
            background-color: #3b82f6;
            color: white;
            font-weight: bold;
            box-shadow: 0 2px 4px rgba(0,0,0,0.1);
        }
        .node::after {
            content: "";
            position: absolute;
            right: -10px;
            top: 50%;
            transform: translateY(-50%);
            width: 10px;
            height: 2px;
            background-color: #6b7280;
        }
        .node:last-child::after {
            display: none;
        }
        .level-0 { background-color: #3b82f6; }
        .level-1 { background-color: #10b981; }
        .level-2 { background-color: #f59e0b; }
        .level-3 { background-color: #ef4444; }
        .level-4 { background-color: #8b5cf6; }
        .header-node {
            background-color: #1f2937;
            color: white;
        }
        .path-node {
            background-color: #fbbf24;
            border: 2px solid #d97706;
        }
        .arrow {
            display: inline-block;
            width: 20px;
            height: 2px;
            background-color: #6b7280;
            margin: 0 5px;
            vertical-align: middle;
        }
    </style>
</head>
<body class="min-h-screen bg-gray-100 p-8">
    <div class="max-w-6xl mx-auto">
        <div class="card bg-base-100 shadow-xl">
            <div class="card-body">
                <h1 class="text-3xl font-bold text-center mb-6">跳跃表(SkipList)可视化演示</h1>

                <!-- 操作面板 -->
                <div class="bg-base-200 p-6 rounded-lg mb-8">
                    <h2 class="text-xl font-semibold mb-4">操作面板</h2>
                    <div class="grid grid-cols-1 md:grid-cols-3 gap-4">
                        <div>
                            <label class="label">
                                <span class="label-text">键(Key)</span>
                            </label>
                            <input type="text" id="keyInput" placeholder="输入键" class="input input-bordered w-full">
                        </div>
                        <div>
                            <label class="label">
                                <span class="label-text">值(Value)</span>
                            </label>
                            <input type="text" id="valueInput" placeholder="输入值" class="input input-bordered w-full">
                        </div>
                        <div class="flex items-end gap-2">
                            <button id="insertBtn" class="btn btn-primary flex-1">插入</button>
                            <button id="updateBtn" class="btn btn-warning flex-1">更新</button>
                            <button id="deleteBtn" class="btn btn-error flex-1">删除</button>
                            <button id="searchBtn" class="btn btn-info flex-1">查找</button>
                        </div>
                    </div>
                    <div class="mt-4">
                        <button id="randomBtn" class="btn btn-outline btn-sm">随机插入10个元素</button>
                        <button id="clearBtn" class="btn btn-outline btn-error btn-sm ml-2">清空跳跃表</button>
                    </div>
                </div>

                <!-- 可视化展示区 -->
                <div class="bg-base-200 p-6 rounded-lg mb-8">
                    <h2 class="text-xl font-semibold mb-4">跳跃表结构可视化</h2>
                    <div id="visualization" class="bg-white p-4 rounded-lg overflow-x-auto">
                        <div id="skiplistContainer" class="flex flex-col-reverse gap-8"></div>
                    </div>
                </div>

                <!-- 状态信息区 -->
                <div class="bg-base-200 p-6 rounded-lg">
                    <h2 class="text-xl font-semibold mb-4">状态信息</h2>
                    <div class="stats shadow">
                        <div class="stat">
                            <div class="stat-title">当前元素数量</div>
                            <div id="sizeDisplay" class="stat-value">0</div>
                        </div>
                        <div class="stat">
                            <div class="stat-title">当前最高层级</div>
                            <div id="levelDisplay" class="stat-value">0</div>
                        </div>
                        <div class="stat">
                            <div class="stat-title">估算内存占用</div>
                            <div id="memoryDisplay" class="stat-value">0 B</div>
                        </div>
                    </div>
                    <div class="mt-4">
                        <div class="overflow-x-auto">
                            <table class="table table-zebra">
                                <thead>
                                    <tr>
                                        <th>键(Key)</th>
                                        <th>值(Value)</th>
                                    </tr>
                                </thead>
                                <tbody id="itemsTable">
                                    <!-- 键值对将在这里动态生成 -->
                                </tbody>
                            </table>
                        </div>
                    </div>
                </div>

                <!-- 搜索路径展示区 -->
                <div class="bg-base-200 p-6 rounded-lg">
                    <h2 class="text-xl font-semibold mb-4">搜索路径</h2>
                    <div id="pathContainer" class="bg-white p-4 rounded-lg">
                        <div class="flex flex-wrap gap-2" id="pathNodes">
                            <!-- 路径节点将在这里动态生成 -->
                        </div>
                    </div>
                </div>
            </div>
        </div>
    </div>

    <script>
        class SkipListNode {
            constructor(key, value, level) {
                this.key = key;
                this.value = value;
                this.forward = new Array(level + 1).fill(null);
            }
        }

        class SkipList {
            constructor(maxLevel = 16, p = 0.5) {
                this.maxLevel = maxLevel;
                this.p = p;
                this.level = 0;
                this.header = new SkipListNode(null, null, this.maxLevel);
                this.size = 0;
            }

            randomLevel() {
                let level = 0;
                while (Math.random() < this.p && level < this.maxLevel) {
                    level++;
                }
                return level;
            }

            insert(key, value) {
                const update = new Array(this.maxLevel + 1).fill(null);
                let current = this.header;

                for (let i = this.level; i >= 0; i--) {
                    while (current.forward[i] && current.forward[i].key < key) {
                        current = current.forward[i];
                    }
                    update[i] = current;
                }

                current = current.forward[0];

                if (current && current.key === key) {
                    current.value = value;
                    return false; // 表示更新而非插入
                }

                const newLevel = this.randomLevel();

                if (newLevel > this.level) {
                    for (let i = this.level + 1; i <= newLevel; i++) {
                        update[i] = this.header;
                    }
                    this.level = newLevel;
                }

                const newNode = new SkipListNode(key, value, newLevel);

                for (let i = 0; i <= newLevel; i++) {
                    newNode.forward[i] = update[i].forward[i];
                    update[i].forward[i] = newNode;
                }

                this.size++;
                return true; // 表示插入而非更新
            }

            search(key) {
                let current = this.header;

                for (let i = this.level; i >= 0; i--) {
                    while (current.forward[i] && current.forward[i].key < key) {
                        current = current.forward[i];
                    }
                }

                current = current.forward[0];

                if (current && current.key === key) {
                    return current.value;
                }
                return null;
            }

            delete(key) {
                const update = new Array(this.maxLevel + 1).fill(null);
                let current = this.header;

                for (let i = this.level; i >= 0; i--) {
                    while (current.forward[i] && current.forward[i].key < key) {
                        current = current.forward[i];
                    }
                    update[i] = current;
                }

                current = current.forward[0];

                if (!current || current.key !== key) {
                    return false;
                }

                for (let i = 0; i <= this.level; i++) {
                    if (update[i].forward[i] !== current) {
                        break;
                    }
                    update[i].forward[i] = current.forward[i];
                }

                while (this.level > 0 && this.header.forward[this.level] === null) {
                    this.level--;
                }

                this.size--;
                return true;
            }

            estimateSize() {
                let totalBytes = 0;
                let current = this.header.forward[0];

                while (current) {
                    totalBytes += current.key.length + JSON.stringify(current.value).length;
                    totalBytes += 8 * current.forward.length;
                    current = current.forward[0];
                }

                return totalBytes;
            }

            items() {
                const result = [];
                let current = this.header.forward[0];

                while (current) {
                    result.push({ key: current.key, value: current.value });
                    current = current.forward[0];
                }

                return result;
            }
        }

        // 初始化跳跃表
        const skiplist = new SkipList();
        const visualization = document.getElementById('skiplistContainer');
        const sizeDisplay = document.getElementById('sizeDisplay');
        const levelDisplay = document.getElementById('levelDisplay');
        const memoryDisplay = document.getElementById('memoryDisplay');
        const itemsTable = document.getElementById('itemsTable');
        const keyInput = document.getElementById('keyInput');
        const valueInput = document.getElementById('valueInput');

        // 渲染跳跃表
        function renderSkipList() {
            visualization.innerHTML = '';

            // 从最高层开始渲染
            for (let level = skiplist.level; level >= 0; level--) {
                const levelDiv = document.createElement('div');
                levelDiv.className = 'flex items-center';

                // 添加层级标签
                const levelLabel = document.createElement('div');
                levelLabel.className = 'w-16 text-right pr-4 font-bold';
                levelLabel.textContent = `L${level}`;
                levelDiv.appendChild(levelLabel);

                // 添加头节点
                const headerNode = document.createElement('div');
                headerNode.className = 'node header-node';
                headerNode.textContent = 'HEAD';
                levelDiv.appendChild(headerNode);

                // 添加箭头
                const arrow = document.createElement('div');
                arrow.className = 'arrow';
                levelDiv.appendChild(arrow);

                // 添加该层的所有节点
                let current = skiplist.header.forward[level];
                while (current) {
                    const node = document.createElement('div');
                    node.className = `node level-${level % 5}`;
                    node.textContent = `${current.key}:${current.value}`;
                    levelDiv.appendChild(node);

                    // 如果不是最后一个节点，添加箭头
                    if (current.forward[level]) {
                        const arrow = document.createElement('div');
                        arrow.className = 'arrow';
                        levelDiv.appendChild(arrow);
                    }

                    current = current.forward[level];
                }

                visualization.appendChild(levelDiv);
            }

            // 更新状态信息
            sizeDisplay.textContent = skiplist.size;
            levelDisplay.textContent = skiplist.level;
            memoryDisplay.textContent = formatBytes(skiplist.estimateSize());

            // 更新键值对表格
            updateItemsTable();
        }

        function formatBytes(bytes) {
            if (bytes === 0) return '0 B';
            const k = 1024;
            const sizes = ['B', 'KB', 'MB', 'GB'];
            const i = Math.floor(Math.log(bytes) / Math.log(k));
            return parseFloat((bytes / Math.pow(k, i)).toFixed(2)) + ' ' + sizes[i];
        }

        function updateItemsTable() {
            itemsTable.innerHTML = '';
            const items = skiplist.items();

            items.forEach(item => {
                const row = document.createElement('tr');
                row.innerHTML = `
                    <td>${item.key}</td>
                    <td>${item.value}</td>
                `;
                itemsTable.appendChild(row);
            });
        }

        // 查找并高亮显示路径
        async function searchAndHighlight(key) {
            // 重置所有节点样式
            document.querySelectorAll('.node').forEach(node => {
                node.classList.remove('visited', 'found', 'path-node');
            });

            let current = skiplist.header;
            const searchSteps = [];
            const path = [{key: 'HEAD', level: skiplist.level}]; // 初始化路径，头节点

            // 从最高层开始查找
            for (let i = skiplist.level; i >= 0; i--) {
                while (current.forward[i] && current.forward[i].key < key) {
                    searchSteps.push({
                        level: i,
                        node: current.forward[i],
                        action: '向右移动'
                    });

                    // 记录路径节点（包含层级）
                    path.push({
                        key: current.forward[i].key,
                        level: i
                    });

                    // 高亮显示当前节点
                    const nodeElements = document.querySelectorAll(`.node.level-${i % 5}`);
                    for (const el of nodeElements) {
                        if (el.textContent.includes(`${current.forward[i].key}:`)) {
                            el.classList.add('visited');
                            await new Promise(resolve => setTimeout(resolve, 800));
                            break;
                        }
                    }

                    current = current.forward[i];
                }

                searchSteps.push({
                    level: i,
                    node: current,
                    action: '向下移动'
                });

                // 记录当前节点（向下移动时）
                if (current !== skiplist.header) {
                    path.push({
                        key: current.key,
                        level: i
                    });
                }

                // 如果不是头节点，高亮显示
                if (current !== skiplist.header) {
                    const nodeElements = document.querySelectorAll(`.node.level-${i % 5}`);
                    for (const el of nodeElements) {
                        if (el.textContent.includes(`${current.key}:`)) {
                            el.classList.add('visited');
                            await new Promise(resolve => setTimeout(resolve, 500));
                            break;
                        }
                    }
                }
            }

            current = current.forward[0];

            if (current && current.key === key) {
                // 记录目标节点（层级为0）
                path.push({
                    key: current.key,
                    level: 0
                });

                // 高亮显示找到的节点
                const nodeElements = document.querySelectorAll('.node');
                for (const el of nodeElements) {
                    if (el.textContent.includes(`${current.key}:`)) {
                        el.classList.add('found');
                        break;
                    }
                }

                return { found: true, value: current.value, steps: searchSteps, path: path };
            }

            return { found: false, steps: searchSteps, path: path };
        }

        // 渲染搜索路径
        function renderSearchPath(path) {
            const pathContainer = document.getElementById('pathNodes');
            pathContainer.innerHTML = '';
            pathContainer.className = 'flex flex-wrap items-center gap-4'; // 优化布局

            path.forEach((node, index) => {
                const nodeContainer = document.createElement('div');
                nodeContainer.className = 'flex flex-col items-center';

                // 添加层级标签
                const levelLabel = document.createElement('div');
                levelLabel.className = 'text-xs font-bold bg-gray-200 px-1 rounded mb-1';
                levelLabel.textContent = `L${node.level}`;
                nodeContainer.appendChild(levelLabel);

                // 添加节点
                const nodeElement = document.createElement('div');
                nodeElement.className = 'node path-node';

                if (node.key === 'HEAD') {
                    nodeElement.classList.add('header-node');
                    nodeElement.textContent = 'HEAD';
                } else {
                    nodeElement.textContent = node.key;
                }

                nodeContainer.appendChild(nodeElement);
                pathContainer.appendChild(nodeContainer);

                // 添加箭头（除最后一个节点外）
                if (index < path.length - 1) {
                    const arrow = document.createElement('div');
                    arrow.className = 'arrow';
                    arrow.style.width = '30px';
                    arrow.style.height = '2px';
                    arrow.style.background = '#6b7280';
                    pathContainer.appendChild(arrow);
                }
            });
        }

        // 事件监听
        document.getElementById('searchBtn').addEventListener('click', async () => {
            const key = keyInput.value.trim();

            if (!key) {
                alert('请输入要查找的键');
                return;
            }

            const result = await searchAndHighlight(key);

            // 渲染搜索路径
            renderSearchPath(result.path);

            if (result.found) {
                alert(`找到键 "${key}"，对应的值为: ${result.value}`);
            } else {
                alert(`未找到键 "${key}"`);
            }
        });

        document.getElementById('insertBtn').addEventListener('click', () => {
            const key = keyInput.value.trim();
            const value = valueInput.value.trim();

            if (!key) {
                alert('请输入键');
                return;
            }

            skiplist.insert(key, value);
            renderSkipList();

            keyInput.value = '';
            valueInput.value = '';
            keyInput.focus();
        });

        document.getElementById('updateBtn').addEventListener('click', () => {
            const key = keyInput.value.trim();
            const value = valueInput.value.trim();

            if (!key) {
                alert('请输入键');
                return;
            }

            if (skiplist.search(key) === null) {
                alert('键不存在，无法更新');
                return;
            }

            skiplist.insert(key, value);
            renderSkipList();

            keyInput.value = '';
            valueInput.value = '';
            keyInput.focus();
        });

        document.getElementById('deleteBtn').addEventListener('click', () => {
            const key = keyInput.value.trim();

            if (!key) {
                alert('请输入键');
                return;
            }

            if (skiplist.delete(key)) {
                renderSkipList();
            } else {
                alert('键不存在，无法删除');
            }

            keyInput.value = '';
            valueInput.value = '';
            keyInput.focus();
        });

        document.getElementById('randomBtn').addEventListener('click', () => {
            const randomWords = ['apple', 'banana', 'cherry', 'date', 'elderberry',
                               'fig', 'grape', 'honeydew', 'kiwi', 'lemon',
                               'mango', 'nectarine', 'orange', 'pear', 'quince',
                               'raspberry', 'strawberry', 'tangerine', 'watermelon'];

            for (let i = 0; i < 10; i++) {
                const randomKey = randomWords[Math.floor(Math.random() * randomWords.length)];
                const randomValue = Math.floor(Math.random() * 100);
                skiplist.insert(randomKey, randomValue);
            }

            renderSkipList();
        });

        document.getElementById('clearBtn').addEventListener('click', () => {
            skiplist = new SkipList();
            renderSkipList();
        });

        // 初始渲染
        renderSkipList();
    </script>
</body>
</html>

git: https://gitcode.com/weixin_44778145/lsm_demo/blob/main/skiplist_demo.html

总结

通过本文的可视化实现，我们深入理解了跳跃表概率平衡 和多层索引 的核心思想。这种数据结构在需要高效动态操作的场景中具有独特优势，其可视化实现方式也为算法教学和性能分析提供了新的思路。建议开发者结合实际业务场景，灵活运用跳跃表解决复杂的数据结构问题。
