1、系统设置的基本概念
系统设置是用于配置和管理餐桌类型和菜品类型,是维护整个系统的基础数据。通过系统设置,用户可以调整餐桌类型的添加,删除,编辑,分页,查询,重置,列表,选择等。

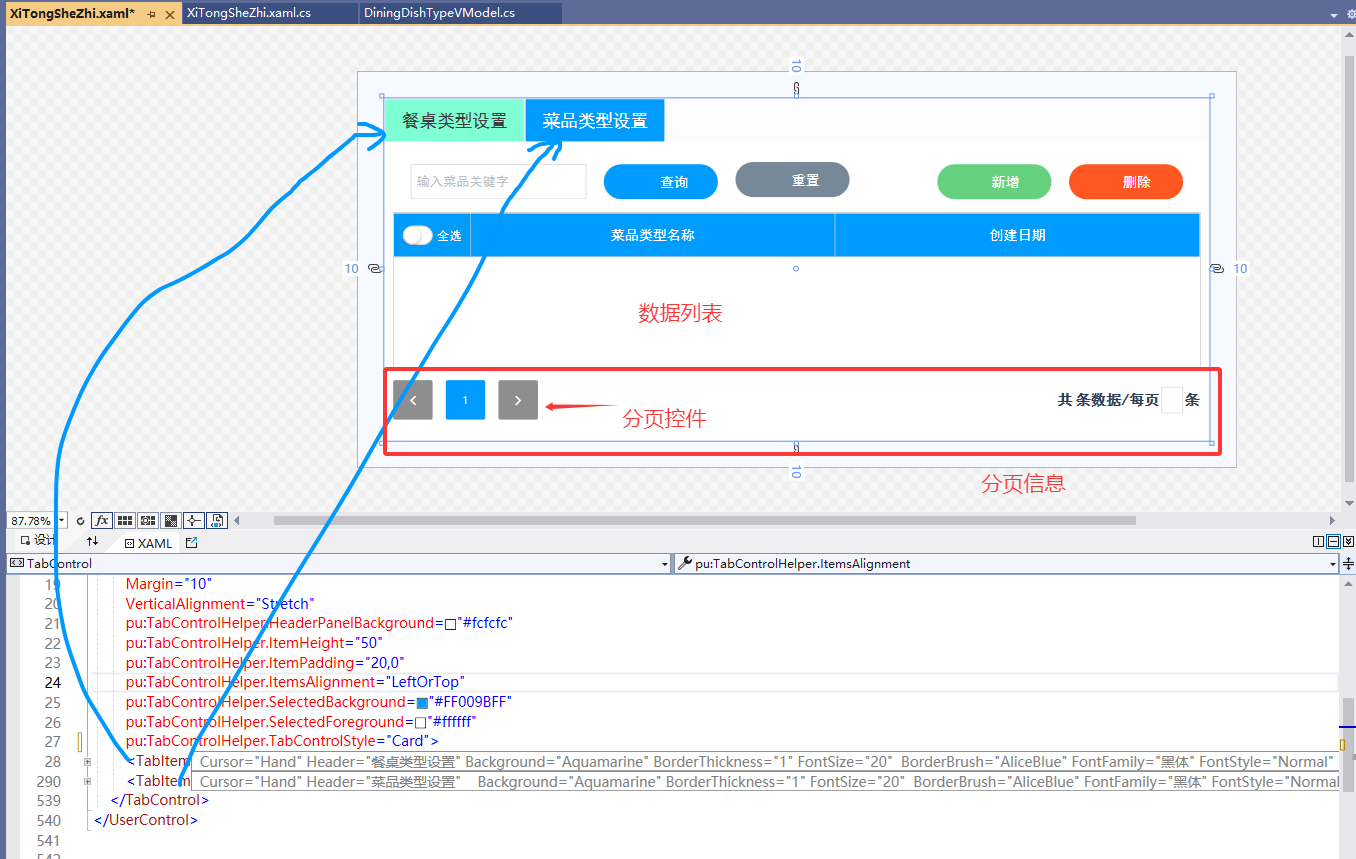

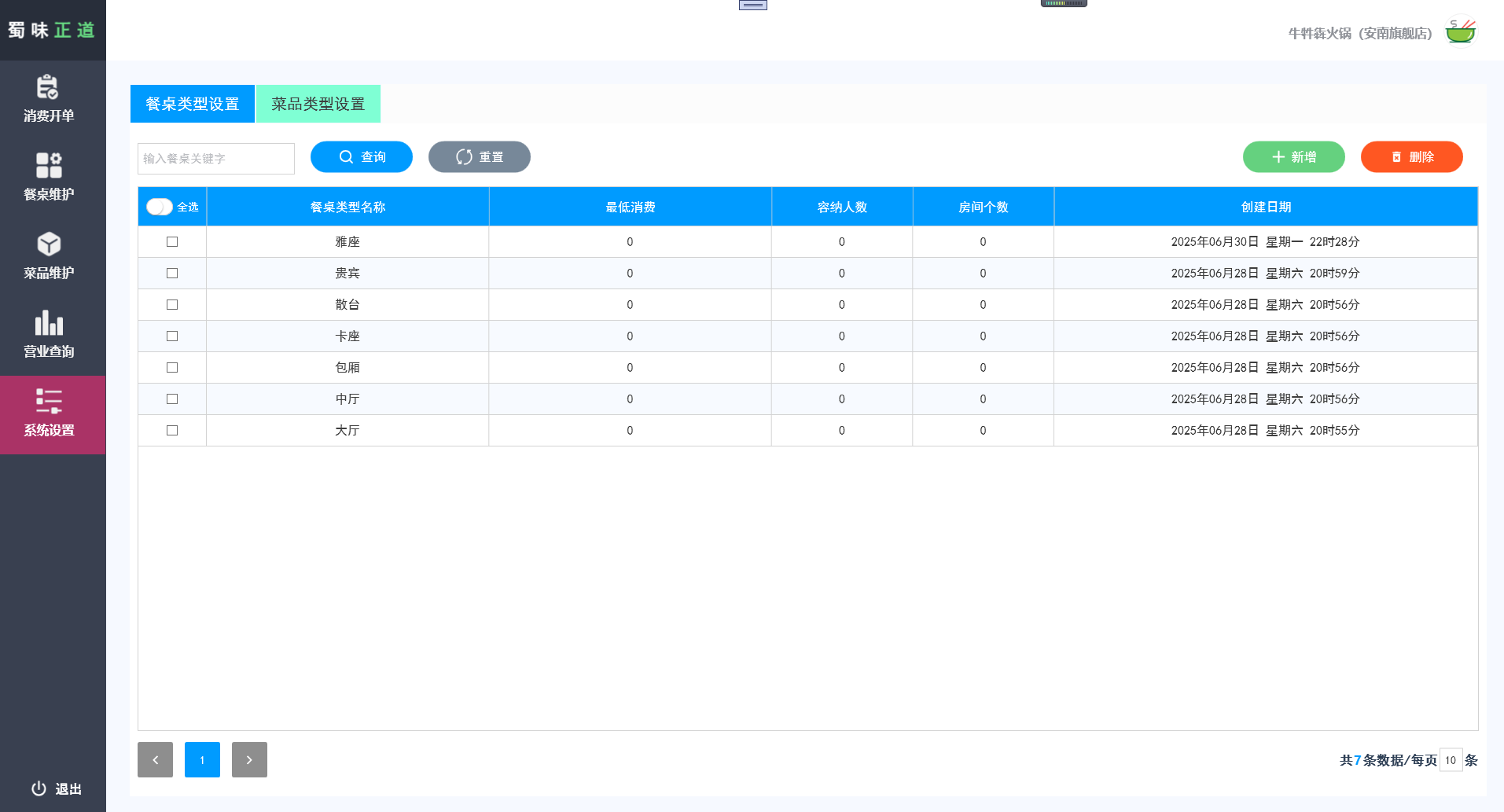

2、布局设计
餐桌类型设置及菜品类型设置是通过TabControl控件实现的。不过要注意的是,左侧每个菜单点击时,右侧呈现出来的是用户控件,是用户控件,而不是窗体。
1、控件介绍
TabControl 是一种功能强大且灵活的控件,适用于需要分页显示内容的场景。通过合理使用其属性和事件,可以创建出满足各种需求的用户界面。TabControl 是一种常见的用户界面控件,用于在多个选项卡之间切换内容。它通常由一组标签页(TabPage)组成,每个标签页包含不同的内容,用户可以通过点击标签页头来切换显示的内容。在 WPF 中,TabControl 的使用方式更加灵活,通常与数据绑定结合使用。以下是 XAML 示例:
cs
<TabControl>
<TabItem Header="选项卡1">
<Label Content="这是第一个选项卡的内容"/>
</TabItem>
<TabItem Header="选项卡2">
<Label Content="这是第二个选项卡的内容"/>
</TabItem>
</TabControl>
TabControl 的事件,TabControl 提供了多个事件用于响应用户操作,以下是常见事件:
SelectedIndexChanged:当选中标签页发生变化时触发。该事件本项目中必须用到
Selecting:在选中标签页之前触发,可以取消选中操作。
Selected:在选中标签页之后触发。

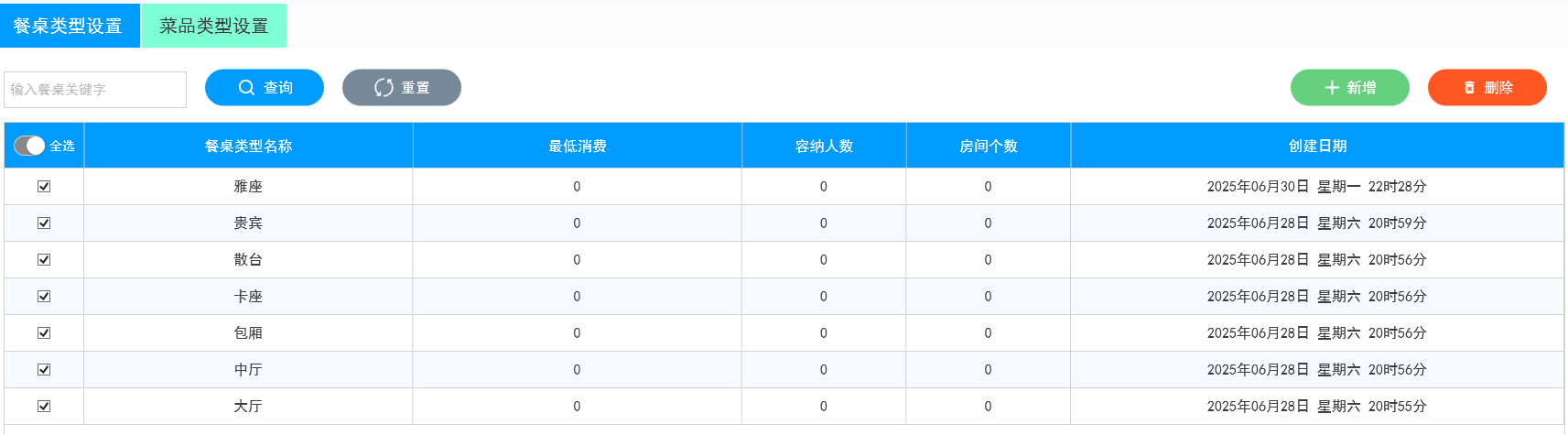

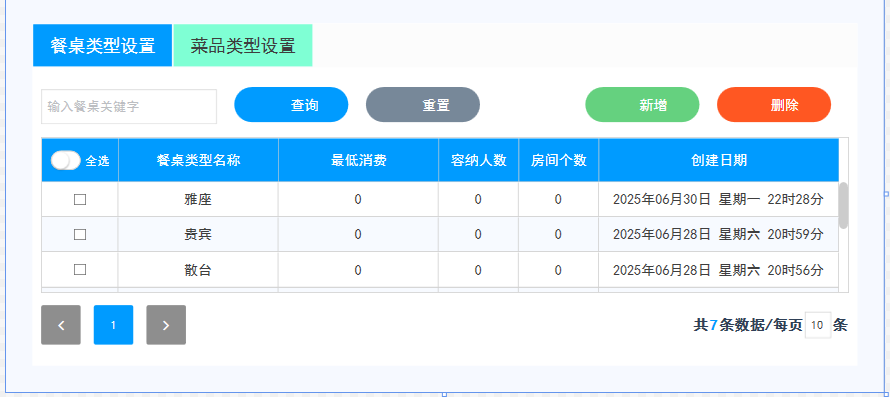

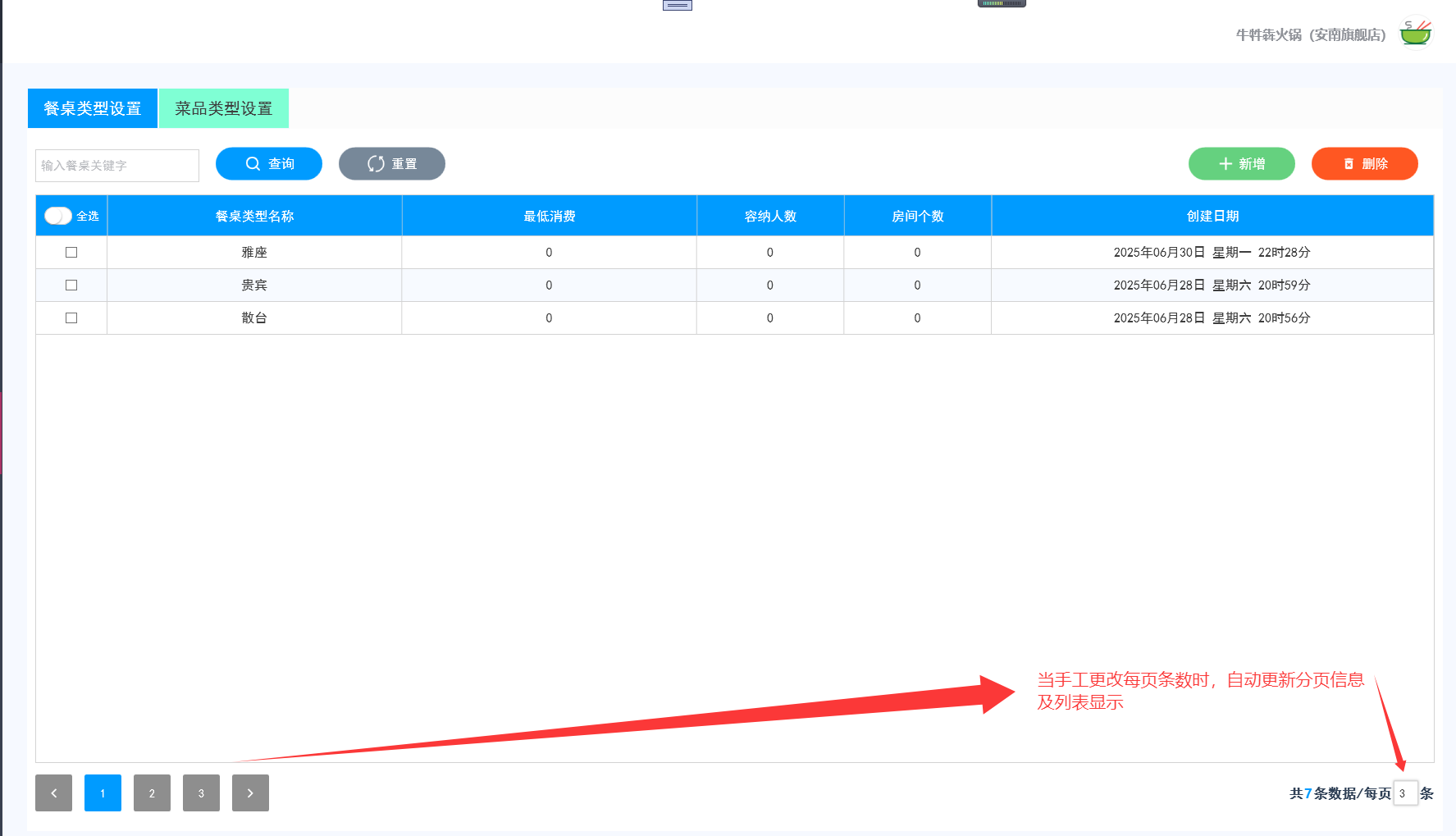

2、布局应用

完整代码如下:
cs
<UserControl x:Class="HQ.fResApp.UControls.XiTongSheZhi"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:local="clr-namespace:HQ.fResApp.UControls"
mc:Ignorable="d"
xmlns:vm="clr-namespace:HQ.fResApp.ViewModel"
xmlns:materialDesign="http://materialdesigninxaml.net/winfx/xaml/themes"
xmlns:pu="clr-namespace:Panuon.UI.Silver;assembly=Panuon.UI.Silver"
Padding="20"
d:DesignHeight="450"
d:DesignWidth="1000"
Background="#f6f9ff">
<UserControl.DataContext>
<vm:DiningDishTypeVModel/>
</UserControl.DataContext>
<TabControl
Margin="10"
VerticalAlignment="Stretch"
pu:TabControlHelper.HeaderPanelBackground="#fcfcfc"
pu:TabControlHelper.ItemHeight="50"
pu:TabControlHelper.ItemPadding="20,0"
pu:TabControlHelper.ItemsAlignment="LeftOrTop"
pu:TabControlHelper.SelectedBackground="#FF009BFF"
pu:TabControlHelper.SelectedForeground="#ffffff"
pu:TabControlHelper.TabControlStyle="Card">
<TabItem Cursor="Hand" Header="餐桌类型设置" Background="Aquamarine" BorderThickness="1" FontSize="20" BorderBrush="AliceBlue" FontFamily="黑体" FontStyle="Normal" >
<Grid Margin="10">
<Grid.RowDefinitions>
<RowDefinition Height="55" />
<RowDefinition Height="15" />
<RowDefinition />
<RowDefinition Height="73" />
</Grid.RowDefinitions>
<Grid Background="#ffffff">
<Grid.ColumnDefinitions>
<ColumnDefinition />
<ColumnDefinition Width="460" />
</Grid.ColumnDefinitions>
<StackPanel Orientation="Horizontal" Grid.ColumnSpan="2" Margin="0,0,410,0">
<TextBox
x:Name="keyWhereTab"
Width="200"
Height="40"
Margin="0,15,20,0"
pu:TextBoxHelper.Watermark="输入餐桌关键字"
FontSize="15"
Foreground="#909399"
Text="{Binding DiningTypeKey,Mode=TwoWay,UpdateSourceTrigger=PropertyChanged}" />
<Button
Width="130"
Height="40"
Margin="0,10,20,0"
Padding="-10,0,0,0"
pu:ButtonHelper.ButtonStyle="Standard"
pu:ButtonHelper.ClickStyle="Sink"
pu:ButtonHelper.CornerRadius="20"
pu:ButtonHelper.HoverBrush="#009BFF"
pu:ButtonHelper.Icon="/HQ.fResApp;component/Resources/icon/search.png"
pu:IconHelper.Width="40"
Background="#FF009BFF"
BorderBrush="#FF009BFF"
Content="查询"
Cursor="Hand"
FontSize="16"
Foreground="#ffffff"

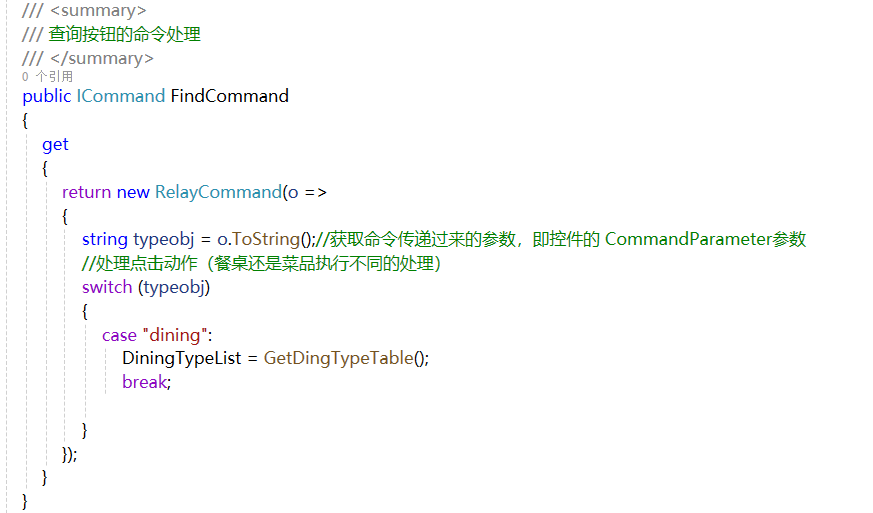

Command="{Binding FindCommand}"
CommandParameter="dining"
IsDefault="true" />
<Button
Width="130"
Height="40"
Margin="0,10,20,0"
Padding="-10,0,0,0"
pu:ButtonHelper.ButtonStyle="Standard"
pu:ButtonHelper.ClickStyle="Sink"
pu:ButtonHelper.CornerRadius="20"
pu:ButtonHelper.HoverBrush="#009BFF"
pu:ButtonHelper.Icon="/HQ.fResApp;component/Resources/icon/Refresh.png"
pu:IconHelper.Width="40"
Background="LightSlateGray"
BorderBrush="#FF009BFF"
Content="重置"
Cursor="Hand"
FontSize="16"
Foreground="#ffffff"

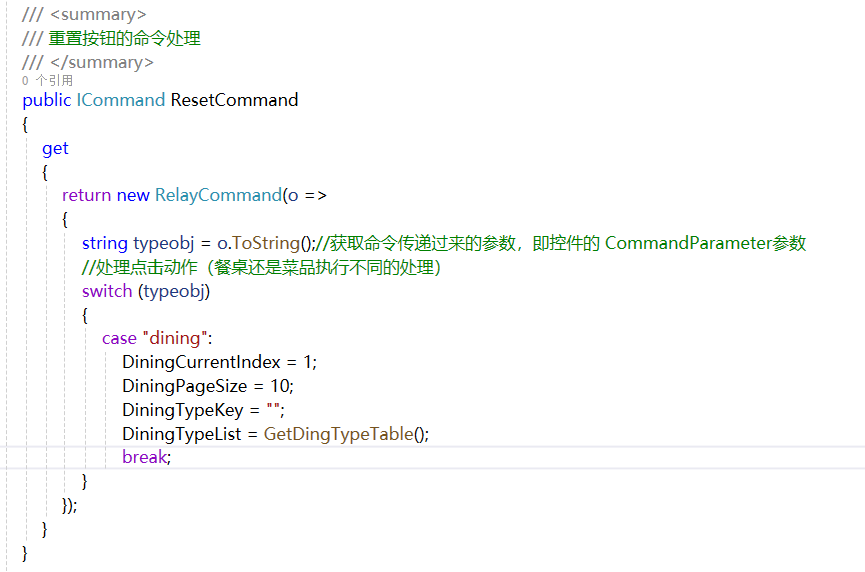

Command="{Binding ResetCommand}"
CommandParameter="dining" />
</StackPanel>
<StackPanel
Grid.Column="1"
HorizontalAlignment="Right"
Orientation="Horizontal">
<Button
x:Name="btnAddTab"
Width="130"
Height="40"
Margin="0,10,20,0"
Padding="-10,0,0,0"
pu:ButtonHelper.ButtonStyle="Standard"
pu:ButtonHelper.ClickStyle="Sink"
pu:ButtonHelper.CornerRadius="20"
pu:ButtonHelper.HoverBrush="#65d17f"
pu:ButtonHelper.Icon="/HQ.fResApp;component/Resources/icon/add.png"
pu:IconHelper.Width="35"
Background="#65d17f"
BorderBrush="#65d17f"
Content="新增"
Cursor="Hand"
FontSize="16"
Foreground="#ffffff" />
<Button
x:Name="btnDelTab"
Width="130"
Height="40"
Margin="0,10,20,0"
Padding="-10,0,0,0"
pu:ButtonHelper.ButtonStyle="Standard"
pu:ButtonHelper.ClickStyle="Sink"
pu:ButtonHelper.CornerRadius="20"
pu:ButtonHelper.HoverBrush="#FF5722"
pu:ButtonHelper.Icon="/HQ.fResApp;component/Resources/icon/remove1.png"
pu:IconHelper.Width="35"
Background="#FF5722"
BorderBrush="#FF5722"
Content="删除"
Cursor="Hand"
FontSize="16"
Foreground="#ffffff" />
</StackPanel>
</Grid>
<Border Grid.Row="1" />
<DataGrid
x:Name="dataListTab"
Grid.Row="2"
pu:DataGridHelper.ColumnHorizontalContentAlignment="Center"
pu:DataGridHelper.HeaderBackground="#FF009BFF"
pu:DataGridHelper.HeaderForeground="#ffffff"
pu:DataGridHelper.HeaderMinHeight="50"
pu:DataGridHelper.HoverBackground="#FF009BFF"
pu:DataGridHelper.ResizeThumbThickness="0.5"
pu:DataGridHelper.SelectedBackground="Transparent"
AlternatingRowBackground="#f7faff"
AutoGenerateColumns="False"
CanUserAddRows="False"
CanUserDeleteRows="False"
CanUserReorderColumns="False"
CanUserResizeRows="False"
FontSize="16"
ItemsSource="{Binding DiningTypeList,Mode=TwoWay,UpdateSourceTrigger=PropertyChanged}"
SelectionMode="Extended"
SelectionUnit="FullRow">
<DataGrid.RowStyle>
<Style TargetType="{x:Type DataGridRow}">
<EventSetter Event="UIElement.GotFocus" Handler="TabItem_GotFocus" />
<Setter Property="Height" Value="40" />
</Style>
</DataGrid.RowStyle>
<DataGrid.Columns>
<DataGridCheckBoxColumn x:Name="chkrtIdTab" CanUserSort="False">
<DataGridCheckBoxColumn.HeaderTemplate>
<DataTemplate>
<CheckBox
x:Name="ckbSelectedAll"
pu:CheckBoxHelper.CheckBoxStyle="Switch"
Checked="ckbSelectedAllTab_Checked"
Content="全选"
Foreground="#ffffff"
IsChecked="False"
Unchecked="ckbSelectedAllTab_Unchecked" />
</DataTemplate>
</DataGridCheckBoxColumn.HeaderTemplate>
</DataGridCheckBoxColumn>
<DataGridTextColumn
Width="2*"
Binding="{Binding rtName}"
Header="餐桌类型名称"
IsReadOnly="True" />
<DataGridTextColumn
Width="2*"
Binding="{Binding rtLeastCost}"
Header="最低消费"
IsReadOnly="True" />
<DataGridTextColumn
Width="1*"
Binding="{Binding rtMostNumber}"
Header="容纳人数"
IsReadOnly="True" />
<DataGridTextColumn
Width="1*"
Binding="{Binding rtAmount}"
Header="房间个数"
IsReadOnly="True" />
<DataGridTextColumn
Width="3*"
Binding="{Binding createDate, ConverterCulture=zh-CN, StringFormat=\{0:yyyy年MM月dd日 dddd HH时mm分\}}"
Header="创建日期"
IsReadOnly="True" />
</DataGrid.Columns>
</DataGrid>
<Grid Grid.Row="3">
<Grid.ColumnDefinitions>
<ColumnDefinition />
<ColumnDefinition Width="250" />
</Grid.ColumnDefinitions>

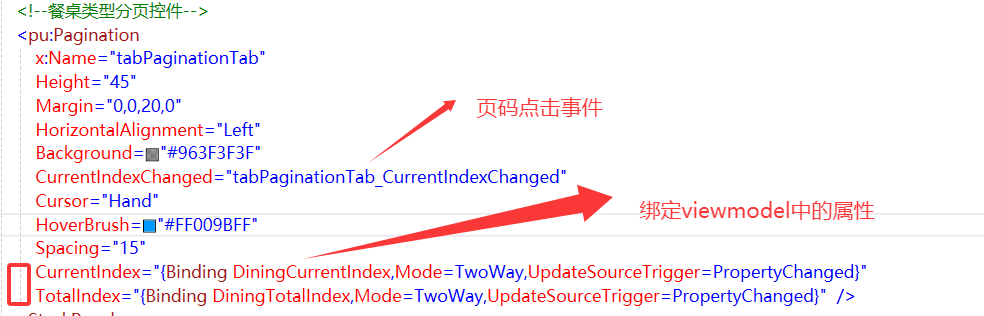

<!--餐桌类型分页控件-->
<pu:Pagination
x:Name="tabPaginationTab"
Height="45"
Margin="0,0,20,0"
HorizontalAlignment="Left"
Background="#963F3F3F"
CurrentIndexChanged="tabPaginationTab_CurrentIndexChanged"
Cursor="Hand"
HoverBrush="#FF009BFF"
Spacing="15"
CurrentIndex="{Binding DiningCurrentIndex,Mode=TwoWay,UpdateSourceTrigger=PropertyChanged}"
TotalIndex="{Binding DiningTotalIndex,Mode=TwoWay,UpdateSourceTrigger=PropertyChanged}" />
<StackPanel
Grid.Column="1"
HorizontalAlignment="Right"
Orientation="Horizontal">
<Button
Width="20"
Height="45"
Padding="-35,0,0,0"
pu:ButtonHelper.ButtonStyle="Standard"
pu:ButtonHelper.HoverBrush="Transparent"
pu:IconHelper.Width="35"
Background="Transparent"
BorderBrush="Transparent"
Content="共"
FontSize="17"
FontWeight="ExtraBold"
Foreground="#2F4056" />
<Button
x:Name="txtTotalNumTab"
Height="45"
Padding="-35,0,0,0"
pu:ButtonHelper.ButtonStyle="Standard"
pu:ButtonHelper.HoverBrush="Transparent"
pu:IconHelper.Width="35"
Background="Transparent"
BorderBrush="Transparent"
Content="{Binding DiningTotalNum,Mode=TwoWay,UpdateSourceTrigger=PropertyChanged}"
FontSize="17"
FontWeight="ExtraBold"
Foreground="#FF009BFF" />
<Button
Width="100"
Height="45"
Padding="-35,0,0,0"
pu:ButtonHelper.ButtonStyle="Standard"
pu:ButtonHelper.HoverBrush="Transparent"
pu:IconHelper.Width="35"
Background="Transparent"
BorderBrush="Transparent"
Content="条数据/每页"
FontSize="17"
FontWeight="ExtraBold"
Foreground="#2F4056" />
<TextBox
x:Name="txtPageSizeTab"
Grid.Row="2"
Width="30"
Height="30"
HorizontalAlignment="Center"
pu:TextBoxHelper.CornerRadius="0"
Text="{Binding DiningPageSize,Mode=TwoWay,UpdateSourceTrigger=PropertyChanged}" />
<Button
Width="20"
Height="45"
Padding="-35,0,0,0"
pu:ButtonHelper.ButtonStyle="Standard"
pu:ButtonHelper.HoverBrush="Transparent"
pu:IconHelper.Width="35"
Background="Transparent"
BorderBrush="Transparent"
Content="条"
FontSize="17"
FontWeight="ExtraBold"
Foreground="#2F4056" />
</StackPanel>
</Grid>
</Grid>
</TabItem>
<TabItem Cursor="Hand" Header="菜品类型设置" Background="Aquamarine" BorderThickness="1" FontSize="20" BorderBrush="AliceBlue" FontFamily="黑体" FontStyle="Normal" >
<Grid Margin="10">
<Grid.ColumnDefinitions>
<ColumnDefinition Width="27*"/>
<ColumnDefinition Width="443*"/>
</Grid.ColumnDefinitions>
<Grid.RowDefinitions>
<RowDefinition Height="55" />
<RowDefinition Height="15" />
<RowDefinition />
<RowDefinition Height="73" />
</Grid.RowDefinitions>
<Grid Background="#ffffff" Grid.ColumnSpan="2">
<Grid.ColumnDefinitions>
<ColumnDefinition />
<ColumnDefinition Width="460" />
</Grid.ColumnDefinitions>
<StackPanel Orientation="Horizontal" Grid.ColumnSpan="2" Margin="0,0,385,0">
<TextBox
x:Name="keyPWhere"
Width="200"
Height="40"
Margin="20,15,20,0"
pu:TextBoxHelper.Watermark="输入菜品关键字"
FontSize="15"
Foreground="#909399"
Text="{Binding DishTypeKey,Mode=TwoWay,UpdateSourceTrigger=PropertyChanged}" />
<Button
x:Name="btnPSearch"
Width="130"
Height="40"
Margin="0,15,20,0"
Padding="-10,0,0,0"
pu:ButtonHelper.ButtonStyle="Standard"
pu:ButtonHelper.ClickStyle="Sink"
pu:ButtonHelper.CornerRadius="20"
pu:ButtonHelper.HoverBrush="#009BFF"
pu:ButtonHelper.Icon="/HQ.fResApp;component/Resources/icon/search.png"
pu:IconHelper.Width="40"
Background="#FF009BFF"
BorderBrush="#FF009BFF"
Content="查询"
Cursor="Hand"
FontSize="16"
Foreground="#ffffff"
Command="{Binding FindCommand}"
CommandParameter="dish"
IsDefault="true" />
<Button
Width="130"
Height="40"
Margin="0,10,20,0"
Padding="-10,0,0,0"
pu:ButtonHelper.ButtonStyle="Standard"
pu:ButtonHelper.ClickStyle="Sink"
pu:ButtonHelper.CornerRadius="20"
pu:ButtonHelper.HoverBrush="#009BFF"
pu:ButtonHelper.Icon="/HQ.fResApp;component/Resources/icon/Refresh.png"
pu:IconHelper.Width="40"
Background="LightSlateGray"
BorderBrush="#FF009BFF"
Content="重置"
Cursor="Hand"
FontSize="16"
Foreground="#ffffff"
Command="{Binding ResetCommand}"
CommandParameter="dish" />
</StackPanel>
<StackPanel
Grid.Column="1"
HorizontalAlignment="Right"
Orientation="Horizontal">
<Button
x:Name="btnPAdd"
Width="130"
Height="40"
Margin="0,15,20,0"
Padding="-10,0,0,0"
pu:ButtonHelper.ButtonStyle="Standard"
pu:ButtonHelper.ClickStyle="Sink"
pu:ButtonHelper.CornerRadius="20"
pu:ButtonHelper.HoverBrush="#65d17f"
pu:ButtonHelper.Icon="/HQ.fResApp;component/Resources/icon/add.png"
pu:IconHelper.Width="35"
Background="#65d17f"
BorderBrush="#65d17f"
Content="新增"
Cursor="Hand"
FontSize="16"
Foreground="#ffffff" />
<Button
x:Name="btnPDel"
Width="130"
Height="40"
Margin="0,15,20,0"
Padding="-10,0,0,0"
pu:ButtonHelper.ButtonStyle="Standard"
pu:ButtonHelper.ClickStyle="Sink"
pu:ButtonHelper.CornerRadius="20"
pu:ButtonHelper.HoverBrush="#FF5722"
pu:ButtonHelper.Icon="/HQ.fResApp;component/Resources/icon/remove1.png"
pu:IconHelper.Width="35"
Background="#FF5722"
BorderBrush="#FF5722"
Content="删除"
Cursor="Hand"
FontSize="16"
Foreground="#ffffff" />
</StackPanel>
</Grid>
<Border Grid.Row="1" Grid.ColumnSpan="2" />
<DataGrid
x:Name="dataPList"
Grid.Row="2"
pu:DataGridHelper.ColumnHorizontalContentAlignment="Center"
pu:DataGridHelper.HeaderBackground="#FF009BFF"
pu:DataGridHelper.HeaderForeground="#ffffff"
pu:DataGridHelper.HeaderMinHeight="50"
pu:DataGridHelper.HoverBackground="#FF009BFF"
pu:DataGridHelper.ResizeThumbThickness="0.5"
pu:DataGridHelper.SelectedBackground="Transparent"
AlternatingRowBackground="#f7faff"
AutoGenerateColumns="False"
CanUserAddRows="False"
CanUserDeleteRows="False"
CanUserReorderColumns="False"
CanUserResizeRows="False"
FontSize="16"
ItemsSource="{Binding DishTypeList,Mode=TwoWay,UpdateSourceTrigger=PropertyChanged}"
SelectionMode="Extended"
SelectionUnit="FullRow" Grid.ColumnSpan="2">
<DataGrid.RowStyle>
<Style TargetType="{x:Type DataGridRow}">
<EventSetter Event="UIElement.GotFocus" Handler="ProItem_GotFocus" />
<Setter Property="Height" Value="40" />
</Style>
</DataGrid.RowStyle>
<DataGrid.Columns>
<DataGridCheckBoxColumn x:Name="chkrtPId" CanUserSort="False">
<DataGridCheckBoxColumn.HeaderTemplate>
<DataTemplate>
<CheckBox
x:Name="ckbSelectedAll"
pu:CheckBoxHelper.CheckBoxStyle="Switch"
Checked="ckbSelectedAllPro_Checked"
Content="全选"
Foreground="#ffffff"
IsChecked="False"
Unchecked="ckbSelectedAllPro_Unchecked" />
</DataTemplate>
</DataGridCheckBoxColumn.HeaderTemplate>
</DataGridCheckBoxColumn>
<DataGridTextColumn
Width="3*"
Binding="{Binding mtName}"
Header="菜品类型名称"
IsReadOnly="True" />
<DataGridTextColumn
Width="3*"
Binding="{Binding createDate, ConverterCulture=zh-CN, StringFormat=\{0:yyyy年MM月dd日 dddd HH时mm分\}}"
Header="创建日期"
IsReadOnly="True" />
</DataGrid.Columns>
</DataGrid>
<Grid Grid.Row="3" Grid.ColumnSpan="2">
<Grid.ColumnDefinitions>
<ColumnDefinition />
<ColumnDefinition Width="250" />
</Grid.ColumnDefinitions>
<pu:Pagination
x:Name="tabPPagination"
Height="45"
Margin="0,0,20,0"
HorizontalAlignment="Left"
Background="#963F3F3F"
CurrentIndexChanged="ProPagination_CurrentIndexChanged"
Cursor="Hand"
HoverBrush="#FF009BFF"
Spacing="15"
CurrentIndex="{Binding DishCurrentIndex,Mode=TwoWay,UpdateSourceTrigger=PropertyChanged}"
TotalIndex="{Binding DishTotalIndex,Mode=TwoWay,UpdateSourceTrigger=PropertyChanged}" />
<StackPanel
Grid.Column="1"
HorizontalAlignment="Right"
Orientation="Horizontal">
<Button
Width="20"
Height="45"
Padding="-35,0,0,0"
pu:ButtonHelper.ButtonStyle="Standard"
pu:ButtonHelper.HoverBrush="Transparent"
pu:IconHelper.Width="35"
Background="Transparent"
BorderBrush="Transparent"
Content="共"
FontSize="17"
FontWeight="ExtraBold"
Foreground="#2F4056" />
<Button
x:Name="txtPTotalNum"
Content="{Binding DishTotalNum,Mode=TwoWay,UpdateSourceTrigger=PropertyChanged}"
Height="45"
Padding="-35,0,0,0"
pu:ButtonHelper.ButtonStyle="Standard"
pu:ButtonHelper.HoverBrush="Transparent"
pu:IconHelper.Width="35"
Background="Transparent"
BorderBrush="Transparent"
FontSize="17"
FontWeight="ExtraBold"
Foreground="#FF009BFF" />
<Button
Width="100"
Height="45"
Padding="-35,0,0,0"
pu:ButtonHelper.ButtonStyle="Standard"
pu:ButtonHelper.HoverBrush="Transparent"
pu:IconHelper.Width="35"
Background="Transparent"
BorderBrush="Transparent"
Content="条数据/每页"
FontSize="17"
FontWeight="ExtraBold"
Foreground="#2F4056" />
<TextBox
x:Name="txtPPageSize"
Grid.Row="2"
Width="25"
Height="30"
HorizontalAlignment="Center"
pu:TextBoxHelper.CornerRadius="0"
Text="{Binding DishPageSize,Mode=TwoWay,UpdateSourceTrigger=PropertyChanged}" />
<Button
Width="20"
Height="45"
Padding="-35,0,0,0"
pu:ButtonHelper.ButtonStyle="Standard"
pu:ButtonHelper.HoverBrush="Transparent"
pu:IconHelper.Width="35"
Background="Transparent"
BorderBrush="Transparent"
Content="条"
FontSize="17"
FontWeight="ExtraBold"
Foreground="#2F4056" />
</StackPanel>
</Grid>
</Grid>
</TabItem>
</TabControl>
</UserControl>

Panuon.UI.Silver控件库中带有分页控件Pagination,这个分页控件蛮好用,灵活方便好使,支持随时修改每页条数,自动更新分页导航。
3、视图模型

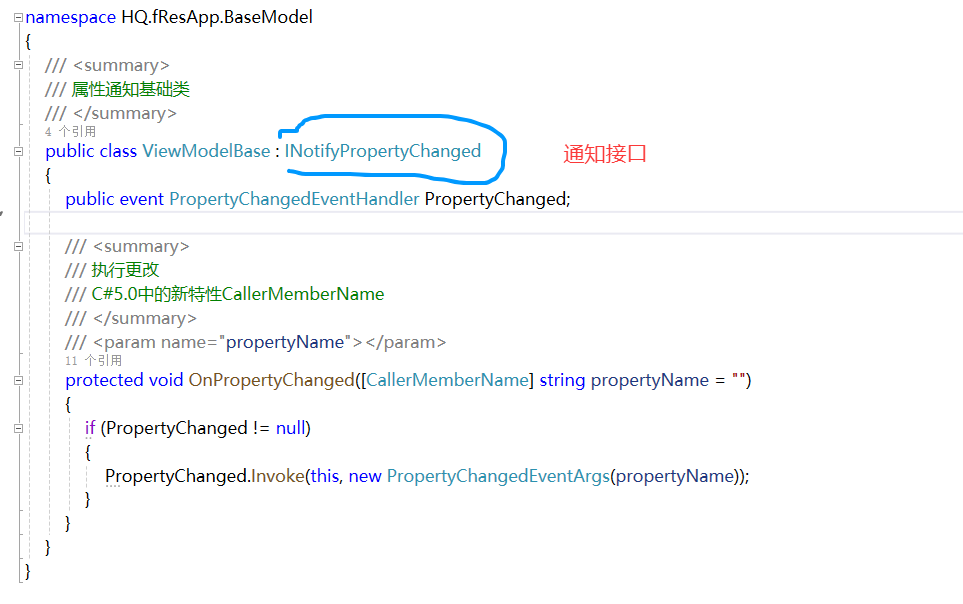

在WPF中,ViewModel
是MVVM(Model-View-ViewModel)架构模式的核心组件,负责连接View
(界面)和Model
(数据/业务逻辑)。
ViewModel的核心作用
数据绑定桥梁:通过属性暴露数据,供View双向绑定,实现数据自动同步。
命令处理:封装UI操作逻辑,通过ICommand接口实现事件响应(如按钮点击)。
状态管理:维护View的视觉状态(如加载中、错误提示等)。
1、查询命令

2、重置命令


完整代码如下:
cs
using HQ.BLL;
using HQ.COMM;
using HQ.fResApp.BaseModel;
using HQ.fResApp.Utils;
using HQ.MODEL.DBModel;
using HQ.MODEL.UIModel;
using Panuon.UI.Silver;
using Panuon.UI.Silver.Core;
using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.Linq;
using System.Runtime.InteropServices;
using System.Text;
using System.Threading.Tasks;
using System.Web.UI.WebControls;
using System.Windows.Controls;
using System.Windows.Input;
namespace HQ.fResApp.ViewModel
{
/// <summary>
/// 餐桌类型和菜品类型viewmodel
/// </summary>
public class DiningDishTypeVModel : ViewModelBase
{
DiningTypeBLL diningTypebll = new DiningTypeBLL();
DishTypeBLL dishTypebll = new DishTypeBLL();
#region 餐桌类型页面属性
private ObservableCollection<DiningType> diningTypeList;
/// <summary>
/// 餐桌类型列表,页面绑定的数据源
/// </summary>
public ObservableCollection<DiningType> DiningTypeList
{
get { return diningTypeList; }
set
{
diningTypeList = value;
OnPropertyChanged();
}
}
private string diningTypeKey="";
/// <summary>
/// 餐桌关键字
/// </summary>
public string DiningTypeKey
{
get { return diningTypeKey; }
set
{
diningTypeKey = value;
OnPropertyChanged();
}
}
private int diningCurrentIndex=1;
/// <summary>
/// 餐桌类型当前页
/// </summary>
public int DiningCurrentIndex
{
get { return diningCurrentIndex; }
set
{
diningCurrentIndex = value;
OnPropertyChanged();
}
}
private int diningTotalIndex;
/// <summary>
/// 餐桌类型总页数
/// </summary>
public int DiningTotalIndex
{
get { return diningTotalIndex; }
set
{
diningTotalIndex = value;
OnPropertyChanged();
}
}
private int diningTotalNum;
/// <summary>
/// 餐桌类型总条数
/// </summary>
public int DiningTotalNum
{
get { return diningTotalNum; }
set
{
diningTotalNum = value;
OnPropertyChanged();
}
}
private int diningPageSize=10;
/// <summary>
/// 餐桌类型每页条数
/// </summary>
public int DiningPageSize
{
get { return diningPageSize; }
set
{
diningPageSize = value;
OnPropertyChanged();
DiningTypeList = GetDingTypeTable();
}
}
#endregion
public DiningDishTypeVModel()
{
DiningTypeList = GetDingTypeTable();
}
/// <summary>
/// 获取餐桌类型列表
/// </summary>
/// <returns></returns>
public ObservableCollection<DiningType> GetDingTypeTable()
{
ObservableCollection<DiningType> tableDataList = new ObservableCollection<DiningType>();
var _parms = new PageParm { page = DiningCurrentIndex, limit = DiningPageSize, key = DiningTypeKey.Trim() };
var _pageRes = diningTypebll.GetPagesAsync(_parms).Result;//分页查询
if (_pageRes.statusCode == (int)ApiEnum.Status)
{
var _pageResData = _pageRes.data;
var _tabList = _pageResData.Items;
if (_tabList != null&&_tabList.Count!=0)
{
foreach (var item in _tabList)
{
var _curTab = new DiningType
{
rtGuid = item.rtGuid,
rtName = item.rtName,
createDate = item.createDate
};
tableDataList.Add(_curTab);
}
DiningTotalNum = (int)_pageResData.TotalItems;
DiningCurrentIndex = (int)_pageResData.CurrentPage;
DiningTotalIndex = (int)_pageResData.TotalPages;
}
else
{
Notice.Show("没有获取到餐桌数据!", "提示", 3, MessageBoxIcon.Info);
Logger.Default.ProcessError((int)ApiEnum.Error, "没有获取到餐桌列表数据");
}
}
else
{
Notice.Show("没有获取到餐桌数据!", "提示", 3, MessageBoxIcon.Info);
Logger.Default.ProcessError(_pageRes.statusCode, "获取到餐桌类型列表数据异常");
}
return tableDataList;
}
/// <summary>
/// 查询按钮的命令处理
/// </summary>
public ICommand FindCommand
{
get
{
return new RelayCommand(o =>
{
string typeobj = o.ToString();//获取命令传递过来的参数,即控件的 CommandParameter参数
//处理点击动作(餐桌还是菜品执行不同的处理)
switch (typeobj)
{
case "dining":
DiningTypeList = GetDingTypeTable();
break;
}
});
}
}
/// <summary>
/// 重置按钮的命令处理
/// </summary>
public ICommand ResetCommand
{
get
{
return new RelayCommand(o =>
{
string typeobj = o.ToString();//获取命令传递过来的参数,即控件的 CommandParameter参数
//处理点击动作(餐桌还是菜品执行不同的处理)
switch (typeobj)
{
case "dining":
DiningCurrentIndex = 1;
DiningPageSize = 10;
DiningTypeKey = "";
DiningTypeList = GetDingTypeTable();
break;
}
});
}
}
}
}

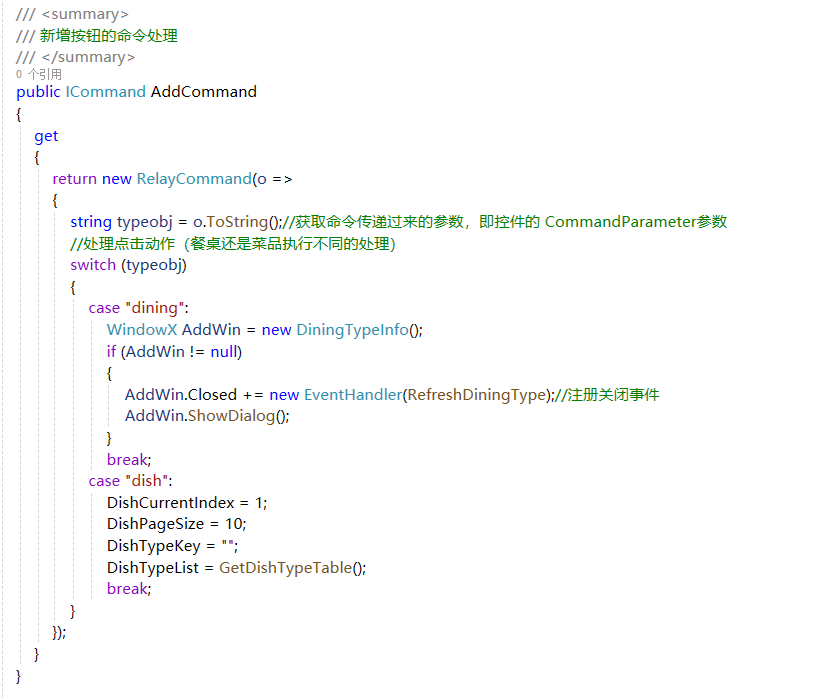

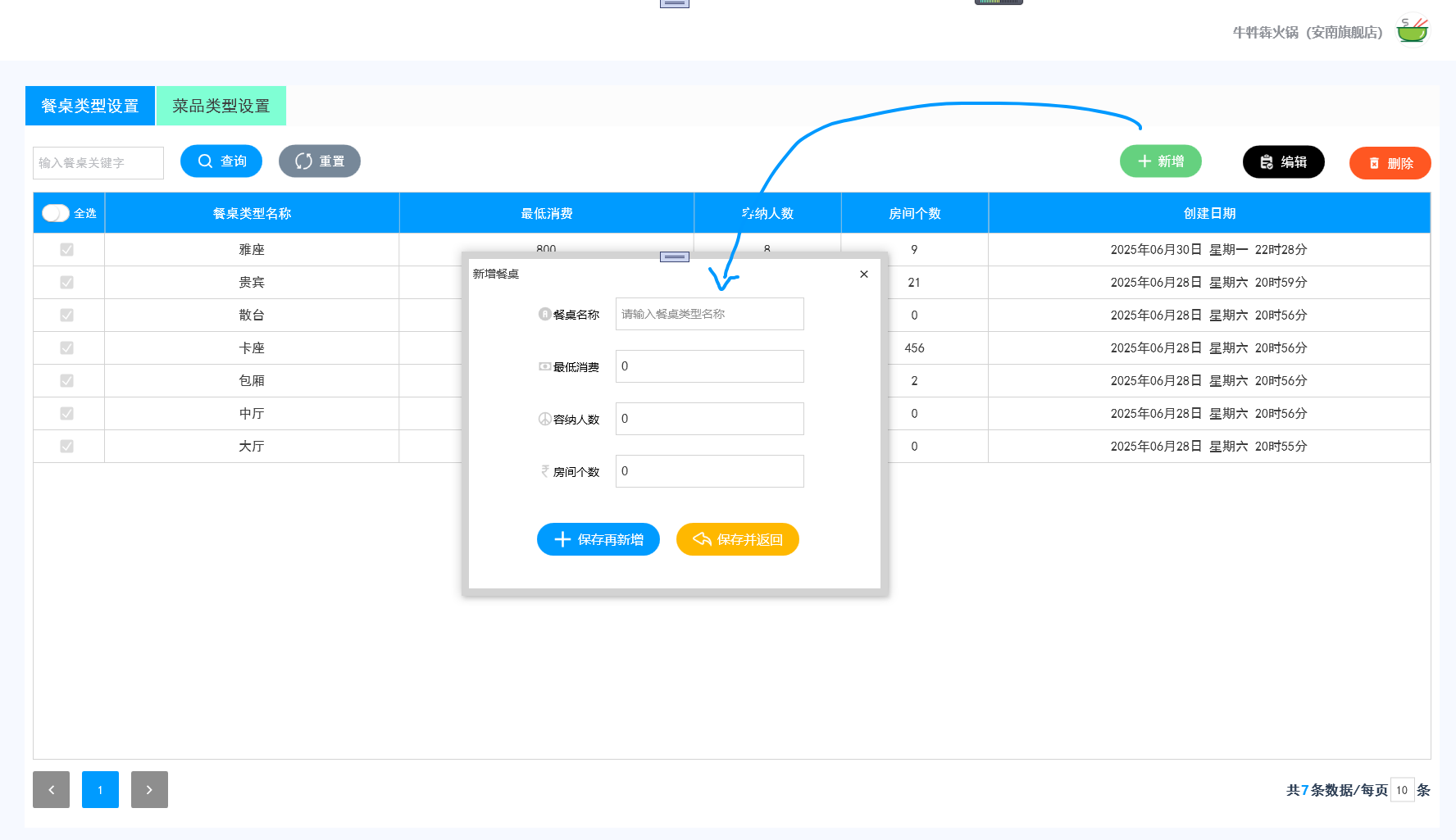

3、新增命令

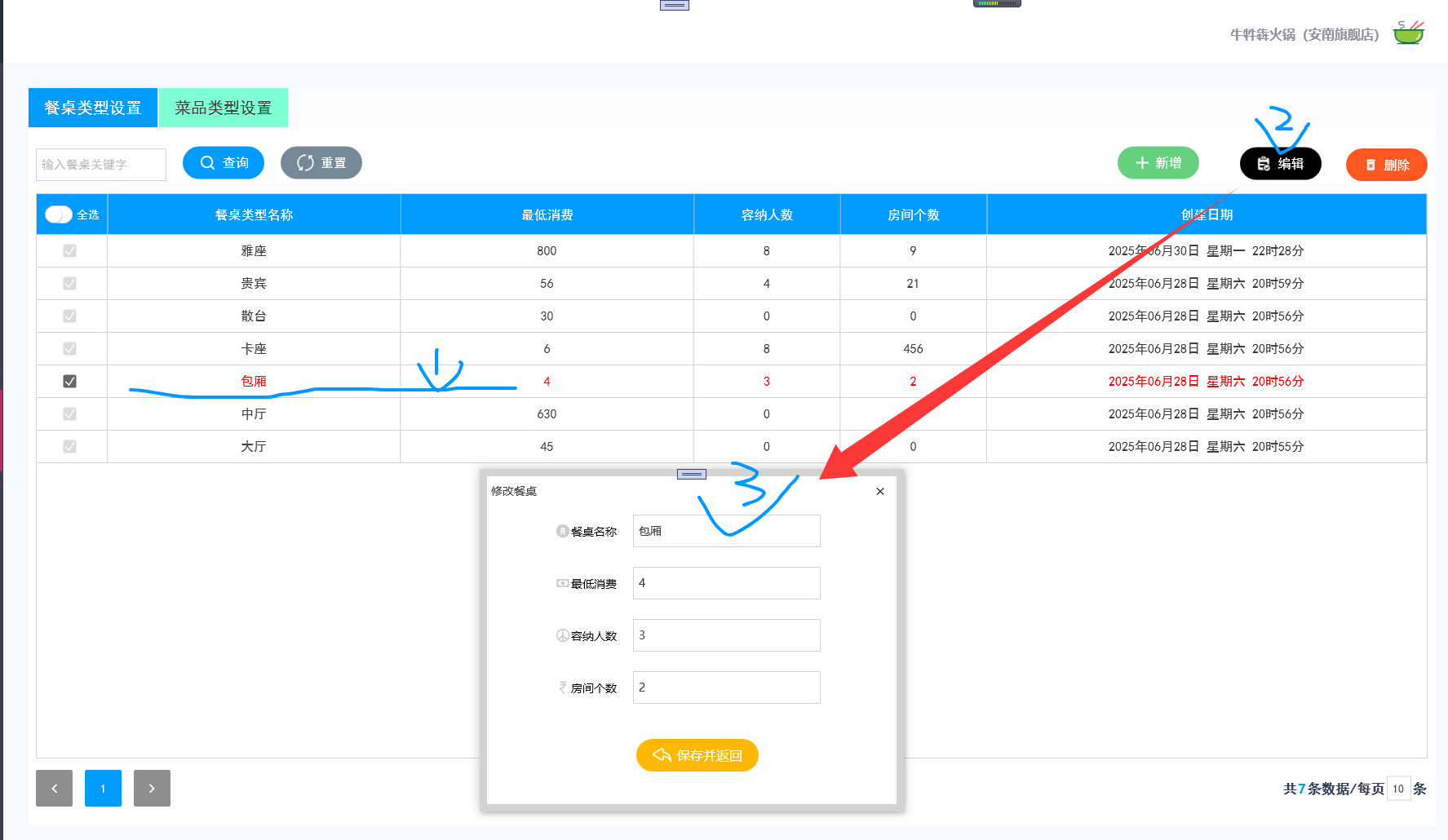

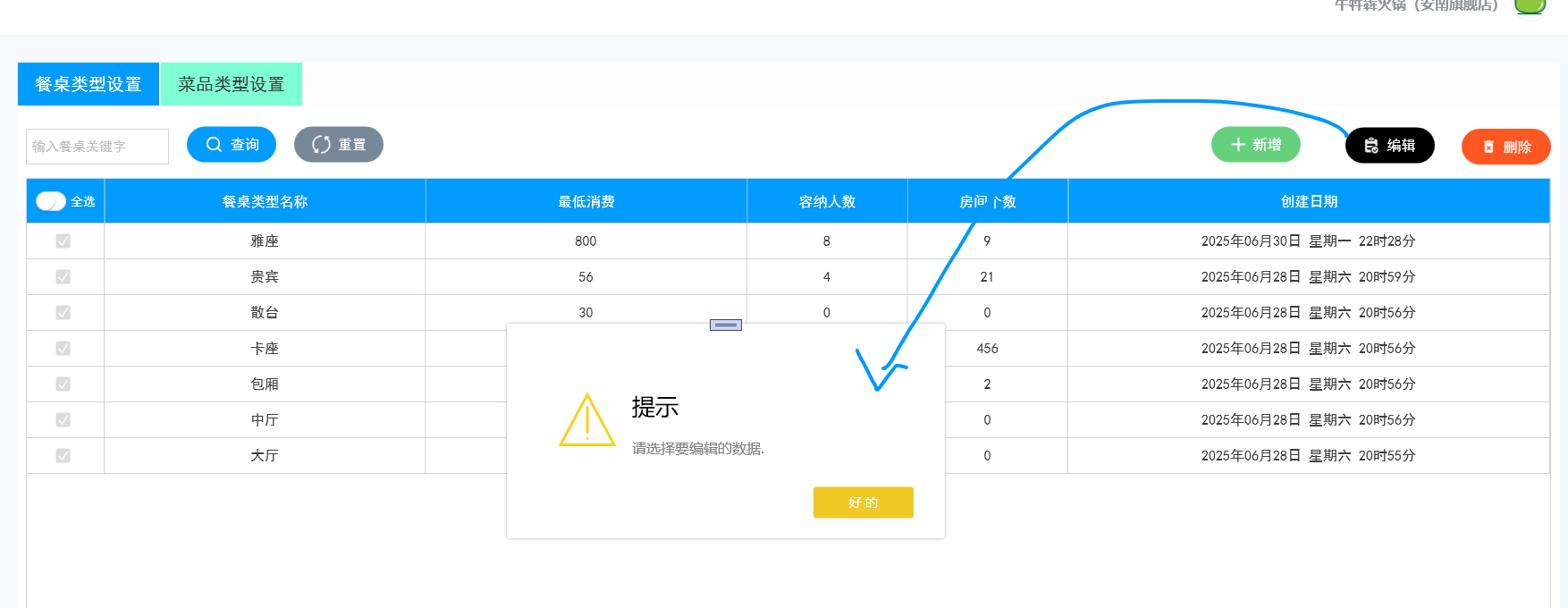

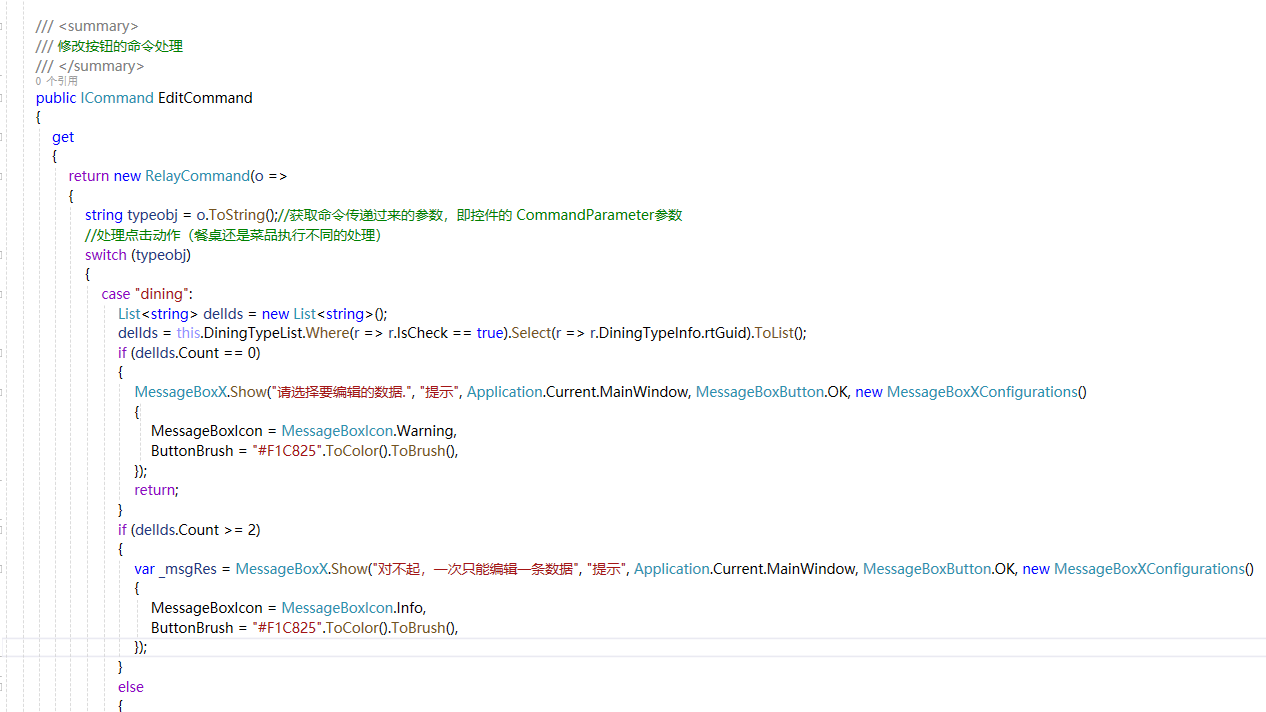

4、编辑命令



5、完整代码
cs
using HQ.BLL;
using HQ.Comm;
using HQ.COMM;
using HQ.fResApp.BaseModel;
using HQ.fResApp.Utils;
using HQ.fResApp.ViewModel.PageViewModel;
using HQ.fResApp.XWindows;
using HQ.MODEL.DBModel;
using HQ.MODEL.UIModel;
using Panuon.UI.Silver;
using Panuon.UI.Silver.Core;
using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.Linq;
using System.Runtime.InteropServices;
using System.Text;
using System.Threading.Tasks;
using System.Web.UI.WebControls;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Controls.Primitives;
using System.Windows.Input;
using System.Xml.Linq;
namespace HQ.fResApp.ViewModel
{
/// <summary>
/// 餐桌类型和菜品类型viewmodel
/// </summary>
public class DiningDishTypeListVModel : ViewModelBase
{
DiningTypeBLL diningTypebll = new DiningTypeBLL();
DishTypeBLL dishTypebll = new DishTypeBLL();
#region 餐桌类型页面属性
private ObservableCollection<DiningTypeCheckInfo> diningTypeList;
/// <summary>
/// 餐桌类型列表,页面绑定的数据源
/// </summary>
public ObservableCollection<DiningTypeCheckInfo> DiningTypeList
{
get { return diningTypeList; }
set
{
diningTypeList = value;
OnPropertyChanged();
}
}
private string diningTypeKey="";
/// <summary>
/// 餐桌关键字
/// </summary>
public string DiningTypeKey
{
get { return diningTypeKey; }
set
{
diningTypeKey = value;
OnPropertyChanged();
}
}
private int diningCurrentIndex=1;
/// <summary>
/// 餐桌类型当前页
/// </summary>
public int DiningCurrentIndex
{
get { return diningCurrentIndex; }
set
{
diningCurrentIndex = value;
OnPropertyChanged();
}
}
private int diningTotalIndex;
/// <summary>
/// 餐桌类型总页数
/// </summary>
public int DiningTotalIndex
{
get { return diningTotalIndex; }
set
{
diningTotalIndex = value;
OnPropertyChanged();
}
}
private int diningTotalNum;
/// <summary>
/// 餐桌类型总条数
/// </summary>
public int DiningTotalNum
{
get { return diningTotalNum; }
set
{
diningTotalNum = value;
OnPropertyChanged();
}
}
private int diningPageSize=10;
/// <summary>
/// 餐桌类型每页条数
/// </summary>
public int DiningPageSize
{
get { return diningPageSize; }
set
{
diningPageSize = value;
OnPropertyChanged();
DiningTypeList = GetDingTypeTable();
}
}
private bool isCheckAllDining = false;
/// <summary>
/// 餐桌全选状态
/// </summary>
public bool IsCheckAllDining
{
get { return isCheckAllDining; }
set
{
isCheckAllDining = value;
OnPropertyChanged();
}
}
#endregion
#region 菜品类型页面属性
private ObservableCollection<DishTypeCheckInfo> dishTypeList;
/// <summary>
/// 菜品类型列表,页面绑定的数据源
/// </summary>
public ObservableCollection<DishTypeCheckInfo> DishTypeList
{
get { return dishTypeList; }
set
{
dishTypeList = value;
OnPropertyChanged();
}
}
private string dishTypeKey="";
/// <summary>
/// 菜品关键字
/// </summary>
public string DishTypeKey
{
get { return dishTypeKey; }
set
{
dishTypeKey = value;
OnPropertyChanged();
}
}
private int dishCurrentIndex = 1;
/// <summary>
/// 菜品类型当前页
/// </summary>
public int DishCurrentIndex
{
get { return dishCurrentIndex; }
set
{
dishCurrentIndex = value;
OnPropertyChanged();
}
}
private int dishTotalIndex;
/// <summary>
/// 菜品类型总页数
/// </summary>
public int DishTotalIndex
{
get { return dishTotalIndex; }
set
{
dishTotalIndex = value;
OnPropertyChanged();
}
}
private int dishTotalNum;
/// <summary>
/// 菜品类型总条数
/// </summary>
public int DishTotalNum
{
get { return dishTotalNum; }
set
{
dishTotalNum = value;
OnPropertyChanged();
}
}
private int dishPageSize =10;
/// <summary>
/// 菜品类型每页条数
/// </summary>
public int DishPageSize
{
get { return dishPageSize; }
set
{
dishPageSize = value;
OnPropertyChanged();
DishTypeList = GetDishTypeTable();
}
}
private bool isCheckAllDish = false;
/// <summary>
/// 餐桌全选状态
/// </summary>
public bool IsCheckAllDish
{
get { return isCheckAllDish; }
set
{
isCheckAllDish = value;
OnPropertyChanged();
}
}
#endregion
public DiningDishTypeListVModel()
{
DiningTypeList = GetDingTypeTable();
DishTypeList = GetDishTypeTable();
}
/// <summary>
/// 获取菜品类型列表
/// </summary>
/// <returns></returns>
public ObservableCollection<DishTypeCheckInfo> GetDishTypeTable()
{
ObservableCollection<DishTypeCheckInfo> tableDataList = new ObservableCollection<DishTypeCheckInfo>();
var _parms = new PageParm { page = DishCurrentIndex, limit = DishPageSize, key = DishTypeKey.Trim() };
var _pageRes = dishTypebll.GetPagesAsync(_parms).Result;//分页查询
if (_pageRes.statusCode == (int)ApiEnum.Status)
{
var _pageResData = _pageRes.data;
var _tabList = _pageResData.Items;
if (_tabList != null && _tabList.Count != 0)
{
ObservableCollection<DishTypeCheckInfo> proDataList = new ObservableCollection<DishTypeCheckInfo>();
foreach (var item in _tabList)
{
var _curTab = new DishTypeCheckInfo();
_curTab.DishTypeInfo.mtGuid = item.mtGuid;
_curTab.DishTypeInfo.mtName = item.mtName;
_curTab.DishTypeInfo.createDate = item.createDate;
tableDataList.Add(_curTab);
}
DishTotalNum = (int)_pageResData.TotalItems ;
DishCurrentIndex = (int)_pageResData.CurrentPage;
DishTotalIndex = (int)_pageResData.TotalPages;
}
else
{
Notice.Show("没有获取到菜品类型数据!", "提示", 3, MessageBoxIcon.Info);
Logger.Default.ProcessError((int)ApiEnum.Error, "没有获取到菜品类型列表数据");
}
}
else
{
Notice.Show("没有获取到菜品类型数据!", "提示", 3, MessageBoxIcon.Info);
Logger.Default.ProcessError(_pageRes.statusCode, "获取到菜品类型列表数据异常");
}
return tableDataList;
}
/// <summary>
/// 获取餐桌类型列表
/// </summary>
/// <returns></returns>
public ObservableCollection<DiningTypeCheckInfo> GetDingTypeTable()
{
ObservableCollection<DiningTypeCheckInfo> tableDataList = new ObservableCollection<DiningTypeCheckInfo>();
var _parms = new PageParm { page = DiningCurrentIndex, limit = DiningPageSize, key = DiningTypeKey.Trim() };
var _pageRes = diningTypebll.GetPagesAsync(_parms).Result;//分页查询
if (_pageRes.statusCode == (int)ApiEnum.Status)
{
var _pageResData = _pageRes.data;
var _tabList = _pageResData.Items;
if (_tabList != null&&_tabList.Count!=0)
{
foreach (var item in _tabList)
{
var _curTab = new DiningTypeCheckInfo();
_curTab.DiningTypeInfo.rtGuid = item.rtGuid;
_curTab.DiningTypeInfo.rtName = item.rtName;
_curTab.DiningTypeInfo.rtLeastCost = item.rtLeastCost;
_curTab.DiningTypeInfo.rtMostNumber = item.rtMostNumber;
_curTab.DiningTypeInfo.rtAmount = item.rtAmount;
_curTab.DiningTypeInfo.createDate = item.createDate;
_curTab.IsCheck = false;
tableDataList.Add(_curTab);
}
DiningTotalNum = (int)_pageResData.TotalItems;
DiningCurrentIndex = (int)_pageResData.CurrentPage;
DiningTotalIndex = (int)_pageResData.TotalPages;
}
else
{
Notice.Show("没有获取到餐桌数据!", "提示", 3, MessageBoxIcon.Info);
Logger.Default.ProcessError((int)ApiEnum.Error, "没有获取到餐桌列表数据");
}
}
else
{
Notice.Show("没有获取到餐桌数据!", "提示", 3, MessageBoxIcon.Info);
Logger.Default.ProcessError(_pageRes.statusCode, "获取到餐桌类型列表数据异常");
}
return tableDataList;
}
/// <summary>
/// 餐桌类型全选命令
/// </summary>
public ICommand DiningCheckAllCmd
{
get
{
return new RelayCommand(o =>
{
//将业主列表每条记录的isCheck设为与标题状态一致
foreach (var record in this.DiningTypeList)
{
record.IsCheck = this.IsCheckAllDining;
}
});
}
}
/// <summary>
/// 菜品类型全选命令
/// </summary>
public ICommand DishCheckAllCmd
{
get
{
return new RelayCommand(o =>
{
//将业主列表每条记录的isCheck设为与标题状态一致
foreach (var record in this.DishTypeList)
{
record.IsCheck = this.IsCheckAllDish;
}
});
}
}
/// <summary>
/// 选择一条餐桌类型数据
/// </summary>
public ICommand CheckDiningType
{
get
{
return new RelayCommand(o =>
{
if (o != null)
{
var item = o as DiningTypeCheckInfo;
item.IsCheck =!item.IsCheck;
}
});
}
}
/// <summary>
/// 选择一条菜品类型数据
/// </summary>
public ICommand CheckDishType
{
get
{
return new RelayCommand(o =>
{
if (o != null)
{
var item = o as DishTypeCheckInfo;
item.IsCheck = !item.IsCheck;
}
});
}
}
/// <summary>
/// 查询按钮的命令处理
/// </summary>
public ICommand FindCommand
{
get
{
return new RelayCommand(o =>
{
string typeobj=o.ToString();//获取命令传递过来的参数,即控件的 CommandParameter参数
//处理点击动作(餐桌还是菜品执行不同的处理)
switch (typeobj)
{
case "dining":
DiningTypeList = GetDingTypeTable();
break;
case "dish":
DishTypeList = GetDishTypeTable();
break;
}
});
}
}
/// <summary>
/// 重置按钮的命令处理
/// </summary>
public ICommand ResetCommand
{
get
{
return new RelayCommand(o =>
{
string typeobj = o.ToString();//获取命令传递过来的参数,即控件的 CommandParameter参数
//处理点击动作(餐桌还是菜品执行不同的处理)
switch (typeobj)
{
case "dining":
DiningCurrentIndex = 1;
DiningPageSize = 10;
DiningTypeKey = "";
DiningTypeList = GetDingTypeTable();
break;
case "dish":
DishCurrentIndex = 1;
DishPageSize = 10;
DishTypeKey = "";
DishTypeList = GetDishTypeTable();
break;
}
});
}
}
/// <summary>
/// 新增按钮的命令处理
/// </summary>
public ICommand AddCommand
{
get
{
return new RelayCommand(o =>
{
string typeobj = o.ToString();//获取命令传递过来的参数,即控件的 CommandParameter参数
//处理点击动作(餐桌还是菜品执行不同的处理)
switch (typeobj)
{
case "dining":
WindowX AddWin = new DiningTypeInfo();
if (AddWin != null)
{
AddWin.Closed += new EventHandler(RefreshDiningType);//注册关闭事件
AddWin.ShowDialog();
}
break;
case "dish":
DishCurrentIndex = 1;
DishPageSize = 10;
DishTypeKey = "";
DishTypeList = GetDishTypeTable();
break;
}
});
}
}
/// <summary>
/// 修改按钮的命令处理
/// </summary>
public ICommand EditCommand
{
get
{
return new RelayCommand(o =>
{
string typeobj = o.ToString();//获取命令传递过来的参数,即控件的 CommandParameter参数
//处理点击动作(餐桌还是菜品执行不同的处理)
switch (typeobj)
{
case "dining":
List<string> delIds = new List<string>();
delIds = this.DiningTypeList.Where(r => r.IsCheck == true).Select(r => r.DiningTypeInfo.rtGuid).ToList();
if (delIds.Count == 0)
{
MessageBoxX.Show("请选择要编辑的数据.", "提示", Application.Current.MainWindow, MessageBoxButton.OK, new MessageBoxXConfigurations()
{
MessageBoxIcon = MessageBoxIcon.Warning,
ButtonBrush = "#F1C825".ToColor().ToBrush(),
});
return;
}
if (delIds.Count >= 2)
{
var _msgRes = MessageBoxX.Show("对不起,一次只能编辑一条数据", "提示", Application.Current.MainWindow, MessageBoxButton.OK, new MessageBoxXConfigurations()
{
MessageBoxIcon = MessageBoxIcon.Info,
ButtonBrush = "#F1C825".ToColor().ToBrush(),
});
}
else
{
string selectid = delIds.First();//获取记录id
WindowX EditWin = new DiningTypeInfo(selectid);
if (EditWin != null)
{
DiningDishTypeInfoVModel objvmodel = new DiningDishTypeInfoVModel();
DiningType result = diningTypebll.GetModelById(x=>x.rtGuid == selectid).Result.data;
objvmodel.DiningTypeItem = result;
EditWin.DataContext = objvmodel;
EditWin.Closed += new EventHandler(RefreshDiningType);//注册关闭事件
EditWin.ShowDialog();
}
RefreshDiningType(null, null);
}
break;
case "dish":
DishTypeList = GetDishTypeTable();
break;
}
});
}
}

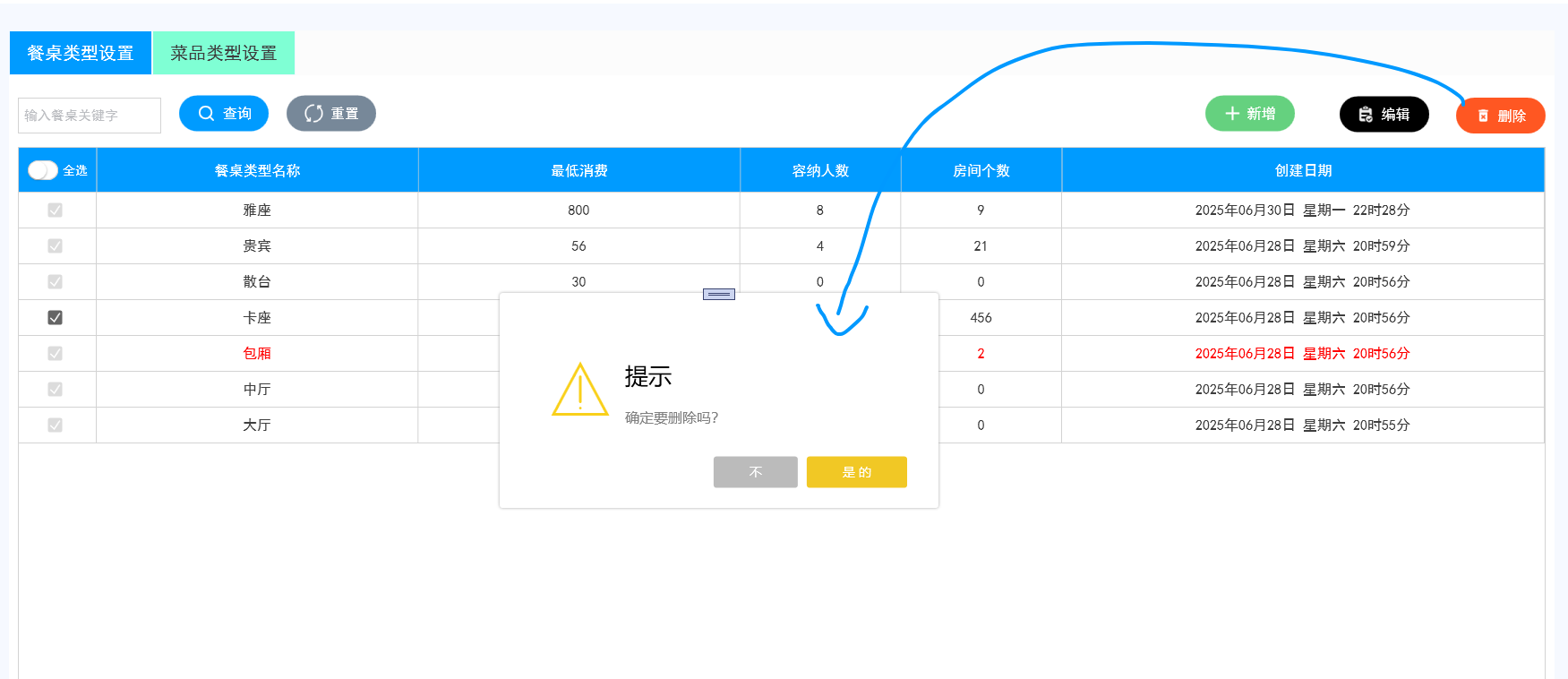

/// <summary>
/// 删除按钮的命令处理
/// </summary>
public ICommand DeleteCommand
{
get
{
return new RelayCommand(o =>
{
string typeobj = o.ToString();//获取命令传递过来的参数,即控件的 CommandParameter参数
//处理点击动作(餐桌还是菜品执行不同的处理)
switch (typeobj)
{
case "dining":
List<string> delIds = new List<string>();
delIds = this.DiningTypeList.Where(r => r.IsCheck == true).Select(r => r.DiningTypeInfo.rtGuid).ToList();
if (delIds.Count == 0)
{
MessageBoxX.Show("请选择要删除的数据.", "提示", Application.Current.MainWindow, MessageBoxButton.OK, new MessageBoxXConfigurations()
{
MessageBoxIcon = MessageBoxIcon.Warning,
ButtonBrush = "#F1C825".ToColor().ToBrush(),
});
return;
}
if (delIds.Count > 0)
{
var _msgRes = MessageBoxX.Show("确定要删除吗?", "提示", Application.Current.MainWindow, MessageBoxButton.YesNo, new MessageBoxXConfigurations()
{
MessageBoxIcon = MessageBoxIcon.Warning,
ButtonBrush = "#F1C825".ToColor().ToBrush(),
});
if (_msgRes == MessageBoxResult.No)
{
return;
}
var res = new ApiResult<string>() { statusCode = (int)ApiEnum.Error };
foreach (string id in delIds)
{
res = diningTypebll.DeleteById(id).Result;
}
if (res.statusCode == (int)ApiEnum.Status)
{
Notice.Show("成功删除【"+delIds.Count+"】条数据", "提示", 3, MessageBoxIcon.Success);
}
else
{
Notice.Show("删除失败!", "提示", 3, MessageBoxIcon.Error);
Logger.Default.ProcessError(res.statusCode, "删除餐桌类型失败");
}
RefreshDiningType(null, null);
}
break;
case "dish":
DishTypeList = GetDishTypeTable();
break;
}
});
}
}
/// <summary>
/// 刷新餐桌数据
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void RefreshDiningType(object sender, EventArgs e)
{
DiningCurrentIndex = 1;
DiningPageSize = 10;
DiningTypeKey = "";
DiningTypeList = GetDingTypeTable();
}
}
}

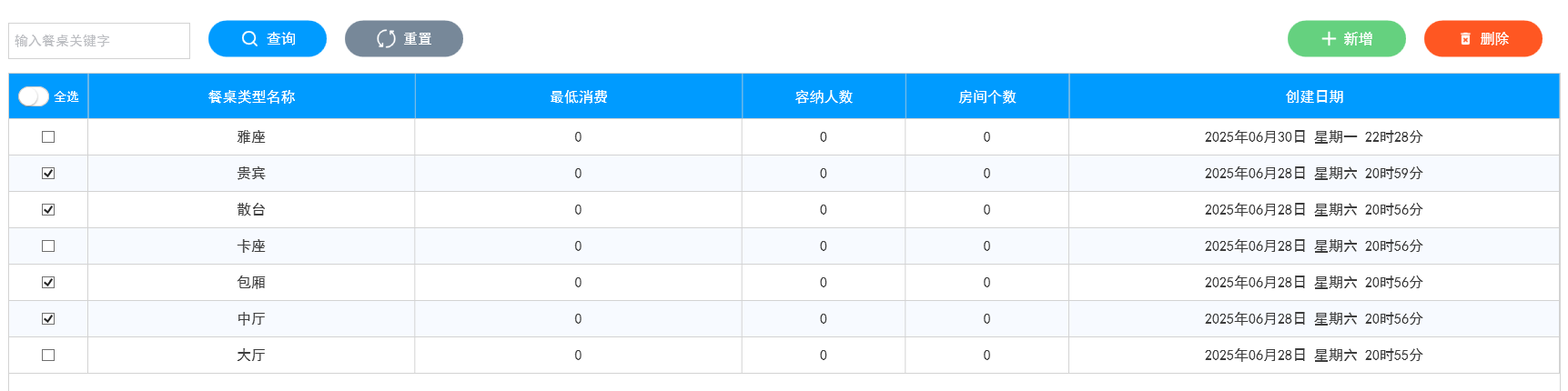

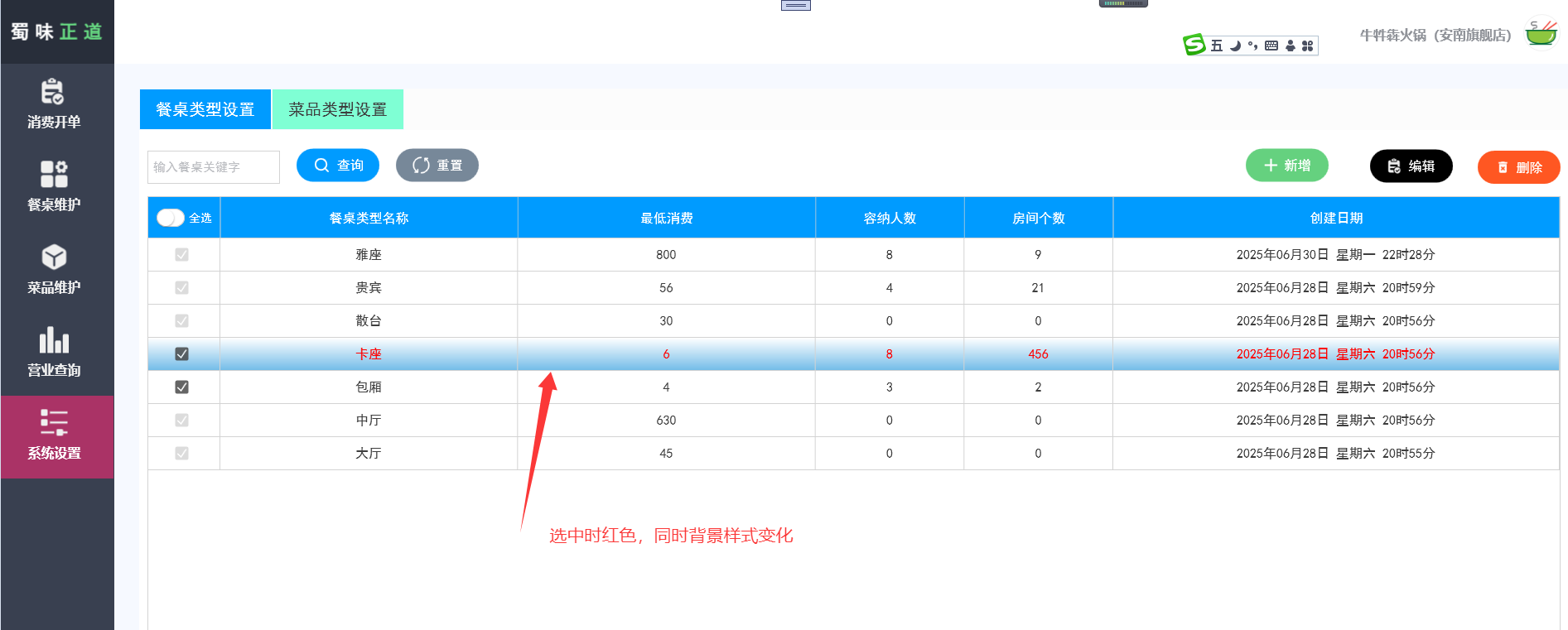

4、运行效果



由每页10条改为每页3条





在wpf中,按钮事件,比如单击事件的响应不是通过onclick这样的方式来实现的,而是通过bind mycommand绑定命令来实现的。
原创不易,打字截图不易,走过路过,不要错过,欢迎点赞,收藏,转载,复制,抄袭,留言,动动你的金手指,早日实现财务自由!
