【一步步开发AI运动APP】十一、同时检测识别多人运动,分别进行运动计时计数

之前我们为您分享了【一步步开发AI运动小程序】开发系列博文,通过该系列博文,很多开发者开发出了很多精美的AI健身、线上运动赛事、AI学生体测、美体、康复锻炼等应用场景的AI运动小程序;为了帮助开发者继续深耕AI运动领域市场,今天开始我们将为您分享新系列【一步步开发AI运动APP】的博文,带您开发性能更强、体验更好的AI运动APP。

一、应用场景

在赛事活动多人PK对战、学生体测教学、运动角设备等开发应用场景中,经常存在需要同时检测多人运动需求;此需求在AI小程序时受限于小程序的运行环境,一直无法实现。而且APP版插件因为是原生执行环境,检测分析性能得以大幅提升,已可以实现同时检测多人姿态和运动能力了。

二、方案实现

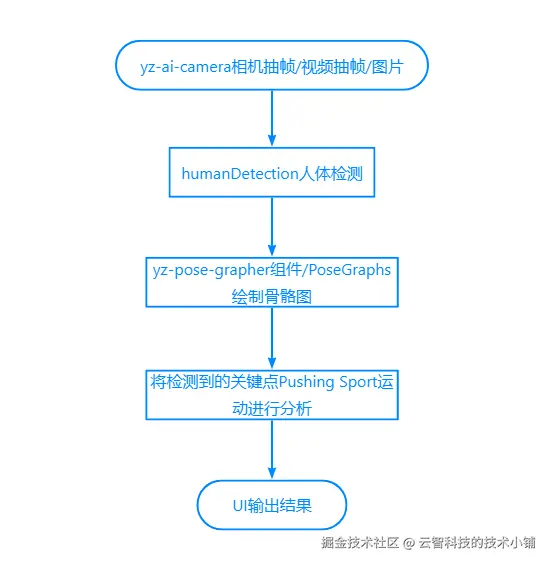

根据下面的AI运动分析的流程图所示,要实现同时多人运动分析能力,须先实现多人的人体姿态检测,再将检出的多人人体结果,分别推送到不同的运动分析器实例,即可实现多人运动检测分析。

三、调用多人人体检测能力

详细的人体检测人体调用,请参考本系列第五章人体检测能力调用,将multiple选项参数设为true即可调用插件的多人人体检测能力,代码如下所示:

javascript 复制代码
import {createHumanDetector} from "@/uni_modules/yz-ai-sport";
export default {
	data(){
		return {};
	}
	methods:{
		onDetecting(){
			let options = {
				multiple: true, //启用多人检测
				enabledGPU: true,
				highPerformance: false
			};
			const that = this;
			humanDetector = createHumanDetector(options);
			humanDetector.startExtractAndDetect({
				onDetected(result){
					let humans = result.humans; //注意:多人人体结构不是每次按顺序输出,且不能保证每次都能检出3人
					that.$refs.grapher.drawing(humans);
				}
			});
		}
	}
}

但是上面的代码仅仅只能检出图像中多人人体结果,还无法实现定位人员,提取那个站在中间、左边、右边,所以在获得检出结果后,还需要对人体结果进行定位处理。假设在应用场景中要求人员从左往右横排站立,最多检出3人,我们则可以通过人体中的鼻子关键点(nose)进行定位,nose点的x小于屏幕宽度33%则为,大于33%小于66%则为,大于66%则为,代码调整如下:

javascript 复制代码
import {createHumanDetector} from "@/uni_modules/yz-ai-sport";
export default {
	data(){
		return {};
	}
	methods:{
		locateHuamn(humans, begin, end) {
			if (!Array.isArray(humans))
				return;

			//页面为横屏状态,受检测人员从左往右站立
			//横向将屏幕图像区域平均分配,按区域提取人员

			const that = this;
			let loc = humans.find(hu => {
				let nose = hu.keypoints.find(x => x.name == 'nose');
				if (!nose)
					return false;

				//人体结构中的坐标为相机图像中的坐标,计算出在屏幕中的渲染坐标
				let x = nose.x * that.previewRate + that.previewOffsetX;

				if (x <= that.previewWidth * begin)
					return false;

				if (end && x > that.previewWidth * end)
					return false;

				return true;
			});

			return loc;
		},
		onDetecting(){
			let options = {
				multiple: true, //启用多人检测
				enabledGPU: true,
				highPerformance: false
			};

			const that = this;
			humanDetector = createHumanDetector(options);
			humanDetector.startExtractAndDetect({
				onDetected(result){
					let humans = result.humans; //注意:多人人体结构不是每次按顺序输出

					if (humans.length < 1) {
					that.$refs.grapher.clear();
					return;
				}
				that.$refs.grapher.drawing(humans);

				//以nose.x进行人体定位为左、中、右
				let leftHuman = that.locateHuamn(humans, 0, 0.33);
				let centerHuman = that.locateHuamn(humans, 0.33, 0.66);
				let rightHuman = that.locateHuamn(humans, 0.66);

				}
			});
		}
	}
}

四、多个运动分析调用

在获得了多人人体结果后,便可以创建多个运动分析器实例来,来分别对每个人的姿态进行分析检测,实现计时计数了,代码如下:

javascript 复制代码
import {createSport} from "@/uni_modules/yz-ai-sport";
export default {
	data(){
		return {
			ticks: [{
					counts: 0,
					times: 0,
					timeText: '00:00'
				}, {
					counts: 0,
					times: 0,
					timeText: '00:00',
				}, {
					counts: 0,
					times: 0,
					timeText: '00:00',
			}]
		};
	}
	methods:{

	},
	onLoad(options) {
		let key = options.sportKey || 'jumping-jack';

		//批量创建运动
		sports = [];
		const ticks = this.ticks;
		for (let i = 0; i < ticks.length; i++) {
			let sport = createSport(key);

			//分别将运动计数结果推不同位置数组
			sport.onTick((counts, times) => {
				ticks[i].counts = counts;
				ticks[i].times = times;
				ticks[i].timeText = sport.toTimesString();
			});
			sports.push(sport);
		}
	}
}

五、完整实现

下面是完整的实现代码,也可插件的最新支持资料包中获得。

javascript 复制代码
import {
		getCameraContext,
		createHumanDetector,
		createSport
	} from "@/uni_modules/yz-ai-sport";

	let humanDetector = null;
	let sports = null;

	export default {
		data() {

			const winfo = uni.getWindowInfo();
			const settings = uni.getSystemSetting();

			return {
				isLandscape: settings.deviceOrientation == 'landscape',
				cameraDevice: 'back',

				frameWidth: 480,
				frameHeight: 640,

				previewWidth: winfo.windowWidth,
				previewHeight: winfo.windowHeight,
				previewRate: 1,
				previewOffsetX: 0,
				previewOffsetY: 0,

				isExtracting: false,

				sportKey: '',
				sportName: '',
				ticks: [{
					counts: 0,
					times: 0,
					timeText: '00:00'
				}, {
					counts: 0,
					times: 0,
					timeText: '00:00',
				}, {
					counts: 0,
					times: 0,
					timeText: '00:00',
				}]
			};
		},
		methods: {
			locateHuamn(humans, begin, end) {
				if (!Array.isArray(humans))
					return;

				//页面为横屏状态,受检测人员从左往右站立
				//横向将屏幕图像区域平均分配,按区域提取人员

				const that = this;
				let loc = humans.find(hu => {
					let nose = hu.keypoints.find(x => x.name == 'nose');
					if (!nose)
						return false;

					//人体结构中的坐标为相机图像中的坐标,计算出在屏幕中的渲染坐标
					let x = nose.x * that.previewRate + that.previewOffsetX;

					if (x <= that.previewWidth * begin)
						return false;

					if (end && x > that.previewWidth * end)
						return false;

					return true;
				});

				return loc;
			},
			onDetecting(){
				let options = {
					multiple: true, //启用多人检测
					enabledGPU: true,
					highPerformance: false
				};

				const that = this;
				humanDetector = createHumanDetector(options);
				humanDetector.startExtractAndDetect({
					onDetected(result){
						let humans = result.humans; //注意:多人人体结构不是每次按顺序输出

						if (humans.length < 1) {
							that.$refs.grapher.clear();
							return;
						}
						that.$refs.grapher.drawing(humans);

						//以nose.x进行人体定位为左、中、右
						let leftHuman = that.locateHuamn(humans, 0, 0.33);
						let centerHuman = that.locateHuamn(humans, 0.33, 0.66);
						let rightHuman = that.locateHuamn(humans, 0.66);

					}
				});
			}
		},
		onLoad(options) {
			let key = options.sportKey || 'jumping-jack';

			//批量创建运动
			sports = [];
			const ticks = this.ticks;
			for (let i = 0; i < ticks.length; i++) {
				let sport = createSport(key);

				//分别将运动计数结果推不同位置数组
				sport.onTick((counts, times) => {
					ticks[i].counts = counts;
					ticks[i].times = times;
					ticks[i].timeText = sport.toTimesString();
				});
				sports.push(sport);
			}
		}
	}
