SpringBoot 实现无痕调试注入器,线上问题定位的新利器

一、为什么需要它?

真实的线上痛点

作为一个后端开发,你是不是也经历过这些让人抓狂的瞬间:

场景一:午夜电话轰炸

  • 凌晨 2 点,客户群炸锅:"下单接口全部失败!"
  • 登录服务器查日志:NullPointerException at OrderService.createOrder:124
  • 问题是:到底哪个参数是 null? 日志里啥都没有...
  • 问题排查全靠猜

场景二:我本地是好的

  • 测试环境一切正常,生产环境间歇性报错
  • 想用 JDWP 远程调试?安全部门直接拒绝:"生产环境开调试端口?你疯了!"
  • 想加日志重新发版?流程走下来至少 2 小时,问题早就消失了
  • 最终只能靠"玄学":重启大法、配置调整、祈祷好运

场景三:性能瓶颈迷案

  • 某接口响应时间突然从 100ms 暴增到 5s
  • 业务代码没变,数据库查询也正常,CPU、内存都不高
  • 怀疑是某个外部调用超时,但不知道是哪一个
  • 传统方案:代码里埋点 → 打包 → 发版 → 观察,等查出来问题可能已经自己好了

传统方案的局限性

方案 优点 致命缺陷
AOP 统一日志 代码侵入小 只能提前规划,临时问题无法应对
全量日志输出 信息详细 性能损耗大,日志存储成本高
远程调试(JDWP) 功能强大 安全风险极高,生产环境基本不可用
临时加日志发版 针对性强 周期长,可能错过问题窗口期
第三方 APM 专业全面 成本高,对老系统改造工作量大

我们需要什么?

即开即用 :发现问题时立即启用,无需重启服务

精准可控 :只对怀疑的方法进行调试,避免性能浪费

安全可靠 :不影响业务逻辑,不暴露敏感端口

用完即走 :问题定位后立即关闭,零残留

操作简单:Web 界面操作,无需 SSH 到服务器

这就是要实现的 SpringBoot 无痕调试注入器 ------ 一个真正解决痛点的工具。

二、系统设计

技术栈选择

字节码操作:ByteBuddy(比 ASM 更友好)

类重定义 :Instrumentation API 的 retransformClasses

前端技术:Tailwind CSS + Alpine.js

核心设计理念

1. 最小化侵入原则
复制代码
传统方案:修改源码 → 编译打包 → 测试验证 → 部署上线
本方案:配置规则 → 动态生效 → 实时观察 → 用完即撤

设计决策

  • 不修改任何业务代码,完全基于字节码增强
  • 使用 Java Agent 在类加载时进行无感知拦截
  • 通过 retransformClasses 实现动态规则生效,无需重启
2. 渐进式调试策略
复制代码
Level 1: 精确方法 → 针对具体方法进行调试
Level 2: 类级别   → 调试整个类的所有方法
Level 3: 包级别   → 调试包下所有类的方法
Level 4: 模式匹配 → 使用正则表达式批量匹配
Level 5: 全局开关 → 紧急情况下的全量调试

设计考量

  • 从精确到宽泛,满足不同场景的调试需求
  • 避免一刀切的全量日志,减少性能影响
  • 支持动态调整调试粒度
3. 安全优先的架构设计

数据安全

typescript 复制代码
// 参数和返回值的安全处理
public static String safeToString(Object obj) {
    if (obj == null) return "null";
    try {
        String str = obj.toString();
        // 限制长度,避免大对象影响性能
        return str.length() > 200 ? str.substring(0, 200) + "..." : str;
    } catch (Exception e) {
        // 异常时返回类型信息,避免敏感数据泄露
        return obj.getClass().getSimpleName() + "@" + Integer.toHexString(obj.hashCode());
    }
}

异常隔离

csharp 复制代码
// 调试逻辑异常不影响业务执行
try {
    // 调试日志输出
    System.out.println(debugInfo);
} catch (Exception e) {
    // 静默处理,确保业务不受影响
    // 可以记录到专门的调试错误日志中
}

三、核心实现详解

1. Java Agent 入口

typescript 复制代码
@Component
public class OnlineDebugAgent {
    private static Instrumentation instrumentation;
    private static final Logger logger = LoggerFactory.getLogger(OnlineDebugAgent.class);

    public static void premain(String args, Instrumentation inst) {
        logger.info("Online Debug Agent starting...");
        instrumentation = inst;
        installAgent(inst);
    }

    private static void installAgent(Instrumentation inst) {
        new AgentBuilder.Default()
            .type(ElementMatchers.any())
            .transform(new AgentBuilder.Transformer() {
                @Override
                public DynamicType.Builder<?> transform(
                        DynamicType.Builder<?> builder,
                        TypeDescription typeDescription,
                        ClassLoader classLoader,
                        JavaModule module,
                        ProtectionDomain protectionDomain) {

                    // 只对配置了调试规则的类进行增强
                    String className = typeDescription.getName();
                    if (DebugConfigManager.shouldDebugClass(className)) {
                        return builder.method(ElementMatchers.any())
                            .intercept(Advice.to(UniversalDebugAdvice.class));
                    }
                    return builder;
                }
            })
            .installOn(inst);
    }
}

2. 通用调试增强逻辑

less 复制代码
public class UniversalDebugAdvice {

    @Advice.OnMethodEnter
    public static long onEnter(@Advice.Origin Method method,
                              @Advice.AllArguments Object[] args) {
        String fullMethodName = method.getDeclaringClass().getName() + "." + method.getName();

        if (DebugConfigManager.shouldDebug(fullMethodName)) {
            long startTime = System.currentTimeMillis();

            // 安全的参数打印
            String argsStr = Arrays.stream(args)
                .map(UniversalDebugAdvice::safeToString)
                .collect(Collectors.joining(", "));

            System.out.println(String.format(
                "[DEBUG-INJECT] %s - 开始执行 | 参数: [%s]",
                fullMethodName, argsStr
            ));

            return startTime;
        }
        return 0;
    }

    @Advice.OnMethodExit(onThrowable = Throwable.class)
    public static void onExit(@Advice.Origin Method method,
                             @Advice.Return Object returnValue,
                             @Advice.Thrown Throwable throwable,
                             @Advice.Enter long startTime) {
        if (startTime > 0) {
            String fullMethodName = method.getDeclaringClass().getName() + "." + method.getName();
            long duration = System.currentTimeMillis() - startTime;

            if (throwable != null) {
                System.out.println(String.format(
                    "[DEBUG-INJECT] %s - 执行异常 | 耗时: %dms | 异常: %s",
                    fullMethodName, duration, throwable.getMessage()
                ));
            } else {
                System.out.println(String.format(
                    "[DEBUG-INJECT] %s - 执行完成 | 耗时: %dms | 返回: %s",
                    fullMethodName, duration, safeToString(returnValue)
                ));
            }
        }
    }

    public static String safeToString(Object obj) {
        if (obj == null) return "null";
        if (obj instanceof String) return """ + obj + """;
        try {
            String str = obj.toString();
            return str.length() > 200 ? str.substring(0, 200) + "..." : str;
        } catch (Exception e) {
            return obj.getClass().getSimpleName() + "@" + Integer.toHexString(obj.hashCode());
        }
    }
}

3. 配置管理器

arduino 复制代码
public class DebugConfigManager {
    // 线程安全的规则存储
    private static final Set<String> exactMethods = new CopyOnWriteArraySet<>();
    private static final Set<Pattern> patternMethods = new CopyOnWriteArraySet<>();
    private static final Set<String> debugClasses = new CopyOnWriteArraySet<>();
    private static final Set<String> debugPackages = new CopyOnWriteArraySet<>();
    private static volatile boolean globalDebugEnabled = false;

    public static boolean shouldDebug(String fullMethodName) {
        // 全局开关
        if (globalDebugEnabled) return true;

        // 精确匹配
        if (exactMethods.contains(fullMethodName)) return true;

        // 类级别匹配
        int lastDotIndex = fullMethodName.lastIndexOf('.');
        if (lastDotIndex > 0) {
            String className = fullMethodName.substring(0, lastDotIndex);
            if (debugClasses.contains(className)) return true;

            // 包级别匹配
            for (String debugPackage : debugPackages) {
                if (className.startsWith(debugPackage)) return true;
            }
        }

        // 模式匹配
        for (Pattern pattern : patternMethods) {
            if (pattern.matcher(fullMethodName).matches()) return true;
        }

        return false;
    }

    // ... 其他规则管理方法
}

4. REST API 控制器

less 复制代码
@RestController
@RequestMapping("/api/debug")
@CrossOrigin(origins = "*")
public class OnlineDebugController {

    @Autowired
    private OnlineDebugService onlineDebugService;

    @PostMapping("/method")
    public ResponseEntity<Map<String, Object>> addMethodDebug(
            @RequestBody DebugRuleRequest request) {
        try {
            DebugConfigManager.addMethodDebug(request.getTarget());

            // 动态重新转换相关类
            String className = extractClassName(request.getTarget());
            if (className != null) {
                DynamicRetransformManager.retransformClass(className);
            }

            return ResponseEntity.ok(Map.of(
                "success", true,
                "message", "Method debug rule added: " + request.getTarget()
            ));
        } catch (Exception e) {
            return ResponseEntity.ok(Map.of(
                "success", false,
                "message", e.getMessage()
            ));
        }
    }

    @DeleteMapping("/method")
    public ResponseEntity<Map<String, Object>> removeMethodDebug(
            @RequestBody DebugRuleRequest request) {
        // 删除规则实现
    }

    @GetMapping("/status")
    public ResponseEntity<Map<String, Object>> getStatus() {
        // 获取当前规则状态
    }

    // ... 其他 API 端点
}

5. 动态类重转换管理器

java 复制代码
public class DynamicRetransformManager {
    private static final Logger logger = LoggerFactory.getLogger(DynamicRetransformManager.class);

    public static void retransformClass(String className) {
        try {
            Instrumentation instrumentation = OnlineDebugAgent.getInstrumentation();
            if (instrumentation == null) {
                throw new RuntimeException("Instrumentation not available");
            }

            Class<?> targetClass = Class.forName(className);
            if (instrumentation.isModifiableClass(targetClass)) {
                instrumentation.retransformClasses(targetClass);
                logger.info("Successfully retransformed class: {}", className);
            }
        } catch (Exception e) {
            logger.error("Failed to retransform class: {}", className, e);
            throw new RuntimeException("Retransform failed: " + e.getMessage());
        }
    }
}

四、前端控制台实现

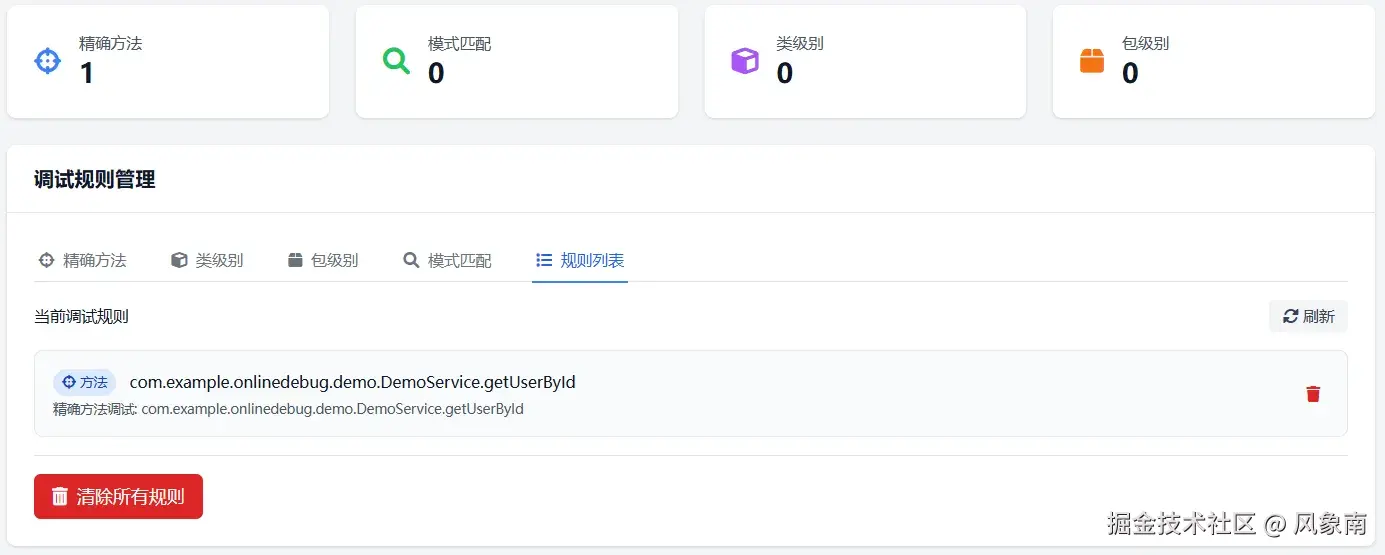

前端界面

考虑篇幅,以下为部分关键代码

xml 复制代码
<!DOCTYPE html>
<html lang="zh-CN">
<head>
    <meta charset="UTF-8">
    <title>Spring Boot 在线调试工具</title>
    <script src="https://cdn.tailwindcss.com"></script>
    <script src="https://unpkg.com/alpinejs@3.x.x/dist/cdn.min.js" defer></script>
    <link href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/6.0.0/css/all.min.css" rel="stylesheet">
</head>
<body class="bg-gray-100 min-h-screen" x-data="debugApp()" x-init="init()">
    <!-- Tab 导航 -->
    <div class="border-b border-gray-200 mb-4">
        <nav class="-mb-px flex space-x-8">
            <button @click="activeTab = 'method'"
                    :class="activeTab === 'method' ? 'border-blue-500 text-blue-600' : 'border-transparent text-gray-500'"
                    class="py-2 px-1 border-b-2 font-medium text-sm">
                <i class="fas fa-crosshairs mr-2"></i>精确方法
            </button>
            <button @click="activeTab = 'rules'"
                    class="py-2 px-1 border-b-2 font-medium text-sm">
                <i class="fas fa-list mr-2"></i>规则列表
            </button>
        </nav>
    </div>

    <!-- 规则列表 -->
    <div x-show="activeTab === 'rules'" x-cloak>
        <template x-for="rule in debugRules" :key="rule.type + '-' + rule.target">
            <div class="flex items-center justify-between p-4 bg-gray-50 rounded-lg border mb-2">
                <div class="flex-1">
                    <span class="inline-flex items-center px-2 py-1 rounded-full text-xs font-medium"
                          :class="{'bg-blue-100 text-blue-800': rule.type === 'method'}">
                        <span x-text="rule.type === 'method' ? '方法' : '其他'"></span>
                    </span>
                    <span class="text-sm font-medium ml-3" x-text="rule.target"></span>
                </div>
                <button @click="removeRule(rule)"
                        class="text-red-600 hover:text-red-800 p-2">
                    <i class="fas fa-trash text-sm"></i>
                </button>
            </div>
        </template>
    </div>
</body>
</html>

Alpine.js 交互逻辑

javascript 复制代码
function debugApp() {
    return {
        activeTab: 'method',
        debugRules: [],
        methodInput: '',
        loading: false,

        async init() {
            await this.refreshStatus();
            await this.refreshRules();
        },

        async addMethodDebug() {
            const response = await fetch('/api/debug/method', {
                method: 'POST',
                headers: { 'Content-Type': 'application/json' },
                body: JSON.stringify({ target: this.methodInput.trim() })
            });

            const result = await response.json();
            if (result.success) {
                this.showMessage('方法调试规则添加成功', 'success');
                await this.refreshRules();
            }
        },

        async removeRule(rule) {
            if (!confirm('确定要删除这条调试规则吗?')) return;

            const response = await fetch('/api/debug/method', {
                method: 'DELETE',
                headers: { 'Content-Type': 'application/json' },
                body: JSON.stringify({ target: rule.target })
            });

            const result = await response.json();
            if (result.success) {
                await this.refreshRules();
            }
        }
    }
}

五、项目配置

Maven 配置

xml 复制代码
<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
        <version>3.2.0</version>
    </dependency>
    <dependency>
        <groupId>net.bytebuddy</groupId>
        <artifactId>byte-buddy</artifactId>
        <version>1.14.9</version>
    </dependency>
    <dependency>
        <groupId>net.bytebuddy</groupId>
        <artifactId>byte-buddy-agent</artifactId>
        <version>1.14.9</version>
    </dependency>
</dependencies>
<build>
    <plugins>
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-jar-plugin</artifactId>
            <configuration>
                <archive>
                    <manifestEntries>
                        <Premain-Class>com.example.onlinedebug.agent.OnlineDebugAgent</Premain-Class>
                        <Agent-Class>com.example.onlinedebug.agent.OnlineDebugAgent</Agent-Class>
                        <Can-Retransform-Classes>true</Can-Retransform-Classes>
                        <Can-Redefine-Classes>true</Can-Redefine-Classes>
                    </manifestEntries>
                </archive>
            </configuration>
        </plugin>
    </plugins>
</build>

启动命令

bash 复制代码
java -javaagent:target/springboot-online-debug-1.0-SNAPSHOT.jar \
     -jar target/springboot-online-debug-1.0-SNAPSHOT.jar

六、实战效果演示

1. 动态添加方法调试

bash 复制代码
# 通过 REST API 添加调试规则
curl -X POST http://localhost:8080/api/debug/method \
     -H "Content-Type: application/json" \
     -d '{"target": "com.example.onlinedebug.demo.DemoService.getUserById"}'

2. 实时日志输出

sql 复制代码
[DEBUG-INJECT] com.example.onlinedebug.demo.DemoService.getUserById() called with args: Long@123
[DEBUG-INJECT] com.example.onlinedebug.demo.DemoService.getUserById() completed in 57ms returning: User@User{id=123, name='User123', email='user123@example.com'}

3. 规则管理

精确方法com.example.onlinedebug.demo.UserService.getUserById

类级别com.example.onlinedebug.demo.UserService(整个类的所有方

法)

包级别com.example.onlinedebug.demo(包下所有类的方法)

模式匹配.*Service.*get.*(正则匹配)

八、生产环境考虑

优势

零停机时间:动态注入,不影响业务

精确可控:支持方法级别的精确匹配

用完即撤:可随时清除调试规则

安全可靠:异常隔离,不影响原有逻辑

注意事项

性能影响:调试期间会有一定性能损耗

访问控制:生产环境必须加鉴权机制

规则管理:避免规则过多影响匹配效率

九、总结

这个 SpringBoot 无痕调试注入器一定程度上可以缓解线上问题排查的痛点

排查效率:从"猜测-修改-发版-验证"变为"注入-观察-定位"

风险控制:相比远程调试更安全,相比日志发版更快速

使用体验:现代化 Web 界面,操作简单直观

当然,它不是银弹,适合作为 应急排障工具,而不是常驻监控方案。在关键时刻,它能让你快速定位问题,争取宝贵的修复时间。

github.com/yuboon/java...

相关推荐
Victor3566 小时前
Redis(50) Redis哨兵如何与客户端进行交互?
后端
程序员爱钓鱼6 小时前
Go语言实战案例-开发一个JSON格式校验工具
后端·google·go
M1A112 小时前
小红书重磅升级!公众号文章一键导入,深度内容轻松入驻
后端
0wioiw013 小时前
Go基础(④指针)
开发语言·后端·golang
李姆斯14 小时前
复盘上瘾症:到底什么时候该“复盘”,什么时候不需要“复盘”
前端·后端·团队管理
javachen__14 小时前
Spring Boot配置error日志发送至企业微信
spring boot·后端·企业微信
seabirdssss15 小时前
使用Spring Boot DevTools快速重启功能
java·spring boot·后端
java水泥工15 小时前
校园管理系统|基于SpringBoot和Vue的校园管理系统(源码+数据库+文档)
数据库·vue.js·spring boot
OC溥哥99916 小时前
Flask论坛与个人中心页面开发教程完整详细版
后端·python·flask·html
