2025最新款Electron38+Vite7+Vue3+ElementPlus电脑端后台系统Exe

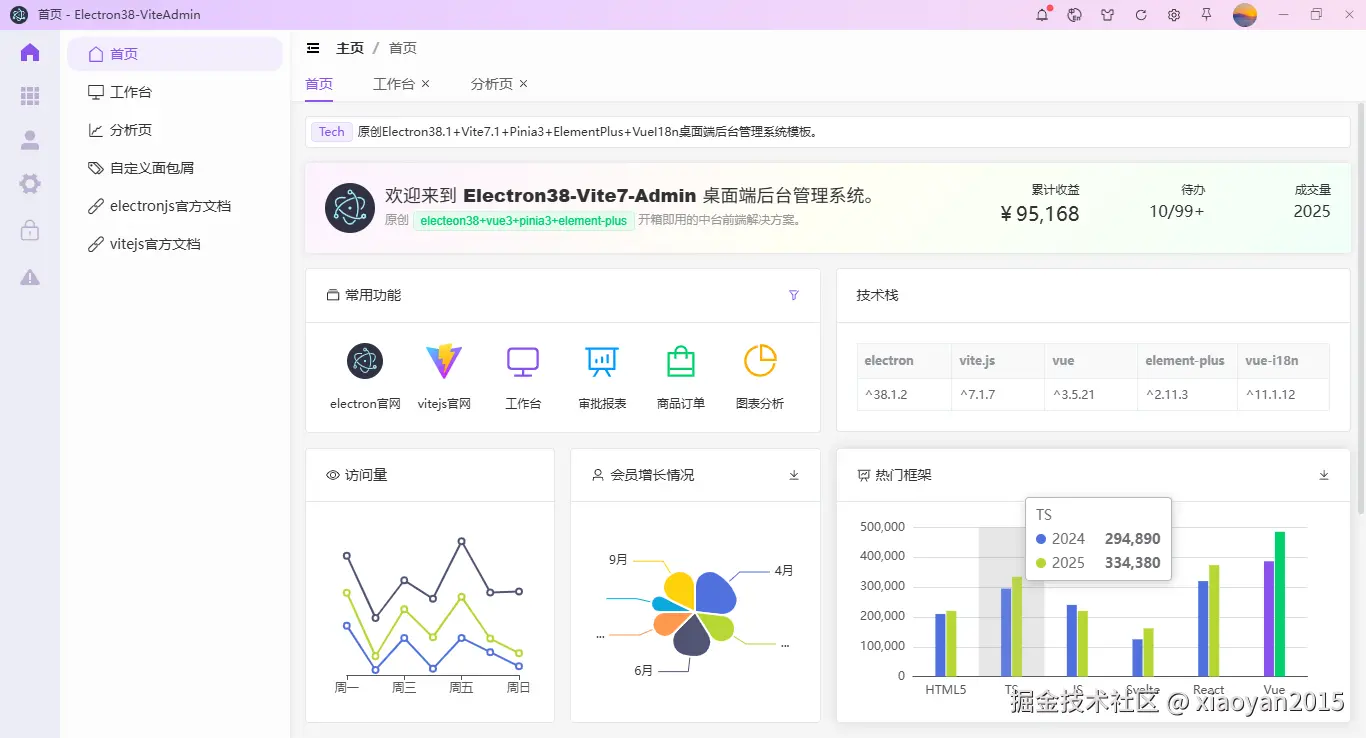

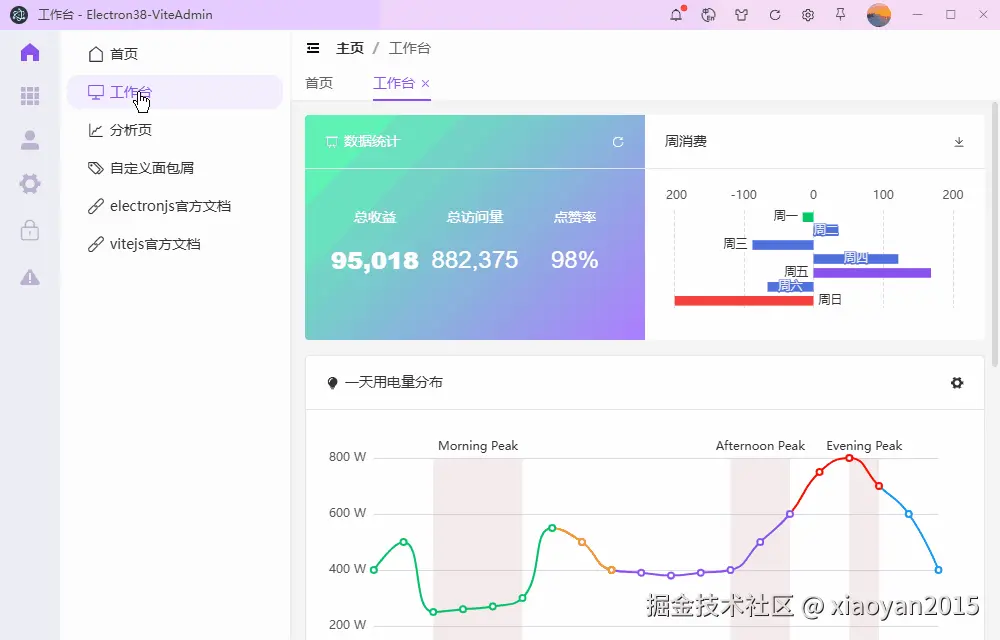

历时两周高强度研发，新款跨平台electron38+vite7中后台通用管理系统完结啦~

使用技术

• 开发工具：vscode
• 跨平台框架：electron^38.1.2
• 前端框架技术：vite^7.1.7+vue^3.5.21+vue-router^4.5.1
• UI组件库：element-plus^2.11.3
• 状态插件：pinia^3.0.3
• 国际化方案：vue-i18n^11.1.12
• 图表组件：echarts^6.0.0
• markdown编辑器：md-editor-v3^6.0.1
• 模拟数据：mockjs^1.1.0
• 打包工具：electron-builder^24.13.3
• electron+vite整合插件：vite-plugin-electron^0.29.0

项目功能特征

1. 基于最新技术栈Electron38、Vite7、Vue3 setup、Pinia3、ElementPlus、Vue-I18n、Echarts
2. 支持中英文/繁体三种国际化语言
3. 支持动态权限路由、面包屑导航、快捷标签栏缓存路由

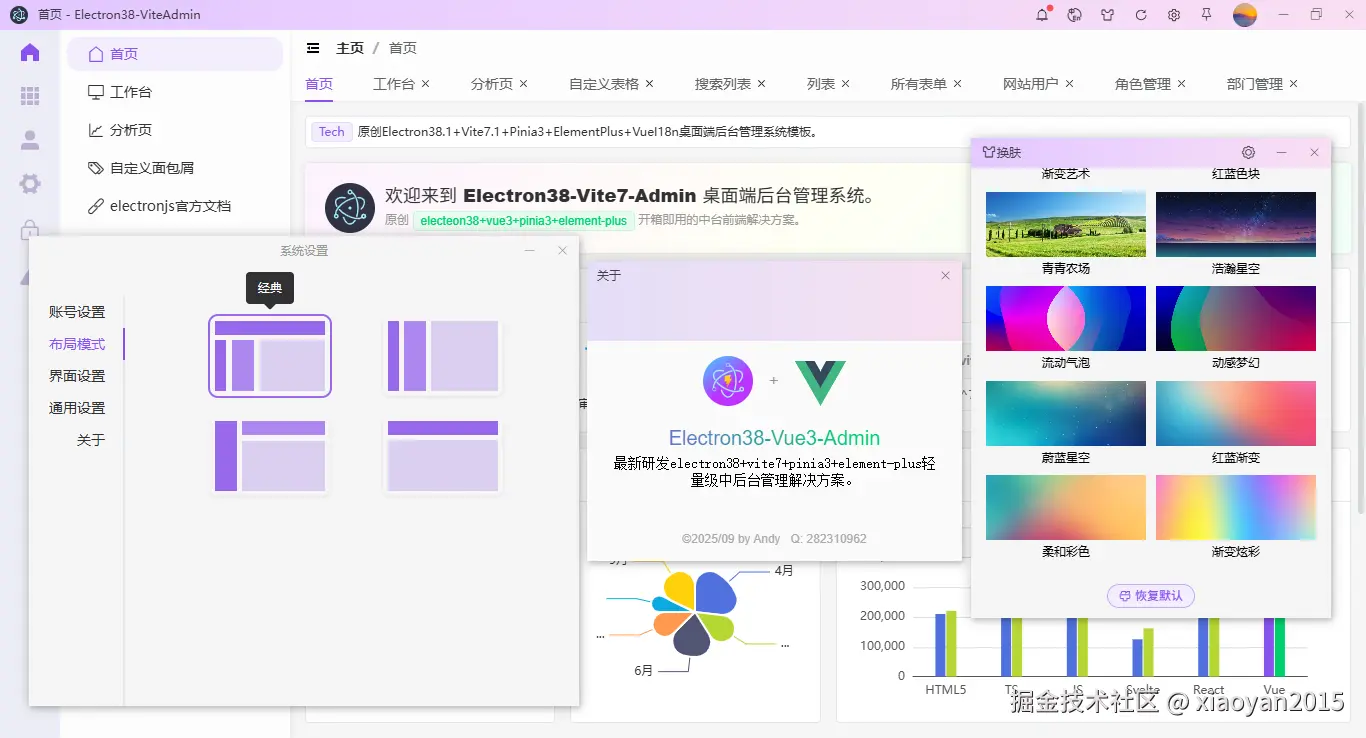

4. electron38封装高复用多窗口管理
5. 内置4种通用布局模板、自由变换风格

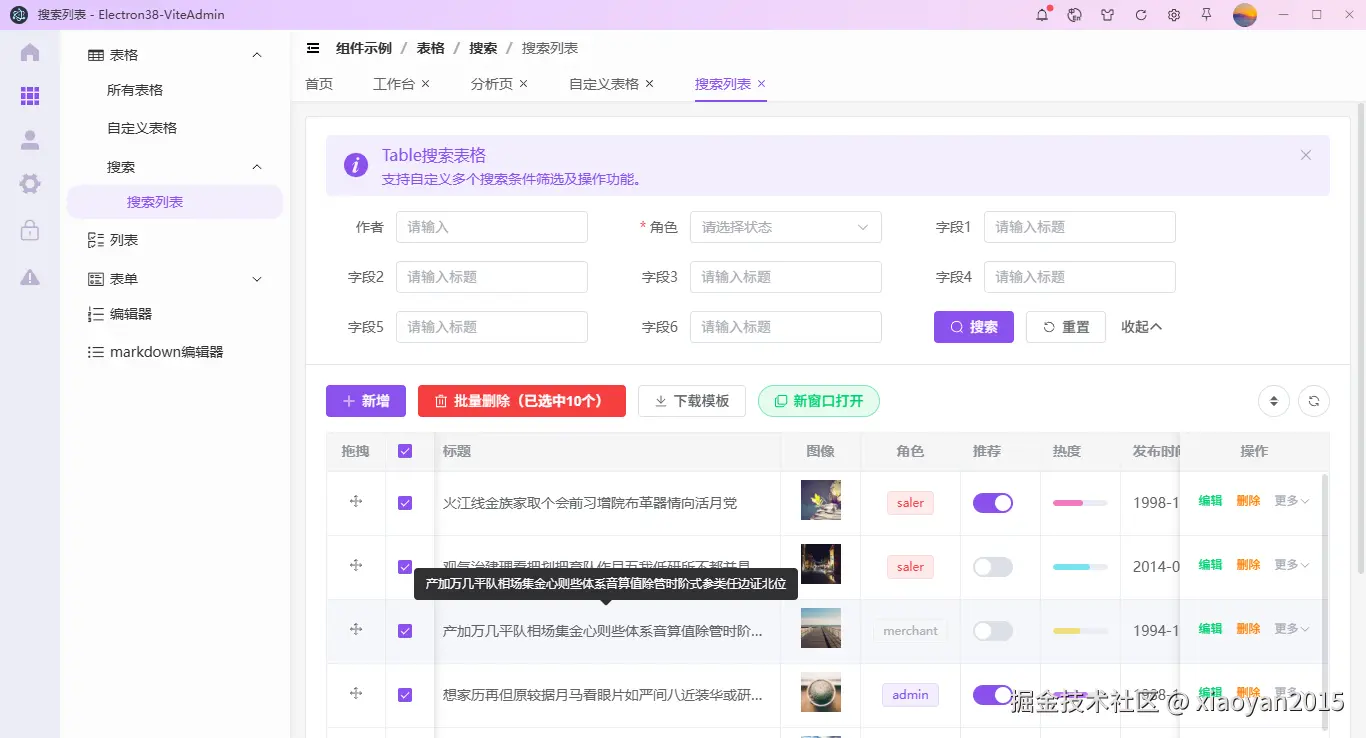

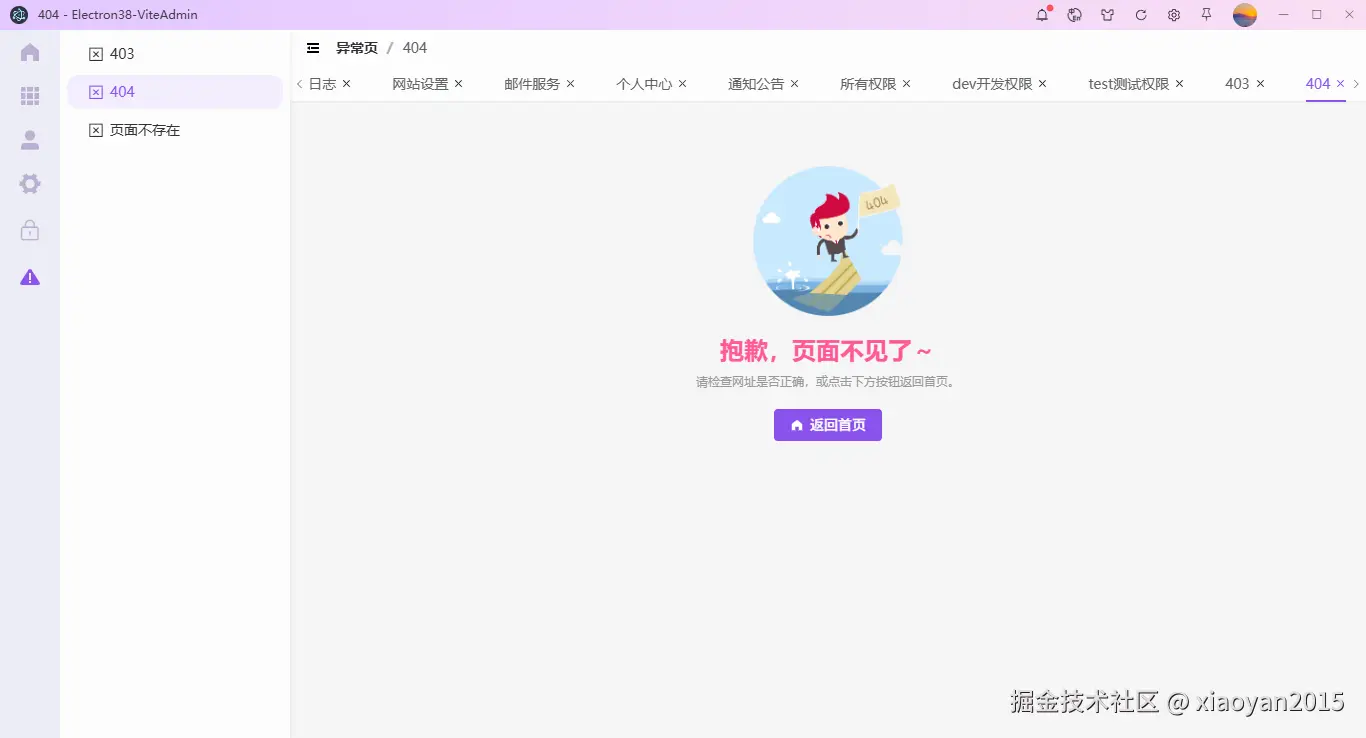

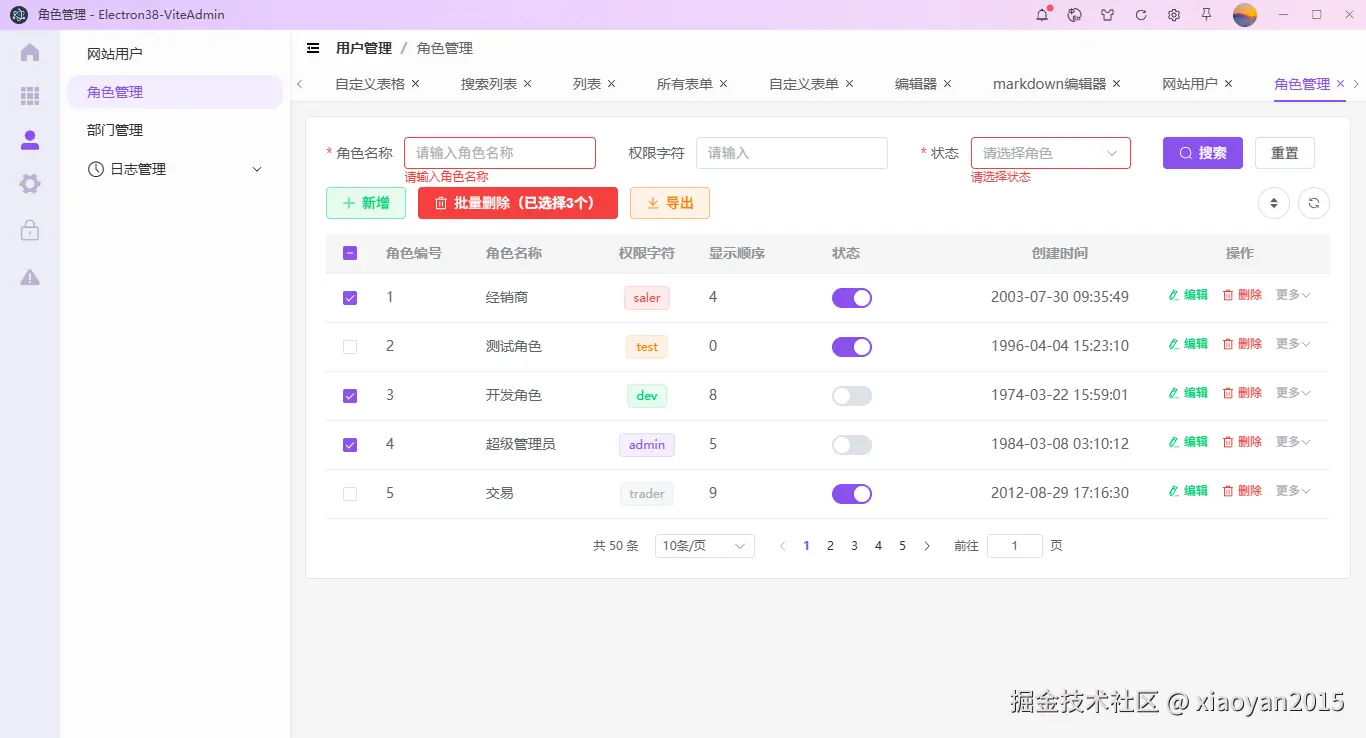

6. 整合常用的表格、表单、列表、图表、编辑器、错误处理等业务模块

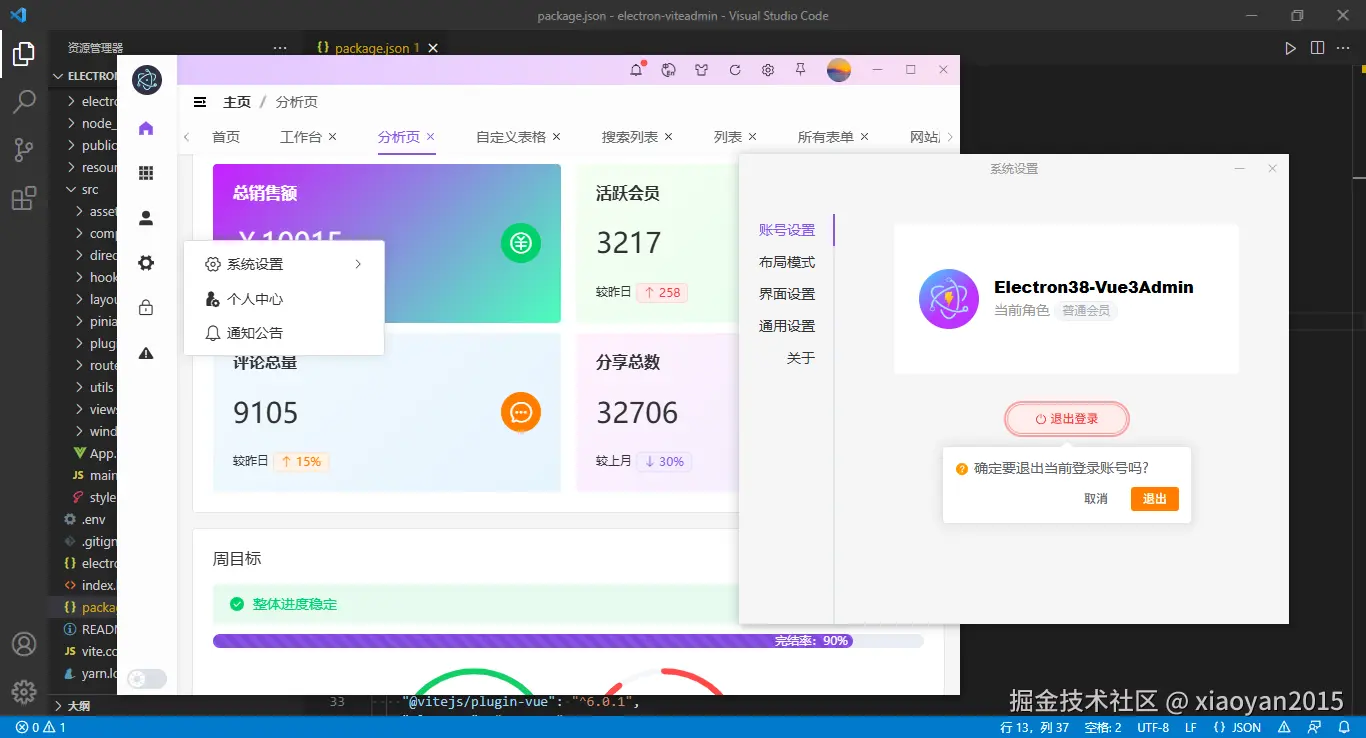

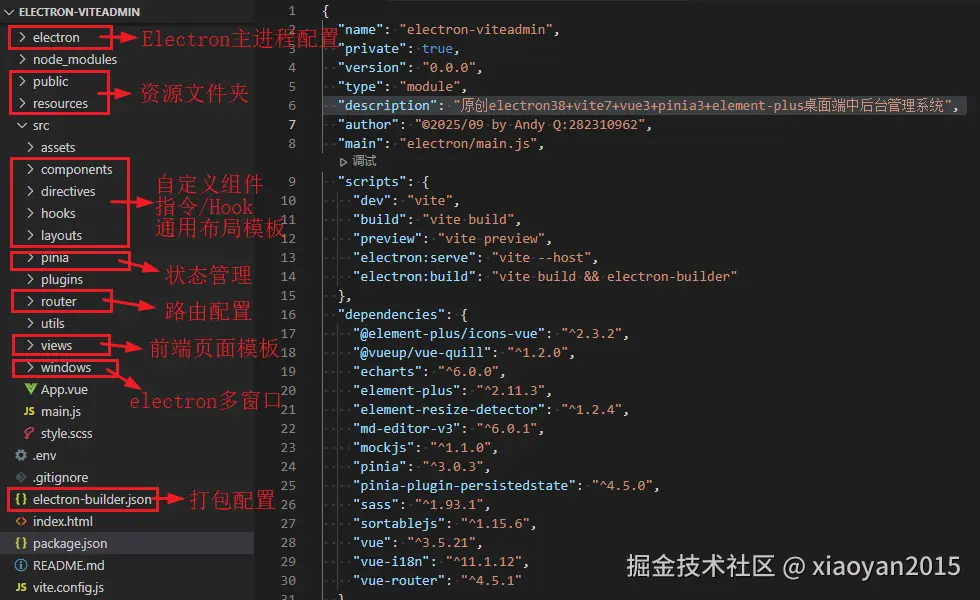

项目框架目录

使用最新跨平台技术Electron38整合Vite7搭建项目模板。

electron多窗口进程配置

/**
 * electron主进程配置
 * @author andy
 */

import { app, BrowserWindow } from 'electron'

import { WindowManager } from '../src/windows/index.js'

// 忽略安全警告提示 Electron Security Warning (Insecure Content-Security-Policy)
process.env['ELECTRON_DISABLE_SECURITY_WARNINGS'] = true

const createWindow = () => {
  let win = new WindowManager()
  win.create({isMajor: true})
  // 系统托盘管理
  win.trayManager()
  // 监听ipcMain事件
  win.ipcManager()
}

app.whenReady().then(() => {
  createWindow()

  app.on('activate', () => {
    if(BrowserWindow.getAllWindows().length === 0) createWindow()
  })
})

app.on('window-all-closed', () => {
  if(process.platform !== 'darwin') app.quit()
})

前端页面入口配置main.js

import { createApp } from 'vue'
import './style.scss'
import App from './App.vue'

import { launchApp } from '@/windows/actions'

// 引入路由和状态配置
import Router from './router'
import Pinia from './pinia'

// 引入插件配置
import Plugins from './plugins'

launchApp().then(config => {
  if(config) {
    // 全局存储窗口配置
    window.config = config
  }

  // 初始化app程序实例
  createApp(App)
  .use(Router)
  .use(Pinia)
  .use(Plugins)
  .mount('#app')
})

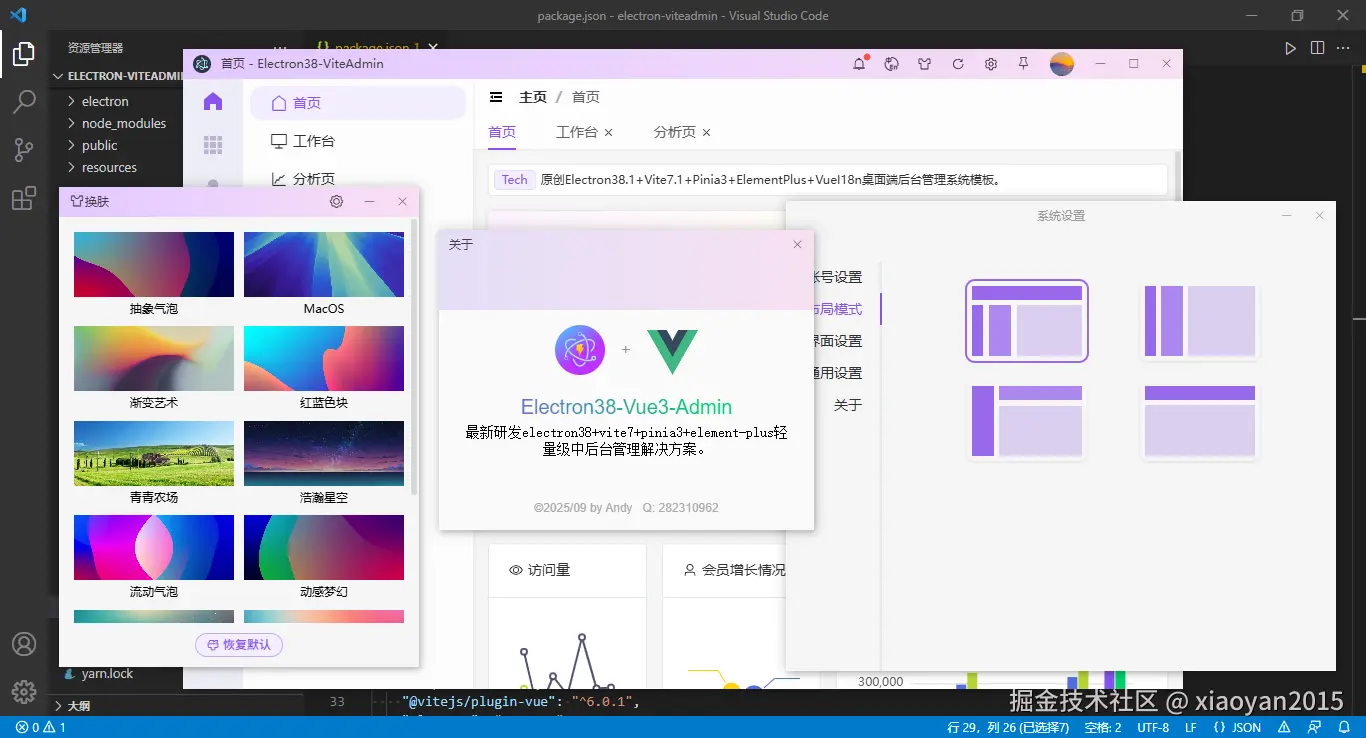

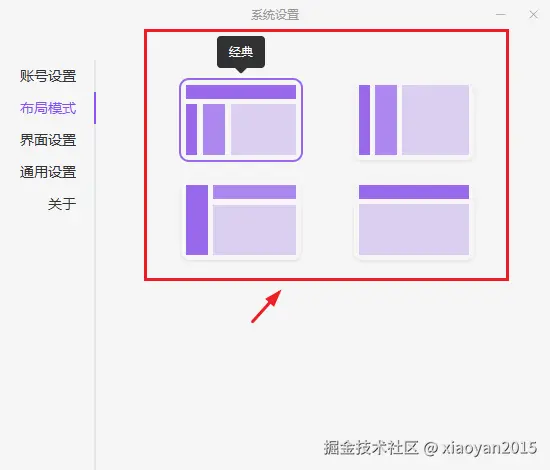

通用布局结构

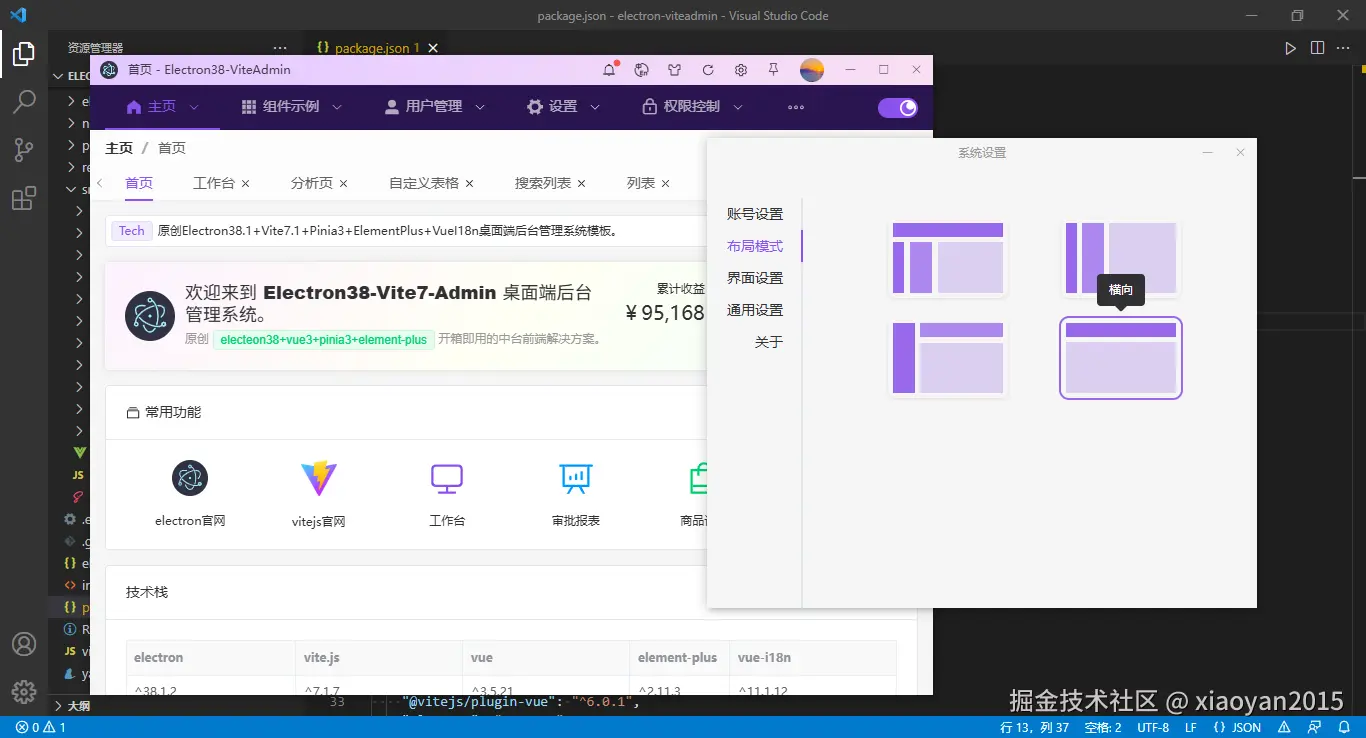

如上图：内置了4种常用的通用布局模板。也可以自己定制需要的模板。

<script setup>
  import { appState } from '@/pinia/modules/app'

  // 引入布局模板
  import Classic from './template/classic/index.vue'
  import Columns from './template/columns/index.vue'
  import Vertical from './template/vertical/index.vue'
  import Horizontal from './template/horizontal/index.vue'

  const appstate = appState()

  const LayoutMap = {
    'classic': Classic,
    'columns': Columns,
    'vertical': Vertical,
    'horizontal': Horizontal
  }
</script>

<template>
  <div class="vuadmin__container" :style="{'--themeSkin': appstate.config.skin}">
    <component :is="LayoutMap[appstate.config.layout]" />
  </div>
</template>

经典布局模板

<script setup>
  import { appState } from '@/pinia/modules/app'

  import Toolbar from '@/layouts/components/Toolbar.vue'
  import Sidebar from '@/layouts/components/sidebar/index.vue'
  import Menus from '@/layouts/components/menus/index.vue'
  import Breadcrumb from '@/layouts/components/Breadcrumb.vue'
  import Tabview from '@/layouts/components/Tabview.vue'
  import Main from '@/layouts/components/Main.vue'

  const appstate = appState()
</script>

<template>
  <div class="vuadmin__layout flexbox flex-col">
    <Toolbar />

    <div class="vuadmin__layout-body flex1 flexbox">
      <!-- 侧边栏 -->
      <div class="vuadmin__layout-sidebar">
        <Sidebar />
      </div>

      <!-- 菜单栏 -->
      <div class="vuadmin__layout-menus" :class="{'hidden': appstate.config.collapsed}">
        <el-scrollbar>
          <Menus :rootRouteEnable="false" />
        </el-scrollbar>
      </div>

      <!-- 右侧主内容区 -->
      <div class="vuadmin__layout-main flex1 flexbox flex-col">
        <!-- 面包屑导航 -->
        <Breadcrumb v-if="appstate.config.breadcrumb" />

        <!-- 标签页 -->
        <Tabview v-if="appstate.config.tabview" />

        <!-- 内容区 -->
        <Main />
      </div>
    </div>
  </div>
</template>

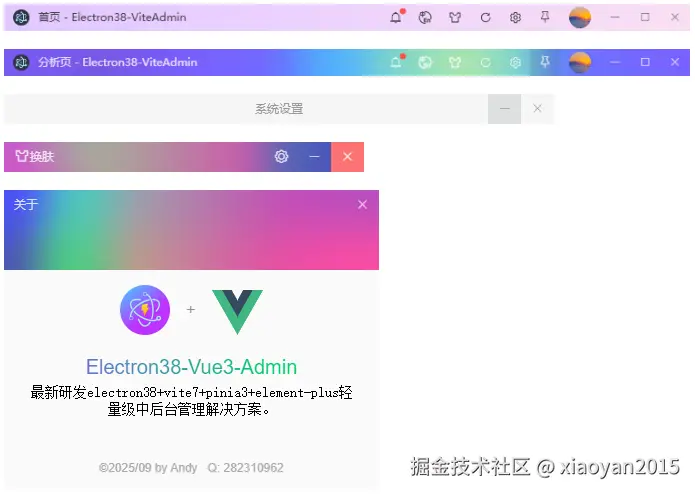

vue3+electron自定义无边框窗口导航条

<script setup>
  import { ref, markRaw } from 'vue'
  import { ElMessageBox } from 'element-plus'
  import { QuestionFilled, SwitchButton } from '@element-plus/icons-vue'
  import { isTrue } from '@/utils'
  import { authState } from '@/pinia/modules/auth'
  import { winSet } from '@/windows/actions'

  const authstate = authState()

  const props = defineProps({
    color: String,
    // 窗口是否可最小化
    minimizable: {type: [Boolean, String], default: true},
    // 窗口是否可最大化
    maximizable: {type: [Boolean, String], default: true},
    // 窗口是否可关闭
    closable: {type: [Boolean, String], default: true},
    // 层级
    zIndex: {type: [Number, String], default: 2024},
  })

  const hasMaximized = ref(false)

  // 初始监听窗口是否最大化
  window.electron.invoke('win-isMaximized').then(res => {
    hasMaximized.value = res
  })
  // 实时监听窗口是否最大化
  window.electron.on('win-maximized', (e, data) => {
    hasMaximized.value = data
  })

  // 最小化
  const handleWinMin = () => {
    // winSet('minimize', window.config.id)
    window.electron.invoke('win-min')
  }
  // 最大化/还原
  const handleWinToggle = () => {
    // winSet('max2min', window.config.id)
    window.electron.invoke('win-toggle').then(res => {
      hasMaximized.value = res
    })
  }
  // 关闭

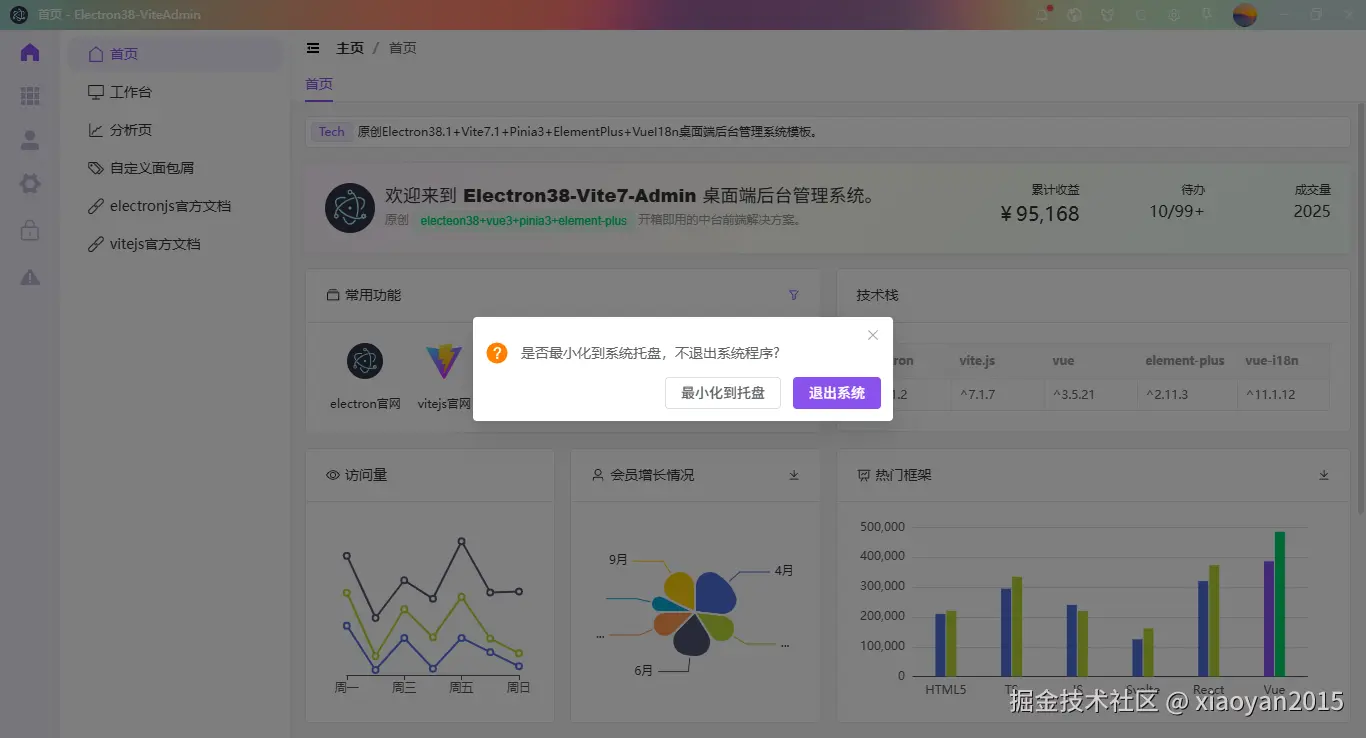

  const handleWinClose = () => {
    if(window.config.isMajor) {
      ElMessageBox.confirm('是否最小化到系统托盘，不退出应用程序?', '', {
        type: 'warning',
        icon: markRaw(QuestionFilled),
        confirmButtonText: '退出应用',
        cancelButtonText: '最小化到托盘',
        customStyle: {'borderRadius': '8px'},
        roundButton: true,
        distinguishCancelAndClose: true,
      }).then(() => {
        authstate.logout()
        winSet('close')
      }).catch((action) => {
        if(action === 'cancel') {
          setTimeout(() => {
            winSet('hide', window.config.id)
          }, 250)
        }
      })
    }else {
      winSet('close', window.config.id)
    }
  }
</script>

<template>
  <div class="ev__winbtns vu__drag" :style="{'z-index': zIndex}">
    <div class="ev__winbtns-actions vu__undrag" :style="{'color': color}">
      <a v-if="isTrue(minimizable)" class="wbtn min" title="最小化" @click="handleWinMin"><i class="wicon iconfont elec-icon-min"></i></a>
      <a v-if="isTrue(maximizable)" class="wbtn toggle" :title="hasMaximized ? '向下还原' : '最大化'" @click="handleWinToggle">
        <i class="wicon iconfont" :class="hasMaximized ? 'elec-icon-restore' : 'elec-icon-max'"></i>
      </a>
      <a v-if="isTrue(closable)" class="wbtn close" title="关闭" @click="handleWinClose"><i class="wicon iconfont elec-icon-quit"></i></a>
    </div>
  </div>
</template>

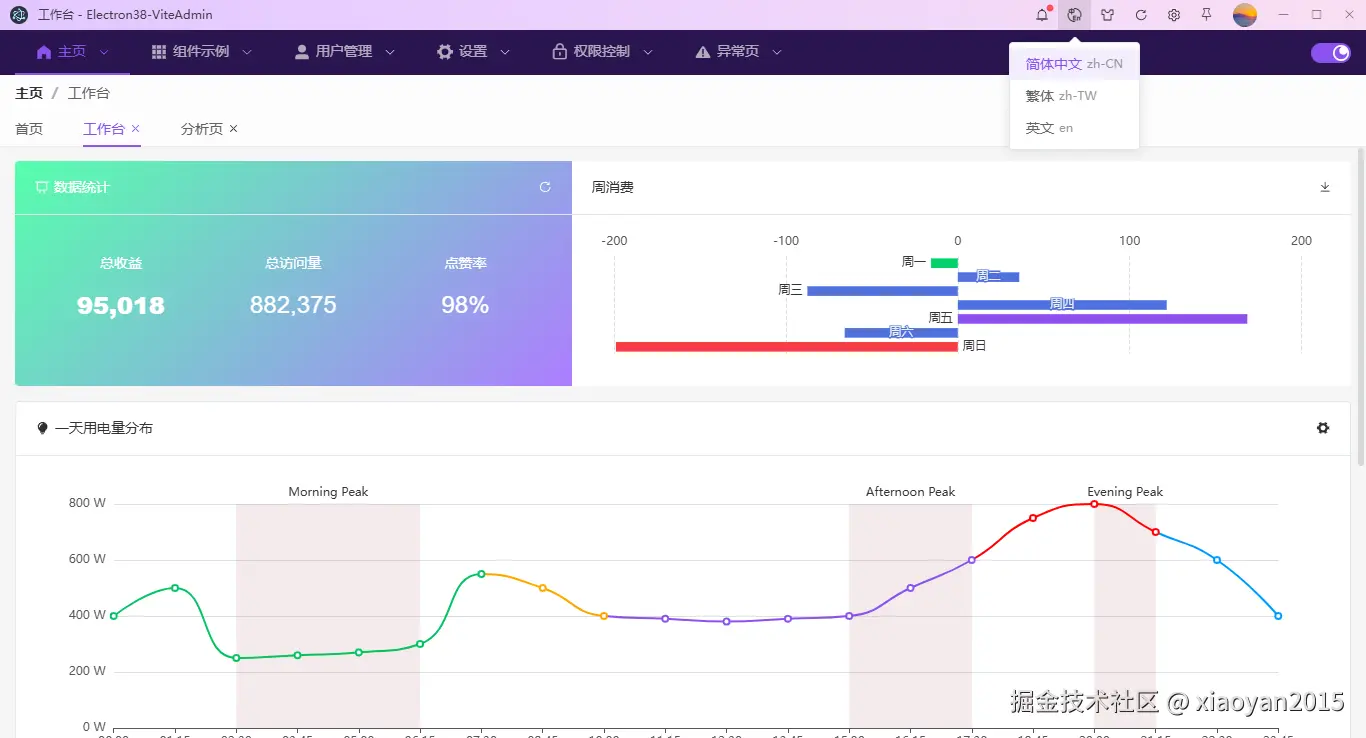

国际化配置

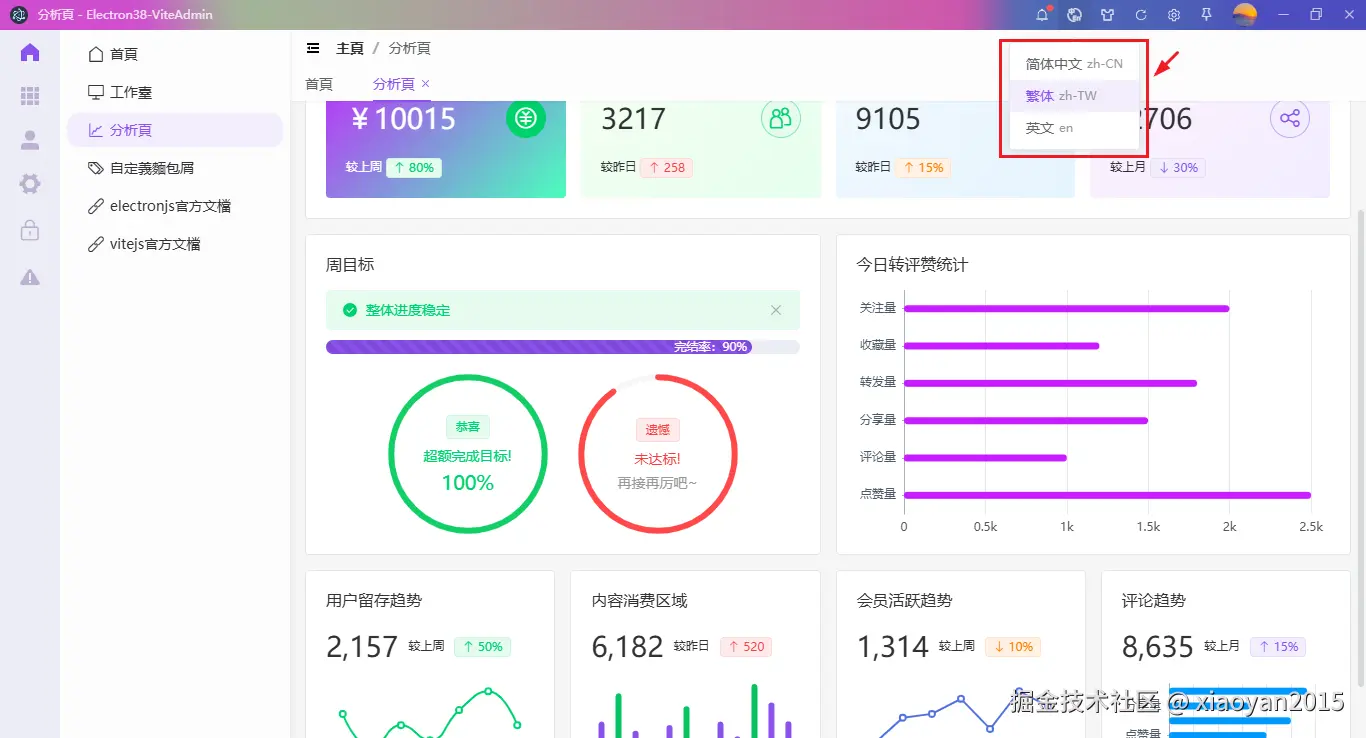

如上图：提供了中英文/繁体三种常用的多语言配置。

/**
 * 国际化配置
 * @author YXY
 */

import { createI18n } from 'vue-i18n'
import { appState } from '@/pinia/modules/app'

// 引入语言配置
import enUS from './en-US'
import zhCN from './zh-CN'
import zhTW from './zh-TW'

// 默认语言
export const langVal = 'zh-CN'

export default async (app) => {
  const appstate = appState()
  const lang = appstate.lang || langVal
  appstate.setLang(lang)

  const i18n = createI18n({
    legacy: false,
    locale: lang,
    messages: {
      'en': enUS,
      'zh-CN': zhCN,
      'zh-TW': zhTW
    }
  })

  app.use(i18n)
}

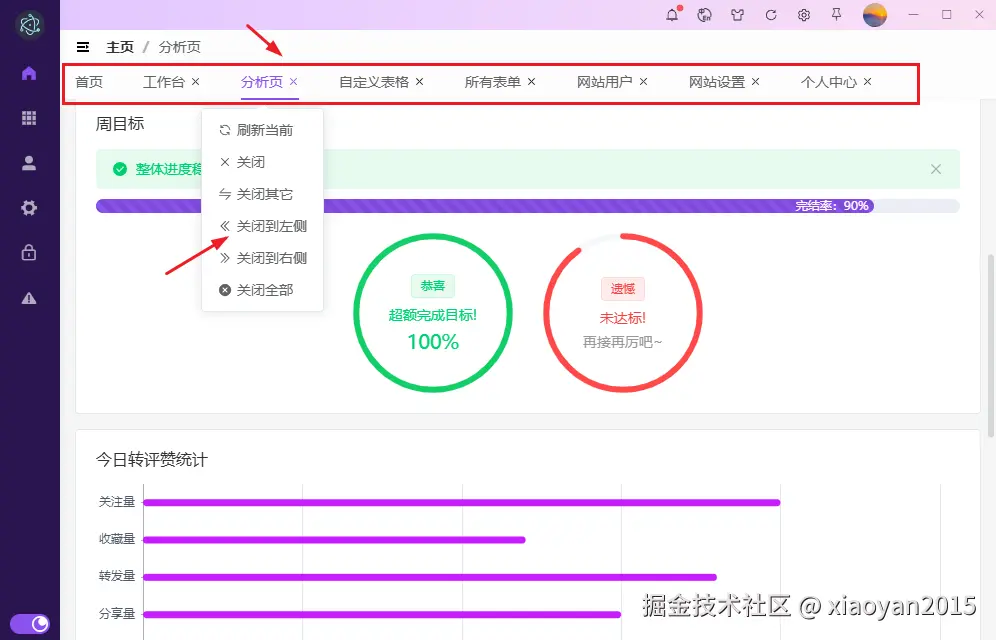

vue3+electron路由动态tabview标签

<template>
  <div class="vu__tabview">
    <el-tabs
      v-model="activeTab"
      class="vu__tabview-tabs"
      @tab-change="changeTabs"
      @tab-remove="removeTab"
    >
    <el-tab-pane
      v-for="(item, index) in tabList"
      :key="index"
      :name="item.path"
      :closable="!item?.meta?.isAffix"
    >
      <template #label>
        <el-dropdown ref="dropdownRef" trigger="contextmenu" :id="item.path" @visible-change="handleDropdownChange($event, item.path)" @command="handleDropdownCommand($event, item)">
          <span class="vu__tabview-tabs__label">
            <span>{{$t(item?.meta?.title)}}</span>
          </span>
          <template #dropdown>
            <el-dropdown-menu>
              <el-dropdown-item command="refresh" :icon="Refresh">{{$t('tabview__contextmenu-refresh')}}</el-dropdown-item>
              <el-dropdown-item command="close" :icon="Close" :disabled="item.meta.isAffix">{{$t('tabview__contextmenu-close')}}</el-dropdown-item>
              <el-dropdown-item command="closeOther" :icon="Switch">{{$t('tabview__contextmenu-closeother')}}</el-dropdown-item>
              <el-dropdown-item command="closeLeft" :icon="DArrowLeft">{{$t('tabview__contextmenu-closeleft')}}</el-dropdown-item>
              <el-dropdown-item command="closeRight" :icon="DArrowRight">{{$t('tabview__contextmenu-closeright')}}</el-dropdown-item>
              <el-dropdown-item command="closeAll" :icon="CircleCloseFilled">{{$t('tabview__contextmenu-closeall')}}</el-dropdown-item>
            </el-dropdown-menu>
          </template>
        </el-dropdown>
      </template>
    </el-tab-pane>
    </el-tabs>
  </div>
</template>

<script setup>
  import { computed } from 'vue'
  import { Fold, Expand } from '@element-plus/icons-vue'
  import { appState } from '@/pinia/modules/app'

  import { useRoutes } from '@/hooks/useRoutes'

  const props = defineProps({
    // 是否显示展开/收缩
    collapseEnable: { type: Boolean, default: true },
  })

  const appstate = appState()
  const { getMatchRoute } = useRoutes()

  const matchRoute = computed(() => getMatchRoute())

  const handleCollapse = () => {
    appstate.config.collapsed = !appstate.config.collapsed
  }
</script>

<template>
  <div class="vu__breadcrumb flexbox">
    <el-icon v-if="collapseEnable" :title="appstate.config.collapsed ? '展开' : '收缩'" @click="handleCollapse">
      <Expand v-if="appstate.config.collapsed" />
      <Fold v-else />
    </el-icon>
    <el-breadcrumb separator="/">
      <el-breadcrumb-item v-for="(item, index) in matchRoute" :key="index">
        <router-link v-if="item.path" :to="item.path">{{$t(item?.meta?.title)}}</router-link>
        <template v-else>{{$t(item?.meta?.title)}}</template>
      </el-breadcrumb-item>
    </el-breadcrumb>
  </div>
</template>
