数据库字段多类型Json值处理

拂晓银砾2025-10-06 14:02

工作中，某些需求可能会出现根据用户所选择的套餐不同 ，需要输入套餐不同选项值，这些选项每个套餐中都不尽相同，这些数据都需要存入库中，举个例子：

不同的商品类别有完全不同的属性。

数据项（用户选择）​ ​：商品类别（如：手机、图书、衣服） ​​不同属性​​：

  • ​手机​：颜色、内存、存储容量、CPU型号
  • ​图书​：作者、出版社、ISBN、页数
  • ​衣服​：尺码、颜色、材质、季节

核心是处理​​动态的、可变的实体属性​ ​。根据数据项（或类型）的不同，实体拥有一组不同的属性。这种模式通常被称为 ​​EAV（实体-属性-值）模型​​ 或其改良方案。

实现方案：一个字段用于判断所属类型，另一个字段存储对应的json数据。

POM依赖

xml 复制代码
<parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>3.5.6</version>
</parent>
<properties>
    <maven.compiler.source>17</maven.compiler.source>
    <maven.compiler.target>17</maven.compiler.target>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
</properties>
<dependencies>
    <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-web -->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>com.baomidou</groupId>
        <artifactId>mybatis-plus-spring-boot3-starter</artifactId>
        <version>3.5.14</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.postgresql/postgresql -->
    <dependency>
        <groupId>org.postgresql</groupId>
        <artifactId>postgresql</artifactId>
        <version>42.7.8</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-data-jpa</artifactId>
    </dependency>
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <version>1.18.42</version>
    </dependency>
    <dependency>
        <groupId>com.zaxxer</groupId>
        <artifactId>HikariCP</artifactId>
    </dependency>
</dependencies>

公用类

java 复制代码
package com.polaris.json.dto;

import lombok.Data;

import java.io.Serializable;

/**
 * @author SilverGravel
 * @since 2025/10/4
 */@Data
public class Book implements Serializable {

    private String author;
    private String publisher;
    private String isbn;
}
java 复制代码
package com.polaris.json.dto;

import lombok.Data;

import java.io.Serializable;

/**
 * @author SilverGravel
 * @since 2025/10/4
 */@Data
public class Phone implements Serializable {

    private String color;
    private String memory;
    private String storage;
}
java 复制代码
package com.polaris.json.enums;

import com.polaris.json.dto.Book;
import com.polaris.json.dto.Phone;
import lombok.Getter;

/**
 * @author SilverGravel
 * @since 2025/10/4
 */@Getter
public enum ProductType {
    /**
     * 产品类型
     */
    PHONE(Phone.class),

    BOOK(Book.class);

    private final Class<?> resolveType;

    ProductType(Class<?> resolveType) {
        this.resolveType = resolveType;
    }}

Mybatis 实现

通过继承org.apache.ibatis.type.BaseTypeHandler，并重写相关方法。

java 复制代码
package com.polaris.json.mybatis.entity;

import com.baomidou.mybatisplus.core.toolkit.StringUtils;
import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.ObjectMapper;
import lombok.extern.slf4j.Slf4j;
import org.apache.ibatis.type.BaseTypeHandler;
import org.apache.ibatis.type.JdbcType;
import org.postgresql.util.PGobject;

import java.sql.CallableStatement;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.util.Objects;

/**
 * 多态类型转换
 *
 * @author SilverGravel
 * @since 2025/9/24
 */@Slf4j
public abstract class DynamicTypeHandler extends BaseTypeHandler<Object> {

    protected static final ObjectMapper OBJECT_MAPPER = new ObjectMapper();


    @Override
    public void setNonNullParameter(PreparedStatement ps, int i, Object parameter, JdbcType jdbcType) throws SQLException {
        try {
            if (parameter == null) {
                ps.setObject(i, null);
                return;
            }            // postgresql 处理json
            PGobject pGobject = new PGobject();
            pGobject.setType("json");
            pGobject.setValue(OBJECT_MAPPER.writeValueAsString(parameter));
            ps.setObject(i, pGobject);
        } catch (JsonProcessingException e) {
            throw new RuntimeException(e);
        }    }

    @Override
    public Object getNullableResult(ResultSet rs, String columnName) throws SQLException {
        final String json = rs.getString(columnName);
        String type = rs.getString(getFlagTypeName());
        return getObject(json, type, rs.wasNull());
    }

    @Override
    public Object getNullableResult(ResultSet rs, int columnIndex) throws SQLException {
        final String json = rs.getString(columnIndex);
        final String type = rs.getString(getFlagTypeName());
        return getObject(json, type, rs.wasNull());
    }
    @Override
    public Object getNullableResult(CallableStatement cs, int columnIndex) throws SQLException {
        final String json = cs.getString(columnIndex);
        final String type = cs.getString(getFlagTypeName());
        boolean wasNull = cs.wasNull();
        return getObject(json, type, wasNull);

    }
    private Object getObject(String json, String type, boolean wasNull) {
        if (StringUtils.isBlank(json) && wasNull) {
            return null;
        }        if (Objects.isNull(type)) {
            log.warn(getFlagTypeName() + " 字段值为空，不做转换");
            return null;
        }        return parse(json, type);
    }
    /**
     * 解析数据累心
     *
     * @param json json值
     * @param type 枚举值
     * @return 返回解析的类型
     */
    protected abstract Object parse(String json, String type);

    protected String getFlagTypeName() {
        return "type";
    }
}
java 复制代码
package com.polaris.json.mybatis.entity;

import com.fasterxml.jackson.core.JsonProcessingException;
import com.polaris.json.enums.ProductType;

/**
 * @author SilverGravel
 * @since 2025/10/4
 */public class ProductTypeHandler extends DynamicTypeHandler {


    @Override
    protected Object parse(String json, String type) {
        if (type == null) {
            return null;
        }        ProductType typeEnum = ProductType.valueOf(type);
        try {
            return OBJECT_MAPPER.readValue(json, typeEnum.getResolveType());
        } catch (JsonProcessingException e) {
            throw new RuntimeException(e);
        }    }}
java 复制代码
package com.polaris.json.mybatis.entity;

import com.baomidou.mybatisplus.annotation.TableField;
import com.baomidou.mybatisplus.annotation.TableId;
import com.baomidou.mybatisplus.annotation.TableName;
import com.polaris.json.enums.ProductType;
import lombok.Data;

import java.io.Serializable;

/**
 * @author SilverGravel
 * @since 2025/10/4
 */@Data
@TableName(value = "products",autoResultMap = true)
public class Product implements Serializable {

    @TableId
    private String id;

    private ProductType type;

    private String name;

    @TableField(value = "data",typeHandler = ProductTypeHandler.class)
    private Object data;

    @SuppressWarnings("unchecked")
    public <T> T getData() {
        return (T) data;
    }}
java 复制代码
package com.polaris.json.mybatis.mapper;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.polaris.json.mybatis.entity.Product;
import org.apache.ibatis.annotations.Mapper;

/**
 * @author SilverGravel
 * @since 2025/10/4
 */
@Mapper
public interface ProductMapper extends BaseMapper<Product> {
}

JPA 实现

java 复制代码
package com.polaris.json.jpa.entity;

import com.baomidou.mybatisplus.core.toolkit.StringUtils;
import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.ObjectMapper;
import lombok.extern.slf4j.Slf4j;
import org.hibernate.engine.spi.SharedSessionContractImplementor;
import org.hibernate.type.SqlTypes;
import org.hibernate.usertype.ParameterizedType;
import org.hibernate.usertype.UserType;
import org.postgresql.util.PGobject;
import org.springframework.util.ObjectUtils;

import java.io.Serializable;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.util.Objects;
import java.util.Properties;

/**
 * @author SilverGravel
 * @since 2025/10/4
 */@Slf4j
public abstract class DynamicTypeConverter implements UserType<Object>, ParameterizedType {

    protected static final ObjectMapper OBJECT_MAPPER = new ObjectMapper();

    public static final String FLAG_FIELD = "flagField";

    private String field;

    @Override
    public int getSqlType() {
        return SqlTypes.JSON;
    }
    @Override
    public Class<Object> returnedClass() {
        return Object.class;
    }
    @Override
    public Object nullSafeGet(ResultSet rs, int position, SharedSessionContractImplementor session, Object owner) throws SQLException {
        final String json = rs.getString(position);
        final String type = rs.getString(getFlagTypeName());
        if (StringUtils.isBlank(json) && rs.wasNull()) {
            return null;
        }        if (Objects.isNull(type)) {
            log.warn(getFlagTypeName() + " 字段值为空，不做转换");
            return null;
        }        return parse(json, type);
    }
    /**
     * 解析数据累心
     *
     * @param json json值
     * @param type 枚举值
     * @return 返回解析的类型
     */
    protected abstract Object parse(String json, String type);

    protected String getFlagTypeName() {
        if (field == null) {
            return "type";
        }        return field;
    }

    @Override
    public void nullSafeSet(PreparedStatement st, Object value, int index, SharedSessionContractImplementor session) throws SQLException {

        try {
            if (value == null) {
                st.setNull(index, SqlTypes.JSON);
                return;
            }            // postgresql 处理json
            PGobject pGobject = new PGobject();
            pGobject.setType("json");
            pGobject.setValue(OBJECT_MAPPER.writeValueAsString(value));
            st.setObject(index, pGobject);
        } catch (JsonProcessingException e) {
            throw new RuntimeException(e);
        }    }
    @Override
    public boolean equals(Object x, Object y) {
        return Objects.equals(x, y);
    }
    @Override
    public int hashCode(Object x) {
        return Objects.hashCode(x);
    }
    @Override
    public Object deepCopy(Object value) {
        return value;
    }
    @Override
    public boolean isMutable() {
        return true;
    }
    @Override
    public Serializable disassemble(Object value) {
        return (Serializable) deepCopy(value);
    }
    @Override
    public Object assemble(Serializable cached, Object owner) {
        return deepCopy( cached);
    }

    @Override
    public void setParameterValues(Properties parameters) {
        if (ObjectUtils.isEmpty(parameters)) {
            return;
        }        if (parameters.containsKey(FLAG_FIELD)) {
            this.field = parameters.getProperty(FLAG_FIELD);
        }    }}
java 复制代码
package com.polaris.json.jpa.entity;

import com.fasterxml.jackson.core.JsonProcessingException;
import com.polaris.json.enums.ProductType;
import org.hibernate.type.SqlTypes;

/**
 * @author SilverGravel
 * @since 2025/10/4
 */public class ProductTypeConverter extends DynamicTypeConverter{


    @Override
    protected Object parse(String json, String type) {
        if (type == null) {
            return null;
        }        ProductType typeEnum = ProductType.valueOf(type);
        try {
            return OBJECT_MAPPER.readValue(json, typeEnum.getResolveType());
        } catch (JsonProcessingException e) {
            throw new RuntimeException(e);
        }    }

}
java 复制代码
package com.polaris.json.jpa.entity;

import com.polaris.json.enums.ProductType;
import jakarta.persistence.*;
import lombok.Data;
import org.hibernate.annotations.Type;

import java.io.Serializable;

/**
 * @author
 */
@Entity
@Table(name = "products")
@Data
public class Product implements Serializable {

    @Id
    private String id;

    @Enumerated(EnumType.STRING)
    @Column(name = "type")
    private ProductType type;

    @Column(name = "name")
    private String name;

    @Type(value = ProductTypeConverter.class,parameters = {@org.hibernate.annotations.Parameter(name = DynamicTypeConverter.FLAG_FIELD,value = "type")})
    private Object data;

    @SuppressWarnings("unchecked")
    public <T> T getData() {
        return (T) data;
    }
}
java 复制代码
package com.polaris.json.jpa.repository;

import com.polaris.json.jpa.entity.Product;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

/**
 * @author SilverGravel
 * @since 2025/10/4
 */@Repository
public interface ProductRepository extends JpaRepository<Product, String> {
}

启动类

java 复制代码
package com.polaris.json;

import com.baomidou.mybatisplus.core.toolkit.Wrappers;
import com.polaris.json.dto.Book;
import com.polaris.json.dto.Phone;
import com.polaris.json.enums.ProductType;
import com.polaris.json.jpa.repository.ProductRepository;
import com.polaris.json.mybatis.entity.Product;
import com.polaris.json.mybatis.mapper.ProductMapper;
import org.springframework.boot.*;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.builder.SpringApplicationBuilder;
import org.springframework.context.ConfigurableApplicationContext;

import java.util.Arrays;
import java.util.List;

/**
 * @author SilverGravel
 * @since 2025/10/4
 */@SpringBootApplication
public class JsonDataApplication  {
    public static void main(String[] args) {
        ConfigurableApplicationContext context = new SpringApplicationBuilder()
                .web(WebApplicationType.NONE)
                .sources(JsonDataApplication.class)
                .run(args);
        ProductMapper productMapper = context.getBean(ProductMapper.class);
        productMapper.delete(Wrappers.emptyWrapper());
        productMapper.insert(mybatis());

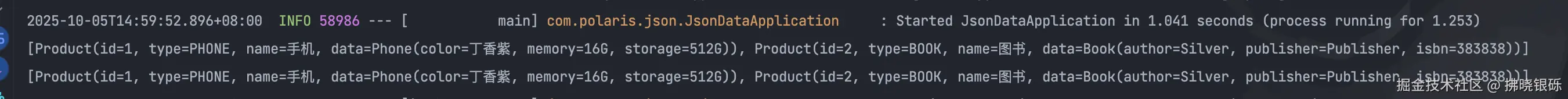

        System.out.println(productMapper.selectList(Wrappers.emptyWrapper()));

        ProductRepository repository = context.getBean(ProductRepository.class);
        repository.deleteAll();
        repository.saveAllAndFlush(jpa());
        System.out.println(repository.findAll());


    }
    private static List<Product> mybatis() {
        Product product = new Product();
        product.setData(phone());
        product.setId("1");
        product.setType(ProductType.PHONE);
        product.setName("手机");

        Product book = new Product();
        book.setId("2");
        book.setType(ProductType.BOOK);
        book.setName("图书");
        book.setData(book());

        return Arrays.asList(product, book);
    }

    private static List<com.polaris.json.jpa.entity.Product> jpa() {
        com.polaris.json.jpa.entity.Product product = new com.polaris.json.jpa.entity.Product();
        product.setData(phone());
        product.setId("1");
        product.setType(ProductType.PHONE);
        product.setName("手机");

        com.polaris.json.jpa.entity.Product book = new com.polaris.json.jpa.entity.Product();
        book.setId("2");
        book.setType(ProductType.BOOK);
        book.setName("图书");
        book.setData(book());

        return Arrays.asList(product, book);
    }
    private static Phone phone() {
        Phone phone = new Phone();
        phone.setColor("丁香紫");
        phone.setMemory("16G");
        phone.setStorage("512G");
        return phone;
    }
    private static Book book() {
        Book book = new Book();
        book.setAuthor("Silver");
        book.setPublisher("Publisher");
        book.setIsbn("383838");
        return book;
    }}

总结

两者的核心实现都需要有 java.sql.ResultSet，通过该接口获取行集数据 ，通过 rs.getString等方法获取type字段的数据。JPA的 Type注解可以使用parameters参数注入相关参数的属性值。

java 复制代码
@Type(value = ProductTypeConverter.class,parameters = {@
org.hibernate.annotations.Parameter(name = DynamicTypeConverter.FLAG_FIELD,value = "type")})
java 复制代码
@Slf4j
public abstract class DynamicTypeConverter implements UserType<Object>, ParameterizedType {
java 复制代码
@Override
public void setParameterValues(Properties parameters) {
    if (ObjectUtils.isEmpty(parameters)) {
        return;
    }    if (parameters.containsKey(FLAG_FIELD)) {
        this.field = parameters.getProperty(FLAG_FIELD);
    }}

可以实现 org.hibernate.usertype.ParameterizedType接口来获取 不同实体type对应数据库表的字段名。

相关推荐
李贺梖梖2 小时前
Tomcat的CATALINA_BASE
java·tomcat
0wioiw02 小时前
Java基础（①Tomcat + Servlet + JSP）
java·servlet·tomcat
用户4099322502122 小时前
PostgreSQL处理SQL居然像做蛋糕？解析到执行的4步里藏着多少查询优化的小心机？
后端·ai编程·trae
李贺梖梖2 小时前
Tomcat&Http协议
java·http·tomcat
每天一个java小知识3 小时前
Spring-AI 接入（本地大模型 deepseek + 阿里云百炼 + 硅基流动）
java·人工智能·spring
代码匠心3 小时前
从零开始学Flink：数据输出的终极指南
java·大数据·后端·flink
掘根3 小时前
【Qt】多线程
java·开发语言·qt
IT_陈寒3 小时前
SpringBoot性能调优实战：5个让接口响应速度提升300%的关键配置
前端·人工智能·后端
xcLeigh4 小时前
Python操作国产金仓数据库（KingbaseES）全流程：搭建连接数据库的API接口
后端
热门推荐
01KGG转MP3工具|非KGM文件|解密音频02HarmonyOS NEXT开发进阶（十四）：HarmonyOS应用开发者基础认证试题集汇总及答案解析03jdk21下载、安装（Windows、Linux、macOS）04GitHub 镜像站点05BongoCat - 跨平台键盘猫动画工具06UV安装并设置国内源0746个Nano-banana 精选提示词，持续更新中08零基础搭建赛博朋克个人主页：蓝耘Claude Code完整实战教程09adb安装教程（附adb命令大全详解）adb环境配置教程10Linux下V2Ray安装配置指南
