1. RabbitMQ 概述

RabbitMQ 是一个开源的消息代理软件，实现了高级消息队列协议（AMQP）。它提供了可靠的消息传递机制，支持多种消息模式，广泛应用于分布式系统中的异步通信、解耦和服务间通信。

2. 核心概念

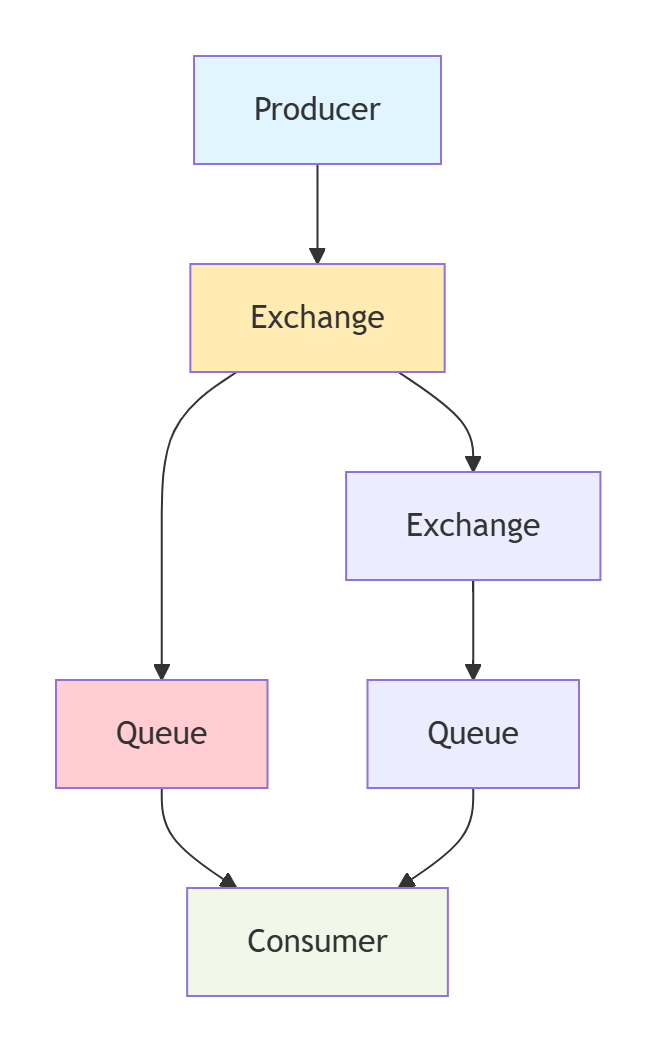

2.1 基本组件

Producer：消息生产者，发送消息到Exchange
Exchange：接收消息并根据路由规则转发到Queue
Queue：消息队列，存储消息直到被消费
Consumer：消息消费者，从Queue获取消息处理
Binding：Exchange和Queue之间的连接规则

2.2 交换机类型

类型	描述	路由行为
Direct	直接交换机	根据Routing Key精确匹配
Topic	主题交换机	支持通配符匹配Routing Key
Fanout	广播交换机	忽略Routing Key，广播到所有绑定队列
Headers	头交换机	根据消息头属性匹配

3. 幂等性保障

3.1 幂等性概念

幂等性是指对同一操作的多次执行，产生的结果与一次执行相同。在MQ场景中，确保同一条消息被消费多次不会产生副作用。

3.2 解决方案

3.2.1 全局唯一ID方案

复制代码

@Component
public class IdempotentConsumer {

    @Autowired
    private RedisTemplate<String, String> redisTemplate;

    @RabbitListener(queues = "order.queue")
    public void handleOrderMessage(OrderMessage message, Channel channel,
                                 @Header(AmqpHeaders.DELIVERY_TAG) long deliveryTag) {
        // 检查消息是否已处理
        String messageId = message.getMessageId();
        Boolean isNew = redisTemplate.opsForValue().setIfAbsent("msg:" + messageId, "processed", 24, TimeUnit.HOURS);

        if (Boolean.TRUE.equals(isNew)) {
            try {
                // 处理业务逻辑
                processOrder(message);
                // 手动确认消息
                channel.basicAck(deliveryTag, false);
            } catch (Exception e) {
                // 处理异常，拒绝消息并重新入队
                channel.basicNack(deliveryTag, false, true);
            }
        } else {
            // 消息已处理，直接确认
            channel.basicAck(deliveryTag, false);
            log.info("消息 {} 已处理，跳过重复消费", messageId);
        }
    }

    private void processOrder(OrderMessage message) {
        // 订单处理逻辑
    }
}

3.2.2 业务逻辑判断方案

复制代码

@Service
public class OrderService {

    @Autowired
    private OrderRepository orderRepository;

    @Transactional
    public void processOrderPayment(String orderId, BigDecimal amount) {
        // 检查订单支付状态
        Order order = orderRepository.findById(orderId)
                .orElseThrow(() -> new OrderNotFoundException(orderId));

        if (order.getStatus() == OrderStatus.PAID) {
            log.warn("订单 {} 已支付，跳过重复处理", orderId);
            return; // 已处理，直接返回
        }

        if (order.getStatus() != OrderStatus.UNPAID) {
            throw new IllegalOrderStateException("订单状态异常: " + order.getStatus());
        }

        // 处理支付逻辑
        order.setStatus(OrderStatus.PAID);
        order.setPaidAmount(amount);
        order.setPaymentTime(LocalDateTime.now());

        orderRepository.save(order);

        // 其他业务逻辑...
    }
}

4. 顺序性保障

4.1 顺序性挑战

RabbitMQ 在以下场景可能破坏消息顺序：

多个消费者并行处理
消息重试机制
网络波动导致确认丢失
死信队列处理

4.2 解决方案

4.2.1 单队列单消费者模式

复制代码

@Configuration
public class SequentialConfig {

    @Bean
    public Queue sequentialQueue() {
        return new Queue("sequential.queue", true);
    }

    @Bean
    public DirectExchange sequentialExchange() {
        return new DirectExchange("sequential.exchange");
    }

    @Bean
    public Binding sequentialBinding(Queue sequentialQueue, DirectExchange sequentialExchange) {
        return BindingBuilder.bind(sequentialQueue)
                .to(sequentialExchange)
                .with("sequential.key");
    }

    // 使用单消费者容器工厂
    @Bean
    public SimpleRabbitListenerContainerFactory sequentialListenerFactory(
            ConnectionFactory connectionFactory) {
        SimpleRabbitListenerContainerFactory factory = new SimpleRabbitListenerContainerFactory();
        factory.setConnectionFactory(connectionFactory);
        factory.setConcurrentConsumers(1); // 单消费者
        factory.setMaxConcurrentConsumers(1);
        return factory;
    }
}

// 消费者
@Component
public class SequentialConsumer {

    @RabbitListener(queues = "sequential.queue",
                   containerFactory = "sequentialListenerFactory")
    public void processSequentialMessage(Message message, Channel channel) {
        try {
            // 处理消息
            processMessage(message);
            channel.basicAck(message.getMessageProperties().getDeliveryTag(), false);
        } catch (Exception e) {
            // 记录错误但不重试，避免乱序
            log.error("处理顺序消息失败: {}", message.getBody(), e);
            // 可以将消息转移到死信队列或错误队列
            channel.basicNack(message.getMessageProperties().getDeliveryTag(), false, false);
        }
    }
}

4.2.2 分区消费模式

复制代码

// 基于用户ID的分区消费
@Component
public class PartitionedConsumer {

    private Map<String, LinkedBlockingQueue<Message>> userQueues = new ConcurrentHashMap<>();
    private ExecutorService executor = Executors.newCachedThreadPool();

    @RabbitListener(queues = "user.update.queue")
    public void receiveUserUpdate(UserUpdateMessage message) {
        String userId = message.getUserId();

        // 按用户ID分区处理
        userQueues.computeIfAbsent(userId, k -> new LinkedBlockingQueue<>()).offer(message);

        // 异步处理每个用户的消息队列
        executor.submit(() -> processUserMessages(userId));
    }

    private void processUserMessages(String userId) {
        LinkedBlockingQueue<Message> queue = userQueues.get(userId);
        if (queue == null) return;

        while (!queue.isEmpty()) {
            Message message = queue.poll();
            if (message != null) {
                try {
                    processSingleMessage(message);
                } catch (Exception e) {
                    log.error("处理用户 {} 消息失败", userId, e);
                    // 处理失败的消息
                }
            }
        }
    }
}

4.2.3 业务序列号方案

复制代码

@Data
public class SequentialMessage implements Serializable {
    private String messageId;
    private String businessKey; // 业务键，如订单ID
    private long sequenceNumber; // 序列号
    private boolean isLast; // 是否最后一条消息
    private Object payload;
}

@Component
public class SequentialProcessor {

    private Map<String, MessageBuffer> buffers = new ConcurrentHashMap<>();

    @RabbitListener(queues = "sequential.messages.queue")
    public void handleSequentialMessage(SequentialMessage message) {
        String businessKey = message.getBusinessKey();

        // 获取或创建消息缓冲区
        MessageBuffer buffer = buffers.computeIfAbsent(businessKey,
            k -> new MessageBuffer(k, this::processInOrder));

        // 将消息添加到缓冲区
        buffer.addMessage(message);
    }

    private void processInOrder(List<SequentialMessage> messages) {
        // 按序列号排序处理
        messages.sort(Comparator.comparingLong(SequentialMessage::getSequenceNumber));

        for (SequentialMessage message : messages) {
            try {
                processMessage(message);
            } catch (Exception e) {
                log.error("处理顺序消息失败: {}", message.getMessageId(), e);
                // 处理异常
            }
        }
    }

    // 消息缓冲区类
    private static class MessageBuffer {
        private final String businessKey;
        private final Consumer<List<SequentialMessage>> processor;
        private final TreeMap<Long, SequentialMessage> messages = new TreeMap<>();
        private long expectedSequence = 1;

        public MessageBuffer(String businessKey, Consumer<List<SequentialMessage>> processor) {
            this.businessKey = businessKey;
            this.processor = processor;
        }

        public synchronized void addMessage(SequentialMessage message) {
            messages.put(message.getSequenceNumber(), message);
            checkAndProcess();
        }

        private void checkAndProcess() {
            if (messages.containsKey(expectedSequence)) {
                List<SequentialMessage> readyMessages = new ArrayList<>();

                while (messages.containsKey(expectedSequence)) {
                    SequentialMessage message = messages.remove(expectedSequence);
                    readyMessages.add(message);
                    expectedSequence++;

                    if (message.isLast()) {
                        // 处理所有准备好的消息
                        processor.accept(readyMessages);
                        return;
                    }
                }

                // 处理连续的消息
                processor.accept(readyMessages);
            }
        }
    }
}

5. 消息积压问题

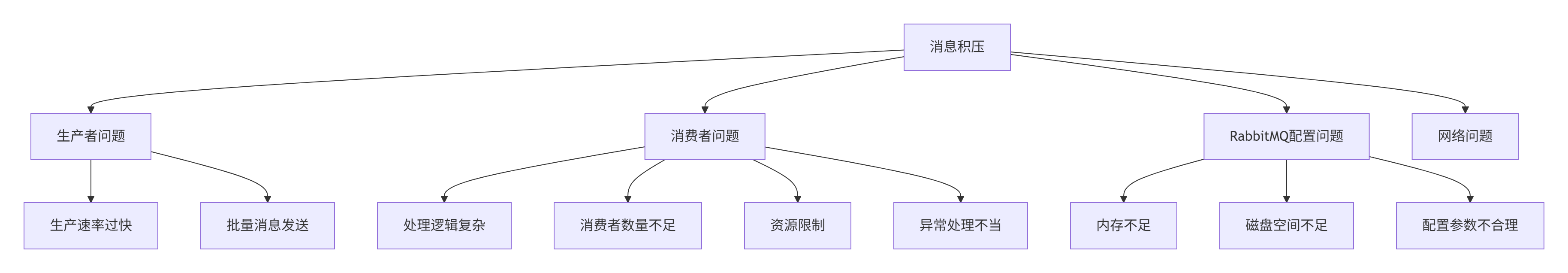

5.1 消息积压原因分析

5.2 解决方案

5.2.1 提高消费者处理能力

复制代码

@Configuration
public class ScalingConfig {

    @Bean
    public SimpleRabbitListenerContainerFactory scalableListenerFactory(
            ConnectionFactory connectionFactory) {
        SimpleRabbitListenerContainerFactory factory = new SimpleRabbitListenerContainerFactory();
        factory.setConnectionFactory(connectionFactory);
        factory.setConcurrentConsumers(5); // 初始消费者数量
        factory.setMaxConcurrentConsumers(20); // 最大消费者数量
        factory.setPrefetchCount(50); // 每个消费者预取数量
        return factory;
    }
}

// 使用多线程处理的消费者
@Component
public class ParallelConsumer {

    private ExecutorService processingPool = Executors.newFixedThreadPool(10);

    @RabbitListener(queues = "heavy.process.queue",
                   containerFactory = "scalableListenerFactory")
    public void handleHeavyMessage(HeavyMessage message, Channel channel,
                                  @Header(AmqpHeaders.DELIVERY_TAG) long deliveryTag) {
        // 提交到线程池异步处理
        processingPool.submit(() -> {
            try {
                processMessageAsync(message);
                channel.basicAck(deliveryTag, false);
            } catch (Exception e) {
                log.error("处理消息失败", e);
                try {
                    channel.basicNack(deliveryTag, false, true);
                } catch (IOException ex) {
                    log.error("拒绝消息失败", ex);
                }
            }
        });
    }

    private void processMessageAsync(HeavyMessage message) {
        // 异步处理逻辑
    }
}

5.2.2 生产者限流

复制代码

@Service
public class RateLimitedProducer {

    private final RateLimiter rateLimiter = RateLimiter.create(1000); // 每秒1000条消息

    @Autowired
    private RabbitTemplate rabbitTemplate;

    public void sendRateLimitedMessage(Object message) {
        // 获取许可，阻塞直到可用
        rateLimiter.acquire();

        rabbitTemplate.convertAndSend("exchange", "routing.key", message, m -> {
            // 设置消息过期时间（1小时）
            m.getMessageProperties().setExpiration("3600000");
            return m;
        });
    }

    // 批量发送提高效率
    public void sendBatchMessages(List<Object> messages) {
        // 根据系统负载动态调整批量大小
        int batchSize = calculateOptimalBatchSize();

        for (int i = 0; i < messages.size(); i += batchSize) {
            List<Object> batch = messages.subList(i, Math.min(i + batchSize, messages.size()));

            if (rateLimiter.tryAcquire(batch.size())) {
                sendBatch(batch);
            } else {
                // 限流，等待或拒绝
                handleRateLimitExceeded(batch);
            }
        }
    }
}

5.2.3 监控和自动扩展

复制代码

@Component
@EnableScheduling
public class QueueMonitor {

    @Autowired
    private RabbitAdmin rabbitAdmin;

    @Autowired
    private SimpleRabbitListenerContainerFactory containerFactory;

    @Value("${queue.monitor.threshold:1000}")
    private int queueThreshold;

    @Scheduled(fixedRate = 30000) // 每30秒检查一次
    public void monitorQueues() {
        // 获取所有队列信息
        Collection<Queue> queues = rabbitAdmin.getQueueNames()
                .stream()
                .map(name -> new Queue(name))
                .collect(Collectors.toList());

        for (Queue queue : queues) {
            QueueInformation info = rabbitAdmin.getQueueInfo(queue.getName());
            if (info != null && info.getMessageCount() > queueThreshold) {
                scaleConsumers(queue.getName(), info.getMessageCount());
            }
        }
    }

    private void scaleConsumers(String queueName, long messageCount) {
        // 根据积压消息数量计算需要的消费者数量
        int requiredConsumers = calculateRequiredConsumers(messageCount);

        // 获取监听该队列的容器
        SimpleMessageListenerContainer container = findContainerForQueue(queueName);

        if (container != null) {
            int currentConsumers = container.getActiveConsumerCount();
            if (requiredConsumers > currentConsumers) {
                container.setConcurrentConsumers(requiredConsumers);
                log.info("扩展队列 {} 的消费者数量到 {}", queueName, requiredConsumers);
            }
        }
    }

    private int calculateRequiredConsumers(long messageCount) {
        // 假设每个消费者每秒处理10条消息
        double messagesPerSecondPerConsumer = 10;
        // 希望在5分钟内处理完积压消息
        double targetProcessingTime = 300; // 5分钟

        int required = (int) Math.ceil(messageCount / (messagesPerSecondPerConsumer * targetProcessingTime));
        return Math.min(required, 50); // 最大50个消费者
    }
}

5.2.4 死信队列和错误处理

复制代码

@Configuration
public class DlqConfig {

    @Bean
    public Queue mainQueue() {
        return QueueBuilder.durable("main.queue")
                .withArgument("x-dead-letter-exchange", "dlx.exchange")
                .withArgument("x-dead-letter-routing-key", "dlx.key")
                .withArgument("x-max-length", 10000) // 队列最大长度
                .build();
    }

    @Bean
    public DirectExchange dlxExchange() {
        return new DirectExchange("dlx.exchange");
    }

    @Bean
    public Queue dlq() {
        return QueueBuilder.durable("dead.letter.queue")
                .withArgument("x-message-ttl", 86400000) // 24小时后过期
                .build();
    }

    @Bean
    public Binding dlqBinding(Queue dlq, DirectExchange dlxExchange) {
        return BindingBuilder.bind(dlq)
                .to(dlxExchange)
                .with("dlx.key");
    }
}

// 专门处理死信消息的服务
@Component
public class DeadLetterService {

    @RabbitListener(queues = "dead.letter.queue")
    public void handleDeadLetterMessage(Message failedMessage) {
        // 记录错误信息
        log.error("死信消息: {}", failedMessage.toString());

        // 分析失败原因
        analyzeFailure(failedMessage);

        // 可选：重试、通知管理员或记录到数据库
        if (shouldRetry(failedMessage)) {
            retryMessage(failedMessage);
        } else {
            archiveMessage(failedMessage);
        }
    }

    private void analyzeFailure(Message message) {
        // 分析消息头获取失败信息
        Map<String, Object> headers = message.getMessageProperties().getHeaders();
        String originalQueue = (String) headers.get("x-first-death-queue");
        String reason = (String) headers.get("x-first-death-reason");

        log.info("消息来自队列: {}, 失败原因: {}", originalQueue, reason);
    }
}

6. 综合最佳实践

6.1 生产环境配置建议

复制代码

# application-prod.yml
spring:
  rabbitmq:
    addresses: rabbitmq-cluster:5672
    username: admin
    password: ${RABBITMQ_PASSWORD}
    virtual-host: /prod
    connection-timeout: 10000
    # 开启发布确认
    publisher-confirms: true
    publisher-returns: true
    listener:
      simple:
        # 手动确认模式
        acknowledge-mode: manual
        # 预取数量
        prefetch: 50
        # 重试配置
        retry:
          enabled: true
          max-attempts: 3
          initial-interval: 1000
          multiplier: 2.0
          max-interval: 10000

6.2 监控和告警

复制代码

@Component
@EnableScheduling
public class RabbitMQHealthMonitor {

    @Autowired
    private RabbitHealthIndicator rabbitHealthIndicator;

    @Autowired
    private NotificationService notificationService;

    @Scheduled(fixedRate = 60000) // 每分钟检查一次
    public void checkRabbitMQHealth() {
        Health health = rabbitHealthIndicator.health();

        if (health.getStatus() == Status.DOWN) {
            notificationService.sendAlert("RabbitMQ 服务异常: " + health.getDetails());
        }

        // 检查连接数、通道数等
        checkConnectionMetrics();
    }

    private void checkConnectionMetrics() {
        // 使用JMX或RabbitMQ API检查关键指标
        // 连接数、内存使用、磁盘空间等
    }
}
