JAVA后端结合网页搜图+阿里万相2.5实现自动化修图与返回

王者鳜錸2025-10-31 13:20

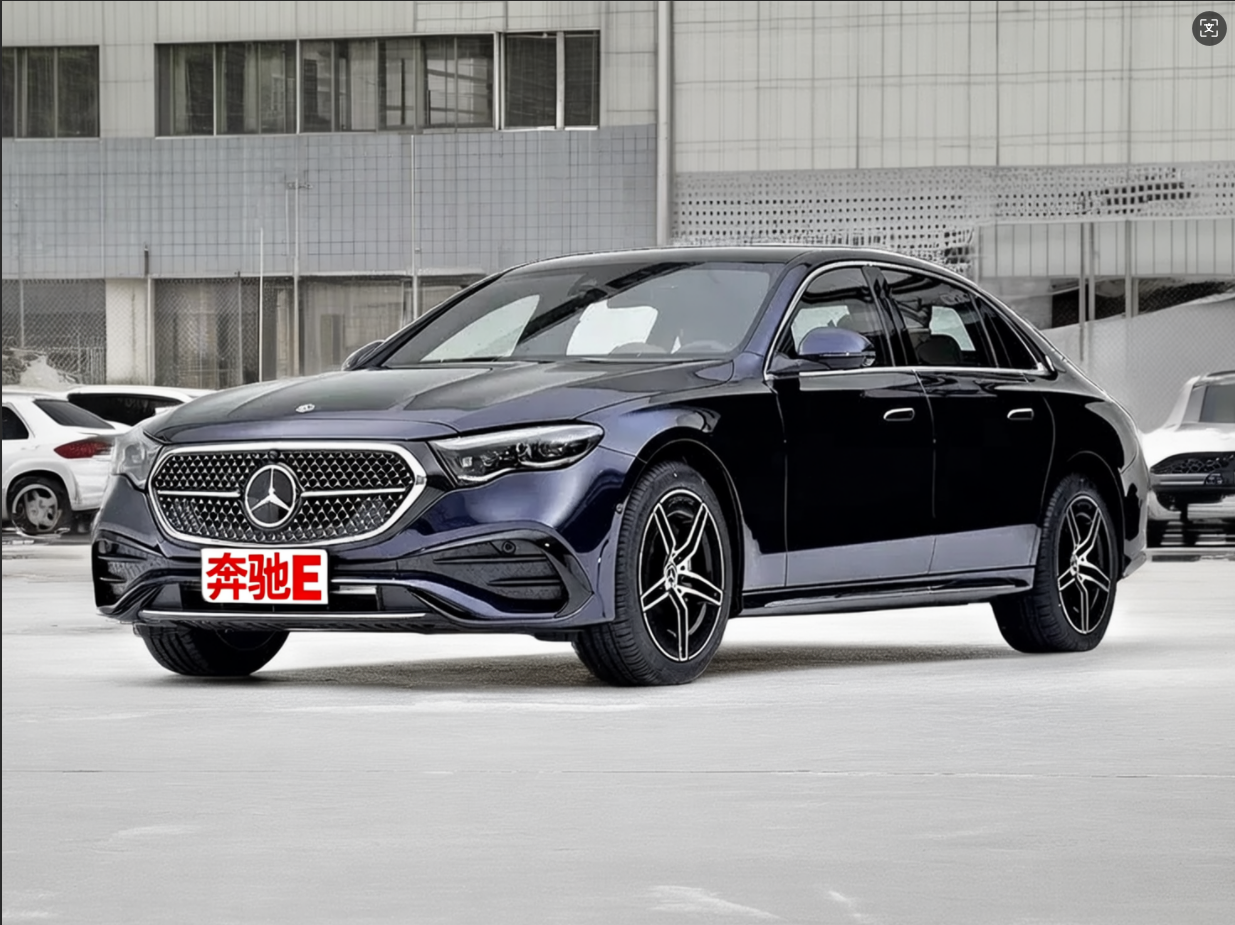

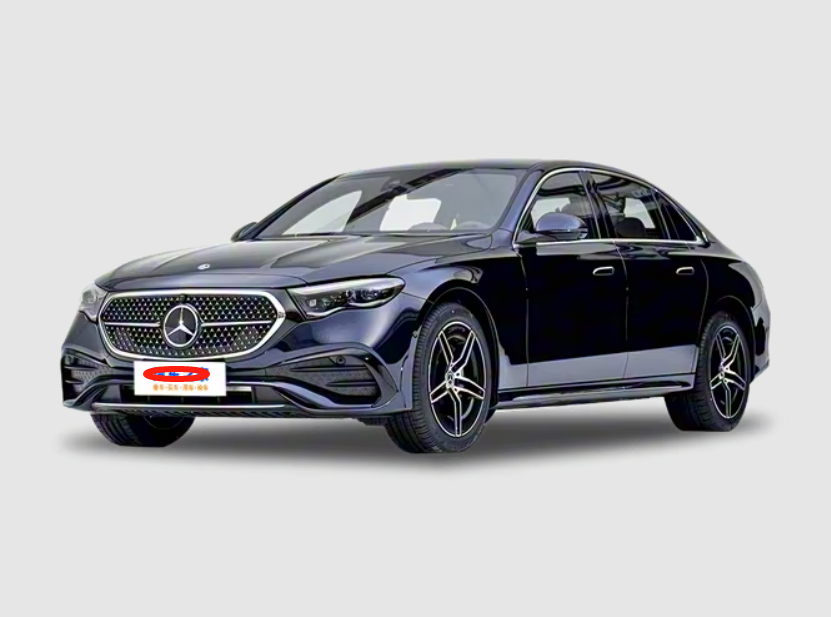

总体效果展示：以车辆图片为例：

一、图片网页搜索代码：

java 复制代码
package main.boot.test;

import main.boot.DealImage;
import org.jsoup.Jsoup;
import org.jsoup.nodes.Document;
import org.jsoup.nodes.Element;
import org.jsoup.select.Elements;
import org.openqa.selenium.By;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.chrome.ChromeDriver;
import org.openqa.selenium.chrome.ChromeOptions;
import org.openqa.selenium.support.ui.ExpectedConditions;
import org.openqa.selenium.support.ui.WebDriverWait;

import java.time.Duration;

public class ImageUrlExtractor {
    public static void main(String[] args) {
        getCarImage("奔驰E300");
    }

    public static String getCarImage(String carInfo) {
        // 目标网页 URL
        String url = "https://sou.autohome.com.cn/zonghe?q=" + carInfo + "&entry=42&error=0&pvareaid=6861421&mq=&charset=utf8";
        System.out.println("请求URL：" + url);
        // 配置 Chrome 浏览器（无头模式，不显示窗口）
        // 根据不同JDK 这里需要注释 或者关闭注释 21 关闭注释   17打开注释
        // System.setProperty("webdriver.chrome.driver", "src/main/resources/chromedriver-win64/chromedriver.exe");

        ChromeOptions options = new ChromeOptions();
        options.addArguments("--headless=new"); // 无头模式，适合服务器环境
        options.addArguments("--disable-gpu");
        options.addArguments("--window-size=1920,1080"); // 模拟窗口大小，避免响应式布局影响

        // 初始化浏览器驱动
        WebDriver driver = new ChromeDriver(options);
        try {
            // 打开网页
            driver.get(url);
            // 等待页面动态加载完成（关键：等待包含 cus-react-img 类的元素出现，最多等 10 秒）
            WebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(2));
            // 等待第一个包含 cus-react-img 类的元素加载出来
            wait.until(ExpectedConditions.presenceOfElementLocated(By.cssSelector("img.cus-react-img")));

            // 额外等待 1 秒，确保图片都加载完成（根据实际情况调整）
            Thread.sleep(1000);

            // 获取加载完成后的完整页面源码
            String pageSource = driver.getPageSource();

            // 用 Jsoup 解析源码，提取特定 class 的图片 URL
            Document document = Jsoup.parse(pageSource);
            Elements imgElements = document.select("img.cus-react-img");
            //  System.out.println(imgElements);
            // 只处理第一个匹配的图片元素
            if (imgElements.isEmpty()) {
                System.out.println("未找到 class='cus-react-img' 的图片元素");
            } else {
                Element firstImg = imgElements.first();
                String imgUrl = firstImg.attr("src");

                // 处理相对路径（如果有的话）
                if (imgUrl != null && !imgUrl.isEmpty()) {
                    if (!imgUrl.startsWith("http")) {
                        imgUrl = "https:" + imgUrl; // 补充协议头（根据网站实际情况调整）
                    }
                    System.out.println("第一个 cus-react-img 图片 URL: " + imgUrl); // 调用方法
                    String finalDealImage = DealImage.doWork(imgUrl);
                    System.err.println("处理后的图片：" + finalDealImage);
                    return finalDealImage;
                } else {
                    System.out.println("第一个 cus-react-img 图片没有 src 属性");
                    return "没有找到图片...";
                }
            }

        } catch (Exception e) {
            System.out.println("获取图片失败：" + e.getMessage());
            e.printStackTrace();
        } finally {
            // 关闭浏览器
            driver.quit();
        }
        return "获取图片失败";
    }
}

二、阿里万相代码

java 复制代码
package main.boot;

import com.google.gson.Gson;

import java.net.URI;
import java.net.http.HttpClient;
import java.net.http.HttpRequest;
import java.net.http.HttpResponse;
import java.time.Duration;
import java.util.List;

public class DealImage {
    public static final Gson gson = new Gson();

    public static void main(String[] args) {
        String apiKey = "sk-";
        String requestBody = """
                {
                    "model": "wan2.5-i2i-preview",
                    "function":"super_resolution",
                    "size":"1024*1024",
                    "input": {
                        "prompt": "去除图片中的汽车之家LOGO，换成车来客三个红色的字。图像超分，图像要有合适的背景。",
                        "negative_prompt": "不要有很粗糙的线条。不要出现低分辨率、差质量、低质量、残缺、比例不良等情况",
                        "images": [
                            "https://g.autoimg.cn/@img/car3/cardfs/series/g24/M02/24/84/666x501_autohomecar__wKgHH1qnPRyAUl8pAAVh9jdZkj0538.png"
                        ]
                    },
                    "parameters": {
                        "n": 1
                    }
                }
                """;
        try {
            HttpClient client = HttpClient.newBuilder().connectTimeout(Duration.ofSeconds(10)).build();
            HttpRequest request = HttpRequest.newBuilder().uri(URI.create("https://dashscope.aliyuncs.com/api/v1/services/aigc/image2image/image-synthesis")).header("X-DashScope-Async", "enable").header("Authorization", "Bearer " + apiKey).header("Content-Type", "application/json").POST(HttpRequest.BodyPublishers.ofString(requestBody)).timeout(Duration.ofSeconds(30)).build();
            HttpResponse<String> response = client.send(request, HttpResponse.BodyHandlers.ofString());
            // System.out.println("状态码: " + response.statusCode());
            System.out.println("状态码: " + response.statusCode() + "响应: " + response.body());
            JsonParse1 jsonParse1 = gson.fromJson(response.body(), JsonParse1.class);
            // System.out.println(jsonParse1.output.task_id);
            String taskId = jsonParse1.output.task_id;
            request = HttpRequest.newBuilder().uri(URI.create("https://dashscope.aliyuncs.com/api/v1/tasks/" + taskId)).header("Authorization", "Bearer " + apiKey).GET().timeout(Duration.ofSeconds(30)).build();
            while (true) {
                response = client.send(request, HttpResponse.BodyHandlers.ofString());
                // System.out.println("状态码: " + response.statusCode() + "响应: " + response.body());
                if (response.statusCode() == 200) {
                    JsonParse1 jsonParse2 = gson.fromJson(response.body(), JsonParse1.class);
                    if (jsonParse2.output.task_status.equals("SUCCEEDED")) {
                        List<Results> resultsList = jsonParse2.output.results;
                        System.out.println("最终处理后的图片URL地址为：" + resultsList.get(0).url);
                        break;
                    } else {
                        System.out.println("图片处理中...");
                        Thread.sleep(6000); // 3秒查询一次
                    }
                } else {
                    break;
                }
            }

        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    public static String doWork(String originImageUrl) {
        String apiKey = "sk-";
        String requestBody = """
                {
                   "model": "wan2.5-i2i-preview",

                    "input": {
                        "prompt": "去除图片中的汽车之家LOGO，换成三个红色的字。图像超分，图像要有合适的背景。",
                        "negative_prompt": "不要有很粗糙的线条。不要出现低分辨率、差质量、低质量、残缺、比例不良等情况",
                        "images": [
                            "%s"
                        ]
                    },
                    "parameters": {
                        "n": 1
                    }
                }
                """.formatted(originImageUrl);

        // 后续使用 requestBody 发送请求
        System.out.println(requestBody);
        try {
            HttpClient client = HttpClient.newBuilder().connectTimeout(Duration.ofSeconds(10)).build();
            HttpRequest request = HttpRequest.newBuilder().uri(URI.create("https://dashscope.aliyuncs.com/api/v1/services/aigc/image2image/image-synthesis")).header("X-DashScope-Async", "enable").header("Authorization", "Bearer " + apiKey).header("Content-Type", "application/json").POST(HttpRequest.BodyPublishers.ofString(requestBody)).timeout(Duration.ofSeconds(30)).build();
            HttpResponse<String> response = client.send(request, HttpResponse.BodyHandlers.ofString());
            // System.out.println("状态码: " + response.statusCode());
            System.out.println("状态码: " + response.statusCode() + "响应: " + response.body());
            JsonParse1 jsonParse1 = gson.fromJson(response.body(), JsonParse1.class);
            // System.out.println(jsonParse1.output.task_id);
            String taskId = jsonParse1.output.task_id;
            request = HttpRequest.newBuilder().uri(URI.create("https://dashscope.aliyuncs.com/api/v1/tasks/" + taskId)).header("Authorization", "Bearer " + apiKey).GET().timeout(Duration.ofSeconds(30)).build();
            String dealImageUrl = "";
            while (true) {
                response = client.send(request, HttpResponse.BodyHandlers.ofString());
                // System.out.println("状态码: " + response.statusCode() + "响应: " + response.body());
                if (response.statusCode() == 200) {
                    JsonParse1 jsonParse2 = gson.fromJson(response.body(), JsonParse1.class);
                    if (jsonParse2.output.task_status.equals("SUCCEEDED")) {
                        List<Results> resultsList = jsonParse2.output.results;
                        // System.out.println("最终处理后的图片URL地址为：" + resultsList.get(0).url);
                        dealImageUrl = resultsList.get(0).url;
                        break;
                    } else {
                        System.out.println("图片处理中...");
                        Thread.sleep(3000); // 3秒查询一次
                    }
                } else {
                    dealImageUrl = "图片处理异常";
                    break;
                }
            }
            return dealImageUrl;
        } catch (Exception e) {
            e.printStackTrace();
        }
        return "图片处理异常";
    }

    class JsonParse1 {
        Output output;
    }

    class Output {
        String task_id;
        String task_status;
        List<Results> results;
    }

    class Results {
        String url;
    }
}

三、SPRINGBOOT启动API服务代码

java 复制代码
package main.boot.controller;


import main.boot.pojo.Car;
import main.boot.test.ImageUrlExtractor;
import org.springframework.web.bind.annotation.*;

@RestController
@RequestMapping("/api")
@CrossOrigin(origins = "*")
public class ImageController {
    @PostMapping("/get_processed_car_image")
    public String get_processed_car_image(@RequestBody Car car) {
        String dealImageUrl = ImageUrlExtractor.getCarImage(car.getCarInfo());
        return dealImageUrl;
    }
}
java 复制代码
package main.boot.pojo;

import lombok.Data;

@Data
public class Car {
    String carInfo;
}
java 复制代码
package main.boot;

import org.openqa.selenium.WebDriver;
import org.openqa.selenium.chrome.ChromeDriver;
import org.openqa.selenium.chrome.ChromeOptions;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Scope;

import java.util.concurrent.TimeUnit;

@Configuration
public class SeleniumConfig {

    @Value("${webdriver.chrome.driver:}")
    private String chromeDriverPath;

    @Bean
    @Scope("prototype")  // 每次注入都创建新实例
    public WebDriver webDriver() {
        if (!chromeDriverPath.isEmpty()) {
            System.setProperty("webdriver.chrome.driver", chromeDriverPath);
        }

        ChromeOptions options = new ChromeOptions();
        options.addArguments("--headless=new");
        options.addArguments("--disable-gpu");
        options.addArguments("--no-sandbox");
        options.addArguments("--disable-dev-shm-usage");
        options.addArguments("--window-size=1920,1080");
        options.addArguments("--remote-allow-origins=*");

        WebDriver driver = new ChromeDriver(options);
        driver.manage().timeouts().implicitlyWait(3, TimeUnit.SECONDS);
        return driver;
    }
}
java 复制代码
package main.boot;

import org.jsoup.Jsoup;
import org.jsoup.nodes.Document;
import org.jsoup.nodes.Element;
import org.jsoup.select.Elements;
import org.openqa.selenium.By;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.support.ui.ExpectedConditions;
import org.openqa.selenium.support.ui.WebDriverWait;
import org.springframework.beans.factory.ObjectFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.time.Duration;

@Service
public class ImageExtractionService {

    @Autowired
    private ObjectFactory<WebDriver> webDriverFactory;

    /**
     * 获取汽车图片URL
     *
     * @param carInfo 汽车信息
     * @return 图片URL
     */
    public String getCarImage(String carInfo) {
        WebDriver driver = webDriverFactory.getObject();
        try {
            String url = "https://sou.autohome.com.cn/zonghe?q=" + carInfo + "&entry=42&error=0&pvareaid=6861421&mq=&charset=utf8";

            // 打开网页
            driver.get(url);

            // 等待页面动态加载完成
            WebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(10));
            wait.until(ExpectedConditions.presenceOfElementLocated(By.cssSelector("img.cus-react-img")));

            // 额外等待确保图片加载完成
            Thread.sleep(1000);

            // 获取加载完成后的完整页面源码
            String pageSource = driver.getPageSource();

            // 用 Jsoup 解析源码，提取特定 class 的图片 URL
            Document document = Jsoup.parse(pageSource);
            Elements imgElements = document.select("img.cus-react-img");

            if (imgElements.isEmpty()) {
                throw new RuntimeException("未找到 class='cus-react-img' 的图片元素");
            }

            Element firstImg = imgElements.first();
            String imgUrl = firstImg.attr("src");

            // 处理相对路径
            if (imgUrl != null && !imgUrl.isEmpty()) {
                if (!imgUrl.startsWith("http")) {
                    imgUrl = "https:" + imgUrl;
                }
                return imgUrl;
            } else {
                throw new RuntimeException("第一个 cus-react-img 图片没有 src 属性");
            }

        } catch (Exception e) {
            throw new RuntimeException("获取图片失败：" + e.getMessage(), e);
        } finally {
            // 确保每次使用后都关闭 driver
            if (driver != null) {
                driver.quit();
            }
        }
    }

    /**
     * 获取汽车图片并处理后返回
     *
     * @param carInfo 汽车信息
     * @return 处理后的图片信息
     */
    public String getProcessedCarImage(String carInfo) {
        try {
            String imgUrl = getCarImage(carInfo);
            // 调用您的图片处理方法
            return DealImage.doWork(imgUrl);
        } catch (Exception e) {
            throw new RuntimeException("图片处理失败：" + e.getMessage(), e);
        }
    }
}
java 复制代码
package main.boot;

import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.RestControllerAdvice;

import java.util.HashMap;
import java.util.Map;

@RestControllerAdvice
public class GlobalExceptionHandler {

    @ExceptionHandler(Exception.class)
    public ResponseEntity<Map<String, String>> handleException(Exception e) {
        Map<String, String> response = new HashMap<>();
        response.put("error", "服务内部错误");
        response.put("message", e.getMessage());
        response.put("status", "error");

        return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR).body(response);
    }

    @ExceptionHandler(RuntimeException.class)
    public ResponseEntity<Map<String, String>> handleRuntimeException(RuntimeException e) {
        Map<String, String> response = new HashMap<>();
        response.put("error", "业务处理错误");
        response.put("message", e.getMessage());
        response.put("status", "error");

        return ResponseEntity.status(HttpStatus.BAD_REQUEST).body(response);
    }
}

四、测试代码

java 复制代码
package main.boot.test;


import okhttp3.*;

import java.io.IOException;
import java.util.concurrent.TimeUnit;

public class CarImageRequest {
    public static void main(String[] args) {
        try {
            String url = "http://xxx:9999/api/get_processed_car_image";
            String jsonInput = "{\"carInfo\":\"奇瑞E3\"}";
            System.out.println("请求已发送，需要在线搜图-阿里大模型改图-最后返回，请稍后...");
            String response = sendPostRequest(url, jsonInput);
            System.out.println("响应结果: " + response);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    public static String sendPostRequest(String urlString, String jsonInput) throws IOException {
        // 创建 OkHttpClient 并设置超时时间
        OkHttpClient client = new OkHttpClient.Builder().connectTimeout(3000, TimeUnit.SECONDS)    // 连接超时
                .readTimeout(3000, TimeUnit.SECONDS)       // 读取超时
                .writeTimeout(3000, TimeUnit.SECONDS)      // 写入超时
                .build();

        // 创建请求体
        MediaType JSON = MediaType.parse("application/json; charset=utf-8");
        RequestBody body = RequestBody.create(jsonInput, JSON);

        // 创建请求
        Request request = new Request.Builder().url(urlString).post(body).addHeader("Content-Type", "application/json; utf-8").addHeader("Accept", "application/json").build();

        // 发送请求并处理响应
        try (Response response = client.newCall(request).execute()) {
            if (!response.isSuccessful()) {
                throw new IOException("Unexpected code: " + response);
            }
            return response.body().string();
        }
    }
}
相关推荐
XIAOHEZIcode1 天前
Linux系统鼠标偏移常见原因以及修复方案
linux·运维·游戏
用户0328472220702 天前
如何搭建本地yum源(上)
运维
大树885 天前
金刚石散热越强，管路越先见顶
大数据·运维·服务器·人工智能·ai
摇滚侠5 天前
Linux CentOS7 rpm 安装 MySQL 5.7
linux·运维·mysql
霸道流氓气质5 天前
领域驱动设计（DDD）在 Spring Boot 微服务中的实践指南
运维·spring boot·微服务
Inhand陈工5 天前
基于台达PLC与映翰通IG502的智慧水产养殖精准投喂与远程运维解决方案
运维·人工智能·物联网·阿里云·信息与通信
酣大智5 天前
ARP代理--工作原理
运维·网络·arp·arp代理
shushangyun_5 天前
2026年快消品B2B系统推荐：支持终端门店订货、促销政策自动化的工具？
java·运维·网络·数据库·人工智能·spring·自动化
施努卡机器视觉5 天前
SNK施努卡侧滑门锁上滑轮总成自动化装配线，从零件到组件，全流程精密制造方案
运维·自动化·制造
dayuOK63075 天前
写作卡壳怎么办？我的“5分钟启动法”
人工智能·职场和发展·自动化·新媒体运营·媒体
热门推荐
012026年6月AI大模型全景报告：GPT-5.6、Claude Opus 4.8、Gemini 3.5，中美AI三足鼎立谁主沉浮？022026年6月AI行业全景：从百模大战到Agent元年，这30天发生了什么？032026 年 AI 编程工具终极横评：Cursor vs Claude Code vs Copilot vs Windsurf04【AI】2026 年具身智能模型和世界模型总结05GitHub 镜像站点06AI科技热点日报 | 2026年6月1日07Claude Code、Codex、Cursor三分天下：2026年AI编程Agent生态全景剖析08AI一周事件 · 2026-06-03 至 2026-06-0909上线仅72小时被强制下架：Claude Fable 5 的短命10Codex 下载安装指南：Windows 和 macOS 官方版下载
