资料说明，
原理图；
提供开发板pdf格式原理图。注意不提供pcb bom
sdk源码：
包含uboot、kernel、sensor驱动、iq文件、设备树、buildroot等源码
sample源码：

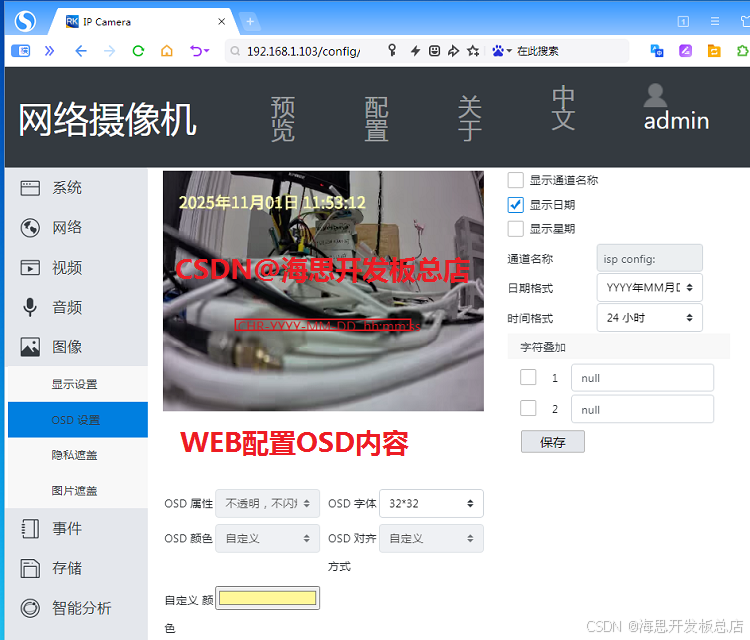

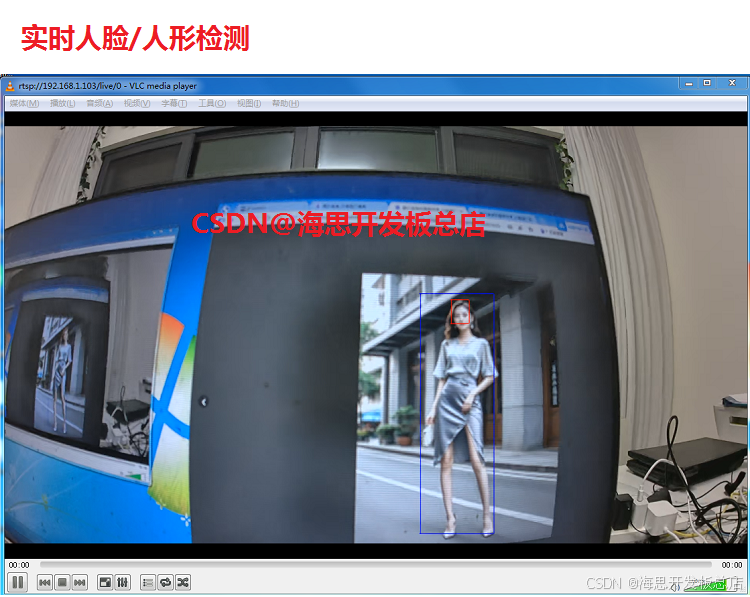

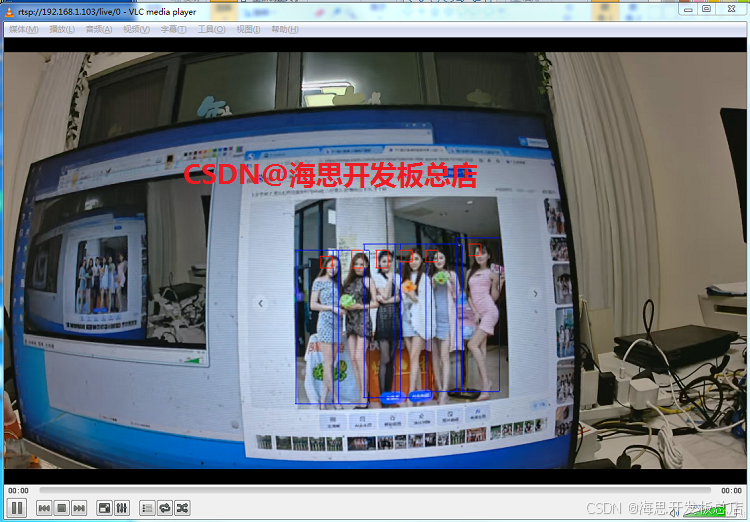

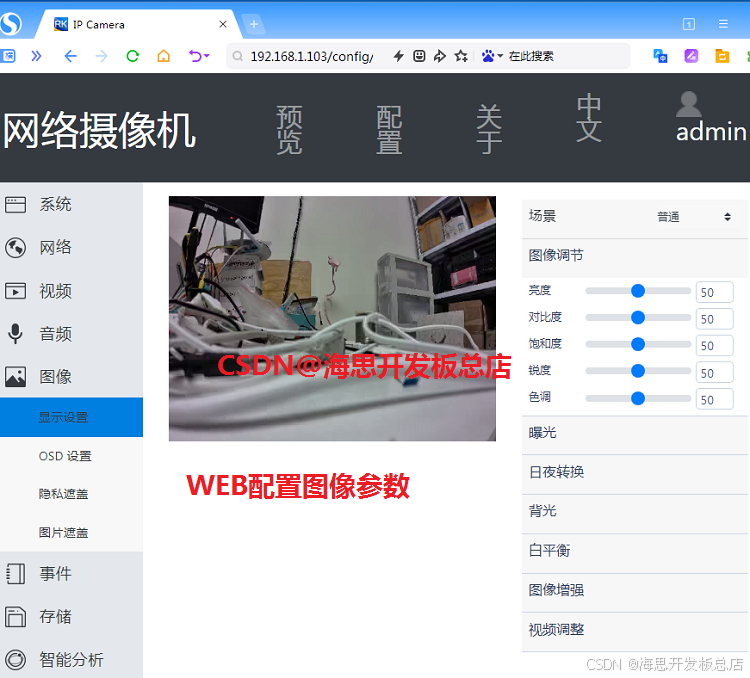

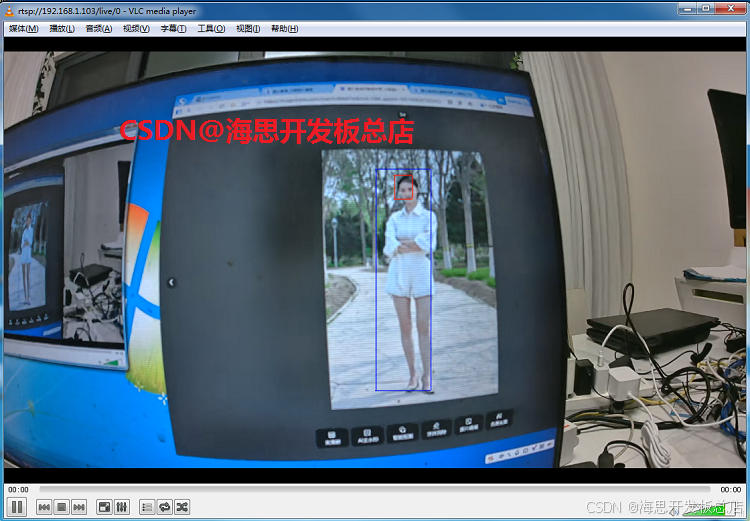

包括rtsp osd web aiisp等功能的源码
虚拟机开发环境：
已配置好的虚拟机，可直接导入电脑使用
使用教程文档：
开发环境搭建教程、sdk编译烧录教程、sample编译使用教程、以及rk原厂的文档

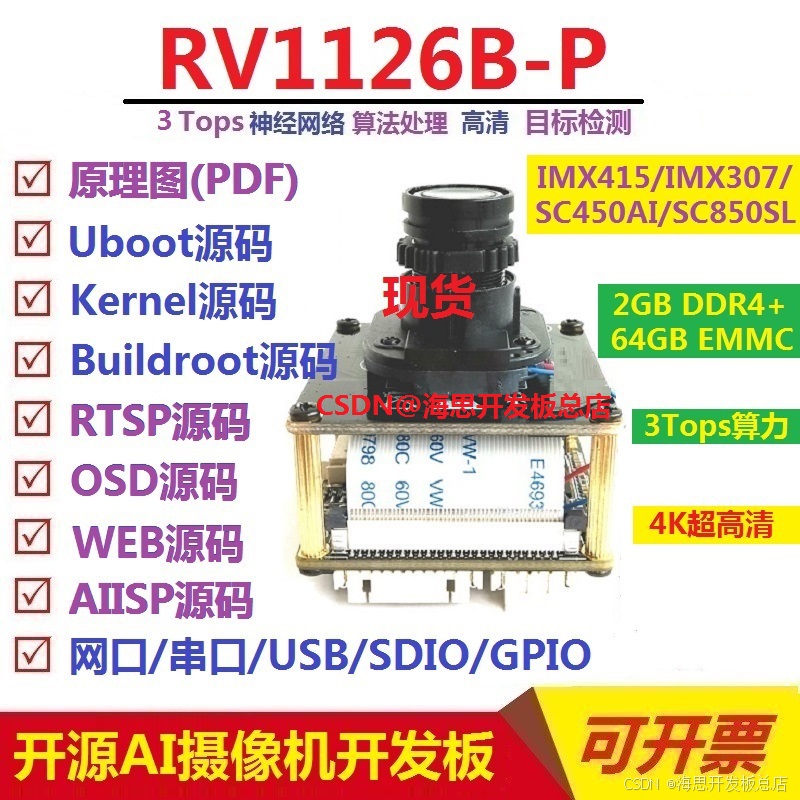

3T算力赋能多场景智能终端
RV1126 RV1126B-P
2TOPS 3TOPS
CSDN@海思开发板总店
RV1126的升级版本RV1126B-P在多项关键性能指标上实现了大幅强化，无论是在运算能力、内存带宽、AI算力还是影像处理技术方面，都带来了显著突破:
1、NPU性能AI算力从 2 TOPS 提升至3 TOPS
2、CPU性能升级为四核 Cortex-A53 架构，提升多任务处理性能
3、DDR 内存带宽从 2166MT/s提升至 3200MT/s,加速数据访问
4、图像处理支持全新 AI-ISP 架构，显著提升影像质量和低光表现

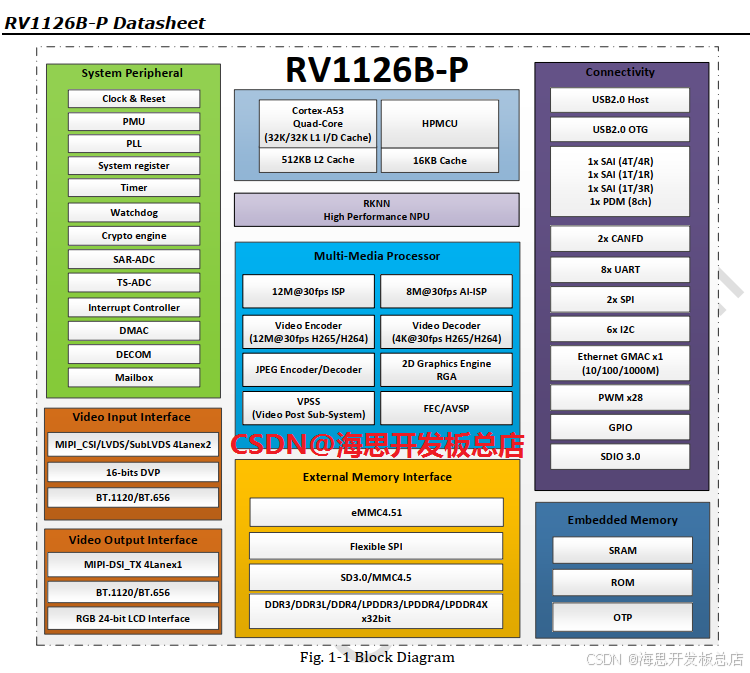

RV1126B-P Datasheet
Video CODEC Video Decoder
Real-time decoding of H.264 and H.265 Support MMU
H.265 HEVC/MVC Main Profile yuv420@L5.0 up to 3840x2160@30fps H.264 AVC/MVC Main Profile yuv400/yuv420/yuv422@L5.1 up to3840x2160@30fps Video Encoder
HEVC Main Profile,Level 5.0High Tier
ntial
H.264 High Profile,Level 5.0 JPEG Baseline
Parallel encoding(HEVC+JPEG or H264+JPEG) Support up to 12M@30fps

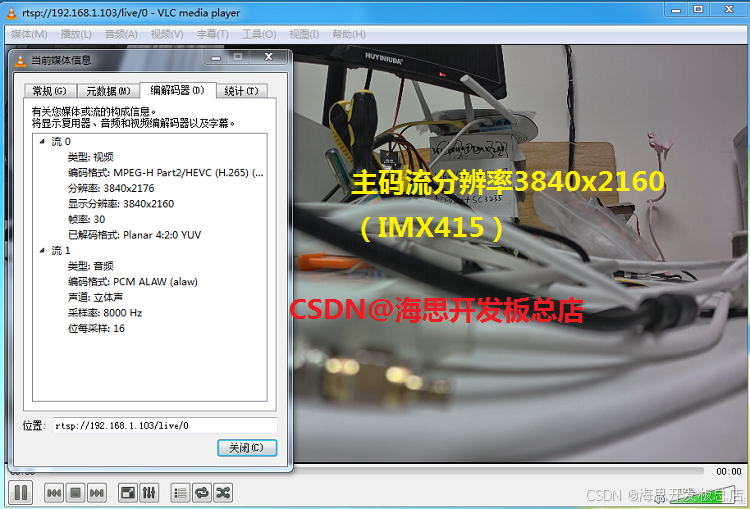

Support common primary stream such as 3840x2160@30fps,1920x1080@30fps Bitrate up to 200Mbps with CBR/VBR/FixQP/QPMAP bitrate control YUV420 and YUV400 stream format
Slice split Area and block mapping ROI CSDN@海思开发板总店8-area OSD
Link table configuration mode
YUV/RGB video source with crop, rotation and mirror Ultra low delay encoding
Motion and Occlusion Detection
Dual reference frame search(HEVC) JPEG Decoder
Support Baseline(DCT sequential)
Support JPEG file interchange format(JFIF) 1.02 Support image size is from 48x48 to 65520x65520
Support YUV400/YUV420/YUV422/YUV440/YUV411/YUV444 Neural Process Unit Rockchip NPU engine:
3 TOPS* for INT8
Support INT4, INT8,INT16,FP16 operation
Support deep learning frameworks:TensorFlow, Caffe, Tflite, Pytorch,Onnx NN, Android NN,etc.*Sparsity
One isolated voltage domain to support DVFS
