开源 Objective-C IOS 应用开发（十九）视频的播放

#import <UIKit/UIKit.h>

@class VideoViewController;

@interface AppDelegate : UIResponder <UIApplicationDelegate>

@property (strong, nonatomic) UIWindow *window;
@property (strong, nonatomic) VideoViewController *videoViewController;

@end

AppDelegate.m文件

复制代码

#import "AppDelegate.h"
#import "VideoViewController.h"

@implementation AppDelegate

- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
    // 创建主窗口
    self.window = [[UIWindow alloc] initWithFrame:[[UIScreen mainScreen] bounds]];
    self.window.backgroundColor = [UIColor whiteColor];

    // 创建视频播放视图控制器
    self.videoViewController = [[VideoViewController alloc] init];

    // 设置根视图控制器
    self.window.rootViewController = self.videoViewController;

    // 显示窗口
    [self.window makeKeyAndVisible];

    return YES;
}

@end

VideoPlayer.h文件

复制代码

#import <UIKit/UIKit.h>
#import <AVFoundation/AVFoundation.h>

NS_ASSUME_NONNULL_BEGIN

@interface VideoPlayer : UIView

@property (strong, nonatomic) AVPlayer *player;
@property (strong, nonatomic) AVPlayerLayer *playerLayer;
@property (strong, nonatomic) UIButton *playPauseButton;
@property (strong, nonatomic) UIButton *fullscreenButton;
@property (strong, nonatomic) UIView *controlsView;
@property (strong, nonatomic) UISlider *progressSlider;
@property (strong, nonatomic) UILabel *currentTimeLabel;
@property (strong, nonatomic) UILabel *totalTimeLabel;

- (void)setupPlayerWithURL:(NSURL *)videoURL;
- (void)play;
- (void)pause;
- (void)togglePlayPause;

@end

NS_ASSUME_NONNULL_END

VideoPlayer.m文件

复制代码

#import "VideoPlayer.h"

@interface VideoPlayer()

@property (strong, nonatomic) id timeObserver;
@property (assign, nonatomic) BOOL controlsHidden;

@end

@implementation VideoPlayer

- (instancetype)initWithFrame:(CGRect)frame {
    self = [super initWithFrame:frame];
    if (self) {
        [self setupUI];
        [self setupGestures];
    }
    return self;
}

- (void)setupUI {
    self.backgroundColor = [UIColor blackColor];

    // 创建播放器图层
    self.playerLayer = [AVPlayerLayer playerLayerWithPlayer:nil];
    self.playerLayer.videoGravity = AVLayerVideoGravityResizeAspect;
    [self.layer addSublayer:self.playerLayer];

    // 创建控制界面
    self.controlsView = [[UIView alloc] init];
    self.controlsView.backgroundColor = [UIColor colorWithWhite:0.0 alpha:0.7];
    [self addSubview:self.controlsView];

    // 播放/暂停按钮
    self.playPauseButton = [UIButton buttonWithType:UIButtonTypeSystem];
    [self.playPauseButton setTitle:@"播放" forState:UIControlStateNormal];
    [self.playPauseButton setTitleColor:[UIColor whiteColor] forState:UIControlStateNormal];
    [self.playPauseButton addTarget:self action:@selector(togglePlayPause) forControlEvents:UIControlEventTouchUpInside];
    [self.controlsView addSubview:self.playPauseButton];

    // 进度条
    self.progressSlider = [[UISlider alloc] init];
    self.progressSlider.minimumValue = 0.0;
    [self.progressSlider addTarget:self action:@selector(sliderValueChanged:) forControlEvents:UIControlEventValueChanged];
    [self.progressSlider addTarget:self action:@selector(sliderTouchUpInside:) forControlEvents:UIControlEventTouchUpInside];
    [self.controlsView addSubview:self.progressSlider];

    // 时间标签
    self.currentTimeLabel = [[UILabel alloc] init];
    self.currentTimeLabel.text = @"00:00";
    self.currentTimeLabel.textColor = [UIColor whiteColor];
    self.currentTimeLabel.font = [UIFont systemFontOfSize:12];
    [self.controlsView addSubview:self.currentTimeLabel];

    self.totalTimeLabel = [[UILabel alloc] init];
    self.totalTimeLabel.text = @"00:00";
    self.totalTimeLabel.textColor = [UIColor whiteColor];
    self.totalTimeLabel.font = [UIFont systemFontOfSize:12];
    [self.controlsView addSubview:self.totalTimeLabel];

    // 全屏按钮
    self.fullscreenButton = [UIButton buttonWithType:UIButtonTypeSystem];
    [self.fullscreenButton setTitle:@"全屏" forState:UIControlStateNormal];
    [self.fullscreenButton setTitleColor:[UIColor whiteColor] forState:UIControlStateNormal];
    [self.controlsView addSubview:self.fullscreenButton];

    self.controlsHidden = NO;
    [self hideControlsAfterDelay];
}

- (void)setupGestures {
    // 添加点击手势来控制界面显示/隐藏
    UITapGestureRecognizer *tapGesture = [[UITapGestureRecognizer alloc] initWithTarget:self action:@selector(toggleControls)];
    [self addGestureRecognizer:tapGesture];
}

- (void)layoutSubviews {
    [super layoutSubviews];

    // 设置播放器图层大小
    self.playerLayer.frame = self.bounds;

    // 设置控制界面布局
    CGFloat controlsHeight = 60.0;
    self.controlsView.frame = CGRectMake(0, self.bounds.size.height - controlsHeight,
                                        self.bounds.size.width, controlsHeight);

    CGFloat padding = 10.0;
    CGFloat buttonWidth = 60.0;

    self.playPauseButton.frame = CGRectMake(padding, 10, buttonWidth, 30);

    self.currentTimeLabel.frame = CGRectMake(CGRectGetMaxX(self.playPauseButton.frame) + padding, 15, 40, 20);

    CGFloat sliderX = CGRectGetMaxX(self.currentTimeLabel.frame) + padding;
    CGFloat fullscreenButtonWidth = 50.0;
    self.fullscreenButton.frame = CGRectMake(self.bounds.size.width - fullscreenButtonWidth - padding, 10,
                                           fullscreenButtonWidth, 30);

    self.totalTimeLabel.frame = CGRectMake(CGRectGetMinX(self.fullscreenButton.frame) - 40 - padding, 15, 40, 20);

    CGFloat sliderWidth = CGRectGetMinX(self.totalTimeLabel.frame) - sliderX - padding;
    self.progressSlider.frame = CGRectMake(sliderX, 15, sliderWidth, 20);
}

- (void)setupPlayerWithURL:(NSURL *)videoURL {
    // 创建AVPlayerItem
    AVPlayerItem *playerItem = [AVPlayerItem playerItemWithURL:videoURL];

    // 创建AVPlayer
    self.player = [AVPlayer playerWithPlayerItem:playerItem];
    self.playerLayer.player = self.player;

    // 添加时间观察者
    __weak typeof(self) weakSelf = self;
    self.timeObserver = [self.player addPeriodicTimeObserverForInterval:CMTimeMake(1, 1)
                                                                  queue:dispatch_get_main_queue()
                                                             usingBlock:^(CMTime time) {
        [weakSelf updateProgress];
    }];

    // 监听播放结束
    [[NSNotificationCenter defaultCenter] addObserver:self
                                           selector:@selector(playerItemDidReachEnd:)
                                               name:AVPlayerItemDidPlayToEndTimeNotification
                                             object:playerItem];
}

- (void)updateProgress {
    if (self.player.currentItem.status == AVPlayerItemStatusReadyToPlay) {
        Float64 currentTime = CMTimeGetSeconds(self.player.currentTime);
        Float64 duration = CMTimeGetSeconds(self.player.currentItem.duration);

        if (isfinite(duration)) {
            self.progressSlider.value = currentTime / duration;
            self.currentTimeLabel.text = [self timeStringFromSeconds:currentTime];
            self.totalTimeLabel.text = [self timeStringFromSeconds:duration];
        }
    }
}

- (NSString *)timeStringFromSeconds:(Float64)seconds {
    NSInteger minutes = (NSInteger)seconds / 60;
    NSInteger secs = (NSInteger)seconds % 60;
    return [NSString stringWithFormat:@"%02ld:%02ld", (long)minutes, (long)secs];
}

- (void)play {
    [self.player play];
    [self.playPauseButton setTitle:@"暂停" forState:UIControlStateNormal];
}

- (void)pause {
    [self.player pause];
    [self.playPauseButton setTitle:@"播放" forState:UIControlStateNormal];
}

- (void)togglePlayPause {
    if (self.player.rate == 0.0) {
        [self play];
    } else {
        [self pause];
    }
}

- (void)sliderValueChanged:(UISlider *)slider {
    [self.player removeTimeObserver:self.timeObserver];
}

- (void)sliderTouchUpInside:(UISlider *)slider {
    if (self.player.currentItem.status == AVPlayerItemStatusReadyToPlay) {
        Float64 duration = CMTimeGetSeconds(self.player.currentItem.duration);
        Float64 seekTime = duration * slider.value;

        [self.player seekToTime:CMTimeMakeWithSeconds(seekTime, NSEC_PER_SEC)];

        // 重新添加时间观察者
        __weak typeof(self) weakSelf = self;
        self.timeObserver = [self.player addPeriodicTimeObserverForInterval:CMTimeMake(1, 1)
                                                                      queue:dispatch_get_main_queue()
                                                                 usingBlock:^(CMTime time) {
            [weakSelf updateProgress];
        }];
    }
}

- (void)playerItemDidReachEnd:(NSNotification *)notification {
    [self.player seekToTime:kCMTimeZero];
    [self pause];
}

- (void)toggleControls {
    self.controlsHidden = !self.controlsHidden;

    [UIView animateWithDuration:0.3 animations:^{
        self.controlsView.alpha = self.controlsHidden ? 0.0 : 1.0;
    }];

    if (!self.controlsHidden) {
        [self hideControlsAfterDelay];
    }
}

- (void)hideControlsAfterDelay {
    [NSObject cancelPreviousPerformRequestsWithTarget:self selector:@selector(hideControls) object:nil];
    [self performSelector:@selector(hideControls) withObject:nil afterDelay:3.0];
}

- (void)hideControls {
    [UIView animateWithDuration:0.3 animations:^{
        self.controlsView.alpha = 0.0;
    }];
    self.controlsHidden = YES;
}

- (void)dealloc {
    if (self.timeObserver) {
        [self.player removeTimeObserver:self.timeObserver];
    }
    [[NSNotificationCenter defaultCenter] removeObserver:self];
}

@end

VideoViewController.h文件

复制代码

#import <UIKit/UIKit.h>

NS_ASSUME_NONNULL_BEGIN

@interface VideoViewController : UIViewController

@end

NS_ASSUME_NONNULL_END

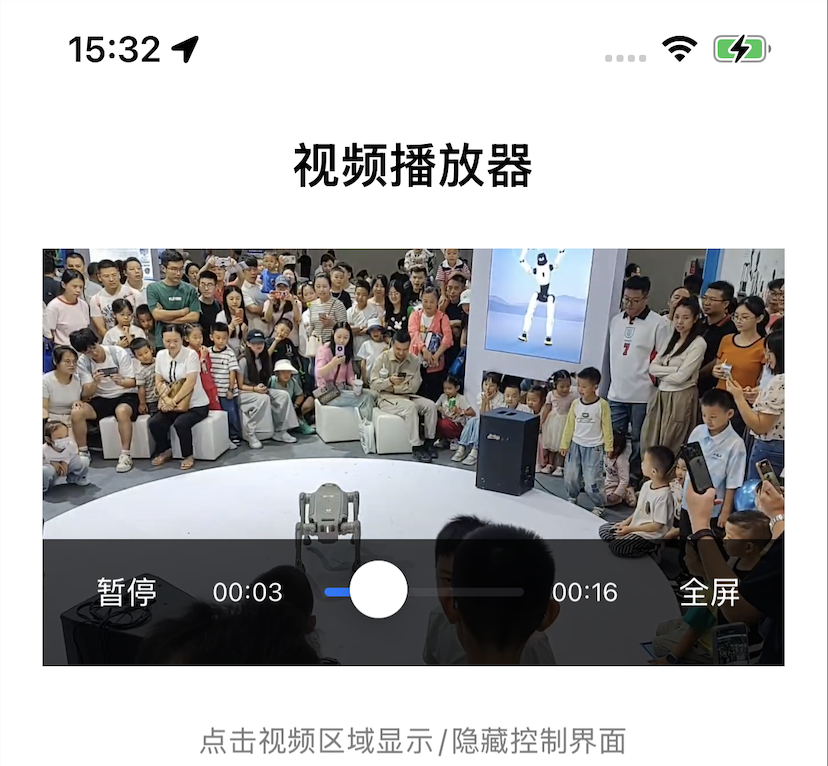

VideoViewController.m文件

复制代码

#import "VideoViewController.h"
#import "VideoPlayer.h"

@interface VideoViewController ()

@property (strong, nonatomic) VideoPlayer *videoPlayer;

@end

@implementation VideoViewController

- (void)viewDidLoad {
    [super viewDidLoad];

    [self setupUI];
    [self setupVideoPlayer];
}

- (void)setupUI {
    self.view.backgroundColor = [UIColor whiteColor];

    // 创建标题
    UILabel *titleLabel = [[UILabel alloc] init];
    titleLabel.text = @"视频播放器";
    titleLabel.font = [UIFont boldSystemFontOfSize:24];
    titleLabel.textAlignment = NSTextAlignmentCenter;
    titleLabel.frame = CGRectMake(0, 60, self.view.bounds.size.width, 40);
    [self.view addSubview:titleLabel];
}

- (void)setupVideoPlayer {
    // 创建视频播放器
    CGFloat playerWidth = self.view.bounds.size.width - 40;
    CGFloat playerHeight = playerWidth * 9.0 / 16.0; // 16:9 比例

    self.videoPlayer = [[VideoPlayer alloc] initWithFrame:CGRectMake(20, 120, playerWidth, playerHeight)];
    [self.view addSubview:self.videoPlayer];

    // 使用本地视频文件或网络视频URL
    NSURL *videoURL = nil;

    // 方式1: 使用本地视频文件 (需要将视频文件添加到项目中)
    NSString *localVideoPath = [[NSBundle mainBundle] pathForResource:@"sample" ofType:@"mp4"];
    if (localVideoPath) {
        videoURL = [NSURL fileURLWithPath:localVideoPath];
    } else {
        // 方式2: 使用网络视频URL
        videoURL = [NSURL URLWithString:@"https://example.com/sample.mp4"];

        // 方式3: 使用测试视频URL (这是一个公开的测试视频)
        //videoURL = [NSURL URLWithString:@"https://commondatastorage.googleapis.com/gtv-videos-bucket/sample/BigBuckBunny.mp4"];

    }

    if (videoURL) {
        [self.videoPlayer setupPlayerWithURL:videoURL];
    } else {
        NSLog(@"无法找到视频文件");
    }

    // 添加说明标签
    UILabel *instructionLabel = [[UILabel alloc] init];
    instructionLabel.text = @"点击视频区域显示/隐藏控制界面";
    instructionLabel.font = [UIFont systemFontOfSize:14];
    instructionLabel.textAlignment = NSTextAlignmentCenter;
    instructionLabel.textColor = [UIColor grayColor];
    instructionLabel.frame = CGRectMake(20, CGRectGetMaxY(self.videoPlayer.frame) + 20,
                                      self.view.bounds.size.width - 40, 30);
    [self.view addSubview:instructionLabel];
}

- (void)viewWillAppear:(BOOL)animated {
    [super viewWillAppear:animated];

    // 开始播放视频
    [self.videoPlayer play];
}

- (void)viewWillDisappear:(BOOL)animated {
    [super viewWillDisappear:animated];

    // 暂停播放视频
    [self.videoPlayer pause];
}

- (BOOL)shouldAutorotate {
    return YES;
}

- (UIInterfaceOrientationMask)supportedInterfaceOrientations {
    return UIInterfaceOrientationMaskPortrait;
}

@end

info.plist

复制代码

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">

    <dict>
        <key>NSAllowsArbitraryLoads</key>
        <true/>
    </dict>
</plist>

三、源码分析

VideoPlayer.h 头文件分析

属性声明

objectivec

@property (strong, nonatomic) AVPlayer *player; // AVFoundation播放器核心

@property (strong, nonatomic) AVPlayerLayer *playerLayer; // 视频显示图层

@property (strong, nonatomic) UIButton *playPauseButton; // 播放/暂停按钮

@property (strong, nonatomic) UIButton *fullscreenButton; // 全屏按钮(目前无功能)

@property (strong, nonatomic) UIView *controlsView; // 控制界面容器

@property (strong, nonatomic) UISlider *progressSlider; // 进度条

@property (strong, nonatomic) UILabel *currentTimeLabel; // 当前时间显示

@property (strong, nonatomic) UILabel *totalTimeLabel; // 总时间显示

公共方法

objectivec

(void)setupPlayerWithURL:(NSURL *)videoURL; // 初始化播放器并设置视频URL
(void)play; // 开始播放
(void)pause; // 暂停播放
(void)togglePlayPause; // 切换播放/暂停状态

VideoPlayer.m 实现文件分析

初始化函数

objectivec

(instancetype)initWithFrame:(CGRect)frame {

self = $super initWithFrame:frame$ ;

if (self) {

$self setupUI$ ; // 初始化用户界面

$self setupGestures$ ; // 设置手势识别

}

return self;

}

界面设置函数

objectivec

(void)setupUI {

// 设置黑色背景

self.backgroundColor = $UIColor blackColor$ ;

// 创建播放器图层

self.playerLayer = $AVPlayerLayer playerLayerWithPlayer:nil$ ;

self.playerLayer.videoGravity = AVLayerVideoGravityResizeAspect; // 保持视频比例

$self.layer addSublayer:self.playerLayer$ ;

// 创建半透明控制界面

self.controlsView = $\[UIView alloc$ init];

self.controlsView.backgroundColor = $UIColor colorWithWhite:0.0 alpha:0.7$ ;

// 创建播放/暂停按钮

self.playPauseButton = $UIButton buttonWithType:UIButtonTypeSystem$ ;

$self.playPauseButton setTitle:@"播放" forState:UIControlStateNormal$ ;

$self.playPauseButton addTarget:self action:@selector(togglePlayPause) forControlEvents:UIControlEventTouchUpInside$ ;

// 创建进度条并绑定事件

self.progressSlider = $\[UISlider alloc$ init];

$self.progressSlider addTarget:self action:@selector(sliderValueChanged:) forControlEvents:UIControlEventValueChanged$ ;

$self.progressSlider addTarget:self action:@selector(sliderTouchUpInside:) forControlEvents:UIControlEventTouchUpInside$ ;

// 创建时间显示标签

self.currentTimeLabel = $\[UILabel alloc$ init];

self.currentTimeLabel.text = @"00:00";

self.totalTimeLabel = $\[UILabel alloc$ init];

self.totalTimeLabel.text = @"00:00";

// 创建全屏按钮(目前只有UI，无功能)

self.fullscreenButton = $UIButton buttonWithType:UIButtonTypeSystem$ ;

$self.fullscreenButton setTitle:@"全屏" forState:UIControlStateNormal$ ;

// 初始化控制界面状态并设置自动隐藏

self.controlsHidden = NO;

$self hideControlsAfterDelay$ ;

}

手势设置函数

objectivec

(void)setupGestures {

// 添加点击手势用于显示/隐藏控制界面

UITapGestureRecognizer *tapGesture = $\[UITapGestureRecognizer alloc$

initWithTarget:self

action:@selector(toggleControls)];

$self addGestureRecognizer:tapGesture$ ;

}

布局函数

objectivec

(void)layoutSubviews {

$super layoutSubviews$ ;

// 设置播放器图层充满整个视图

self.playerLayer.frame = self.bounds;

// 设置控制界面在底部

CGFloat controlsHeight = 60.0;

self.controlsView.frame = CGRectMake(0, self.bounds.size.height - controlsHeight,

self.bounds.size.width, controlsHeight);

// 详细布局各个控件的位置和大小

// 从左到右：播放按钮 -> 当前时间 -> 进度条 -> 总时间 -> 全屏按钮

}

播放器初始化函数

objectivec

(void)setupPlayerWithURL:(NSURL *)videoURL {

// 创建播放项目

AVPlayerItem *playerItem = $AVPlayerItem playerItemWithURL:videoURL$ ;

// 创建播放器实例

self.player = $AVPlayer playerWithPlayerItem:playerItem$ ;

self.playerLayer.player = self.player;

// 添加时间观察者，每秒更新一次进度

__weak typeof(self) weakSelf = self;

self.timeObserver = [self.player addPeriodicTimeObserverForInterval:CMTimeMake(1, 1)

queue:dispatch_get_main_queue()

usingBlock:^(CMTime time) {

$weakSelf updateProgress$ ; // 更新进度显示

}];

// 监听播放结束通知

$\[NSNotificationCenter defaultCenter$ addObserver:self

selector:@selector(playerItemDidReachEnd:)

name:AVPlayerItemDidPlayToEndTimeNotification

object:playerItem];

}

进度更新函数

objectivec

(void)updateProgress {

if (self.player.currentItem.status == AVPlayerItemStatusReadyToPlay) {

// 获取当前播放时间和总时长

Float64 currentTime = CMTimeGetSeconds(self.player.currentTime);

Float64 duration = CMTimeGetSeconds(self.player.currentItem.duration);

if (isfinite(duration)) {

// 更新进度条值

self.progressSlider.value = currentTime / duration;

// 更新时间显示

self.currentTimeLabel.text = $self timeStringFromSeconds:currentTime$ ;

self.totalTimeLabel.text = $self timeStringFromSeconds:duration$ ;

}

时间格式化函数

objectivec

(NSString *)timeStringFromSeconds:(Float64)seconds {

// 将秒数转换为 "分:秒" 格式

NSInteger minutes = (NSInteger)seconds / 60;

NSInteger secs = (NSInteger)seconds % 60;

return $NSString stringWithFormat:@"%02ld:%02ld", (long)minutes, (long)secs$ ;

}

播放控制函数

objectivec

(void)play {

$self.player play$ ;

$self.playPauseButton setTitle:@"暂停" forState:UIControlStateNormal$ ; // 更新按钮文字

}

(void)pause {

$self.player pause$ ;

$self.playPauseButton setTitle:@"播放" forState:UIControlStateNormal$ ; // 更新按钮文字

}

(void)togglePlayPause {

// 根据当前播放状态切换

if (self.player.rate == 0.0) {

$self play$ ;

} else {

$self pause$ ;

}

进度条控制函数

objectivec

(void)sliderValueChanged:(UISlider *)slider {

// 拖动进度条时移除时间观察者，避免冲突

$self.player removeTimeObserver:self.timeObserver$ ;

}

(void)sliderTouchUpInside:(UISlider *)slider {

if (self.player.currentItem.status == AVPlayerItemStatusReadyToPlay) {

// 计算要跳转的时间点

Float64 duration = CMTimeGetSeconds(self.player.currentItem.duration);

Float64 seekTime = duration * slider.value;

// 执行跳转

$self.player seekToTime:CMTimeMakeWithSeconds(seekTime, NSEC_PER_SEC)$ ;

// 重新添加时间观察者

__weak typeof(self) weakSelf = self;

self.timeObserver = [self.player addPeriodicTimeObserverForInterval:CMTimeMake(1, 1)

queue:dispatch_get_main_queue()

usingBlock:^(CMTime time) {

$weakSelf updateProgress$ ;

}];

}

播放结束处理函数

objectivec

(void)playerItemDidReachEnd:(NSNotification *)notification {

// 播放结束时回到开头并暂停

$self.player seekToTime:kCMTimeZero$ ;

$self pause$ ;

}

控制界面显示/隐藏函数

objectivec

(void)toggleControls {

// 切换控制界面显示状态

self.controlsHidden = !self.controlsHidden;

[UIView animateWithDuration:0.3 animations:^{

self.controlsView.alpha = self.controlsHidden ? 0.0 : 1.0;

}];

// 如果显示控制界面，设置3秒后自动隐藏

if (!self.controlsHidden) {

$self hideControlsAfterDelay$ ;

}

(void)hideControlsAfterDelay {

// 取消之前的隐藏请求，避免重复

$NSObject cancelPreviousPerformRequestsWithTarget:self selector:@selector(hideControls) object:nil$ ;

// 3秒后执行隐藏

$self performSelector:@selector(hideControls) withObject:nil afterDelay:3.0$ ;

}

(void)hideControls {

// 隐藏控制界面

[UIView animateWithDuration:0.3 animations:^{

self.controlsView.alpha = 0.0;

}];

self.controlsHidden = YES;

}

清理函数

objectivec

(void)dealloc {

// 移除时间观察者

if (self.timeObserver) {

$self.player removeTimeObserver:self.timeObserver$ ;

}

// 移除通知观察者

$\[NSNotificationCenter defaultCenter$ removeObserver:self];

}

VideoViewController 分析

主要函数

objectivec

(void)viewDidLoad {

$super viewDidLoad$ ;

$self setupUI$ ; // 设置界面标题

$self setupVideoPlayer$ ; // 初始化视频播放器

}

(void)setupVideoPlayer {

// 创建16:9比例的视频播放器

CGFloat playerWidth = self.view.bounds.size.width - 40;

CGFloat playerHeight = playerWidth * 9.0 / 16.0;

self.videoPlayer = $\[VideoPlayer alloc$ initWithFrame:CGRectMake(20, 120, playerWidth, playerHeight)];

$self.view addSubview:self.videoPlayer$ ;

// 尝试加载视频文件(本地→网络→测试URL)

// 设置播放器并开始播放

}
