若依工作流-包含网关

用户99045017780092025-11-30 9:31

概念

包含网关是一种工作流中的路由节点，它能够同时激活所有符合条件的路径 ，并在汇聚点等待所有被激活的路径执行完成后，才继续向下流转。

以下案例在线体验，ruoyiflow

需求描述

公司全体员工都需要进行"常规项检查"和"抽血化验"，而管理层领导额外需要进行"附加项检查"。

流程设计

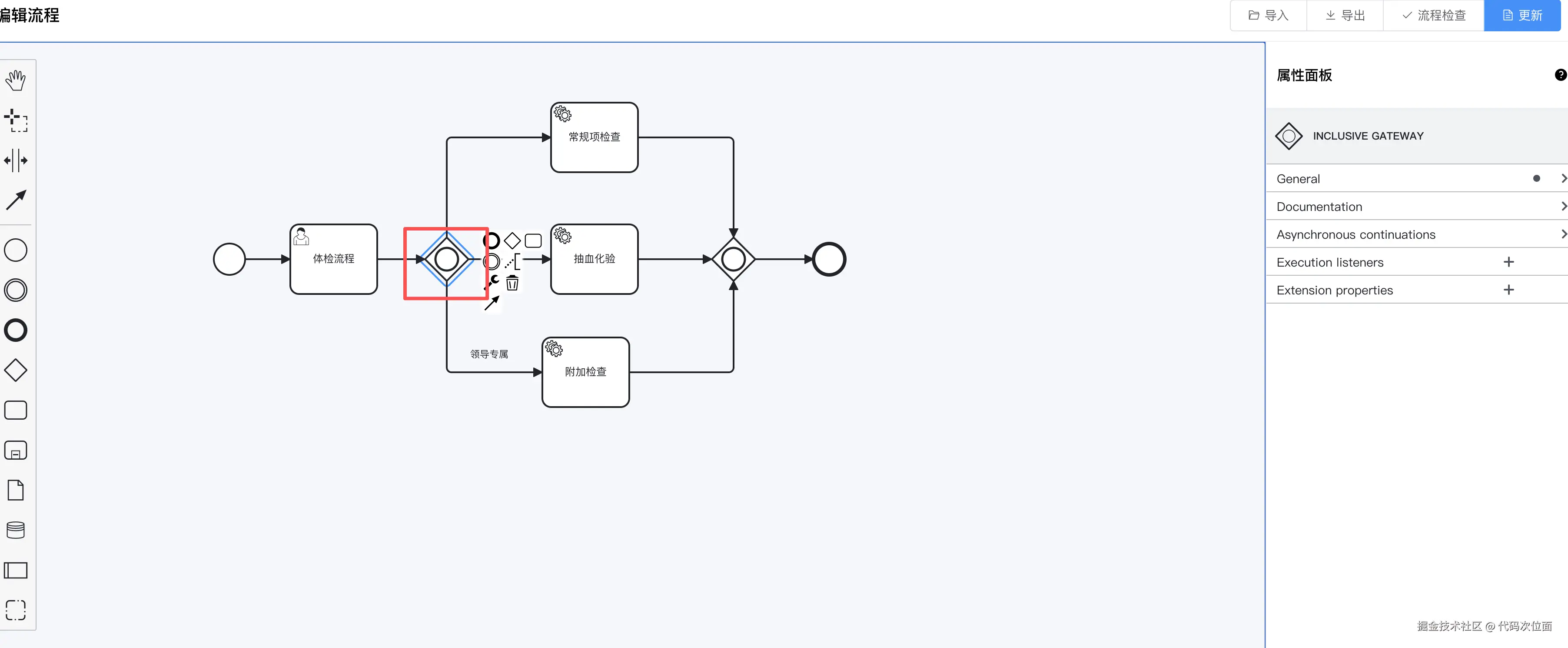

1.用小扳手将网关类型设置为包含网关

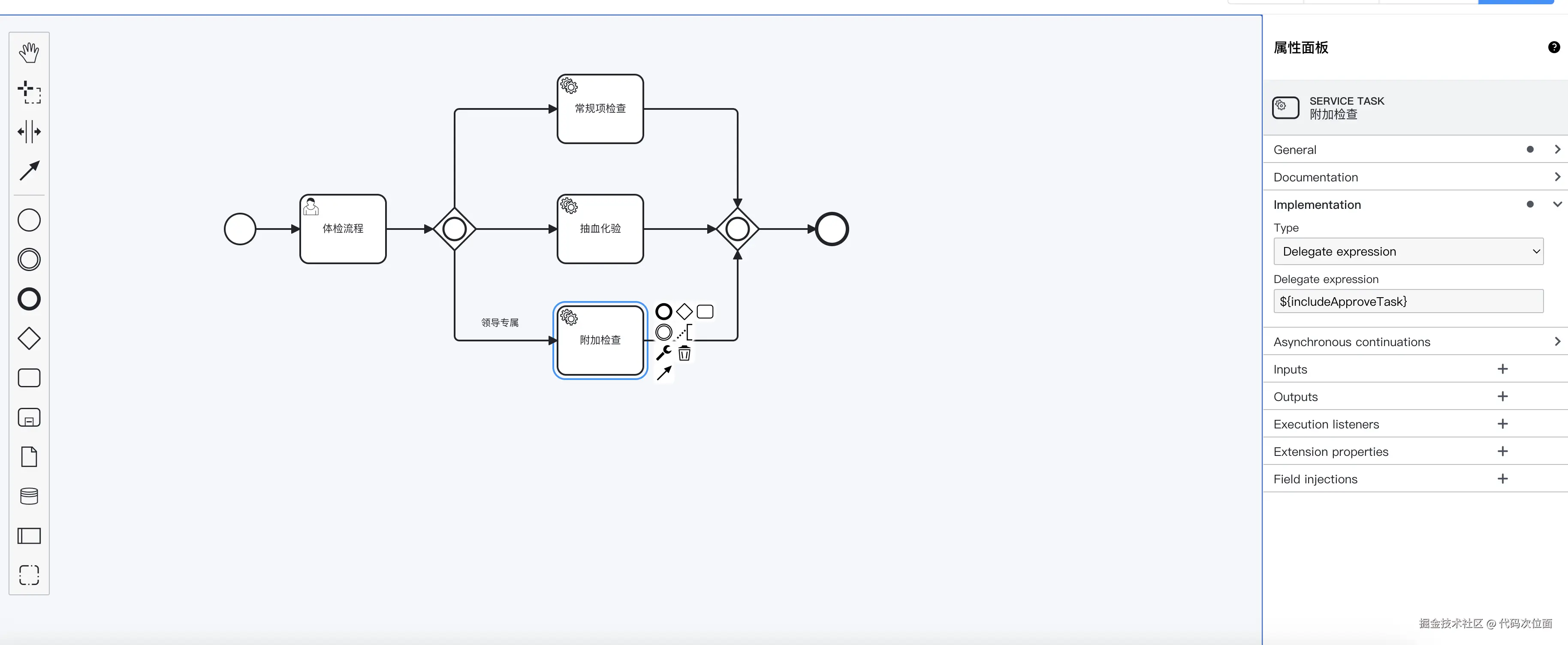

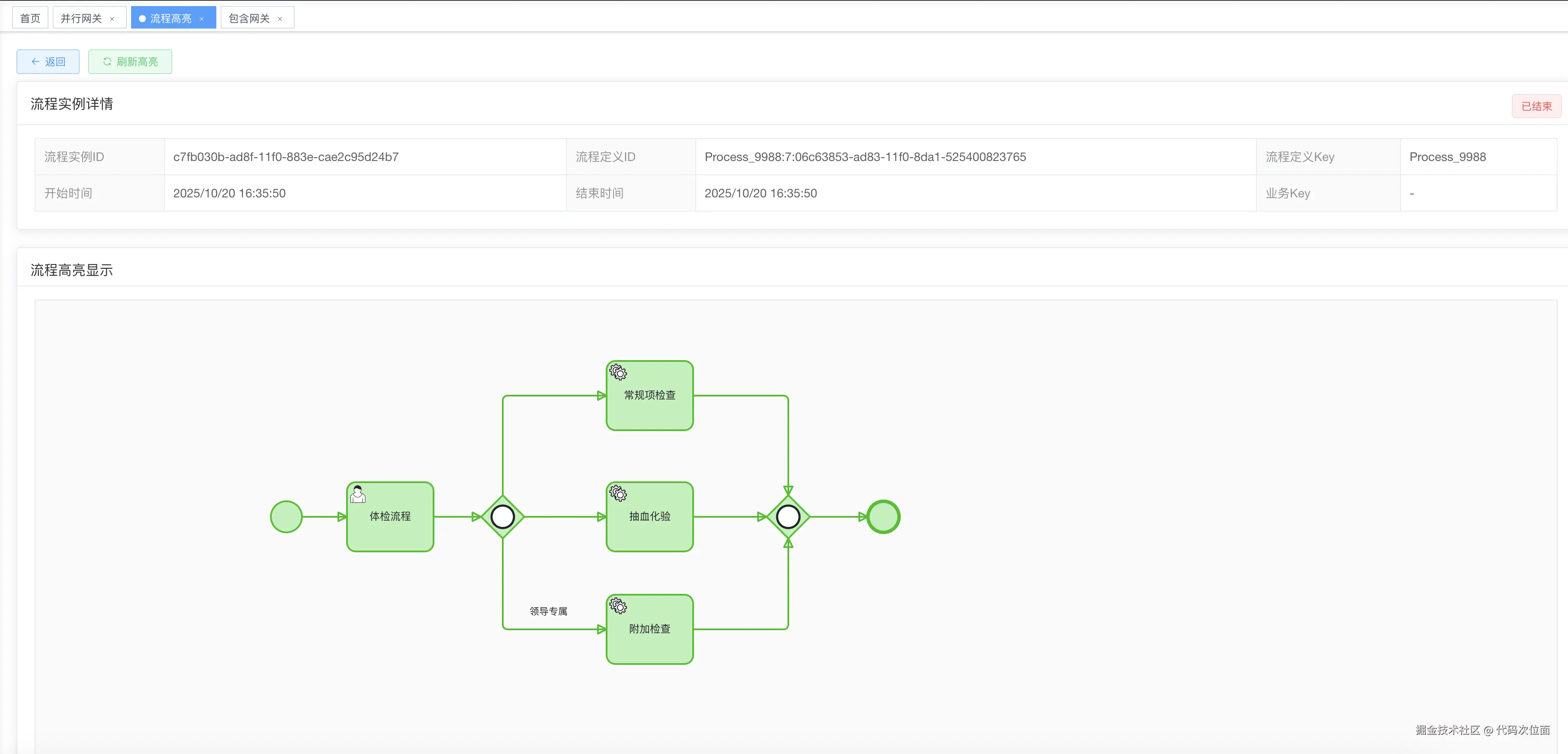

2.分别设计三条流出路径，其中两条是默认路线，即常规检查和抽血化验， 一条是领导专属的附加检查 3.设置服务任务的属性， 这里我们设置为一个测试的方法 4.流程实际运行的结果

bpmn文件

xml 复制代码
<?xml version="1.0" encoding="UTF-8"?>
<bpmn:definitions xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:bpmn="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:dc="http://www.omg.org/spec/DD/20100524/DC" xmlns:camunda="http://camunda.org/schema/1.0/bpmn" xmlns:di="http://www.omg.org/spec/DD/20100524/DI" id="Definitions_1" targetNamespace="http://bpmn.io/schema/bpmn">
  <bpmn:process id="Process_9988" name="体检流程" isExecutable="true">
    <bpmn:startEvent id="Event_0pygc7d">
      <bpmn:outgoing>Flow_06uhglv</bpmn:outgoing>
    </bpmn:startEvent>
    <bpmn:sequenceFlow id="Flow_06uhglv" sourceRef="Event_0pygc7d" targetRef="Activity_1oi7a6w" />
    <bpmn:userTask id="Activity_1oi7a6w" name="体检流程" camunda:assignee="${startUser}">
      <bpmn:extensionElements>
        <camunda:formData>
          <camunda:formField id="userType" label="员工类型" type="long" />
        </camunda:formData>
      </bpmn:extensionElements>
      <bpmn:incoming>Flow_06uhglv</bpmn:incoming>
      <bpmn:outgoing>Flow_1cfkc1x</bpmn:outgoing>
    </bpmn:userTask>
    <bpmn:sequenceFlow id="Flow_1cfkc1x" sourceRef="Activity_1oi7a6w" targetRef="Gateway_082pcsr" />
    <bpmn:inclusiveGateway id="Gateway_082pcsr">
      <bpmn:incoming>Flow_1cfkc1x</bpmn:incoming>
      <bpmn:outgoing>Flow_12o75yq</bpmn:outgoing>
      <bpmn:outgoing>Flow_17y2qrg</bpmn:outgoing>
      <bpmn:outgoing>Flow_0whi5cb</bpmn:outgoing>
    </bpmn:inclusiveGateway>
    <bpmn:sequenceFlow id="Flow_12o75yq" sourceRef="Gateway_082pcsr" targetRef="Activity_0tg7rc8" />
    <bpmn:serviceTask id="Activity_0tg7rc8" name="常规项检查" camunda:delegateExpression="${includeApproveTask}">
      <bpmn:incoming>Flow_12o75yq</bpmn:incoming>
      <bpmn:outgoing>Flow_1gpmmkv</bpmn:outgoing>
    </bpmn:serviceTask>
    <bpmn:sequenceFlow id="Flow_1gpmmkv" sourceRef="Activity_0tg7rc8" targetRef="Gateway_1vlogqd" />
    <bpmn:inclusiveGateway id="Gateway_1vlogqd">
      <bpmn:incoming>Flow_1gpmmkv</bpmn:incoming>
      <bpmn:incoming>Flow_06kg33d</bpmn:incoming>
      <bpmn:incoming>Flow_12i1kyq</bpmn:incoming>
      <bpmn:outgoing>Flow_0s2cs7t</bpmn:outgoing>
    </bpmn:inclusiveGateway>
    <bpmn:endEvent id="Event_0klslb1">
      <bpmn:incoming>Flow_0s2cs7t</bpmn:incoming>
    </bpmn:endEvent>
    <bpmn:sequenceFlow id="Flow_0s2cs7t" sourceRef="Gateway_1vlogqd" targetRef="Event_0klslb1" />
    <bpmn:sequenceFlow id="Flow_17y2qrg" name="领导专属" sourceRef="Gateway_082pcsr" targetRef="Activity_0z4j3c2">
      <bpmn:conditionExpression xsi:type="bpmn:tFormalExpression">${userType==2}</bpmn:conditionExpression>
    </bpmn:sequenceFlow>
    <bpmn:serviceTask id="Activity_0z4j3c2" name="附加检查" camunda:delegateExpression="${includeApproveTask}">
      <bpmn:incoming>Flow_17y2qrg</bpmn:incoming>
      <bpmn:outgoing>Flow_06kg33d</bpmn:outgoing>
    </bpmn:serviceTask>
    <bpmn:sequenceFlow id="Flow_06kg33d" sourceRef="Activity_0z4j3c2" targetRef="Gateway_1vlogqd" />
    <bpmn:sequenceFlow id="Flow_0whi5cb" sourceRef="Gateway_082pcsr" targetRef="Activity_1udv0ib" />
    <bpmn:sequenceFlow id="Flow_12i1kyq" sourceRef="Activity_1udv0ib" targetRef="Gateway_1vlogqd" />
    <bpmn:serviceTask id="Activity_1udv0ib" name="抽血化验" camunda:delegateExpression="${includeApproveTask}">
      <bpmn:incoming>Flow_0whi5cb</bpmn:incoming>
      <bpmn:outgoing>Flow_12i1kyq</bpmn:outgoing>
    </bpmn:serviceTask>
  </bpmn:process>
  <bpmndi:BPMNDiagram id="BPMNDiagram_1">
    <bpmndi:BPMNPlane id="BPMNPlane_1" bpmnElement="Process_9988">
      <bpmndi:BPMNShape id="Event_0pygc7d_di" bpmnElement="Event_0pygc7d">
        <dc:Bounds x="272" y="232" width="36" height="36" />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="Activity_0dmv1pk_di" bpmnElement="Activity_1oi7a6w">
        <dc:Bounds x="360" y="210" width="100" height="80" />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="Gateway_1f5mkme_di" bpmnElement="Gateway_082pcsr">
        <dc:Bounds x="515" y="225" width="50" height="50" />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="Activity_1xhstnt_di" bpmnElement="Activity_0tg7rc8">
        <dc:Bounds x="660" y="70" width="100" height="80" />
        <bpmndi:BPMNLabel />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="Gateway_18xqnd7_di" bpmnElement="Gateway_1vlogqd">
        <dc:Bounds x="845" y="225" width="50" height="50" />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="Event_0klslb1_di" bpmnElement="Event_0klslb1">
        <dc:Bounds x="962" y="232" width="36" height="36" />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="Activity_0mi86gy_di" bpmnElement="Activity_0z4j3c2">
        <dc:Bounds x="660" y="340" width="100" height="80" />
        <bpmndi:BPMNLabel />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="Activity_14rh5fv_di" bpmnElement="Activity_1udv0ib">
        <dc:Bounds x="660" y="210" width="100" height="80" />
        <bpmndi:BPMNLabel />
      </bpmndi:BPMNShape>
      <bpmndi:BPMNEdge id="Flow_06uhglv_di" bpmnElement="Flow_06uhglv">
        <di:waypoint x="308" y="250" />
        <di:waypoint x="360" y="250" />
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="Flow_1cfkc1x_di" bpmnElement="Flow_1cfkc1x">
        <di:waypoint x="460" y="250" />
        <di:waypoint x="515" y="250" />
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="Flow_12o75yq_di" bpmnElement="Flow_12o75yq">
        <di:waypoint x="540" y="225" />
        <di:waypoint x="540" y="110" />
        <di:waypoint x="660" y="110" />
        <bpmndi:BPMNLabel>
          <dc:Bounds x="558" y="180" width="44" height="14" />
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="Flow_1gpmmkv_di" bpmnElement="Flow_1gpmmkv">
        <di:waypoint x="760" y="110" />
        <di:waypoint x="870" y="110" />
        <di:waypoint x="870" y="225" />
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="Flow_0s2cs7t_di" bpmnElement="Flow_0s2cs7t">
        <di:waypoint x="895" y="250" />
        <di:waypoint x="962" y="250" />
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="Flow_17y2qrg_di" bpmnElement="Flow_17y2qrg">
        <di:waypoint x="540" y="275" />
        <di:waypoint x="540" y="380" />
        <di:waypoint x="660" y="380" />
        <bpmndi:BPMNLabel>
          <dc:Bounds x="571" y="353" width="44" height="14" />
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="Flow_06kg33d_di" bpmnElement="Flow_06kg33d">
        <di:waypoint x="760" y="380" />
        <di:waypoint x="870" y="380" />
        <di:waypoint x="870" y="275" />
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="Flow_0whi5cb_di" bpmnElement="Flow_0whi5cb">
        <di:waypoint x="565" y="250" />
        <di:waypoint x="660" y="250" />
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="Flow_12i1kyq_di" bpmnElement="Flow_12i1kyq">
        <di:waypoint x="760" y="250" />
        <di:waypoint x="845" y="250" />
      </bpmndi:BPMNEdge>
    </bpmndi:BPMNPlane>
  </bpmndi:BPMNDiagram>
</bpmn:definitions>

在线体验，ruoyiflow
