Z-Image 发布了，赶紧体验了一把（配套 Modal执行脚本）

一. 前言

这一篇主要是做一个开源工具的附属产品，之前提到过 Modal 这个平台，它时不时有活动可以薅羊毛，并且账号每个月有$30 的额度，是一个不错的体验平台。

然后由于赠送的额度一直没用，所以就简单写了一个工具，用来做一键部署。所以顺带把才发布的 Z-Image 体验了一把。

Modal 使用 : juejin.cn/post/754425...
Modal ComfyUI : juejin.cn/post/754679...

二. 关于用到的材料

需要用到的材料

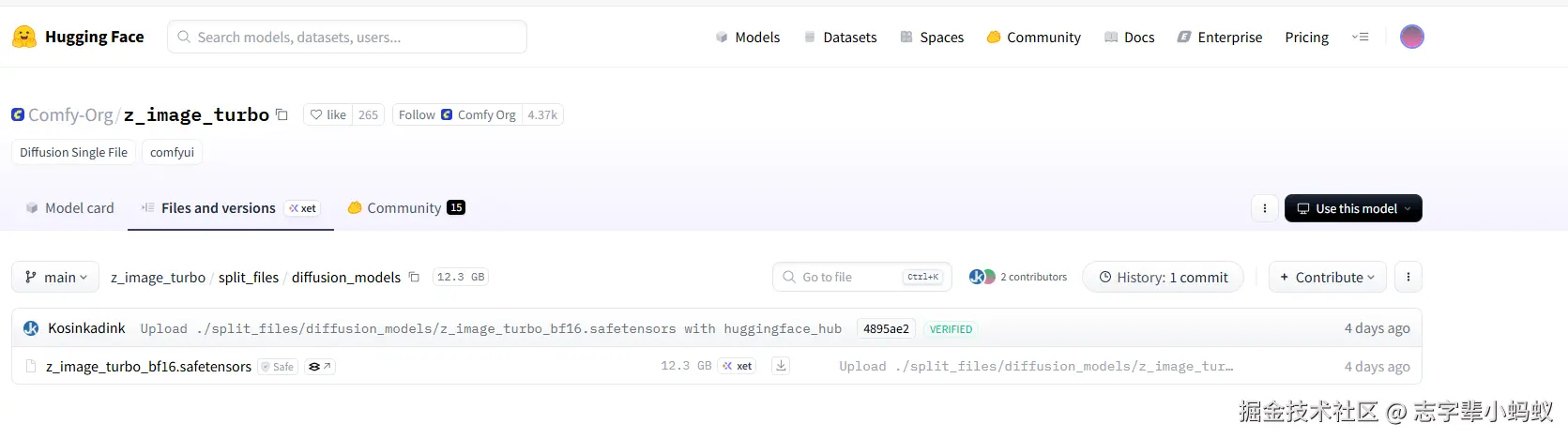

Comfy-Org : Z-Image ComfyUI 版本，主要用于 ComfyUI 部署

qwen_3_4b.safetensors ：文本编码器，自然语言推理与生成，视觉语义转化为符合逻辑的文本描述。
z_image_turbo_bf16.safetensors ：扩散主模型，主要的模型
ae.safetensors ： VAE 解码器，负责底层视觉编码

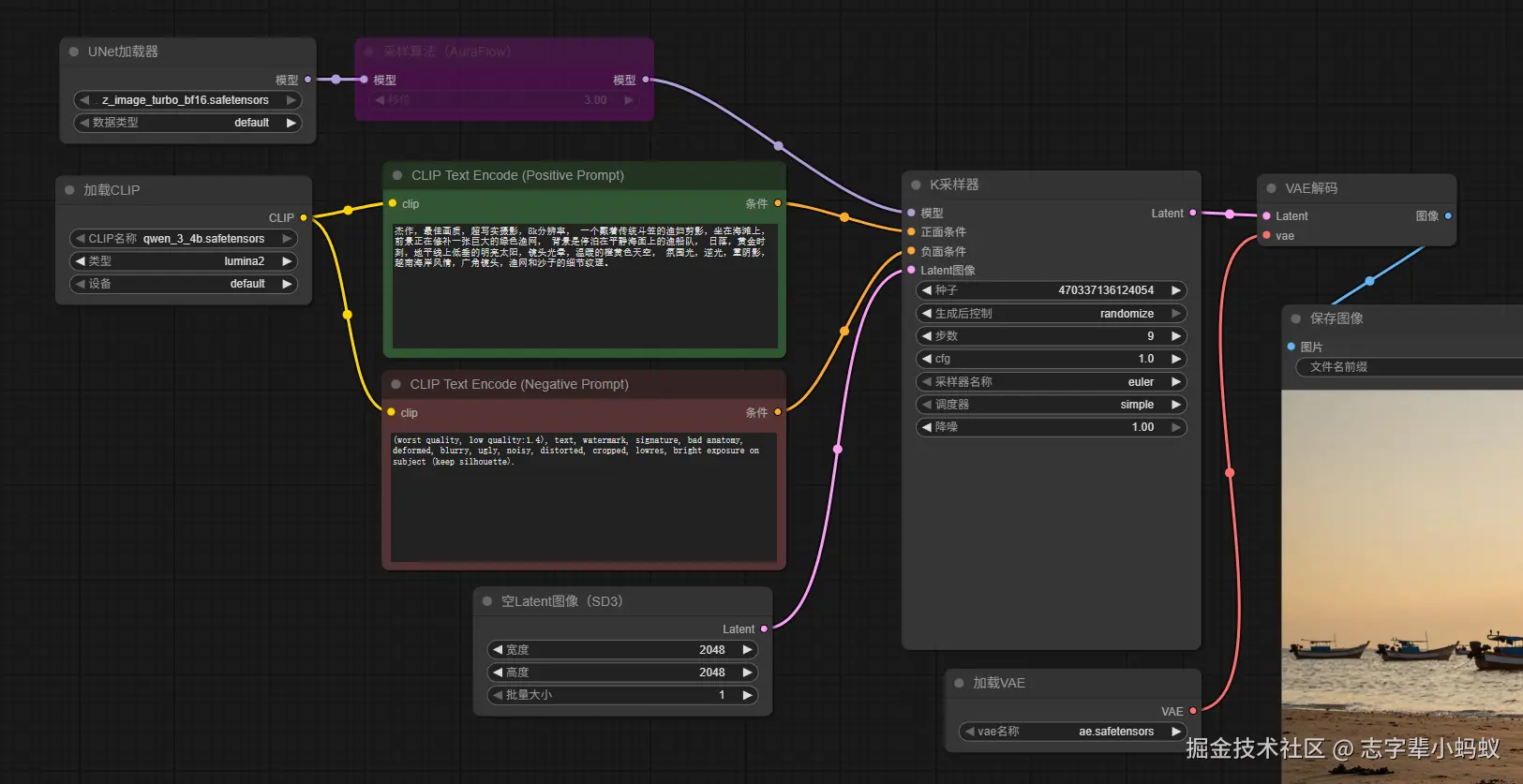

三. 工作流

四. 效果展示

几张图片的效果：

光影和质感都是非常不错的
最重要的是出图很快，没有具体的参数，但是明显比之前 Flux 用起来快一些

总结

简单体验了一下，生产力应该是足够了，出图很快，效果也很好。

开源的模型，你想生成什么都可以。

python 复制代码

# =============================================================================
# Z-Image-Turbo ComfyUI 一键部署服务
# =============================================================================
# 启动命令: modal deploy z_image_turbo_deploy.py
# =============================================================================

import json
import os
import subprocess
from pathlib import Path

import modal

# =============================================================================
# S1: 环境准备 - 构建基础镜像
# =============================================================================
image = (
    modal.Image.debian_slim(python_version="3.11")
    .apt_install("git", "wget", "curl")
    .pip_install(
        "fastapi[standard]==0.115.4",
        "comfy-cli==1.5.3",
        "requests==2.32.3",
    )
    .run_commands("comfy --skip-prompt install --fast-deps --nvidia")
)

# HuggingFace Secret
try:
    hf_secret = modal.Secret.from_name("huggingface-secret")
except modal.exception.NotFoundError:
    hf_secret = None


# =============================================================================
# S2: 模型下载 - 从 Tongyi-MAI/Z-Image-Turbo 下载 3 个核心模型
# =============================================================================
def hf_download():
    """
    下载 Z-Image-Turbo 模型:
    - z_image_turbo_bf16.safetensors (主扩散模型)
    - qwen_3_4b.safetensors (CLIP 文本编码器)
    - ae.safetensors (VAE 解码器)
    """
    from huggingface_hub import hf_hub_download

    hf_token = os.getenv("HF_TOKEN")
    repo_id = "Comfy-Org/z_image_turbo"

    print(f"📦 从 {repo_id} 下载模型...")

    # 模型配置列表 (文件路径包含 split_files/ 前缀)
    models = [
        {
            "filename": "split_files/diffusion_models/z_image_turbo_bf16.safetensors",
            "target_dir": "/root/comfy/ComfyUI/models/diffusion_models",
            "target_name": "z_image_turbo_bf16.safetensors",
            "desc": "主扩散模型"
        },
        {
            "filename": "split_files/text_encoders/qwen_3_4b.safetensors",
            "target_dir": "/root/comfy/ComfyUI/models/clip",
            "target_name": "qwen_3_4b.safetensors",
            "desc": "CLIP 文本编码器"
        },
        {
            "filename": "split_files/vae/ae.safetensors",
            "target_dir": "/root/comfy/ComfyUI/models/vae",
            "target_name": "ae.safetensors",
            "desc": "VAE 解码器"
        }
    ]

    for model in models:
        print(f"📥 下载 {model['desc']}: {model['target_name']}...")

        cached_path = hf_hub_download(
            repo_id=repo_id,
            filename=model["filename"],
            cache_dir="/cache",
            token=hf_token
        )

        Path(model["target_dir"]).mkdir(parents=True, exist_ok=True)
        target_path = f"{model['target_dir']}/{model['target_name']}"
        subprocess.run(f"ln -sf {cached_path} {target_path}", shell=True, check=True)
        print(f"   ✅ {model['desc']} 完成")

    print("🎉 所有模型下载完成!")


def create_workflow_file():
    """创建工作流 JSON 文件"""
    workflow = {
        "1": {
            "class_type": "UNETLoader",
            "inputs": {
                "unet_name": "z_image_turbo_bf16.safetensors",
                "weight_dtype": "default"
            }
        },
        "2": {
            "class_type": "DualCLIPLoader",
            "inputs": {
                "clip_name1": "qwen_3_4b.safetensors",
                "clip_name2": "qwen_3_4b.safetensors",
                "type": "z_image"
            }
        },
        "3": {
            "class_type": "VAELoader",
            "inputs": {"vae_name": "ae.safetensors"}
        },
        "4": {
            "class_type": "CLIPTextEncode",
            "inputs": {
                "text": "一位美丽的亚洲女性，照片级真实，自然光线，高清细节",
                "clip": ["2", 0]
            }
        },
        "5": {
            "class_type": "CLIPTextEncode",
            "inputs": {
                "text": "低质量，模糊，畸形，丑陋，文字，水印",
                "clip": ["2", 0]
            }
        },
        "6": {
            "class_type": "EmptyLatentImage",
            "inputs": {"width": 1024, "height": 1024, "batch_size": 1}
        },
        "7": {
            "class_type": "KSampler",
            "inputs": {
                "model": ["1", 0],
                "positive": ["4", 0],
                "negative": ["5", 0],
                "latent_image": ["6", 0],
                "seed": 42,
                "steps": 4,
                "cfg": 1.0,
                "sampler_name": "euler",
                "scheduler": "simple",
                "denoise": 1.0
            }
        },
        "8": {
            "class_type": "VAEDecode",
            "inputs": {"samples": ["7", 0], "vae": ["3", 0]}
        },
        "9": {
            "class_type": "SaveImage",
            "inputs": {"filename_prefix": "z_image_turbo", "images": ["8", 0]}
        }
    }

    Path("/root/workflow_api.json").write_text(json.dumps(workflow, ensure_ascii=False, indent=2))
    print("📝 工作流文件已创建")


# =============================================================================
# S3: 服务配置
# =============================================================================
vol = modal.Volume.from_name("z-image-turbo-test-cache", create_if_missing=True)

image = (
    image.pip_install("huggingface_hub[hf_transfer]==0.34.4")
    .env({"HF_HUB_ENABLE_HF_TRANSFER": "1"})
    .run_function(
        hf_download,
        volumes={"/cache": vol},
        secrets=[hf_secret] if hf_secret else []
    )
    .run_function(create_workflow_file)
)

app = modal.App(name="z-image-turbo-test", image=image)


# =============================================================================
# S4: UI 服务
# =============================================================================
@app.function(
    max_containers=1,
    gpu="L40S",
    volumes={"/cache": vol},
    timeout=86400
)
@modal.concurrent(max_inputs=10)
@modal.web_server(8000, startup_timeout=60)
def ui():
    """ComfyUI Web 界面"""
    print("🌐 启动 Z-Image-Turbo Web 界面...")
    subprocess.Popen("comfy launch -- --listen 0.0.0.0 --port 8000", shell=True)


# =============================================================================
# S5: 本地入口点
# =============================================================================
@app.local_entrypoint()
def main():
    print("=" * 60)
    print("Z-Image-Turbo ComfyUI 一键部署")
    print("=" * 60)
    print("\n📦 模型来源: Comfy-Org/z_image_turbo")
    print("\n📋 已下载模型:")
    print("   - z_image_turbo_bf16.safetensors (主扩散模型)")
    print("   - qwen_3_4b.safetensors (CLIP 文本编码器)")
    print("   - ae.safetensors (VAE 解码器)")
    print("\n📌 部署命令: modal deploy z_image_turbo_deploy.py")
    print("=" * 60)

部署成功后：

python 复制代码

PS D:\code\Modal安装\modal-manager> modal deploy z_image_turbo_deploy.py
Building image im-RuODNKSpmlSj8WWyALvgT8

=> Step 0: running function 'hf_download'
📦 从 Comfy-Org/z_image_turbo 下载模型...
📥 下载 主扩散模型: z_image_turbo_bf16.safetensors...
   ✅ 主扩散模型 完成
📥 下载 CLIP 文本编码器: qwen_3_4b.safetensors...
   ✅ CLIP 文本编码器 完成
📥 下载 VAE 解码器: ae.safetensors...
   ✅ VAE 解码器 完成
🎉 所有模型下载完成!
Saving image...
Image saved, took 1.50s
Finished image build for im-RuODNKSpmlSj8WWyALvgT8
Building image im-KblbHI0Rx9z0J54HpxvUH3

=> Step 0: running function 'create_workflow_file'
📝 工作流文件已创建
Saving image...
Image saved, took 1.21s
Finished image build for im-KblbHI0Rx9z111HpxvUH3
✓ Created objects.
├── 🔨 Created mount D:\code\学习资料\Modal安装\modal-manager\z_image_turbo_deploy.py
├── 🔨 Created function hf_download.
├── 🔨 Created function create_workflow_file.
└── 🔨 Created web function ui => https://aubreyce5ju45p2le3t--z-image-turbo-test-ui.modal.run
✓ App deployed in 106.760s! 🎉

View Deployment: https://modal.com/apps/aubreyce5ju45p2le3t/main/deployed/z-image-turbo-test
